USER MANUAL
Malekko
MALEKKO HEAVY INDUSTRY CORPORATION
1001 South Riviera Circle – Cedar Park, TX 78613 – 512 431 5428 Rev A
Page 2
CONTROLS AND CONNECTIONS
4
5
1
2
6
3
1. Input – You know what this is right?
2. Output – see item #1
3. Footswitch On/O – Press the footswitch to turn your tremolo on or o. When the LED is lit
the eect is on.
4. Speed – Adjusts the tremolo speed.
5. Depth – Adjusts the intensity of the tremolo eect.
6. 9V DC Power Supply Input – Use a 9VDC 200ma 2.1 negative tip regulated adapter (not
included).
Page 3
Warning – Please read the following:
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Do not use this apparatus near water.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
7. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
8. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
9. Unplug this apparatus during lightning storms or when
unused for long periods of time.
10. No user serviceable parts inside. Refer all servicing to
qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate normally,
or has been dropped.
11. WARNING:To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
12. Refer to labels on the unit, including bottom cover, or other
markings and pertinent information.
Page 4
Using the Internal Gain Trim Pot
Use the internal trim pot to balance or boost the eect volume when engaged.
We’ve included this internal trim pot to adjust your Trem’s output gain when the eect is engaged.
Simply ip the pedal over, unscrew the four retaining screws (screwdriver not included), and remove

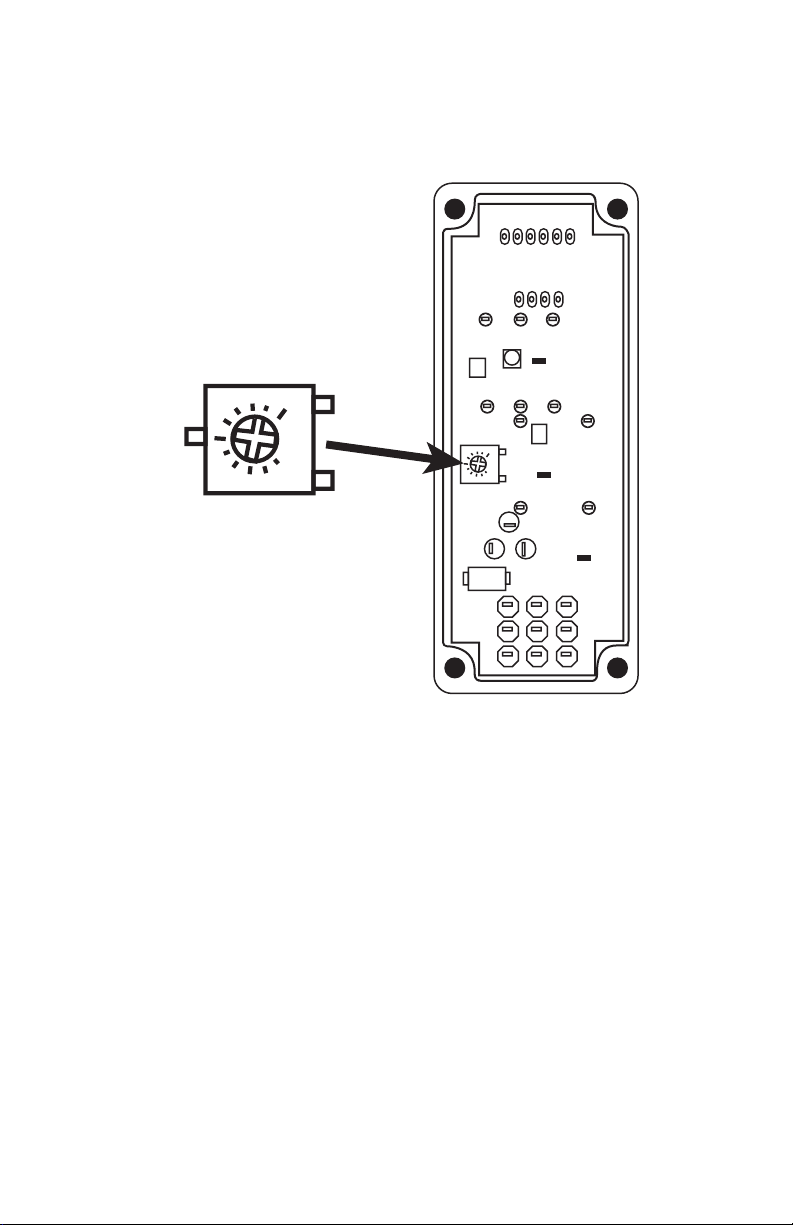

the bottom cover to reveal a tiny volume trim pot on the center left-hand side. Reference diagram
above.
Turning clockwise increases the output level. We recommend adjusting the level to match the output
volume of the signal when the pedal is o or you can add a little boost so this eect jumps out when
engaged. The choice is yours.
