CONTROLS AND CONNECTIONS
4
5
1
2
6
3

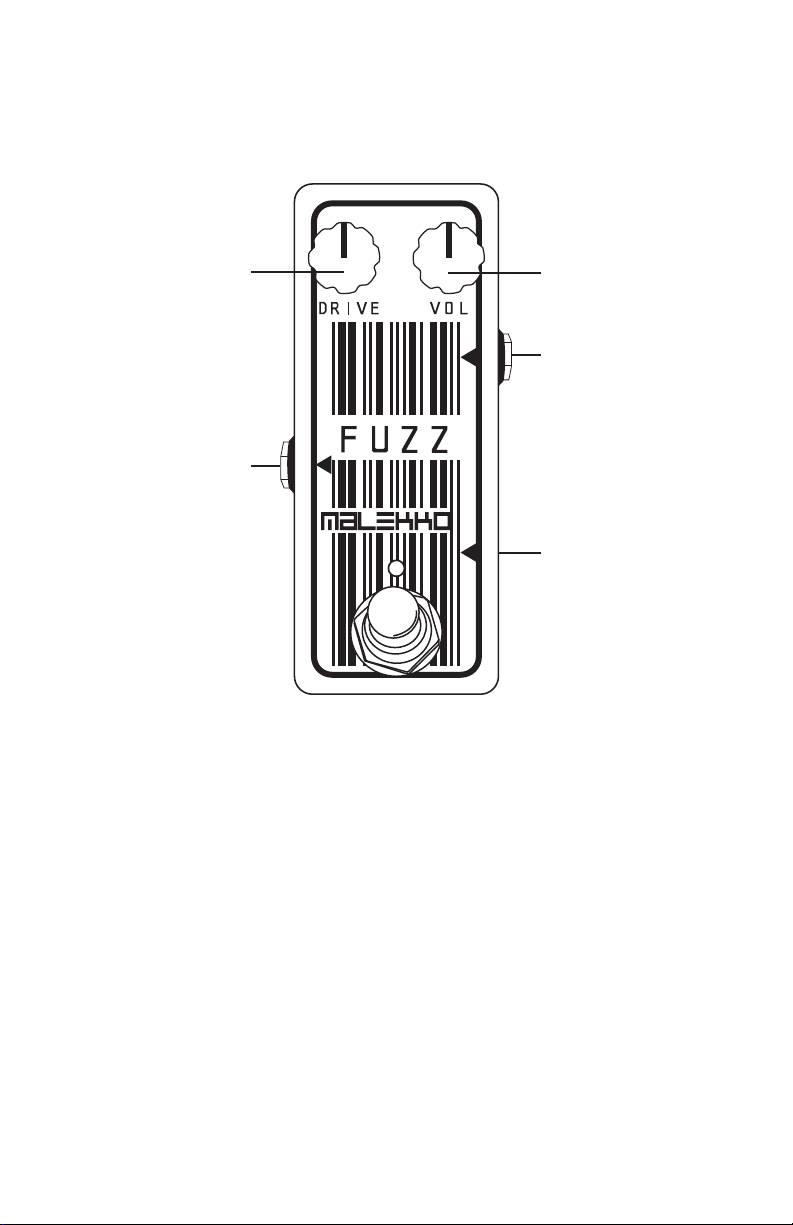

1. Input – You know what this is right?
2. Output – see item #1
3. Footswitch On/O – Press the footswitch to turn your fuzz on or o. When the LED is lit the
eect is on.
4. Fuzz – Turning clockwise increases the amount of Fuzz. Crank it and Fuzz out dude!
5. Volume – Adjusts the output volume level. Higher settings will yield a signal boost.
6. 9V DC Power Supply Input – Use a 9VDC 200ma 2.1 negative tip regulated adapter (not
included).
Page 3
Warning – Please read the following:
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Do not use this apparatus near water.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
7. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
8. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
9. Unplug this apparatus during lightning storms or when
unused for long periods of time.
10. No user serviceable parts inside. Refer all servicing to
qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate normally,
or has been dropped.
11. WARNING:To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
12. Refer to labels on the unit, including bottom cover, or other
markings and pertinent information.
Page 4
Using the Internal 3 Position Switch
Position
1
2
3
3 Fuzzes in 1 Pedal!

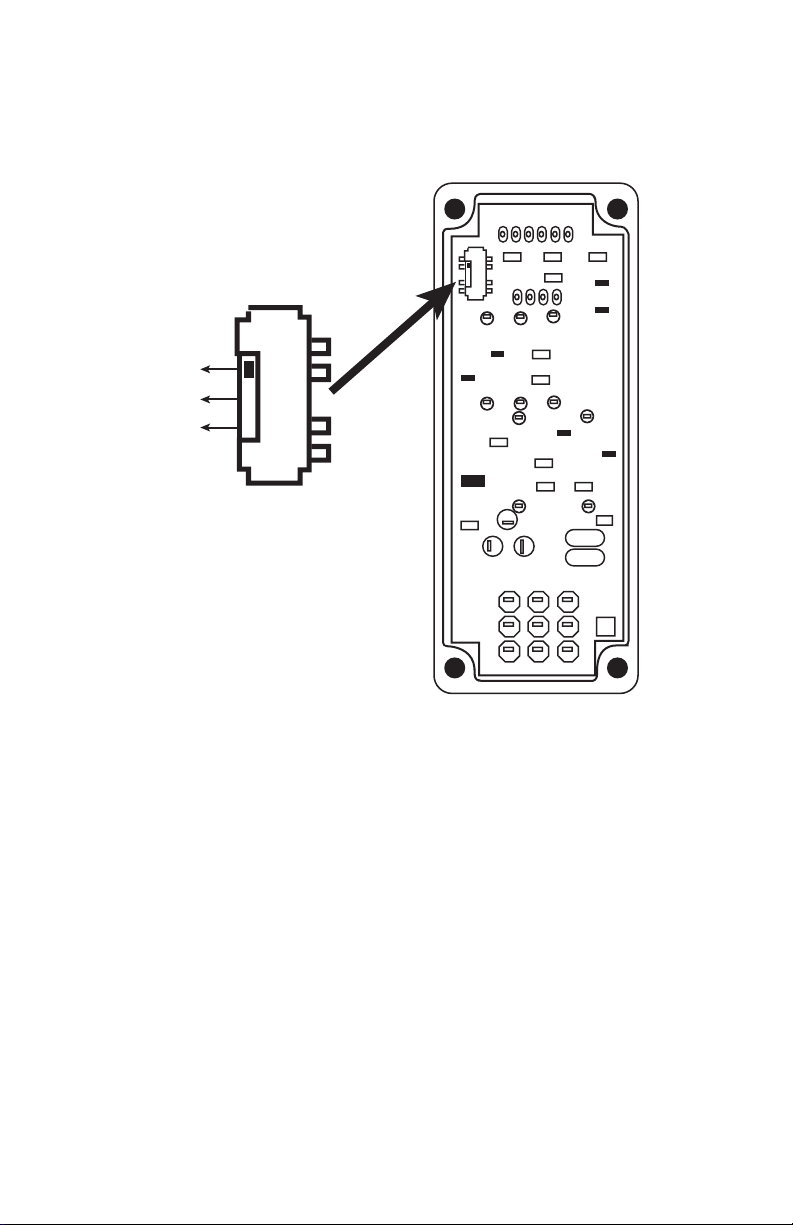

We’ve included an internal mini switch that unleashes the true power of the FUZZ! Simply ip the
pedal over, unscrew the four retaining screws (screwdriver not included), and remove the bottom
cover to reveal a tiny three-position switch on the upper left-hand side! Reference diagram above.
Position 1 gives you a sweet octave fuzz.
Position 2 activates tones 1 & 3 at the same time!! This parallel arrangement is super heavy and
crushing!
Position 3 gives you a heavier “scooped” tone. Engineered to be searing and musical.
