BASIC OPERATION AND SAFETY

1. Connect to an industry standard 9 Volt DC power supply!Incorrect voltage and
AC power supplies will damage your pedal and void the manufacturer’s warranty!
We also recommend using our Malekko 9 Volt Wall Wart, available through our
website.

2. Do not use this apparatus near water.

3. Clean only with dry cloth.

4. Do not block any ventilation openings. Install in accordance with the manufactur­er’s instructions.

5. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.

6. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.

7. Unplug this apparatus during lightning storms or when unused for long periods
of time.

8. No user serviceable parts inside. Refer all servicing to qualified service person­nel. Servicing is required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.

9. WARNING:To reduce the risk of fire or electric shock, do not expose this appara­tus to rain or moisture.

10. Refer to labels on the unit, including bottom cover, or other markings and
pertinent information.

PG. 3

DOWNER MANUAL V.1

DESCRIPTION

f wavefolding or saturation, pitch shifting down to one octave,DOWNER combines the power o and both
high-pass and low-pass filters all in one compact pedal design with just 6 knobs. The PREAMP drives the
the Saturation or Wavefolding from subtle to extreme. The BLEND control adjusts the Dry/DOWN balance from
100% Dry to 100% DOWN. The High Pass and Low Pass filters allow for sculpting the perfect tone.
Add the ability to assign an expression pedal to your own combinations and settings within these features
and in one sweep, you can dial your tone from classic, heavy fuzz to screaming experimental madness!

Features include:

Saturation or Wavefolding
Control over Down function (detune to full octave down)
Control over Down blend (up to 100%)
Separate High and Low-pass filtering
Preamp level control
Assignable expression pedal/cv control to any combination of all parameters and settings

PG. 4

DOWNER MANUAL V.1

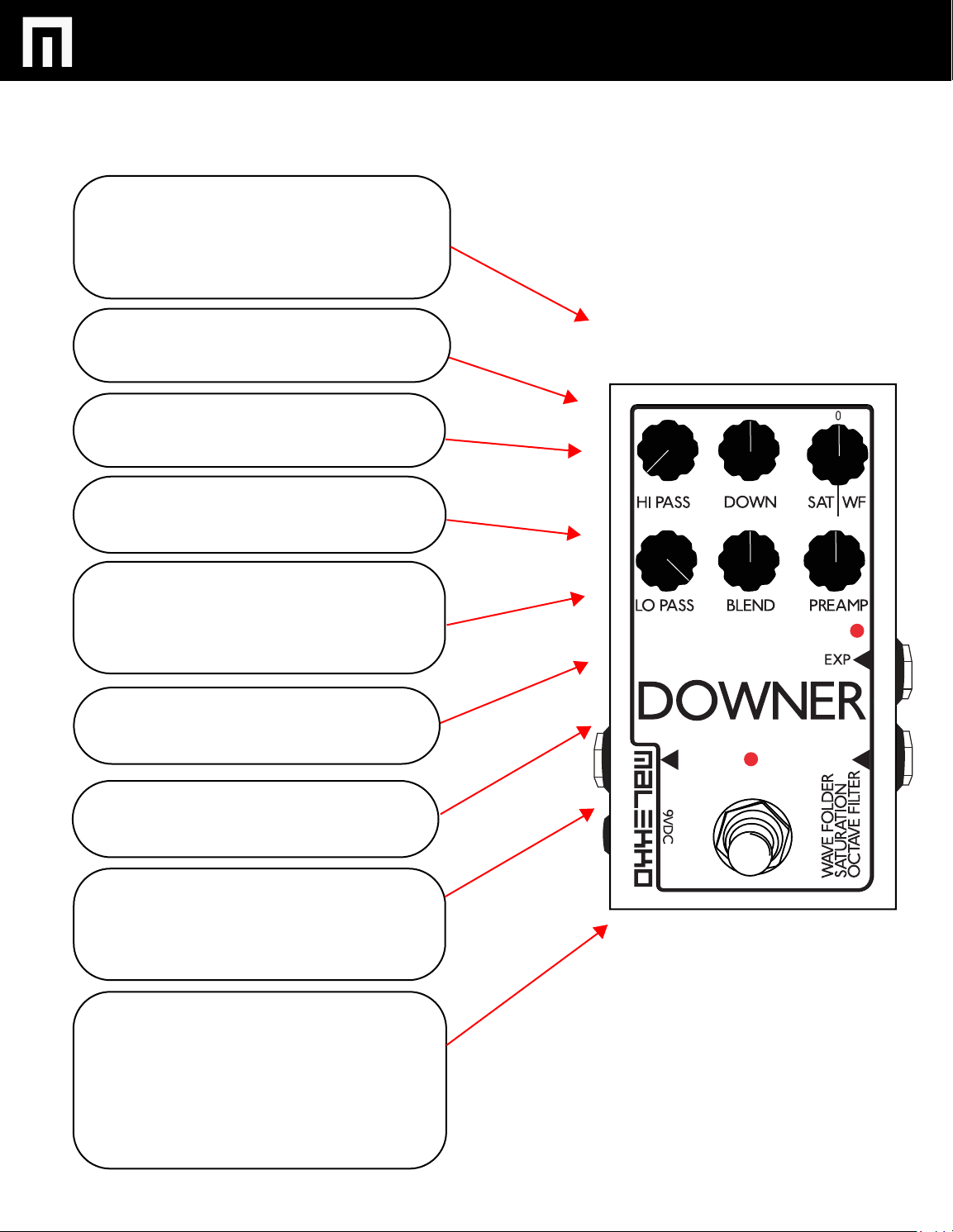

OVERVIEW

SATURATION / WAVEFOLDING:

Choose between Saturation (distortion) or
Wavefolding (distortion w/extreme harmonics).
Sets overall output level of either effect.
0 represents no output level.

HI PASS:
Set to max CCW for zero filtering.

DOWN:
Downward pitch shift CCW to one octave.

LO PASS:
Set to max CW for zero filtering.

BLEND:

Adds DOWN amount to output.
Set to max CW for 100% DOWN.

Set to max CCW for 0% DOWN.

PREAMP:
Input gain control. PREAMP amount will
modify effect responce and affect output level.

LEDs:
Effect on/off

Input clipping

OUTPUT JACK:
1/4” mono out.
9vDC JACK:
Sta

ndard neg-tip 2.5mm barrel connector

EXPRESSION/CV INPUT JACK:
Expresson pedal input for remote control of any

combination of parameters. Both positive or
negative sweep can be assigned simultaneously.
CV input will also control all parameters.

INPUT JACK

1/4” mono in.

PG. 5

DOWNER MANUAL V.1

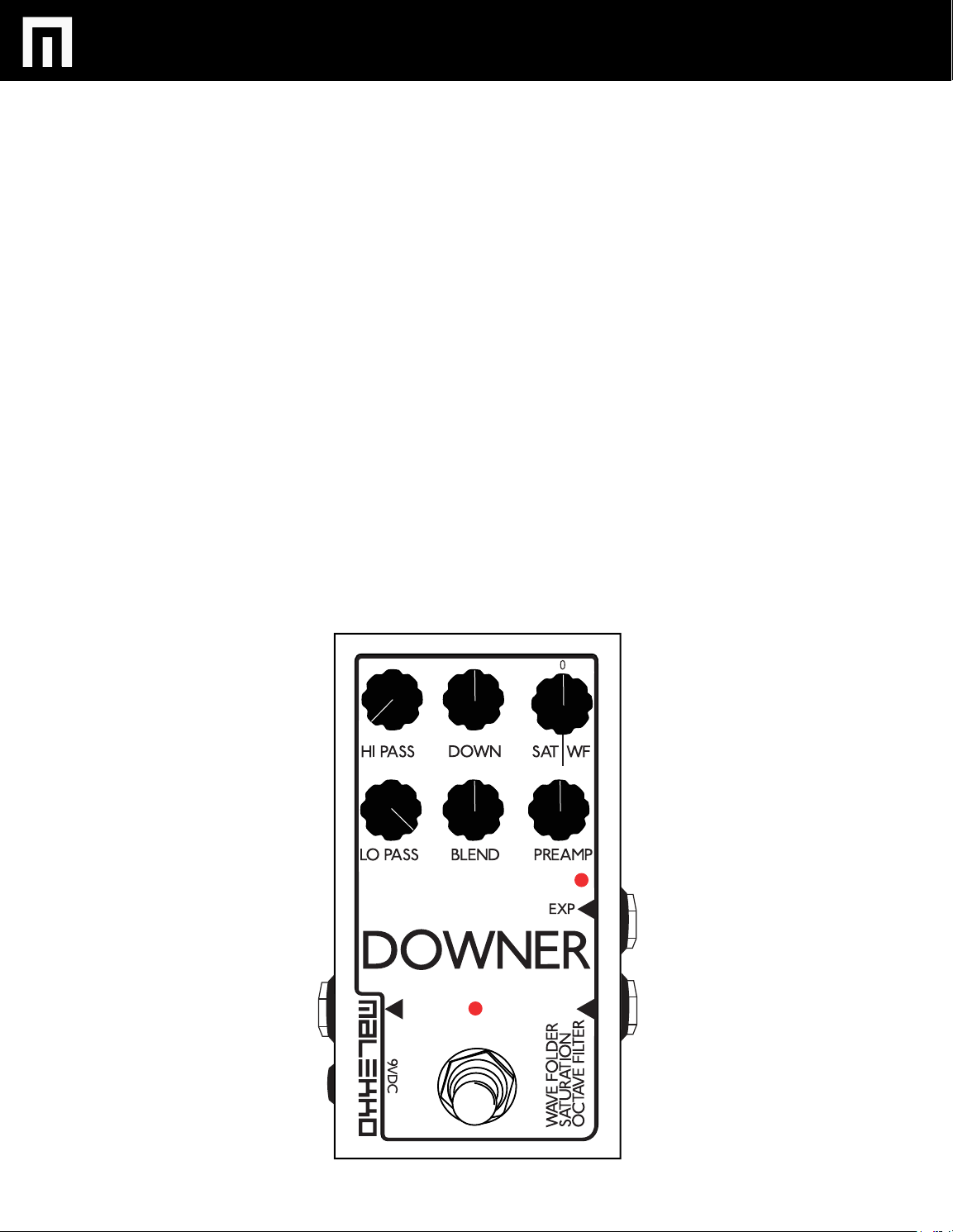

EXPRESSION PEDAL AND CV CONTROL

1. With the effect on, hold down the stomp switch.

While holding the stomp switch down, turn any (or a combinaton of all) of the

2.

following controllable effect knobs: SATURATION/WAVEFOLDING, DOWN,
HI PASS, LO PASS, BLEND, and PREAMP. This will activate assignment to
expresson or cv control. You must turn a selected knob completely left to
activate a clockwise sweep or all the way right to activate a counterclockwise
sweep.

3.

Release the stomp and now the assignment has been made; this assignment
will stay that way until you change it, regardless of unplugging the power or
not. Your expression pedal or cv input will now adjust the selected controls.

4.

You can define the range of the effect assigned to the EXP/CV control by
changng the knob setting. FOR INSTANCE: Starting at 12 o’clock, setting the
knob counterclockwise (anticlockwise) to 7 o’clock will give you maximum
positive sweep for that effect. Or setting the knob clockwise to 2 o’clock will

give you less overall negative sweep range for that effect.

5.

A SETTING EXAMPLE: Hold down the stomp switch and turn the DOWN knob
from a 12 o’clock position counterclockwise to the left. Release the stomp switch.

Now your expression pedal will control the pitch shift, from zero to full (1 octave).

Turning the DOWN knob setting toward 12 o’clock will now reduce the overall
range of the EXP/CV sweep.

For a clockwise expression pedal

or CV controlled sweep, turn knob

all the way left while holding down
the stomp switch. After the trurn is
made, release the stomp switch.

For a counterclockwise expression

pedal or CV controlled sweep,

turn knob all the way right while
holding down the stomp switch.
After the turn is made, release
the stomp switch.

PG. 6

DOWNER MANUAL V.1

REMOVING EXPRESSION PEDAL
AND CV CONTROL ASSIGNMENT

1. Hold down the stomp switch.

With the stomp down, sweep the knob with the assigned setting all the way CCW then

2.

set to 12 o’clock.

3.

Release the stomp. Now that parameter is no longer assigned to the EXP/CV control
and it is in manual mode.

NOTE: Unplugging the EXP/CV input will put the pedal in manual mode, but the
assignments remain until you zero them out.

PG. 7

DOWNER MANUAL V.1

WARRANTY

This product is covered by the Malekko Heavy Industry warranty, for one year following the date of
purchase. This warranty covers any defect in the manufacturing of this product. This warranty does
not cover any damage or malfunction caused by incorrect use – such as, but not limited to, power
cables connected backwards, excessive voltage levels, or exposure to extreme temperature or
moisture levels. The warranty covers replacement or repair, as decided by Malekko Heavy Industry.
Please visit our website malekkoheavyindustry.com to obtain full warranty information and to
register your product for coverage.
