Makita VC002GLZ01, VC003GLZ, VC005GLZ, VC004GLZ01 User guide

Download

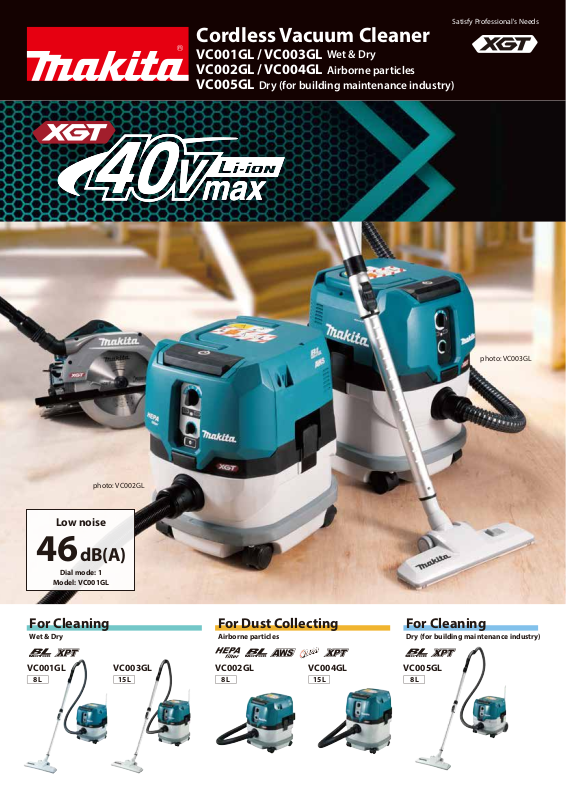

Page 1

Cordless Vacuum Cleaner

Satisfy Professional's Needs

VC001GL / VC003GL VC002GL / VC004GL VC005GL

Dry (for building maintenance industry)

Wet & Dry Airborne particles

Low noise

Dial mode: 1

Model: VC001GL

photo: VC003GL

photo: VC002GL

dB(A)

For Dust Collecting For CleaningFor Cleaning

Dry (for building maintenance industry)Wet & Dry Airborne particles

VC001GL

VC003GL

15L

VC002GL

VC004GL

15L

VC005GL

Page 2

Excellent Vacuum performance equivalent to Corded models achieved by improving cooling efficiency against more heat generation from electrical parts due to the increased output power.

(two in parallel)

photo: VC001GL

Continuous use

Battery: BL4050F x2

220min

Dial mode: 1

28min

Dial mode: 5

Automatically switches to the second battery when the first battery runs out.

Telescopic pipe with lock VC001GL / VC003GL / VC005GL

(country-specific)

• A locking mechanism has been added to the connection of bending pipe and this pipe to prevent from falling off.

• Available in lightweight plastic and rigid aluminum

Telescoping button

slide button style

The lower profile makes it easier to clean under furnitures. VC001GL / VC003GL / VC005GL

(country-specific)

48mm

photo: VC003GL

For Cleaning

Wet & Dry

Power button

Suction force adjusting knob

Mode switching lever VC001GL / VC003GL / VC005GL

(country-specific)

Hard floor/carpet mode switchable

Stand-by switch

Battery indicators

For hard floor

VC001GL

VC003GL

15L

For carpet

Page 3

photo: VC004GL photo: VC005GL

For Dust Collecting For Cleaning

Dry (for building maintenance industry)Airborne particles

VC002GL

Power button

Suction force adjusting knob

Stand-by switch

Battery indicators

VC004GL

15L

Power button

Suction force adjusting knob

Stand-by switch

Battery indicators

VC005GL

Auto-start Wireless System

VC002GL / VC004GL

The wireless activation function enables clean and comfortable operation. By connecting a supported tool to the cleaner, you can run the cleaner automatically along with the switch operation of the tool.

New 8L tank

• Compact tank reduces the overall height of the cleaner.

• Rear wheels attached to the tank have been increased in size to reduce the risk of the machine from tipping over and to enhance the stability of straight running.

Rear wheel size

120

VC005GL

mmø

Page 4

High Power Durability

Digital Communication

Grass Trimmer

Rotary Hammer

Accessories

Filter for water set

Model: VC001GL, VC003GL Part No. 191V67-2

Demolition Hammer

Power Cutter

Damper set

Model: VC002GL, VC004GL Part No. 191V68-0

Earth Auger

Flashlight

Brad Nailer

Kettle

Inator

Hedge Trimmer

Chain Saw

Pre filter set

Model: VC002GL, VC004GL Part No. 191V69-8

Cooler & Warmer Box

Blower

Pole Saw

Job Site Radio

Dust Blower

Grass Trimmer

Multi Function Power Head

Impact Driver

Impact Wrench

Fan

Backpack Vacuum Cleaner

Vacuum Cleaner

Powder filter H set

Model: VC002GL, VC004GL Part No. 191V70-3

Driver Drill

Recipro Saw

Hammer Driver Drill

Angle Drill

Rear Handle Saw

Cleaner

Rotary Hammer

Polisher

Circular Saw

Metal Cutter

Planer

Portable Band Saw

Cloth filter set

Model: VC001GL, VC003GL, VC002GL, VC004GL

Combination Hammer

Plunge Cut Saw

Trimmer

Demolition Hammer

Angle Grinder

Slide Compound Miter Saw

Part No. 144625-1

Poly bag set (10pcs)

Part No. 195432-5

Filter bag set 15L (5pcs)

Part No. 195557-5

MAKPAC adapter set

Part No. 198730-6 / 198599-8 (EU)

Charging Time

BL4020 2.0Ah

BL4025 2.5Ah

BL4040 4.0Ah

BL4050F

BL4080F

*1 Recommended battery

Cordless Vacuum Cleaner

Variable Speed

Revolving Hose

Static Free Hose

Standard Equipment :

VC001GL / VC003GL: Plastic Dust Bag x10, Telescopic pipe assembly, Long Sash Nozzle VC002GL / VC004GL: Plastic Dust Bag x10, Front Cuff (country-specific) VC005GL: Paper Dust Bag, Telescopic pipe assembly, Long Sash Nozzle

The weight does not include accessories but battery cartridge(s). The lightest and heaviest combination weight of the appliance and battery cartridge(s) are shown in the table.

Items of standard equipment and specifications may vary by country or area.

Capacity Max Air Flow Max Sealed Suction Continuous Use (min.)

Vibration Level Sound Pressure Level Dimensions (L x W x H)

Net weight

ALL: Floor Nozzle, Straight Pipe, Bent Pipe, Hose, Plastic Dust Bag, Stopper, Multi Hook, Battery, Charger

VC001GL / VC002GL / VC003GL / VC004GL / VC005GL

VC001GL

Dust / Water: 8 / 6 L

3.2 m³/min 23 kPa w/ BL4050F at Dial 1 / 5: 220 / 28

2.5 m/s² or less 70 dB(A) or less 366 x 334 x 425 mm (14-3/8 x 13-1/8 x 16-3/4")

8.1 - 11.2 kg (17.9 - 24.7 lbs.)

VC002GL

Dust: 8 L

1.8 m³/min 23 kPa w/ BL4050F at Dial 1 / 5: 220 / 28

2.5 m/s² or less 70 dB(A) or less 366 x 334 x 425 mm (14-3/8 x 13-1/8 x 16-3/4")

8.3 - 11.4 kg (18.3 - 25.1 lbs.)

VC003GL

Dust / Water: 15 / 12 L

3.2 m³/min 23 kPa w/ BL4050F at Dial 1 / 5: 220 / 28

2.5 m/s² or less 70 dB(A) or less 366 x 334 x 475 mm (14-3/8 x 13-1/8 x 18-3/4")

8.4 - 11.5 kg (18.5 - 25.4 lbs.)

VC004GL

Dust: 15 L

1.8 m³/min 23 kPa w/ BL4050F at Dial 1 / 5: 220 / 28

2.5 m/s² or less 70 dB(A) or less 366 x 334 x 475 mm (14-3/8 x 13-1/8 x 18-3/4")

8.6 - 11.7 kg (19.0 - 25.8 lbs.)

Model: VC005GL Part No. 191V71-1

DC40RA

22 28 min 45

5.0Ah

8.0Ah

50 76

VC005GL

Dust: 8 L

2.8 m³/min 23 kPa w/ BL4050F at Dial 1 / 5: 220 / 28

2.5 m/s² or less 70 dB(A) or less 366 x 334 x 397 mm (14-3/8 x 13-1/8 x 15-5/8")

7.9 - 11.0 kg (17.4 - 24.3 lbs.)

DC40RC

min

min 170 min

Makita Corporation

3-11-8 Sumiyoshi-cho, Anjo, Aichi, 446-8502 Japan

PRINTED IN JAPAN 202201
