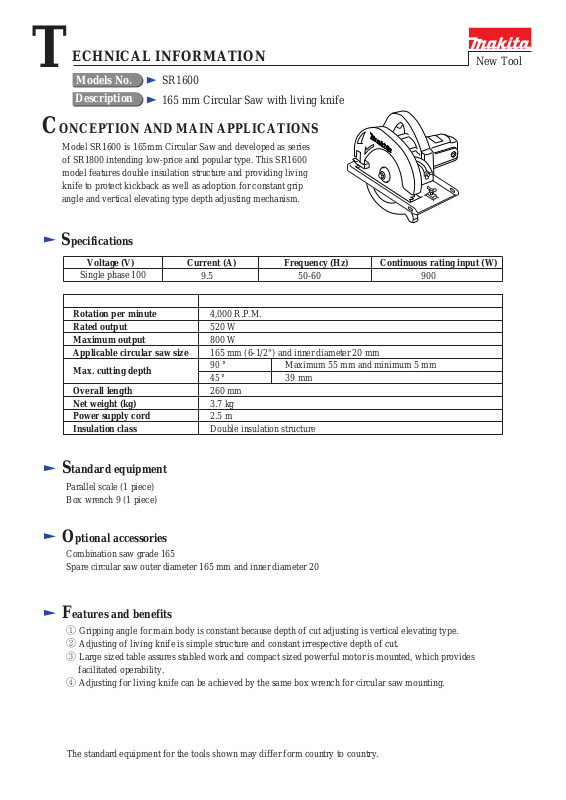

T
ECHNICAL INFORMATION
New Tool
Models No.
Description
SR1600
165 mm Circular Saw with living knife
CONCEPTION AND MAIN APPLICATIONS
Model SR1600 is 165mm Circular Saw and developed as series
of SR1800 intending low-price and popular type. This SR1600
model features double insulation structure and providing living
knife to protect kickback as well as adoption for constant grip
angle and vertical elevating type depth adjusting mechanism.
Specifications
Voltage (V)
Single phase 100
Rotation per minute
Rated output
Maximum output 800 W
Applicable circular saw size
Max. cutting depth
Overall length 260 mm
Net weight (kg) 3.7 kg
Power supply cord 2.5 m
Insulation class Double insulation structure
Current (A)
9.5
4,000 R.P.M.
520 W
165 mm (6-1/2") and inner diameter 20 mm
90 °
45 °
Frequency (Hz)
50-60
Maximum 55 mm and minimum 5 mm
39 mm
Continuous rating input (W)
900
Standard equipment
Parallel scale (1 piece)
Box wrench 9 (1 piece)
Optional accessories
Combination saw grade 165
Spare circular saw outer diameter 165 mm and inner diameter 20
Features and benefits
Gripping angle for main body is constant because depth of cut adjusting is vertical elevating type.
Adjusting of living knife is simple structure and constant irrespective depth of cut.
Large sized table assures stabled work and compact sized powerful motor is mounted, which provides
facilitated operability.
Adjusting for living knife can be achieved by the same box wrench for circular saw mounting.
The standard equipment for the tools shown may differ form country to country.
Page 2
Matter to be attended
Be sure to select hexagonal hole on lock plate so that lever
position comes approximately to the position as shown in right
side figure when depth adjusting lever plate at rear portion is
tightened.
15
15
