ENGLISH (Original instructions)
INSTRUCTION MANUAL
Rotary Hammer
HR5000
HR5000K
IMPORTANT: Read Before Using.
003101
DOUBLE INSULATION
1
ENGLISH (Original instructions)
SPECIFICATIONS
Model HR5000 HR5000K
Capacities
No load speed (min-1) 260 260
• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
• Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003
Symbols
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
･ Read instruction manual.
･ DOUBLE INSULATION
･ Only for EU countries
Do not dispose of electric equipment
together with household waste material!
In observance of European Directive
2002/96/EC on waste electric and
electronic equipment and its
implementation in accordance with
national law, electric equipment that
have reached the end of their life must
be collected separately and returned to
an environmentally compatible
recycling facility.
Intended use
The tool is intended for hammer drilling in brick, concrete
and stone as well as for chiselling work.
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated in accordance with European
Standard and can, therefore, also be used from sockets
without earth wire.
General Power Tool Safety
Warnings
WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and
Carbide-tipped bit 50 mm 50 mm
Core bit
Blows per minute 2,100 2,100
Overall length 476 mm 503 mm
Net weight 9.9 kg 10.2 kg
Safety class II
Concrete 150 mm 150 mm
Hume pipe 255 mm 255 mm
END201-5
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and
instructions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
ENE044-1
ENF002-1
GEA005-3
4. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
5. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is earthed or grounded.
6. Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
7. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
2
8. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
9. If operating a power tool in a damp location is
unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
10. Use of power supply via a RCD with a rated
residual current of 30mA or less is always
recommended.
Personal safety
11. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
12. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
13. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your finger on the switch or energising power
tools that have the switch on invites accidents.
14. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
15. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
16. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving
parts.
17. If devices are provided for the connection of
dust extraction and collection facilities,
ensure these are connected and properly used.
Use of dust collection can reduce dust-related
hazards.
Power tool use and care
18. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
19. Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
20. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
21. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
22. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
23. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
24. Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the power
tool for operations different from those intended
could result in a hazardous situation.
Service
25. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
26. Follow instruction for lubricating and
changing accessories.
27. Keep handles dry, clean and free from oil and
grease.
GEB007-7
ROTARY HAMMER SAFETY
WARNINGS
1. Wear ear protectors. Exposure to noise can
cause hearing loss.
2. Use auxiliary handle(s), if supplied with the
tool. Loss of control can cause personal injury.
3. Hold power tool by insulated gripping
surfaces, when performing an operation where
the cutting accessory may contact hidden
wiring or its own cord. Cutting accessory
contacting a "live" wire may make exposed metal
parts of the power tool "live" and could give the
operator an electric shock.
4. Wear a hard hat (safety helmet), safety glasses
and/or face shield. Ordinary eye or sun
glasses are NOT safety glasses. It is also
highly recommended that you wear a dust
3
mask and thickly padded gloves.
5. Be sure the bit is secured in place before
operation.
6. Under normal operation, the tool is designed
to produce vibration. The screws can come
loose easily, causing a breakdown or accident.
Check tightness of screws carefully before
operation.
7. In cold weather or when the tool has not been
used for a long time, let the tool warm up for a
while by operating it under no load. This will
loosen up the lubrication. Without proper
warm-up, hammering operation is difficult.
8. Always be sure you have a firm footing.
Be sure no one is below when using the tool in
high locations.
9. Hold the tool firmly with both hands.
10. Keep hands away from moving parts.
11. Do not leave the tool running. Operate the tool
only when hand-held.
12. Do not point the tool at any one in the area
when operating. The bit could fly out and
injure someone seriously.
13. Do not touch the bit or parts close to the bit
immediately after operation; they may be
extremely hot and could burn your skin.
14. Some material contains chemicals which may
be toxic. Take caution to prevent dust
inhalation and skin contact. Follow material
supplier safety data.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to safety rules for the subject product. MISUSE or
failure to follow the safety rules stated in this
instruction manual may cause serious personal
injury.
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on
the tool.
Switch action
1
003111
CAUTION:
• Before plugging in the tool, always check to see
that the switch trigger actuates properly and
returns to the "OFF" position when released.
To start the tool, simply pull the switch trigger. Release
the switch trigger to stop.
1. Switch trigger
Selecting the action mode
1
2
3
003127
Rotation with hammering
For drilling in concrete, masonry, etc., rotate the change
lever to the
Hammering only
For chipping, scaling or demolition operations, rotate the
change lever to the
CAUTION:
• Do not rotate the change lever when the tool is
• To avoid rapid wear on the mode change
symbol.
symbol.
running under load. The tool will be damaged.
mechanism, be sure that the change lever is
always positively located in one of the two action
mode positions.
1. Change lever
2. For hammering
only
3. For rotation with
hammering
4
ASSEMBLY
CAUTION:
•
Always be sure that the tool is switched off and
unplugged before carrying out any work on the
tool.
Side handle
1. Clamp nut
2. Side handle
1
2
003140
Raise the side handle. The side handle can be secured
in four position (right, left, up and down). To secure the
side handle, tighten the clamp nut securely. Never
secure the side handle in other than the above four
positions.
Side grip
1
003148
The side grip is convenient for downward drilling or
chipping operations. Screw the side grip on the tool
securely. The side grip can be installed on either side of
the tool for right or left hand operation.
Installing or removing the bit
1
2
180
003152
Insert the bit into the tool holder as far as it will go. Pull
out and turn the tool retainer 180 degrees. Then release
it to secure the bit.
1. Side grip
1. Tool holder
2. Tool retainer
CAUTION:
• Never use A-type shank bits. They can cause
damage to the tool.
37 38.5 3727
19
003155
19
AB
16ø
To remove the bit, follow the installation procedure in
reverse.
OPERATION
Hammer drilling operation
003202
Set the change lever to the symbol.
Position the bit at the desired location for the hole, then
pull the switch trigger. Do not force the tool. Light
pressure gives best results. Keep the tool in position and
prevent it from slipping away from the hole.
Do not apply more pressure when the hole becomes
clogged with chips or particles. Instead, run the tool at
an idle, then remove the bit partially from the hole. By
repeating this several times, the hole will be cleaned out
and normal drilling may be resumed.
CAUTION:
• There is a tremendous and sudden twisting force
exerted on the tool/bit at the time of hole
break-through, when the hole becomes clogged
with chips and particles, or when striking
reinforcing rods embedded in the concrete. Always
use the side grip (auxiliary handle) and firmly hold
the tool by both side grip and switch handle during
operations. Failure to do so may result in the loss
of control of the tool and potentially severe injury.
5

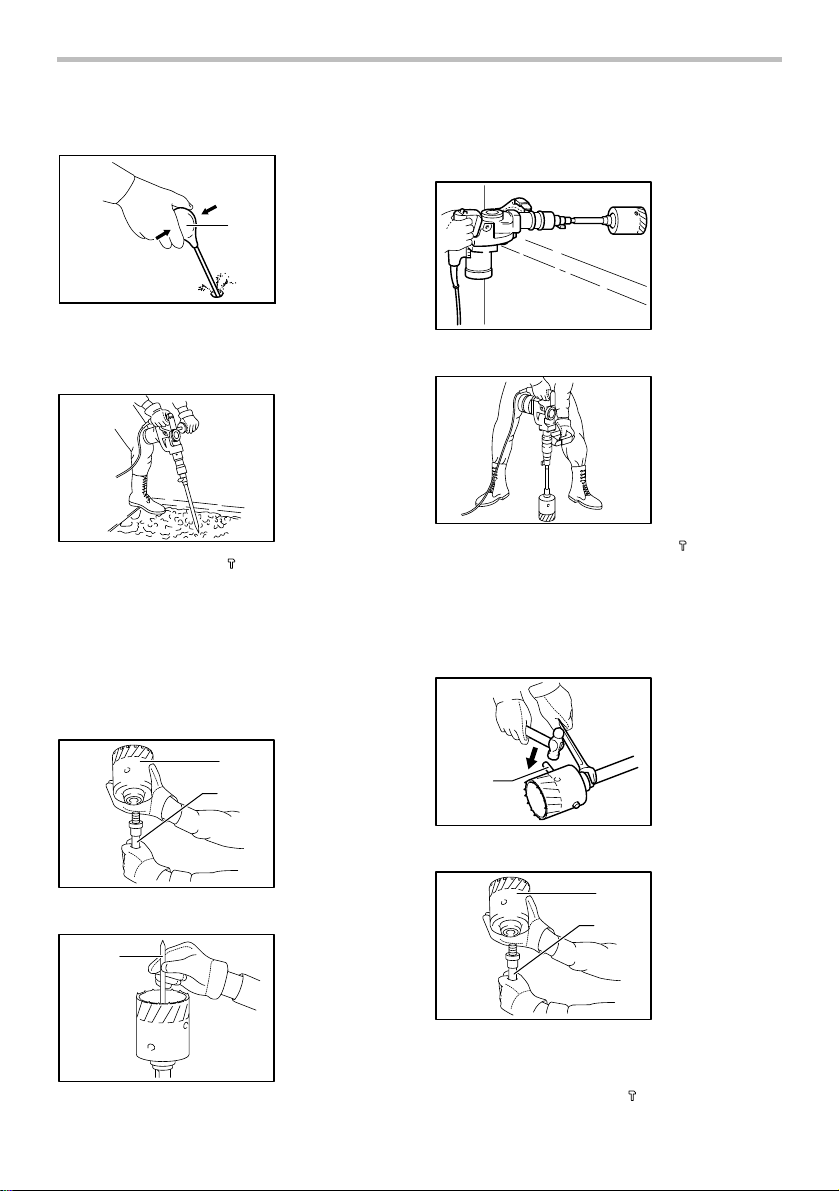

Blow-out bulb (optional accessory)
1. Blow-out bulb
1
Rest the core bit on the concrete and turn the tool on.
Once the core bit has cut a shallow groove into the
concrete, remove the center bit. Then resume drilling.
002449
After drilling the hole, use the blow-out bulb to clean the
dust out of the hole.
Chipping/Scaling/Demolition
003208
Set the change lever to the symbol.
Hold the tool firmly with both hands. Turn the tool on and
apply slight pressure on the tool so that the tool will not
bounce around, uncontrolled. Pressing very hard on the
tool will not increase the efficiency.
Core bit (optional accessory)
When using the center bit
Screw the core bit on the adapter. Install the adapter with
the core bit in the tool in the same manner as a drill bit.
1
2
003209
Install the center bit.
1
1. Core bit
2. Adapter
1. Center bit
003212
To remove the core bit, follow the procedures 1 or 2.
003214
1. Rotate the change lever to the position. Then
rest the core bit on the concrete and turn the tool
on. The core bit will come loose from the
hammering action.
2. Hold the adapter with the wrench, insert the rod
(optional accessory) into the hole in the core bit
and tap with a hammer to unscrew.
1
003215
When not using the center bit
1. Rod
1
2
1. Core bit
2. Adapter
003210
003216
Screw the core bit on the adapter. Install the adapter
with the core bit in the tool in the same manner as a drill
bit.
Rotate the change lever to the
6
position. Rest the core
bit on the concrete and turn the tool on. Once the core
bit has cut a shallow groove into the concrete, rotate the
change lever to the
003212
NOTE:
• No problem is caused even if the core bit unscrews
slightly during brief use since the core bit rotates in
the tightening direction.
To remove the core bit, follow the same removal
procedures covered in "When using the center bit".
position and resume drilling.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.
• Never use gasoline, benzine, thinner, alcohol or
the like. Discoloration, deformation or cracks may
result.
Replacing carbon brushes
1. Hex wrench
2. Rear cover
1
2
003225
Use a screwdriver to remove the brush holder caps.
Take out the worn carbon brushes, insert the new ones
and secure the brush holder caps.
1
2
003231
1. Screwdriver
2. Brush holder
cap
Lubrication
1
2
1. Lock nut wrench
2. Crank cap
1. Commutator
2
1
3
001146
When the resin insulating tip inside the carbon brush is
exposed to contact the commutator, it will automatically
shut off the motor. When this occurs, both carbon
brushes should be replaced. Keep the carbon brushes
clean and free to slip in the holders. Both carbon
brushes should be replaced at the same time. Use only
identical carbon brushes.
Use a hex wrench to remove the rear cover.
2. Insulating tip
3. Carbon brush
003236
This tool requires no hourly or daily lubrication because
it has a grease-packed lubrication system. It should be
relubricated after every 6 months of operation. Send the
complete tool to Makita Authorized or Factory Service
Center for this lubrication service. However, if
circumstances require that you should lubricate it by
yourself, proceed as follows.
Run the tool for several minutes to warm it up. Switch off
and unplug the tool.
Remove the crank cap using a Makita lock nut wrench
35 (optional accessory). Rest the tool on the table with
the bit end pointing upwards. This will allow the old
grease to collect inside the crank housing.
7
1
1. Hammer grease
• Side grip
• Rammer
• Bushing tool
003244

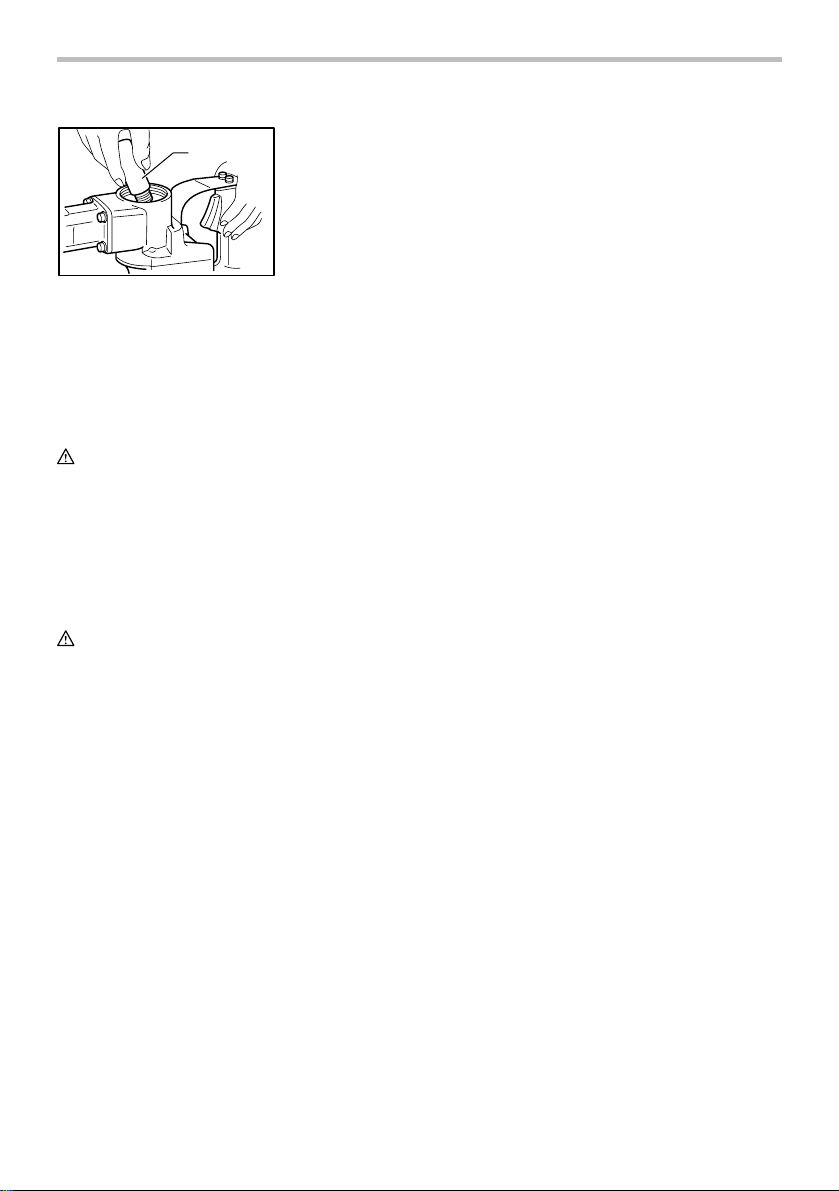

Wipe out the old grease inside and replace with a fresh
grease (90 g; 3 oz). Use only Makita genuine hammer
grease (optional accessory). Filling with more than the
specified amount of grease (approx. 90 g; 3 oz) can
cause faulty hammering action or tool failure. Fill only
with the specified amount of grease.
Reinstall the crank cap and tighten with the lock nut
wrench.
CAUTION:
• Do not tighten the crank cap excessively. It is made
of resin and is subject to breakage.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers,
always using Makita replacement parts.
ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Bull point
• Cold chisel
• Hammer grease
• Bit grease
• Blow-out bulb
• Safety goggles
• Plastic carrying case
• Spline shank Carbide-tipped bits
• Scaling chisel
• Grooving chisel
• Spline shank to A-Taper adapter
• Spline shank to SDS adapter
• Core bit
• Core bit adapter
• Lock nut wrench 35
• Clay spade
• Side handle
8
9 10 11 12
883643J1
Makita Corporation
www.makita.com
Loading...
