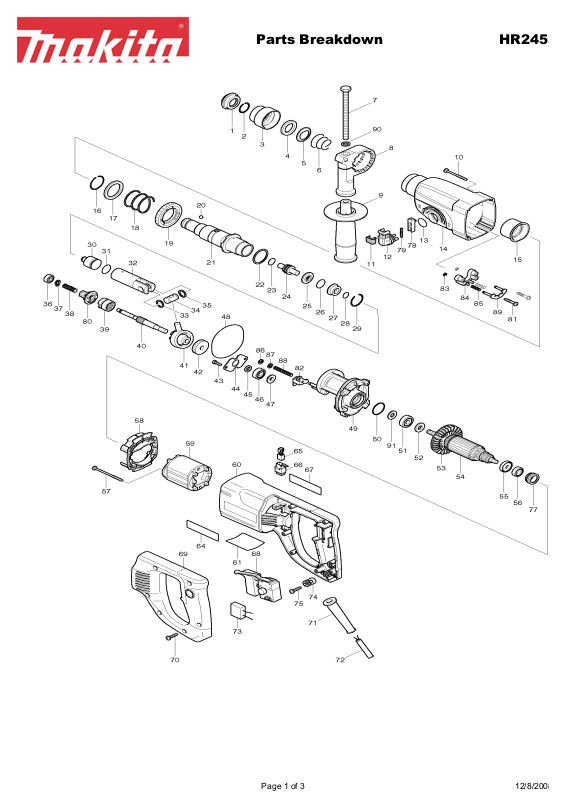

Page 1
Parts Breakdown
HR2455
Page 1 of 3 12/8/2008
Page 2
Parts Breakdown
HR2455
Fig # Part ID Part Name Quantity
Products with multiple versions are listed in subsiding order with the newest version on top not indented
1 286263-4 CAP 35, HR2450F 0
2 233940-9 RING SPRING 19, HR2450F 0
2 233915-8 RING SPRING 19, HR2450F 0
3 417629-9 CHUCK COVER,HR2450F 0
4 257241-1 RING 21, HR2450F 0
5 345187-4 GUIDE WASHER, HR2450F 0
6 233916-6 CONICAL COMP. SPRING 21-29 0
7 921923-8 HEX. BOLT M8 X 120, HP2050F 0
8 417630-4 GRIP BASE, HP2070F 0
9 134943-5 GRIP 36, HR2450F 0
10 266069-6 T. SCREW FLANGE PT4X45 HR2410 0
11 417794-4 CAP, HR2455 0
12 162229-7 CHANGE LEVER,HR2455 0
13 213278-8 O RING 17,HR2450F 0
14 183441-6 GEAR HOUSING SET,HR2450F 0
15 153290-5 NEEDLE BEARING CPL., HR2450F 0
16 233918-2 RING SPRING 28, HR2450F 0
17 267228-5 WASHER 30, HR2450F 0
18 233328-3 COMP. SPRING 31, HR2450F 0
19 227028-5 SPUR GEAR 51, HR2450F 0
20 216022-2 STEEL BALL 7.0, HR2400 0
21 153365-0 TOOL HOLDER CPL. 0
22 267229-3 FLAT WASHER 28, BHR240 0
23 213128-7 O RING 12,HR2450F 0
24 324396-8 .IMPACT BOLT, HR2455 0
24 324278-4 IMPACT BOLT, HR2445 0
25 324218-2 RING 9, HR2450F 0
26 213232-2 O RING 15,HR2450F 0
27 324216-6 O RING CASE, HR2450F 0
28 213073-6 O RING 9,HR2455 0
29 233917-4 RING SPRING 28, HR2450F 0
30 324214-0 STRIKER, HR2450F 0
31 213227-5 O RING 16M, HR2455 0
32 331632-5 PISTON CYLINDER, HR2450F 0
33 267104-3 FLAT WASHER 12, HR2400 0
34 324215-8 PISTON JOINT, HR2450F 0
35 267104-3 FLAT WASHER 12, HR2400 0
36 211012-0 BALL BEARING 606ZZ, HR2410 0
37 961003-8 RETAINING RING S-7, 9015B 0
38 233343-7 COMP. SPRING 7, HR2450F 0
39 331634-1 CLUTCH CAM, HR2450F 0
40 324248-3 CAM SHAFT, HR2450F 0
41 219014-0 SWASH BEARING 10,BHR200SH 0
42 226550-9 HELICAL GEAR 26,HR2450F 0
43 266273-7 H.S.H. BOLT M4X12, HR2450F 0
44 345179-3 BEARING RETAINER, HR2450F 0
45 267234-0 FLAT WASHER 8, HM1304B 0
46 211032-4 B. BEARING 608ZZ, N1900B 0
47 324212-4 RING 8, HR2450F 0
48 213725-9 O RING 68,HR2450F 0
49 153687-8 INNER HOUSING, HR2450F 0
49 153610-3 INNER HOUSING CPL.,HR2445 0
50 213380-7 O RING 24, 6805BV 0
51 210060-6 BALL BEARING 609LLU, HR2431 0
52 267231-6 FLAT WASHER 9, HR2450F 0
53 240047-4 FAN 60, HR2450F 0
54 515666-8 ARMATURE ASS'Y, HR2450F 0
54 517376-3 ARMATURE ASS'Y 115V, HR2450F 0
55 681636-0 INSULATION WASHER, 4304 0
56 211021-9 BALL BEARING 607LLB, LS1013 0
57 266052-3 TAPPING SCREW FLANGE PT4X60,HR2410 0
58 418085-6 BAFFLE PLATE, HR2445 0
59 633556-4 FIELD 115V, HR2445 0
60 183580-2 MOTOR HOUSING,HR2445 0
Page 2 of 3 12/8/2008
Page 3
Parts Breakdown
HR2455
61 850414-1 NAME PLATE, HR2455 0
64 819064-1 MAKITA MARK, HM1100C 0
65 191927-6 CARBON BRUSH SET CB-407, 6821 0
66 643936-6 BRUSH HOLDER, 6821 0
67 819064-1 MAKITA MARK, HM1100C 0
68 650508-0 SWITCH, HR2450F 0
69 418086-4 HANDLE COVER, HR2445 0
70 265995-6 TAPPING SCREW 4X18, 4323K 0
71 682559-5 CORD GUARD 8, 6824 0
72 664895-1 CORD 0
74 687063-9 STRAIN RELIEF, 4323K 0
75 265995-6 TAPPING SCREW 4X18, 4323K 0
77 421494-0 LABYRINTH RUBBER RING,HR2455 0
78 417795-2 LOCK BUTTON, HR2455 0
79 233341-1 COMP. SPRING 3, HR2450F 0
80 226399-7 SPUR GEAR 10, BHR200SH 0
81 265999-8 TAPPING SCREW M4X25, HM1800 0
82 345363-0 CHANGE PLATE, HR2450F 0
82 345220-2 CHANGE PLATE, HR2450F 0
83 961017-7 STOP RING E-3, 4304 0
84 417796-0 GUIDE BASE, HR2455 0
85 233344-5 COMP. SPRING 4, HR2450F 0
86 961011-9 STOP RING E-4, 4301BV 0
87 941102-2 F. WASHER 5, HM1100C 0
88 233342-9 COMP. SPRING 6, HR2450F 0
89 163430-7 LOCK PLATE CPL. 0
90 345280-4 HEX. WASHER, HP2050F 0
91 267271-4 FLAT WASHER 9, HR2445 0
1001 324219-0 DEPTH GAUGE,HP2050F 0
1002 824695-3 PLASTIC CARRYING CASE, HR2445 0
1003 D-07973 5 PC SDS PLUS BIT ASSORT.HR2455X 0
5001 810134-9 CAUTION LABEL, 3709 0
Page 3 of 3 12/8/2008
