Makita BO6010 User Manual

6" DUAL ACTION SANDER Model BO6010

08-2000

Item Part No.

No. No. Used Description

Item Part No.

No. No. Used Description

1 315290-5 1 Gear Housing (With Items

15 & 31)
2 911141-6 4 P.H. Screw M4X22
4 221306-5 1 Spiral Bevel Gear 14
5 211056-0 1 Ball Bearing 629LLB
6 341678-3 1 Plate
7 254002-0 1 Woodruff Key 3
8 241101-7 1 Fan 58
9 611436-4 1 Armature Assy (Includes Items

8, 10 & 11)

10 681614-0 1 Insulation Washer
11 211028-5 1 Ball Bearing 627LB
12 621421-9 1 Field Assy (With Items 40 & 44)
13 263002-9 1 Rubber Pin 4
14
15 263002-9 1 Rubber Pin 4
16 260025-8 1 Ball Bearing 627LLB

17 961006-2 1 Retaining Ring S-10
18 221305-7 1 Spiral Bevel Gear 38
19 257567-1 1 Sleeve 12
20 211106-1 1 Ball Bearing 6201LLB
21 263005-3 1 Rubber Pin 6
22 315291-3 1 Bearing Box (Includes Item 21)
23 911141-6 4 P.H. ScrewM4X22
24 254002-0 1 Woodruff Key 3
25 321320-2 1 Spindle

26 961052-5 1 Retaining Ring S-12 (Type 1)

27 211129-9 1 Ball Bearing 6201DDW

28 341679-1 1 Dust Cover
29 962151-6 1 Retaining Ring R-32
30

31 263002-9 1 Rubber Pin 4 (Type 1)

*

265879-8 1 Set Bolt M8 (Type 2)

*

213008-7 1 O Ring 22.4 (Type 2)

2 Tapping Screw

(Old 211026-9)

(Old 211122-3)

1 Connector

*

*

*

*

*

32 911158-9 2 P.H. Screw M4X30
33 411827-7 1 Switch Cover
34 911131-9 2 P.H. Screw M4X18

(With Washer)
35 687002-9 1 Strain Relief
36 643550-8 2 Brush Holder Cap 5-8

37 191947-0 2 Carbon Brush CB-76

(Old 181023-8 - CB-52)

181501-8 2 Auto Cut-Off Carbon Brush

CB-61 (Optional)
38 651821-9 1 Switch (Old 651817-0)

39 953106-2 2 Rivet 0-5
40 654018-9 2 Garter Spring
41

42 682500-8 1 Cord Guard 8.5-72
43 664013-1 1 Cord With Plug 2P-18-2.5
44 654501-6 2 Solderless Connector P-1.25
45 232062-2 1 Leaf Spring
46 961017-7 1 Stop Ring E-3
47 341651-3 1 Switch Lever Assy (Includes

48 256626-8 1 Pin 4
49 411784-9 1 Safety Lock
50 643557-4 2 Brush Holder 5-8

100 911001-2 4 P.H. Screw M3X6

*

1 Motor Housing (With Items

13 & 50)

Items 45 & 49)

(Old 911002-0)

Accessories

A01 743033-9 1 Pad 147
A02 152490-4 1 Side Handle 26 (Old 273459-6

& 273485-5)

A03 781203-2 1 Wrench (For Spindle)
A04 - - - - - 1 Abrasive Disc (Pressure

Sensitive Type ) (See Catalogue

For Details)

SEE SERVICE CHANGES

*

SERVICE CHANGES

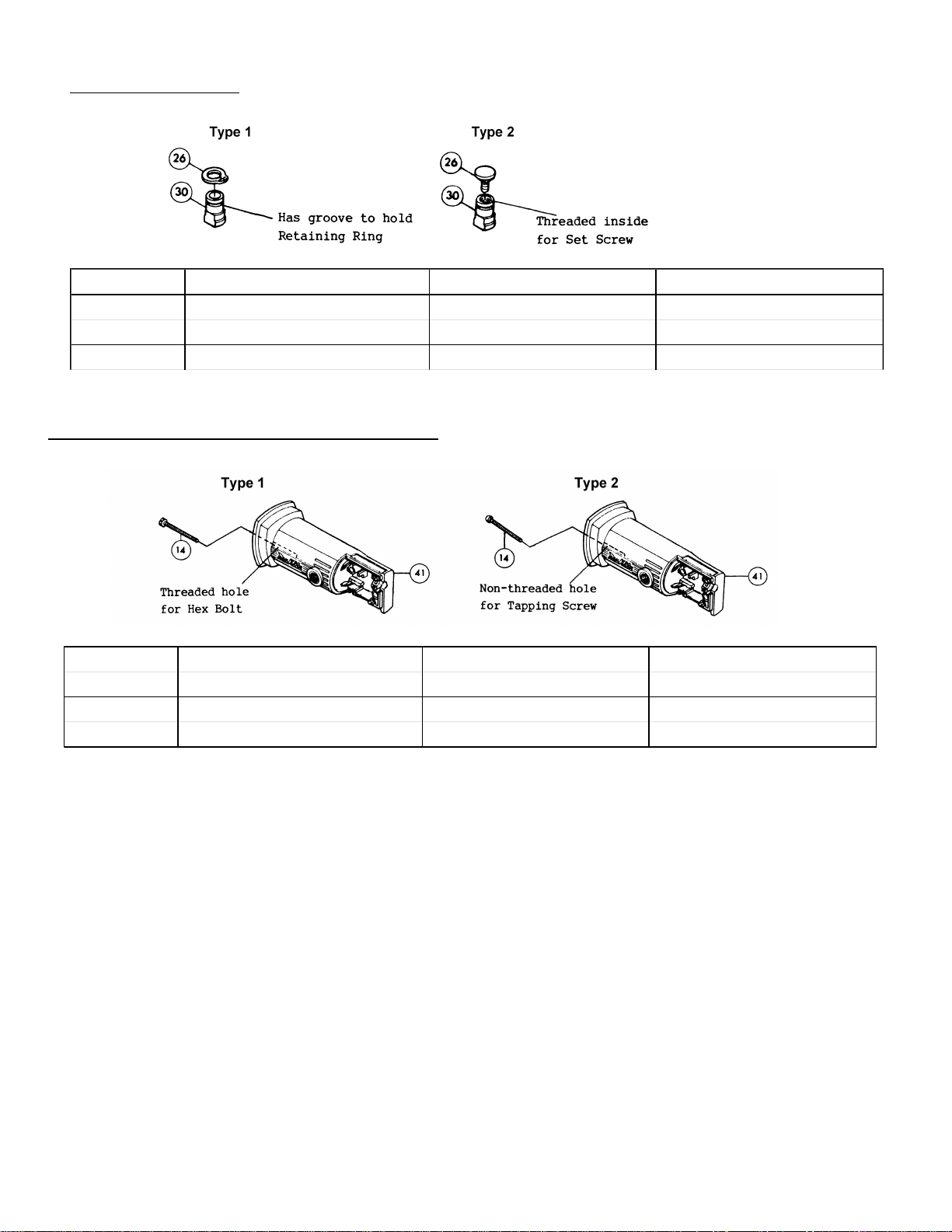

1. Change on Gear Housing.

Item No. Description Type 1 Type 2

1

Gar Housing

315290-5

With Rubber Pin With O Ring

31

Rubber Pin / O Ring

263002-9 - Rubber Pin 4 213008-7 - O Ring 22.4

Above parts are completely interchangeable as a set.

2 Model BO6010
