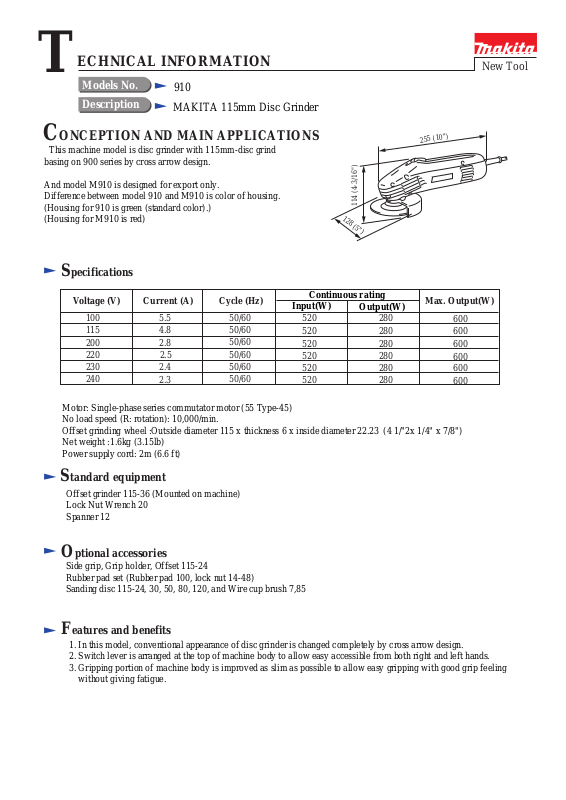

Page 1
T
ECHNICAL INFORMATION
New Tool
Models No.
Description
910
MAKITA 115mm Disc Grinder
CONCEPTION AND MAIN APPLICATIONS
This machine model is disc grinder with 115mm-disc grind
basing on 900 series by cross arrow design.
And model M910 is designed for export only.
Difference between model 910 and M910 is color of housing.
(Housing for 910 is green (standard color).)
(Housing for M910 is red)
Specifications
Voltage (V) Current (A) Cycle (Hz) Max. Output(W)
100 5.5 50/60
115 4.8
200 2.8
220 2.5
230
240
2.4
2.3
50/60
50/60
50/60
50/60
50/60
Continuous rating
Input(W)
520 280
520 280
520 280
520 280
520 280
520 280
255 (10")
114 (4-3/16")
128 (5")
Output(W)
600
600
600
600
600
600
Motor: Single-phase series commutator motor (55 Type-45)
No load speed (R: rotation): 10,000/min.
Offset grinding wheel :Outside diameter 115 x thickness 6 x inside diameter 22.23 (4 1/"2x 1/4" x 7/8")
Net weight :1.6kg (3.15lb)
Power supply cord: 2m (6.6 ft)
Standard equipment
Offset grinder 115-36 (Mounted on machine)
Lock Nut Wrench 20
Spanner 12
Optional accessories
Side grip, Grip holder, Offset 115-24
Rubber pad set (Rubber pad 100, lock nut 14-48)
Sanding disc 115-24, 30, 50, 80, 120, and Wire cup brush 7,85
Features and benefits
1. In this model, conventional appearance of disc grinder is changed completely by cross arrow design.
2. Switch lever is arranged at the top of machine body to allow easy accessible from both right and left hands.
3. Gripping portion of machine body is improved as slim as possible to allow easy gripping with good grip feeling
without giving fatigue.
Page 2
Repair
Be sure to assemble pushing lever with hand so that switch lever would not jump out by spring force
when housing L is assembled.
