Makita 9077SL User Manual

Angle Grinder

180 mm (7”)
MODEL 9077SL

DOUBLE
INSULATION

INSTRUCTION MANUAL

WARNING:

For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

www.makitatools.com

SPECIFICATIONS

model 9077SL

No load speed (RPM) 6,000/min

Overall length 484 mm (19”)

Net weight 5.3 kg (11.6 lbs)

Spindle thread 5/8”

• Manufacturer reserves the right to change specifications without notice.

• Specifications may differ from country to country.

GENERAL SAFETY RULES

USA002-2

(For All Tools)

WARNING:

Read and understand all instructions. Failure to follow all

instructions listed below, may result in electric shock, fire and/or
serious personal injury.

SAVE THESE INSTRUCTIONS

Work A re a

1.

Keep your work area clean and well lit.

Cluttered benches and dark areas invite acci­dents.

2.

Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases, or dust. Powe r

tools create sparks which may ignite the dust
or fumes.

3.

Keep bystanders, children, and visitors
away while operating a power tool. Distrac-

tions can cause you to lose control.

Electrical Safety

4.

Double insulated tools are equipped with
a polarized plug (one blade is wider than
the other.) This plug will fit in a polarized
outlet only one way. If the plug does not fit
fully in the outlet, reverse the plug. If it
still does not fit, contact a qualified elec­trician to install a polarized outlet. Do not
change the plug in any way. Double insula-

tion eliminates the need for the three wire
grounded power cord and grounded power
supply system.

2

5.

Avoid body contact with grounded sur­faces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of

electric shock if your body is grounded.

6.

Do not expose power tools to rain or wet
conditions. Water entering a power tool will

increase the risk of electric shock.

7.

Do not abuse the cord. Never use the cord
to carry the tools or pull the plug from an
outlet. Keep cord away from heat, oil,
sharp edges or moving parts. Replace
damaged cords immediately. Damaged

cords increase the risk of electric shock.

8.

When operating a power tool outside, use
an outdoor extension cord marked “W-A”
or “W”. These cords are rated for outdoor

use and reduce the risk of electric shock.

Personal Safety

9.

Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use tool while tired or
under the influence of drugs, alcohol, or
medication. A moment of inattention while

operating power tools may result in serious
personal injury.

10.

Dress properly. Do not wear loose cloth­ing or jewelry. Contain long hair. Keep
your hair, clothing, and gloves away from
moving parts. Loose clothes, jewelry, or long

hair can be caught in moving parts.

11.

Avoid accidental starting. Be sure switch
is off before plugging in. Carrying tools with

your finger on the switch or plugging in tools
that have the switch on invites accidents.

12.

Remove adjusting keys or wrenches
before turning the tool on. A wrench or a

key that is left attached to a rotating part of
the tool may result in personal injury.

13.

Do not overreach. Keep proper footing
and balance at all times. Proper footing and

balance enables better control of the tool in
unexpected situations.

14.

Use safety equipment. Always wear eye
protection. Dust mask, non-skid safety

shoes, hard hat, or hearing protection must

be used for appropriate conditions. Ordinary
eye or sun glasses are NOT eye protection.

Tool Use and Care

15.

Use clamps or other practical way to
secure and support the workpiece to a
stable platform. Holding the work by hand or

against your body is unstable and may lead
to loss of control.

16.

Do not force tool. Use the correct tool for
your application. The correct tool will do the

job better and safer at the rate for which it is
designed.

17.

Do not use tool if switch does not turn it
on or off. Any tool that cannot be controlled

with the switch is dangerous and must be
repaired.

18.

Disconnect the plug from the power
source before making any adjustments,
changing accessories, or storing the tool.

Such preventive safety measures reduce the
risk of starting the tool accidentally.

19.

Store idle tools out of reach of children
and other untrained persons. Tools are

dangerous in the hands of untrained users.

20.

Maintain tools with care. Keep cutting
tools sharp and clean. Properly maintained

tools with sharp cutting edges are less likely
to bind and are easier to control.

21.

Check for misalignment or binding of
moving parts, breakage of parts, and any
other condition that may affect the tools
operation. If damaged, have the tool ser­viced before using. Many accidents are

caused by poorly maintained tools.

22.

Use only accessories that are recom­mended by the manufacturer for your
model. Accessories that may be suitable for

one tool, may become hazardous when used
on another tool.

SERVICE

23.

Tool service must be performed only by
qualified repair personnel. Service or main-

tenance performed by unqualified personnel
could result in a risk of injury.

3

24.

When servicing a tool, use only identical
replacement parts. Follow instructions in
the Maintenance section of this manual.

Use of unauthorized parts or failure to follow
Maintenance instructions may create a risk of
electric shock or injury.

USE PROPER EXTENSION CORD: Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy enough to carry the current your
product will draw. An undersized cord will cause a drop in line voltage resulting in loss of
power and overheating. Table 1 shows the correct size to use depending on cord length and
nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage num­ber, the heavier the cord.

Table 1: Minimum gage for cord

Ampere Rating

More Than Not More Than AWG

0 6 18 16 16 14

6 10 18161412
10 12 16 16 14 12
12 16 14 12 Not Recommended

Volts Total length of cord in feet

120 V 25 ft. 50 ft. 100 ft. 150 ft.

SPECIFIC SAFETY RULES

USB005-3

DO NOT let comfort or familiarity with product (gained from
repeated use) replace strict adherence to grinder safety rules. If
you use this tool unsafely or incorrectly, you can suffer serious
personal injury.

1.

Always use proper guard with grinding
wheel. A guard protects operator from bro-

ken wheel fragments.

2.

Accessories must be rated for at least the
speed recommended on the tool warning
label. Wheels and other accessories running

over rated speed can fly apart and cause
injury.

3.

Hold tool by insulated gripping surfaces
when performing an operation where the
cutting tool may contact hidden wiring or
its own cord. Contact with a “live” wire will

make exposed metal parts of the tool “live”
and shock the operator.

4

4.

When using depressed center grinding
wheels, be sure to use only fiberglass­reinforced wheels.

5.

Always use safety glasses or goggles.
Ordinary eye or sun glasses are NOT
safety glasses.

6.

Check the wheel carefully for cracks or
damage before operation. Replace
cracked or damaged wheel immediately.
Run the tool (with guard) at no load for
about a minute, holding tool away from
others. If wheel is flawed, it will likely sep­arate during this test.

7.

Use only flanges specified for this tool.

8.

Be careful not to damage the spindle, the
flange (especially the installing surface)
or the lock nut. Damage to these parts
could result in wheel breakage.

9.

NEVER use tool with wood cutting blades
or other sawblades. Such blades when
used on a grinder frequently kick and
cause loss of control leading to personal
injury.

10.

Hold the tool firmly.

11.

Keep hands away from rotating parts.

12.

Make sure cord is clear of wheel. Do not
wrap cord around your arm or wrist. If
control of tool is lost, cord may become
wrapped around you and cause personal
injury.

13.

Make sure the wheel is not contacting the
workpiece before the switch is turned on.

14.

Before using the tool on an actual work­piece, let it run for a while. Watch for
vibration or wobbling that could indicate

poor installation or a poorly balanced
wheel.

15.

Use the specified surface of the wheel to
perform the grinding.

16.

Watch out for flying sparks. Hold the tool
so that sparks fly away from you and other
persons or flammable materials.

17.

Do not leave the tool running. Operate the
tool only when hand-held.

18.

Do not touch the workpiece immediately
after operation; it may be extremely hot
and could burn your skin.

19.

ALWAYS wear proper apparel including
long sleeve shirts, leather gloves and
shop aprons to protect skin from contact
with hot grindings.

20.

Use of this tool to grind or sand some
products, paints and wood could expose
user to dust containing hazardous sub­stances. Use appropriate respiratory pro­tection.

SAVE THESE INSTRUCTIONS

WARNING:

MISUSE or failure to follow the safety rules stated in this
instruction manual may cause serious personal injury.

SYMBOLS

The followings show the symbols used for tool.

V .......................volts

A ....................... amperes

Hz .....................hertz

................ alternating current

....................no load speed

n

˚

....................Class II Construction

.../min................revolutions or reciprocation per

minute

USD201-2

5

FUNCTIONAL
DESCRIPTION

1

1. Shaft lock

1
2
3

4

1. mark

2. Motor housing

3. Lock button

4. Handle

CAUTION:

• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on the
tool.

001027

Shaft lock

CAUTION:

• Never actuate the shaft lock when the spindle is moving.
The tool may be damaged.

Press the shaft lock to prevent spindle rotation when install­ing or removing accessories.

001031

Switch handle mounting positions

The switch handle can be rotated to either 90° left or right to
fit your work needs. First, unplug the tool. Press the lock but­ton and rotate the switch handle until the mark on the lock
button is aligned with that on the motor housing. The switch
handle will be locked in that position.

1. Switch trigger

2. Lock lever

6

001042

Switch action

CAUTION:

• Before plugging in the tool, always check to see that the

1
2

switch trigger actuates properly and returns to the “OFF”
position when released.

• Switch can be locked in “ON” position for ease of
operator comfort during extended use. Apply caution
when locking tool in “ON” position and maintain firm
grasp on tool.

To start the tool, simply pull the switch trigger. Release the
switch trigger to stop. For continuous operation, pull the
switch trigger and then push in the lock lever. To stop the tool
from the locked position, pull the switch trigger fully, then
release it.

ASSEMBLY

2
3

1. Wheel guard

2. Screw

3. Lever

4. Bearing box

1

4

CAUTION:

• Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.

001058

Installing side grip (handle)

CAUTION:

• Always be sure that the side grip is installed securely
before operation.

Screw the side grip securely on the position of the tool as
shown in the figure.

001065

Installing or removing wheel guard

CAUTION:

• When using a depressed center grinding wheel/Multi­disc, flex wheel or wire wheel brush, the wheel guard
must be fitted on the tool so that the closed side of the
guard always points toward the operator.

Loosen the lever on the wheel guard. Mount the wheel guard
with the protrusion on the wheel guard band aligned with the
notch on the bearing box. Then rotate the wheel guard
around 180 degrees. Tighten the lever to fasten the wheel
guard. If the lever is too tight or too loosen to fasten the
wheel guard, loosen or tighten the screw to adjust the tight­ening of the wheel guard band.

To remove wheel guard, follow the installation procedure in
reverse.

001077

1

2

3

1. Lock nut

2. Depressed center grinding wheel/
Multi-disc

3. Inner flange

Installing or removing depressed center grinding
wheel/Multi-disc

WARNING:

• Always use supplied guard when depressed center
grinding wheel/Multi-disc is on tool. Wheel can shatter
during use and guard helps to reduce chances of
personal injury.

Mount the inner flange onto the spindle. Fit the wheel/disc on
the inner flange and screw the lock nut onto the spindle.

7

1

2

1. Lock nut wrench

2. Shaft lock

1. Lock nut

2. Flex wheel

3. Plastic pad

4. Inner flange

1. Lock nut

2. Abrasive disc

3. Rubber pad

001089

001102

1
2

3
4

001113

1

2

3

To tighten the lock nut, press the shaft lock firmly so that the
spindle cannot revolve, then use the lock nut wrench and
securely tighten clockwise.

To remove the wheel, follow the installation procedure in
reverse.

Installing or removing flex wheel
(optional accessory)

WARNING:

• Always use supplied guard when flex wheel is on tool.
Wheel can shatter during use and guard helps to reduce
chances of personal injury.

Follow instructions for depressed center grinding wheel/
Multi-disc but also use plastic pad over wheel. See order of
assembly on accessories page in this manual.

Installing or removing abrasive disc
(optional accessory)

NOTE:

• Use sander accessories specified in this manual. These
must be purchased separately.

Mount the rubber pad onto the spindle. Fit the disc on the
rubber pad and screw the lock nut onto the spindle. To
tighten the lock nut, press the shaft lock firmly so that the
spindle cannot revolve, then use the lock nut wrench and
securely tighten clockwise.

To remove the disc, follow the installation procedure in
reverse.

OPERATION

8

WARNING:

• It should never be necessary to force the tool. The
weight of the tool applies adequate pressure. Forcing
and excessive pressure could cause dangerous wheel
breakage.

• ALWAYS replace wheel if tool is dropped while grinding.

AB

1. Wire cup brush

2. Urethane washer

15˚

• NEVER bang or hit grinding disc or wheel onto work.

• Avoid bouncing and snagging the wheel, especially

when working corners, sharp edges etc. This can cause
loss of control and kickback.

• NEVER use tool with wood cutting blades and other
sawblades. Such blades when used on a grinder
frequently kick and cause loss of control leading to
personal injury.

CAUTION:

• After operation, always switch off the tool and wait until
the wheel has come to a complete stop before putting
the tool down.

001128

Grinding and sanding operation

ALWAYS hold the tool firmly with one hand on rear handle
and the other on the side handle. Turn the tool on and then
apply the wheel or disc to the workpiece.
In general, keep the edge of the wheel or disc at an angle of
about 15 degrees to the workpiece surface.
During the break-in period with a new wheel, do not work the
grinder in the B direction or it will cut into the workpiece.
Once the edge of the wheel has been rounded off by use, the
wheel may be worked in both A and B direction.

001142

Operation with wire cup brush
(optional accessory)

1

2

CAUTION:

• Check operation of brush by running tool with no load,
insuring that no one is in front of or in line with brush.

• Do not use brush that is damaged, or which is out of
balance. Use of damaged brush could increase potential
for injury from contact with broken brush wires.

Unplug tool and place it upside down allowing easy access
to spindle. Remove any accessories on spindle. Mount ure­thane washer then thread wire cup brush onto spindle and
tighten with supplied wrench. When using brush, avoid
applying too much pressure which causes over bending of
wires, leading to premature breakage.

9

1

1. Wire wheel brush

NOTE:

• When using wire cup brush, mount urethane washer to
the spindle. It will make it easier to remove wire cup
brush.

001235

Operation with wire wheel brush
(optional accessory)

CAUTION:

• Check operation of wire wheel brush by running tool with
no load, insuring that no one is in front of or in line with
the wire wheel brush.

• Do not use wire wheel brush that is damaged, or which
is out of balance. Use of damaged wire wheel brush
could increase potential for injury from contact with
broken wires.

• ALWAYS use guard with wire wheel brushes, assuring
diameter of wheel fits inside guard. Wheel can shatter
during use and guard helps to reduce chances of
personal injury.

Unplug tool and place it upside down allowing easy access
to spindle. Remove any accessories on spindle. Thread wire
wheel brush onto spindle and tighten with the wrenches.
When using wire wheel brush, avoid applying too much pres­sure which causes over bending of wires, leading to prema­ture breakage.

MAINTENANCE

1

2

1. Exhaust vent

2. Inhalation vent

10

CAUTION:

001168

• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection or
maintenance.

The tool and its air vents have to be kept clean. Regularly
clean the tool’s air vents or whenever the vents start to
become obstructed.

1

1. Commutator

2. Insulating tip

3. Carbon brush

2

1

1. Brush holder cap

2. Screwdriver

001146

Replacing carbon brushes

2

When the resin insulating tip inside the carbon brush is
exposed to contact the commutator, it will automatically shut
off the motor. When this occurs, both carbon brushes should
be replaced. Keep the carbon brushes clean and free to slip

3

in the holders. Both carbon brushes should be replaced at
the same time. Use only identical carbon brushes.

001155

Use a screwdriver to remove the brush holder caps. Take out
the worn carbon brushes, insert the new ones and secure
the brush holder caps.

To maintain product SAFETY and RELIABILITY, repairs, any
other maintenance or adjustment should be performed by
Makita Authorized or Factory Service Centers, always using
Makita replacement parts.

ACCESSORIES

CAUTION:

• These accessories or attachments are recommended for
use with your Makita tool specified in this manual. The
use of any other accessories or attachments might
present a risk of injury to persons. Only use accessory
or attachment for its stated purpose.

• Your tool is supplied with a guard for use with a
depressed center grinding wheel, multi-disc, flex wheel
and wire wheel brush. If you decide to use your Makita
grinder with approved accessories which you purchase
from your Makita distributor or factory service center, be
sure to obtain and use all necessary fasteners and
guards as recommended in this manual. Your failure to
do so could result in personal injury to you and others.

If you need any assistance for more details regarding these
accessories, ask your local Makita service center.

11

001185

1

2

3

4

5

2

3

6

10

8

9

11

2

12

13

7

5

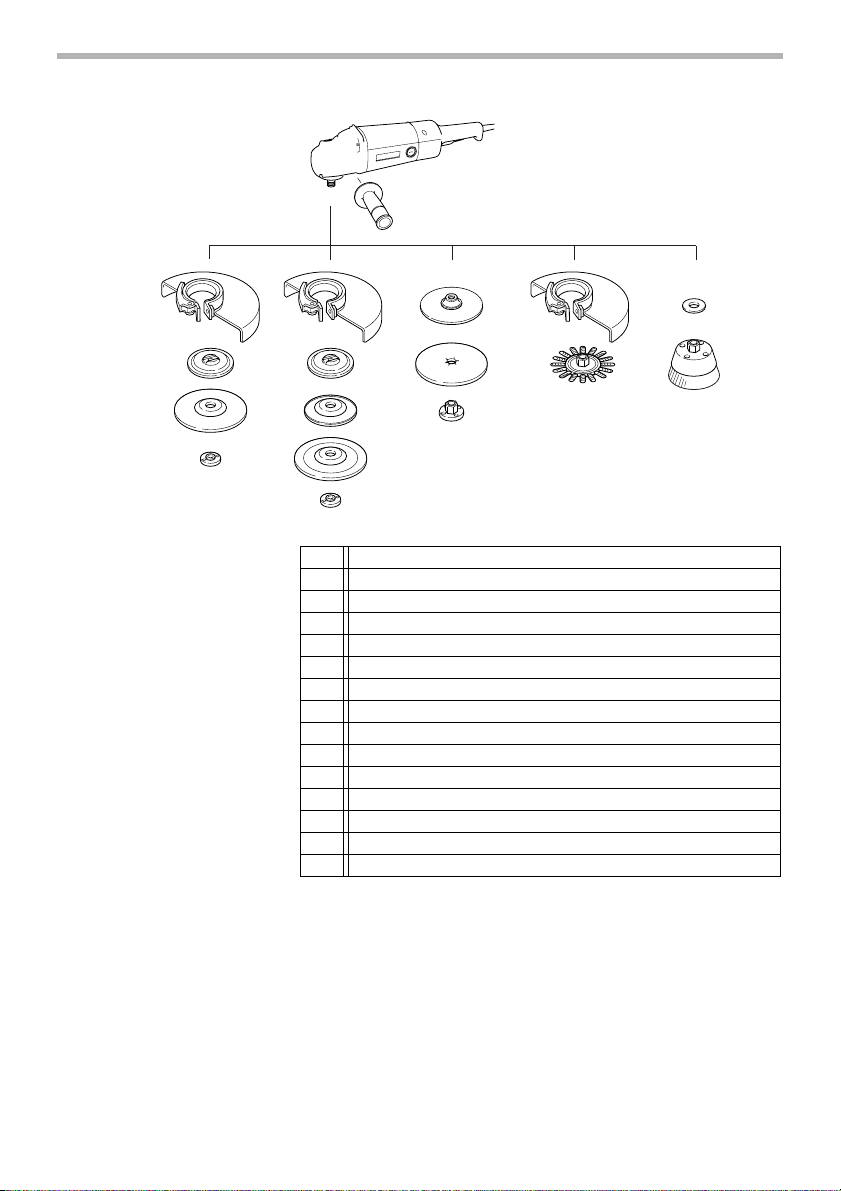

9077SL
1Grip 38
2 Wheel guard
3 Inner flange 89
4 Depressed center grinding wheel/Multi-disc
5 Lock nut 5/8-40
6 Plastic pad
7 Flex wheel
8 Rubber pad 170
9 Abrasive disc

10 Sanding lock nut 5/8-48
11 Wire wheel brush
12 Urethane washer 14
13 Wire cup brush

- Lock nut wrench 28

12

Cut

Makita U.S.A., Inc.

14930 Northam Street
La Mirada, CA 90638-5753

Fold

First-Class

Postage

Required

Post Office will

not deliver

without proper

postage.

13

MAIL THIS PORTION

Your answers to the following questions are appreciated.

1. This product was purchased from:

Home Center

Hardware/Lumber Store

Tool Distributor

Industrial Supply

Construction Supply

2. Use of the product is intended for:

Construction Trade

Industrial Maintenance

Home Maintenance

Hobby

Other ( )

5. Any comments:

DATE PURCHASED MODEL NO.

MONTH DAY YEAR

INTL. LAST NAME / COMPANY NAME

Other ( )

3. How did you learn about this product:

4. Most favored points are:

SERIAL NO.

Magazine

From Dealer

Newspaper

Store Display

Catalog

Design

Features

Size

Price

Makita Brand

Radio

Exhibition

From Friend

Previous Usage

Other ( )

Repair Service

Durability

Powe r

Other ( )

STATUS

Married

Single

SEX

MF

STREET ADRESS

CITY

AREA

S TATE

AGE:

BE SURE TO COMPLETE THE CUSTOMER’S PORTION OF THIS FORM AND RETAIN FOR YOUR RECORDS.

Paste Paste Paste Paste Paste Paste

14

Please return this portion by facsimile or mail.

Facsimile No: [phone]

ZIP CODE PHONE

Under 19 20-29 30-39 40-49 50-60 Over 60

CODE

Paste Paste Paste Paste Paste Paste Paste Paste

Paste Paste Paste Paste Paste Paste

FACTORY SERVICE CENTERS

1-800-4-MAKITA

RETAIN THIS PORTION FOR YOUR RECORDS

ALABAMA

2365 Pelham Parkway
Pelham, AL 35124
[phone]

ARIZONA

3707 E. Broadway Rd., Ste. 6
Phoenix, AZ 85040
[phone]

ARKANSAS

Shackleford Shopping Center
240 South Shackleford Rd.,
Ste. C
Little Rock, AR 72211
[phone]

CALIFORNIA

41850 Christy St.
Fremont, CA 94538-5107
[phone]

1421 N. Clovis Ave., Ste. 112
Fresno, CA 93727
[phone]

14930 Northam St.
La Mirada, CA 90638-5753
[phone]

1970 Fulton Avenue
Sacramento, CA 95825
[phone]

1440 South “E” Street
San Bernardino, CA 92408
[phone]

7674 Clairemont Mesa Blvd.
San Diego, CA 92111
[phone]

1714 E.McFadden Ave., Unit M
Santa Ana, CA 92705
[phone]

1565 Winchester B.
Campbell, CA 95008-0501
[phone]

16735 Saticoy St., Ste. 105
Van Nuys, CA 91406
[phone]

COLORADO

11839 E. 51st Ave.
Denver, CO 80239-2709
[phone]

CONNECTICUT

508 Spring St.
Windsor Locks, CT 06096
[phone]

FLORIDA

620 Douglas Ave. Suite 1302
Altamonte Springs, FL 32714
[phone]

750 East Sample Road
Pompano Beach, FL 33064
[phone]

Thompson Center Waters
5501 W. Waters Ave., Ste. 406
Tampa, FL 33634
[phone]

GEORGIA

4680 River Green Parkway
Duluth, GA 30096-2566
[phone]

HAWAII

4510 Salt Lake Blvd., Suite A7
Honolulu, HI 96818
[phone]

ILLINOIS

1450 Feehanville Dr.
Mt. Prospect, IL 60056-6011
[phone]

INDIANA

8403 Michigan Road, Unit 1
Indianapolis, IN 46268
[phone]

KANSAS

8819 W. 95th St.
Overland Park, KS 66212
[phone]

KENTUCKY

1215 S. Hurstbourne Parkway
Louisville, KY 40222
[phone]

LOUSIANA

5626 Jefferson Hwy.
Harahan, LA 70123
[phone]

MARYLAND

7541 - 45 Ritchie Highway
Glen Burnie, MD 21061
[phone]

MASSACHUSETTS

232 Providence Hwy.
Westwood, MA 02090
[phone]

MICHIGAN

37454 Ann Arbor Trail
Livonia, MI 48150
[phone]

MINNESOTA

6427 Penn Ave. South
Richfield, MN 55423
[phone]

MISSOURI

9876 Watson Road
St. Louis, MO 63126-2221
[phone]

NEBRASKA

4129 S. 84th St.
Omaha, NE 68127
[phone]

NEVADA

3375 S. Decatur Blvd.
Suites. 22 - 24
Las Vegas, NV 89102
[phone]

NEW JERSEY

251 Herrod Blvd.
Dayton, NJ 08810-1539
[phone]

NEW MEXICO

5805 Menaul Blvd. NE
Albuquerque, NM 87110
[phone]

NEW YORK

4917 Genessee Street
Cheektowaga, NY 14225
[phone]

131-35 31st Ave.
Flushing, NY 11354
[phone]

NORTH CAROLINA

3501-G S. Tryon St.
Charlotte, NC 28217
[phone]

OHIO

6253 E. Main St.
Columbus, OH 43213
[phone]

6379 Pearl Road
Parma Heights, OH 44130
[phone]

1617 E. Kemper Rd.
Sharonville, OH 45246
[phone]

OKLAHOMA

552 E. Memorial Road
Oklahoma City, OK 73114
[phone]

OREGON

828 19th Avenue., N.W.
Portland, OR 97209
[phone]

PENNSYLVANIA

Springwater Plaza
364 Wilmington W. Chester
Pike
Glen Mills, PA 19342
[phone]

6200 Babcock Blvd
Pittsburgh, PA 15237
[phone]

PUERTO RICO

200 Guayama St.
Hato Rey, PR 00917
[phone]

TENNESSEE

4655 Nolensville Rd.
Nashville, TN 37211
[phone]

TEXAS

12801 Stemmons Fwy Ste. 809
Farmers Branch, TX 75234
[phone]

12701 Directors Dr.
Stafford, TX 77477-3701
[phone]

3453 IH-35 North, Ste. 101
San Antonio, TX 78219
[phone]

UTAH

145 E. 1300 S., Ste. 101
Salt Lake City, UT 84115
[phone]

VIRGINIA

5760 Northampton Blvd,. Ste.
102
Virginia Beach, VA 23455
[phone]

WASHINGTON

22220 84th Ave. So., Bldg. A
Kent, WA 98032
[phone]

WISCONSIN

Lincoln Plaza Shopping Ctr.
2245 S. 108th St. West Allis, WI
53227
[phone]

CUSTOMER’S RECORD

When you need service: Send
complete tool (prepaid) to one
of the Makita Factory Service
Centers listed, or to an Authorized
Makita Service Center. Be sure
to attach a letter to the outside of
the carton detailing the problem
with your tool.

Date Purchased

Dealer’s Name & Address

Model No.

Serial No.

15

WARNING

Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to the State of California
to cause cancer, birth defects or other reproductive harm. Some examples
of these chemicals are:

• lead from lead-based paints,

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.

MAKITA LIMITED ONE YEAR WARRANTY

Warranty Policy

Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to be free of
defects from workmanship and materials for the period of ONE YEAR from the date of original purchase.
Should any trouble develop during this one-year period, return the COMPLETE tool, freight prepaid, to one of
Makita's Factory or Authorized Service Centers. If inspection shows the trouble is caused by defective
workmanship or material, Makita will repair (or at our option, replace) without charge.

This Warranty does not apply where:

• repairs have been made or attempted by others:

• repairs are required because of normal wear and tear:

• the tool has been abused, misused or improperly maintained:

• alterations have been made to the tool.

IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES FROM THE SALE OR USE OF THE PRODUCT. THIS DISCLAIMER APPLIES BOTH DURING
AND AFTER THE TERM OF THIS WARRANTY.

MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED WARRANTIES OF
"MERCHANTABILITY" AND "FITNESS FOR A SPECIFIC PURPOSE," AFTER THE ONE-YEAR TERM OF
THIS WARRANTY.

This Warranty gives you specific legal rights, and you may also have other rights which vary form state to state.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you. Some states do not allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you.

884236B069

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi 446-8502 Japan
