MAKITA 6922NB User Manual

INSTRUCTION MANUAL
MANUEL D'INSTRUCTION
MANUAL DE INSTRUCCIONES

Shear Wrench
Boulonneuse

(pour ecrous à rompre)
Llave para tornillos de cabeza

degollante

6922NB

004982

DOUBLE INSULATION
DOUBLE ISOLATION
DOBLE AISLAMIENTO

WARNING:

For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

AVERTISSEMENT:

Pour votre propre sécurité, prière de lire attentivement avant l’utilisation.
GARDER CES INSTRUCTIONS POUR RÉFÉRENCE ULTÉRIEURE.

ADVERTENCIA:

Para su seguridad personal, LEA DETENIDAMENTE este manual antes de usar la herramienta.
GUARDE ESTAS INSTRUCCIONES PARA FUTURA REFERENCIA.

ENGLISH

SPECIFICATIONS

Model 6922NB

Bolt size 5/8”, 3/4”, 7/8”

Max.torque 82 kg•m (593 ft•lbs)

No load speed(RPM) 18/min

Dimensions (L×W×H) 249 mm × 84 mm × 252 mm (9-13/16”×3-5/16”×9-15/16”)

Net weight 4.8 kg (10.6 lbs)

• Due to our continuing programme of research and development, the specifications herein are subject to change
without notice.

• Note: Specifications may differ from country to country.

GENERAL SAFETY RULES

GEA001-3

WARNING:

Read all instructions. Failure to follow all

instructions listed below may result in elec­tric shock, fire and/or serious injury. The
term “power tool” in all of the warnings listed
below refers to your mains-operated
(corded) power tool or battery-operated
(cordless) power tool.

SAVE THESE INSTRUCTIONS

Work area safety

1. Keep work area clean and well lit. Cluttered and

dark areas invite accidents.

2. Do not operate power tools in explosive atmo-

spheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks

which may ignite the dust or fumes.

3. Keep children and bystanders away while oper-

ating a power tool. Distractions can cause you to

lose control.

Electrical safety

4. Power tool plugs must match the outlet. Never

modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will

reduce risk of electric shock.

5. Avoid body contact with earthed or grounded

surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

6. Do not expose power tools to rain or wet condi­tions. Water entering a power tool will increase the

risk of electric shock.

7. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords

increase the risk of electric shock.

8. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a

cord suitable for outdoor use reduces the risk of
electric shock.

Personal safety

9. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A

moment of inattention while operating power tools
may result in serious personal injury.

10. Use safety equipment. Always wear eye protec­tion. Safety equipment such as dust mask, non-skid

safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal inju­ries.

11. Avoid accidental starting. Ensure the switch is in
the off-position before plugging in. Carrying

power tools with your finger on the switch or plug­ging in power tools that have the switch on invites
accidents.

12. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left

attached to a rotating part of the power tool may
result in personal injury.

13. Do not overreach. Keep proper footing and bal­ance at all times. This enables better control of the

power tool in unexpected situations.

14. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes, jewellery

or long hair can be caught in moving parts.

2

15. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of

these devices can reduce dust-related hazards.

Power tool use and care

16. Do not force the power tool. Use the correct
power tool for your application. The correct power

tool will do the job better and safer at the rate for
which it was designed.

17. Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be

controlled with the switch is dangerous and must be
repaired.

18. Disconnect the plug from the power source and/
or the battery pack from the power tool before
making any adjustments, changing accessories,
or storing power tools. Such preventive safety

measures reduce the risk of starting the power tool
accidentally.

19. Store idle power tools out of the reach of chil­dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the

hands of untrained users.

20. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tools operation. If damaged, have the power tool
repaired before use. Many accidents are caused by

poorly maintained power tools.

21. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.

22. Use the power tool, accessories and tool bits
etc. in accordance with these instructions and in
the manner intended for the particular type of
power tool, taking into account the working con­ditions and the work to be performed. Use of the

power tool for operations different from those
intended could result in a hazardous situation.

Service

23. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power

tool is maintained.

24. Follow instruction for lubricating and changing
accessories.

25. Keep handles dry, clean and free from oil and
grease.

GEB006-4

SPECIFIC SAFETY RULES

DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to shear wrench safety rules. If you use this tool
unsafely or incorrectly, you can suffer serious per­sonal injury.

1. Always be sure you maintain good balance and
firm footing.
Be sure no one is below when using the tool in
high or elevated locations.

2. Hold the tool firmly.

3. Use care and common sense when disposing of
sheared bolt tips. Falling tips from high loca­tions or scattered tips can cause severe injury.

SAVE THESE INSTRUCTIONS.

WARNING:

MISUSE or failure to follow the safety
rules stated in this instruction manual
may cause serious personal injury.

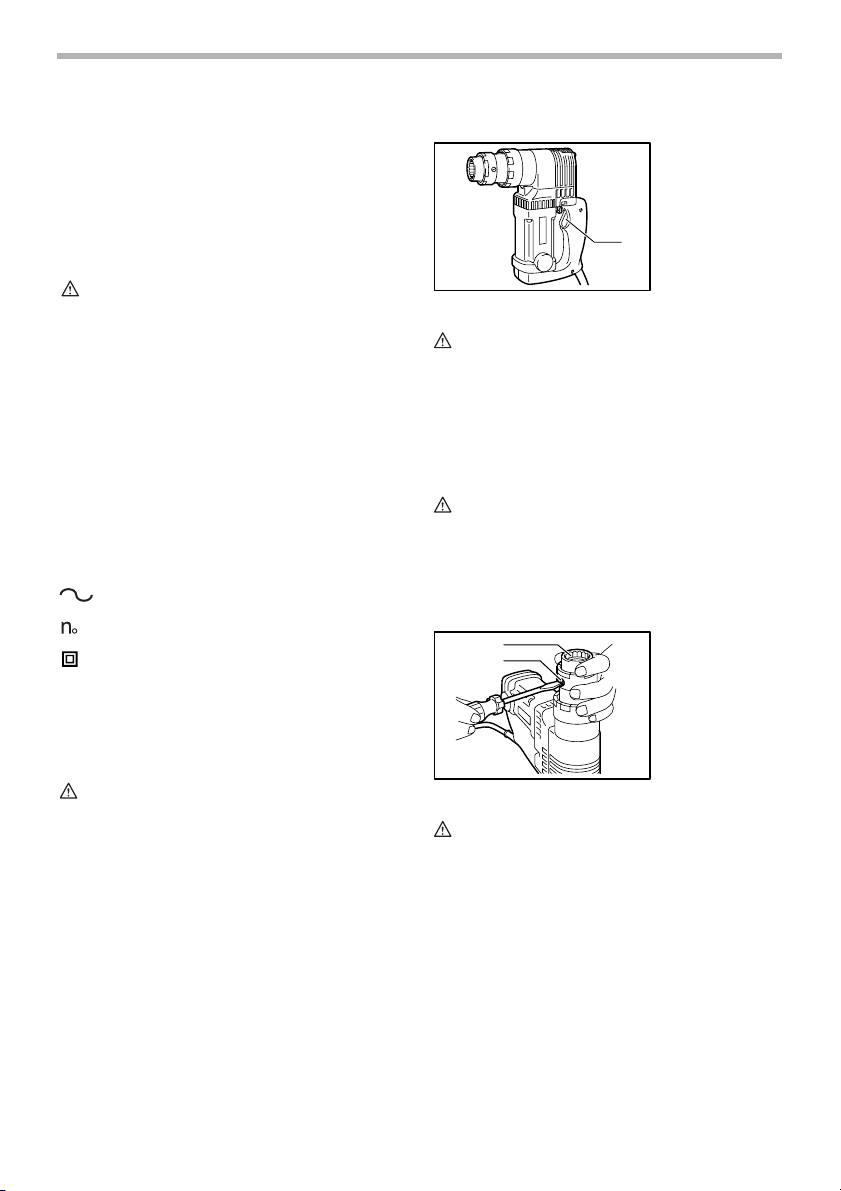

SYMBOLS

USD201-2

The followings show the symbols used for tool.

V ...........................volts

A...........................amperes

Hz .........................hertz

...................alternating current

.......................no load speed

.......................Class II Construction

.../min ...................revolutions or reciprocation per

minute

3

FUNCTIONAL DESCRIPTION

CAUTION:

• Always be sure that the tool is switched off and

unplugged before adjusting or checking function on
the tool.

Switch action

004983

1. Switch trigger

Press the pin down to remove the inner sleeve from the
outer sleeve. Be careful not to drop the inner sleeve
when removing it. Do not remove the inner sleeve spring,
tip rod and tip rod spring from the tool.

004985

1

2

3

1. Inner sleeve

2. Pin

3. Outer sleeve

1

CAUTION:

• Before plugging in the tool, always check to see

that the switch trigger actuates properly and returns
to the “OFF” position when released.

To start the tool, simply pull the switch trigger. Release
the switch trigger to stop.

ASSEMBLY

CAUTION:

• Always be sure that the tool is switched off and

unplugged before carrying out any work on the tool.

Removing or installing the outer and inner
sleeves

1
2

CAUTION:

• Be careful not to allow foreign matter to enter the

insides of the tool when removing or installing the
outer and inner sleeves.

The outer sleeve M20 and inner sleeve 3/4” are factory ­installed. If you need other sizes for your work, replace
the sleeves as follows.

Loosen the two screws while holding the outer sleeve.
The outer and inner sleeves will be pushed up by the
springs built into the tool.

004984

1. Outer sleeve

2. Screw

004986

1. Tip rod

2. Tip rod spring

1

3. Inner sleeve
spring

2

3

Hold the inner sleeve with the pin facing upward. Place
the outer sleeve over the inner sleeve. Press the pin to
secure the inner sleeve.

Insert the outer and inner sleeves into the tool while
rotating the inner sleeve alternately clockwise and coun­terclockwise until there is no gap between the outer
sleeve and the tool. See the figure below. Then tighten
the two screws securely.

004987

1

2
3

1. Outer sleeve

2. Pin

3. Inner sleeve

4

004988

1

1. There should be
no gap between
the outer sleeve
and the tool.

2. Outer sleeve

3. Screw

When the specified torque is attained, the bolt tip will be
sheared at its notched portion. The bolt tip will remain
inside the inner sleeve.

004991

1

1. Notched portion

2. Bolt tip

2

3

OPERATION

Bolt installation

Slip the tool onto the bolt so that the inner sleeve com­pletely covers the bolt tip.

CAUTION:

• Be careful when fitting the sleeve onto the bolt tip.

Striking the tip can damage it so that it will no
longer fit inside the sleeve properly.

Keep forward pressure on the tool while sliding it further
forward until the outer sleeve fits completely over the nut.
If the tool fails to fit completely over the nut, twist the tool
slightly right and left while pushing forward.

004989

1. Inner sleeve

1

2. Bolt tip

2

004990

1

1. Outer sleeve

2. Nut

2

Release the switch trigger and withdraw the tool in a
straight line.

004992

1

1. Outer sleeve

Press the tip ejector (tip lever) to eject the bolt tip from
the tool. Catch the sheared bolt tips to prevent them from
falling dangerously below. Keep the tips off of the ground,
floor, walkways, etc. to prevent injury from tripping or fall­ing.

004993

1. Bolt tip

1

004994

1. Tip ejector (Tip
lever)

2

Pull the switch trigger. The outer sleeve turns to begin
tightening the nut.

1

5

MAINTENANCE

CAUTION:

• Always be sure that the tool is switched off and

unplugged before attempting to perform inspection
or maintenance.

Replacing carbon brushes

Remove and check the carbon brushes regularly.
Replace when they wear down to the limit mark. Keep
the carbon brushes clean and free to slip in the holders.
Both carbon brushes should be replaced at the same
time. Use only identical carbon brushes.

Open the protector.
Use a screwdriver to remove the brush holder caps. Take

out the worn carbon brushes, insert the new ones and
secure the brush holder caps.

1

2

001145

1. Limit mark

1

004995

1. Screwdriver

2. Brush holder
cap

3. Protector

This Warranty does not apply where:

• repairs have been made or attempted by others:

• repairs are required because of normal wear and

tear:

• the tool has been abused, misused or improperly

maintained:

• alterations have been made to the tool.

IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY
INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAM­AGES FROM THE SALE OR USE OF THE PRODUCT.
THIS DISCLAIMER APPLIES BOTH DURING AND
AFTER THE TERM OF THIS WARRANTY.

MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED
WARRANTIES, INCLUDING IMPLIED WARRANTIES
OF “MERCHANTABILITY” AND “FITNESS FOR A SPE­CIFIC PURPOSE,” AFTER THE ONE YEAR TERM OF
THIS WARRANTY.

This Warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.
Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limi­tation or exclusion may not apply to you. Some states do
not allow limitation on how long an implied warranty lasts,
so the above limitation may not apply to you.

3

To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be per­formed by Makita Authorized or Factory Service Centers,
always using Makita replacement parts.

EN0006-1

MAKITA LIMITED ONE YEAR WARRANTY

Warranty Policy

Every Makita tool is thoroughly inspected and tested
before leaving the factory. It is warranted to be free of
defects from workmanship and materials for the period of
ONE YEAR from the date of original purchase. Should
any trouble develop during this one year period, return
the COMPLETE tool, freight prepaid, to one of Makita’s
Factory or Authorized Service Centers. If inspection
shows the trouble is caused by defective workmanship or
material, Makita will repair (or at our option, replace)
without charge.

6
