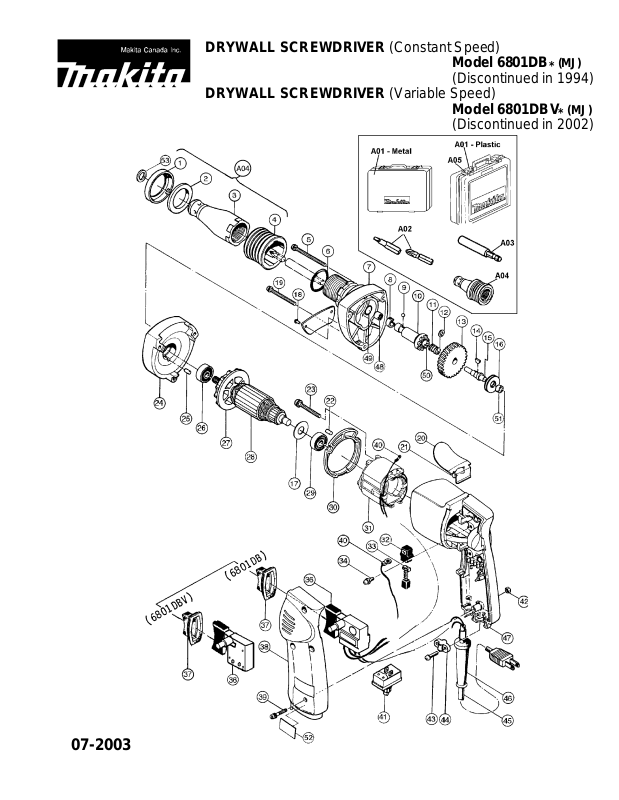

DRYWALL SCREWDRIVER (Constant Speed)
Model 6801DB* (MJ)

(Discontinued in 1994)

DRYWALL SCREWDRIVER (Variable Speed)

Model 6801DBV* (MJ)

(Discontinued in 2002)

07-2003

Item Part No.

No. No. Used Description

Item Part No.

No. No. Used Description

1 411297-0 1 Felt Cover
2 443028-9 1 Felt Ring 30
3 411292-0 1 Locator (With Item 53)
4 411293-8 1 Locking Sleeve
5 911181-4 2 P.H. Screw M4x55
6 213404-9 1 O Ring 27 (Old 213363-7)
7 156353-6 1 Gear Housing (Aluminium)

(With Items 48 & 49)
8 232050-9 1 Leaf Spring
9 216001-0 1 Steel Ball 3.5

10
11 231139-0 1 Compression Spring 9
12 253324-5 2 Thin Washer 8
13
14 254031-3 1 Woodruff Key 3
15 325485-2 1 Gear Shaft
16 212057-1 1 Thrust Needle Bearing 1023
17 681617-4 1 Insulation Washer
18 953106-2 2 Rivet 0-5
19 911171-7 1 P.H. Screw M4x45

20 342422-1 1 Hook (Type 1)

21 232034-7 1 Leaf Spring (Type 1)
22 263002-9 1 Rubber Pin 4
23 911180-6 2 (+) P.H. Screw M4x50(Old 925178-7)
24 156354-4 1 Gear Housing Cover (Aluminium)

25 263002-9 1 Rubber Pin 4
26 211033-2 1 Ball Bearing 608LB
27 241803-5 1 Fan 58
28 611302-5 1 Armature Assy (Includes

29 211028-5 1 Ball Bearing 627LB
30
31
32 643552-4 2 Brush Holder 5-8

33 191956-9 2 Carbon Brush CB-75

*

*

343693-3 1 Hook (Type 2)

*
*

1 Spindle (With Items 8, 9 & 50)

1 Helical Gear 37

(With Items 25 & 51)

Items 17, 26-29)

1 Baffle Plate
1 Field Assy [With Item 40 (1pc.)]

(Old 181028-8 - CB-56)

SERVICE CHANGES

181503-4 2 Auto Cut-Off Carbon Brush CB-63

(Optional)

34 911124-6 2 P.H. Screw M4x14
35 685717-2 1 Sponge Sheet (Add.)

36 651212-4 1 Switch (With Lock)(6801DB)

*

37 421144-7 1 Dust Cover (6801DB)

*

38
39 911153-9
40 654038-3 2 Insulated Terminal FV1.25-M4
41 651478-6 1 Reversing Switch (Old 651461-3)
42 931102-0
43 911131-9 2 P.H. Screw M4x18 (With Washer)
44 687002-9 1 Strain Relief
45 664013-1 1 Cord With Plug 2P-18-2.5
46 682502-4 1 Cord Guard 8-85
47
48 212155-1 1 Needle Bearing 1416
49 213154-6 1 O Ring 14
50 212015-7 1 Needle Bearing 509
51 214012-9 1 Plane Bearing 6
52 817613-8 1 Caution Label (Eng/Fr)
53 261058-6 1 Sponge Washer 11

100 652030-3 4 (-) Set Screw M3x7.5

Accessories

A01 181949-4 1 Steel Carrying Case(Old 823036-0)

A02 - - - - 1 Insert Bits (See Catalogue for Details)
A03 784801-1 1 Magnetic Bit Holder 6.35-76
A04 122211-8 1 Nose Piece Assy (Assembled Items 1-4)
A05 417496-2 2 Latch

*

*

824700-6 1 Plastic Carrying Case (Includes Item A05)

1 Switch (6801DBV)

1 Switch Cover/Dust Cover (6801DBV)

1 Handle Cover

P.H. Screw M4x28

*

Hex Nut M4

*

1 Motor Housing (With Items 22 & 42)

*

∗ SEE SERVICE CHANGES

1. Change on Switch & Switch Cover/Dust Cover (6801DBV only).

Item No. Description Type 1 Type 2 Type 3 Type 4

35
36 Switch (Speed changed by Trigger) 651313-8 651271-8 650206-6

37 Switch Cover/Dust Cover 411852-8 (Plastic) 421145-5 (Rubber) 411852-8 (Plastic)

Sponge Sheet

Switch (Option) (Speed changed by Dial) 651314-6 (6A) or 651255-6 651270-0 650205-8

Serial No. ~ 210103E 210104E ~ 651715E 651716E ~ N/A

- - - - - 685717-2 - - - - -

2 Model 6801DB*
2 Model 6801DBV
