T
Subject
For Models
Country
ECHNICAL INFORMATION
Change of Spindle
9560, 9560C, 9560CV, 9561, 9561C, 9561CV, 9562, 9562C, 9562CV, 9563, 9563C, 9563CV,
9564, 9564C, 9564CV, 9564CVL, 9565, 9565C, 9565CV, 9565CVL
All countries
65732
(Page 1 of 2)
Description

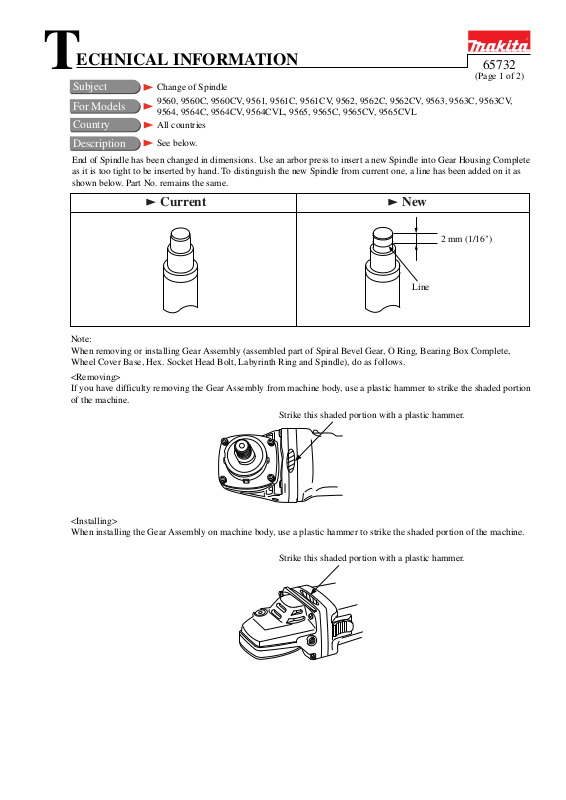

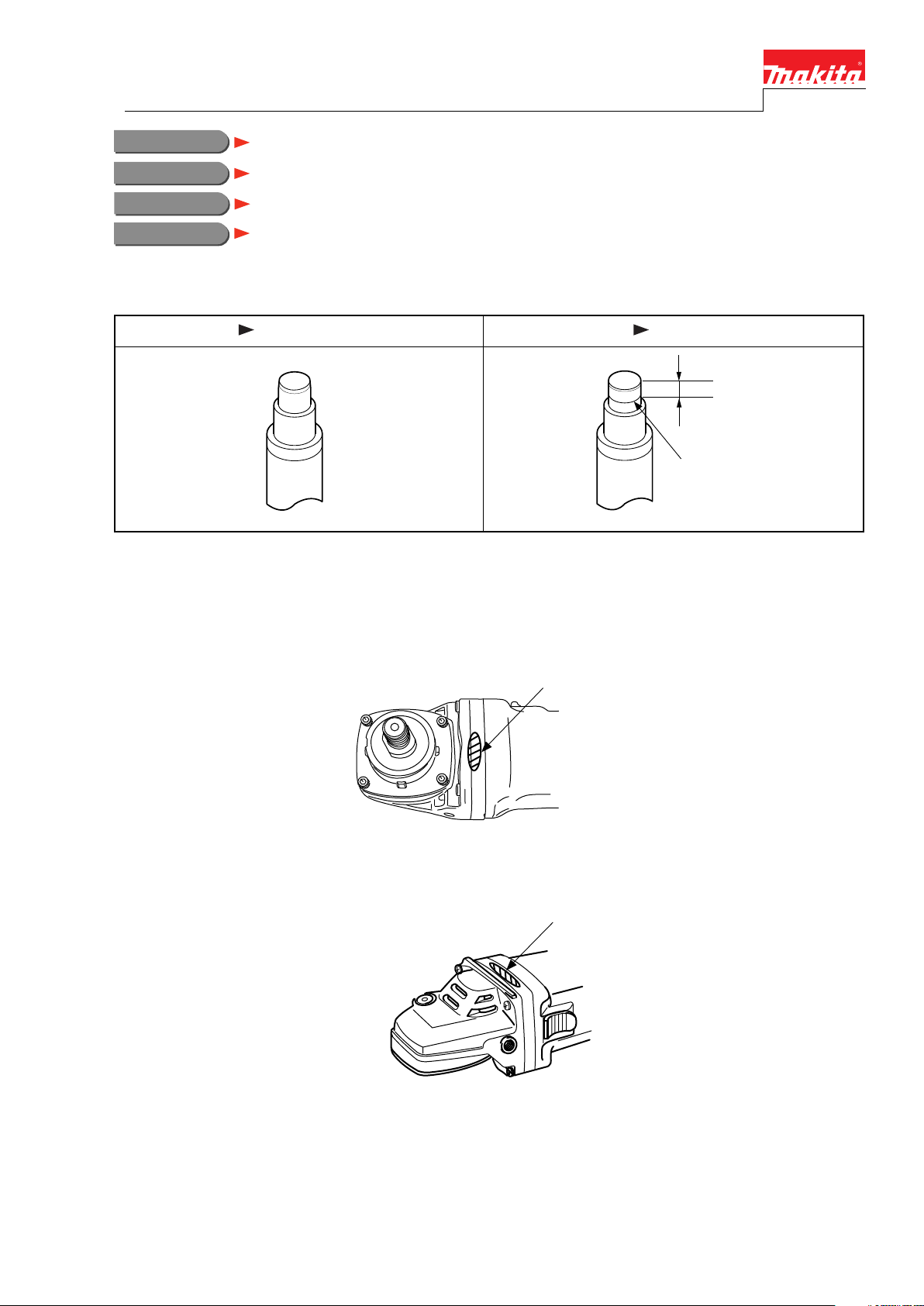

End of Spindle has been changed in dimensions. Use an arbor press to insert a new Spindle into Gear Housing Complete
as it is too tight to be inserted by hand. To distinguish the new Spindle from current one, a line has been added on it as
shown below. Part No. remains the same.
See below.
Current New
2 mm (1/16")
Line
Note:
When removing or installing Gear Assembly (assembled part of Spiral Bevel Gear, O Ring, Bearing Box Complete,
Wheel Cover Base, Hex. Socket Head Bolt, Labyrinth Ring and Spindle), do as follows.
<Removing>
If you have difficulty removing the Gear Assembly from machine body, use a plastic hammer to strike the shaded portion
of the machine.
Strike this shaded portion with a plastic hammer.
<Installing>
When installing the Gear Assembly on machine body, use a plastic hammer to strike the shaded portion of the machine.
Strike this shaded portion with a plastic hammer.
Page 2
Interchangeability(I/C)
65732
(Page 2 of 2)
050
050
050
050
Current part New part NoteQ'tyItem No.
Spindle
324035-0
Spindle
324036-8
Spindle
324038-4
Spindle
324043-1
Q'ty
1
1
1
1
I/C
Yes
Yes
Yes
Yes
Spindle
324035-0
Spindle
324036-8
Spindle
324038-4
Spindle
324043-1
See note 1 below.
1
1
See note 2 below.
1
See note 3 below.
See note 4 below.
1
Note
1. For 9561, 9561C, 9561CV, 9562, 9562C, 9562CV, 9564, 9564C, 9564CV, 9564CVL, 9565, 9565C, 9565CV, 9565CVL
For All countries except Canada, Mexico, U.S.A.
2. For 9560, 9560C, 9560CV, 9563, 9563C, 9563CV
For All countries except Guam, U.S.A.
3. For 9561, 9561C, 9561CV, 9562, 9564, 9564C, 9564CV, 9564CVL, 9565CV
For Canada, Mexico, U.S.A.
4. For 9560CV, 9563, 9563C, 9563CV
For Guam, U.S.A.
Implementation
9561CV: From serial No. 4162E (Mar., 2001)
9564CV: From serial No. 7653E (Mar., 2002)
All models other than 9561CV, 9564CV: To be informed later
