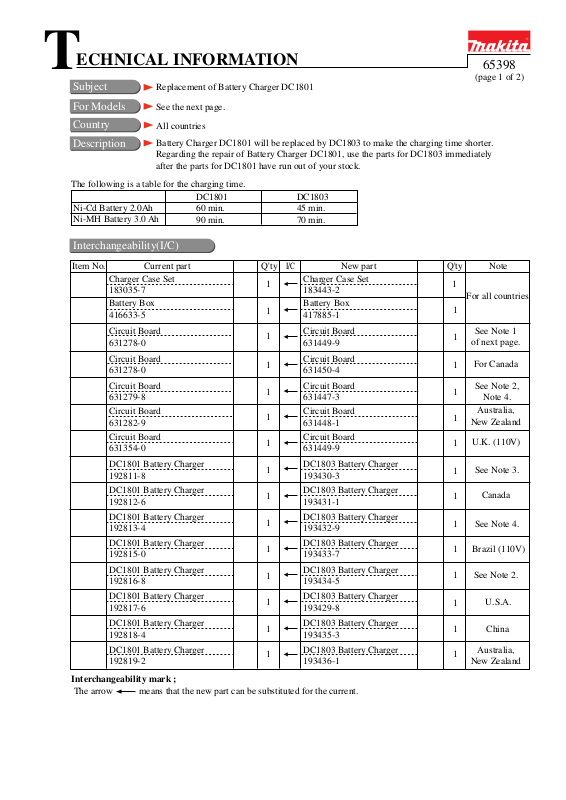

Replacement of Battery Charger DC1801
65398
(page 1 of 2)
For Models
Country
Description
The following is a table for the charging time.
Ni-Cd Battery 2.0Ah
Ni-MH Battery 3.0 Ah
See the next page.
All countries
Battery Charger DC1801 will be replaced by DC1803 to make the charging time shorter.
Regarding the repair of Battery Charger DC1801, use the parts for DC1803 immediately
after the parts for DC1801 have run out of your stock.
DC1801
60 min.
90 min.
Interchangeability(I/C)
Current part New part NoteQ'tyItem No.
Charger Case Set
183035-7
Battery Box
416633-5
Circuit Board
631278-0
Circuit Board
631278-0
Circuit Board
631279-8
Circuit Board
631282-9
Circuit Board
631354-0
DC1801 Battery Charger
192811-8
DC1801 Battery Charger
192812-6
DC1801 Battery Charger
192813-4
DC1801 Battery Charger
192815-0
DC1801 Battery Charger
192816-8
DC1801 Battery Charger
192817-6
DC1801 Battery Charger
192818-4
DC1801 Battery Charger
192819-2
DC1803
45 min.
70 min.
I/C
Q'ty
1 1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Charger Case Set
183443-2
Battery Box
417885-1
Circuit Board
631449-9
Circuit Board
631450-4
Circuit Board
631447-3
Circuit Board
631448-1
Circuit Board
631449-9
DC1803 Battery Charger
193430-3
DC1803 Battery Charger
193431-1
DC1803 Battery Charger
193432-9
DC1803 Battery Charger
193433-7
DC1803 Battery Charger
193434-5
DC1803 Battery Charger
193429-8
DC1803 Battery Charger
193435-3
DC1803 Battery Charger
193436-1
For all countries
1
See Note 1
1
of next page.
For Canada
1
See Note 2,
1
1
1
1
1
1
1
1
1
1
1
Note 4.
Australia,
New Zealand
U.K. (110V)
See Note 3.
Canada
See Note 4.
Brazil (110V)
See Note 2.
U.S.A.
China
Australia,
New Zealand
Interchangeability mark ;
The arrow means that the new part can be substituted for the current.
Page 2
65398
(page 2 of 2)
Note
Models: DK1016, DK1020, DK1024, DK1032, DK1033, DK1034, DK2000, JR180D, LS711D, LS800D, 4334D,
5026D, 5036D, 5046D, 5620D, 5621D, 5621RD, 6343D, 6343DM, 8443D
Note 1: U.S.A., Brazil (110V), Guiana (115V), Mexico, Panama, Saudi Arabia (127V), Taiwan, Guam,
Note 2: Brazil (220V), Chile, Guiana (220V), Uruguay, Austria, France, Germany, Italy, Netherlands, Spain, Switzerland,
Sweden, Canary Islands, Bhutan, Turkey, Algeria, Egypt, Reunion, Saudi Arabia (220V), South Africa, Syria,
Indonesia, North Korea, Philippines, Thailand, Viet Nam, New Caledonia, Tahiti,
Note 3: Panama, Guiana (115V), Saudi Arabia (127V), Taiwan, Guam
Note 4: Commonwealth of Dominica, U.K. (240V), Kuwait, Hong Kong, Malaysia, Singapore
Implementation
Around Apr., 2002
