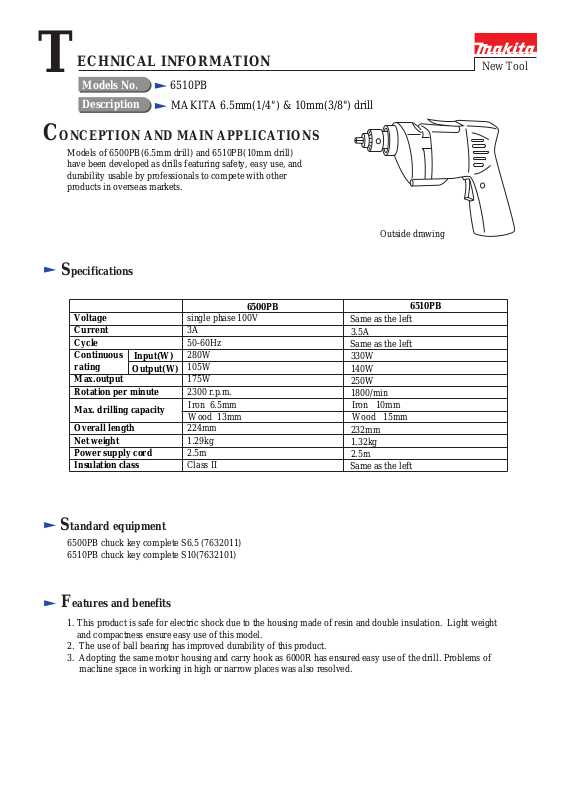

Page 1
T
ECHNICAL INFORMATION
New Tool
Models No.
Description
6510PB
MAKITA 6.5mm(1/4") & 10mm(3/8") drill
CONCEPTION AND MAIN APPLICATIONS
Models of 6500PB(6.5mm drill) and 6510PB(10mm drill)
have been developed as drills featuring safety, easy use, and
durability usable by professionals to compete with other
products in overseas markets.
Specifications
6500PB
Voltage
Current
Cycle
Continuous
rating
Max.output
Rotation per minute
Max. drilling capacity
Overall length
Net weight
Power supply cord
Insulation class
Input(W)
Output(W)
single phase 100V
3A
50-60Hz
280W
105W
175W
2300 r.p.m.
Iron 6.5mm
Wood 13mm
224mm
1.29kg
2.5m
Class II

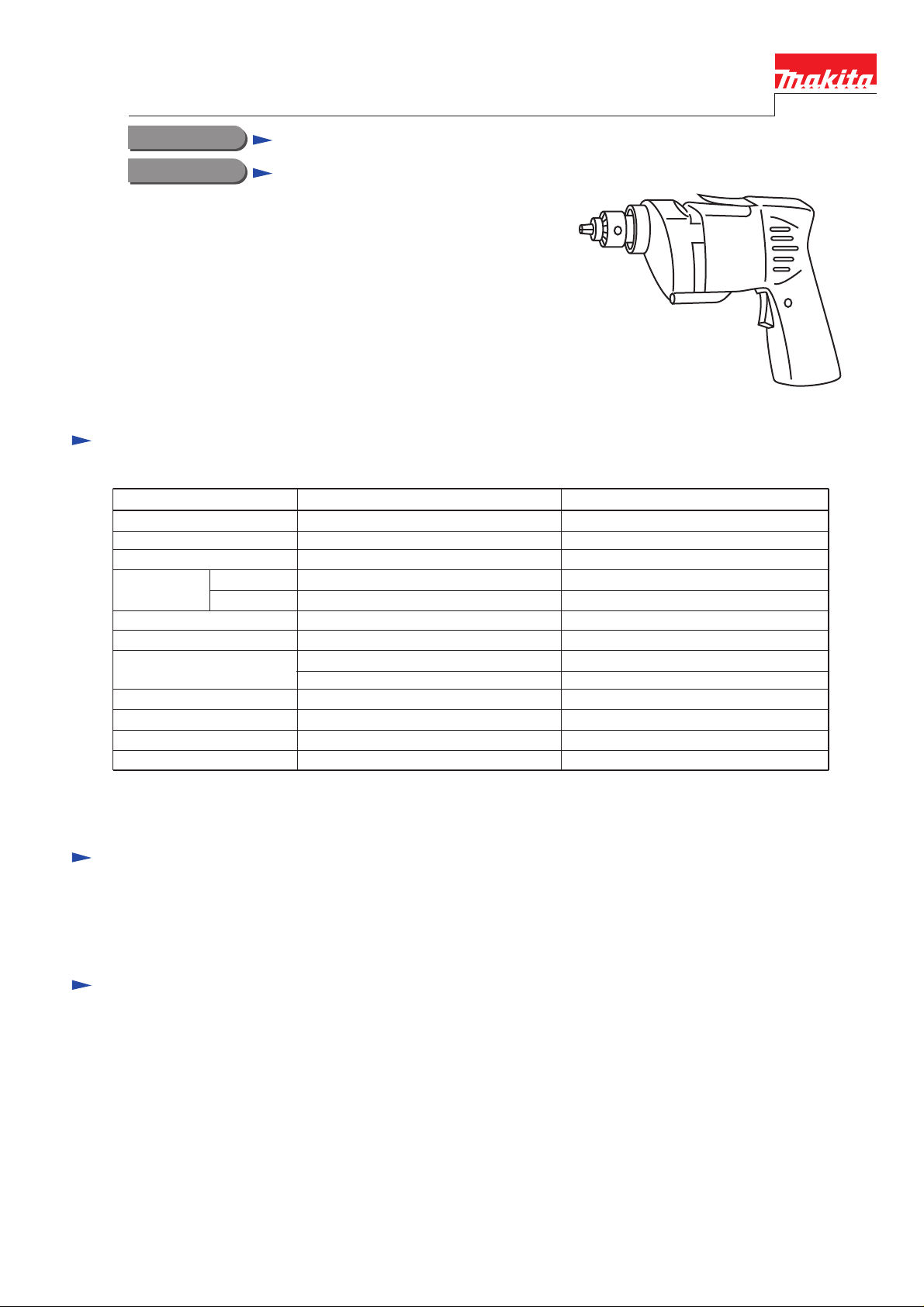

Outside drawing
6510PB
Same as the left
3.5A
Same as the left
330W
140W
250W
1800/min
Iron 10mm
Wood 15mm
232mm
1.32kg
2.5m
Same as the left
Standard equipment
6500PB chuck key complete S6.5 (7632011)
6510PB chuck key complete S10(7632101)
Features and benefits
1. This product is safe for electric shock due to the housing made of resin and double insulation. Light weight
and compactness ensure easy use of this model.
2. The use of ball bearing has improved durability of this product.
3. Adopting the same motor housing and carry hook as 6000R has ensured easy use of the drill. Problems of
machine space in working in high or narrow places was also resolved.
Page 2
Capacity
1) The drilling capacity of 6510PB is almost the same as 6400 and 6000R for 10mm iron drilling as shown in the
following comparison table.
Material
Test method
6510PB
Model
2) The drilling capacity of 6500PB and 6100 for 6.5 mm iron is shown in the following comparison table.
Material
Test method
Model
(Above comparison tests was done in the condition of the machine pressed horizontally with the
pressure of approx.20kg)
6400
6000R
6500PB
6100
Aluminum plate
Through- drilling time
for thickness 17mm
18 sec.
17 sec.
18sec.
Aluminum plate
Through- drilling time
for thickness 17mm
17 sec.
12 sec.
Cast iron Mild steel plate
Trilling depth
for 30 sec.
13mm
12mm
13mm
Cast iron Mild steel plate
Trilling depth
for 30 sec.
23mm
25mm
Trilling depth
for 60 sec.
6mm
7mm
6mm
Trilling depth
for 60 sec.
17 sec.
18 sec.
Repair
(1) Press-in of helical gear
Helical gear 63 is pressed in the spindle. Make sure to press in helical gear correctly to avoid
gear entangling.
Parts Differences in 6500PB and 6510 PB
The same parts are used for both models except the following parts;
Drill chuck, Spindle, Armature, Field, + hexagon bolt for fixing the field
STANDARD EQUIPMENT Chuck key complete
