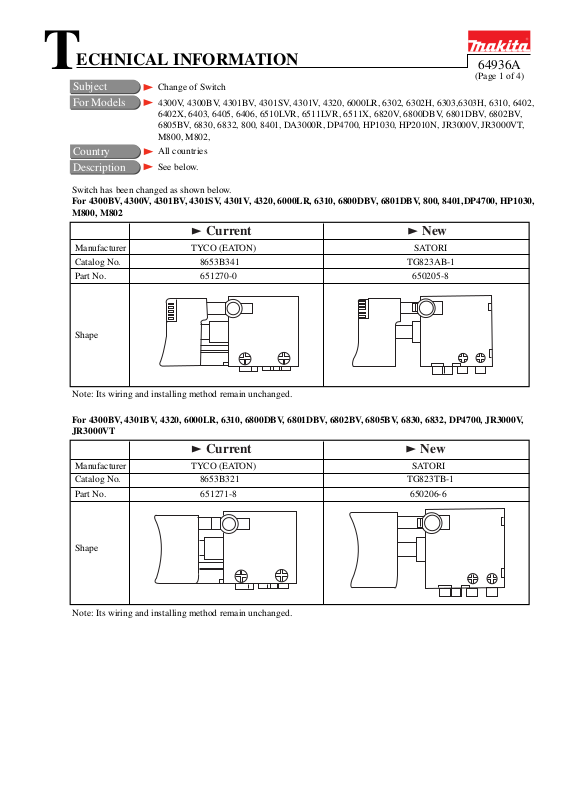

T
ECHNICAL INFORMATION
Subject
For Models
Country
Description

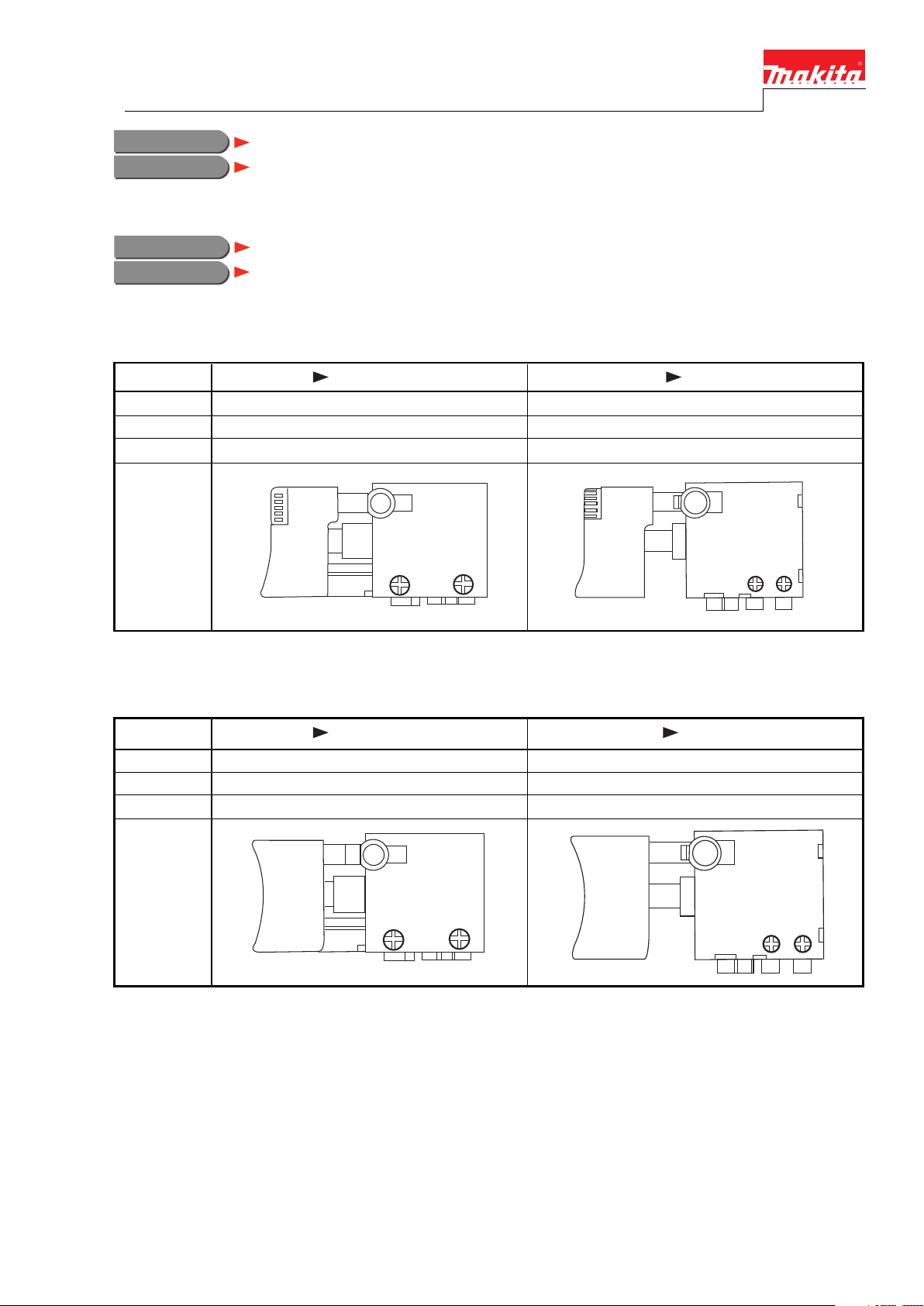

Switch has been changed as shown below.
For 4300BV, 4300V, 4301BV, 4301SV, 4301V, 4320, 6000LR, 6310, 6800DBV, 6801DBV, 800, 8401,DP4700, HP1030,
M800, M802
Change of Switch
4300V, 4300BV, 4301BV, 4301SV, 4301V, 4320, 6000LR, 6302, 6302H, 6303,6303H, 6310, 6402,
6402X, 6403, 6405, 6406, 6510LVR, 6511LVR, 6511X, 6820V, 6800DBV, 6801DBV, 6802BV,
6805BV, 6830, 6832, 800, 8401, DA3000R, DP4700, HP1030, HP2010N, JR3000V, JR3000VT,
M800, M802,
All countries
See below.
Current New
Manufacturer
Catalog No. 8653B341 TG823AB-1
Part No. 651270-0 650205-8
Shape
TYCO (EATON) SATORI
64936A
(Page 1 of 4)
Note: Its wiring and installing method remain unchanged.
For 4300BV, 4301BV, 4320, 6000LR, 6310, 6800DBV, 6801DBV, 6802BV, 6805BV, 6830, 6832, DP4700, JR3000V,
JR3000VT
Current New
Manufacturer
Catalog No. 8653B321 TG823TB-1
Part No. 651271-8 650206-6
Shape
Note: Its wiring and installing method remain unchanged.
TYCO (EATON) SATORI
Page 2

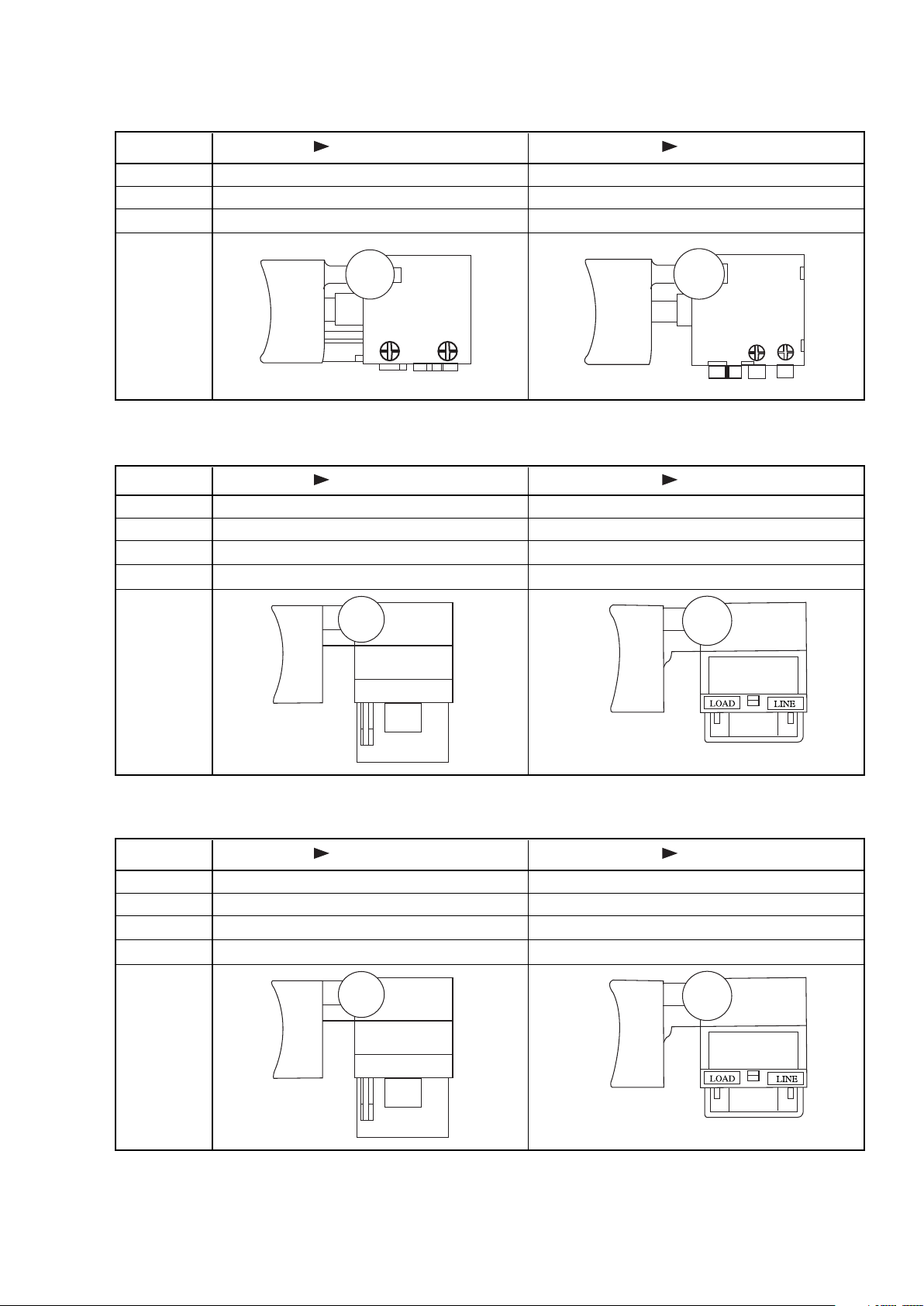

For HP1030, HP2010N
Current New
Manufacturer
Catalog No. 8653B321Z TG823TB-2
Part No. 651277-6 650207-4
Note
Shape
Note: Its wiring and installing method remain unchanged.
For 6302, 6303, 6402, 6402X, 6403, 6510LVR, 6511LVR, 6511X, 6820V
TYCO (EATON) SATORI
Current New
Manufacturer
Catalog No. 8907K192 TG833TB-1
Part No. 651352-8 650208-2
Rating 6A 125V - 7A 125V -
Note
TYCO (EATON) SATORI
64936A
(Page 2 of 4)
Shape
Note: Its wiring and installing method remain unchanged.
For 6302H, 6303H
Current New
Manufacturer
Catalog No. 8907K307 TG833TB-1
Part No. 651356-0 650208-2
Rating 7A 125V - 7A 125V -
Note
Shape
TYCO (EATON) SATORI
Note: Its wiring and installing method remain unchanged.
Page 3
For 6405, 6406
Current New
Manufacturer
Catalog No. 8907K416 TG833TLB-1
Part No. 651927-3 650526-8
Note
Shape
Note: Its wiring and installing method remain unchanged.
For DA3000R
TYCO (EATON) SATORI
Current New
Manufacturer
Catalog No. 8907K598 TG833R-1
Part No. 651982-5 650527-6
TYCO (EATON) SATORI
64936A
(Page 3 of 4)
Note
Shape
Note: Its wiring and installing method remain unchanged.
Interchangeability(I/C)
See note 1
below.
Current part New part NoteQ'tyItem No.
Switch
651270-0
Switch
651271-8
Switch
651277-6
Switch
651352-8
Switch
651356-0
Switch
651927-3
Switch
651982-5
Q'ty
1
1
1
1
1
1
1
I/C
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Switch
650205-8
Switch
650206-6
Switch
650207-4
Switch
650208-2
Switch
650208-2
Switch
650526-8
Switch
650527-6
1
See note 2 below.
See note 3 below.
1
1
For HP1030, HP2010N
1
See note 4 below.
For 6302H, 6303H
1
1
For 6405, 6406
For DA3000R
1
Page 4
Note
1. Item No. for Switch
Model 4300V
Item No. 038 040 033 033040
4300BV 4301BV 4301SV 4301V 4320 6000LR 6302 6302H 6303 6303H
006060046 069 068045
64936A
(Page 4 of 4)
Model 6310
Item No. 010 014 014039 039
Model
Item No. 036 039 048 051 016 009
Model HP1030
Item No. 028 028058 076037
2. For 4300BV, 4301SV, 4300V, 4301BV, 4301V, 4320, 6000LR, 6310, 6800DBV, 6801DBV, 800, 8401,DP4700,
HP1030, M800, M802
3. For 4300BV, 4301BV, 4320, 6000LR, 6310, 6800DBV, 6801DBV, 6802BV, 6805BV, 6830, 6832, DP4700, JR3000V,
JR3000VT
4. For 6302, 6303,6402, 6402X, 6403, 6510LVR, 6511LVR, 6511X, 6820V
6801DBV 6802BV 6805BV 6830 6832 800 8401 DA3000R DP4700
6402 6402X 6403 6405 6406 6510LVR 6511LVR 6511X
040
6820V
054
HP2010N JR3000V JR3000VT M800 M802
040
6800DBV
036
037030
Implementation
4300V : Discontinued since Apr., 1993
4301BV: Discontinued since Aug., 1997
4301SV: Discontinued since Apr., 1993
4301V : Discontinued since Jul., 1988
6402X : Discontinued since Feb.. 2000
800 : Discontinued since May, 2001
8401 : Discontinued since Oct., 2000
M800 : Discontinued since Apr., 1993
M802 : Discontinued since Apr., 1993
All models other than the above discontinued models: To be informed later
