ECHNICAL INFORMATION
Change on Motor Housing and Switch Knob in Shape
9560, 9560C, 9560CV, 9561, 9561C, 9561CV, 9562, 9562C, 9562CV, 9563, 9563C, 9563CV, 9564,
9564C, 9564CV, 9564CVL, 9565, 9565C, 9565CV, 9565CVL, BO6040, GD0800C, GD0810C
All countries

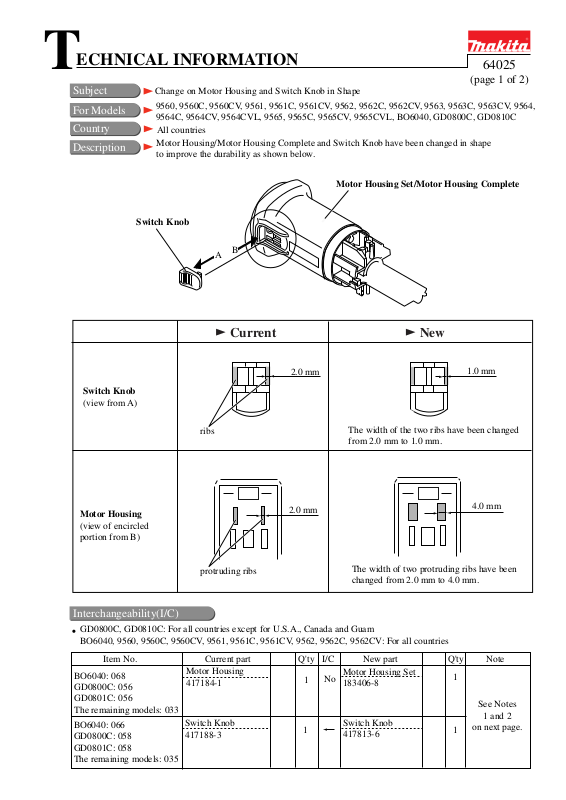

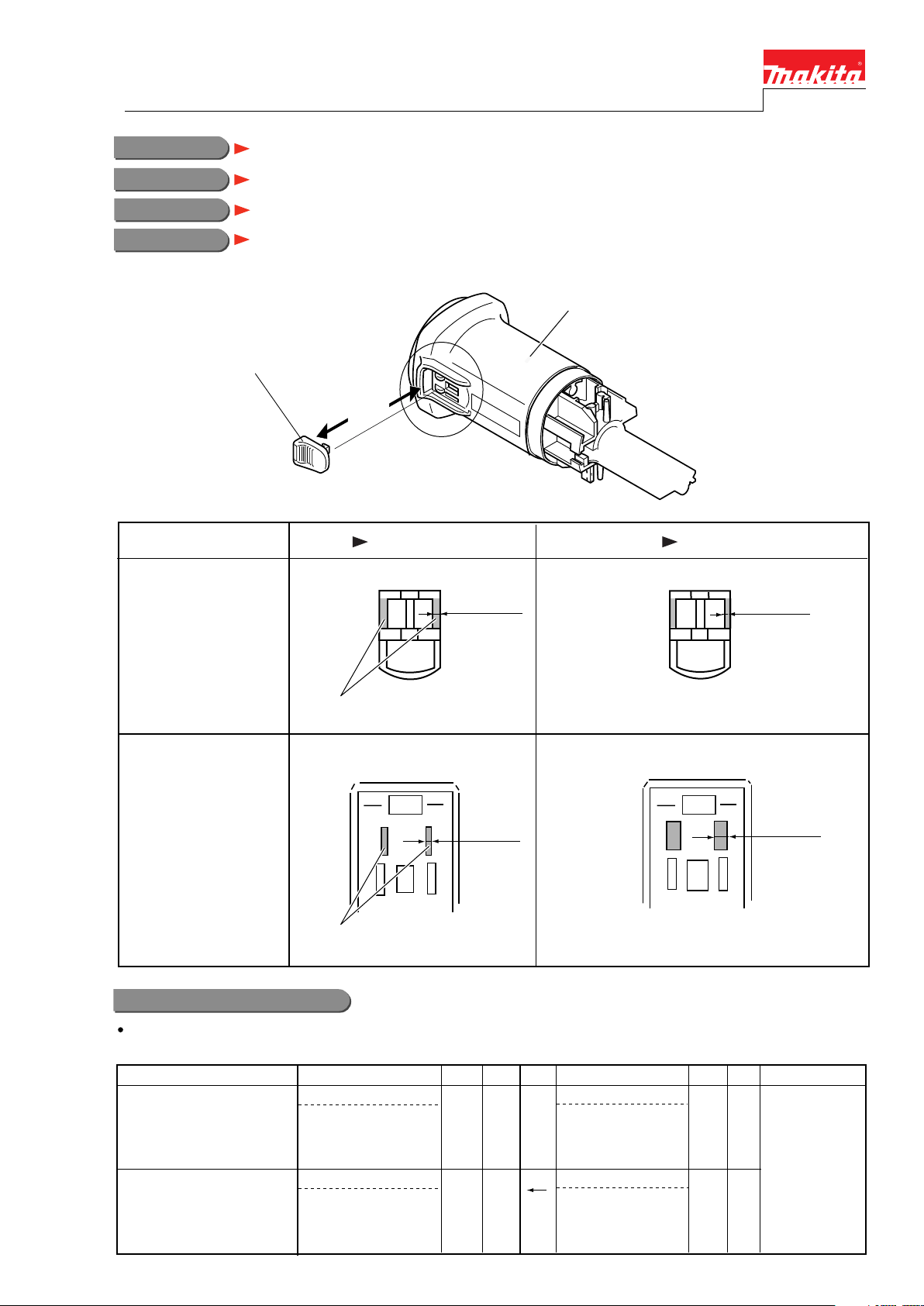

Motor Housing/Motor Housing Complete and Switch Knob have been changed in shape
to improve the durability as shown below.
Switch Knob
B
A
Current New
64025
(page 1 of 2)
Motor Housing Set/Motor Housing Complete
2.0 mm
Switch Knob
(view from A)
The width of the two ribs have been changed
from 2.0 mm to 1.0 mm.
The width of two protruding ribs have been
changed from 2.0 mm to 4.0 mm.
Motor Housing
(view of encircled
portion from B)
ribs
2.0 mm
protruding ribs
Interchangeability(I/C)
GD0800C, GD0810C: For all countries except for U.S.A., Canada and Guam
BO6040, 9560, 9560C, 9560CV, 9561, 9561C, 9561CV, 9562, 9562C, 9562CV: For all countries
1.0 mm
4.0 mm
BO6040: 068
GD0800C: 056
GD0801C: 056
The remaining models: 033
BO6040: 066
GD0800C: 058
GD0801C: 058
The remaining models: 035
Current part New part NoteQ'tyItem No. I/CQ'ty
Motor Housing
417184-1
Switch Knob
417188-3
1
1
183406-8
Switch Knob
417813-6
Motor Housing Set
No
1
on next page.
1
See Notes
1 and 2
Page 2
Interchangeability(I/C)
9564CV, 9565CV: For all countries except for U.S.A., Canada and Guam
9563, 9563C, 9563CV, 9564, 9564C, 9565, 9565C, 9565CVL: For all countries
Current part New part NoteQ'tyItem No. I/CQ'ty
033
035
GD0800C: For U.S.A., Canada and Guam
056
058
GD0810C: For U.S.A., Canada and Guam
056
058
Motor Housing
417182-5
Switch Knob
417188-3
Current part New part NoteQ'tyItem No. I/CQ'ty
Motor Housing Complete
152865-7
Switch Knob
417188-3
Current part New part NoteQ'tyItem No. I/CQ'ty
Motor Housing Complete
152866-5
Switch Knob
417188-3
1
1
1
1
1
1
Motor Housing Set
No
183407-6
Switch Knob
417813-6
Motor Housing Complete
No
153296-3
Switch Knob
417813-6
Motor Housing Complete
No
153297-1
Switch Knob
417813-6
64025
(page 2 of 2)
1
See Notes
1 and 2
on next page.
1
1
See Notes
1 and 2
on next page.
1
1
See Notes
1 and 2
on next page.
1
9564CV, 9565CV: For U.S.A., Canada and Guam
Current part New part NoteQ'tyItem No. I/CQ'ty
033
035
9564CVL For U.S.A., Canada and Guam
033
035
Interchangeability mark ;
The arrow means that the new part can be substituted for the current.
Motor Housing Complete
152918-2
Switch Knob
417188-3
Current part New part NoteQ'tyItem No. I/CQ'ty
Motor Housing Complete
152919-0
Switch Knob
417188-3
1
1
1
1
Motor Housing Complete
No
153294-7
Switch Knob
417813-6
Motor Housing Complete
No
153295-5
Switch Knob
417813-6
1
See Notes
on next page.
1
1
See Notes
on next page.
1
1 and 2
1 and 2
Note
1) Makita logo label is put on the Motor Housing Sets (Part Nos. 183406-8 and 183407-6)
2) When replacing the current Motor Housing/ Motor Housing Complete with the new one, also replace the Switch Knob
with the new one.
Implementation
9560: From serial No. 1013E (June, 2001)
9561: From serial No. 2065E
Month and year of implementation will be informed later.
9561C: From serial No. 1230E
Month and year of implementation will be informed later.
The remaining models to be informed later.
