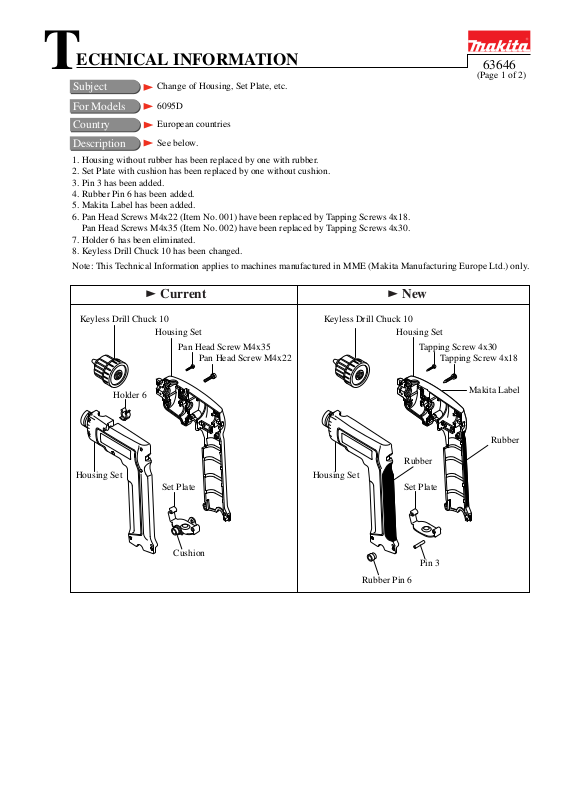

Page 1
T
Subject
ECHNICAL INFORMATION
Change of Housing, Set Plate, etc.
63646
(Page 1 of 2)
For Models
Country
Description
1. Housing without rubber has been replaced by one with rubber.
2. Set Plate with cushion has been replaced by one without cushion.
3. Pin 3 has been added.
4. Rubber Pin 6 has been added.
5. Makita Label has been added.
6. Pan Head Screws M4x22 (Item No. 001) have been replaced by Tapping Screws 4x18.
Pan Head Screws M4x35 (Item No. 002) have been replaced by Tapping Screws 4x30.
7. Holder 6 has been eliminated.
8. Keyless Drill Chuck 10 has been changed.
Note: This Technical Information applies to machines manufactured in MME (Makita Manufacturing Europe Ltd.) only.
6095D
European countries
See below.
Current New
Keyless Drill Chuck 10 Keyless Drill Chuck 10
Housing Set Housing Set
Pan Head Screw M4x35
Pan Head Screw M4x22
Tapping Screw 4x30
Tapping Screw 4x18
Holder 6
Housing Set
Makita Label
Rubber
Rubber
Housing Set
Set Plate Set Plate
Cushion
Pin 3
Rubber Pin 6
Page 2
Interchangeability(I/C)
63646
(Page 2 of 2)
Item No.
003
044
049
050
051
001
002
043
047
008
Note
Current part New part NoteQ'ty
Housing Set
182803-5
Pan Head Screw M4x22
911143-2
Pan Head Screw M4x35
911163-6
Holder 6
411640-3
Set Plate
163157-9
Keyless Drill Chuck 10
192016-0
Q'ty
1
6
2
1
1
1
I/C
Housing Set
No
183196-3
Pin 3
256158-5
Rubber Pin 6
263022-3
Makita Label
819063-3
Tapping Screw 4x18
No
265995-6
Tapping Screw 4x30
No
266050-7
Set Plate
No
344549-3
Keyless Drill Chuck 10
Yes
763154-1
1
1
2
1
6
2
1
1
Interchangeable
as a set
Use the Pt. No. 182141-5 instead of Pt. No. 182803-5 when you place an order for the current Housing Set.
Implementation
From serial No. 543419G (Sep., 2000)
