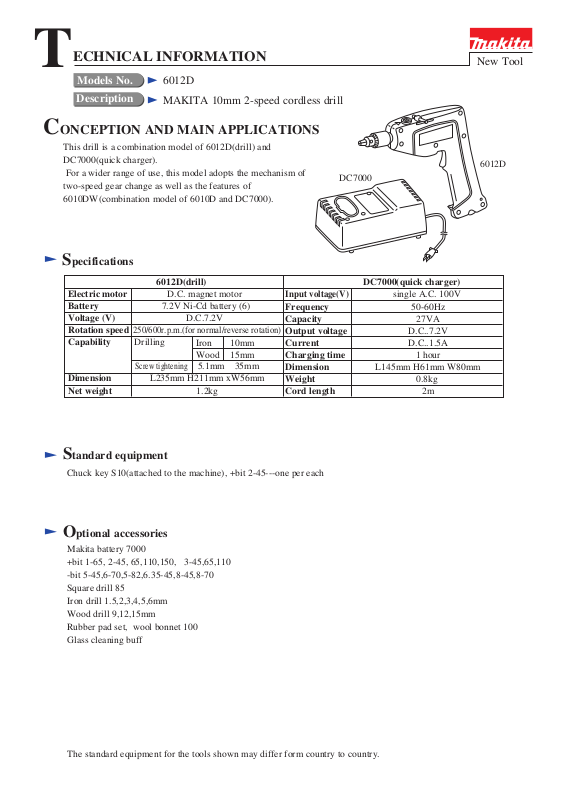

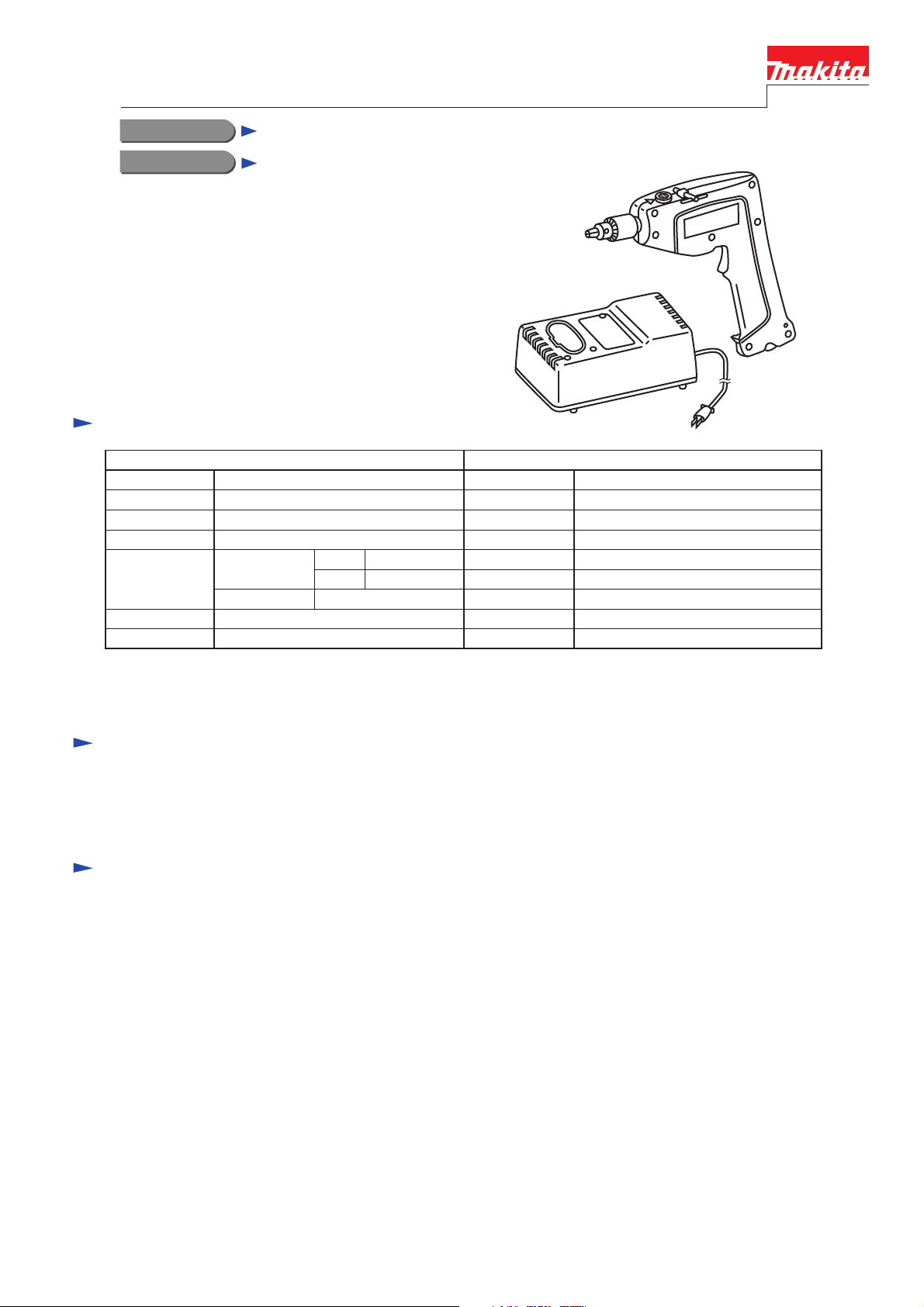

T
ECHNICAL INFORMATION
New Tool
Models No.
Description
6012D
MAKITA 10mm 2-speed cordless drill
CONCEPTION AND MAIN APPLICATIONS
This drill is a combination model of 6012D(drill) and
DC7000(quick charger).
For a wider range of use, this model adopts the mechanism of
two-speed gear change as well as the features of
6010DW(combination model of 6010D and DC7000).
Specifications
6012D(drill)
Electric motor
Battery
Voltage (V)
Rotation speed
Capability
Dimension
Net weight
250/600r.p.m.(for normal/reverse rotation)
Drilling
Screw tightening
D.C. magnet motor
7.2V Ni-Cd battery (6)
D.C.7.2V
Iron
Wood
5.1mm 35mm
L235mm H211mm xW56mm
1.2kg
10mm
15mm
Input voltage (V)
Frequency
Capacity
Output voltage
Current
Charging time
Dimension
Weight
Cord length
6012D
DC7000
DC7000(quick charger)
single A.C. 100V
50-60Hz
27VA
D.C..7.2V
D.C..1.5A
1 hour
L145mm H61mm W80mm
0.8kg
2m
Standard equipment
Chuck key S10(attached to the machine), +bit 2-45---one per each
Optional accessories
Makita battery 7000
+bit 1-65, 2-45, 65,110,150, 3-45,65,110
-bit 5-45,6-70,5-82,6.35-45,8-45,8-70
Square drill 85
Iron drill 1.5,2,3,4,5,6mm
Wood drill 9,12,15mm
Rubber pad set, wool bonnet 100
Glass cleaning buff
The standard equipment for the tools shown may differ form country to country.
Page 2
Repair
Disassembling of 6012D requires no special notices.
For troubles or repairs of DC7000, send the product to the maintenance division of our head office.

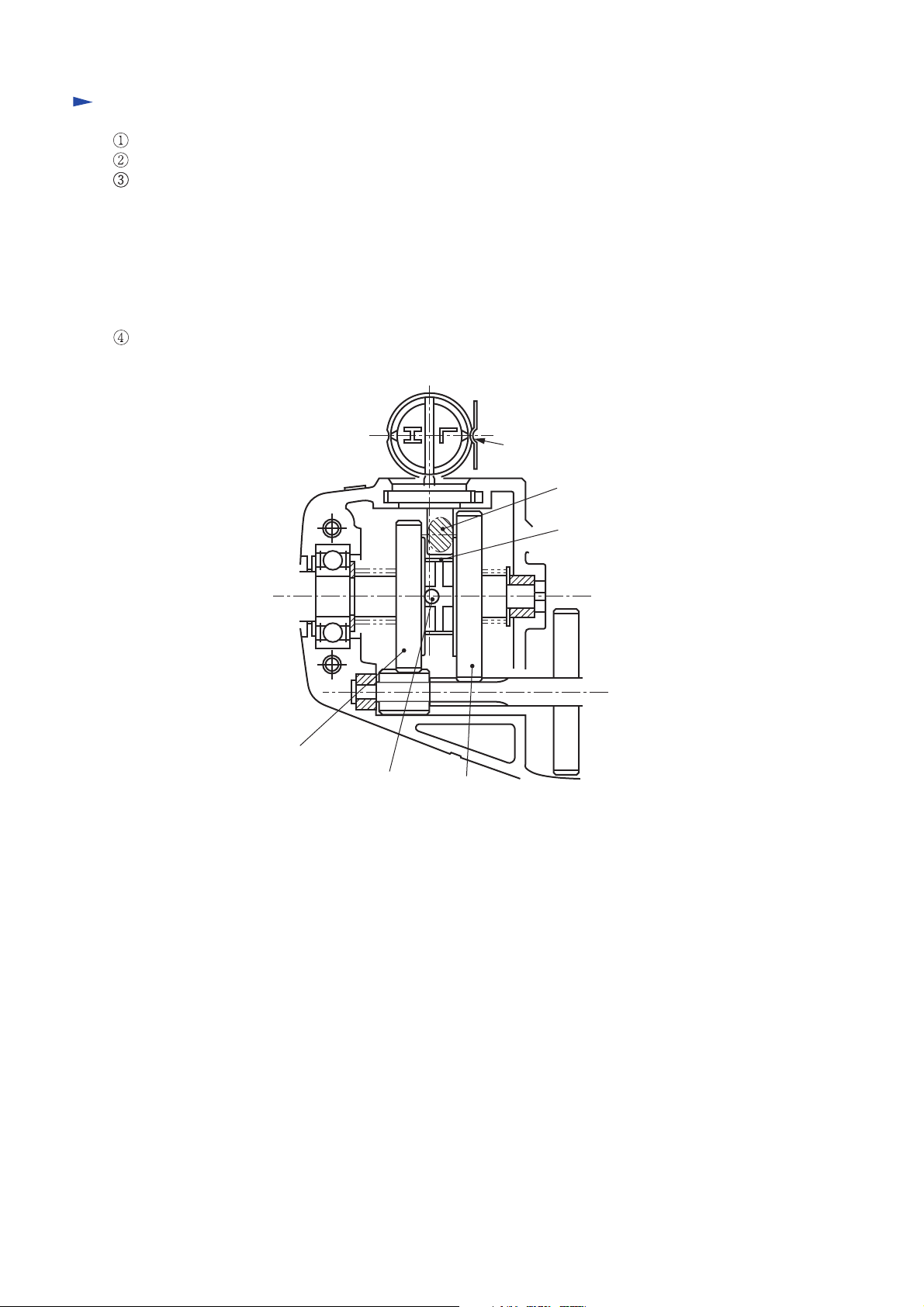

For the assembly of 6012D, follow the following procedure.
(1) Assemble the gear portion to the spindle and then assemble it to the housing. At this time, bring the flute
of spur gear 69 to the position so to work with pin 3.
(2) Turn the shifter to the direction so that A portion comes into contact with spur gear 78 and assemble it to
the housing.
(3) Turn the projected part of leaf spring to the shifter side and assemble it to the housing.
(4) Assemble gear complete.
(5) Apply the grease inside gears and ring 16.
Tools : + driver
Leaf spring projected part
Shifter a portion
Ring
Spur gear 69
Pin 3
Spur gear78
