T
Subject
ECHNICAL INFORMATION
Modification of Guide Rule
60015
(Page 1 of 2)
For Models
Country
Description
Casted hole (D)
LS1013
All countries

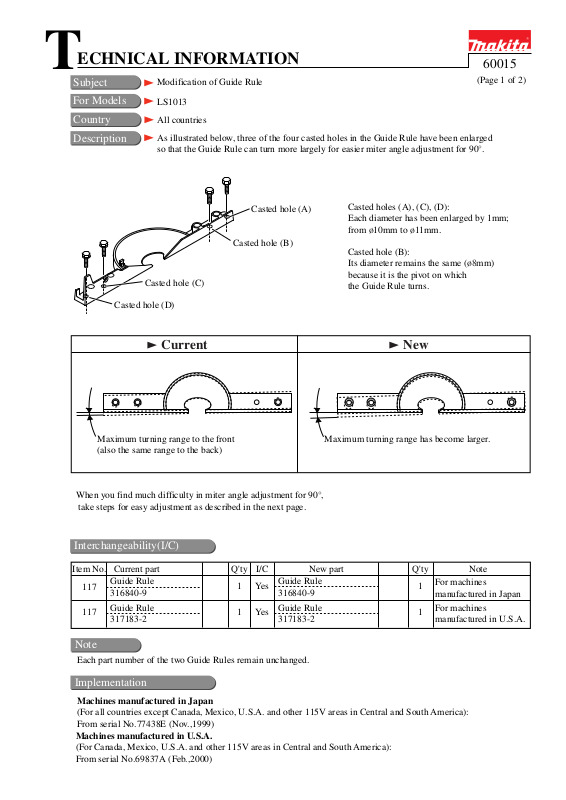

As illustrated below, three of the four casted holes in the Guide Rule have been enlarged
so that the Guide Rule can turn more largely for easier miter angle adjustment for 90°.
Casted hole (A)
Casted hole (B)
Casted hole (C)
Casted holes (A), (C), (D):
Each diameter has been enlarged by 1mm;
from ø10mm to ø11mm.
Casted hole (B):
Its diameter remains the same (ø8mm)
because it is the pivot on which
the Guide Rule turns.
Current New
Maximum turning range to the front
(also the same range to the back)
When you find much difficulty in miter angle adjustment for 90°,
take steps for easy adjustment as described in the next page.
Maximum turning range has become larger.
Interchangeability(I/C)
117
117
Current part New part NoteQ'tyItem No.
Guide Rule
316840-9
Guide Rule
317183-2
I/CQ'ty
Yes1
Yes1
Guide Rule
316840-9
Guide Rule
317183-2
For machines
1
manufactured in Japan
For machines
1
manufactured in U.S.A.
Note
Each part number of the two Guide Rules remain unchanged.
Implementation
Machines manufactured in Japan
(For all countries except Canada, Mexico, U.S.A. and other 115V areas in Central and South America):
From serial No.77438E (Nov.,1999)
Machines manufactured in U.S.A.
(For Canada, Mexico, U.S.A. and other 115V areas in Central and South America):
From serial No.69837A (Feb.,2000)
Page 2
For Easy Adjustment

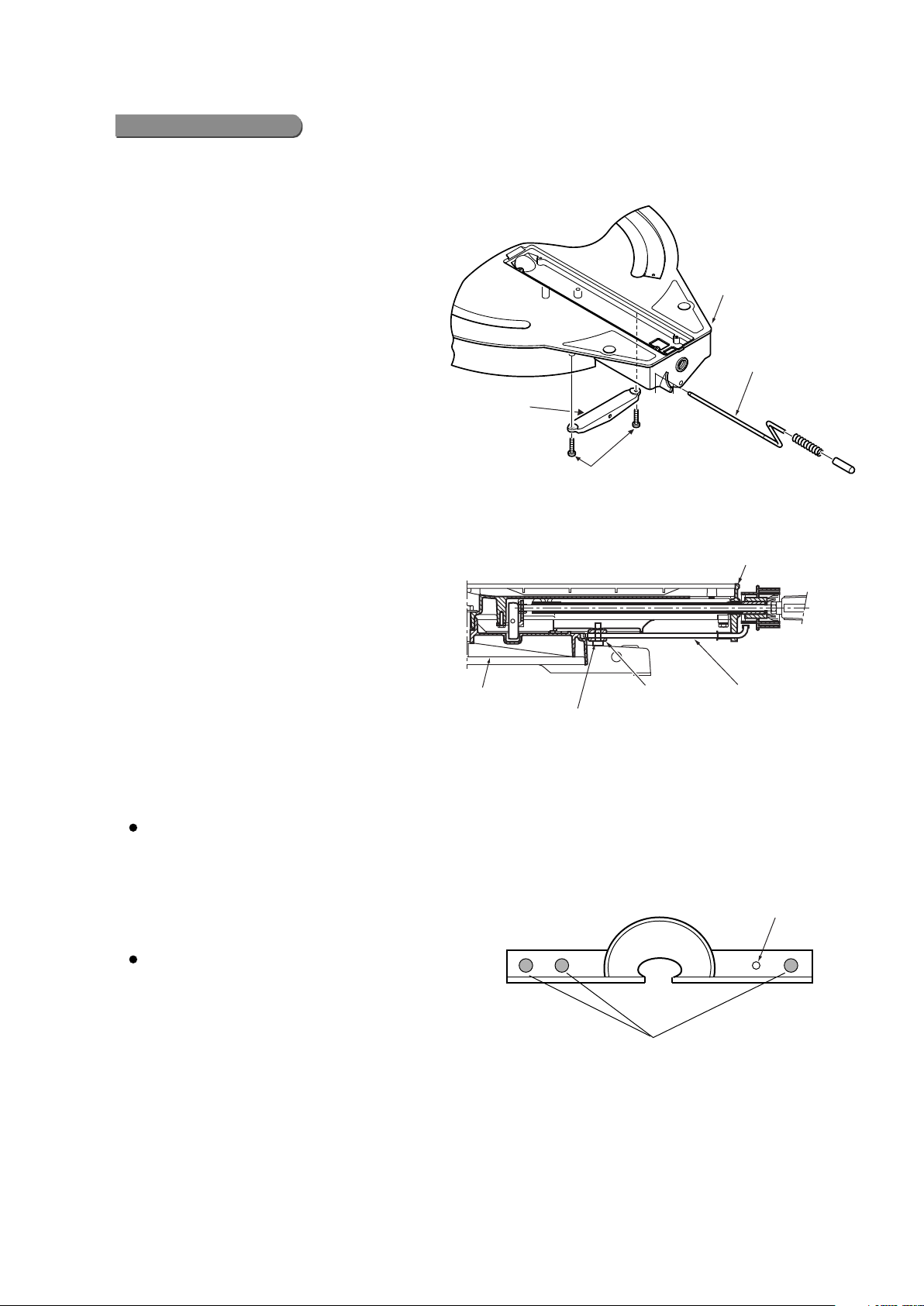

(1) Resetting the Pin Holder
1) Loosen the Tapping Screws.
2) And then, move the saw so that its face
becomes square with the fence of
the Guide Rule.
3) Tighten the Tapping Screws.
4) Make sure that the Lock Pin can
move smoothly.
60015
(Page 2 of 2)
Turn Base
Lock Pin
Pin Holder
Tapping Screw CT 4x16
(Cross Section)
Base
Tapping Screw CT 4x16
(2) Enlarging Casted Holes in the Guide Rule (when the Guide Rule is the current one)
Enlarge each diameter of the three casted holes with a drill;
by 1mm from ø10mm to ø11mm.
Note: As illustrated on right,
do not enlarge the hole (B)
because it is the pivot hole
on which the Guide Rule turns.
You may reset the Pin Holder at the same time.
Pin Holder
Turn Base
Lock Pin
hole (B)
holes to enlarge
