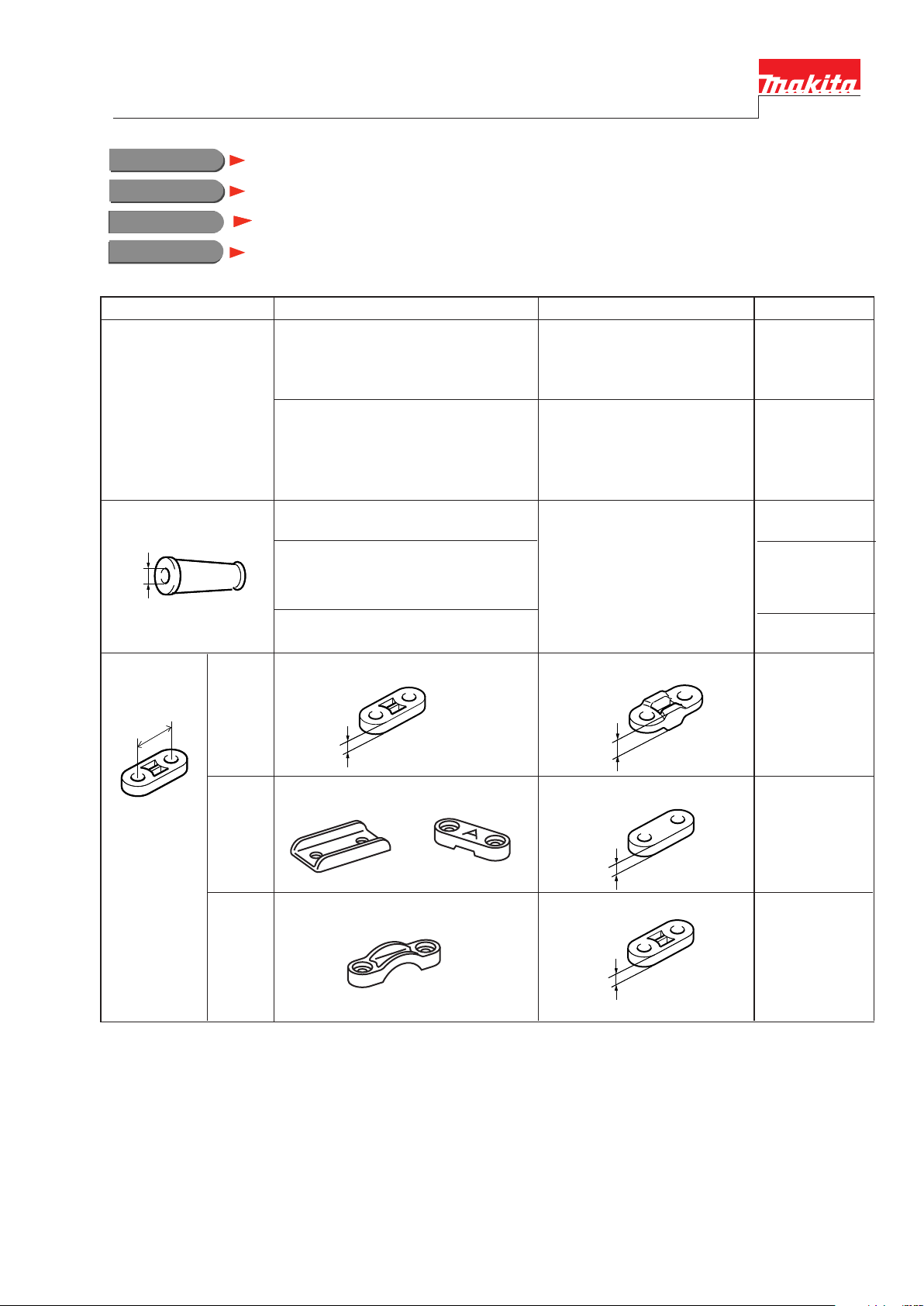

TECHNICAL INFORMATION
57301
Subject
For Models
Note
NoteNote
Description
Power supply cord
Cord Guard
Inside dia.
Strain Relief
Pitch
20mm
Change of Power supply cord,etc.
Models described below
This information applies to Singapore,Malaysia,and Maldives.

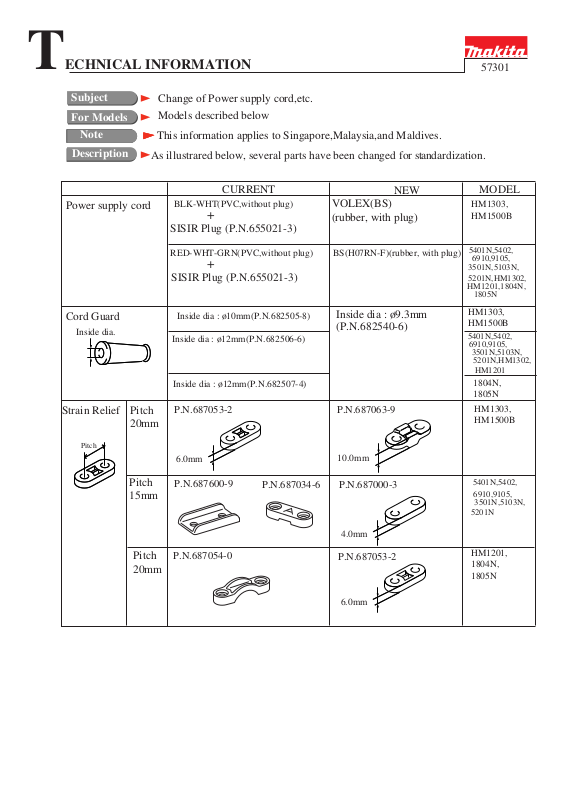

As illustrared below, several parts have been changed for standardization.
CURRENT
BLK-WHT(PVC,without plug)
+
VOLEX(BS)
(rubber, with plug)
NEW
HM1303,
HM1500B
SISIR Plug (P.N.655021-3)
RED-WHT-GRN(PVC,without plug)
+
SISIR Plug (P.N.655021-3)
Inside dia : ø10mm(P.N.682505-8)
Inside dia : ø12mm(P.N.682506-6)
Inside dia : ø12mm(P.N.682507-4)
P.N.687053-2
BS(H07RN-F)(rubber, with plug)
Inside dia : ø9.3mm
(P.N.682540-6)
P.N.687063-9
5401N,5402,
6910,9105,
3501N,5103N,
5201N,HM1302,
HM1201,1804N,
1805N
HM1303,
HM1500B
5401N,5402,
6910,9105,
3501N,5103N,
5201N,HM1302,
HM1201
1804N,
1805N
HM1303,
HM1500B
MODEL
Pitch
Pitch
15mm
Pitch
20mm
6.0mm
P.N.687600-9
P.N.687054-0
P.N.687034-6
10.0mm
P.N.687000-3
4.0mm
P.N.687053-2
6.0mm
5401N,5402,
6910,9105,
3501N,5103N,
5201N
HM1201,
1804N,
1805N
Page 2
Interchangeability
Item No.
Curret part
Cord Guard
682505-8
Strain Relief
687053-2
Plug (PSB type)
655021-3
Cord Guard
682506-6
Strain Relief
687054-0
Plug (PSB type)
655021-3
Cord Guard
682506-6
Strain Relief
687600-9
Plug (PSB type)
655021-3
Cord Guard
682506-6
Strain Relief
687034-6
Tube 11-11.8-15
683260-5
Plug (PSB type)
655021-3
Cord Guard
682507-4
Strain Relief
687034-6
Tube 11-11.8-15
683260-5
Plug (PSB type)
655021-3
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Cord Guard
682540-6
Strain Relief
687063-9
Cord Guard
682540-6
Strain Relief
687000-3
Cord Guard
682540-6
Strain Relief
687053-2
Cord Guard
682540-6
Strain Relief
687000-3
Cord Guard
682540-6
Strain Relief
687000-3
New part
Q'ty
1
1
1
1
1
1
1
1
1
1
I/C
No
No
No
No
No
No
No
No
No
No
The current
remains
available.
The current
remains
available.
The current
remains
available.
The current
remains
available.
The current
remains
available.
Note
HM1303,
HM1500B
Maldives
5401N,5402,
6910,9105
Singapore
3501N,5103N,
5201N
Singapore
HM1302
Malaysia,
Singapore
HM1201
Malaysia,
Singapore
1804N,1805N
Singapore
<Note> Power supply cord,Cord Guard,Strain Relief and Tube are interchangeable as a set.
Implementation
HM1303 : From your next order
HM1500B : From your next order
5401N : From your next order
5402 : From your next order
6910 : From Serial No.18338E (Dec., 1998)
9105 : From Serial No.72441E (Jan., 1999)
3501N : From your next order
5103N : From Serial No.60592E (Jan.,1999)
5201N : From Serial No.68954E (Oct.,1999)
HM1302 : From your next order
HM1201 : From your next order
1804N : From your next order
1805N : From your next order
