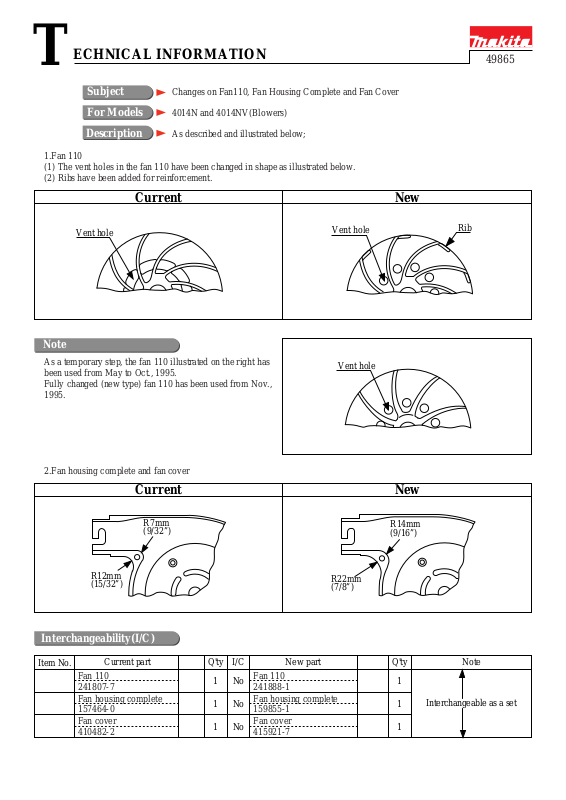

T
ECHNICAL INFORMATION
49865
Subject
For Models
Description
1.Fan 110

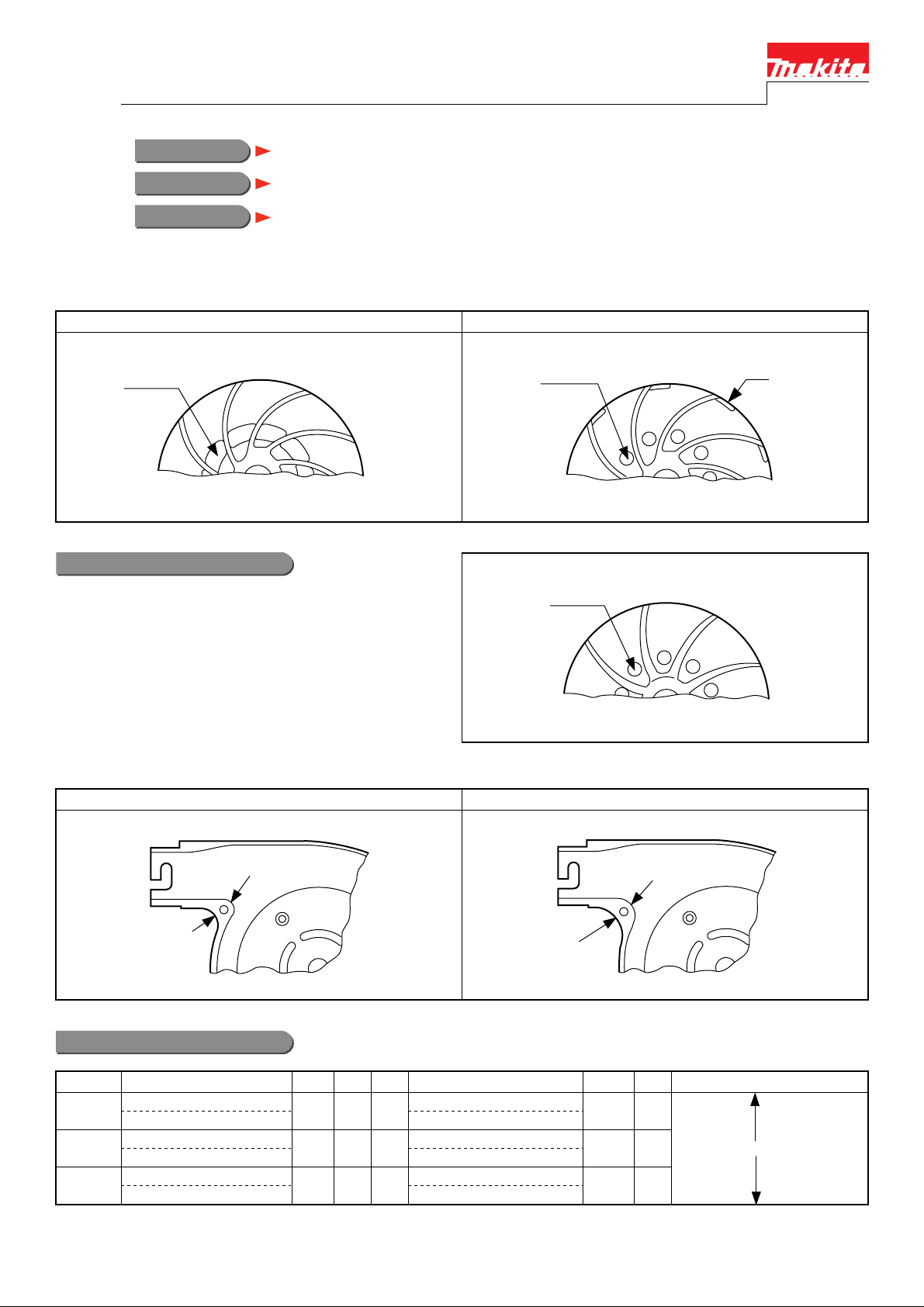

(1) The vent holes in the fan 110 have been changed in shape as illustrated below.
(2) Ribs have been added for reinforcement.
Changes on Fan110, Fan Housing Complete and Fan Cover
4014N and 4014NV(Blowers)
As described and illustrated below;
Current
Vent hole
Note
As a temporary step, the fan 110 illustrated on the right has
been used from May to Oct., 1995.
Fully changed (new type) fan 110 has been used from Nov.,
1995.
Vent hole
Vent hole
New
Rib
2.Fan housing complete and fan cover
Current
R7mm
(9/32”)
R12mm
(15/32”)
Interchangeability(I/C)
Item No.
Current part New part NoteQ'ty Q'ty
Fan 110
241807-7
Fan housing complete
157464-0
Fan cover
410482-2
New
R14mm
(9/16”)
R22mm
(7/8”)
I/C
1
1
1
Fan 110
No
241888-1
Fan housing complete
No
159855-1
Fan cover
No
415921-7
1
Interchangeable as a set
1
1
Page 2
Implementation
1.Fan 110
4014N : From serial No.199350E
4014NV : From serial No.36683E
2.Fan housing
4014N : From serial No.204362E
4014NV : From serial No.38812E
Correction
This is a revised version of TEC-111/95.
(1) The material of fan 110 ;
TEC-111/95 : Changed from polycarbonate to polyamide.
TEC-111/95(R) : Remains unchanged.
(2) Full change of fan 110 ;
TEC-111/95 : From Sept.,1995
TEC-111/95(R) : From Nov.,1995
