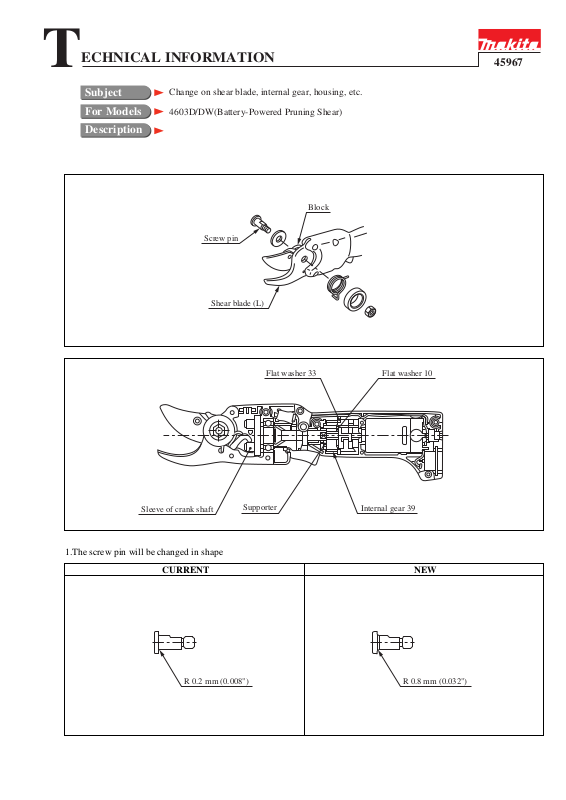

Page 1
T
ECHNICAL INFORMATION
45967
Subject
For Models
Description
Change on shear blade, internal gear, housing, etc.
4603D/DW(Battery-Powered Pruning Shear)
Block
Screw pin
Shear blade (L)
Sleeve of crank shaft
1.The screw pin will be changed in shape
CURRENT NEW
Flat washer 33 Flat washer 10
Supporter
Internal gear 39
R 0.2 mm (0.008") R 0.8 mm (0.032")
Page 2

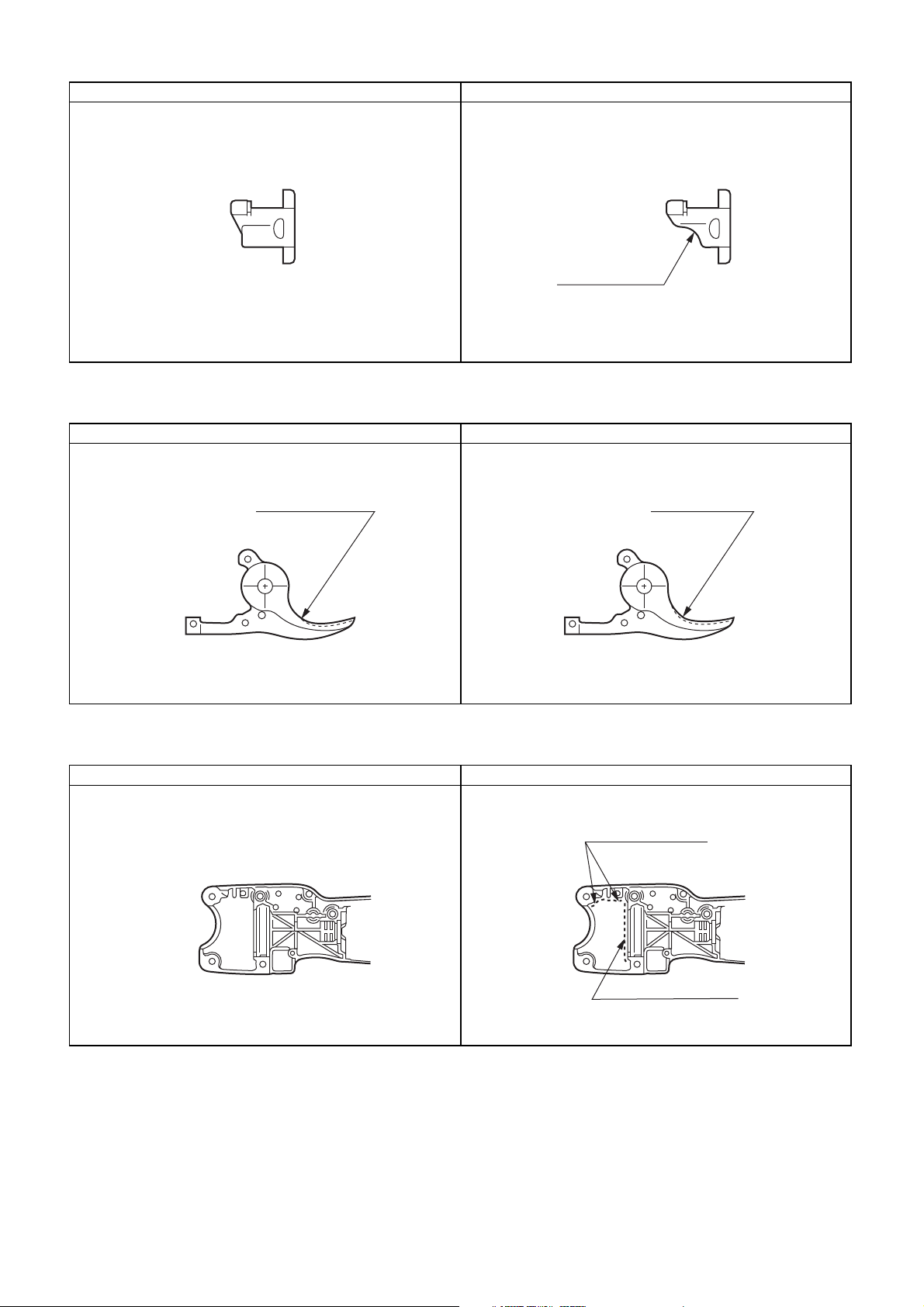

2.The Block will be changed in shape.
CURRENT NEW
3.The shear blade (L) will be changed in shape.
CURRENT NEW
R 20 mm (25/32") R 22 mm (7/8")
Changed in shape
4.The housing (R) will be changed in shape.
CURRENT NEW
Root: R 3 mm (1/8")
Root: R 2 mm (5/64")
Page 3

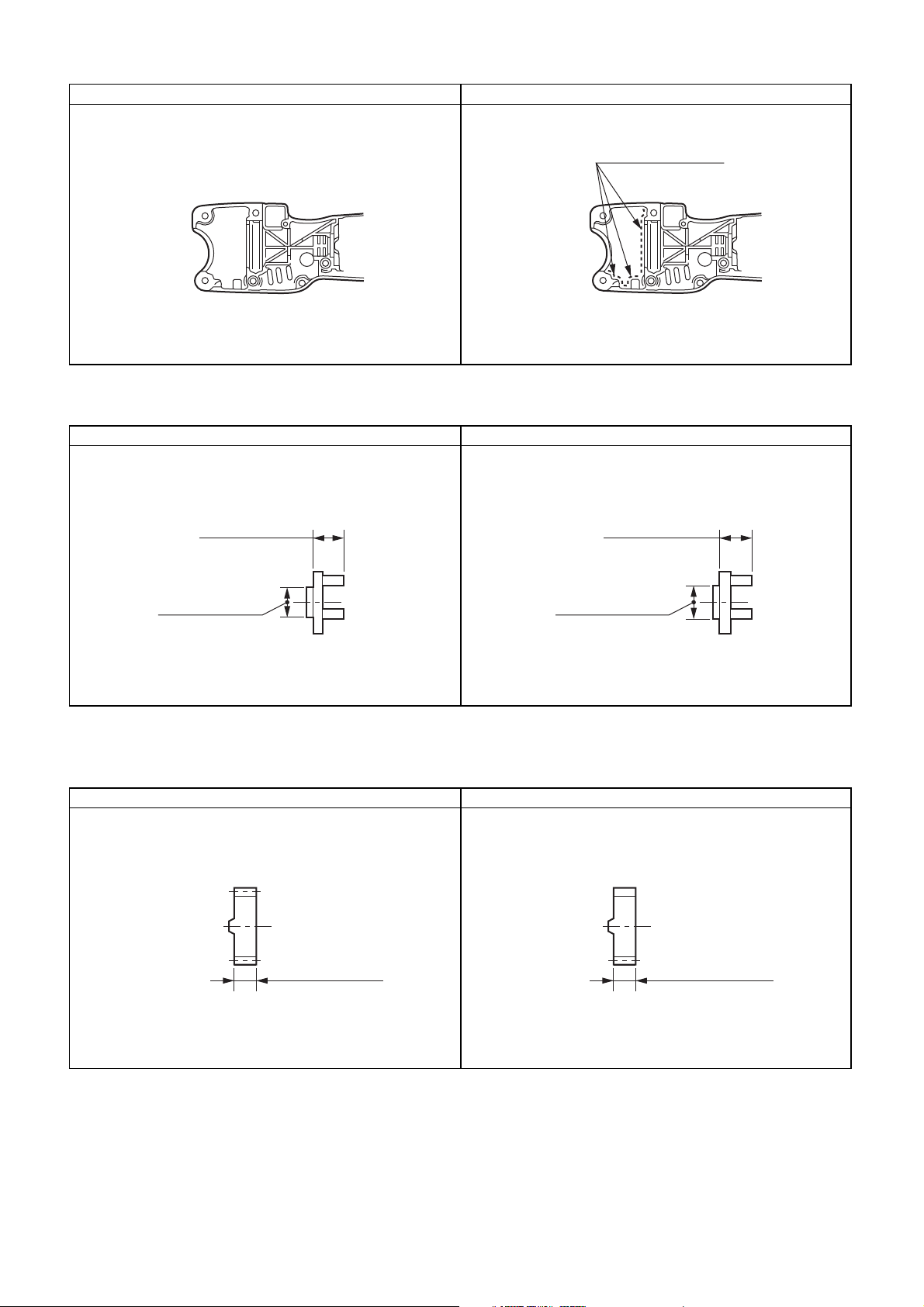

5.The housing (L) will be changed in shape.
CURRENT NEW
6.The supporter will be changed in shape.
CURRENT NEW
Root: R 2 mm (5/64")
13.8 mm (17/32")
Ø13 mm (1/2")
7.The quantity of flat washer 10 will be changed from 2 to 1.
7.The internal gear 39 will be changed in material and width.
CURRENT NEW
11.3 mm (7/16") 11.8 mm (15/32")
14.8 mm (19/32")
Ø15 mm (9/32")
9.The sleeve of crank shaft will be more hardened.
10.The flat washer 33 will be discontinued.
Page 4
Interchangeability(I/C)
Item No.
023
040
043
007
009
004
018
010
010
010
Curret part
Supporter
165026-0
Flat washer 10
253180-3
Internal gear 39
226202-2
Flat washer 33
267103-5
Block
311920-6
Screw pin 10
322508-7
Shear blade(L)
792705-3
Crank shaft
152360-7
Housing set
182472-2
Housing set
182474-8
Housing set
182473-0
Q'ty
1
New part
Supporter
165026-0
Flat washer 10
253180-3
Internal gear 39
226202-2
Block
311930-6
Screw pin 10
322508-7
Shear blade(L)
792705-3
Crank shaft
152360-7
Housing set
182472-2
Housing set
182474-8
Housing set
182473-0
Q'ty
11
12
1
11
11
11
11
11
11
11
I/C
No
Interchangeable as a set
Yes
No1
Interchangeable as a set
<=
<=
<=
<=
<=
See note 2 below.
<=
See note 3 below.
<=
See note 4 below.
Note
Note
1.Interchangeability mark; <= mark indicates that the new type parts can be substituted for the current type parts.
2.With English label For all countries and areas except Canada, Germany, Austria, France, Reunion and Algeria
3.With German label For Germany and Austria
4.With English and French label For Canada, France, Reunion and Algeria
Implementation
4603D
: From serial No.501039E
4603DW : From serial No.7497E
