T
ECHNICAL INFORMATION
45810
Subject
For Models
Description

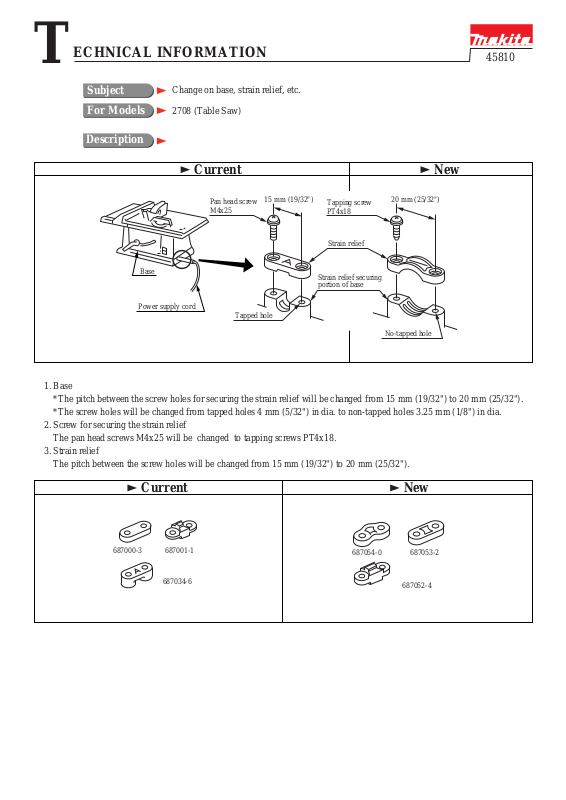

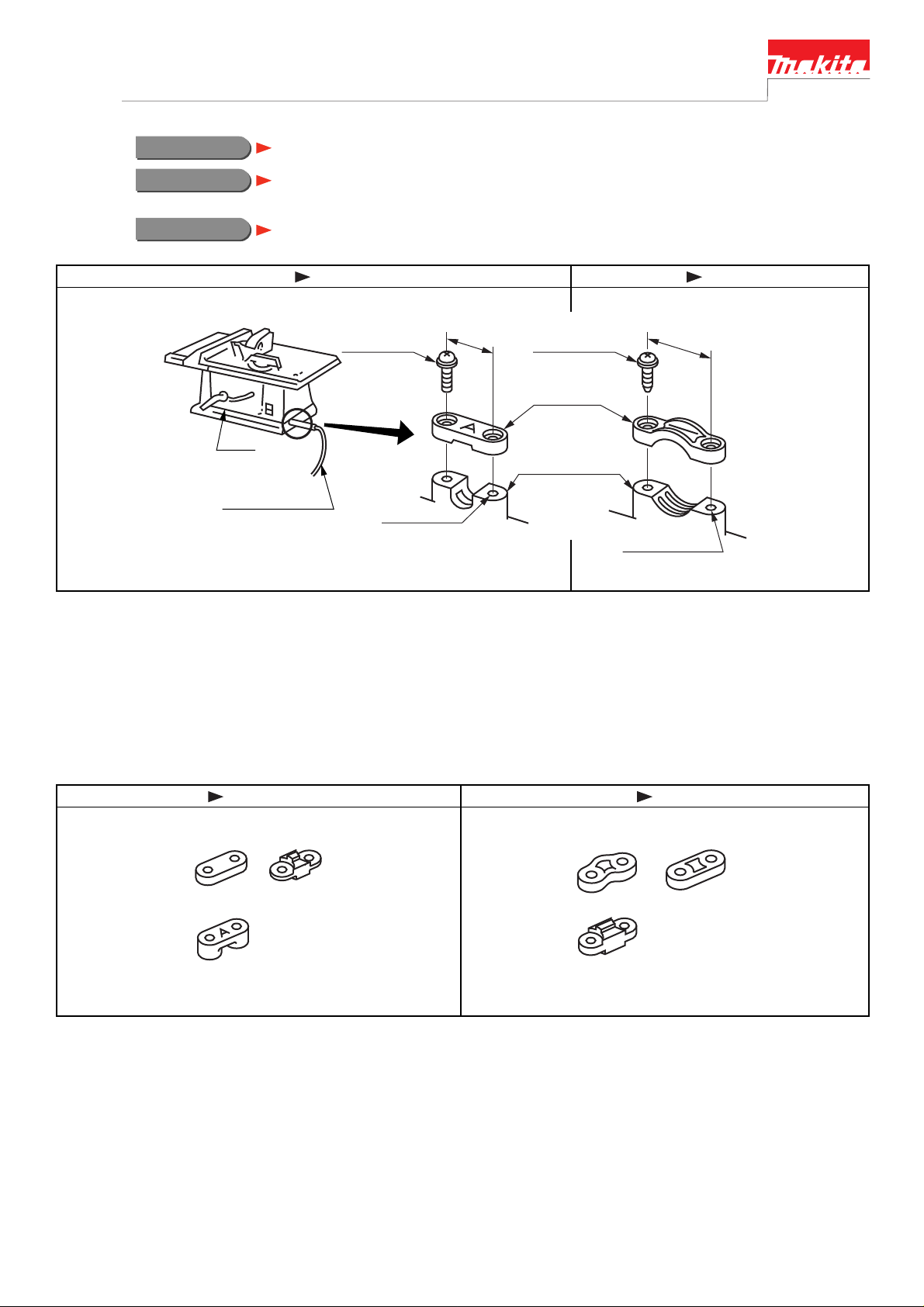

Change on base, strain relief, etc.
2708 (Table Saw)
Base
Power supply cord
Current New
Pan head screw
M4x25
Tapped hole
15 mm (19/32") 20 mm (25/32")
Tapping screw
PT4x18
Strain relief
Strain relief securing
portion of base
No-tapped hole
1. Base
*The pitch between the screw holes for securing the strain relief will be changed from 15 mm (19/32") to 20 mm (25/32").
*The screw holes will be changed from tapped holes 4 mm (5/32") in dia. to non-tapped holes 3.25 mm (1/8") in dia.
2. Screw for securing the strain relief
The pan head screws M4x25 will be changed to tapping screws PT4x18.
3. Strain relief
The pitch between the screw holes will be changed from 15 mm (19/32") to 20 mm (25/32").
Current New
687000-3 687001-1
687034-6
687054-0 687053-2
687052-4
Page 2
Interchangeability(I/C)
Item No
Base
155633-7
73
Base
155815-1
73
Base
73
155817-7
Pan head screw M4x25
75
911148-2
Strain relief
74
687034-6
Strain relief
74
687000-3
Strain relief
74
687001-1
Strain relief
74
687000-3
Strain relief
74
687001-1
Current part
Q'ty Q'ty
I/C
1
1
1
2
1
1
1
1
1
Base assembly
No
(with cap 20)
134737-8
Base assembly
(with cap 20)
No
134738-6
Base assembly
(with cap 20)
No
134740-9
Tapping screw PT4x18
No
265995-6
Strain relief
No
687054-0
Strain relief
No
687054-0
Strain relief
No
687053-2
Strain relief
No
687053-2
Strain relief
No
687052-4
New part
1
1
1
2
1
1
1
1
Note
See the note 1 below.
See the notes 1 & 2 below.
See the notes 1 & 4 below.
See the note 1 below.
See the notes 1 & 5 below.
See the notes 1 & 6 below.
See the notes 1 & 7 below.
See the notes 1 & 8 below.
See the notes 1 & 9 below.
1
Note
1. The current type parts (base, pan head screw and strain relief) and the new type parts (base, tapping screw and strain relie)
are interchangeable as a set.
2. For U.K., Netherlands, Italy and Sweden
3. For France, Reunion and Algeria
4. For Austria and Germany
5. For Singapore, Thailand, Taiwan, Indonesia, etc.
6. For Austria, Papua New Guinea, etc.
7. For Spain, Italy, New Zealand, etc.
8. For Saudi Arabia (127 V), Guam, Venezuela, U.K. (110 V), etc.
9. For Germany, Netherlands, Sweden, U.K. (240 V), etc.
Implementation
From serial No. 483954E
