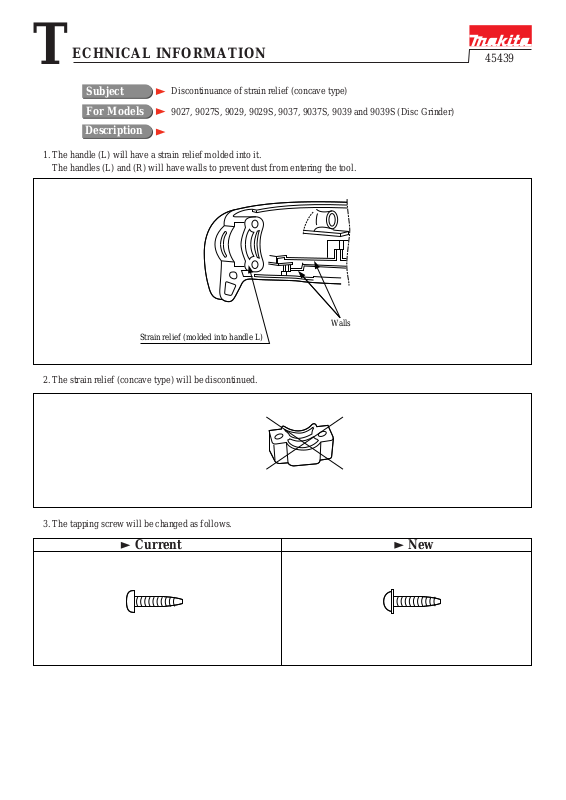

T
ECHNICAL INFORMATION
45439
Subject
For Models
Description
1. The handle (L) will have a strain relief molded into it.
The handles (L) and (R) will have walls to prevent dust from entering the tool.
Strain relief (molded into handle L)
Discontinuance of strain relief (concave type)
9027, 9027S, 9029, 9029S, 9037, 9037S, 9039 and 9039S (Disc Grinder)
Walls
2. The strain relief (concave type) will be discontinued.
3. The tapping screw will be changed as follows.
Current New
Page 2
Interchangeability(I/C)
Item No.
36
41
43
Current part New part
Handle set
182563–9
Strain relief
(concave type)
687051–6
Tapping screw BT4x18
265941–9
Q'ty Q'ty
I/C
Handle set
No
1
1
182607–5
Tapping screw PT4x18
No 22
265995–6
Note
The current type parts and the new type parts are interchangeable as a set.
Implementation
9027: From serial No. 9043E
9029: From serial No. 69904E
9037: From serial No. 1696E
9039: From serial NO. 3665E
9027S: From serial No. 12236E
9029S: From serial No. 64108E
9037S: From serial No. 2661E
9039S: From serial No. 7796E
Note
