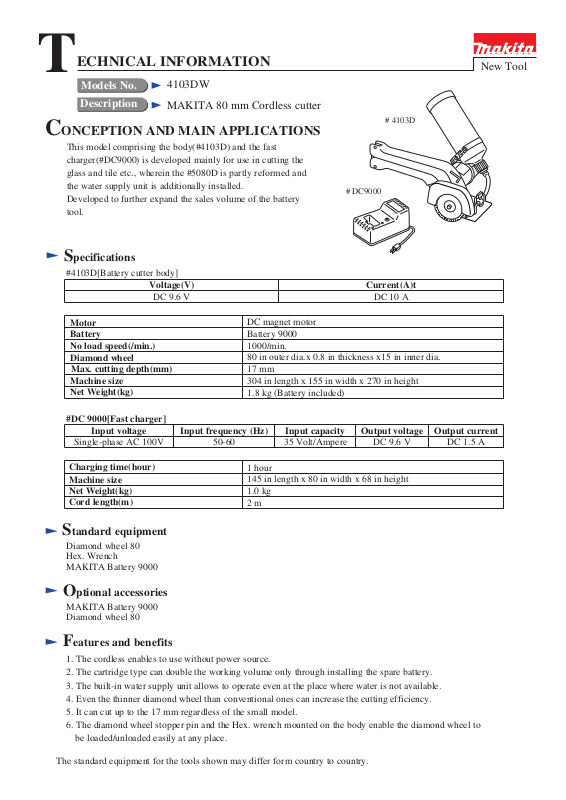

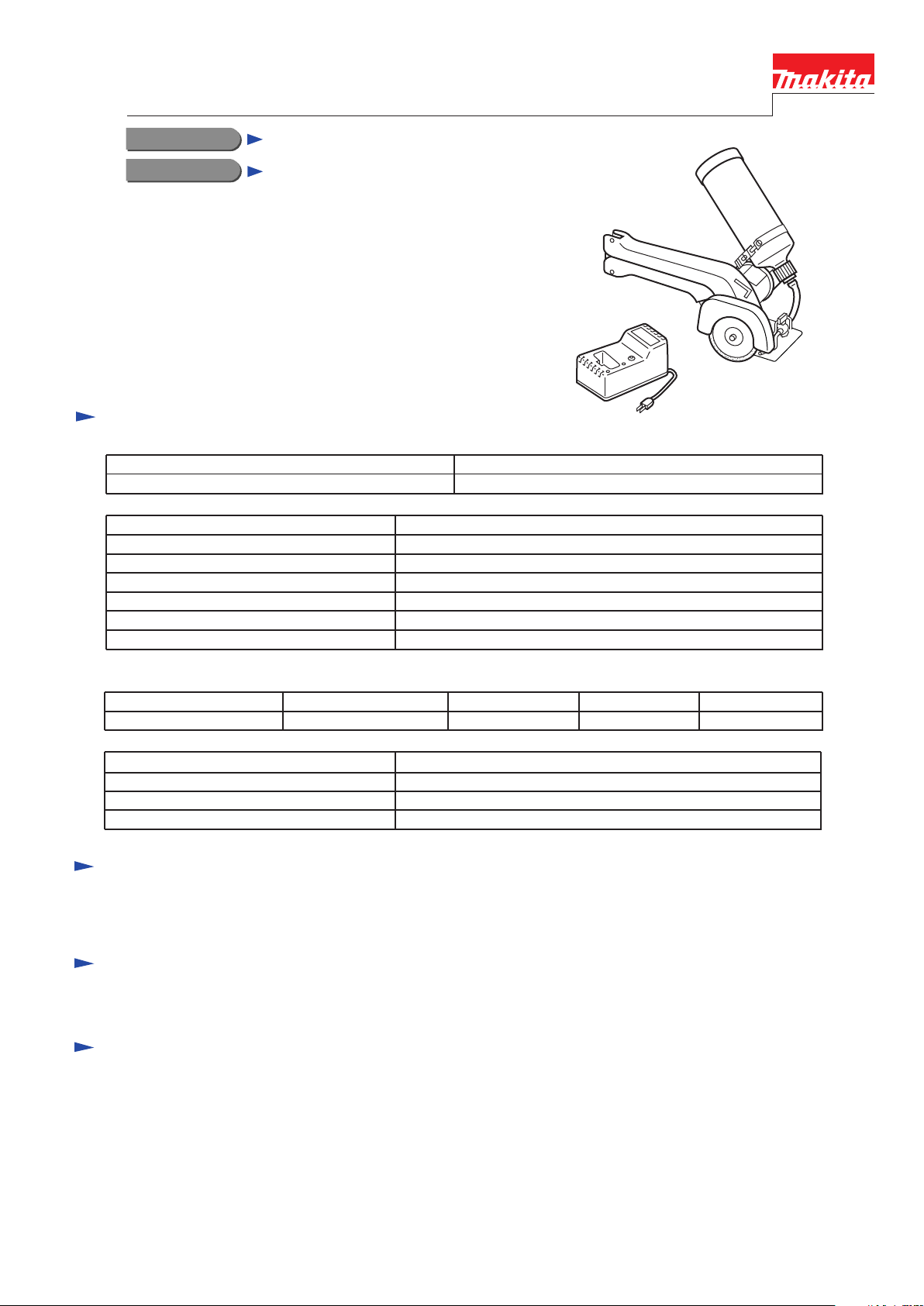

ECHNICAL INFORMATION
Models No.
4103DW
New Tool
Description
MAKITA 80 mm Cordless cutter
CONCEPTION AND MAIN APPLICATIONS
This model comprising the body(#4103D) and the fast
charger(#DC9000) is developed mainly for use in cutting the
glass and tile etc., wherein the #5080D is partly reformed and
the water supply unit is additionally installed.
Developed to further expand the sales volume of the battery
tool.
Specifications
#4103D[Battery cutter body]
Voltage(V) Current(A)t
DC 9.6 V DC 10 A
Motor
Battery
No load speed(/min.)
Diamond wheel
Max. cutting depth(mm)
Machine size
Net Weight(kg)
DC magnet motor
Battery 9000
1000/min.
80 in outer dia.x 0.8 in thickness x15 in inner dia.
17 mm
304 in length x 155 in width x 270 in height
1.8 kg (Battery included)
# 4103D
# DC9000
#DC 9000[Fast charger]
Input voltage Input capacity Output voltage Output current
Single-phase AC 100V 50-60 35 Volt/Ampere DC 9.6 V DC 1.5 A
Charging time(hour)
Machine size
Net Weight(kg)
Cord length(m)
Input frequency (Hz)
1 hour
145 in length x 80 in width x 68 in height
1.0 kg
2 m
Standard equipment
Diamond wheel 80
Hex. Wrench
MAKITA Battery 9000
Optional accessories
MAKITA Battery 9000
Diamond wheel 80
Features and benefits
1. The cordless enables to use without power source.
2. The cartridge type can double the working volume only through installing the spare battery.
3. The built-in water supply unit allows to operate even at the place where water is not available.
4. Even the thinner diamond wheel than conventional ones can increase the cutting efficiency.
5. It can cut up to the 17 mm regardless of the small model.
6. The diamond wheel stopper pin and the Hex. wrench mounted on the body enable the diamond wheel to
be loaded/unloaded easily at any place.
The standard equipment for the tools shown may differ form country to country.
Page 2
Capacity
Actual cutting test for #4103D
Material to be cut Glass
Thickness to be cut 5 mm
Cutting current 8-10A
Cutting speed 2-min. 35-sec./m
* In the case shown above the diamond wheel can cut up to about 150 m as the service life.
* The curve-cutting and the zigzag cutting are impossible during cutting.
Repair
Handling(Disassembling/assembling included)
Although the operation methods and the handling ways are almost same as for the #5080D, use special cares for
the following points.

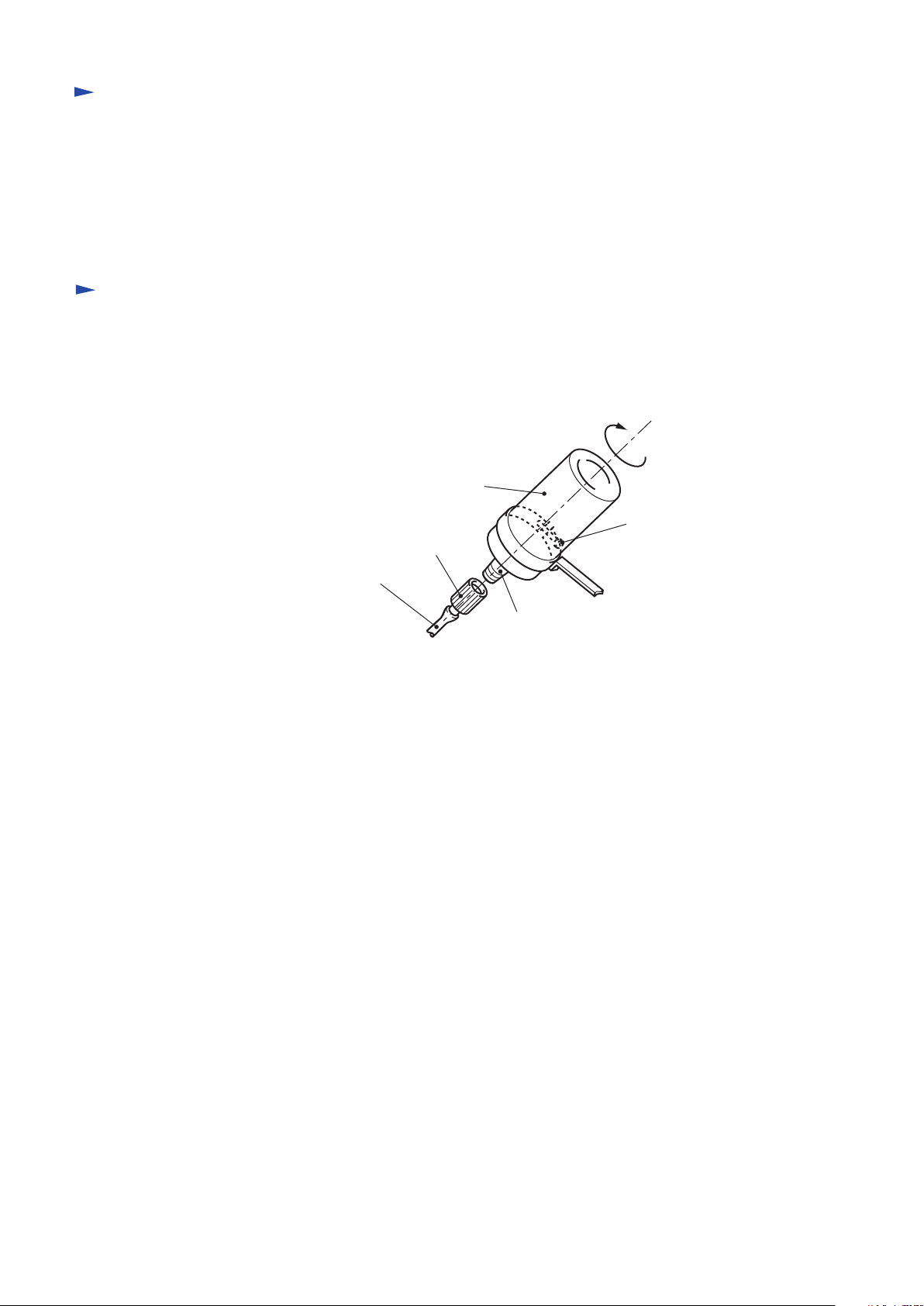

1) To connect the cap mounted on the edge of the vinyl tube to the port edge of the water supply tank, loosen the
screw holding the water supply
tank, connect them while turning
right the water supply tank.(see
the right figure)
Water supply tank
Cap
Connect the port edge to the cap
while turning the water supply tank
in right direction.
Loosen the screw.
Vinyl tube
Port edge
2) If the vinyl tube has been bent in dogleg-shape or over tightened after assembling, loosen the screw holding the
tank holder, slide the tank position in left/right or change the angle slightly to modify it.
3) Although the handling methods for the DC 9000 is same as the DC 7000, use the charger for exclusive use in
DC9000 instead of charger for the DC7000(cannot be used) when charging.
