ROUTER Model 3620 (MJ)
05-2002
Item Part No.
No. No. Used Description
1 251878-6 1 Knob Screw M5x20
2 941101-4 1 Flat Washer 5
3 343352-9 1 Pressure Plate
4 252094-3 1 Hex Nut M8
5 321948-6 1 Stopper Pole
6 410960-2 1 Depth Pointer
7 * 1 Main Hsg (Front)(Includes
Items 48 & 49)
8 664013-1 1 Cord with Plug 2P-18-2.5
9 682502-4 1 Cord Guard 8-85
10 687002-9 1 Strain Relief
11 911133-5 2 P.H. Screw M4x18 (With Washer)
12 * 1 Switch
13 181437-1 2 Carbon Brush CB-107
191904-8 2 Auto Cut-Off Carbon Brush CB-113
(Optional)
14 643605-9 2 Brush Holder
15 * 1 Sub Hsg (Back)(With Rubber Pin 4
263002-9x3 & Rubber Pin 6 263005-3)
16 941202-8 1 Flat Washer 8
17 272221-6 1 Lever 45
18 962065-9 1 Retaining Ring R-15
19 267047-9 1 Flat Washer 10 (Old 253173-0)
20 256652-7 1 Pin 10
21 231416-0 1 Compression Spring 10
22 265335-8 1 (+) Hex Bolt M5x28
23 931202-6 1 Hex Nut M5
24 265333-2 1 (+) Hex Bolt M5x16
25 931202-6 1 Hex Nut M5
26 134437-0 1 Stopper Assy (Includes Items
22-25 & 29-31)
27 216009-4 1 Steel Ball 7.1
28 231419-4 1 Compression Spring 5
29 251447-3 1 (-) Flat Head Screw M6
30 265334-0 1 (+) Hex Bolt M5x20
31 931202-6 1 Hex Nut M5
32 259019-8 2 Self Lock 15
33 410834-7 1 Base Plate
34 912107-9 4 Countersunk Head Screw M4x8
35 911206-4 2 P.H. Screw M5x10 (With Washer)
Item Part No.
No. No. Used Description
36 154346-7 1 Base Com.
37 924216-2 2 Wing Bolt M5x15
38 231417-8 1 Compression Spring 10
39 256651-9 1 Pin 10
40 911243-8 7 P.H. Screw M5x25 (With Washer)
41 763615-1 1 Collet Nut
42 654037-5 2 Insulated Eye Terminal FV1.25-M4
(Old 654038-3 -FV1.25-M4)
43 211275-8 1 Ball Bearing 6003DDW
44 241835-2 1 Fan 72
45 512891-2 1 Armature Assy (Includes Items
43, 44 & 47)
46 522636-0 1 Field Assy (With Item 42)
47 211031-6 1 Ball Bearing 608LLB
48 931202-6 1 Hex Nut M5
49 931202-6 7 Hex Nut M5
50 410896-5 1 Chip Deflector
52 443073-4 1 Felt
53 443074-2 1 Felt
54 231240-1 2 Compression Spring
101 652008-6 2 P.H. Screw M3.5X7 (Type 2 )
102 654532-5 1 Terminal Block 1P (Type 2)
104 911143-2 1 P.H. Screw M4x22
105 942151-2 1 Spring Washer 6
106 941151-9 1 Flat Washer 6
107 342427-1 1 Plate Holder
108 312038-6 1 Trimmer Guide Holder
109 941151-9 2 Flat Washer 6
110 924346-9 2 Thumb Screw M6x30
111 942151-2 2 Spring Washer 6
112 251879-4 1 Screw M10x65
113 163263-0 1 Roll
114 923211-9 1 Countersunk Square Neck Bolt M5x12
115 934201-7 1 Wing Nut 5
116 942101-7 1 Spring Washer
*
*

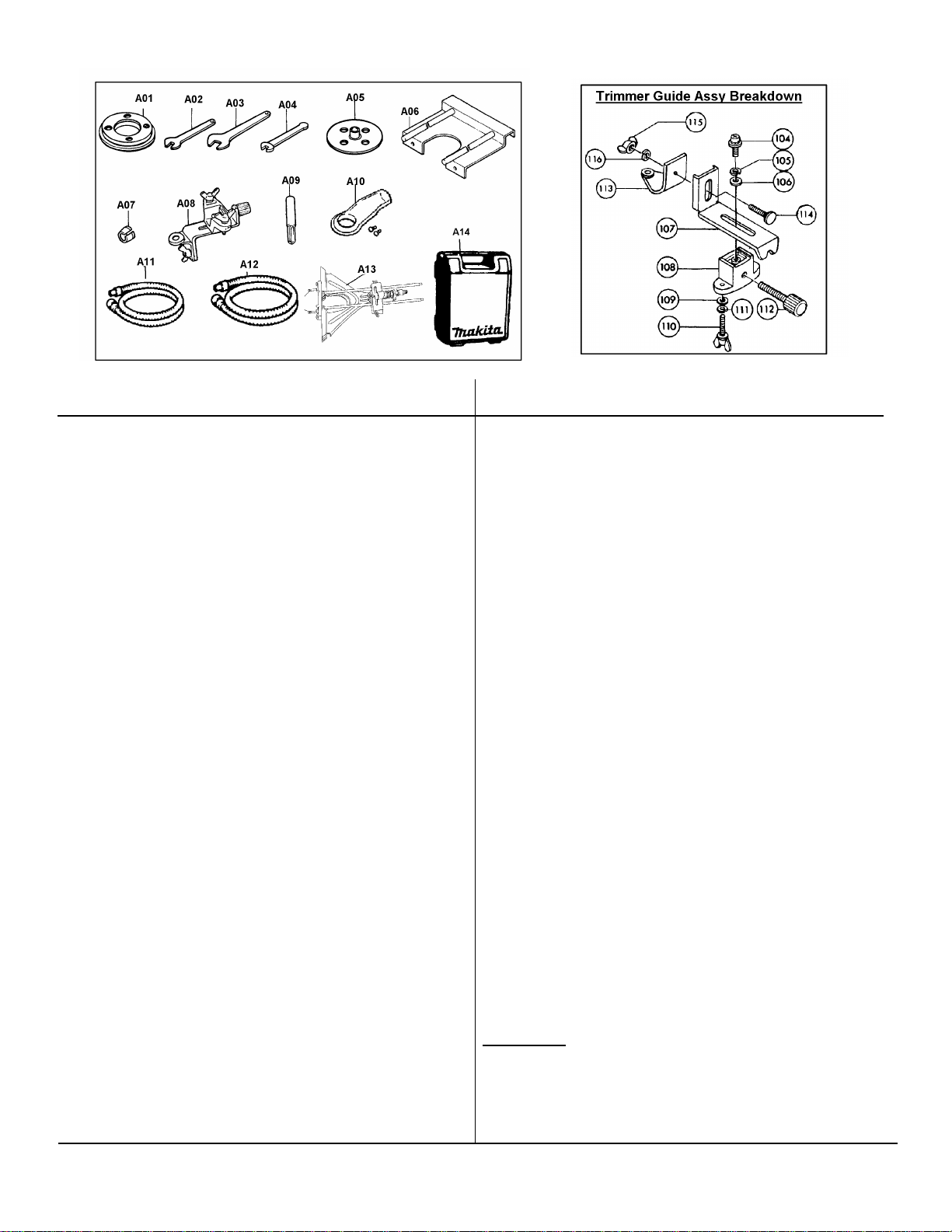

Accessories
A01 321492-3 1 Templet Guide Adaptor
A02 781203-2 1 Wrench 13
A03 781011-1 1 Wrench 22
A04 781213-9 1 Wrench 8
2 Model 3620
