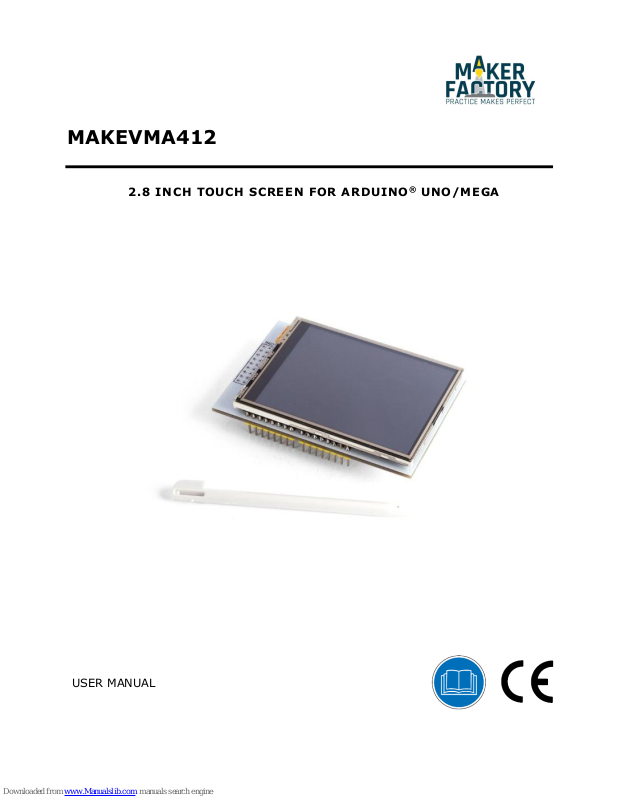

MAKEVMA412
2.8 INCH TOUCH SCRE E N FOR ARDUINO® UNO/MEGA
USER MANUAL
Page 2
MAKEVMA412
V. 02 – 08/11/2017 2
USER MANUAL
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could
harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should
be taken to a specialized company for recycling. This device should be returned to your distributor or to
a local recycling service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Please read the manual thoroughly before bringing this device into service. If the device was damaged in
transit, do not install or use it and contact your dealer.
2. Safety Instructions
This device can be used by children aged from 8 years and above, and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning the use of the device in a
safe way and understand the hazards involved. Children shall not play with the device.
Cleaning and user maintenance shall not be made by children without supervision.
Indoor use only.
Keep away from rain, moisture, splashing and dripping liquids.
3. General Guidelines
Familiarise yourself with the functions of the device before actually using it.
All modifications of the device are forbidden for safety reasons. Damage caused by user
modifications to the device is not covered by the warranty.
Only use the device for its intended purpose. Using the device in an unauthorised way
will void the warranty.
Damage caused by disregard of certain guidelines in this manual is not covered by the
warranty and the dealer will not accept responsibility for any ensuing defects or
problems.
The dealers cannot be held responsible for any damage (extraordinary, incidental or
indirect) – of any nature (financial, physical…) arising from the possession, use or
failure of this product.
Due to constant product improvements, the actual product appearance might differ from
the shown images.
Product images are for illustrative purposes only.
Do not switch the device on immediately after it has been exposed to changes in
temperature. Protect the device against damage by leaving it switched off until it has
reached room temperature.
Keep this manual for future reference.
Page 3
MAKEVMA412
V. 02 – 08/11/2017 3
4. What is Arduino
®
Arduino® is an open-source prototyping platform based in easy-to-use hardware and software. Arduino® boards
are able to read inputs – light-on sensor, a finger on a button or a Twitter message – and turn it into an output
– activating of a motor, turning on an LED, publishing something online. You can tell your board what to do by
sending a set of instructions to the microcontroller on the board. To do so, you use the Arduino programming
language (based on Wiring) and the Arduino® software IDE (based on Processing).
Surf to www.arduino.cc and www.arduino.org for more information.
5. Overview
Add a beautiful touch screen to your project with this 2.8" display and a microSD slot on a shield.
The shield comes completely assembled, tested and ready-to-use. No cables, no soldering required. Just plug
in the shield, load the library and your display will be up and running in less than 10 minutes!
pin
description
LCD_RST
LCD reset pin
LCD_CS
LCD chip select
LCD_RS
LCD register select
LCD_WR
LCD write
LCD_RD
LCD read
GND
ground
5V
5 V
3V3
3.3 V
LCD_D0
LCD data bit 0
LCD_D1
LCD data bit 1
LCD_D2
LCD data bit 2
LCD_D3
LCD data bit 3
LCD_D4
LCD data bit 4
LCD_D5
LCD data bit 5
LCD_D6
LCD data bit 6
LCD_D7
LCD data bit 7
SD_SS
SD card slave select
SD_DI
SD card serial data in
SD_DO
SD card serial data out
SD_SCK
SD card serial clock
Page 4
MAKEVMA412
V. 02 – 08/11/2017 4
resolution ......................................................................................... 240 RGB (H) x 320 (V)
colour depth ................................................................................................ 262 000 colours
system interface
8-bits, 9-bits, 16-bits, 18-bits interface with 8080-I /8080-II series MCU
6-bits, 16-bits, 18-bits RGB interface with graphic controller
3-line / 4-line serial interface
display mode
full-colour mode (Idle mode OFF) . 262 000 colour (selectable colour depth mode by software)
reduced colour mode (Idle mode ON).................................................................... 8-colour
operating temperature................................................................................ -40 °C to +85 °C
