Page 2
Perception Gizmos Add-on Pack
USER MANUAL
Page 3
Page 4
mBot Add-on Cases
Parts List
Index
Range FinderP03
Energy-saving FanP06
Sound Control LampP08
Knob RobotP10
Weather StationP13
Roly-polyP15
Music BoxP19
mBot Ranger Add-on Cases
P03
P02
P15
Page 5
02
Parts List
1 ×
Temperature and
Humidity Sensor
1 ×
Potentiometer
1 ×
Sound
Sensor
1 ×
130 Motor Pack
1 ×
LED Matrix 8×16
2 ×
Plate 45°
2 ×
Beam 0824-096
1 ×
Wrench 5mm&7mm
2 ×
Bracket 3×3
4×
RJ25 Cable
16×
M4×8mm Screw
10×
Plastic Spacer
4×7×3mm
20×
M4×14mm Screw
20×
M4 Nut
4×
M4×22mm Screw
4×
M4×25mm Brass Stud
2 ×
Beam 0808-072
Reference for Parts (Ratio 1:1)
M4×8mm Screw
M4×14mm Screw
M4×22mm Screw
M4 Nut
Plastic Spacer 4×7×3mm
Page 6
03
mBot Chassis (1)
RJ25 Cable (1)
Range Finder
LED Matrix 8×16 (1)
Plastic Rivet R4100 (4)
Bracket 3×3 (1)
M4×8mm Screw (2)

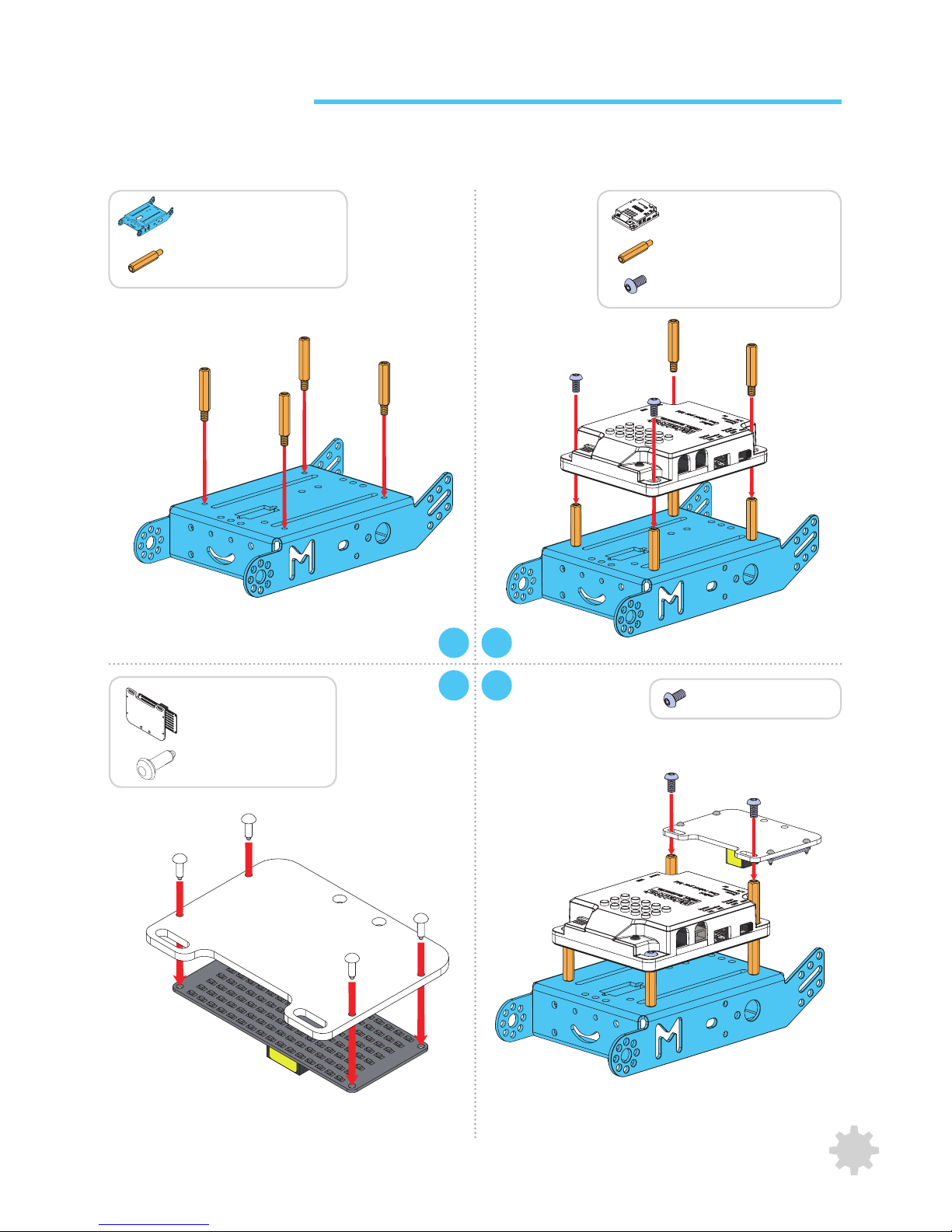

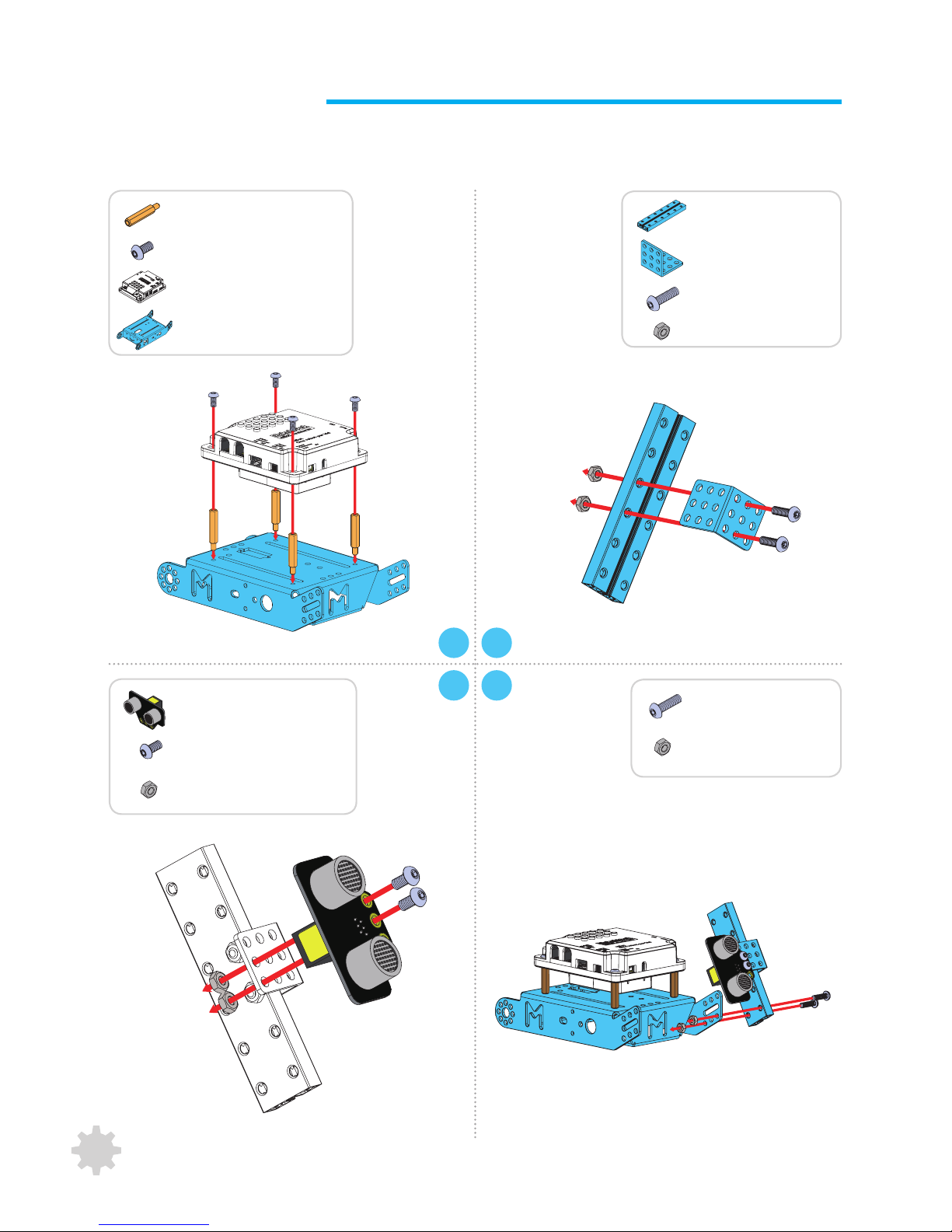

For mBot - Range Finder
01 02
03 04
M4×8mm Screw (2)
mBot Ultrasonic Sensor (1)
M4×22mm Screw (2)
M4 Nut (2)
Plastic Spacer 4×7×3mm (4)
Page 7
04
Bracket 3×3 (1)
M4×8mm Screw (2)

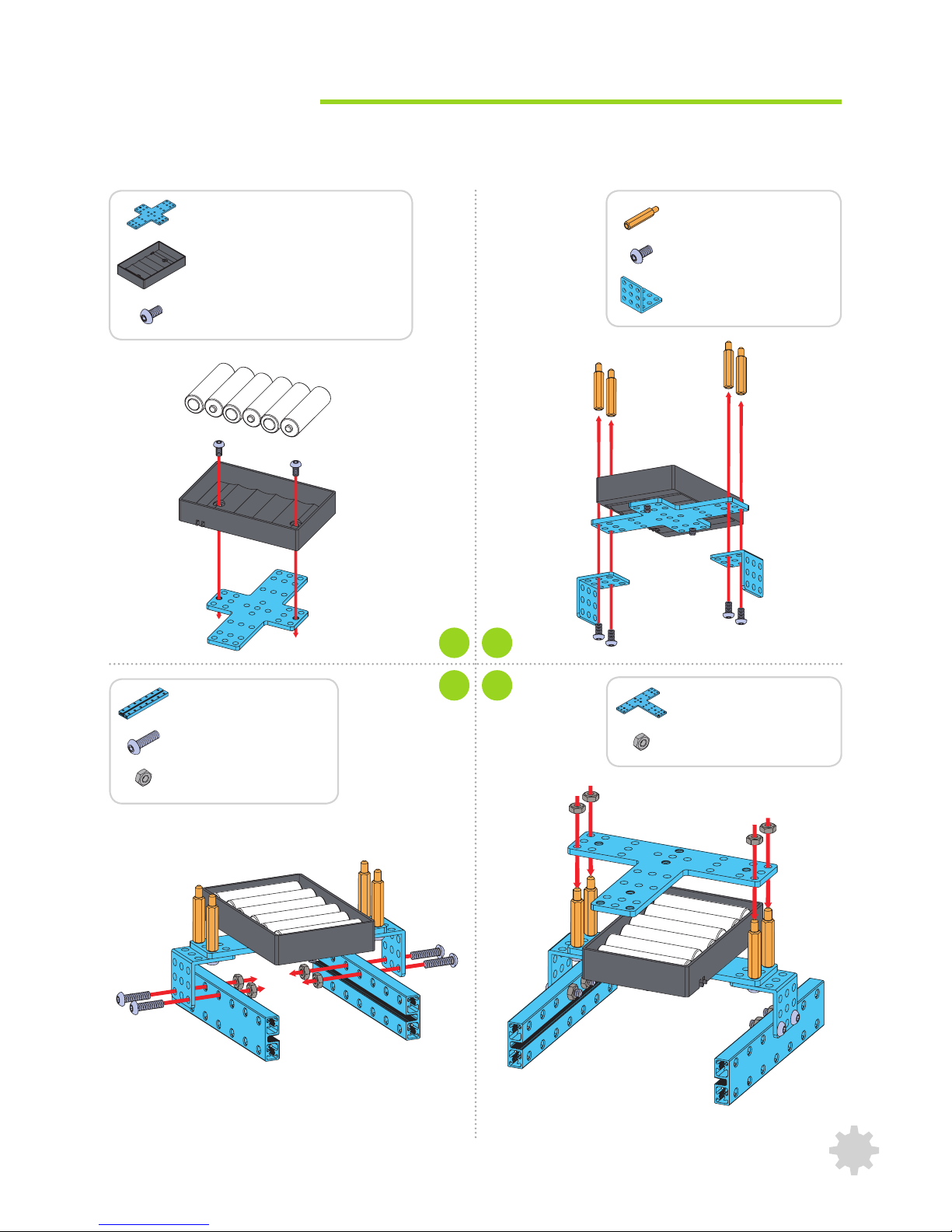

M4×25mm Brass Stud (4)
M4×8mm Screw (4)
mCore (1)
05 06
07 08
M4 Nut (2)
M4×14mm Screw (2)
Beam 0824-096 (1)
For mBot - Range Finder
Page 8
05

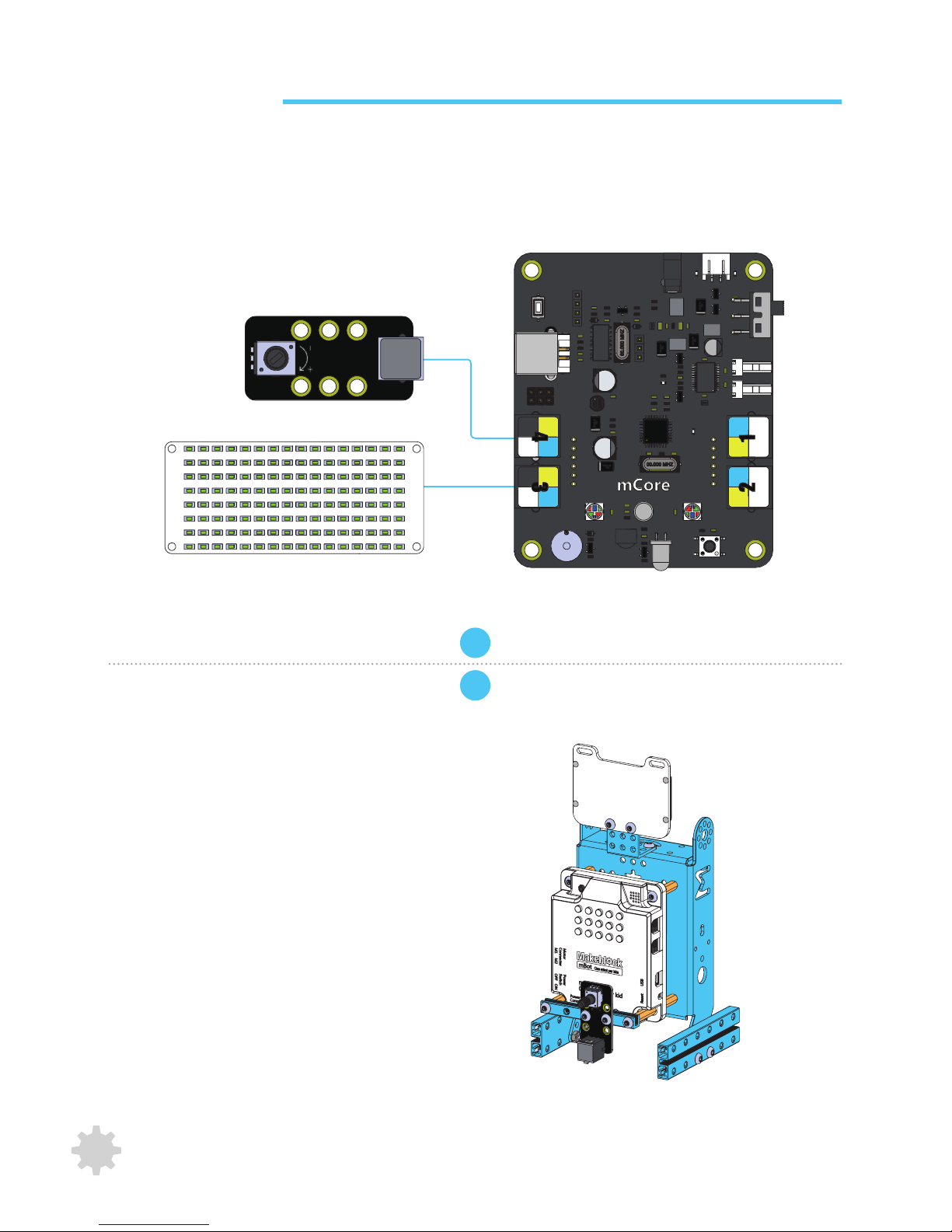

Please refer to the gure below to complete the wiring.
09
10
You have nished the construction. To learn more, please visit:
http://learn.makeblock.com/en/gizmos/
For mBot - Range Finder
Good job!
Page 9
06
M4×25mm Brass Stud (4)
M4×8mm Screw (4)
mCore (1)
mBot Chassis (1)
01 02
03 04

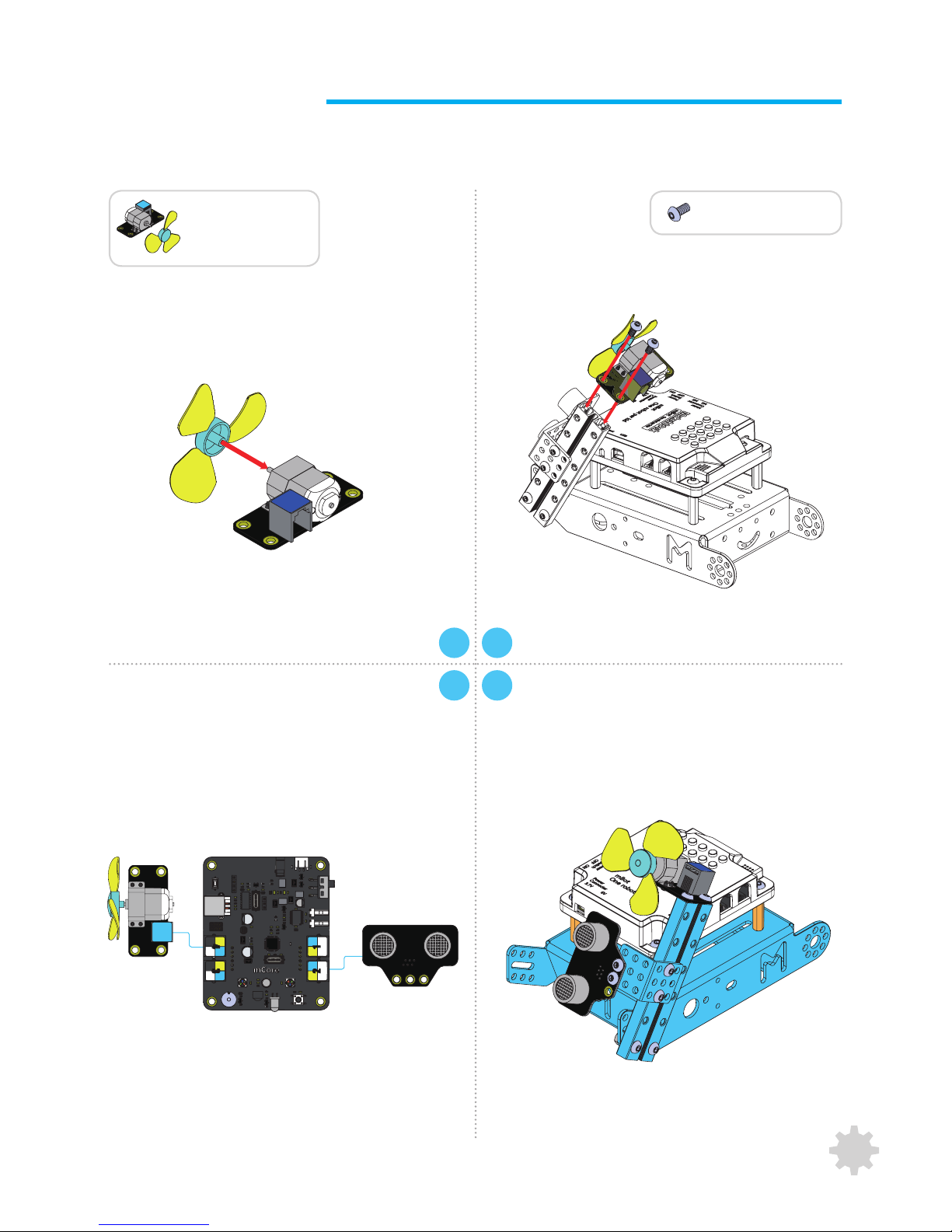

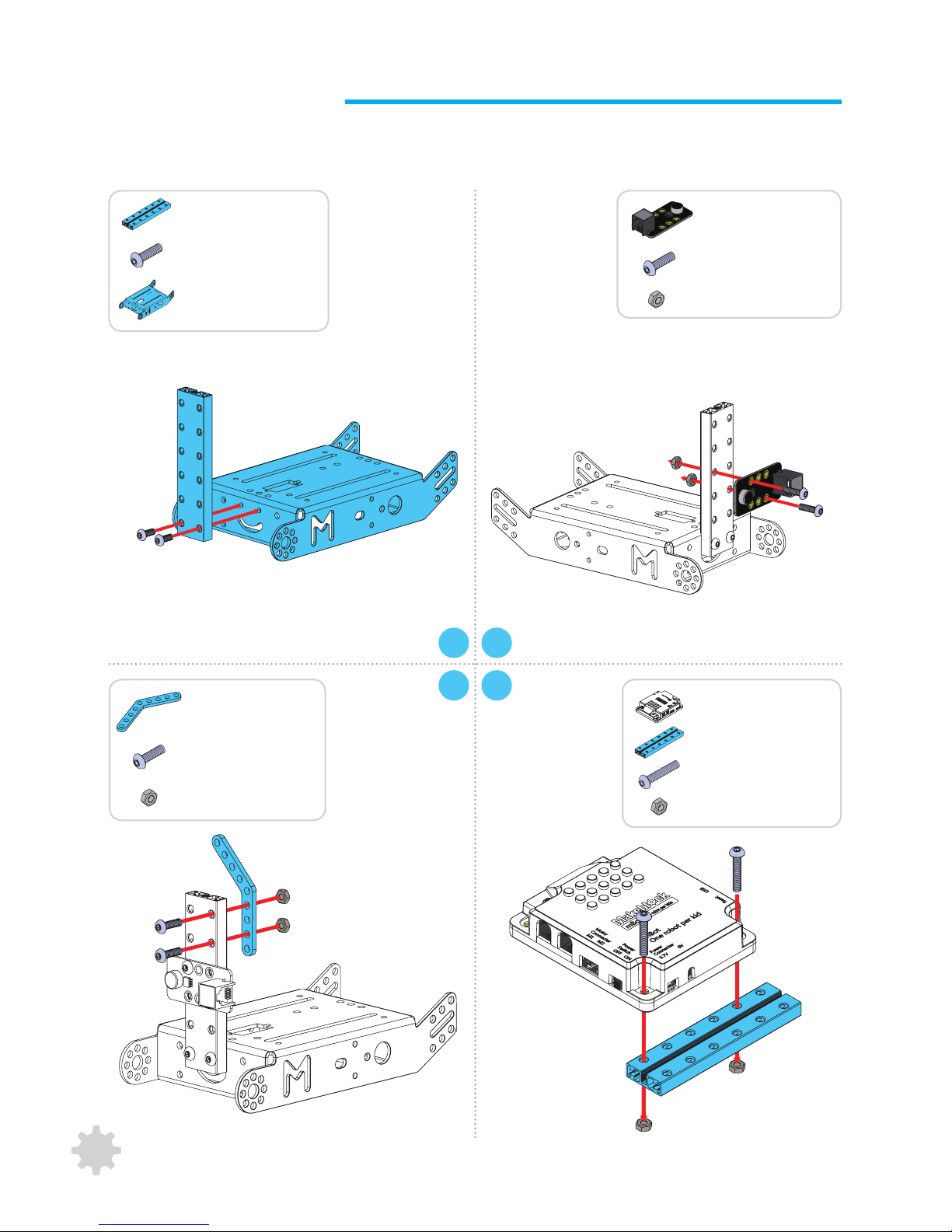

Energy-saving Fan
M4×14mm Screw (2)
M4 Nut (2)
M4 Nut (2)

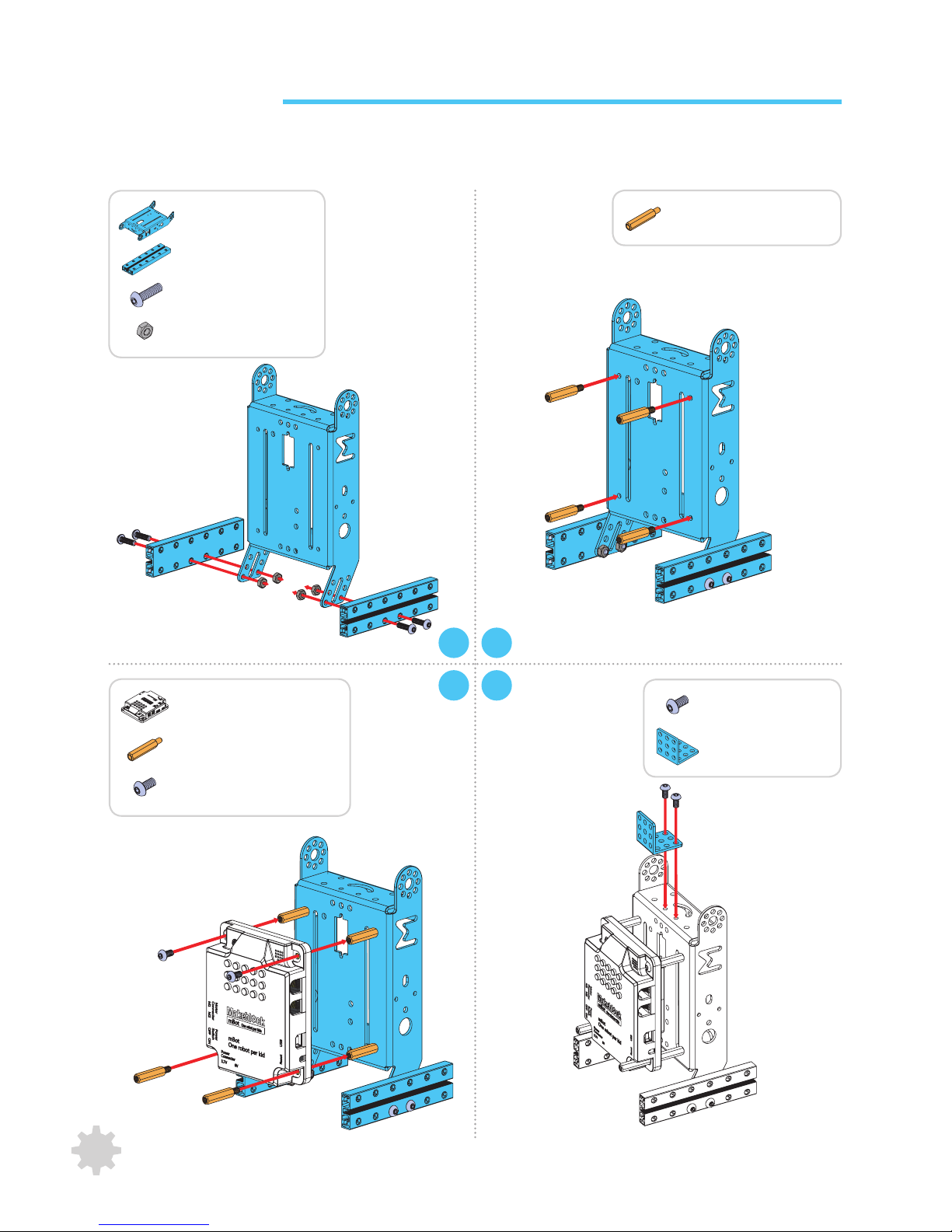

For mBot - Energy-saving Fan
Bracket 3×3 (1)
M4 Nut (2)
M4×14mm Screw (2)
Beam 0824-096 (1)
M4×8mm Screw (2)
mBot Ultrasonic Sensor (1)
Page 10
07
M4×8mm Screw (2)
130 Motor Pack (1)
05 06
07 08
Please refer to the gure below
to complete the wiring.
You have nished the construction. To learn
more, please visit:
http://learn.makeblock.com/en/gizmos/
For mBot - Energy-saving Fan
Good job!
Page 11
08

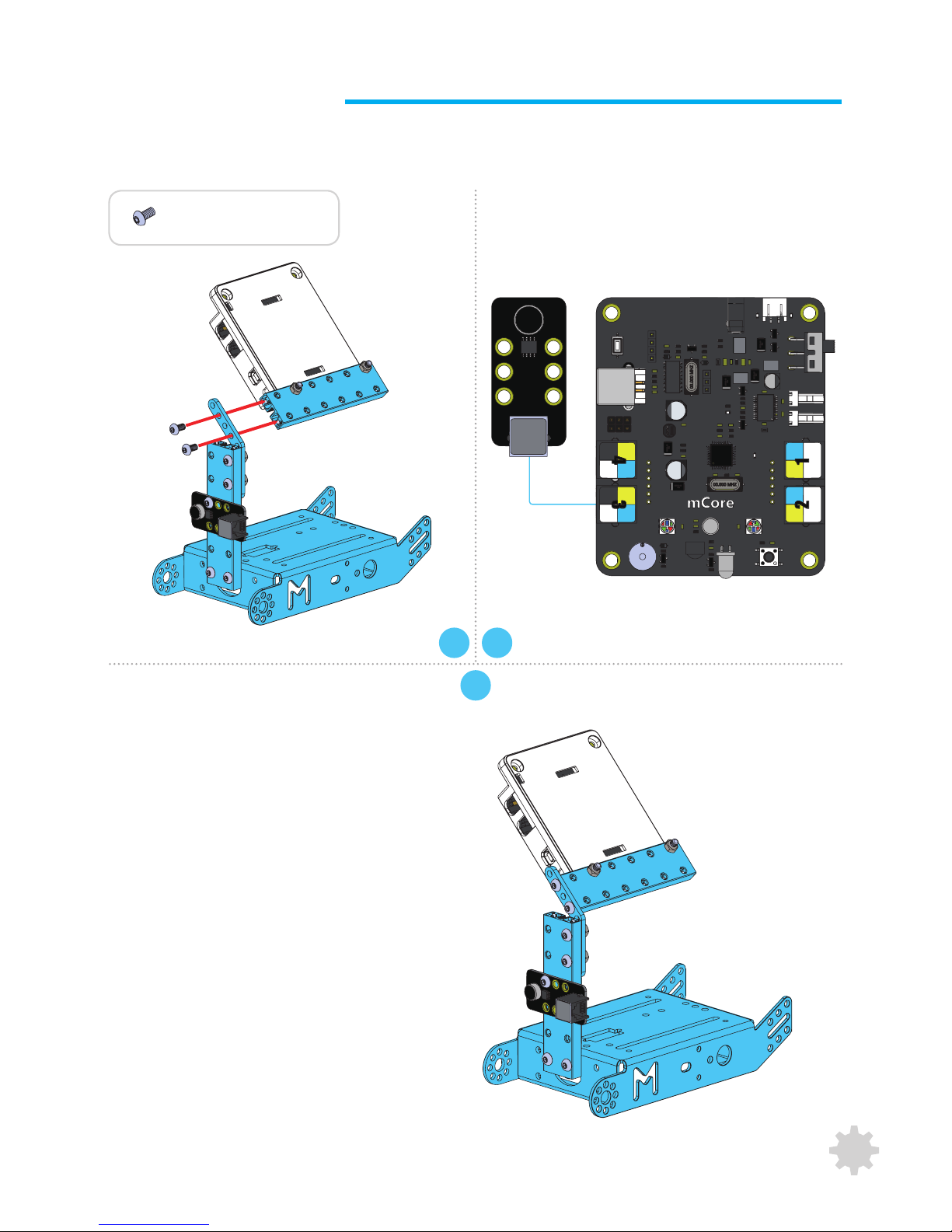

For mBot - Sound Control Lamp
Sound Control Lamp
M4×14mm Screw (2)
01 02
03 04
mBot Chassis (1)
Beam 0824-096 (1)
M4×14mm Screw (2)
Sound Sensor (1)
M4 Nut (2)
M4×14mm Screw (2)
Plate 45° (1)
M4 Nut (2)
mCore (1)
M4×22mm Screw (2)
M4 Nut (2)
Beam 0824-096 (1)
Page 12
09
M4×8mm Screw (2)
05 06
07
Please refer to the gure below to complete the wiring.
You have nished the construction. To learn more, please visit:
http://learn.makeblock.com/en/gizmos/
For mBot - Sound Control Lamp
Good job!
Page 13
10
M4×8mm Screw (2)
M4×8mm Screw (2)
01 02
03 04

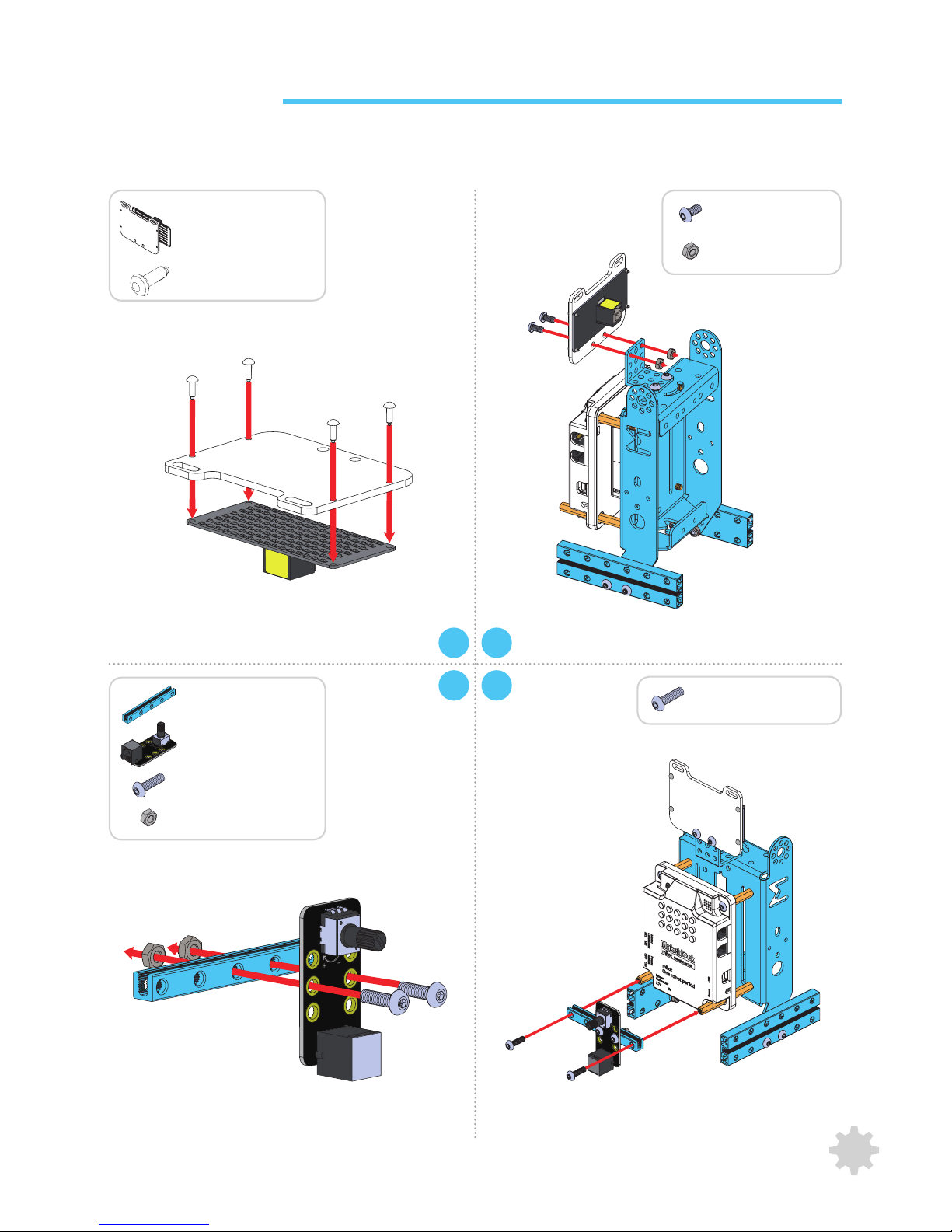

For mBot - Knob Robot
Knob Robot
M4×14mm Screw (4)
mBot Chassis (1)
Beam 0824-096 (2)
M4 Nut (4)
M4×25mm Brass Stud (4)
mCore (1)
M4×25mm Brass Stud (2)
Bracket 3×3 (1)
Page 14
11
05 06
07 08
LED Matrix 8×16 (1)
Plastic Rivet R4100 (4)
M4 Nut (2)
M4×8mm Screw (2)
M4×14mm Screw (2)
M4×14mm Screw (2)
Potentiometer (1)
Beam 0808-072 (1)
M4 Nut (2)
For mBot - Knob Robot
Page 15

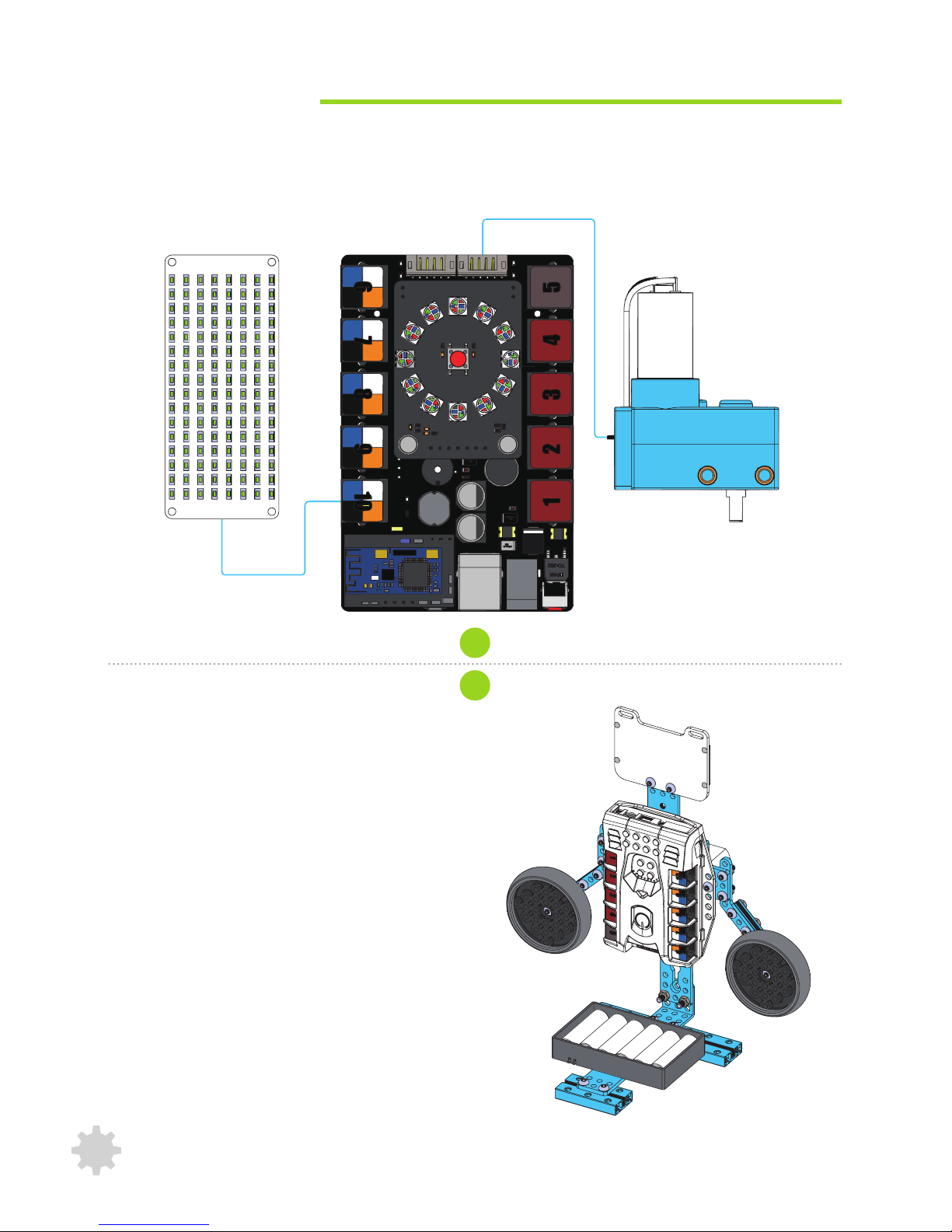

12
09
10
Please refer to the gure below to complete the wiring.
You have nished the construction. To learn more, please visit:
http://learn.makeblock.com/en/gizmos/
For mBot - Knob Robot
Good job!
Page 16
13
mBot Chassis (1)

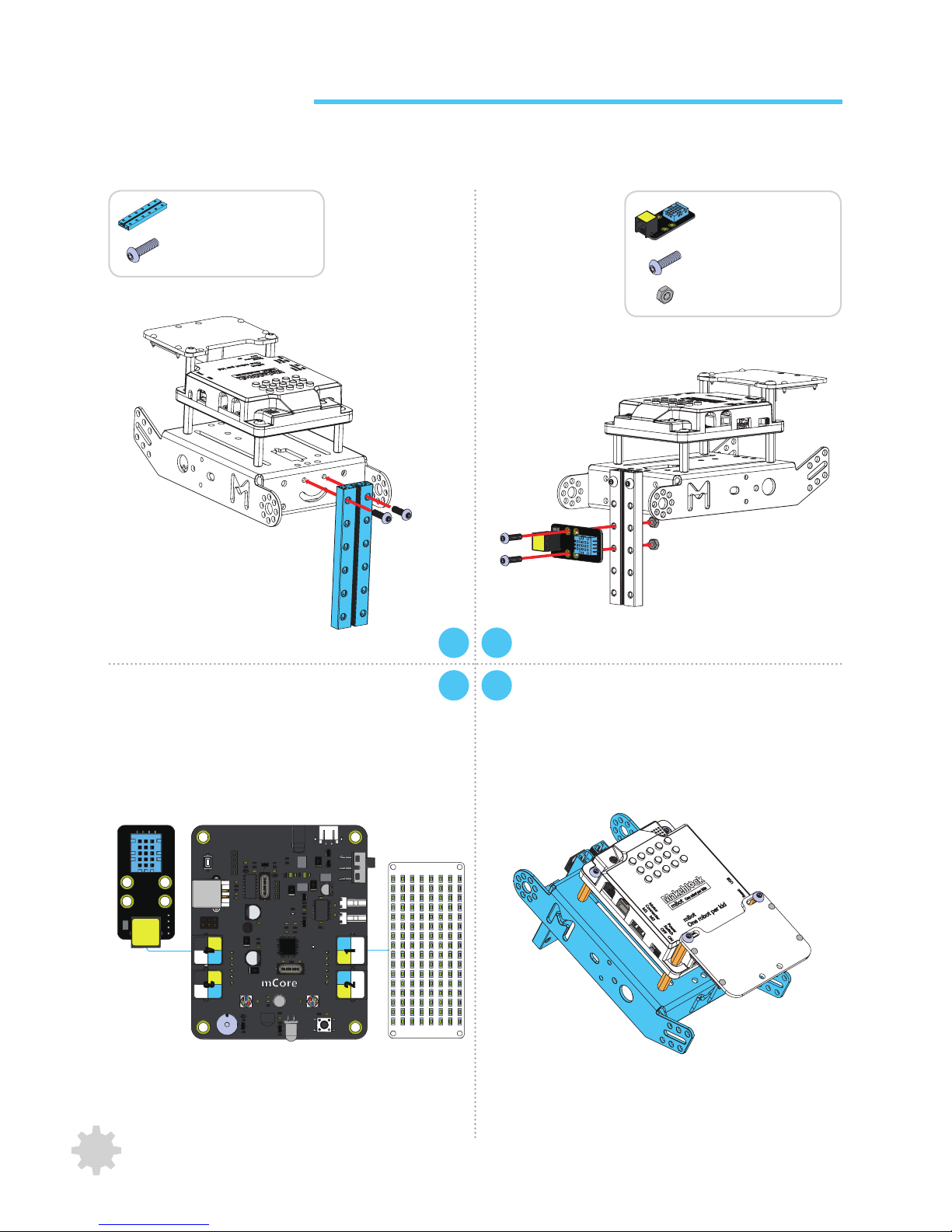

Weather Station
M4×25mm Brass Stud (4)
M4×25mm Brass Stud (2)
M4×8mm Screw (2)
M4×8mm Screw (2)
mCore (1)
For mBot - Weather Station
01 02
03 04
LED Matrix 8×16 (1)
Plastic Rivet R4100 (4)
Page 17
14
M4 Nut (2)
05 06
07 08
For mBot - Weather Station
M4×14mm Screw (2)
M4×14mm Screw (2)
Temperature and
Humidity Sensor (1)
Beam 0824-096 (1)
Please refer to the gure below
to complete the wiring.
You have nished the construction.
To learn more, please visit:
http://learn.makeblock.com/en/gizmos/
Good job!
Page 18
15

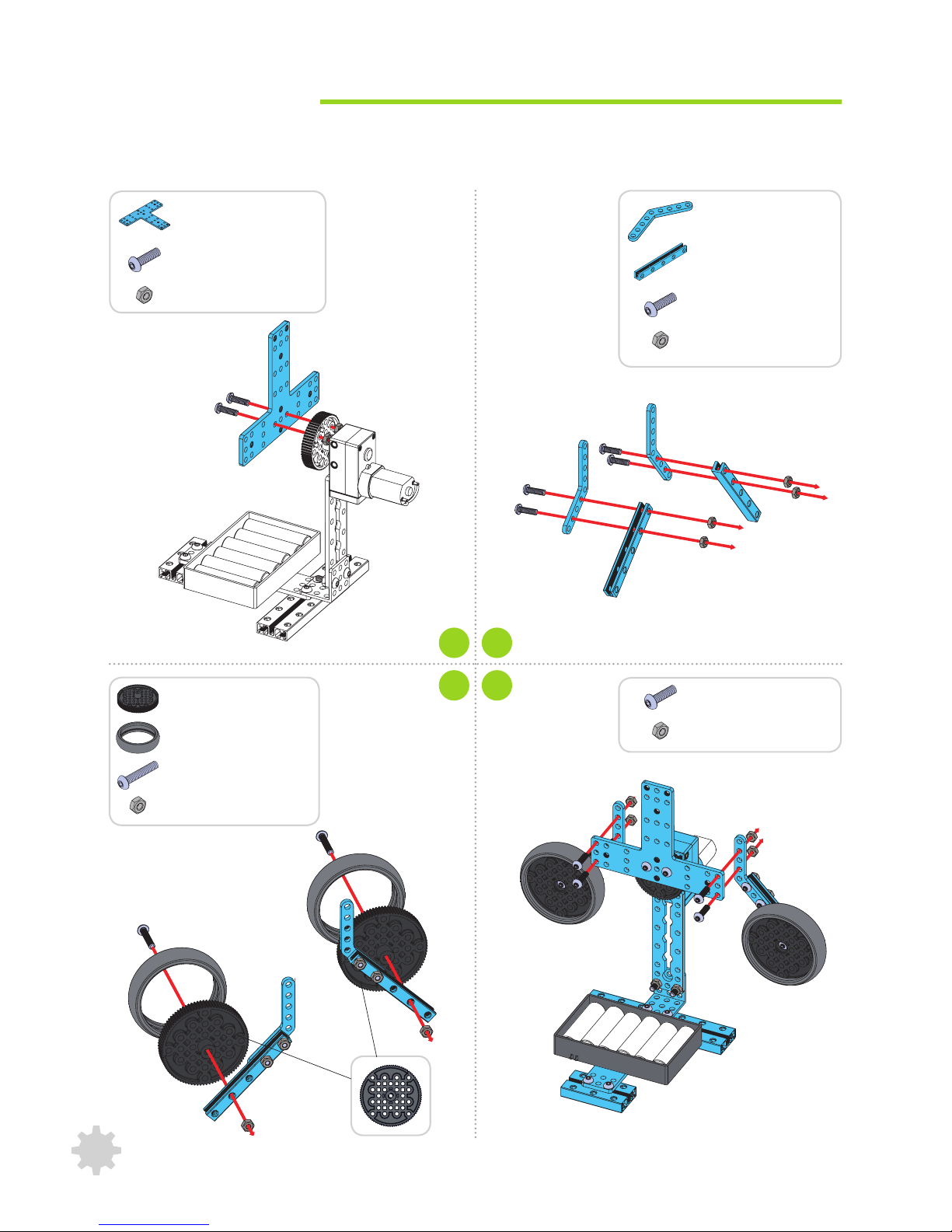

Roly-poly
M4×8mm Screw (4)
M4×8mm Screw (2)
M4×8mm Screw (4)
Ranger Battery Holder (1)
AA Battery
Bracket 3×3 (1)
Ranger Beam 0824-112 (1)
Ranger Beam 0824-48 (1)
Ranger Plate for Battery Holder (1)
01 02
03 04
M4×14mm Screw (2)
M4 Nut (2)
Ranger Plate 0324-88 (1)

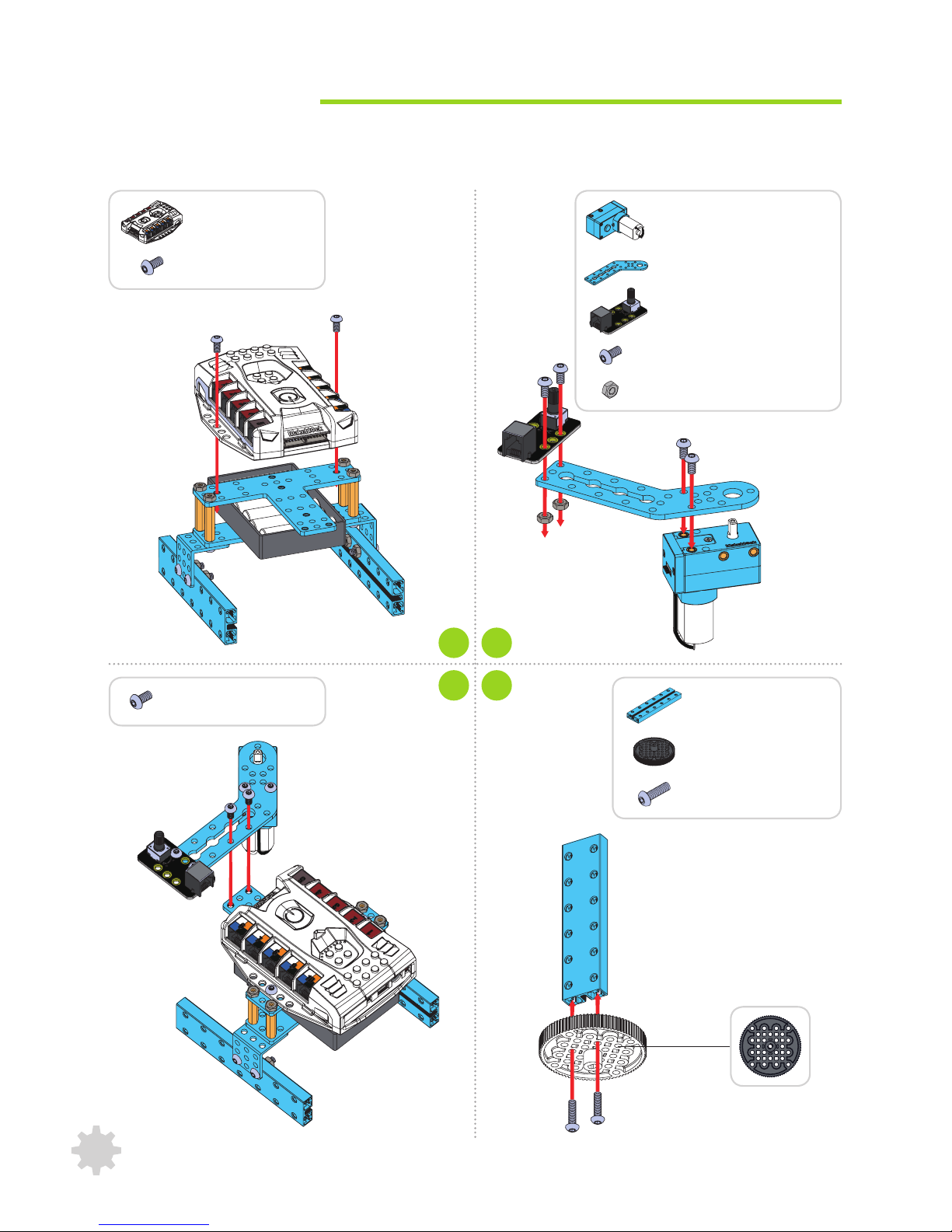

For mBot Ranger - Roly-poly
Ranger 180 Encoder Motor (1)
Ranger 62T Wheel (1)
Ranger M2.5*12mm Screw (1)
Page 19
16
05 06
07 08
M4×14mm Screw (2)
M4×14mm Screw (4)
M4 Nut (2)
M4 Nut (2)
M4 Nut (4)

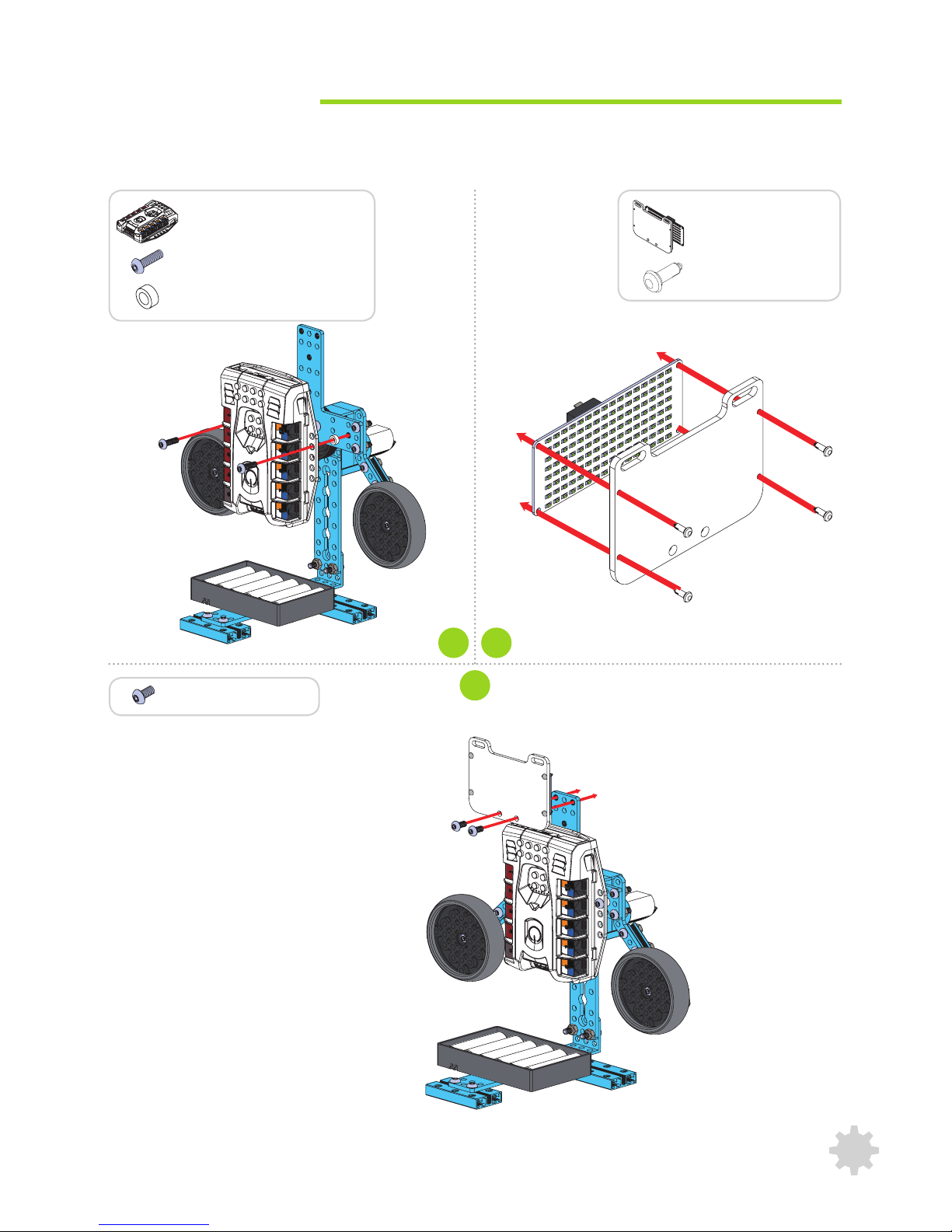

For mBot Ranger - Roly-poly
Ranger Plate T-type (1)
Plate 45° (2)
Beam 0808-072 (2)
M4×22mm Screw (2)
Ranger 90T Wheel (2)
Ranger 90T Tyre (2)
M4×14mm Screw (4)
M4 Nut (4)
Page 20
17
09 10
11
M4×8mm Screw (2)
LED Matrix 8×16 (1)
Plastic Rivet R4100 (4)
M4×14mm Screw (2)
Plastic Spacer 4×7×3mm (2)
Me Auriga (1)
For mBot Ranger - Roly-poly
Page 21
18
12
13

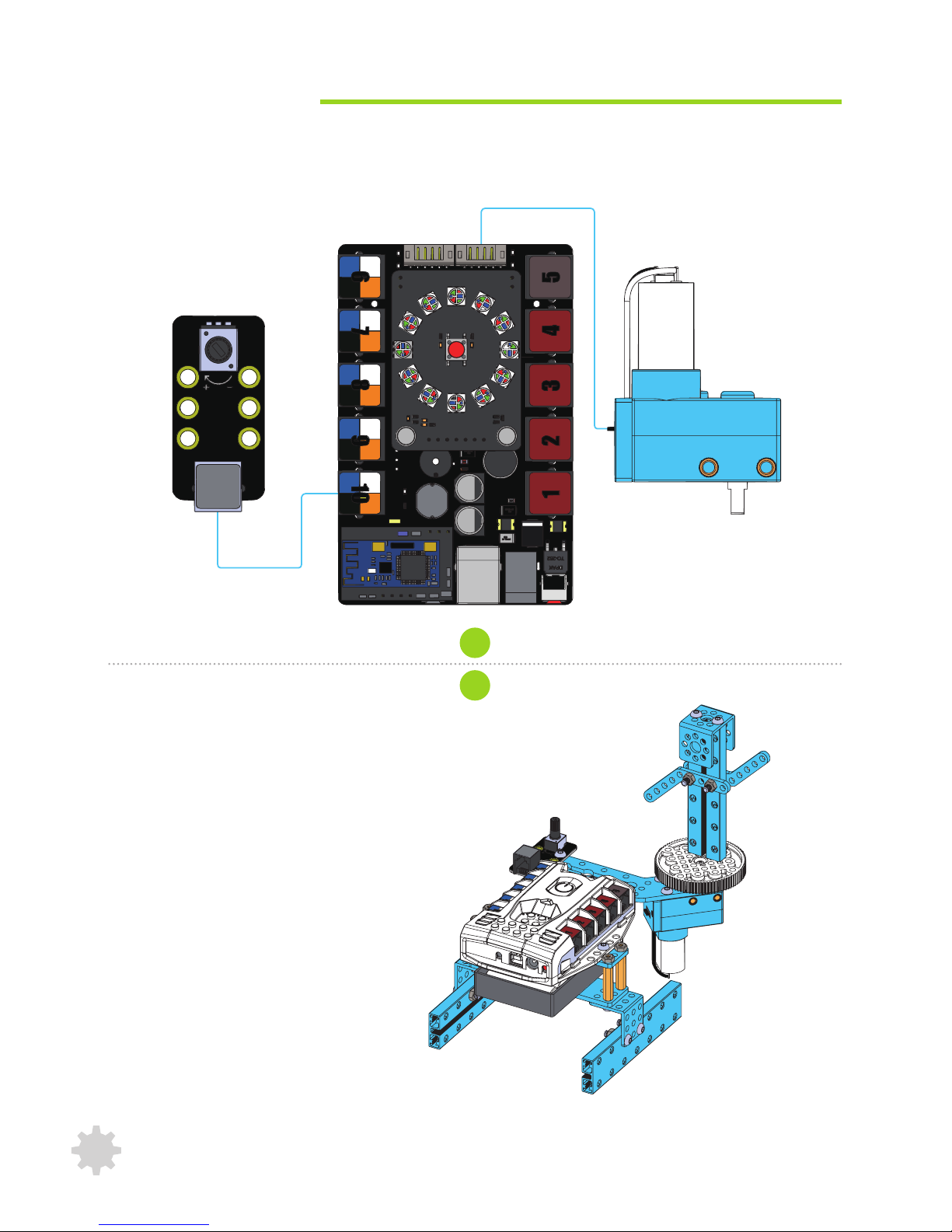

Please refer to the gure below to complete the wiring.
You have finished the construction. To learn more, please visit:
http://learn.makeblock.com/en/gizmos/
For mBot Ranger - Roly-poly
Good job!
Page 22
19
Music Box
01 02
03 04
M4 Nut (4)
M4×8mm Screw (2)
AA Battery

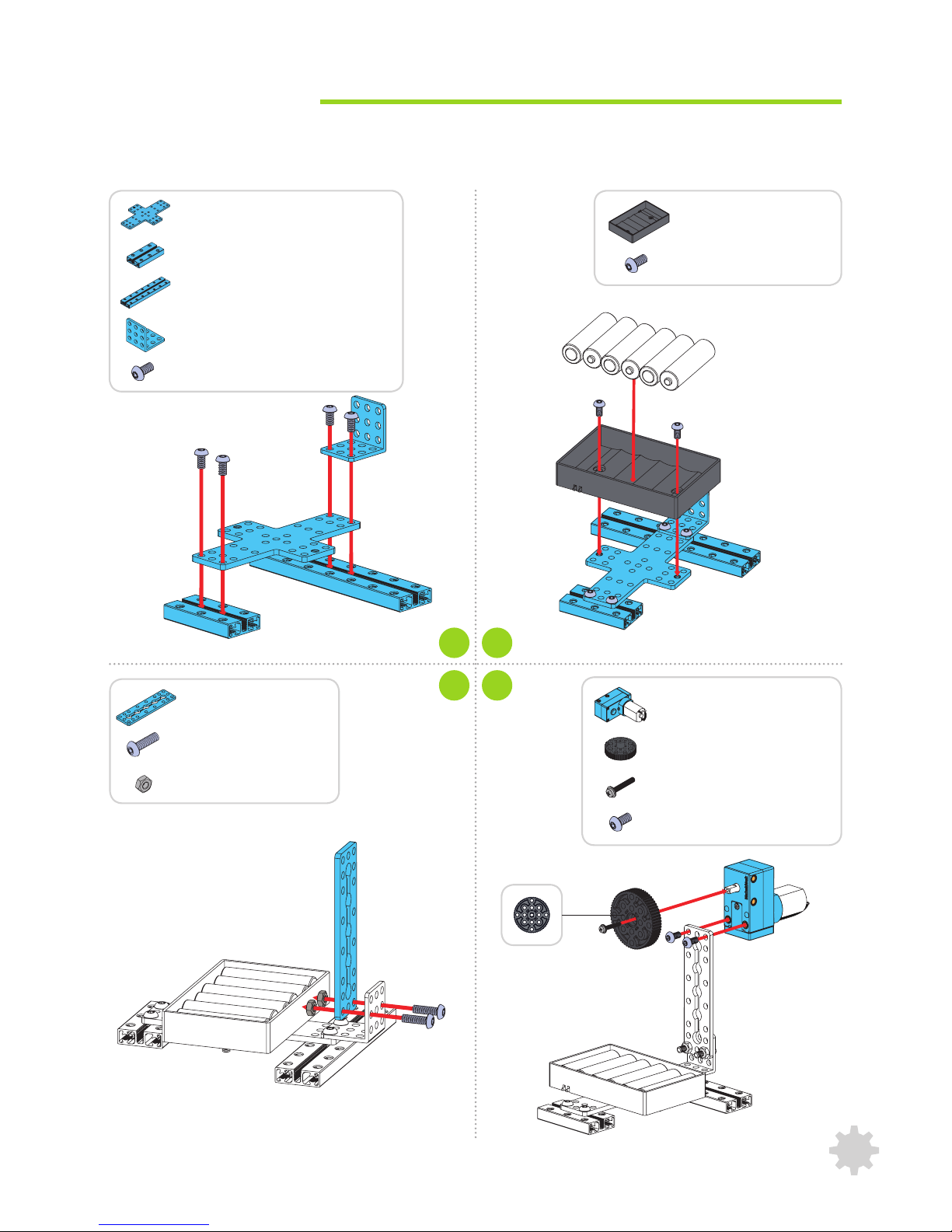

For mBot Ranger - Music Box
Ranger Battery Holder (1)
Ranger Plate for Battery Holder (1)
M4×25mm Brass Stud (4)
M4×8mm Screw (4)
Bracket 3×3 (2)
Ranger Beam 0824-112 (2)
M4×14mm Screw (4)
M4 Nut (4)
Ranger Plate T-type (1)
Page 23
20
05 06
07
M4×8mm Screw (2)
For mBot Ranger - Music Box
M4×8mm Screw (2)
Me Auriga (1)
M4×8mm Screw (4)
Potentiometer (1)
Ranger Plate 135° (1)
Ranger 180 Encoder Motor (1)
M4 Nut (2)
08
Ranger 90T Wheel (1)
Beam 0824-096 (1)
M4×14mm Screw (2)
Page 24
21
09 10

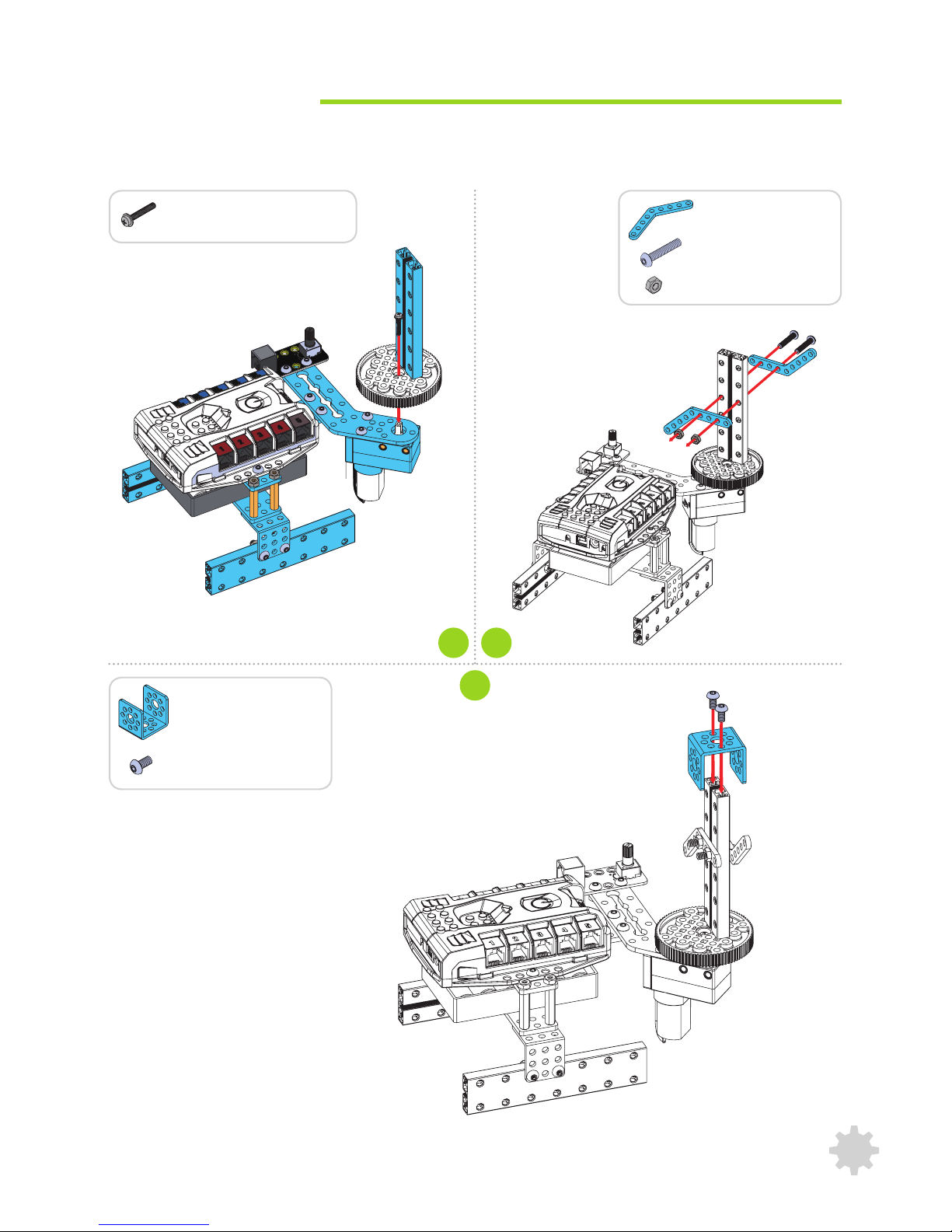

11
Ranger M2.5*12mm Screw (1)
M4 Nut (2)
Plate 45° (2)
M4×22mm Screw (2)
M4×8mm Screw (2)
Ranger Bracket U1 (1)
For mBot Ranger - Music Box
Page 25
22
12
13
Please refer to the gure below to complete the wiring.
You have nished the construction. To learn more, please visit:
http://learn.makeblock.com/en/gizmos/
Good job!
For mBot Ranger - Music Box
