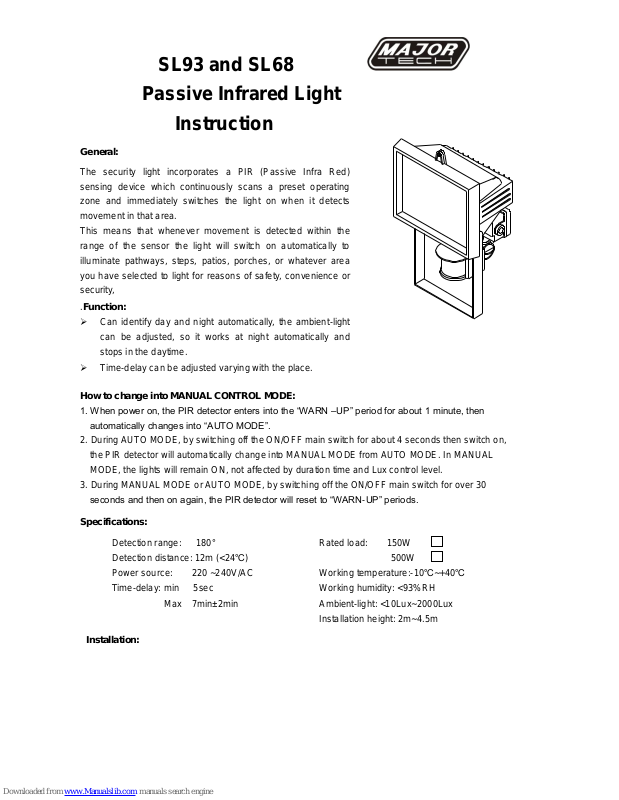

SL93 and SL68

Passive Infrared Light

Instruction

General:

The security light incorporates a PIR (Passive Infra Red)
sensing device which continuously scans a preset operating
zone and immediately switches the light on when it detects
movement in that area.
This means that whenever movement is detected within the
range of the sensor the light will switch on automatically to
illuminate pathways, steps, patios, porches, or whatever area
you have selected to light for reasons of safety, convenience or
security,

.Function:
 Can identify day and night automatically, the ambient-light

can be adjusted, so it works at night automatically and
stops in the daytime.

 Time-delay can be adjusted varying with the place.

How to change into MANUAL CONTROL MODE:

1. When power on, the PIR detector enters into the “WARN –UP” period for about 1 minute, then
automatically changes into “AUTO MODE”.

2. During AUTO MODE, by switching off the ON/OFF main switch for about 4 seconds then switch on,
the PIR detector will automatically change into MANUAL MODE from AUTO MODE. In MANUAL
MODE, the lights will remain ON, not affected by duration time and Lux control level.

3. During MANUAL MODE or AUTO MODE, by switching off the ON/OFF main switch for over 30
seconds and then on again, the PIR detector will reset to “WARN-UP” periods.

Specifications:

Detection range: 180°
Detection distance: 12m (<24℃)
Power source: 220 ~240V/AC
Time-delay: min 5sec
Max 7min±2min

Rated load: 150W
500W
Working temperature:-10℃~+40℃
Working humidity: <93%RH
Ambient-light: <10Lux~2000Lux
Installation height: 2m~4.5m

Installation:

I. Avoid installing the unit in direct sunshine

zones or where air stream and temperature
have obvious alteration, connect line

according to the right fig.
N – blue (Neutral)
L – brown (Live)
Ⅱ . 1 Please shut off the power before installation.
(See following diagram)

2 please tighten off the screw on the rear lid of

junction box.

3 Please connect the power into sensor lamp according to connection figure.
4 Please install the sensor lamp on the selected position according to installation diagram.
5 please cover the rear lid and tighten the screw. Then you can test it after electrifying.

Test:

1) Sensitivity: Adjust the knob “1” clockwise to raise its sensitivity and anti-clockwise to reduce
its sensitivity.

2) Adjust the knob“ 2” clockwise to last operating time and anti-clockwise to shorten it .

3) Light control: Adjust the knob“ 3” to select different working ambient-light.(See Fig.)

4) Switch on the power, the lamp will turn on within 5s and go out within 5~30s;after 10s it will
be on again

5) Turn the light-control to night, cover the detection window with the opaque object, the lamp
should be on, then go out after 5~10s.

6) If the function above-mentioned is normal, you can set the light-control, sensitivity and
time-delay according to your demand, then electrify to use it.

Note:

Avoid install it where there is sunshine or air stream and temperature change obviously,
Avoid touching the lens device with sharp things and coarse
pollutant.

MAJOR TECH (PTY LTD

Head Office:
Cnr Rover & Jaguar Roads, Rustivia Ext 3,

output red(A)

infrared motion sensor

load

~input

brown(L)

blue(N)

1

2

3
