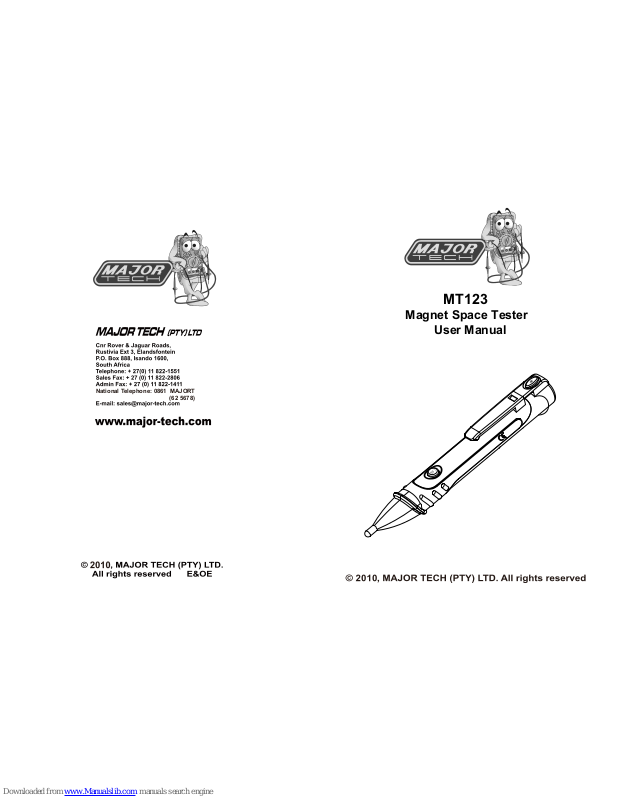

Page 1
MT123
Magnet Space Tester
User Manual
T
E
S
T
National Telephone: 0861 MAJORT
(62 5678)
Page 2
6
Page 3
5)Sometimes stray magnetic fields from other
nearby equipment may cause the test lamp to blink
momentarily. Close to an activated magnetic coil,
however, the test lamp will give a fixed light.
6) Press and hold the black ,placing the tip of the unit near
an magnet field produces a steady red glow at the tip.
7) Press and hold the back black button for flashlight on, if
button undo for flashlight off
5. BATTERY REPLACEMENT
When the battery voltage drops below 2 volts VoltBeat
provides a visual indication by stopping the VoltBeat flash.
Replace with 2 AAA batteries. Slide the battery cover ( /Fig)
and remove the battery. Make sure the battery cover is
secure after changing the battery.
NOTE: If long time isn’t use please remove battery.
5
TABLE OF CONTENTS
1. APPLICATIONS GENERAL---------------------------------- 3
2. FRONT PANEL DESCRIPTION----------------------------- 3
3. SPECIFICTIONS&WORK DATA---------------------------- 4
4. OPERATING INSTRUCTIONS---------------------------- 4-5
5. BATTERY REPLACEMENT---------------------------------- 5
2
Page 4
1. APPLICATIONS GENERAL
1) Testing operating solenoid valves in pneumatic and
hydraulic control equipment
2) Testing relays with coils and electrically controlled
solenoid valves in all types of vehicles and machineries
3) Testing solenoid valves when servicing oil burners The
test lamp lights immediately and without metallic contact
where there is a magnetic field, e.g. an activated coil in
a solenoid valve. The test lamp responds to all kind of
magnetic fields -from alternating current to direct current
and to permanent magnets.

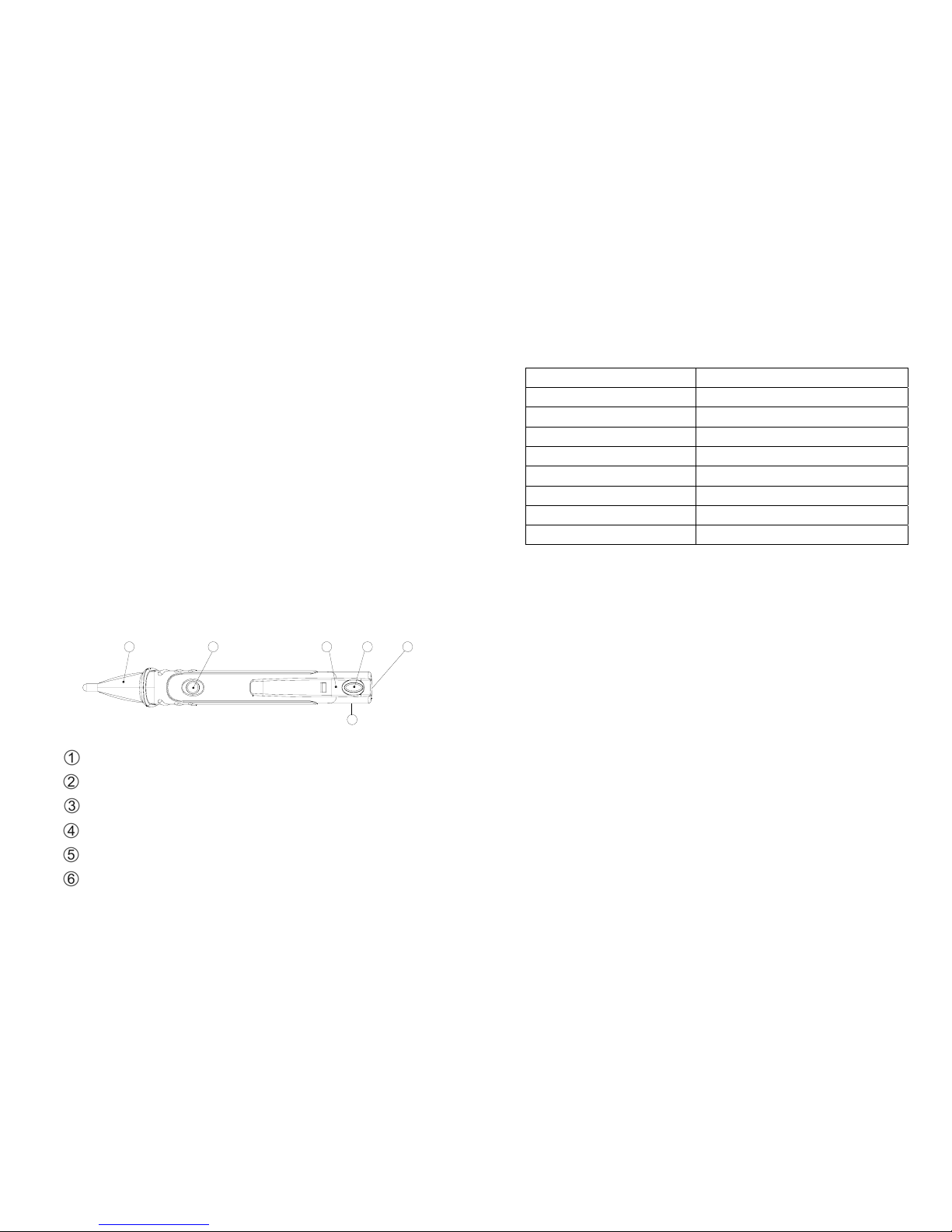

2. FRONT PANEL DESCRIPTION
3 154 2
6
------- Back flashlight
------- Flashlight switch ON/OFF
------- Battery cover&compartmen
------- OFF/ON test switch
------- Detector MagnetBeat
------- Self test Magnet
3
3. SPECIFICTIONS&WORK DATA
Power 3V(AAA*2)
Magnet field(H) 63,98,401,810
Work max current 32mA
Operating temperature –10°C to 50°C (14°F to 122°F)
Storage temperature –10°C to 50°C (14°F to122°F)
Humidity 95%(0°C to40°C (32°F to104°F)
Altitude 3000m
Contaminated distinction II
Weight 48g
4. OPERATING INSTRUCTIONS
Use your know test magnet and move it to the probe,
which shall then light. If the test lamp does not light change the batteries.
1) First check the batteries according to the “functions
check” instructions up
2) Just touch the test object with the Magnet Tester probe.
If the lamp lights, the object is electrically actived
3) It is not necessary to unscrew the test object from its
mounting on the equipment in order to carry out the test
– a magnetic coil can even be tested through its
protection cover
4)It is not necessary to stop the machinery or the
equipment in order to carry out the test
4
