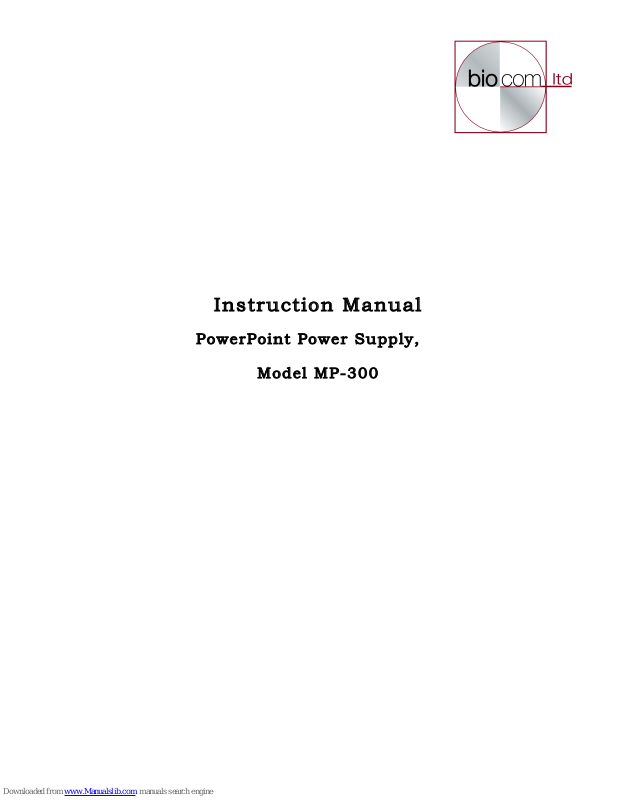

Major Science MP-300 Instruction Manual

Instruction Manual

PowerPoint Power Supply,

Model MP-300

2

Table of Contents

Packing list

3

Warning

4

Safety Information

5

Product Specifications

7

Product Description

8

Controls and Features

Installation Instructions

10

11

Operation Instructions

11

Troubleshooting Guide

13

Warranty

16

3

Packing list

MP-250 or CS-300:

- 1 x MP-300

- 1 x Power Cord for power supply

- 1 x Extra fuse inside power plug on the rear of unit

- 1 x power supply instruction manual

4

Warning

This power supply series has been tested and found to comply with the limits

for the CE regulation. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a

commercial environment. This power supply series generates, uses, and can

radiate radio frequency energy, and if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio

communications. Operation of this power supply series in a residential area is

likely to cause harmful interference in which case the user will be required to

correct the interference at their expense. Changes or modifications not

expressly approved by the party responsible for compliance could void the

user’s authority to operate the equipment. It is strongly recommended the user

read carefully the following points before this equipment is operated.

1. Read and follow carefully the manual instructions.

2. Do not alter the power supply series. Failure to adhere to these directions

could result in personal and/ or laboratory hazards, as well as invalidate

the equipment warranty.

3. Use a properly grounded electrical outlet of correct voltage and current

handling capacity.

4. Disconnect from the power source before maintenance and servicing.

Refer servicing to qualified personnel.

5. In the event a solution is accidentally spilled into the instrument,

disconnect the grounded plug and the user must carry out appropriate

procedure or contact their supplier. Replace damaged parts.

6. Do not use in the presence of flammable or combustible material; fire or

explosion may result. This device contains components, which may ignite

such materials.

7. Refer maintenance and servicing to qualified personnel.

8. Ensure that the system is connected to the electrical source according to

the local and national electrical codes. Failure to properly connect may

create a fire or shock hazard.

9. Ensure the appropriate used materials and correct operation to avoid

possible hazards of explosion, implosion or release of toxic or flammable

gases arising from the materials being heated.

5

Safety Information

Use high level precautions against any electrical device.

Before connecting with the electrical supply, check the supply voltage is within

the range stated at the rating label, and this device must be earthed.

Place the unit in a safe and dry location not touching any surrounding material.

Follow safety precautions for chemicals and dangerous materials.

If needed, please contact a qualified service representative of your supplier.

Environmental Conditions

Ensure the instrument is installed and operated strictly in the following

conditions: ≤95% RH,

75 KPa-106 Kpa,

Altitude not to exceed 2000 meters

Avoiding Electrical Shock

Follow the guidelines below to ensure safe operation of the unit.

The MP power supply series has been designed for use with shielded wires

thus minimizing any potential shock hazard to the user. We recommend

against the use of unshielded wires.

To avoid electrical shock:

1. In case of spillage, any parts of the cable or power supply must be dried out

for a period of time and restored to NORMAL CONDITION before the

operation.

2. NEVER connect or disconnect wire leads from the power jacks when the red

indicator light at the Start/Stop key is on.

3. WAIT at least 5 seconds after stopping a run before handling output leads or

connected apparatus.

4. ALWAYS make sure that hands, work area, and instruments are dry before

making any connections or operating the power supply.

5. ONLY connect the power cord to a properly 3-prong grounded AC outlet,

using the power cord provided with the power supply.
