WILLINGHAM
DIGITAL RADIO & MUSIC SYSTEM
WIL-C DAB-WAL
Instructions Guide
Contents
What’s in the Box?..................................................... 1
Controls And Funcons ..............................................2
Support .................................................................... 6
Instrucons Guide .....................................................7
Troubleshoong ...................................................... 31
Specicaons .......................................................... 32
Warranty ................................................................. 32
Safety Informaon................................................... 33
YEAR
3
WARRANTY
Watch video tutorials and register your product for a FREE 3-year warranty at www.majorityradios.co.uk

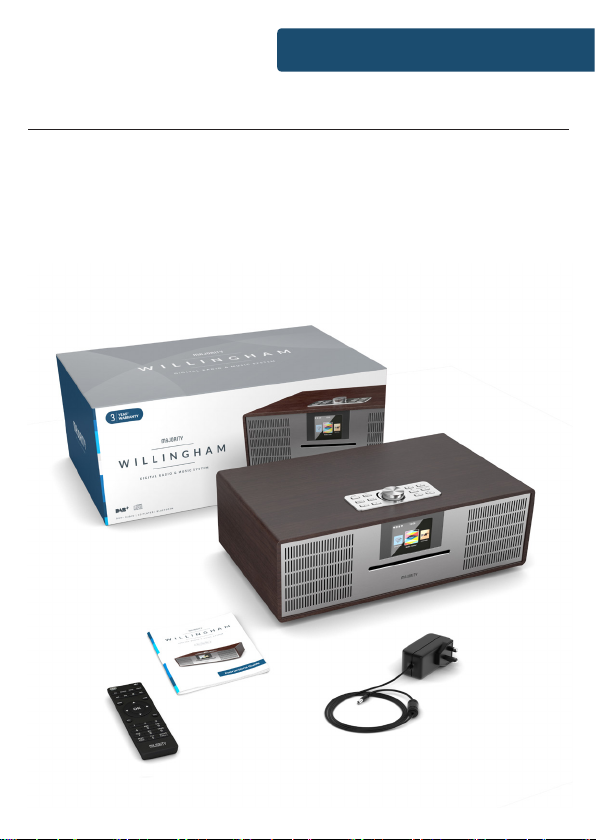

Box Contents
1. Majority Willingham
2. Remote Control
3. Power Adapter
4. Instructions Guide
What’s in the Box?
1
Controls And Funcons
Navigation
Menu
1 2
3
5
6
7
8 9
4
11
13
12
10
Repeat/Program
Top View (Control Panel)
1. Power/Mode
2. Info/Menu
3. Alarm
4. Sleep
5. Previous
6. Next
7. Navigation/Volume/OK/ Stop dial
8. Mute
2
9. CD eject/load
10. Play/Pause - CD mode and Preset 1 button
11. Repeat/Program - CD mode and Preset 2 button
12. Rewind - CD mode and Preset 3 button
13. Fastforward - CD mode and Preset 4+ button
Controls And Funcons
Front View
14
15
14. Display screen 15. CD port
Back View
161718
19
20
16. DC power input
17. Headphone port
18. Aux In
19. USB Port
20. Antenna
3
Controls And Funcons
Remote Control
1
2
3
OK
4
13
+
14
15
-
16
5
Mode
6
Menu
17
7
8
9
10
18
19
20
11
12
Preset
21
4
Controls and Funcons
1. Power On/Standby
Switch the unit between on and Standby mode
2. Up button
3. Left button
Navigate left/Go back a track in CD mode.
4. OK button
Select options and settings with the OK button/ Stop in CD mode
5. Down button
6. Mode button
Takes to the mode selection screen to select chosen mode
options
7. Menu button
Select to open menu setting options
8. Sleep button
Press to begin setting a sleep timer.
9. Alarm button
Enter alarm settings
10. Rewind button
CD Mode: Rewind track
11. 0-9/A-Z Keypad
Type numbers and letters
12. EQ (Equaliser) button
Select to choose equaliser settings
13. CD Eject button
Select to eject a CD from the CD player.
14. Vol +
Increase volume
15. Right button
Navigate right/Go forward a
16. Vol -
Decrease volume
17. Mute button
Select to mute and unmute sound track in CD mode.
18. Dimmer button
Press dimmer repeatedly to go through 3 dimmer options.
19. Play/Pause
Use in CD mode to Pause/Play CD
20. Fastforward button
CD mode: Fastforward track
21. Preset
Press and hold button for 2-3 seconds to set a preset. Simply
press to recall preset stations.
5
Support
Support
Thank you for your purchase of the Majority Willingham radio.
Please follow the guidance of the manual to set up your new purchase and begin enjoying its features.
If you require further assistance with your new radio, please contact our support team on the Majority website:
https://www.majorityradios.co.uk/support
6
Instrucons Guide
Navigation Settings
Power/Mode button: This should be used to turn your radio on
and into Standby. To put into standby, press and hold the button to display the time, date and any settings set such as alarms.
To turn o standby, press the Standby button to be taken to the home screen, or last function that you were using before putting into standby.
When the radio is switched on to working mode, press the button to display the mode home screen with available modes.
Info/Menu button: When on DAB or FM mode, press the button (do not hold) multiple times to scroll through the station information.
Press and hold the button to display the radio Menu settings.
Whilst creating settings, press the button to go back a step.
Navigation/OK/Volume Dial and Stop button in CD mode:
Rotate the dial clockwise or anticlockwise to scroll through choices and press down the dial to conrm selections.
This dial will allow you to change the volume when you are on the radio station playing screen.
CD functionality buttons: When in CD mode, use the CD functionality buttons on the unit to eject the CD, stop, pause/ play, repeat/program, rewind and fastforward.
7
Instrucons Guide
Basic Operation
Please note that the instructions within this manual will refer to the radio button number e.g (Ref.*X*) in accordance to the diagrams on pages 2-3 or the remote (Rem.*X*) on pages 4-5.
Starting up your radio
Plug the adaptor connector into the back of the system labelled ‘DC in’ (Ref.) and turn the power on from the mains. The radio will begin to power up and display a ‘MAJORITY’ screen.
Ensure the antenna (Ref.) is extended as far as possible. This will enable you to get the best signal you can before going to DAB and FM modes and beginning to scan for available stations.
The radio will then begin a full scan for available digital DAB stations and will display a scanning bar showing the amount of stations found. Once the scan is complete, the rst available digital radio station will automatically begin to play.
You can then select the chosen default language on the display screen. Scroll through using the navigation dial (Ref.) and select the chosen language by pressing down the dial.
To change the mode of the radio from DAB mode, press the Power/Mode button (Ref.) to enter the mode home screen with available modes. Use the Navigation/OK dial to scroll between the available modes and select the mode by pressing down the
dial (Ref.)
8
Instrucons Guide
Standby Mode
To place the radio into standby, press and hold the Power/Mode button (Ref.) for 2-3 seconds and a standby screen showing the date, time and alarm settings will display.
To take the radio o standby, press the Power/Mode button (do not hold).
To switch the radio o completely, it is advisable to place the radio into standby mode and then switch the radio o at the
mains.
9
Instrucons Guide
DAB/DAB+ Radio
Press the Power/Mode button (Ref.) (do not hold the button) or (Rem.6) to open the mode home screen. Select ‘DAB/DAB+’ on the main display screen by browsing with the Navigation dial (Ref.) and selecting the mode by pressing down the dial or use the navigation buttons on the remote (Rem.2/3/4/5/15).
On rst use of DAB, the available DAB stations will have already been scanned and saved. If the radio has not automatically scanned or you wish to rescan for available stations, press and hold the Info/Menu button (Ref.), followed by selecting the “Full Scan” option. The radio will now begin scanning for DAB stations and will show ‘Scanning’ on the display screen. It will display how many stations have been found as the search continues.
Once all of the available stations have been found, the rst available station will play. To scroll through the available stations, press the ‘<’ button (Ref.) to view the station list. Scroll through the available stations with the Navigation dial (Ref.) or the ‘<’ and ‘>’ button on the remote (Rem.3/4) and highlight the chosen station. Select the station you wish to listen to by pressing down the dial.
When you have selected a station, the screen will display the station and begin to play. To choose the previous or next station, go back to the list and use the Navigation dial or the remote navigation buttons to scroll accordingly.
10
