Majority CB24-DAB-BLK User Manual

Majority Histon

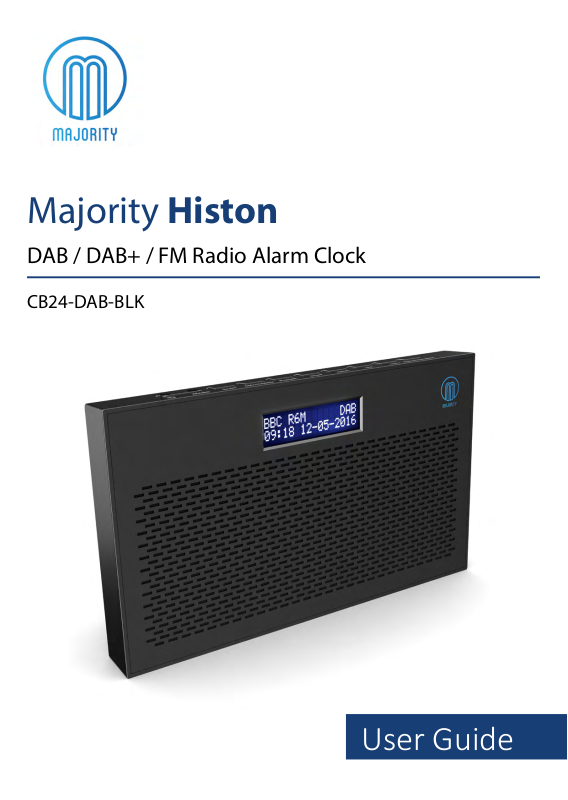

DAB / DAB+ / FM Radio Alarm Clock
CB24-DAB-BLK
User Guide
Contents
Controls And Funcons ���������������������������������������������� 1 What’s In The Box? ��������������������������������������������������� 4 Instrucons Guide �����������������������������������������������������5
Basic Operaon �������������������������������������������������������� 5 DAB Radio ����������������������������������������������������������������� 6 How to store a preset DAB staon���������������������������� 7 FM Radio ������������������������������������������������������������������� 8
How to store a preset FM staon ����������������������������� 9 Staon informaon for DAB and FM Radio ������������� 10 Clock and Date Sengs ������������������������������������������� 12 Dual Alarm Seng ��������������������������������������������������� 14 Alarm Sounds and Snooze ��������������������������������������� 15
Other Funcons ������������������������������������������������������� 16 Technical Specicaons ������������������������������������������� 18
Warranty ����������������������������������������������������������������� 18
Troubleshoong Guide �������������������������������������������� 19 Safety Informaon���������������������������������������������������20
3
Y
Y
E
T
N
A
R
R
A
W
A
R
Watch video tutorials and register
F
R
E
your product for a FREE 3-year warranty
E
E
D
X
E
D
N
at www.majorityradios.co.uk
T
E
Side View
Controls And Funcons
1. DC 5V, 1A Power connector
2. Earphone jack
1
Controls And Funcons
Top View
3. Power
4. Mode
5. Scan
6. Info/Menu
7. Preset
2
8. Previous
9. Next
10. Volume -
11. Volume +
12. Enter/Snooze
Back View
13. Antenna
14. Battery Compartment
Controls And Funcons
15. Display
16. Speaker
3

What’s In The Box?

1. Majority Histon DAB / DAB+ / FM Radio Clock
2. UK Standard Plug DC 5V, 1A Power Supply
3. Instructions Guide
4
Instrucons Guide Instrucons Guide

Basic Operation

Please note all (Ref.) refer to Page 1 Controls and Functions mapping guide.
Plug the connector into the side of the system labelled DC 5V (Ref.1) and the power supply into the mains.
Ensure the antenna (Ref.13) is extended as far as possible so that you can rotate it which will enable you to get the best signal you can. Press the ‘Power’ button to turn on the unit (Ref.3). It will automatically take you to DAB radio mode or the previous mode you were using.
When DAB Radio is activated for the rst time it will automatically start scanning and storing all stations that have a good signal. To scroll through the stations use the ‘Prev’ (Ref.8) and ‘Next’ buttons (Ref.9). Press ‘Enter/Snooze’ (Ref.12) to listen to a station.
To change the mode, press the ‘Mode’ button (Ref.4) to switch between DAB Radio and FM Radio.
Standby
To place the music system in standby, press the ‘Power’ button (Ref.3). To switch o without unplugging, press and hold the ‘Power’ button (Ref.3). To turn o power to the unit, switch it o at the mains. The cord must be out of reach of children.
5
Instrucons Guide

DAB Radio

Press the ‘Mode’ button (Ref.4) to switch to DAB Radio. On rst use it will automatically scan all stations and save them.
Fully extend the antenna (Ref.13).
To auto scan, press the ‘Scan’ button (Ref.5) and then release.
This will start scanning up the frequency band and store all stations that have a good signal.
The radio will automatically save all the stations with a strong signal, up to 240 MHz.
After searching has nished it will automatically play the rst station stored.
To listen to all stations that have been stored use the
‘Next’(Ref.9) and ‘Prev’ buttons (Ref.8) to scroll through them, press the ‘Enter/Snooze’ button (Ref.12) when on required station.
The radio will display station information when you press the ‘Info/Menu’ button (Ref.6). Press it multiple times to view all information. Please see page 10 for further details.
When you turn on the radio again after it switching o, it will automatically tune to the same station (DAB or FM) that was last selected.
6
Instrucons Guide

How to store a preset DAB station

Up to 10 stations can be set. To store a station that you are currently playing:
Press and hold ‘Preset’ button (Ref.7). “<1: (Empty)” will show on the display.
Press ‘Prev’ button (Ref.8) or ‘Next’ (Ref.9) to change the “<1” to the number you want to store the station as. Then press ‘Enter/ Snooze’ button (Ref.12) to save. The display will then show “Preset (1) stored”.
How to play a preset radio station
Up to 10 stations can be set. To store a station that you are currently playing:
Press the ‘Preset’ (Ref.7).
Press ‘Prev’ button (Ref.8) or ‘Next’ (Ref.9) to scroll through your preset stations. You can store up to 10 presets.
Press ‘Enter/Snooze’ button (Ref.12) to select your choice.
!
IMPORTANT: Please make sure you have extended the antenna to its full length (Ref.13). This will then enable you to rotate it to get the best signal.
7
Instrucons Guide

FM Radio

Press the ‘Mode’ button (Ref.4) multiple times to switch between DAB and FM. The rst time you do this, the FM frequency “87.5 MHz” will be displayed on the screen.
Fully extend the antenna (Ref.13).
To auto scan, press and release the ‘Scan’ button (Ref.5). This will then start scanning up the frequency band and play the rst station it nds with good signal.
To scan down the frequency band, press and hold the ‘Scan’ button (Ref.5) for a few seconds.
The radio will display station information when you press the ‘Info/Menu’ button (Ref.6), press multiple times to view all information. Please see page 11 for further details.
To tune a specic frequency manually
To listen to a specic frequency press and hold ‘Next’ (Ref.9) to search forward quickly and ‘Prev’ (Ref.8) to search back quickly. It will stop searching when the button is released. To search slowly press the ‘Next’ (Ref.9) and ‘Prev’ button (Ref.8) multiple times rather than holding.
8
Instrucons Guide

How to store a preset FM station

Up to 10 stations can be set. To store a station that you are currently playing:
Press and hold ‘Preset’ button (Ref.7). “<1: (Empty)” will show on the display.
Press ‘Prev’ button (Ref.8) or ‘Next’ (Ref.9) to change the “<1” to the number you want to store the station as. Then press ‘Enter/ Snooze’ button (Ref.12) to save. The display will then show “Preset (1) stored”.
How to play a preset radio station
Up to 10 stations can be set. To store a station that you are currently playing:
Press the ‘Preset’ (Ref.7).
Press ‘Prev’ button (Ref.8) or ‘Next’ (Ref.9) to scroll through your preset stations. You can store up to 10 presets.
Press ‘Enter/Snooze’ button (Ref.12) to select your choice.
9
Instrucons Guide

Station information for DAB and FM Radio

DAB Radio
Press the ‘Info/Menu’ button (Ref.6) repeatedly to show the dierent programme information.
Signal Strength: Displays a signal bar with the strength of the current station.
Bit Error Rate: Provides details of the signal error rate.
Channel and Frequency: Displays the station’s transmission
channel number and frequency.
PTY (Programme Type): Shows the type and description of the program provided by the DAB station.
Time and Date: Displays the time and date information provided by the broadcaster.
Bit Rate: The data rate which the signal is being transmitted.
DAB indication: Indicates DAB mode.
Dynamic Label Segment (DLS): Displays scrolling text
information supplied by the broadcaster.
10
Instrucons Guide
FM Radio
Press the ‘Info/Menu’ button (Ref.6) repeatedly to show the dierent programme information.
Programme Type: Displays a description of the type of programme provided by the broadcaster.
Signal Strength: Displays a signal bar with the strength of the current station.
Time and Date: Displays the time and the date.
Frequency: Displays the station’s transmission frequency.
Audio Type: Displays the audio type of the station you are
listening to. It will either be stereo or mono.
Radio Text: Displays scrolling text information supplied by the broadcaster.
11
Instrucons Guide

Clock and Date Settings

Manually Setting the time
The time will automatically update after the st use of DAB Radio. However, you can still set the time manually as follows:
Ensure the unit is turned on.
Press and hold the ‘Info/Menu’ button (Ref.6).
To make your choice, use the ‘Prev/Next’ buttons (Ref.8/9) to choose your option.
Choose “Time/Date” and press the ‘Enter/Snooze’ button (Ref.12).
The hour will ash on the display screen. Press the ‘Prev’ (Ref.8) or ‘Next’ (Ref.9) button, press until you are on the required hour.
To conrm the hour, press ‘Enter/Snooze’ (Ref.12).
The minutes will ash on the display screen. Press the ‘Prev’ (Ref.8) or ‘Next’ (Ref.9) buttons until you are on the required minute.
To conrm the minute, press ‘Enter/Snooze’ (Ref.12).
The time is now set.
12
Instrucons Guide
Manually Setting the Date
The date can be changed after changing the time.
The year will ash on the display screen. Press the ‘Prev’ (Ref.8) or ‘Next’ (Ref.9) buttons until you are on the required year.
To conrm the year, press the ‘Enter/Snooze’ (Ref.12) button.
The month will ash on the display screen. Press the ‘Prev’ (Ref.8) or ‘Next’ (Ref.9) buttons until you are on the required month.
To conrm the month, press ‘Enter/Snooze’ (Ref.12).
The day will ash on the display screen. Using the ‘Prev’ (Ref.8) or ‘Next’ (Ref.9) buttons, press until you are on the required day.
To conrm the date, press ‘Enter/Snooze’ (Ref.12).
13
Instrucons Guide

Dual Alarm Setting

Alarm1 / Alarm2 Setting
Press and hold the ‘Info/Menu’ button (Ref.6).
To highlight your choice, use the ‘Prev’ or ‘Next’ buttons (Ref.8/9). Select “Alarm 1 Set” or “Alarm 2 Set” and press the ‘Enter/Snooze’ button (Ref.12).
To turn the Alarm on, press ‘Next’ (Ref.9) so that “ON” is ashing and press the ‘Enter/Snooze’ button (Ref.12) to conrm.
The hour digits for the alarm will ash. Press the ‘Prev’ or ‘Next’ buttons (Ref.8/9) to change the hour and press ‘Enter/Snooze’ (Ref.12) to conrm.
Press the ‘Prev’ or ‘Next’ buttons (Ref.8/9) to change the minutes, and press ‘Enter/Snooze’ (Ref.12) to conrm.
Press the ‘Prev’ or ‘Next’ buttons (Ref.8/9) to change the volume, and press ‘Enter/Snooze’ (Ref.12) to conrm.
Press the ‘Prev’ or ‘Next’ buttons (Ref.8/9) to choose the alarm - Alarm, DAB or FM Radio. Press ‘Enter/Snooze’ (Ref.12) to conrm.
To set Alarm 2, follow Alarm 1 instructions.
NOTE: You can press the ‘Info/Menu’ (Ref.6) button to go back to the previous step when programming the alarm.
14
Instrucons Guide
Alarm1 / Alarm2 Setting
To turn the alarm o fully, follow the rst three steps above and select “OFF”.

Alarm Sounds and Snooze

Snooze/Switch o Alarm when sounding
When the alarm sounds, press the ‘Enter/Snooze’ button (Ref.12) to snooze for 9 minutes. The radio will go on standby mode.
To turn the alarm o completely when sounding, press the ‘Power’ button (Ref. 3).
15
Instrucons Guide

Other Functions

System Reset
Press and hold the ‘Info/Menu’ button (Ref.6).
Use the ‘Prev’ or ‘Next’ buttons (Ref.8/9) to highlight “Factory reset” and press the ‘Enter/Snooze’ button (Ref.12). The display screen will show “Factory reset”.
Use the ‘Next’ button (Ref.9) to choose “Yes” or “No”. Press the ‘Enter/Snooze’ button (Ref.12) to conrm.
SW Version - Software Version Display
Press and hold the ‘Info/Menu’ button (Ref.6).
Use the ‘Prev/Next’ button (Ref.8/9) to choose “SW Version”.
Press ‘Enter/Snooze’ (Ref.12) to conrm.
16
Instrucons Guide
Other Functions
Sleep Setting
This enables you to programme the radio to switch o at a specic time, up to 120 minutes from activation.
Press and hold the ‘Info/Menu’ button (Ref.6).
Use the ‘Prev’ or ‘Next’ buttons (Ref.8/9) to choose “Sleep Set” and press the ‘Enter/Snooze’ button (Ref.12).
Choose from OFF/120mins/90mins/60mins/45mins/30mins/ 15min or 5 mins using the ‘Prev’ or ‘Next’ buttons (Ref.8/9).
When your choice is displayed press ‘Enter/Snooze’ (Ref.12). The system will automatically start the timer.
To turn the sleep timer o, follow the above instructions and choose “OFF” from the choices.
Once the timer has been set the minutes will countdown on the display screen. For example, if set to turn o in 5 minutes “S5” will ash, counting down to “S0” then the radio will go into standby mode.
NOTE: You can press the ‘Info/Menu’ (Ref.6) button to go back to the previous step when programming the alarm.
17
Instrucons Guide
Technical Specications
Power supply UK Standard Plug DC 5v
Mode: FM(87.5MHz – 108MHz)
DAB / DAB+ 174-240MHz
Output Connector: Earphone jack
Aerial: Integral telescopic aerial
Power Supply and Batteries
The unit is powered and charged by UK Standard Plug DC 5v. The unit is also portable when powered by 4 x AA Batteries (Not Supplied). These can be inserted into the battery compartment on the back of the unit (Ref.14).

Warranty

All products come with a standard 12 month warranty. All items must be registered on www.majorityradios.co.uk for the warranty to be valid. Once on the web page, use the menu to nd “ register your product”. You will also be given the chance to extend your warranty for an additional 24 months, free of charge.
18
Troubleshoong Guide
Observation Potential Cause/Solution
No sound The station is not tuned in. Fine tune the station.
The volume is set to a low position. Increase the volume.
Headphones may be connected. Disconnect the
headphones.
Buttons are not
working
FM: Static sound
DAB: Burbling/
intermittent cut-out
Sound is distorted The volume is too high. Adjust the volume control.
Desired station not
found
Display shows
“No Service”
Display is blank This may occur if the broadcaster changes the label of a
Time and Date not
setting automatically
Turn o the unit and turn on after a few seconds.
Signal reception is low. Adjust the aerial or move the unit
to a stronger signal location.
Re-scan stations.
Weak signal. Use the manual tune function.
There is no DAB coverage in your area, or poor reception.
Adjust the position of the aerial, or move the unit to a
stronger signal location.
service or removes a label while tuned. The radio will try
to retune or perform a scan.
For the time and date to set automatically you need to
turn on the system and switch to DAB radio and let this
scan.
Then press the ‘Power Mode’ button and the system
will go into standby. The date and clock will update
automatically.
19
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
!
Safety Informaon
1. Read these instructions.
2. Keep these instructions. Instructions are also available for download at www.majorityradios.co.uk
3. Heed all Warnings
4. Follow all instructions
5. Do no clean the apparatus near or with water
6. D not block any ventilation openings. Install in accordance with the manufacturer’s instructions
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.
9. Protect the power from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
10. Only use attachments/accessories specied by the manufacturer.
11. Unplug this apparatus during light storms or when unused for long periods of time.
12. Refer all servicing to qualied ser vice personnel. Servicing is required when the apparatus has been damaged in a way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to the rain or moisture, does not operate normally or has been dropped.
13. No naked ame sources, such as lit candles, should be placed on the apparatus.
14. Dispose of used electrical products and batteries safely according to your local authority and regulations.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
!
ADDITIONAL WARNINGS
The apparatus shall not be exposed to dripping or splashing and no objects lled with liquid, such as vases, shall be places on the apparatus. Main plug is used to disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the main mains completely, the mains plug should be disconnected from the main socket outlet completely. Battery shall not be exposed to excessive heat such as sunshine, re or the like.
RECYCLING ELECTRICAL PRODUCTS
You should now recycle your waste electrical goods and in doing so help the environment.
This symbol means an electrical product should not be disposed of with normal household waste. Please ensure it is taken to a suitable facility for disposal when nished with.
IMPORTANT: Please read all instructions carefully before use and keep for future reference.
Risk of electric shock. Do not open
Read all instructions carefully before use
!
and keep for future reference
When servicing, use only identical replacement parts
ATTENTION
RISQUE D’ELECTROCUTION
NE PAS OUVRIR
!
20
!
IMPORTANT: Please read all instrucons carefully
before use and keep for future reference
www.majorityradios.co.uk
Loading...
