Page 1
KHLDV Series Direct Vent Gas Fireplace
Installation and Operating Instructions
Models: KHLDV400(N/P)TSCSB, KHLDV(N/P)TSCSB, KHLDV600(N/P)TSCSB
CERTIFIED
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
• Do not store or use gasoline or other
fl ammable vapors and liquids in the
vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS
– Do not try to light any appliance.
– Do not touch any electrical switch; do
not use any phone in your building.
– Leave the building immediately.
– Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
– If you cannot reach your gas supplier,
call the fi re department.
• Installation and service must be performed
by a qualifi ed installer, service agency or
the gas supplier.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause
injury or property damage. Refer to this manual.
For assistance or additional information consult
a qualified installer, service agency or the
gas supplier.
This appliance may be installed in an aftermarket,*
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is for use only with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certifi ed kit is used.
* Aftermarket: Completion of sale, not for purpose of resale, from
the manufacturer.
DANGER
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall
be installed for the protection of children and
other at risk individuals.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for
future reference.
SAFETY BARRIER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
20306543
20306742 11/14 Rev. 1
Page 2
KHLDV Series Gas Fireplace
CONTENTS
Thank you and congratulations on your purchase of an Vermont Castings Group Fireplace.
PLEASE READ THE INSTALLATION AND OPERATION INSTRUCTIONS BEFORE USING THE APPLIANCE!
IMPORTANT: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in a possible fi re hazard and will void the warranty.
Important Safety Information ..............................................3
Code Approval ......................................................................4
Product Features ..................................................................5
High Elevations ............................................................... 5
Gas Pressures................................................................. 5
Gas Specifi cations & Orifi ce Size .................................... 5
Fireplace & Framing Dimensions........................................ 6
Pre-Installation Information ................................................. 7
Before You Start .............................................................. 7
Fireplace Framing ........................................................... 7
Fireplace Location ........................................................... 8
Clearances ............................................................................ 9
Clearances to Combustibles ........................................... 9
Mantel Clearances .......................................................... 9
Secure Fireplace to Floor or Framing............................... 10
Finishing Material .......................................................... 10
Venting Installation ..............................................................11
Installation Precautions ..................................................11
Installation Clearances ...................................................11
Installation Planning ...................................................... 12
For Horizontal Termination ............................................ 12
For Vertical Termination ................................................. 12
Installing a Vent System in an Outside Chase .............. 12
Termination Location ..................................................... 13
Termination Clearances................................................. 14
How to Use a Vent Graph.............................................. 14
Vertical Sidewall Installation .......................................... 15
Vertical/Horizontal Termination Confi gurations .............. 16
Below Grade Installations.............................................. 17
Vertical Through-the-Roof Applications ......................... 18
Installation for Vertical Termination ................................ 19
Termination Heights for Vents Above Flat or
Sloped Roofs ........................................................... 20
Fireplace Installation .......................................................... 21
Check Gas Type ............................................................ 21
Install Gas Piping to Fireplace/Burner System
Location ................................................................... 21
Millivolt: Check Gas Pressure and Electrical
Installation ................................................................... 23
Check Gas Pressure ..................................................... 23
Electrical Wiring ............................................................. 23
Millivolt: Remote Wall Switch Installation ........................ 24
Remote Wall Mounted Switch ....................................... 24
Optional Fan/Blower System ......................................... 24
Millivolt: Operating Instructions .......................................27
Read Before Lighting..................................................... 27
Lighting Pilot for the First Time ...................................... 27
Lighting Pilot .................................................................. 28
Lighting Burner .............................................................. 29
To Turn Off Gas ............................................................. 29
Signature Command: Check Gas Pressure and
Electrical Installation .................................................. 30
Check Gas Pressure ..................................................... 30
Electrical Wiring ............................................................. 30
Electrical Installation.......................................................... 31
Junction Box Wiring....................................................... 31
Command Center Wall Installation ................................ 31
Wall Switch Installation .................................................. 31
Signature Command Wiring Diagram............................ 32
Signature Command: Fan/Blower Systems ....................33
BLOTKHLSC Signature Command Blower ................... 33
Signature Command: Operating Instructions .................34
Read Before Lighting..................................................... 34
Operating Instructions ................................................... 35
To Turn Off Gas ............................................................. 35
Features ........................................................................ 36
Battery Installation ......................................................... 36
System Confi guration/Setup.......................................... 36
Cold Climate Option ...................................................... 36
Key Combinations for System Settings ......................... 37
Functions/Operation ...................................................... 38
Command Center Operations ....................................... 38
Self Diagnostics Chart ................................................... 38
Touch Screen Remote Control Operation ........................ 39
Function Areas of LCD Display ..................................... 39
Initialization and Set Up................................................. 39
Functions and Operations ............................................. 40
Safety Featuress ........................................................... 43
Using the Mounting Base .............................................. 44
Final Installation ................................................................. 45
Glass Frame Removal................................................... 45
Brick, Light Bulb and Lens Placement 400/500
Series ....................................................................... 46
Brick, Light Bulb and Lens Placement 600
Series ....................................................................... 46
Rock Wool Placement 400/500 Series .......................... 47
Rock Wool Placement 600 Series ................................. 47
Log Placement 400/500 Series ..................................... 48
Log Placement 600 Series ............................................ 50
Safety Barrier Installation Instructions ........................... 52
Cleaning and Maintenance ................................................ 53
Burner, Pilot and Control Compartment ........................ 53
Pilot Flame .................................................................... 53
Burner Flame................................................................. 53
Venting System ............................................................. 54
Glass Door .................................................................... 54
Logs............................................................................... 54
Rock Wool .................................................................... 54
Troubleshooting .................................................................55
Standing Pilot Ignition.................................................... 55
Signature Command System ........................................ 57
Replacement Parts ............................................................. 58
Firebox Components and Accessories .......................... 58
Standing Pilot—Millivolt Control ................................... 59
Signature Command System ........................................ 61
Logs............................................................................... 63
Venting Components ..................................................... 64
Venting Components for 5" x 8" .................................... 65
Massachusetts Residents Only......................................... 66
Warranty ..............................................................................67
Effi ciencies.......................................................................... 68
2
20306742
Page 3
IMPORTANT SAFETY INFORMATION
KHLDV Series Gas Fireplace
INSTALLER
Please leave these instructions with the appliance.
OWNER
Please retain these instructions for future reference
WARNING
• Read this owner’s manual carefully and completely before trying to assemble, operate, or service this
fi replace.
• Any change to this fi replace or its controls can be dangerous.
• Improper installation or use of this fi replace can cause serious injury or death from fi re, burns, explosions,
electrical shock and carbon monoxide poisoning.
This fi replace is a vented product. This fi replace must be
properly installed by a qualifi ed service person. The glass
door must be properly seated and sealed. If this unit is not
properly installed by a qualifi ed service person with glass
door properly seated and sealed, combustion leakage
can occur.
CARBON MONOXIDE POISONING: Early signs of carbon
monoxide poisoning are similar to the fl u with headaches,
dizziness and/or nausea. If you have these signs, the fi re-
place may not have been installed properly. Get fresh air
at once! Have the fi replace inspected and serviced by a
qualifi ed service person. Some people are more affected
by carbon monoxide than others. These include pregnant
women, people with heart or lung disease or anemia, those
under the infl uence of alcohol, and those at high altitudes.
Propane/LP gas and natural gas are both odorless. An
odor-making agent is added to each of these gases. The
odor helps you detect a gas leak. However, the odor added
to these gases can fade. Gas may be present even though
no odor exists.
Make certain you read and understand all warnings. Keep
this manual for reference. It is your guide to safe and proper
operation of this fi replace.
1. This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases unless a certifi ed
kit is used.
2. For propane/LP fi replace, do not place propane/LP
supply tank(s) inside any structure. Locate propane/
LP supply tank(s) outdoors. To prevent performance
problems, do not use propane/LP fuel tank of less than
100 lbs. capacity.
3. If you smell gas
• shut off gas supply.
• do not try to light any appliance.
• do not touch any electrical switch; do not use any
phone in your building .
• immediately call your gas supplier from a neigh-
bor’s phone. Follow the gas supplier’s instructions.
4. Never install the fi replace
• in a recreational vehicle
•
where curtains, furniture, clothing, or other fl am-
mable objects are less than 42" from the front, top,
or sides of the fi replace
• in high traffi c areas
• in windy or drafty areas
5. This fi replace reaches high temperatures. Keep chil-
dren and adults away from hot surfaces to avoid burns
or clothing ignition. Fireplace will remain hot for a time
after shutdown. Allow surfaces to cool before touching.
6. Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to
accidental contact burns. A physical barrier is recommended if there are at risk individuals in the house.
To restrict access to a fi replace or stove, install an
adjustable safety gate to keep toddlers, young children
and other at risk individuals out of the room and away
from hot surfaces.
7. Do not modify fi replace under any circumstances. Any
parts removed for servicing must be replaced prior to
operating fi replace.
8. Turn fi replace off and let cool before servicing, install-
ing, or repairing. Only a qualifi ed service person should
install, service, or repair the fi replace. Have burner
system inspected annually by a qualified service
person.
9. You must keep control compartments, burners, and
circulating air passages clean. More frequent cleaning
may be needed due to excessive lint and dust. Turn off
the gas valve and pilot light before cleaning fi replace.
10. Have venting system inspected annually by a qualifi ed service person. If needed, have venting system
cleaned or repaired. Refer to Cleaning and Mainte-
nance, Page 49.
11. Keep the area around your fi replace clear of combus-
tible materials, gasoline, and other fl ammable vapor
and liquids. Do not run fi replace where these are used
or stored. Do not place items such as clothing or decorations on or around fi replace.
12. Do not use this fi replace to cook food or burn paper or
other objects.
13. Never place anything on top of fi replace.
.
20306742
3
Page 4
KHLDV Series Gas Fireplace
IMPORTANT SAFETY INFORMATION and CODE APPROVAL
14. Do not use any solid fuels (wood, coal, paper, cardboard, etc.) in this fi replace. Use only the gas type
indicated on rating plate.
15. This appliance, when installed, must be electrically
grounded in accordance with local codes or in the
absence of local codes, with the National Electrical
Code, ANSI/NFP A 70, or the Canadian Electrical Code,
CSA C22.1.
16. Do not obstruct the fl ow of combustion and ventilation
air in any way. Provide adequate clearances around
air openings into the combustion chamber along with
adequate accessibility clearance for servicing and
proper operation.
17. When the appliance is installed directly on carpeting,
tile or other combustible material other than wood
fl ooring, you must set appliance on a metal or wood
panel or hearth pad extending the full width and depth
of the appliance.
18. Do not use fi replace if any part has been exposed to
or has been under water. Immediately call a qualifi ed
service technician to inspect the appliance and replace
any part of the control system and any gas control
which as been submerged in water.
19. Do not operate fi replace if any log is broken.
20. Do not use a blower insert, heat exchanger insert, or
any other accessory not approved for use with this
fi replace.
21. Do not operate the fi replace with glass door removed,
cracked, or broken.
IMPORTANT:
PLEASE READ THE FOLLOWING
CAREFULLY
It is normal for fi replaces fabricated of steel to give off
some expansion and/or contraction noises during the
start up or cool down cycle. Similar noises are found with
your furnace heat exchanger or car engine.
IMPORTANT:
PLEASE READ THE FOLLOWING
CAREFULLY
It is not unusual for gas fi replaces to give off some
odor the first time it is burned. This is due to the
manufacturing process.
Please ensure that your room is well ventilated
during burn off — open all windows.
It is recommended that you burn your fi replace for at
least ten (10) hours the fi rst time you use it. Place the
fan switch in the “OFF” position during this time.
Never connect unit to private (non-utility) gas wells. This gas is commonly
known as wellhead gas.
WARNING
CODE APPROV AL
Direct Vent type appliances draw all combustion air from
outside of the dwelling through the vent pipe.
These appliances have been tested by CSA and found to
comply with the established standards for DIRECT VENT
GAS FIREPLACE HEATERS in the USA and Canada as
follows:
LISTED VENTED GAS FIREPLACE HEATER
TESTED TO: ANSI Z21.88-2009 / CSA 2.33-2009
STANDARDS
A manufactured home (USA only) or mobile home OEM
installation must conform with the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part
3280, or when such a standard is not applicable, the
Standard for Manufactured Home Installations, ANSI/
NCSBCS A225.1, or Standard for Gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4.
4
20306742
Page 5
PRODUCT FEATURES
This appliance has been certifi ed for use with either
•
natural or propane gas. See appropriate data plates.
• This appliance is not for use with solid fuels.
• The appliance is approved for bedroom or bedsitting
room installations.
• The appliance must be installed in accordance with local
codes if any. If none exist use the current installation
code. ANSI Z223.1/NFPA 54 in the USA, CSA B149 in
Canada.
• This appliance is mobile home approved.
• The appliance must be properly connected to a venting
system.
• The appliance is not approved for closet or recessed
installations.
KHLDV Series Gas Fireplace
Access Panel
Blower
Control
(optional)
Light Control
Off/Pilot/On
Knob
Hi/Lo Knob
HIGH ELEVATIONS
Input ratings are shown in BTU per hour and are certifi ed
without deration for elevations up to 4,500 feet (1,370
m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current ANSI
Z223.1/NFPA 54 and/or local codes having jurisdiction.
In Canada, please consult provincial and/or local authorities having jurisdiction for installations at elevations
above 4,500 feet (1,370 m).
GAS PRESSURES
Natural Propane (LP)
Inlet Minimum 4.5” w.c. 11.0” w.c.
Inlet Maximum 10.5” w.c. 13.0” w.c.
Manifold Pressure 3.5” w.c. 10.0” w.c.
ORIFICE SIZES
ORIFICE SIZE
MODEL FUEL FRONT REAR
KHLDV400 NG #49 (.073") #35 (.110" )
KHLDV400 LP #56 (.0465") #52 (.0635")
KHLDV500 NG 2.3 mm #30 (.1285)
KHLDV500 LP #55 (.052") #50 (.070")
KHLDV600 NG 2.35 mm #20 (.161")
KHLDV600 LP #54 (.055") #49 (.073")
Ignitor
Figure 1 KHLDV Series Fireplace (shown with Millivolt)
GAS SPECIFICATIONS
MAX.
INPUT
MODEL FUEL BTU/H BTU/H
KHLDV400NV NG 40,000 28,500
KHLDV400PV LP 40,000 30,500
KHLDV400NTSC NG 40,000 28,500
KHLDV400PTSC LP 40,000 30,500
KHLDV500NV NG 50,000 35,500
KHLDV500PV LP 50,000 38,500
KHLDV500NTSC NG 50,000 35,500
KHLDV500PTSC LP 50,000 38,500
KHLDV600NTSC NG 60,000 41,500
KHLDV600PTSC LP 57,000 40,000
MIN.
INPUT
On/Off/RS
Switch
20306742
5
Page 6
KHLDV Series Gas Fireplace
FIREPLACE and FRAMING DIMENSIONS
R
T
R
S
Figure 2 Fireplace and Framing Dimensions
Min. Rough
Opening
Depth
Q
Min. Rough
Opening
Height
O
H
P - Min. Rough Opening Width
K
I
M
F
L
E
D
J
1/2” or 5/8”
C
B
A
N
Ref. KHLDV400 KHLDV500 KHLDV600
A 4415⁄16" (1141 mm) 4815⁄16" (1243 mm) 55" (1397 mm)
B 351⁄2" (902 mm) 391⁄2" (1003 mm) 45" (1143 mm)
C 32" (813 mm) 36" (914 mm) 42" (1067 mm)
D 141⁄16" (357 mm) 161⁄16" (405 mm) 191⁄16" (484 mm)
E 281⁄8" (714 mm) 321⁄8" (816 mm) 381⁄8" (968 mm)
F 30" (762 mm) 30" (762 mm) 36" (914 mm)
G 381⁄16" (967 mm) 381⁄16" (967 mm) 441⁄16" (1119 mm)
H 237⁄8" (606 mm) 237⁄8" (606 mm) 241⁄4" (616 mm)
I 443⁄8" (1127 mm) 443⁄8" (1127 mm) 505⁄16" (1278 mm)
J 89⁄16" (218 mm) 89⁄16" (218 mm) 89⁄16" (218 mm)
K 41⁄4" (108 mm) 41⁄4" (108 mm) 41⁄4" (108 mm)
L 4" (102 mm) 4" (102 mm) 4" (102 mm)
7
M 38
⁄16" (976 mm) 387⁄16" (976 mm) 447⁄16" (1129 mm)
N 1" (25 mm) 1" (25 mm) 1" (25 mm)
Framing Dimensions
O 443⁄4" (1137 mm) 443⁄4" (1137 mm) 509⁄16" (1284 mm)
P 45
5
⁄16" (1153 mm) 495⁄16" (1253 mm) 551⁄2" (1410 mm)
Q 237⁄8" (606 mm) 237⁄8" (606 mm) 241⁄2" (622 mm)
R 535⁄8" (1362 mm) 567⁄16" (1434 mm) 603⁄4" (1543 mm)
7
S 75
⁄8" (1927 mm) 797⁄8" (2029 mm) 8515⁄16" (2183 mm)
T 3715⁄16" (964 mm) 3915⁄16" (1014 mm) 431⁄4" (1099 mm)
G
Unit framing is to be rectangular front to
back. Failure to do so will cause fi re and
damage to property.
WARNING
6
Do not fill spaces around firebox with
insulation or other materials. This could
cause a fi re.
WARNING
20306742
Page 7
PRE-INSTALLATION INFORMATION
KHLDV Series Gas Fireplace
BEFORE YOU ST ART
Read this homeowner manual thoroughly and follow all
instructions carefully. Inspect all contents for shipping
damage and immediately inform your dealer if any damage
is found. Do not install any unit with damaged, incomplete,
or substitute parts. Check your packing list to verify that
all listed parts have been received. You should have the
following:
• Fireplace (Firebox and Burner System)
• Log Set
• Rock Wool
• Noncombustible Panel
ITEMS REQUIRED FOR INSTALLATION
• Phillips Screwdriver • Framing Materials
• Hammer • Wall Finishing Materials
• Saw and/or saber saw • Level
• Measuring Tape • Pliers
• Electric Drill and Bits • Square
• Pipe Wrench • Tee Joint
• Noncombustible fi nishing material or dura-rock*
• Caulking Material (noncombustible)
• Fireplace Surround Material (noncombustible)
• Piping Complying with Local Codes
• Pipe Sealant Approved for use with Propane/LPG
(Resistant to sulfur compounds)
* Only used if desired to cover painted face other than using tiles
or marble. If tiles or marble are used around the face then the
non-combustible material is not needed.
FIREBOX FRAMING
Firebox framing can be built before or after the appliance
is set in place. Refer to Figure 2 for fi rebox dimensions
and framing. Construct fi rebox framing following Figure
2 for your specifi c installation requirements. The framing
headers may rest on the top of the fi rebox standoffs. Do
not bring headers below top of standoffs. NOTE: When
planning your framing and installation, keep in mind that
your gas line will come in on the right side of the box (as
you are facing it) and your electricity will come in on the
left side.
The fi rebox may be installed directly on a combustible fl oor
or raised on a platform of an appropriate height. When
the fi rebox is installed directly on carpeting, tile, or other
combustible material, other than wood fl ooring, the fi rebox
shall be installed on a metal or wood panel extending the
full width and depth of the enclosure.
COLD CLIMATE INSULATION
If you live in a cold climate, seal all cracks
around your appliance, and wherever cold air
could enter the room, with noncombustible
material. It is especially important to insulate
NOTE
the outside chase cavity between the studs
and under the fl oor on which the appliance
rests, if the fl oor is above ground level.

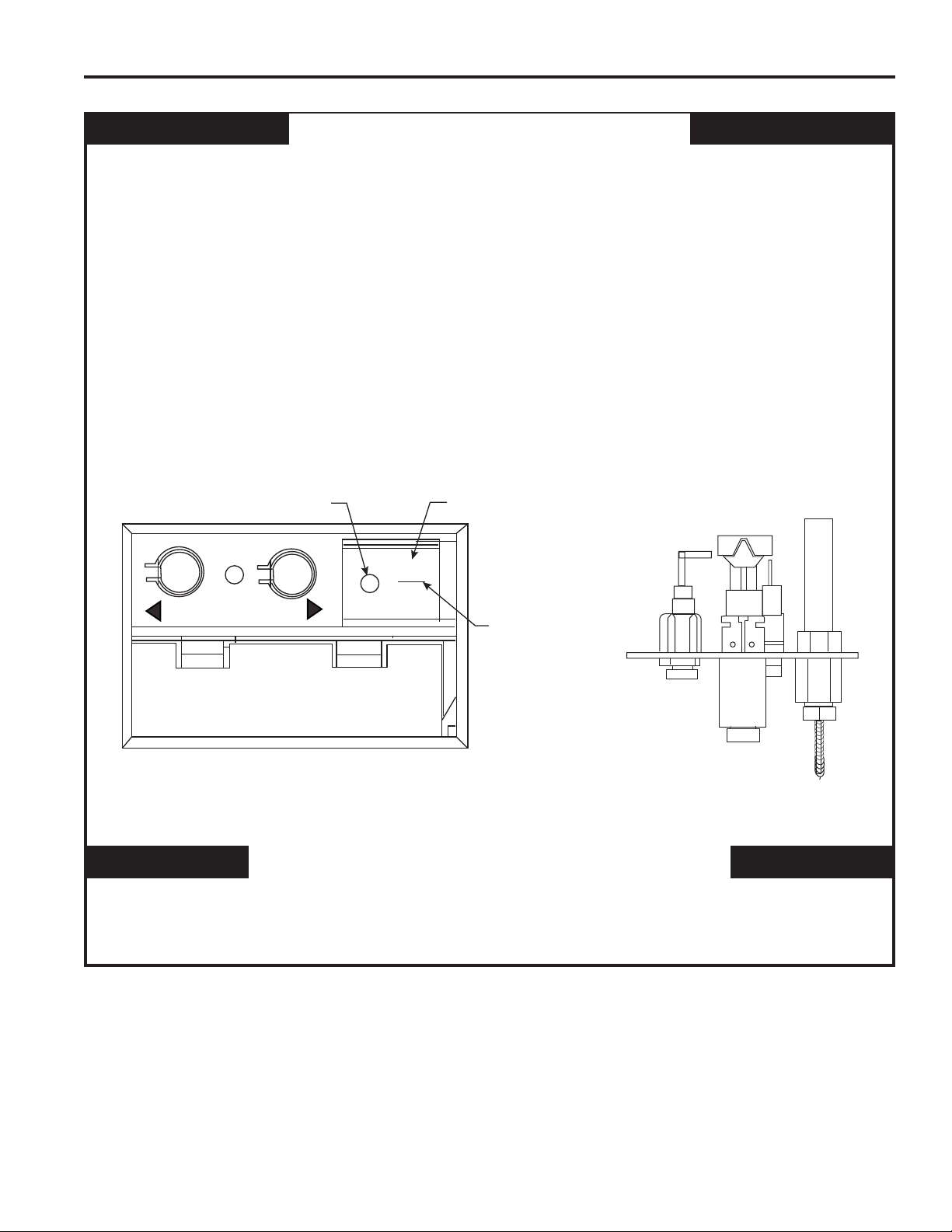

NOTE: Refer to cold climate pilot information on Page 43
for more information on standing pilot vs. intermittent pilot
options.
20306742
7
Page 8
KHLDV Series Gas Fireplace
FIREPLACE LOCATION
Plan for the installation of your appliance. This includes
determining where the unit is to be installed, the vent
confi guration to be used, framing and fi nishing details,
and whether any optional accessories (i.e. blower, wall
switch, or remote control) are desired. Consult your local
building code agency to ensure compliance with local
codes, including permits and inspections.
The following factors should be taken into consideration:
• Clearance to side-wall, ceiling, woodwork, and windows.
Minimum clearances to combustibles must be main-
tained.
• This fi replace may be installed along a wall, across a
corner, or use an exterior chase. Refer to Figure 3 for
suggested locations.
• Location should be out of high traffi c areas and away
from furniture and draperies due to heat from appliance.
• Never obstruct the front opening of the fi replace.
• Do not install in the vicinity where gasoline or other
fl ammable liquids may be stored.
• Vent pipe routing. Refer to the Venting section found in
this manual for allowable venting confi gurations.
• These units can be installed in a bedroom. See National
Fuel Gas Code ANSI Z233.1/NFPA 54 — (current
edition), the Uniform Mechanical Code — (current edition), and Local Building Codes for specifi c installation
requirements.
• These units can be installed in a bathroom.
PRE-INSTALLATION INFORMATION
E
Y
D
Y
F
A Flat on Wall C Island** E Flat on Wall Corner*
B Cross Corner D Room Divider* F Chase Installation
Y 6" Minimum
** Island (C) and room divider (D) installation is possible as long as the
horizontal portion of vent system (X) does not exceed 20'. Refer to
Installing Horizontal Termination Confi guration on Page 16.
* When you install your fi replace in (D) room divider or (E) fl at on wall
corner positions (Y), a minimum of 6" clearance must be maintained
from perpendicular wall and front of fi replace.
Figure 3 Locating Gas Fireplace
A
C
B
X
8
20306742
Page 9
CLEARANCES
KHLDV Series Gas Fireplace
CLEARANCES TO COMBUSTIBLES
12”
(305 mm)
Max. Depth
72” (1829 mm)
Minimum
Ceiling
6”
(152 mm)
Min.
Hearth Minimum
Fireplace Opening
1
2
(64 mm)
Min. From Opening
10” (254 mm)
Min.From Opening
Hearth 8” Min.
(203 mm)
Noncombustible
/2” Max Depth
16” (406 mm)
Follow these instructions carefully to
ensure safe installation. Failure to follow
in struc tions exactly can create a fi re hazard.
The appliance cannot be installed on a
carpet, tile or other combustible material
other than wood fl ooring. If installed on
carpet or vinyl flooring, the appliance
WARNING
shall be installed on a metal, wood or
noncombustible material panel ex tend ing
full width and depth of the appliance.
Wall
Stud
16"
(406 mm)
(305 mm)
12" (305 mm)
6" (152 mm)
1
/2" (64 mm)
2
12"
10"
(254 mm)
Insulation
Board
Standoff
Figure 4 Clearances from the mantel, ceiling, and side wall.
MANTEL CLEARANCES
NOTE: The combustible area above the facing must
not protrude more than 3/4" from the facing. If it does,
it is considered a mantel and must meet the mantel
requirements listed in this manual.
Top of Fireplace
Opening
FP2129
Fireplace Opening
Top View
Figure 5 Mantel clearances
Side View
1"
21/2"
3"
5"
6"
11/2"
31/2"
FP2235
41/2"
45°
20306742
9
Page 10
KHLDV Series Gas Fireplace
The fi replace must be secured to the fl oor and/or to framing
studs as shown in Figure 6. Use two (2) wood screws or
masonry/ concrete screws to secure fi replace to the fl oor.
Use four (4) screws to attach fi replace to framing. The side
nailing fl anges are 1/2" or 5/8" to accommodate different
wall thickness.
Noncombustible Material
6”
SECURE FIREPLACE to FLOOR or FRAMING
Framing Members
Noncombustible
Material Must Rise
at Least to Top of
Stand off
Secure to Floor Behind
Access Panels
Nailing Flange
Figure 6 Secure Fireplace to Floor and Framing Studs
FINISHING MATERIAL

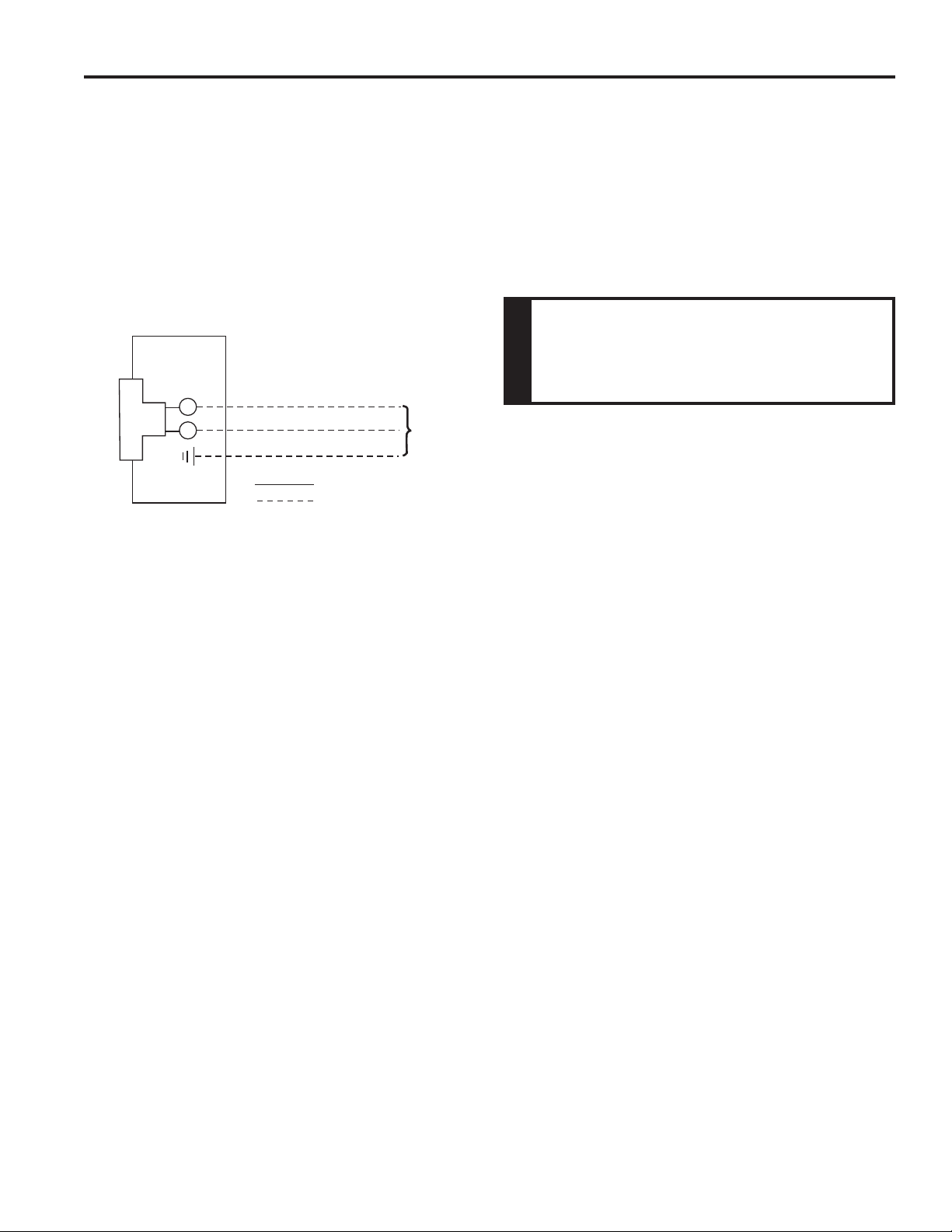

NOTE: Any remote wiring (i.e. remote control, wall switch,
and optional fan) must be done prior to fi nal fi nishing to
avoid costly reconstruction.
Never install combustible materials
over front face of fi replace.
NOTE
FP2130
All Combustible Materials
Must Keep 3/4" Spacing
Only noncombustible materials (i.e. brick, tile, slate, steel,
or other materials with a UL fi re rating of Zero) may be
used to cover the black painted face of the appliance. It is
permissible to bring combustible wall board to the top of
the stand-offs on the top and the sides of the unit. A 300°F
minimum adhesive may be used to attach facing materials
to the black surface. If joints between the fi nished wall
and the fi replace surround are sealed, a 300°F minimum
sealant material (General Electric RTV103 or equivalent)
must be used.
10
20306742
Page 11
VENTING INSTALLATION
p
KHLDV Series Gas Fireplace
Read all instructions completely and
thoroughly before attempting installation.
Failure to do so could result in serious injury ,
property damage or loss of life. Operation
of improperly installed and maintained
venting system could result in serious injury ,
WARNING
property damage or loss of life.
INSTALLATION PRECAUTIONS
Consult local building codes before beginning the
installation. The installer must make sure to select the
proper vent system for installation. Before installing vent
kit, the installer must read this fi replace manual and vent
kit instructions.
Only a qualifi ed installer/service person should install vent-
ing system. The installer must follow these safety rules:
• Wear gloves and safety glasses for protection.
• Use extreme caution when using ladders or when on
rooftops.
• Be aware of electrical wiring locations in walls and
ceilings.
The following actions will void the warranty on your venting
system:
• Installation of any damaged venting component.
• Unauthorized modifi cation of the venting system.
• Installation of any component part not manufactured or
approved by Vermont Castings Group.
• Installation other than permitted by these instructions.
Failure to follow these instructions will void
the warranty.
NOTICE
This fi replace must be vented to the outside.
The venting system must NEVER be attached
to a chimney serving a separate solid fuel
burning appliance. Each gas appliance must
use a separate vent system. Do not use
WARNING
common vent systems.
C
L
of
*3”
24" Vertical
Rise Required
Before Hori-
zontal Run
FP2131
Figure 7 Combustible Clearances for Vent Pipe
* A minimum of 3" clearance to the top is required along horizontal length
until fl ue pipe penetrates outside wall.
** A minimum 1" clearance to combustibles permitted all around fl ue at
outside wall
**1”
**1”
400/500 - 73
(1854 mm)
600 - 79”
(2007 mm)
Horizontal sections of this vent system
require a minimum of 3" clearances to
combustibles at the top of the fl ue and 1"
clearance at the sides and bottom until
the flue penetrates the outside wall. A
minimum 1" clearance all around the fl ue
is acceptable at this point of penetration.
Unless the vertical run is 71⁄4' or higher
from fl oor of fi replace, the clearance for
horizontal run is 1" on all sides.
WARNING
Vertical sections of this vent system require
a minimum of 2" clearance to combustibles
at the top of the unit directly above the
stand-off. A minimum of 1" clearance all
around the fl ue is acceptable thereafter.
20306742
11
Page 12
KHLDV Series Gas Fireplace
INSTALLATION PLANNING
There are two basic types of direct-vent installation:
• Horizontal Termination
• Vertical Termination
It is important to select the proper length of vent pipe for
the type of termination you choose. It is also important to
note the wall thickness.
FOR HORIZONTAL TERMINATION
Select the amount of vertical rise desired. All horizontal run
of venting must have 1/4" rise for every 12" of run towards
the termination below 71⁄2" of vertical rise from fl oor of fi re-
place. With 71⁄2 feet or more of vertical rise from the fl oor
of the fi replace, the horizontal run may be level. NEVER
run vent piping down.
You may use up to three 90° elbows in this vent confi gura-
tion. Refer to Vertical/Horizontal Termination Confi gurations
on Page 16.
Horizontal venting which incorporates the twist lock pipe
must be installed on a level plane without an inclining or
declining slope.
FOR VERTICAL TERMINATION
Measure the distance from the fi replace fl oor to the ceil-
ing. Add the ceiling thickness, the vertical rise in an attic
or second story, and allow for suffi cient vent height above
the roof line.
NOTE: You may use two 45° elbows in place of a 90° elbow.
You must follow rise to run ratios when using 45° elbows.
The appliance is approved for use with three 90° elbows
maximum or a combination of 90° and 45° elbows up to
a maximum of 270°.
Treatment of fi restops and construction of
the chase may vary from building type to
building type. These instructions are not
substitutes for the requirements of local
NOTICE
building codes. You must follow all local
building codes.
When installing in a chase, you should
insulate the chase as you would the outside
walls of your home. This is especially
important in cold climates. Insulation
should be considered a combustible
NOTICE
material. Maintain proper clearances to all
combustible materials.
VENTING INSTALLATION
Never run the vent pipe down. This may
cause excessive temperatures which could
cause a fi re.
WARNING
For two-story applications, fi restops are required at each
fl oor level. If an offset is needed in the attic, additional pipe
and elbows will be required.
You may use a chase with a vent termination with exposed
pipe on the exterior of the house. See Installing A Vent
System in an Outside Chase below. If pipe is enclosed in
chase, it is not exposed.
It is very important that the venting system maintain its
balance between the combustion air intake and the fl ue
gas exhaust. Certain limitations apply to vent confi gurations
and must be strictly followed.
INSTALLING A VENT SYSTEM IN AN
OUTSIDE CHASE
A chase is a vertical boxlike structure built to enclose
venting that runs along the outside of a building. A chase
is required for such venting.
Always maintain minimum clearances
around vent systems. The minimum
clearances to combustibles for horizontal
vent pipe are 3" at the top* and 1" at the
sides and bottom of the vent system until
the pipe penetrates the nearest vertical
wall (1" required). A 1" minimum clearance
all around the pipe must be maintained at
outside wall and on vertical runs. Do not
WARNING
pack the open air spaces with insulation
or other materials. This could cause high
temperatures and may present a fi re hazard.
*Unless the vertical run is 7
from fl oor of fi replace, the clearance for the
horizontal run is 1" on all sides.
1
⁄2 feet or higher
12
20306742
Page 13
VENTING INSTALLATION
V
X
X
X
D
E
B
B
B
C
B
M
B
A
J
K
F
L
VENT TERMINATION AIR SUPPLY INLET
AREA WHERE TERMINAL IS NOT PERMITTED
H
I
Fixed
Closed
Operable
Operable
Fixed
Closed
B
INSIDE
CORNER DETAIL
A
G
CFM145a
V
V
V
V
V
V
V
V
TERMINATION LOCATION
Figure 8 –
Termination Locations
KHLDV Series Gas Fireplace
A = Clearance above grade, veranda, porch,
CANADIAN INSTALLATIONS
1
12" (30cm) 12" (30cm)
US INSTALLATIONS
2
deck or balcony
B = Clearance to window or door that may be
opened
C = Clearance to permanently closed window 12" (305mm) recommended to prevent
D = Vertical clearance to ventilated soffi t
6" (15cm) for appliances <10,000 BTU/h
(3kW)
12" (30cm) for appliances >10,000 BTU/h
(3kW) and <100,000 BTU/h (30kW)
36" (91cm) for appliances >100,000 BTU/h
(30kW)
6" (15cm) for appliances <10,000 BTU/h
(3kW)
9" (23cm) for appliances >10,000 BTU/h
(3kW) and <50,000 BTU/h (15kW)
12" (30cm) for appliances >50,000 BTU/h
(15kW)
12" (305mm) recommended to prevent
window condensation
window condensation
18" (458mm) 18" (458mm)
located above the terminal within a horizontal distance of 2' (610 mm) from the
center line of the terminal
E = Clearance to unventilated soffi t 12" (305mm) 12" (305mm)
F = Clearance to outside corner see next page see next page
G = Clearance to inside corner see next page see next page
H = Clearance to each inside of center line
extended above meter/regulator assembly
3' (91cm) within a height of 15' (5m) above
the meter/regulator assembly
3' (91cm) within a height of 15' (5m) above
the meter/regulator assembly
I = Clearance to service regulator vent outlet 3' (91cm) 3' (91cm)
J = Clearance to non-mechanical air supply
inlet to building or the combustion air inlet
to any other appliance
6" (15cm) for appliances <10,000 BTU/h
(3kW)
12" (30cm) for appliances >10,000 BTU/h
(3kW) and <100,000 BTU/h (30kW)
36" (91cm) for appliances >100,000 BTU/h
(30kW)
6" (15cm) for appliances <10,000 BTU/h
(3kW)
9" (23cm) for appliances >10,000 BTU/h
(3kW) and <50,000 BTU/h (15kW)
12" (30cm) for appliances >50,000 BTU/h
(15kW)
K = Clearance to mechanical air supply inlet 6' (1.83m) 3' (91cm) above if within 10' (3m) horizontally
L = Clearance above paved sidewalk or
7' (2.13m)
†
7' (2.13m)
†
paved driveway located on public property
M = Clearance under veranda, porch, deck or
12" (30cm)
‡
12" (30cm)
‡
balcony
1 In accordance with the current CSA-B149 Installation Codes
2 In accordance with the current ANSI Z223.1/NFPA 54 National Fuel
Gas Codes
† A vent shall not terminate directly above a sidewalk or paved
driveway which is located between two single family dwellings and
serves both dwellings
‡ Only permitted if veranda, porch, deck or balcony is fully open on a
minimum 2 sides beneath the fl oor.
20306742
NOTE: 1. Local codes or regulations may require different
clearances.
2. The special venting system used on Direct Vent
Fireplaces are certifi ed as part of the appliance, with
clearances tested and approved by the listing agency.
3. Vermont Castings Group assumes no responsibility for
the improper performance of the appliance when the venting
system does not meet these requirements.
13
Page 14
KHLDV Series Gas Fireplace
TERMINATION CLEARANCES
Termination clearances for buildings with combustible and non-combustible exteriors.
VENTING INSTALLATION
Inside Corner
G
V
Balcony -
with no side wall
M =
Combustible &
Noncombustible
12" (305 mm)
G =
Combustible
6" (152 mm)
Noncombustible
2" (51 mm)
M
V
Outside Corner
F =
Combustible
6" (152 mm)
F
Noncombustible
2" (51 mm)
V
Balcony -
with perpendicular side wall
M
V
P
Combustible &
Noncombustible
M = 12" (305 mm)
P = 6” (152 mm)
Alcove Applications*
D
C
O
C
V
E
E = Min. 2” (51 mm) for
non-vinyl sidewalls
Min. 12” (305 mm) for
vinyl sidewalls
O = 8’ (2.4 m) Min.
No. of
Caps DMIN.CMAX.
1 3' (914 mm) 2 x D
2 6' (1.8 m) 1 x DACTUAL
3 9' (2.7 m) 2/3 x DACTUAL
4 12' (3.7 m) 1/2 x DACTUAL
DMin. = Number of Termination caps x 3
CMax. = (2 / Number termination caps) x DActual
ACTUAL
*NOTE: Termination in an alcove space (spaces open only on one side
and with an overhang) is permitted with the dimensions specifi ed for
vinyl or non-vinyl siding and soffi ts. 1. There must be a 3' (914 mm) min-
imum between termination caps. 2. All mechanical air intakes within 10'
HOW TO USE THE VENT GRAPH
The Vent Graph should be read in conjunction with the
following vent installation instructions to determine the
relationship between the vertical and horizontal dimensions
of the vent system.
1. Determine the height of the center of the horizontal vent
pipe exiting through the outer wall. Using this dimension
on the Sidewall Vent Graph below, locate the point
intersecting with the slanted graph line.
2. From the point of this intersection, draw a vertical line
to the bottom of the graph.
3. Select the indicated dimension, and position the fi re-
place in accordance with same.
Example: If the vertical dimension from the fl oor of the
fi replace is 11' (3.4 m) the horizontal run to the face of
the outer wall must not exceed 16' (4.9 m).
Sidewall Vent Graph showing the relationship between
vertical and horizontal dimensions for a Direct Vent fl ue
system.
(1 m) of a termination cap must be a minimum of 3' (914 mm) below the
termination cap. 3. All gravity air intakes within 3' (914 mm) of a termination cap must be a minimum of 1' (305 mm) below the termination cap.
Dimensions in Feet
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
2 4 6 8 10 12 14 16 18 20
eg: A
Horizontal dimension from the fi nished outside wall to the
center of the pipe on the fi replace
Figure 10 Rear Wall Venting Graph (No Horizontal Elbows)
Vertical Dimension From the Floor of Unit to the
Center of the Horizontal Vent Pipe
14
20306742
Page 15
VENTING INSTALLATION
VERTICAL SIDEWALL INSTALLATION -
NOTE: Sealant is not required to assemble fi replace
venting. Do not use silicone sealant at the inner fl ue
exhaust connections.
Step 1
Locate vent opening on the wall. It may be necessary to
fi rst position the fi replace and measure to obtain hole lo-
cation. Depending on whether the wall is combustible or
noncombustible, cut opening to size. Figure 11 (For com-
bustible walls fi rst frame in opening.)
Combustible Walls: Cut a 10
mm) hole through the exterior wall and frame as shown.
Figure 11
Noncombustible Walls: Hole opening must be 8
mm) in diameter.
1
⁄2”H x 101⁄2”W (267 x 267
1
⁄2” (216
KHLDV Series Gas Fireplace
X
Figure 12 Vertical Height
Requirement
FP1181
Vent Opening for Combustible Walls
1
10
⁄2”
(267 mm) Min.
1
10
⁄2”
(267 mm)
Min.
Fireplace Hearth
Opening for Noncombustible Wall
1
8
⁄2”
(216 mm)
Figure 11 -
Locate vent opening on wall
Fireplace Hearth
Framing Detail
FP2293
Step 2
Secure fi restop to the inside frame, center in the 101⁄2" x
1
10
⁄2" vent opening.
Step 3
Place fi replace into position. Measure the vertical height
(X) required from the base of the fl ue collars to the center
of the wall opening. Figure 12
Step 4
Using appropriate length of pipe section(s) attach to fi re-
place with three (3) screws. Follow with the installation of
the elbow.
Step 5
Measure the horizontal length requirement fi guring a 11⁄4”
(32 mm) overlap, i.e. from the elbow to the outside wall
cap. Figure 13
X
Figure 13 Horizontal Length
Requirement
FP1182
Always install horizontal venting on a level
plane.
Step 6
Use appropriate length of pipe sections - telescopic or
fi xed - and install.
Sealing vent pipe and fi restop gaps with high tem-
perature sealant will restrict cold air being drawn in
around fi replace.
Step 7
Guide the vent terminations 5” and 8” collard into their
respective vent pipes. Double check that the vent pipes
overlap the collars by a minimum of 11⁄4" (32 mm). Secure
the termination to the wall with screws provided and caulk
around the wall plate to weatherproof. As an alternative to
screwing the termination directly to the wall, you may also
use expanding plugs or an approved exterior construction
adhesive.
Support horizontal pipes every 36” (914
mm) with metal pipe straps.
20306742
15
Page 16
KHLDV Series Gas Fireplace
VENTING INSTALLATION
VERTICAL/HORIZONTAL TERMINATION
CONFIGURATIONS
Since it is very important that the venting system
maintain its balance between the combustion air intake
and the fl ue gas exhaust, certain limitations as to vent
confi gurations apply and must be strictly adhered to.
The Vent Graph, showing the relationship between vertical
and horizontal side wall venting, will help to determine the
various dimensions allowable. Figure 10
NOTE: Horizontal sections of this vent system require
a minimum of 3" clearances to combustibles at the top
of the fl ue and 1" clearance at the sides and bottom
until the fl ue penetrates the outside wall. A minimum
1" clearance all around the fl ue is acceptable at this
point of penetration. Unless the vertical run is 71⁄2 feet
or higher from fl oor of fi replace, the clearance for the
horizontal run is 1" on all sides.
Vertical sections of this vent system require a minimum
of 1" clearance to combustibles on all sides of the pipe.
When vent exits through foundations less than 20" below
outcrop, the termination must be fl ush up with outcropped
wall above.
It is best to locate the fi replace in such a way that minimizes
the number of offsets and horizontal vent length.
The horizontal vent run refers to the total length of vent
pipe from the fl ue collar of the fi replace (or the top of the
Transition Elbow) to the face of the fi nished outside wall.
36"
(914 mm)
24”
Max.
(610 mm)
36"
(914 mm)
Max.
Figure 15 Maximum Horizontal Run with No Rise
FP1177
• If a 90° elbow is used in the horizontal vent run (level
height maintained) the horizontal vent length is reduced
by 36". Figure 16. This does not apply if the 90° elbows
are used to increase or redirect a vertical rise.
Example: According to the vent graph (Page 14) the max-
imum horizontal vent length in a system with a 10' vertical
rise is 171⁄2’ (5.3 m) and if a 90° elbow is required in the
horizontal vent it must be reduced to 14
In Figures 16 and 17 dimension A plus B must not be
greater than 141⁄2' (4.4 m).
1
⁄2' (4.4 m).
• The maximum number of 90° elbows per side wall
installation is three (3). Figure 14
3 x 90°
Elbows
24" Min.
FP1176
Figure 14 Maximum Three (3) 90° Elbows Per Installation
• A minimum of 24" is required before a 90° elbow. If a 90°
elbow is fi tted directly after 24" vertical section mounted
to the top of the fi replace, the maximum horizontal vent
run before the termination or a vertical rise is 36” (914
mm). Figure 15
90° Elbow = 36" (914 mm)
Reduction
A
FP2133
Figure 16 Horizontal Run Reduction
B
10’
16
20306742
Page 17
VENTING INSTALLATION
KHLDV Series Gas Fireplace
• For each 45° elbow installed in the horizontal run, the
length of the horizontal run MUST be reduced by 18" (45
cm). This does not apply if the 45° elbows are installed
on the vertical part of the vent system.
• The maximum number of elbow degrees in a system is
270°. Figure 17
Example: Elbow 1 = 90°
Elbow 2 = 45°
Elbow 3 = 45°
Elbow 4 = 90°
Total Angular Variation = 270°
1
2
3
4
24"
Minimum
Figure 17 Maximum Elbow Usage
FP1180
BELOW GRADE INSTALLATIONS
When it is not possible to meet the required vent terminal
clearances of 12" above grade level, a snorkel kit is recommended. It allows installation depth down to 7" (178
mm) below grade level. The 7" (178 mm) is measured
from the center of the horizontal vent pipe as it penetrates
through the wall.
Ensure that sidewall venting clearances are observed.
If venting system is installed below ground, we recommend a window well with adequate and proper drainage
to be installed around the termination area.
If installing a snorkel, a minimum 24" vertical rise is necessary. The maximum horizontal run with the 24” vertical pipe
is 36". This measurement is taken from the collar of the
fi replace (or transition elbow) to the face of the exterior wall.
See the Sidewall Venting Graph for extended horizontal
run if the vertical exceeds 24".
Screws
Firestop
Minimum
4" Clearance
Ground
24"
Minimum
Drain
Foundation Wall
FP2134
Figure 18 -
Below Grade Installation
Window
Well
Gravel
1. Establish vent hole through the wall.
2. Remove soil to a depth of approximately 16" below base
of snorkel. Install drain pipe. Install window well (not
supplied). Refi ll hole with 12" of coarse gravel leaving
a clearance of approximately 4" below snorkel. Figure
18
3. Install vent system.
4. Ensure a watertight seal is made around the vent pipe
coming through the wall.
5. Apply high temperature sealant caulking (supplied)
around the 5" and 8" snorkel collars.
6. Slide the snorkel into the vent pipes and secure to the
wall.
7. Level the soil so as to maintain a 4" clearance below
snorkel. Figure 18
If the foundation is recessed, use recess brackets (not
supplied) for securing lower portion of the snorkel. Fasten
brackets to wall fi rst, then secure to snorkel with self drilling
#8 x 1/2 sheet metal screws. It will be necessary to extend
vent pipes out as far as the protruding wall face. Figure 19.
20306742
17
Page 18
KHLDV Series Gas Fireplace
Foundation
Recess
VENTNG INSTALLATION
Restrictor Disc
Snorkel
Fireplace Collar
Wall
Screws
Watertight Seal
Around Pipe
Figure 19 Snorkel Installation, Recessed Foundation
Sheet
Metal
Screws
• Do not back fi ll around snorkel.
• A clearance of at least 4" must be
maintained between the snorkel and the
soil.
WARNING
VERTICAL THROUGH-THE-ROOF
APPLICATIONS
A restrictor disc must be installed on
vertical terminations that are higher than
12' (366 cm).
NOTICE
Install restrictor disc as shown in Figure 20 for vertically
vented applications.
Up to two (2) restrictor discs may be needed for 40' installation.
The two (2) restrictor discs suppled will work for most installations. If a third disc is needed order Part No. 56D3027.
This gas fi replace has been approved for,
• Vertical installations up to 40' (12 m) in height. Up to
a 10' (3 m) horizontal vent run can be installed within
the vent system using a maximum of two 90° elbows.
Figure 21
NOTE: Horizontal sections of this vent system require a
minimum of 3" clearances to combustibles at the top of
the fl ue and 1" clearance at the sides and bottom until the
fl ue penetrates the outside wall. A minimum 1" clearance
all around the fl ue is acceptable at this point of penetration.
Unless the vertical run is 71⁄2 feet or higher form fl oor of
fi replace, the clearance for the horizontal run is 1" on all
sides.
Figure 20 Install Restrictor Disc into Fireplace Collar
40' Maximum Height
12' Minimum Height
10'
Maximum
24" Min.
Support Straps
Every 3'
Figure 21 Support Straps for Horizontal Runs
Vertical sections of this vent system require a minimum
of 1" clearance to combustibles on all sides of the pipe.
• Up to two 45° elbows may be used within the horizontal
run. For each 45° elbow used on the horizontal plane,
the maximum horizontal length must be reduced by 18"
(450 mm).
Example: Maximum horizontal length
No elbows = 10’ (3 m)
1x45° elbows = 8.5’ (2.6 m)
2x45° elbows = 7’ (2.1 m)
• A minimum of an 8' (2.5 m) vertical rise is required.
• Two sets of 45°elbows offsets may be used within the
vertical sections. From 0 to a maximum of 8' (2.5 m)
of vent pipe can be used between elbows. Figure 22
• The maximum angular variation allowed in the system
is 270°. Figure 22
• For the minimum height of the vent above the highest
point of penetration through the roof refer to page 20,
Figure 26.
18
20306742
Page 19
VENTING INSTALLATION
1
2
3
4
24" (610 mm) Min.
Example: Elbow 1 = 90°
Elbow 2 = 45°
Elbow 3 = 45°
Elbow 4 = 90°
Total Angular Variation = 270°
Figure 22 Maximum Elbow Usage
INSTALLATION FOR VERTICAL
TERMINATION
1. Determine the route your vertical venting will take. If
ceiling joist, roof rafters or other framing will obstruct
the venting system, consider an offset. Refer to Figure
23 to avoid cutting load bearing members.
Roof Flashing
KHLDV Series Gas Fireplace
For optimal fl ame appearance, a restrictor disk is necessary
on straight vertical runs of 10' of more.
• Runs may not incorporate elbows.
• The disk is part number 56D3027 and is included in
installation manual packet.
• Drop the disk into a 5" inner collar before installing
the fi rst section of fl ue or install at the last section
before installing the termination.
• An additional disk may be installed on runs of 35' or more.
Rotate disks perpendicular to each other.
NOTE: Pay special attention to these installation instructions
for required clearances (air space) to combustibles when
passing through ceilings, walls, roofs, enclosures, attic
rafters, etc. Do not pack air spaces with insulation. Also
note maximum vertical rise of the venting system and any
maximum horizontal offset limitations. Offsets must fall
within the parameters shown in Figures 22 and 23.
2. Set fi replace in desired location. Drop a line plumb down
from the ceiling to the position of the fl ue exit. Mark the
center point where the vent will penetrate the ceiling.
Drill a small locating hole a this point.
Drop a plumb line from the inside of the roof to the ceiling
locating hole in the ceiling. Mark the center point where
the vent will penetrate the roof. Drill a small locating hole
at this point.
FLAT CEILING INSTALLATION
1. Cut a 101/2" (241 mm) square hole in the ceiling using
the locating hole as a center point The opening should
be framed to 101/2"x101/2" (241 x 241 mm) inside dimen-
sions as shown in Figure 25 using framing lumber the
same size as the ceiling joist. If the area above the
ceiling is an insulated ceiling or a room, nail fi restop from
the top side. This prevents loose insulation from falling
into the required clearance space. Figure 24. Otherwise,
install fi restop below the framed hole. Figure 25
Wall Strap
Ceiling Firestop
Figure 23 Offset with Wall Strap and 45° Elbows
20306742
Nails
45° Elbows
Firestop
Figure 24 - If Area Above is a Room, Install Firestop above
Framed Hole as Shown
19
Page 20
KHLDV Series Gas Fireplace
VENTING INSTALLATION
10
"
1
2
/
10
Nails
Figure 25 - If Area Above is Not a Room, Install
Firestop above Framed Hole as Shown
1
/
2
"
Firestop
FP1970
2. Assemble the desired lengths of pipe and elbows necessary to reach from the burner system fl ue up through
the fi restop. Be sure pipe and elbow connections are
fully twist-locked.
3. Cut a hole in the roof using the locating hole as a center
point. (Cover any exposed open vent pipes before
1/
cutting hole in roof). The 101/2"x10
2
" (267 x 267 mm)
hole must be measured on the horizontal. Actual length
may be larger depending on the pitch of the roof. There
must be a 1" minimum clearance from the vent pipe to
combustible materials. (Insulation should be considered
a combustible material).
4. Connect a section of pipe and extend up through the
hole.
NOTE: If an offset is needed to avoid obstructions, you
must support the vent pipe every three (3) feet. Use wall
straps for this purpose. Refer to Page 18, Figure 21.
Whenever possible, use 45° elbows instead of 90° elbows.
The 45° elbow offers less restriction to the fl ow of the fl ue
gases and intake air.
5. Place the fl ashing over the pipe section(s) extending
through the roof. Secure the base of the fl ashing to
the roof and framing with roofi ng nails. Be sure roofi ng
material overlaps the top edge of the fl ashing. There
must be a 1" clearance from the vent pipe to combustible
materials.
6. Continue to add pipe sections until the height of the vent
cap meets the minimum building code requirements.
NOTE: You must increase vent height for steep roof
pitches. Nearby trees, adjoining roof lines, steep pitched
roofs, and other similar factors may cause poor draft or
down-drafting in high winds. Increasing the vent height
may solve this problem.
NOTE: If the vent pipe passes through any occupied areas
above the fi rst fl oor, including storage spaces and closets,
you must enclose pipe. You may frame and sheetrock the
enclosure with standard construction material. Make sure
to meet the minimum allowable clearances to combustibles.
Do not fi ll any of the required clearance spaces with
insulation.
TERMINATION HEIGHTS FOR VENTS ABOVE
FLAT OR SLOPED ROOFS
Horizontal Overhang
2 ft.
Min.
Termination Vent
Storm Collar
Flashing
Concentric
Vent Pipe
Figure 26 Minimum Chimney Clearance
20
2 ft. Min.
Lowest
Discharge
Opening
H*
1" Minimum
Clearances to
Combustibles
Vertical Wall
12
X
Roof Pitch H (feet)
Flat to 6/12 1.0
Over 6/12 to 7/12 1.25
Over 7/12 to 8/12 1.5
Over 8/12 to 9/12 2.0
Over 9/12 to 10/12 2.5
Over 10/12 to 11/12 3.25
Over 11/12 to 12/12 4.0
*H - Minimum height from roof to lowest discharge opening
of vent
20306742
Page 21
FIREPLACE INSTALLATION
CHECK GAS TYPE
Use proper gas type for the fi replace you are installing.
If you have confl icting gas type, do not install fi replace.
See dealer where you purchased the fi replace for proper
fi replace for your gas type or conversion kit.
INSTALLING GAS PIPING TO FIREPLACE /
BURNER SYSTEM LOCATION
External
Regulator
KHLDV Series Gas Fireplace
100 gallon (min)
Propane/LP
Supply Tank
A qualifi ed installer or service person
must connect appliance to gas supply.
Follow all local codes.
WARNING
INSTALLATION ITEMS NEEDED
Before installing fi replace and burner system, make sure
you have the items listed below.
• Test gauge connection* • Tee joint
• Equipment shutoff valve* • Pipe wrench
• Sediment trap (recommended)
• External regulator (supplied by installer)
• Piping (check local codes)
• Sealant (resistant to propane/LP gas)
• Approved fl exible gas line with gas connector (if
allowed by local codes — not provided)
* A CSA design-certifi ed equipment shutoff valve with 1/8"
NPT tap is an acceptable alternative to test gauge connection. Purchase the CSA design-certifi ed equipment shutoff
valve from your dealer.
For propane/LP connections only, the installer must supply
an external regulator. The external regulator will reduce
incoming gas pressure. You must reduce incoming gas
pressure to between 11 and 13 inches of water. If you do
not reduce incoming gas pressure, burner system regulator
damage could occur. Install external regulator with the vent
pointing down as shown in Figure 27. Pointing the vent
down protects it from freezing rain or sleet.
Vent Pointing
Down
FP1977
Figure 27 External Regulator with Vent Pointing Down
(Propane/LP Only)
Use only new black iron or steel pipe.
Internally tinned copper or copper tubing
can be used per National Fuel Code, section
2.6.3, providing gas meets hydrogen sulfi de
limits, and where permitted by local codes.
Gas piping system must be sized to provide
minimum inlet pressure (listed on data plate)
CAUTION
at the maximum fl ow rate (BTU/hr). Undue
pressure loss will occur if the pipe is too
small.
When using copper of fl ex connectors use only fi ttings
approved for gas connections. The gas control inlet is
3/8" NPT.
For propane/LP units, never connect
fi replace directly to the propane/LP supply.
This burner system requires an external
regulator (not supplied). Install the external
regulator between the burner system and
CAUTION
propane/LP supply.
20306742
21
Page 22
KHLDV Series Gas Fireplace
FIREPLACE INSTALLATION
Only persons licensed to work with gas
piping may make the necessary gas
connections to this appliance.
WARNING
NOTE: The gas line connection may be made using 1/2"
rigid tubing or an approved fl ex connector. Since some
municipalities have additional local codes it is always best
to consult your local authorities and the current edition of
the National Fuel Gas Code ANSI.Z223.1, NFPA54. In
Canada CSA-B149 (1 or 2) Installation Code.
A listed manual shutoff valve must be installed upstream of
the appliance. Union tee and plugged 1/8" NPT pressure
tapping point should be installed upstream of the appliance.
Figure 28
IMPORTANT: Install main gas valve (equipment shutoff
valve) in an accessible location. The main gas valve is for
turning on or shutting off the gas to the fi replace.
Check your building codes for any special requirements for
locating equipment shutoff valve to fi replaces.
Apply pipe joint sealant lightly to male threads. This will
prevent excess sealant from going into pipe. Excess sealant in pipe could result in clogged burner system valves.
A manual shutoff valve must be installed
upstream of the appliance. Union tee
and plugged 1/8" NPT pressure tapping
point should be installed upstream of the
CAUTION
appliance. Figure 28
We recommend that you install a sediment trap/drip leg in
supply line as shown in Figure 28. Locate sediment trap/
drip leg where it is within reach for cleaning. Install in piping
system between fuel supply and burner system. Locate
sediment trap/drip leg where trapped matter is not likely
to freeze. A sediment trap collects moisture and contaminants and keeps them from going into the burner system
gas controls. If sediment trap/drip leg is not installed or is
installed wrong, burner system may not run properly.
Use pipe joint sealant that is resistant to
liquid petroleum (LP) gas.
CAUTION
(4.5" w.c. to 10.5" w.c. Pressure)
(11" w.c. to 13" w.c. Pressure)
Figure 28 Gas Connection
Natural Gas
From Gas Meter
Propane/LP
From External Regulator
Approved Flexible
Gas Line
Sediment Trap/Drip Leg
CSA Design-Certifi ed Equipment Shutoff Valve
with 1/8" NPT Tap*
Tee Joint
Pipe Nipple
3" Minimum
Cap
22
20306742
Page 23
MILLIVOLT: CHECK GAS PRES SURE AND ELECTRICAL INSTALLATION
KHLDV Series Gas Fireplace
CHECK GAS PRESSURE
1. Check gas type. The gas supply must be the same as
stated on the appliance’s rating decal. If the gas supply
is different from the fi replace, STOP! Do not install the
appliance. Contact your dealer immediately.
2. To ease installation, a 24" (610 mm) fl ex line with manual
shut-off valve has been provided with on this appliance.
Install and attach 3/8" gas line onto shut-off valve.
3. After completing gas line connection, purge air from
gas line and test all gas joints from the gas meter to the
fi replace for leaks. Use a solution of 50/50 water and
soap solution or a gas sniffer.
4. To adjust fl ame height, turn HI/LO knob to HI to get
maximum pressure to burner. Turn HI/LO knob to LO
to get minimum pressure. NOTE: To make the process
of checking the gas pressure easier, unfasten the two
screws which secure the gas valve to the side of the
fi rebox and bring forward. [Remove the glass to allow
the valve to come forward. (Refer to Page 45 for glass
removal.)] When done, you must refasten the gas valve
into place.
5. To check gas pressures at valve, turn captured screw
counter clockwise 2 or 3 turns and then place tubing
to pressure gauge over test point. Turn unit to high.
Figure 29. After taking pressure reading, be sure and
turn captured screw clockwise fi rmly to reseal. Do not
over torque. Check test points for gas leaks.
Pressure
Test “IN”
Pressure
Test “OUT”
HI/LO Knob
Pilot Adjustment
Screw

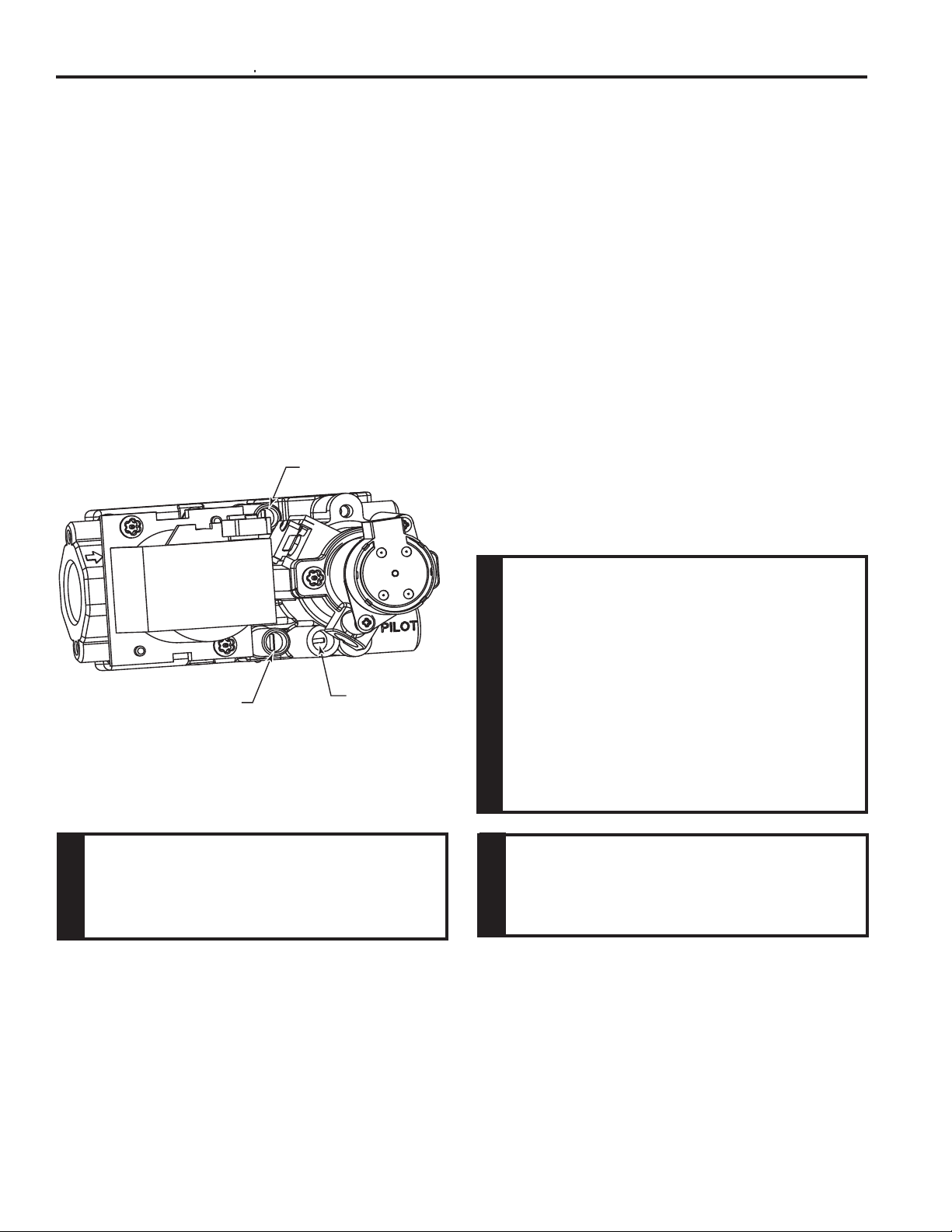

Figure 29 Gas Pressure Check at Gas Valve
Do not use open fl ame to check
for gas leaks.
WARNING
FP1979
ELECTRICAL WIRING
This fi replace will work without any electrical supply. Elec-
tricity is only needed to operate the blower and the light
located behind the logs inside the fi rebox.
NOTE: If installed in mobile home, fi replace must be bolted
securely to fl oor.
Verify proper operation after servicing.
Electrical connections should only
be performed by a qualified, licensed
electrician. Main power must be off when
connecting to main electrical power supply
or performing service. All wiring shall be
in compliance with all local, city, and state
codes. The appliance, when installed, must
be electrically grounded in accordance with
WARNING
local codes, or in the absence of local codes,
with the National Electrical Code ANSI/ NFP A
70 (latest edition) and Canadian Electrical
Code, CSA C22.1.
Label all wires before disconnecting when
servicing controls. Wiring errors can cause
improper and dangerous operation.
CAUTION
20306742
23
Page 24
KHLDV Series Gas Fireplace
MILLIVOLT: REMOTE WALL SWITCH INSTALLATION
REMOTE WALL MOUNTED SWITCH
A remote wall switch and up to fi fteen (15) feet of 18 Ga.
wire may be used with this appliance. Attach the wall
switch in a junction box at the desired location on the
wall. Figure 30. Do not extend beyond the wall switch wire
length provided.
NOTE: Extended lengths of wire may cause the
fi replace not to function properly. Longer length of
wire is permitted if the wire is made out of larger gauge
(diameter) wire. Always check with local code.
Sparker
Thermopile
Thermocouple
Piezo
Ignitor
PILOT HI
ON
OFF
LO
Pilot
Assembly
ON
Switch
Do not connect wall switch to a
110V circuit.
WARNING
Electrical connections should only be performed
by a qualifi ed, licensed electrician. Main power
supply must be turned off before connecting
fans to the main electrical power supply or performing service.
CAUTION
Optional 15’
Wall Switch
OFF
ON
OFF
Millivolt
Valve
Figure 30 Wiring Diagram for Wall Switch
Before installing the blower, turn off the fi re-
place and allow to cool. Only a qualifi ed service
person should service and repair the fi replace.
A qualifi ed service person should connect and
disconnect the fi replace to gas supply. Follow
WARNING
all local codes.
OPTIONAL FAN/BLOWER SYSTEM (BLOTKHL)
IMPORTANT: Always check local building codes.
This installation must comply with local regulations
as well as the National Electric Code.
WIRING
1. Before installing the blower, wire the receptacle into an
electrical circuit. This should be done before framing the
fi replace. Wire with minimum 60°C wire in accordance
with prevailing codes.
2. Remove the external junction box cover by removing
the screw from the right side of the outside fi rebox wall.
Junction box was installed at the factory.
3. The junction box cover has a factory installed “romex”
style strain relief connector. After connecting the wires,
route the wire leads through this connector. Refer to the
wiring diagram in Figure 31.
BEFORE INSTALLING BLOWER
1. Always turn off the gas supply and allow the unit to
cool before proceeding.
2. Clean the inside of the fi rebox (wall and fl oor), where
the blower and wires will be installed. Make sure the
fi rebox wall and fl oor are clean and dry before mounting
the blower.
NOTE: It is very important to arrange the blower wires
and wire assembly so that wires do not come in contact
with blower blades or fi rebox.

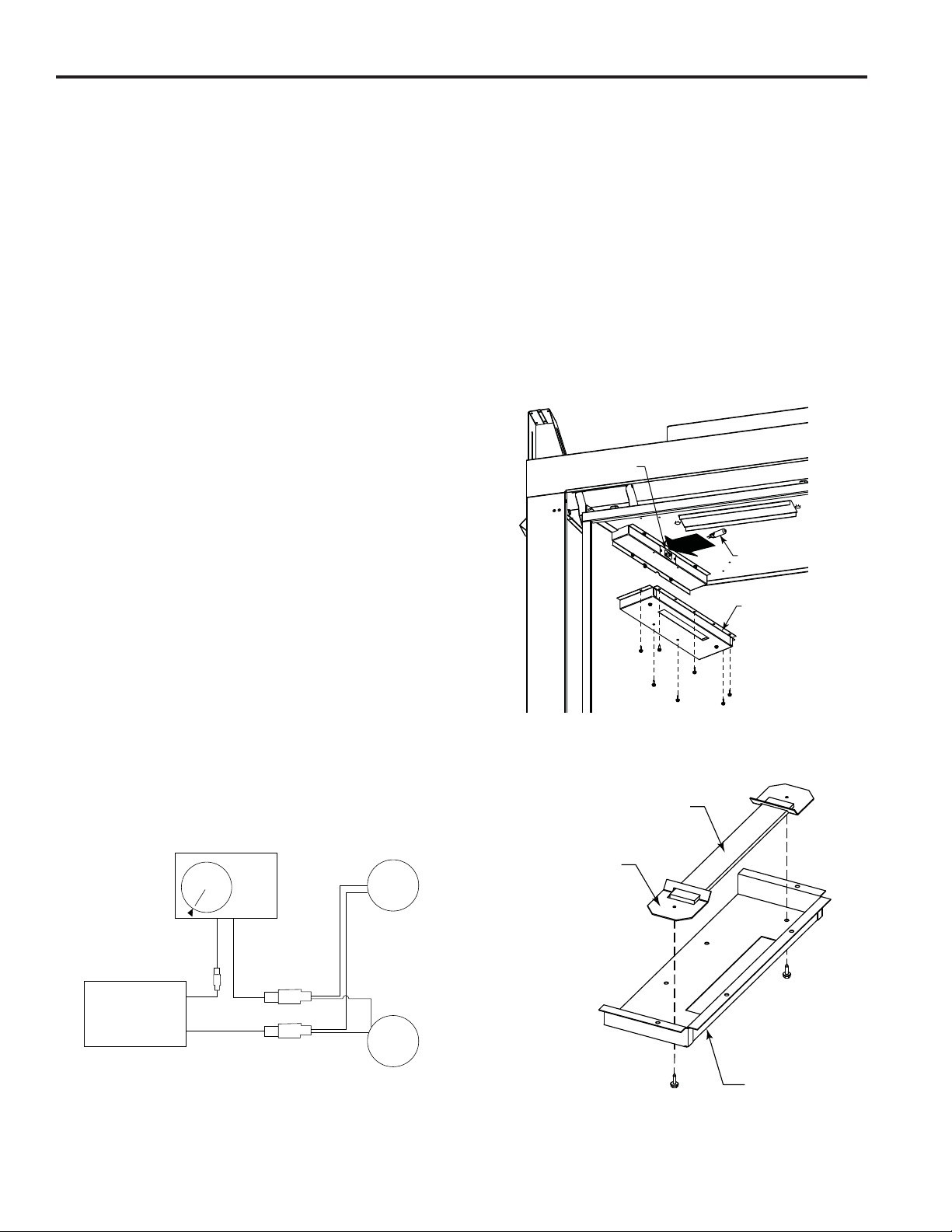

INSTALLING BLOWERS
1. Remove screen rod assemblies by lifting rod and pushing back and down to release rod from the three hooks
located behind the face of the fi replace on the right, left,
and middle.
2. Remove the plate located in front of the glass at the
bottom.
3. Rotate the access doors on the right and left side of the
glass toward the glass.
24
20306742
Page 25
MILLIVOLT: OPTIONAL FAN/BLOWER SYSTEM
120V AC
60Hz
KHLDV Series Gas Fireplace
Failure to replace the access cover with the one
provided with the blower kit, and then running
the blower, will cause excessive temperatures
and could cause a fi re, property damage and/or
loss of life.
WARNING
Factory Supplied
Not Supplied
Junction Box
Figure 31 Junction Box Wiring Diagram

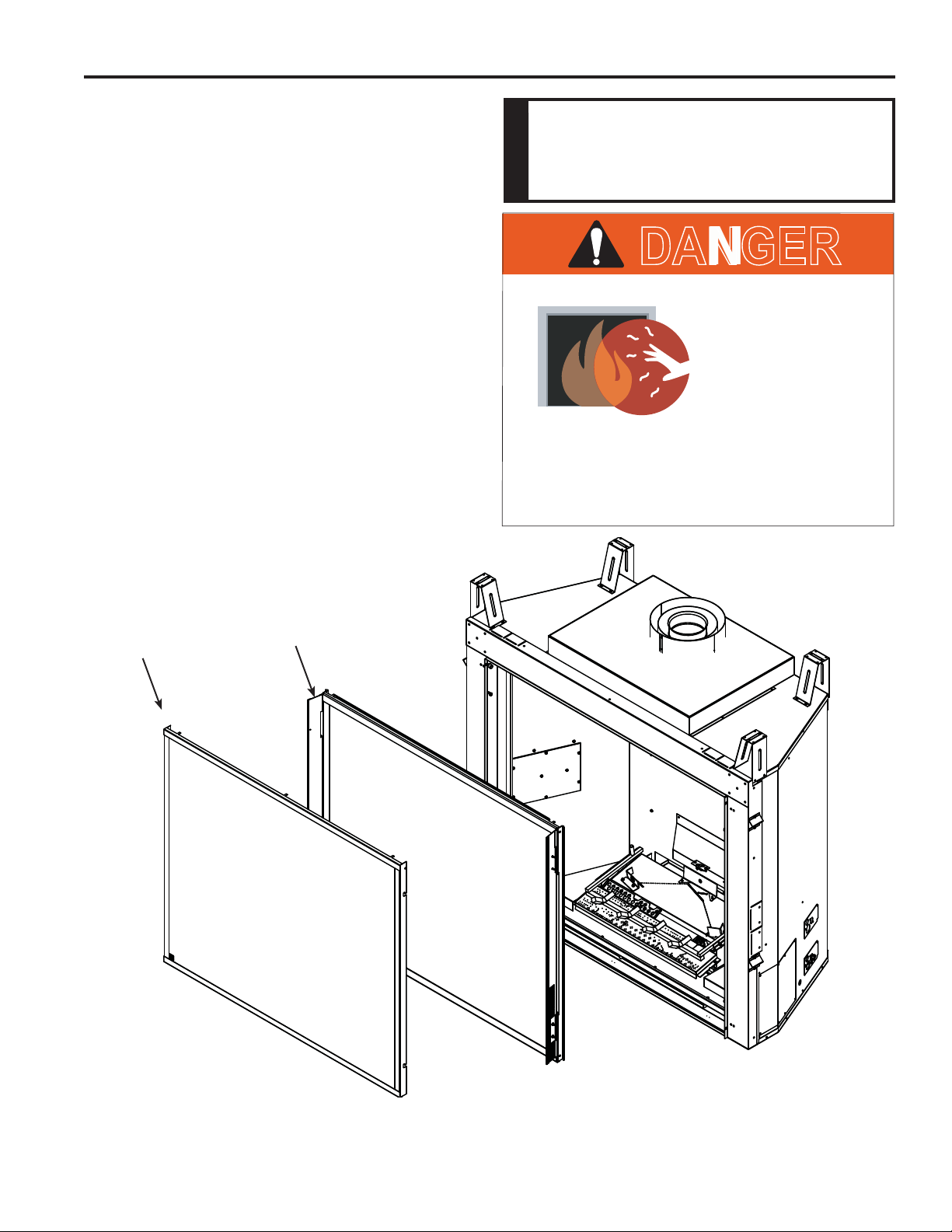

4. Remove safety barrier (if installed) by lifting up and out,
then remove glass frame by releasing the three latches
located at the top of the fi rebox. Tilt glass away from the
unit, lift glass frame up and away from the unit. Page
45
5. Remove logs.
6. Remove hearth brick, wall brick and rear brick. NOTE:
Remove brackets that secure wall brick.
7. Remove the access covers on the right and left side
walls of the fi rebox toward the front by unfastening the
screws. NOTE: The access covers are not identical.
Figure 32
Electrical Grounding Instructions: This appliance is equipped with a three-prong (grounding)
plug for your protection against shock hazard
and should be plugged directly into a properly
grounded three prong receptacle.
WARNING
FP2233
Figure 32 Blower Access Covers
FP2136
8. Two screws are already mounted to each cover which
would be utilized to mount the blower to the cover.
Unfasten the two screws and mount the blower bracket
assemblies. Figure 33
9. Consult blower wiring diagram and start the assembly.
Figures 31 & 34. It is helpful to wire the right blower,
the speed control, the fan limit switch, and the power
cord fi rst. Then plug in the power cord to the junction
box and secure the right cover plate/blower assembly
to the side of the fi rebox.
20306742
Figure 33 Attach Blowers to Brackets
10. Assemble the wire clips provided with the blower kit to
the right and left sides of the fi replace through existing
holes on right and left.
11. Run the wire harness down the right and snap wires
into the clips assembled in #10. Run the two wires
along the glass track, on the fl oor of the unit, in front
of the fi rebox
12. Snap the fan limit switch behind the clip already assembled to the side of the fi rebox on the front right hand
side. Figure 35
13. Secure the left access plate/blower assembly to the
left side of the fi rebox. Run the two wires mentioned
earlier up the left fi rebox wall and snap wires into clip
assembled in #10 on the outer shell wall. Make the
connection to the left blower. Replace the refractory
and hearth refractory (pull away from burner toward
the front).
25
Page 26
KHLDV Series Gas Fireplace
Blue
Blue
Black
Hi-Temp
Black
Figure 34 Blower Wiring Diagram
Junction Box
T-Stat Sensor
Blower
Rheostat
MILLIVOLT: OPTIONAL FAN/BLOWER SYSTEM
Black
Hi-Temp
White
Right
Blower
Black
Left
Blower
Black
Remove Solid
Access Door
Clip
FP2137
Figure 35 Blower Access Covers
Firebox
Wall
14. Replace side panels attached to the glass frame
assembly with the louvered side panels provided with
the blower kit by unfastening the four nuts for each
cover door. (Do not overtighten or stud may break
off.) Use three metal clip screws provided with kit to
secure the wire assembly in the front beneath the
access cover. Figure 36
15. Install the speed control (rheostat switch) on the side
above the existing one used for the light (discard the
plate sent with the switch as it will not be needed.
16. Replace logs.
17. Replace the glass.
18. Replace the front plate below the glass frame. NOTE:
The front plate hides the wire harness in the front.
Replace with Louvered Access
Door, Louvers Towards Bottom
Figure 36 Install New Louvers
Figure 37 Location of White Dial on
Speed Control
FP2234
26
20306742
Page 27
MILLIVOLT: OPERATING INSTRUCTIONS
KHLDV Series Gas Fireplace
FOR YOUR SAFETY READ BEFORE LIGHTING
If you do not follow these instruction
exactly, a fi re or explosion may result
causing property damage, personal
injury or loss of life.
WARNING
A. This appliance is equipped with a pilot which must be lit with built-in piezo ignitor while following
these instructions exactly.
B. BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to
the fl oor because some gas is heavier than air and will settle on the fl oor.
WHAT TO DO IF YOU SMELL GAS:
• Turn off all gas to the appliance.
• Open windows.
• Do not attempt to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fi re department.
C. Use only your hand to push in, or turn the gas control knob. Never use tools. If the knob will
not push in or turn by hand, don't try to repair it. Call a qualifi ed service technician. Force or
attempted repair may result in a fi re or explosion.
D. Do not use this appliance if any part of it has been under water. Immediately call a qualifi ed
service technician to inspect the appliance and to replace any part of the control system and
any gas control that has been under water.
LIGHTING PILOT FOR THE FIRST TIME
INITIAL LIGHTING
Purge air from the supply line as follows:
• Open main shutoff valve.
• Unscrew main pressure test point.
• Leave inlet test screw open until gas comes in.
• When gas is fl owing, tighten inlet screw immediately.
LEAK TESTING
1. Follow the pipe from the gas supply line connection to the gas valve. Check connection for
leaks with soap and water mixture.
2. Next check for gas leaks at the burner with soap and water mixture.
Never use an open fl ame to
check for gas leak.
WARNING
3. Check the pilot for gas leaks with soap and water mixture.
20306742
27
Page 28
KHLDV Series Gas Fireplace
T
MILLIVOLT: OPERATING INSTRUCTIONS
LIGHTING PILOT FOR THE FIRST TIME
APPROVED LEAK TESTING METHOD
You may check for gas leaks with the following methods only:
• Soap and water solution
• An approved leak testing spray
• Electronic sniffer
NOTE: Remove any excessive pipe
compound from the connections.
Excessive pipe compound can set off
electronic sniffers.
If using a soap and water
Never check for gas leak with
open fl ame!
DANGER
solution to test for leaks,
DO NOT spray solution onto
control body.
WARNING
Check for gas leaks in each of the following locations:
• Pipe from the gas supply line connection to the gas valve
• Burner connections • Field made joints / gas shutoff valve
• Pilot • Factory made joints
• Each joint or connection • All joints on valve and control body
LIGHTING PILOT
The control has an interlock device that does not allow the lighting of the fi replace
up to the moment the safety device of the fl ame has not interrupted the gas fl ow.
After that period of time (when the magnet is closed), it is possible to start the
lighting operation.
The gas control knob is designed to be operated by hand. DO NOT use any tools
WARNING
during this operation. Damaged knobs may result in serious injury.
1. Depress and turn knob counterclockwise
to pilot position.
2. Depress fully and hold pilot gas knob. Depress
O
N
piezo igniter as many times as needed to ignite pilot.
Keep knob fully depressed for a few seconds.
Release and check that pilot continues to burn.
If the pilot does not stay lit, repeat steps 1 and 2.
Pilot Position
T
O
L
I
P
F
F
O
PILO
Continued on next page
28
20306742
Page 29
MILLIVOLT: OPERATING INSTRUCTIONS
LIGHTING BURNER
MAIN BURNER SWITCH
The “ON/OFF/RS” switch for the main burner can be found behind door of
the fi replace. This switch allows you to turn on and to turn off the main burner
without using the gas valve knob. Make sure the button is in the “ON” position
to light the main burner.
LIGHTING THE BURNER
Depress and turn the knob counterclockwise to the “ON” position. It
will take less than four (4) seconds for the burner to ignite.
PILOT POSITION
KHLDV Series Gas Fireplace
ON
OFF
RS
On/Off/RS Switch
Depress and turn knob to pilot position to keep burner off while maintaining
the pilot light.
O
N
T
O
L
I
P
F
F
O
Pilot Position
PILOT
TO TURN OFF GAS
Depress and turn knob clockwise
to “OFF” position.
I
L
P
O
T
F
F
O
PILOT
O
N
On Position
N
O
O
F
F
P
I
L
T
O
PILOT
20306742
Off Position
29
Page 30
KHLDV Series Gas Fireplace
SIGNATURE COMMAND: CHECK GAS PRESSURE and ELECTRICAL INSTALLATION
CHECK GAS PRESSURE
1. Check gas type. The gas supply must be the same as
stated on the appliance’s rating decal. If the gas supply
is different from the fi replace, STOP! Do not install the
appliance. Contact your dealer immediately.
2. To ease installation, a 24" (610 mm) fl ex line with manual
shut-off valve has been provided with on this appliance.
Install and attach 1/2" gas line onto shut-off valve.
3. After completing gas line connection, purge air from
gas line and test all gas joints from the gas meter to the
fi replace for leaks. Use a solution of 50/50 water and
soap solution or a gas sniffer.
4. To check gas pressures at valve, turn captured screw
counter clockwise 2 or 3 turns and then place tubing
to pressure gauge over test point. Turn unit to high.
Figure 38. After taking pressure reading, be sure and
turn captured screw clockwise fi rmly to reseal. Do not
over torque. Check test points for gas leaks.
Pressure Inlet
ELECTRICAL WIRING
General
1. This fi replace is equipped with the Signature Control
valve which operates on 6 volts. The AC adapter plugs
into the fi replace junction box A/C power supply. Four
(4) “AA” batteries are used for back up during power
outages.
2. The Signature Command System can also be operated
without A/C power. The system can run on four (4) “AA”
batteries for approximately six (6) months under normal
use.
3. A/C power must be used to power the A/C module,
blowers, lights and AUX accessories used with this
fi replace.
Optional Accessory Requirements
1. This fi replace may be used with a wall switch and/or
Signature Command wireless controls.
2. The command center control may be mounted on the
wall with the use of the SCSWEK 15ft. wall mount
extension kit.
Pressure Outlet
Figure 38 Signature Command Valve
Do not use open fl ame to check for gas
leaks.
WARNING
FP1909a
Pilot Adjustment Screw
Electrical connections should only
be performed by a qualified, licensed
electrician. Main power must be off when
connecting to main electrical power supply
or performing service. All wiring shall be
in compliance with all local, city and state
codes. The appliance, when installed, must
be electrically grounded in accordance with
WARNING
local codes or in the absence of local codes,
with the National Electrical Code ANSI/NFP A
70 (latest edition) and Canadian Electrical
Code, CSA C22.1.
Label all wires before disconnecting when
servicing controls. Wiring errors can cause
improper and dangerous operation.
CAUTION
30
20306742
Page 31
ELECTRICAL INSTALLATION
KHLDV Series Gas Fireplace
JUNCTION BOX WIRING
1. This should be done before framing the fi replace. Wire
the receptacle into an electrical circuit. Wire with minimum 60° C wire in accordance with prevailing codes.
2. Remove the external junction box cover by removing
the screw from the side of the outside fi rebox wall.
Junction box was installed at the factory.
3. The junction box cover has a factory installed “romex”
style strain relief connector. After connecting the wires,
route the wire leads through this connector. Refer to
the wiring diagram in Figure 39.
120V AC
60Hz
Factory Supplied
Not Supplied
Junction Box
Figure 39 Junction Box Wiring Diagram
WALL SWITCH INSTALLATION
The wall switch wire connection is located off the 2 ft. wire
harness from the control box to the command center. Fig-
ure 40. The connection is labeled “Wall Switch”. Unplug
the male and female connectors and connect the two (2)
low voltage wires provided. Run wire to desired location on
wall. Up to 50 ft. of 18 ga. wire may be used if necessary.
Attach wires to wall switch. Mount the wall switch in to
junction box and screw on cover.
Do not connect wall switch to 110 V circuit.
WARNING
COMMAND CENTER WALL INSTALLATION
The command center may be mounted on the wall with
the use of the SCSWEK Kit (15ft. cable, junction box, wall
cover).
Mount the junction box provided at the desired location
on the wall. Do not extend beyond the 15 ft. wire cable
provided. If a longer distance is required, the 15 ft. may be
extended up to 30 ft. maximum by using two (2) SCSWEK
cables plugged together.
Route the wire from junction box to lower control area at
bottom of fi replace. Unplug the 12" cable from the com-
mand center. Attach the connector to the pins from wire
by pushing in to connector making sure to follow the color
code on connector. Plug the 15 ft. extension cable into the
2 ft. cable. Remove command center from the fi replace
and plug the other end of the extension cable into the
command center. Snap on wall cover provided and screw
to junction box.
20306742
31
Page 32
KHLDV Series Gas Fireplace
Light
300 Watt
Max
Optional Blower
300 Watt
Max
To Outlet
Rear Burner Solenoid
300 Watt Max
ELECTRICAL INSTALLATION
A/C Module
Pilot
A/C Module
NOTE: Wall switch wires must
be connected together if a wall
switch is not being used.
Control Board
Conversion
NG/LP
Ground
Plug-in Connector
Stepper Motor to
Control Board
DC Power/Green
RF Receiver
ON/OFF Button
Black / Thermopile
Red / Thermopile
Sensor
Ignitor / Sparker
Plug-in Connector
Control Board to Command Center
OFF/LO
LED
ON/HI
Master Switch
Command Center
Optional
Wall Switch
Plug-in Connector
Control Board to
Solenoid
Gas Out
Gas In
Figure 40 Signature Command Wiring Diagram
Valve
Pilot Gas Tubing
Electrical connections should only be performed by a qualifi ed, licensed electrician. Main
power supply must be turned off before connecting fans to the main electrical power supply
or performing service.
CAUTION
32
20306742
Page 33
SIGNATURE COMMAND: OPTIONAL FAN BLOWER SYSTEM
KHLDV Series Gas Fireplace
Electrical Grounding Instructions: This
appliance is equipped with a three-prong
(grounding) plug for your protection against
shock hazard and should be plugged directly
into a properly grounded three-prong
WARNING
receptacle.
The black and white wires on the AC box
wiring harness are marked ‘Blower’, ‘Light’
and ‘Aux’. It is important to use the wires
marked ‘Blower’ or the control will not work
NOTE
correctly.
To Junction Box
In Fireplace
BLACK
Light
WHITE
Optional
AUX
{
{
WHITE
BLACK
BLACK
WHITE
BLOTKHLSC SIGNATURE COMMAND
BLOWER
The BLOTKHLSC Blower Kit requires the SCSACM A/C
Module and the TSFRSC remote to install and operate
this kit. Refer to blower instructions for installation and remote instructions for operation.
Electrical connections should only be
performed by a qualifi ed licensed electrician.
Main power supply must be turned off before
connecting the fan to the main electrical
power supply or performing service.
WARNING
AC Module
GREEN
Connector
Pin To Contro l Box
Blower (300w Max)
Figure 41 BLOTKHLSC Blower Wiring Diagram
Control Box
FP2705
20306742
33
Page 34
KHLDV Series Gas Fireplace
SIGNATURE COMMAND: OPERATING INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE LIGHTING
If you do not follow these instructions
exactly, a fi re or explosion may result
causing property damage, personal
injury or loss of life.
WARNING
A. This appliance is equipped with an ignition device which automatically lights the pilot. Refer
to the instructions.
B. BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to
the fl oor because some gas is heavier than air and will settle on the fl oor.
WHAT TO DO IF YOU SMELL GAS:
• Do not attempt to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fi re department.
C. Use only your fi nger to push in the master switch. Never use tools. If the switch will not function
by hand, do not try to repair it. Call a qualifi ed service technician. Force or attempted repair
may result in a fi re or explosion.
D. Do not use this appliance if any part of it has been under water. Immediately call a qualifi ed
service technician to inspect the appliance and to replace any part of the control system and
any gas control that has been under water.
34
20306742
Page 35
SIGNATURE COMMAND: OPERATING INSTRUCTIONS
KHLDV Series Gas Fireplace
OPERATING INSTRUCTIONS
1. STOP! Read the safety information above.
2. This appliance is equipped with an ignition device which automatically lights the burner. Do not try
to light the burner by hand.
3. With fi ve (5) minutes to clear out any gas. Then smell for gas, including near the fl oor. If you smell
gas, STOP! Follow "B" in the safety information on Page 34. If you do not smell gas, go to next
step.
4. Press the master switch to the "ON" (-) position. Within eight (8) seconds it will beep once. This
indicates the system is ready.
5. Press "ON " button. Sparker will spark and pilot fl ame will light.
6. Once pilot fl ame is established, the main burner fl ame will light automatically.
7. If the pilot will not stay lit after several tries, turn the master switch to "OFF" and call your service
technician or gas supplier.
Master
Switch
ON
OFF
OFF
ON
Command Center
TO TURN OFF GAS TO APPLIANCE
1. Turn master switch to "OFF".
2. Turn off all electrical power to the appliance if service is to be performed.
20306742
35
Page 36
KHLDV Series Gas Fireplace
SIGNATURE COMMAND SYSTEM OPERATION INSTRUCTIONS
FEATURES
Command Center
• Easy Access Function Operation and System Confi g-
uration
• Operation Confi rmation/Fault Diagnostic Indications
(LED/Buzzer)
• ON/OFF/HI/Med/Low Operation
• Optional Wall Mounting
Control Board
• Electronic Ignition
• Pilot Lockout safety feature
• Electric Power Regeneration from Thermopile to save
battery
• 6-hour Automatic Shut Down Option
• Convenient NG/LP Gas Type Conversion
• Standing Pilot/Intermittent pilot Conversion
• Previous settings Restoration Ability (Memory Off)
• Uninterrupted Operation During Power Outage (Auto-
matic Battery Backup)
• ON/OFF RF Remote Receiver
• Optional Transmitter Learn Capability
AC Module Board (Requires TSFRSC Remote)
RF Receiver
ON/OFF
NG/LP
Conversion
Control
Board
ON
LED
OFF
Battery Door
Figure 42 Signature Command System Components
Master Switch
To Thermopile
To Sensor
To Sparker
To Command Center
To Stepper Motor
To Valve
AC Module
Command
Center
• Easy Snap-on Design
• Embedded Compact 120 VAC Adapter with Auto Bat-
tery Back up Feature
• Remote Controlled 3-step Blower, Lighting, and On/
Off Auxiliary AC Outputs
Transmitter (Optional) TSFRSC
Three Flame Height Settings X
Low battery Indication for Transmitter X
Child Proof Lock-out X
LCD Backlight X
Security Codes 16 X
Countdown 6 hr Timer X
Standard Thermostatic Control Mode X
Smart Mode® Thermostat,
(Auto Flame & Blower Modulation) X
Three Brightness Settings for Lights X
Three Speed Control for Blower X
On/Off AUX Rear Burner X
Programmable Timer to turn blower on and off X
2. Install the batteries as indicated on Command Center.
3. Close battery door by snapping in place.
4. When the four (4) batteries are installed the system will
operate without power.
5. The batteries should be replaced when the LED indicates low battery or at least once a year.
SYSTEM CONFIGURATION/SETUP
All System confi guration/setup is done on the Command
Center.
NOTE: When using On/Off wall switch, the switch must be
in the ON position to perform all confi guration set ups at
the command center.
COLD CLIMATE OPTION
Choose the Mode That Best Suits Your Needs
The Signature Command System is designed to operate
in either Standing Pilot or Intermittent Pilot mode.
• The Standing Pilot Mode is best for colder climates
BATTERY INSTALLATION
The Command Center uses four (4) "AA" batteries as
back up for power outages. The system can operate for
approximately six (6) months on battery power.
To Install Batteries (not included):
1. Press down the battery door tabs and pull out to remove
battery door.
when the pilot must remain on continuously to prevent
condensation and ensure reliable operation.
• The Intermittent Pilot Mode is ideal for maximum effi -
ciency, igniting the pilot only when needed to start your
fi replace, lowering fuel consumption and reducing your
carbon footprint.
36
20306742
Page 37
SIGNATURE COMMAND SYSTEM OPERATION INSTRUCTIONS
KHLDV Series Gas Fireplace
Either mode benefi ts from the instantaneous battery back-
up, so you never have to worry about a power outage.
NOTE: The Signature Command System comes standard
in the Intermittent Pilot mode, so you must follow the instructions below to switch to Standing Pilot Mode if needed.
Intermittent/Standing Pilot Setup (Default intermittent)
1. Holding the ON button on the Command Center while
turning on the master switch will toggle between standing pilot and intermittent pilot.
2. After the above operation, one beep (for standing pilot) or two beeps (for intermittent pilot) will be given as
confi rmation.
Six-hour Safety Shutdown Option (Default ON)
1. The system comes preset from the factory with a six
(6) hour shutdown from its last command of operation.
This is done to prevent the fi replace from continuing to
operate if unattended. You may disable this feature if
you wish.
NOTE: By disabling this feature, your fi replace may con-
tinue to operate unattended.
2. When the master switch is in the ON position (“-”),
pressing the ON button and the OFF button on the
Command Center simultaneously will toggle between
enabling and disabling the six-hour shutdown option.
3. After the above operation, one beep (for enabling the
six-hour shutdown option) or two beeps (for disabling the
six-hour shutdown option) will be given as confi rmation.
Remote Transmitter Learn Function (Default OFF)
1. The RF receiver button located on the Control Board
must be in the on position before the learn function can
begin. Use paper clip to depress button. One beep for
RF receiver ON or two beeps for RF receiver OFF will
be given as confi rmation. Refer to Figure 42 for location.
2. After the RF receiver is on, holding the OFF button on
the Command Center while turning on the master switch
will activate the learn function for the transmitter.
3. After the above operation, two beeps will be given and
the green LED on the Command Center will fl ash for
10 seconds.
4. During the 10 seconds, press the OFF button on a
transmitter to learn. Another two beeps will be given
to confi rm a successful learning. Refer to transmitter
instructions for remote operations.
Shutting Off the Standing Pilot (Temporary Shut Off)
To shut off the standing pilot for service or summer shut
down, press and hold the ON button on the Command
Center for 3 seconds when the master switch is in the ON
position (“-”) and the main burner is off.
Note: Pilot will resume the next time system is turned on.
KEY COMBINATIONS FOR SYSTEM
SETTINGS
NOTE: When On/Off wall switch is used, it must be in the
On position to perform all system setups.
Function Operation Default Setting
Intermittent/Standing
Pilot Setup
Standing Pilot Temp.
Shutoff
RF Remote Receiver
On/Off
Learn Remote Transmitter
6-hour safety shutdown setup
Hold the ON button while turning on the master switch (Beep once for
standing pilot, twice for intermittent pilot)
Hold the ON button 3 seconds (when the master switch on the main
burner is off)
Push the RF receiver On/Off button on the control board. (Beep once for
ON and beep twice for OFF.)
Hold the OFF button while turning on the master switch (Beep twice
then press any handheld remote button)
Press the ON button and OFF button simultaneously (Beep once
for ON, twice for OFF)
Intermittent Pilot
RF OFF
ON
20306742
37
Page 38
KHLDV Series Gas Fireplace
SIGNATURE COMMAND SYSTEM OPERATION INSTRUCTIONS
FUNCTIONS/OPERATION (with Command
Center)
Turning on the fi replace
1. Turn on the master switch and wait for a beep.
2. Press the ON button on the Command Center or turn
on wall switch. Pilot will light and burner will come on
High setting or last memory setting (See Turning Off
Fireplace below). For memory feature.
Pilot Safety Lockout Function
1. If the pilot doesn’t light after sparking for 30 seconds,
pilot trial lockout happens. The LED on the Command
Center fl ashes Green once every 2 seconds, until reset.
2. If the pilot fl ame is lost during normal operation, the
system will try three (3) times to relight after three (3)
failures, fl ame loss lockout happens. The LED on the
Command Center fl ashes Red-Green once every 2
seconds, until reset.
3. Turning the master switch on the Command Center to
the off position, then ON again will reset the system.
Flame Height Control
1. Press the ON button (on the Command Center) once
to turn on the main burner with maximum fl ame height.
2. Press the OFF button to decrease fl ame height. The fi rst
two presses will decrease the fl ame height to medium
and low.
3. The third press on OFF will turn off the main burner. In
standing pilot confi guration, the pilot will stay; in inter-
mittent pilot confi guration, the pilot will be shut off.
Turning the Fireplace Off
There are three ways to turn the fi replace off.
1. Flip the master switch to the off (“O”) position. (This will
turn the entire system OFF.)
2. Press the OFF button to Medium, Low, then Off.
3. Hold the OFF button anytime for three seconds or by
turning off the wall switch. These two commands of
OFF are (Memory Off) the system will remember all last
settings before turning off. The next time the fi replace is
turned on, all settings will resume. To reset, change to
the desired settings and shut off by using the Memory
Off commands and the system will be reset to those
new settings.
COMMAND CENTER OPERATIONS:
The following functions are available on the Command
Center.
Function Operation
Power Up Flip the master switch to the ON ("_") position to power up the system
Fireplace ON
Fireplace OFF
Flame Height Up
Flame Height Down
Press the ON button on the Command Center or turn on wall switch to turn the fi replace on
Flip the master switch to the OFF ("o") position OR press the OFF button 3 times OR for Mem-
ory Off, hold the OFF button 3 seconds, or turn off wall switch
Press the ON button once to turn on the fi replace with maximum fl ame height
Press the OFF button to lower the fl ame height to Medium and Low
SELF DIAGNOSTICS CHART:
The Command Center has a self-diagnostic LED enabling you to troubleshoot problems and potentially
avoid a service call. Please refer to the charts below for
indicator reference.
Fault LED Indication
Conversion Cover Missing One RED (1 time)
Spark Fail Two RED (1 time)
No Sensor Signal Three RED (1 time)
Pilot Lockout - trial One GREEN, every 2 seconds (until manual reset)
Pilot Lockout - fl ame loss One RED-GREEN, every 2 seconds (until manual reset)
Low Battery One RED, every 10s (continuously)
No or Low Thermopile Power Two RED, every 10s (continuously)
Learning GREEN Flashes, every 1 sec. (for 10 seconds)
AC Power On GREEN solid
Pressure Switch Failed (Power Vent only) One RED every 2 sec. (until manual reset)
38
20306742
Page 39
TOUCH SCREEN REMOTE CONTROL OPERATION
Due to the sensitive temperature monitoring
components in the transmitter, it is necessary
to allow the transmitter to stabilize to room
temperature before accurate room temperatures are displayed. If the transmitter is acti-
NOTE
vated from a severe cold condition, allow 15
minutes for accurate temperature readings to
appear on the LCD display.
Turn appliance OFF (at the Master Switch) if
you are away from your house
for an extended
period of time. Never leave anything on top of
the surface of the transmitter.
WARNING
Information
Bar
Touch Area
Logo
Bar
KHLDV Series Gas Fireplace
Menus
Adjustment
Controls
FUNCTION AREAS OF THE LCD DISPLAY
Figure 43 shows the display of the TSFRSC LCD.
Information Bar
The information bar shows the room temperature, the
“sending signal” radio icon, the low battery indication icon,
the child-proof icon, and the fl ame icon. This area doesn’t
have touch buttons.
• The room temperature will always be shown after
power-up. It displays the room temperature from 40
°F to 99 °F. “Lo” and “HI” will be displayed when the
room temperature is lower than 40°F or higher than
99°F, respectively.
• The radio icon will be shown when the transmitter is
sending a signal.
• The low battery indication icon will be shown when
the battery voltage is low.
• The child-proof icon will be shown when the child-
proof mode is activated.
• The fl ame icon indicates the current fl ame height -
Off, Low, Medium and High
T ouch Area
The touch area contains all touch buttons to control the
transmitter. It consists of two categories: menus and adjustment arrows. The blue LED backlight lights up for 8
seconds when any of the touch buttons is pressed.
• The menus include TIMER, THERMO, LIGHT, FAN
and AUX (Rear Burner Control).
• The adjustment arrows include ON/up and OFF/
down. Their default function is to adjust the fl ame
height. When a button from the menu is pressed,
the ON/up and OFF/down buttons will temporarily
become adjustment controls for the selected item.
When the adjustment is done, the ON/up and OFF/
down buttons go back to fl ame height controller
again.
Function Areas of the LCD Display
Logo Bar
Figure 43
The Logo Bar contains the brand logo: Signature Command System.
INITIALIZATION AND SET UP
Installing Batteries:
Figure 4
The remote transmitter has
two battery compartments,
one on each end of the trans-
mitter. Always change all
four (4) batteries at the
Battery Door
Tabs
same time.
To install batteries,
1. Press down the battery
door tab and pull out to remove the battery door.
2. Install the batteries as in-
Figure 44
dicated inside the battery
compartments.
3. Close the battery door by snapping in place.
4. When all four batteries are installed, the transmitter
will initialize for 5 seconds and then is ready for use.
5. The batteries should be replaced every 12 months or
when the low battery icon indicator is displayed.
Changing Temperature Unit
When batteries are installed in the transmitter,
1. All available icons on the LCD will be turned on then
be cleared.
2. The LCD will display temperature unit: °F. Use ON ∆
to toggle the units between °F and °C within the fi rst 5
seconds.
3. The transmitter enters Manual Mode
4. The LCD displays room temperature with the chosen
unit.
20306742
39
Page 40
KHLDV Series Gas Fireplace
TOUCH SCREEN REMOTE CONTROL OPERATION
Setting Privacy Code on Transmitter:
Figure 45
The remote transmitter privacy code is preset in factory.
In the event of activation or interference from other nearby transmissions, change the code using the following
procedures (learn function must be
performed after changing the code):
1. Press the ON/arrow button and
the TIMER button at the same
time to enter privacy code setup
mode.
2. The setup display is shown in the
fi gure. The four digits on the top
stand for the privacy code (as the
actual DIP switches on Ambient’s
previous remotes). The default
values of the four digits will be all
“1” (ON).
Figure 45
3. The fi rst digit will be fl ashing upon entering the setup
mode. Push the ON button to toggle its value between
“0” (OFF) and “1”(ON), and push the “OFF” button
to jump to the next digit. The next digit will then start
fl ashing and the fi rst one stops fl ashing. Set up the
four digits to your choice.
4. After setting up all the four digits, push “OFF” to fi nish
the process and return to the previous mode.
5. The Signature Command control board then needs to
re-learn the new setting.
Performing Learn Function
1. The RF receiver button on the control board in the fi re-
place must be in the on position before the learn func-
tion can begin. Figure 46. With the Command Center
master switch in the
ON position, use paper
clip to depress the re-
RF Receiver
ON/OFF
cessed button on Control Board, one beep for
RF receiver ON or two
beeps for RF receiver
OFF
2. Holding the OFF button
on the Command Center while turning on the
master switch will activate the learn function
for the transmitter.
Control Board
Figure 46
3. After the above operation, two beeps will be given and the green LED on the
Command Center will fl ash for 10 seconds.
4. During the 10 seconds, press the OFF button on the
transmitter to learn. Another two beeps will be given to
confi rm a successful learning. Figure 47
ON
LED
OFF
Battery Door
Command Center
Figure 47
Master Switch
FP2650
Front Panel Bezel
Optional
Do not use two (2) or more remote control systems in the same area with the same privacy
code setting, as they will communicate with
each other. This may cause the appliances to
malfunction.
WARNING
Resetting the transmitter:
If the transmitter is not working properly, reinstall the batteries to reset the transmitter.
1. Pull out at least one of the batteries.
2. Press any key on the screen to discharge.
3. Wait for 10 seconds and reinstall the batteries.
Pushing and holding any key for more than 10 seconds
until the display refreshes will also reset the transmitter.
FUNCTIONS AND OPERATIONS
General:
The TSFRSC Remote Control has four (4) operating
modes: Manual, Timer, Thermostatic and Smart Mode
®
Thermostat. The control system can be set to temperature range between 45° F and 90° F. The blower speed
and fl ame height can be adjusted in the manual, timer
and thermostatic mode. The Smart Mode® thermostat
will automatically adjust fl ame height and blower speed
according to the difference between Set and Room temperatures.
The transmitter will operate the remote receiver from 1
foot to a maximum of 30 feet. The distance is reduced
when batteries are low.
Manual Mode
Figure 48
In this mode, the TIMER button and the THERMO button will only display “TIMER” and “THERMO”, respectively without showing the time and the SET temperature.
Pressing the ON/up and OFF/down buttons will change
40
20306742
Page 41
TOUCH SCREEN REMOTE CONTROL OPERATION
KHLDV Series Gas Fireplace
the fl ame height if none of the menu buttons (TIMER,
THERMO, LIGHT, FAN, AUX) are
pressed and fl ashing.
1. Press the ON/up button to turn
on the fi replace. The fl ame icon
on the LCD displays High.
2. Press the OFF/down button to
decrease the fl ame height and
turn off the fi replace. When the
OFF/down button is pressed
for three times, the fl ame icon
changes form High to Medium,
to Low, then to Off.
3. If the OFF button is held for
more than 3 seconds at any
fl ame height, the fi replace will
Figure 48
be turned off and the fl ame icon disappears.
4. Sliding up and down on the arrow buttons can also
turn on or turn off the fi replace.
5. If the fi replace is shut off using the above methods in 3
and 4, all the settings will be remembered and will be resumed
next time the fi replace is turned
on (Memory Off).
Timer Mode
Figure 49
Press the TIMER button to enter
timer mode. The fi replace will stay
on for a period of time as specifi ed
by the timer and then be shut off
by the transmitter when the timer
counts down to zero.
1. When the TIMER button is
pressed, the Set Time appears
in the frame of the button and
Figure 49
fl ashes.
2. Use ON/up and OFF/down to increase or decrease the
Set Time in 15 min. increments, between 0:00 to 6:00.
Sliding up and down on the arrow buttons will increase
or decrease the Set Time in 1 hour increments.
3. Push the TIMER button again to confi rm the Set Time,
the transmitter sends an ON signal to turn on the fi re-
place.
4. The fl ashing stops and the ON/up and OFF/down but-
tons become fl ame height controller again. The fl ame
height will then stay as set up by the ON/up and OFF/
down buttons.
5. The TIMER button can be used when the transmitter
is in Manual Mode or in Thermostat Mode. In both
modes, the fi replace will be shut down completely
when the timer counts down to zero.
6. To exit Timer Mode,
a. Push and hold the TIMER button for 3 seconds Or
b. Use the OFF/down buttons
to decrease the Set Time to
zero Or
c. Slide down on the arrow but-
tons to exit TIMER mode and
shut off the fi replace.
Thermostat Mode
Figure 50
Press the THERMO button to set
the transmitter in thermostat mode.
The transmitter will automatically turn on the fi replace when the
room temperature is below the set
temperature and turn off the appliance when the room temperature
Figure 50
is above the set temperature within one degree.
1. When the THERMO button is pressed, the Set temperature appears in the frame of the button and fl ash-
es.
2. Use ON/up and OFF/down to increase or decrease
the Set temperature in 1 degree increments, between
45 degrees and 90 degrees. Slide up and down on the
arrow buttons will increase or decrease the Set Temperature in 10 degrees increments.
3. Press the THERMO button again to confi rm the Set
Temperature. The transmitter will send out an On
signal or an Off signal depending on the relationship
between the Set temperature and the Room temperature.
4. The fl ashing stops and the ON/up and OFF/down but-
tons become fl ame height controller again. The fl ame
height will then stay as set up by the ON/up and OFF/
down buttons.
5. To exit Thermostat Mode:
a. push and hold the THERMO buttons for 3 sec-
onds or
b. slide down on the arrow buttons to exit Thermo-
stat mode and shut off the fi replace.
Smart Mode® Thermostat
Option for Thermostat
Mode
Figure 51
Press and hold the THER-
Smart
Mode
Icon
MO button and the ON/
UP button at the same
time for 3 seconds to toggle between Smart Mode®
thermostat and the regular Thermostat Mode. The
icon “Smart Mode” will appear under the Set Temperature. The transmitter
Figure 51
20306742
41
Page 42
KHLDV Series Gas Fireplace
TOUCH SCREEN REMOTE CONTROL OPERATION
will automatically adjust the fl ame height according to the
difference between the Set temperature and the Room
temperature. There is no manual fl ame height adjustment.
The fan speed will also automatically adjust if turned on.
®
NOTE: When entering the Smart Mode
thermostat function there will be a 10 second delay for the fl ame and
blower adjustment. When Smart Mode® thermostat operates automatically there can be up to a 3 minute delay
for fl ame/blower adjustment. Smart Mode® thermostat
checks temperatures every 3 minutes. Also see AUX
Control.
1. When Set Temp. is 3° F or higher than Room Temp.,
fl ame height will be on High.
2. When Set Temp. is 2° F higher than Room Temp.,
fl ame height will be on Medium.
3. When Set Temp. is 1° F higher than Room Temp.,
fl ame height will be on Low.
4. When Set Temp. is equal to Room Temp., fl ame height
does not change (stays on low).
5. When Set Temp. is lower than Room Temp., the fi re-
place will be shut off.
6. When Set Temp. is 1° F higher than Room Temp.,
again the fl ame height will be on Low.
7. the fan speed follows the fl ame height, if the fan is
turned on.
To exit Smart Mode® thermostat and shut off the fi replace;
a. push and hold the THERMO buttons for 3 sec-
onds, Or
b. press the OFF button, Or
c. slide down on the arrow buttons.
To shut off the Smart Mode® thermostat option and return
to regular thermostat mode, press and hold the THERMO
button and the ON/UP button at the same time for 3 seconds again.
Blower Speed Control
Figure 52
NOTE: Blower will only work with fl ame on.
The blower speed control function
is used to adjust the speed of the
blower connected to the Signature
Command System. There are four
speed levels, Off, Low, Medium,
High.
1. Press the FAN button to enter
the blower speed control mode.
The fan icon will start fl ashing.
2. Press the ON/up and OFF/down
button to increase/decrease the
blower speed.
3. Press the fan button again to
confi rm the speed setting. If the
Figure 52
fi replace is on, the blower speed will take effect right
away; if the fi replace is off, the receiver will remember
this setting and the blower is still off (see blower On
Delay and Off Delay in the next section).
4. After the signal is sent, the ON/up and OFF/down buttons become fl ame height controller again.
5. When the fan button is fl ashing, slide up and down on
the arrow buttons will turn the blower speed to High
or Off directly without pressing the fan button again to
confi rm.
6. If the blower is turned on using the FAN button, the
blower speed will adjust automatically when using
Smart Mode (See Smart Mode section).
Blower On Delay Time and Off Delay Time Setup
Figure 53
1. Hold the FAN button for 3 seconds until two numbers appear
on the LCD screen. The left
number is blower On Delay
and the right number is blower
Off Delay Time.
2. When the fi rst number is fl ash-
ing, use the ON/up button to
set the desired On Delay Time
from 0 to 15 min.
3. Press the OFF/down button
to jump to the Off Delay Time
setup.
4. When the second number is
Figure 53
fl ashing, use the ON/up button
again to set the desired Off Delay Time from 0 to 15
min.
5. Press the OFF/down button again to fi nish the setup
and the new settings will be transmitted to the receiver.
6. The default settings are 5 minutes for the On Delay
Time and 8 minutes for the Off Delay Time, as shown.
Light Brightness Control
Figure 54
The light brightness control function is used to adjust the brightness of the light bulbs connected
to the AC module on the Signature
Command System. There are four
light brightness levels defi ned:
Off, Low, Medium, High
1. Press the LIGHT button to enter the light brightness control
mode. The LIGHT icon will
start fl ashing.
2. Press the On/up and OFF/
down buttons to increase/
decrease the light brightness
(Off-Low-Medium-High).
Figure 54
42
20306742
Page 43
TOUCH SCREEN REMOTE CONTROL OPERATION
KHLDV Series Gas Fireplace
3. Press the light button again to confi rm the setting. The
new setting will be transmitted to the receiver.
4. After the signal is sent, the On/up and Off/down buttons become fl ame height controller again.
5. When the light button is fl ashing, slide up and down on
the arrow buttons will turn the light brightness
to HIGH or Off directly without pressing the
light button again to confi rm
AUX Control (Rear Burner On/Off Control)
The AUX control function is used to turn on or turn
off the rear burner connected to the AC module
of the Signature Command System. Press the
AUX button to turn on or turn off the rear burner.
1. When the rear burner is turned on, the icon will become solid text and the “ON” icon will appear below
the “AUX” icon.
2. When the rear burner is turned off, the icon will become hollow text and the “ON” icon will disappear.
NOTE: If Smart Mode is entered when rear burner is off,
the rear burner will be turned on automatically; when the
transmitter is in Smart Mode, AUX button will be disabled.
See Smart Mode
section for more information.
Setting up Blank
Screen or Constant Display in
Idle
Figure 55
There is an option to
set up how the LCD
displays and functions when the transmitter is in idle. There
are two choices:
1. A) Mode. When the transmitter is in idle, the icons in
the “touch area” (timer, thermostat, blower, light and
AUX) will disappear, as shown in the fi gure on the left.
When any of the touch buttons is pressed, those icons
will appear and are ready to operate (default).
2. B) Mode. The transmitter always displays all available
icons showing current status of timer, thermostat,
blower, light and AUX as shown in the fi gure on the
right.
Press TIMER and THERMO buttons at the same time for
3 seconds to toggle between A) and B).
1. When the current setting is A), touch any place in the
touch area to bring up the icons then press TIMER button and THERMO button at the same time for 3 seconds. The backlight will fl ash once to indicate that the
setting has changed to B).
Figure 55
2. When the current setting is B), pressing TIMER button
and THERMO button at the same time for 3 seconds
will switch to A) Mode. The touch area icons will disappear.
SAFETY FEATURES
1. Low Battery Detection
When low battery condition occurs, the transmitter will
turn off the fi replace.
A) Battery voltage is checked every one minute.
When the battery voltage is low, the LCD displays a low battery icon which will exist in all
modes.
B) The transmitter will not operate with low bat-
tery voltage. Change the batteries before the
batteries become too weak for normal operations.
2. Power On Initialization
After the power-on initialization, the transmitter sends
a signal to turn off the fi replace.
3. Thermal Shutdown
When the ambient temperature is more than 99°F, the
transmitter will turn off the fi replace.
A) The LCD will display “HI”.
B) The Transmitter will not function until
the room temperature has dropped below 99 degree Fahrenheit.
4. Low Temperature Condition
When the ambient temperature is less than 40 degrees
Fahrenheit, the LCD will display “LO”,
and NO SIGNAL will be sent to turn on
the appliance.
All functions still remain the same for
both Manual Mode and Thermostat
Mode
5. Child-proof Protection
The child-proof icon will be shown when
the child-proof mode is activated by
pressing the ON button and the OFF
button at the same time for three seconds.
A) Enter childproof mode by pressing and holding both
the ON button and the OFF button simultaneously for 3 seconds. The Childproof indicator will be
shown on the LCD.
B) Deactivate childproof mode by pressing and hold-
ing the ON button and the OFF button simultaneously for 3 seconds again. The Childproof indicator
disappears on the LCD.
C) The transmitter cannot be operated in childproof
mode.
20306742
43
Page 44
KHLDV Series Gas Fireplace
USING THE MOUNTING BASE
The transmitter comes with a mounting base which allows
you to hang the transmitter on the wall.
1. Secure the mounting base on the wall with supplied
screws. For best viewing angle, make it the same
height as your eyes.
2. Hang the transmitter on the hook of the mounting
base, then push down so the transmitter is fl ush to the
mounting base.
TOUCH SCREEN REMOTE CONTROL OPERATION
Figure 56
TROUBLESHOOTING
Symptom Causes Action
Battery icon on LCD on transmitter Low Battery Replace batteries. Change batter-
ies every 6 months.
LCD display is blank Low Battery Check battery installation or replace
batteries.
LCD display shows “funny” display Low Battery Reset the transmitter (see "Reset-
ting the Transmitter" setting)
Appliance does not come on The transmitter did not match with the
receiver.
Make sure the transmitter has
learned to the receiver.
Blower is not on after the fi replace
is turned on
Transmitter measures temperature
exceeding 99°F and shows "HI" on LCD.
Distance between the transmitter and
receiver is more than 30 feet.
Blower setting is off.
Blower delay setting is set too high.
Move transmitter to a cooler place
and wait until temperature drops
below 99°F.
Make sure the opening distance is
less than 30 feet.
Press FAN key to select fan speed
desired.
Press and hold FAN key to set
desired ON/OFF delays. This is
done in minutes.
44
20306742
Page 45
FINAL INSTALLATION
GLASS FRAME REMOVAL
KHLDV Series Gas Fireplace
NOTE: You must fi rst remove the safety barrier before you
remove the glass frame. To remove the barrier, simply lift up
and pull out until the tabs are clear of their corresponding
slots on the fi rebox. Then proceed to remove the glass
frame by:
1. Remove the plate located in front of the glass at the
bottom.
2. Remove rod provided for screen assembly located
beneath the cover plate.
3. Rotate the access doors on the right and left side of the
glass toward the glass.
4. Remove glass frame by releasing the three latches
located at the top of the fi rebox. Tilt glass away from the
unit, lift glass frame up and away from the unit. Figure
57
Each clamp has a quick spring force. When
reinstalling clamps, keep fi ngers clear.
CAUTION
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall
be installed for the protection of children and
other at risk individuals.
20306543
Safety Barrier
Glass Frame
Figure 57 Remove Safety Barrier and Glass Frame
20306742
45
Page 46
KHLDV Series Gas Fireplace FINAL INSTALLATION
BRICK, LIGHT BULB, AND LENS PLACEMENT— 400/500 SERIES
1. Remove the trapezoidal light shroud located at the back
of the fi rebox by unfastening the three screws.
2. Disassemble the trapezoidal light shroud by unfastening
the four screws which secure the front to the back. Set
lens with the orange painted surface toward the bottom.
Center the lens right to left. Reassemble the front to the
back and set the side.
3. Place the right side panel by sliding it at an angle to clear
the grate. Set the panel straight up and bring forward
until it comes in contact with the reverse bend located
at the front of the fi rebox. Use one of the brackets and
screws provided to secure the panel in place.
4. Place the rear lower panel by setting it over the channel
behind the light socket. Make sure the grout line aligns
with the one on the side.
5. NOTE: Have the left panel bracket and screw handy
before installing the rear upper panel in place. Place
the rear upper panel in place by resting it over the rear
lower panel and sliding it behind the right side panel.
While holding the rear upper panel in place, slide the
left panel at an angle to clear the grate. Set the left side
panel straight up and release the rear upper panel.
Secure the left side panel in place using the second
bracket and screw provided in the kit.
6. Place the front hearth brick simultaneously and pull
toward the front away from the burner. This is critical
for balancing air fl ow around the front burner.
7. Install the halogen light bulb provided with the unit
(inside the log set). Do not touch light bulb directly with
fi ngers.
8. Replace the trapezoidal light shroud removed in step #1
by sliding it over the light bulb and sockets. Be careful
not to damage the light bulb. Align the holes on the
defl ector with the hole on the rear channel and secure
in place.
BRICK, LIGHT BULB, AND LENS PLACEMENT— 600 SERIES
1. Remove safety barrier (if installed) by lifting up and out,
then remove glass frame from fi replace.
2. Remove the six (6) screws securing each light box and
remove from unit. Figure 59
3. The light bulbs are included in the log packaging. install
the light bulbs into bulb sockets as shown in Figure 59.
CAUTION: Fingerprints or the transfer of oil from hands
will reduce the lifespan of the bulbs. It is advisable to
handle the light bulbs with a clean cloth.
4. The light lenses are included in the log packaging.
Remove the lens retainer brackets and install the light
lenses into the light box covers as shown in Figure 60.
Bulb Socket
Light Bulb
Light Box
Cover
FP2767
Figure 59 Remove Light Box Cover
Lens
Junction Box
Figure 58 -
Blue
White
Blue
Light
Rheostat
Black
Connectors
Black
White
Light
Black
White
Light
FP2154
Light Wiring Diagram for Millivolt Unit - 400/500 Series
46
Lens Retainer
Bracket
Figure 60 Remove Lens Retainer Bracket
FP2768
Light Box Cover
20306742
Page 47
FINAL INSTALLATION
KHLDV Series Gas Fireplace
ROCK WOOL PLACEMENT —
400/500 SERIES
1. Place rock wool on the front burner to provide glowing
embers. For best results, pull the rock wool apart into
dime size pieces and place on top of burner. Also place
the same size ember over the carry over parts on the
rear burner. Do NOT place embers over open slots
on the rear burner.
2. Distribute one layer of rock wool to cover the burner.
Figure 61
3. Place the logs on the burner. Refer to Log Placement
below. Light unit and after 15 minutes, check burner
fl ame and glow. Refer to Burner Flame, Page 53.
ROCK WOOL PLACEMENT— 600 SERIES
Place rock wool evenly in dime-sized pieces over front
burner both in front and behind grate. For the rear burner,
place the rock wool only on the carry-over areas between
the fl ames. To better enable the gas to permeate the rock
wool, apply the rock wool in light, fl uffy pieces.
Figure 62 Rockwool Placement - 600 Series
FP2766
Figure 61 Rockwool placement - 400/500 Series
FP2155
Do not use the entire bag of rock wool to
cover the burner. This could cause the fl ame
to burn poorly and may lead to sooting.
WARNING
20306742
47
Page 48
KHLDV Series Gas Fireplace
LOG PLACEMENT— 400/500 SERIES
FINAL INSTALLATION
LG593
Burner Grate Assembly
1. Place the rear log over the grate toward the back by
positioning the holes over the large pins located at the
right and left. When the log is in place, the back surface
of the log will come in contact with the light trapezoid
defl ector.
Step 2
LG595
3. Place the left front log in place by setting it over the left
side of the rear log (match protrusion to indentation), the
hearth brick and over the left tong on the grate. Match
the notch at the bottom of the branch with the tong on
the grate.
Step 1
LG594
2. Place the log over the pilot by holding the log with the
wide end toward the back and the branch toward the
front and left. Set the log by having the protrusion on the
bottom of the log rest to the left side of the grate bar and
behind the pilot shield. Also set the notch located at the
bottom of the left branch over the second right tong on
the grate. Make sure that the log is positioned properly
so it is not rocking. NOTE: When the log is in place,
it should not touch the pilot but will be resting over
the pilot shield.
48
Step 3
LG596
4. Place the middle log over the two burners by setting the
fl at surface over the burner and matching the indentation located underneath the branch over the protrusion
located at V-branch on the left front log placed in step #3.
Rotate the right end of the log clockwise until it comes
in contact with the reverse bend on the bracket located
between the front and rear burner.
20306742
Page 49
FINAL INSTALLATION
KHLDV Series Gas Fireplace
Step 4
LG597
5. Place the upper left log at angle over the rear and the
middle logs by matching the indentation on the bottom
of the log with protrusion on the rear log. Set the pointed
end of the log over the fl at surface of the middle log.
When this log is in place the pointed end will come in
contact with the back of the pilot log placed in step #2.
Step 6
LG599
7. Place the upper right rear log over the rear log and the
right upper log by matching the indentations located at
the bottom with the protrusions on the rear log and the
right upper log.
Step 5
LG598
6. Place the right upper log over the pilot log and the hearth
brick by matching the indentation on the bottom of the
log with the protrusion on the pilot log.
20306742
Step 7
8. Replace glass in reverse order of instructions on Page
45.
9. Slide the rings of the screen provided inside the unit
above the grate over the rod. Make sure the screen
handles are toward the center.
10.Hook the rod screen assemblies over the three hooks
located behind the face in front of the glass. NOTE: The
opening of the hooks are toward the back.
49
Page 50
KHLDV Series Gas Fireplace FINAL INSTALLATION
Burner Grate Assembly
LOG PLACEMENT — 600 SERIES
1. Hold log #1 with the key to the top and to the right side
of center and the notches on the bottom. Place the log
with the notches over the side supports of the grate, in
front of the fl ame bracket on the left and with the small
notch in the lower, right front of the log resting on the
back of the right tine of the grate.
Step 1
Step 2
3. Hold log #3 with the hole for the pin toward the back left
corner. Position the log on the pin provided on the back
left corner of the grate. Place the right end of the log in
the notch provided on the back left corner of the grate.
Place the right end of the log in the notch provided on
the top of log #2. Insure the log is seated securely.
Step 3
2. Hold log #2 with the holes for the pin in the back and
notches toward the front on the bottom. Position the log
on the pin provided on the back right corner of the grate
fi xture while placing the notch on the key provided on
the right side of log #1.
50
4. Hold log #4 with the notch on the bottom and toward the
back of the unit. Place the left end of the log on the key
provided on the top of log #3. Rest the right end of the
log on the hearth brick just to the right end of log #1.
5. Hold log #5 with the fat end of the log to the left and the
detailed face of the log to the front. Place the notch on
the bottom right end of the log onto the key provided
on the top of lot #1, the left end of the log should rest
on the hearth brick just outside the right front corner of
the burner and grate. You may need to hold log #5 in
place until you place lot #6.
20306742
Page 51
FINAL INSTALLATION
KHLDV Series Gas Fireplace
Log #5
Log #4
Steps 4 and 5
6. Hold log #6 in your right hand with the charred detail to
the right and the notches on the bottom. Position the
log on top of the keys provided on the top of log #5 in
the front and log #3 in the back. NOTE: Log #6 will help
to hold log #5 in place.
7. Hold log #7 with the pointed end to the left and the
notch on the bottom. Place the pointed end of the log
on the hearth brick in front of the burner and under the
third time from the right. Rest the notch on the bottom
middle of the log on the bend of the second tine from
the right. Slightly rotate the log forward. The right end
of the log does not quite rest in the notch of log #1.
Log #6
Finished log set with andirons
Steps 6 and 7
20306742
Log #7
51
Page 52
KHLDV Series Gas Fireplace
CERTIFIED
SAFETY BARRIER
FINAL INSTALLATION
DANGER
HOT GLASS WILL
CAUSE BURNS.
SAFETY BARRIER INSTALLATION
INSTRUCTIONS
NOTE: A barrier designed to reduce the risk of burns
from the hot viewing glass is provided with this
appliance and shall be installed for the protection of
children and other at risk individuals. If the barrier
becomes damaged, the barrier shall be replaced with
the manufacturer's barrier for this appliance.* Any
safety screen, guard, or barrier removed for servicing
the appliance must be replaced prior to operating the
appliance.
* See parts list for model number.
1. Remove screen from packaging.
2. Align the four slots on the sides of the screen frame
(two top, two bottom) Figure 63 with the corresponding shoulder bolts on the fi rebox Figure 64.
3. Slide the screen down onto the shoulder bolts until it
fi ts securely in place.
NOTICE: It is the responsibility of the installer to ensure
the barrier is affi xed to the fi replace at the time of instal-
lation.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall
be installed for the protection of children and
other at risk individuals.
20306543
WARNING: The safety screen barrier
must be installed after the glass front is
in place. It is NOT a replacement for the
glass and the unit must NOT be operated without the glass in place.
Figure 63
52
Slots (Qty: 4.
Two per side)
Slot
Tabs
(two per side)
Figure 64
20306742
Page 53
CLEANING AND MAINTENANCE
KHLDV Series Gas Fireplace
Turn off gas before servicing fi replace. It
is recommended that a qualifi ed service
technician perform these check-ups at the
beginning of each heating season
WARNING
BURNER, PILOT AND CONTROL
COMPARTMENT
Keep the control compartment, logs, and burner areas
surrounding the logs clean by vacuuming or brushing at
least twice a year. Make sure the burner porting, pilot air
opening and burner air opening are free of obstructions
at all times.
PILOT FLAME
The fl ames from the pilot should be visually checked as
soon as the heater is installed and periodically during
normal operation. The pilot flame must always be
present when the fi replace is in operation. Figure 65.
The pilot fl ame has four distinct fl ames, one engulfi ng the
thermopile, one engulfi ng the thermocouple or sensor, and
the remaining reaching to the main burners.
Sensor
BURNER
Inspect area around the injector. Remove any lint or foreign
material with a brush or vacuum.
BURNER FLAME
The fl ames from the burner should be visually checked
as soon as the heater is installed and periodically during
normal operation. In normal operation, at full rate, and after
operating for about 15 to 30 minutes, the fl ame should be
yellow and slightly taller than the rear log. Figure 66
If the fl ame is blue and only in the center, turn off unit and
let cool. After unit is cool, remove logs and check to make
sure the back holes in the burner are not covered with rock
wool. If the back holes are clear, add more rock wool to the
center of the burner. Replace logs.
NOTE: The type of installation, vent system confi guration,
and wind effects may cause the fl ame patterns to vary.
Thermopile
Signature Command System Pilot
Thermocouple
Thermopile
Figure 66 Burner Flame Appearance
Figure 65 Pilot Flame
20306742
Millivolt Control Pilot
53
Page 54
KHLDV Series Gas Fireplace
CLEANING AND MAINTENANCE
VENTING SYSTEM
The fi replace and venting system should be inspected
before initial use and at least annually by a qualifi ed fi eld
service person. Inspect the external vent cap on a regular
basis to make sure that no debris is interfering with the
airfl ow. Inspect entire venting system to ensure proper
function.
GLASS DOOR
Thoroughly clean the inside of the glass door after using
the fi replace for ten hours. Periodically clean the glass
door as necessary.
When cleaning the glass, remember:
• Do not remove the glass when hot. Allow glass to
cool before removal.
• NEVER use abrasive materials.
• Keep children and pets a safe distance away.
• Never operate the fi replace without the glass door
properly secured.
• Never operate the fi replace if the glass is broken.
• Replace any glass that is chipped, cracked, or broken.
Replacement glass door assemblies MUST be supplied
by the fi replace manufacturer – No substitute materi-
als may be used.
• Handle glass door with care to avoid striking or scratch-
ing it on hard objects.
To clean glass door, follow “Glass Removal” procedure
outlined in the Final Installation section. Film deposit on the
inside of the glass should be cleaned off using a nontoxic,
non-corrosive, non-abrasive, mild-cleaning solution. Simply
apply an adequate amount to the glass and wipe off with
a damp cloth. After all maintenance has been completed,
re-install glass door.
LOGS
Leave logs installed in the fi replace for cleaning. Vacuum
surface of the logs with a brush attachment. If logs must
be removed for cleaning, handle carefully by holding gently
at each end. Gloves are recommended to prevent skin irritation from ceramic fi bers. If skin becomes irritated, wash
gently with soap and water. Vacuum surface of logs with
brush attachment or brush logs with a soft bristle brush (i.e.
clean, dry paintbrush). To place logs back in the fi replace,
see “Log Placement” found in the Final Installation section.
NOTE: Do not use fl uids to clean ceramic fi ber logs.
ROCK WOOL
Replace or add rock wool as required following installation
instructions in the Final Installation section of this manual.
54
20306742
Page 55
TROUBLESHOOTING
STANDING PILOT IGNITION
SYMPTOM POSSIBLE CAUSE ACTION
KHLDV Series Gas Fireplace
1. Spark ignitor will
not light pilot after
repeated triggering of
piezo.
2. Pilot will not stay lit
after carefully following lighting instructions.
3. Pilot burning, valve
knob turned to “ON,”
switch is turned
to “ON” or “RS,”
but burner will not
ignite.
A. Wire disconnected.
B. Defective ignitor.
C. No gas or low gas pres-
sure.
D. No Propane/LPG in tank
A. Defective thermocouple
B. Defective valve
A. Defective switch, wall
switch, remote control or
wire
B. Pilot fl ame too small
C. Defective or malfunction-
ing thermopile
D. Defective valve
A. Open door and check to make sure wire is connected to
ignitor.
B. Check for spark at electrode and pilot. If no spark and
electrode wire is properly connected, replace pilot
assembly.
C. Check remote/manual shut off valve from fi replace. Low
pressure can be caused by bent lines, restricted lines,
low pressure line pressure. Consult with plumber or gas
supplier.
D. Check Propane/LPG tank. Refi ll tank.
A. Check that thermocouple fl ame impinges on thermo-
couple. Clean and/or adjust pilot for maximum fl ame
impingement. Ensure that the thermocouple connection
at the gas valve is fully inserted and tight.
Disconnect the thermocouple from the valve, place one
millivolt lead wire on the tip of the thermocouple and the
other meter lead wire on the thermocouple copper lead.
Start the pilot and hold the valve knob in. If the millivolt
reading is less than 15 mV, replace pilot assembly.
B. If thermocouple is producing more than 15 mV, replace
faulty valve.
A. Check switch and wire for proper connection. Place
jumper wires across terminals of switch. If burner comes
on, replace defective switch.If the switch is OK, repeat
the same procedure on remote control If burner comes
on, replace remote control.
Place jumper wire across wire at gas valves (terminals
marked TH and TP/TH). If burner comes on, wires are
faulty or connections are bad. Replace wire.
B. If pilot fl ame is not close enough to the thermopile, adjust
pilot fl ame.
C. Check thermopile wire connections to make sure all
are tight and that the thermopile is fully inserted into
pilot assembly. Check thermopile with a millivolt meter.
Connect leads to TP and TP/TH terminals on the control
valve. If meter reading is below 325 mV, replace pilot
assembly.
D. Turn valve knob to “On” and switch to “ON.” Take a read-
ing at the thermopile leads (TP & TP/TH) on the valve.
If the meter reads greater than 175 mV and the burner
does not light, replace defective valve.
20306742
continued on next page
55
Page 56
KHLDV Series Gas Fireplace TROUBLESHOOTING
STANDING PILOT IGNITION CONTINUED
SYMPTOM POSSIBLE CAUSE ACTION
4. Frequent pilot
outage problem.
5. The pilot and main
burner extinguish
while in operation
6. Glass Soots
7. Flame burn blue
and lifts off burner
(ghosting)
A. Pilot fl ame may be too high
or too low, causing pilot
safety to drop out
A. Inner vent pipe leaking
exhaust gases back into
system
B. Horizontal vent improperly
pitched
C. Improper vent cap installa-
tion
A. Flame impingement on
logs
A. Insuffi cient oxygen being
supplied
A. Clean and adjust the pilot fl ame for maximum fl ame
impingement on thermocouple.
A. Check for fl ue product leak. Replace defective pipe
section.
B. Check horizontal-venting piping is running upward 1/4"
per foot. Do not run the pipe level or downward.
C. Check for proper installation and freedom from debris
or blockage.
A. Install log set per the instructions
Inspect the injector and air intake area. Make sure
this area does not have any blockage from debris and
clean.
Check gas supply.
A. Ensure that the vent cap is installed properly and free
of debris. Ensure that the vent system joints are tight
and have no leaks. Ensure that no debris has been
blocking the inner air intake at the bottom back of the
combustion chamber. Ensure that the glass is properly
secure and latch.
56
20306742
Page 57
TROUBLESHOOTING
SIGNATURE COMMAND SYSTEM
KHLDV Series Gas Fireplace
OPERATION
Install batteries and/or
plug in the AC board
Flip the master switch
(rocker switch) to the
ON position
After the beep
Press the ON button on
the Command Center
FAULT
No beep in about
8 seconds
No beep
or
no sound from the
valve indicating pilot
solenoid open
No sparking on
the pilot
A
B
C
Make sure
Command
Center and
the control
board are
connected by
a 2 feet or 15
feet cable
Check NG/LP
conversion cap
and control
board
connections
Check pilot
connections
DIAGNOSIS
Using
battery?
Check valve
connections
Check
grounding
Battery polarity wrong?
Battery voltage low?
AC plug is plugged to
AC mains?
The 5-pin connector on
the AC board broken or
bent?
LED on the Command
Center does not show
solid green?
Check power
supply (go
through )
Go through
B
ACTION
Re-install batteries
Change batteries
Plug the AC plug to
AC mains
Repair or replace the
AC Board
Replace the AC Board
Replace the Control
A
Board or
Command Center
Sparking is happening
elsewhere (under the
pilot), re-install/replace
the pilot
Sparking doesn’t
continue
Pilot doesn’t light
Main burner doesn’t
light
D
The Control Board is having interference from the
surrounding metal (Ground)
E
Check gas supply
F
Go through
E
Go through
The sensor on the pilot
is not in the flame
(pilot flame too small)?
Re-install the Control
Board, move it around
or change the
Control Board
Sparking is not in the
C
path of gas flow, adjust
sparker position or
replace the pilot
Adjust sensor position
or replace the pilot
20306742
57
Page 58
KHLDV Series Gas Fireplace
FIREBOX COMPONENTS AND ACCESSORIES
REPLACEMENT PARTS
7a,b
2
1
6
5
12a,b
8
11
3
9
10
10
12
Item Description Qty. KHLDV400 KHLDV500 KHLDV600
1. Bulb (100 Watt) 2 73D0020 73D0020 73D0020
2. Bulb Socket 2 73D4521K 73D4521K 73D4521K
3. Glass Frame Assembly 1 73D1015K 73D0159K 20300592
4. Junction Box Assembly (not shown) 1 26D2128K 26D2128K 26D2128K
5. Light Lens (400/500 Series) 1 73D0022 73D0022 --
5. Light Lens (600 Series) 2 -- -- 73D4057
6. Panel, Access, Door 2 73D0029K 73D0029K 73D0092
7a. Firebrick Set - Tavern Brown 1 FBKHLDV400TB FBKHLDV500TB FBKHLDV600TB
7b. Firebrick Set - Cottage Red 1 FBKHLDV400CR FBKHLDV500CR FBKHLDV600CR
8. Firebrick Set - Old English Herringbone 1 FBKHLDV400OE FBKHLDV500OE FBKHLDV600OE
9. Screen Rod 1 73D0010 73D0010 20300611
10. Screen 2 73D0017 73D0017 20300612
11. Front Cover 1 73D0520 73D4524 20300600
12. Safety Barrier 1 20306583K 20306577K 20306455K
Accessories / Field Installed Options
12a. T-Stat Blower with Speed Control (Millivolt system) BLOTKHLTD BLOTKHLTD n/a
12b. SCS Blower w/ Time Delay BLOTKHLSC BLOTKHLSC BLOTKHLDVSC
58
20306742
Page 59

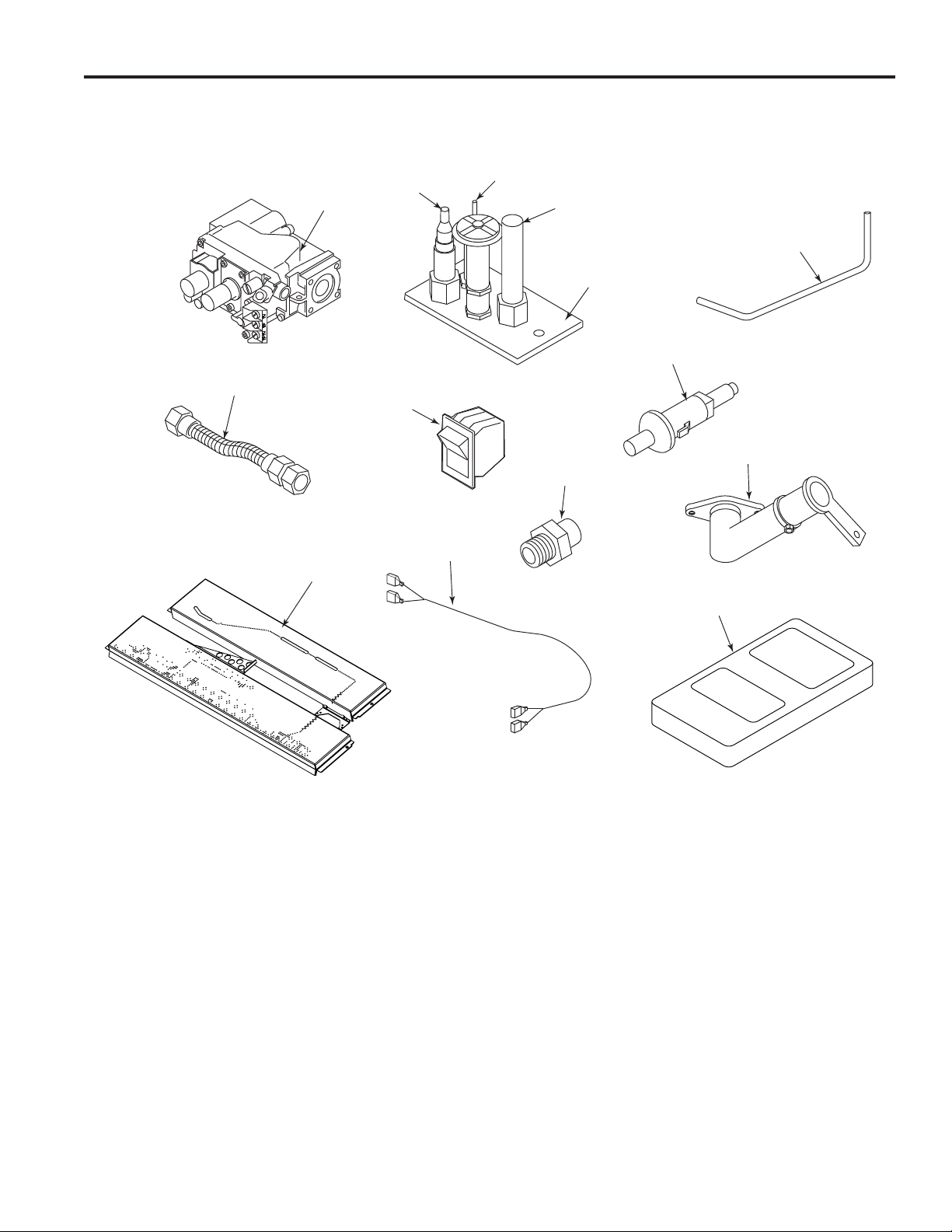

REPLACEMENT PARTS
STANDING PILOT — MILLIVOLT CONTROL
KHLDV Series Gas Fireplace
2C
1
4
5
10
8
2I
2T
3
2
6
7
11,12,13,14
20306742
59
Page 60
KHLDV Series Gas Fireplace
REPLACEMENT PARTS
STANDING PILOT – MILLIVOLT CONTROL
Item Description Qty. KHLDV400NV KHLDV400PV KHLDV500NV KHLDV500PV
1. Gas Valve Assembly 1 37D0117 37D0118 37D0117 37D0118
2. Pilot Assembly 1 20H2048 20H2049 20H2048 20H2049
2C. Replacement Thermocouple 1 37D1067 37D1067 37D1067 37D1067
2I. Replacement Igniter w/wire 1 37D1069 37D1069 37D1069 37D1069
2T. Replacement Thermopile 1 37D1068 37D1068 37D1068 37D1068
3. Tube, Rear, Venturi 1 73D0050 74D0050 54D0564 54D0564
3. Tube, Front, Venturi 1 73D0562 73D0562 43D0185 43D1085
3. Tube, Rear,Through-wall 1 73D0145 73D0145 73D0145 73D0145
3. Tube, Front, Through-wall 1 73D0146 73D0146 73D0146 73D0146
4. Flexhose w/Shutoff Valve 1 69D0030 69D0030 69D0030 69D0030
5. Rocker Switch 1 41D0048 41D0048 41D0048 41D0048
6. Piezo Igniter 1 14D0503 14D0503 14D0503 14D0503
7. Rear Injector 1 58D0102 58D0052 57D0679 57D0680
7. Front Injector 1 57D0612 58D0056 56D3059 62D3005
8. Rear Burner Assembly 1 73D3270 73D3270 73D2368 73D3268
8. Front Burner Assembly 1 73D3269 73D3269 73D3267 73D3267
9. Venturi 1 45D0600 45D0600 45D0600 45D0600
10. Wire Assembly 1 44D0500 44D0500 44D0500 44D0500
10. Wire Assembly 1 44D0501 44D0501 44D0501 44D0501
Accessories
11. On/Off Remote Control 1 TSMT / RCB / RCBE / RCMT / WMTD
12. Thermostatic Remote Control 1 TSST / RCST / RCT / RCSTE / RCSTEBA / RCSITEA / WWTD
13. Wall Switch Kit 1 MVWS
14. Wall Thermostat Kit 1 WT
15. Forged Andiron 13" 1 FA113
15. Cast Iron 121/2" 1 CAI121/2
Fuel Conversion Kits - Millivolt Control
Natural Gas to LP
KHLDV400 Kit #KHL400CKP
KHLDV500 Kit #KHL500CKP
LP to Natural Gas
KHLDV400 Kit #KHL400CKN
KHLDV500 Kit #KHL500CKN
60
20306742
Page 61
REPLACEMENT PARTS
SIGNATURE COMMAND SYSTEM
400 Series
KHLDV Series Gas Fireplace
500 Series
8a
8b
8b
8a
5b
5a
13
6
5a
5d
5e
3
14
5d
15
5c
Flex Hose
20H0022
6
Flex
Hose
20H0022
Venturi
Gasket
9
7a
2
Shield, Pilot
2
1
4
17, 18
3
Venturi
Gasket
7b
14
7a
Shield,
Pilot
600 Series
13
16
8a
1
5a
2
7a
9
3
7b
5b
9
7b
5b
5e
1
8b
4
Flex Hose
20H0022
3
5c
6
15
17,18
15
5g
5f
20306742
14
61
Page 62
KHLDV Series Gas Fireplace
REPLACEMENT PARTS
SIGNATURE COMMAND SYSTEM
KHLDV KHLDV KHLDV KHLDV KHLDV KHLDV
Item Desc. Qty. 400NTSC 400PTSC 500NTSC 500PTSC 600NTSC 600PTSC
1. Gas Valve Assembly 1 80D0001 80D0002 80D0001 80D0002 80D0001 80D0002
2. Pilot Assembly 1 80D0039 80D0040 80D0039 80D0040 80D0039 80D0040
3. Control Box, auxiliary shut-off 1 80D0037 80D0038 80D0037 80D0038 80D0037 80D0038
4. Command Center SCS 1 80D0005 80D0005 80D0005 80D0005 80D0005 80D0005
5a. Tube, Rear, Venturi 1 73D349K 73D3549K 54D0564 54D0564 20301880 20301880
5b. Tube, Front, Venturi 1 73D0562K 73D0562K 43D0185 43D0185 43D0185 43D0185
5c. Rear Tube, Tee to Solenoid 1 20300345 20300345 20300345 20300345 -- - 5d. Rear Tube, Solenoid to Venturi 1 73D3528K 73D3528K 73D3528K 73D3528K -- - 5e. Tube, Front, Through-wall 1 73D0146K 73D0146K 73D0146K 73D0146 -- - 5f. Rear Tube, Solenoid to Union 1 -- -- -- -- 20301881 20301881
5g. Front Tube, Tee to Union 1 -- -- -- -- 20300615 20300615
6. Flexhose w/Shutoff Valve 1 69D0030 69D0030 69D0030 69D0030 69D0030 69D0030
7a. Rear Injector 1 58D0102 58D0052 57D0679 57D0680 20301817 20301958
7b. Front Injector 1 57D0612 58D0056 56D3059 62D3005 20H3155 20H3146
8a. Rear Burner Assembly 1 73D3270 73D3270 73D3268 73D3268 20302746 20300556
8b. Front Burner Assembly 1 73D3269 73D3269 73D3267 73D3267 20300555 20300555
9. Venturi 1 69D1026 69D1026 69D1026 69D1026 69D1026 69D1026
9a. Air Shutter 1 69D1027 -- 69D1027 -- 69D1027 --
10. Wire Valve/Control Board SCS
(not shown)
11. Wire AC Module SCS (not shown) 1 80D0009 80D0009 80D0009 80D0009 80D0009 80D0009
12 Cable, CC/CB 24" SCS (not shown) 1 80D0008 80D0008 80D0008 80D0008 80D0008 80D0008
13. Remote Transmitter (full function) 1 TSFRSC TSFRSC TSFRSC TSFRSC TSFRSC TSFRSC
14. AC Module 1 SCSACM SCSACM SCSACM SCSACM SCSACM SCSACM
15. Solenoid (not shown) 1 20301204 20301204 20301204 20301204 20301204 20301204
16. Flame Baffl e 1 -- -- -- -- 20302747 20301814
1 80D0010 80D0010 80D0010 80D0010 80D0010 80D0010
Accessories
Ref. Description Qty. KHLDV400 KHLDV500 KHLDV600
17. Forged Andiron 13" 2 FAI13 FAI23 FAI23
17. Forged Andiron 16" 2 FAI16 FAI16 FAI16
18. Cast Iron 121/2" 2 CAI121/2 CAI121/2 CAI121/2
19. SCS Wall Extension Kit 1 SCSWEK SCSWEK SCSWEK
(15' Wire, Rough-in Box, Wall Cover)
20. Decorative Door Kit 1 KHL400ADBT KHL500ADBT n/a
Fuel Conversion Kits - Signature Command System
Natural Gas to LP
KHLDV400 Kit #KHL400CKPS
KHLDV500 Kit #KHL500CKPS
KHLDV600 Kit #KHL600CKPS
LP to Natural Gas
KHLDV400 Kit #KHL400CKNS
KHLDV500 Kit #KHL500CKNS
KHLDV600 Kit #KHL600CKNS
62
20306742
Page 63
REPLACEMENT PARTS
LOGS
KHLDV400 &
KHLDV500 LOGS
KHLDV Series Gas Fireplace
6
3
KHLDV600
LOGS
7
5
2
4
1
Item Description Qty. KHLDV400 KHLDV500 KHLDV600
1. Log #1 1 73D0539 73D0200 20301946
2. Log #2 1 73D0540 73D0201 20301947
3. Log #3 1 73D0541 73D0202 20301948
4. Log #4 1 73D0542 73D0203 20301949
5. Log #5 1 73D0543 73D0204 20301950
6. Log #6 1 73D0544 73D0205 20301951
7. Log #7 1 73D0545 73D0206 20301952
20306742
63
Page 64
KHLDV Series Gas Fireplace
VENTING COMPONENTS
REPLACEMENT PARTS
HOT
1
5
6
2
7
8
4
3
10
9
64
20306742
Page 65
REPLACEMENT PARTS
KHLDV Series Gas Fireplace
VENTING COMPONENTS FOR 5"
Current Old
Duravent Duravent
or Vermont or Vermont
Qty./ Castings Group Castings Group Selkirk Metal-Fab
Item Box Description Part no. Part no. Part no. Part no.
1 1 Horizontal Termination Cap w/Built-In Vinyl Siding BHR58TK9 --
Standoff Heat Defl ector, Firestop and Adjustable
Pipe 11" to 14
1 1 Horizontal Termination Cap Built-In Vinyl Siding Standoff, BHS58TK --
Heat Defl ector, Firestop, 90° Elbow and Adjustable
Pipe 11" to 145/8"
1 1 Horizontal Termination Cap w/Built-In Vinyl Siding Standoff, BHSF58TK --
Heat Defl ector, Firestop, Flexible Pipe 20" to 48", Adapter
1 1 Horizontal Termination Cap Built-In Vinyl Siding Standoff, KHLBHS58TK --
Heat Defl ector, Firestop, 90° Elbow and Adjustable
Pipe 11" to 145/8", 24" Section of Pipe
1 8 Horizontal Termination w/ 1" Firestop BHR58T/8
1 1 Horizontal High Wind Termination Cap 58DVA-HC 1285 5DT-HC
2 1 Horizontal Termination Cap 5DHT
2 1 Vertical Termination *see below *see below 5DT-VC 5DVT
2 1 Extended Vertical Termination 58DVA-VCE 1283 - 2 1 High Wind Vertical Termination 58DVA-VCH 1291 - 3 4 6" Pipe Length 58DVA-06 1208 5DT-06 5D6
3 4 9" Pipe Length 58DVA-09 1207 5DT-09
3 4 12" Pipe Length 58DVA-12 1206 5DT-12 5D12
3 4 24" Pipe Length 58DVA-24 1204 5DT-24 5D24
3 4 36" Pipe Length 58DVA-36 1203 5DT-36 5D36
3 4 48" Pipe Length 58DVA-48 1202 5DT-48 5D48
4 4 81/2" Pipe Extension 58DVA-08A -- 5DT-AJ
4 4 16" Pipe Extension 58DVA-16A -- - 5 4 45° Elbow 58DVA-E45 1245 5DT-EL45 5D456
5 4 45° Swivel Elbow -- -- 5DT-EL45
6 4 90° Elbow 58DVA-E90 1290 5DT-EL90S 5D906
6 4 90° Swivel Elbow -- 1290G 5DT-EL90S
7 6 Flashing, 0/12 to 6/12 Roof Pitch 58DVA-F6 1243 5DT-AF6 5DF
7 Steep Roof Flashing 58DVA-F12 1243S - 8 6 Storm Collar 58DVA-SC 1253 5DT-SC 5DSC
9 4 Firestop 58DVA-FS 1263 5DT-FS 5DFS
9 3" Firestop FS38 FS38 - 10 1 Vinyl Siding Standoff 58DVA-VSS 1250 5DT-VS 5DVS
11 Attic Insulation Shield (not shown) 58DVA-IS -- --
5
/8"
X 8"
DURAVENT 58DVA-VC/1280 VERTICAL CAP CANNOT BE USED WITH THIS FIREPLACE.
For more information about, or instructions for, the venting
components referenced above, please contact the component
manufacturer:
Selkirk Corporation: www. selkirkcorp.com or 800-992-8368
Duravent: www. duravent.com or 800-835-4429
Metal-Fab, Inc.: www.metal-fabinc.com or 316-943-2351
20306742
65
Page 66
KHLDV Series Gas Fireplace
MASSACHUSETTS RESIDENTS ONLY
Please read and follow these special requirements
NOTE REGARDING VENTED PRODUCTS
This product must be installed by a licensed plumber or
gas fi tter when installed within the Commonwealth of
Massachusetts.
Any residence with a direct vent product must have a carbon
monoxide (CO) detector installed in the residence.
Installation of the fi replace or vented gas log in the State
of Massachusetts requires the damper to be permanently
removed or welded in the fully open position.
In addition, a naturally vented gas log may not be installed in a
bedroom or bathroom in the State of Massachusetts.
Flex line installation must not exceed 36 inches and must have
a T shutoff valve.
NOTE REGARDING VENT FREE PRODUCTS
This product must be installed by a licensed plumber or
gas fi tter when installed within the Commonwealth of
Massachusetts.
In addition, vent free products may not be installed in a
bedroom or bathroom regardless of size or type in the State of
Massachusetts.
Flex line installation must not exceed 36 inches and must have
a T shutoff valve.
CARBON MONOXIDE DETECTOR REQUIREMENTS
(2) Revise 10.8.3 by adding the following additional
requirements:
(a) For all side wall horizontally vented gas fueled equipment
installed in every dwelling, building or structure used in whole
or in part for residential purposes, including those owned
or operated by the Commonwealth and where the side wall
exhaust vent termination is less than seven (7) feet above
fi nished grade in the area of the venting, including but not
limited to decks and porches, the following requirements shall
be satisfi ed:
1. Installation of carbon monoxide detectors. At the time
of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gas fi tter shall observe
that a hard wired carbon monoxide detector with an alarm and
battery back-up is installed on the fl oor level where the gas
equipment is to be installed. In addition, the installing plumber
or gas fi tter shall observe that a battery operated or hard wired
carbon monoxide detector with an alarm is installed on each
additional level of the dwelling, building or structure served
by the side wall horizontal vented gas fueled equipment. It
shall be the responsibility of the property owner to secure the
services of qualifi ed licensed professionals for the installation
of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas
fueled equipment is installed in a crawl space or an attic, the
hard wired carbon monoxide detector with alarm and battery
back-up may be installed on the next adjacent fl oor level.
b. In the event that the requirements of this subdivision
can not be met at the time of completion of installation, the
owner shall have a period of thirty (30) days to comply with the
above requirements; provided, however, that during said thirty
(30) day period, a battery operated carbon monoxide detector
with an alarm shall be installed.
2. Approved Carbon Monoxide Detectors. Each carbon
monoxide detector as required in accordance with the above
provisions shall comply with NFPA 720 and be ANSI/UL 2034
listed and IAS certifi ed.
3. Signage. A metal or plastic identifi cation plate shall
be permanently mounted to the exterior of the building at a
minimum height of eight (8) feet above grade directly in line
with the exhaust vent terminal for the horizontally vented gas
fueled heating appliance or equipment. The sign shall read, in
print size no less than one-half (1/2) inch in size, “GAS VENT
DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS.”
4. Inspection. The state or local gas inspector of the
side wall horizontally vented gas fueled equipment shall not
approve the installation unless, upon inspection, the inspector
observes carbon monoxide detectors and signage installed
in accordance with the provisions of 248 CMR 5.08(2)(a)1
through 4.
(b) Exemptions: The following equipment is exempt from 248
CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment
Not Required To Be Vented" in the most current edition of
NFPA 54 as adopted by the Board; and
2. Product Approved side wall horizontally vented gas fueled
equipment installed in a room or structure separate from the
dwelling, building or structure used in whole or in part for
residential purposes.
(c) Manufacturer requirements — Gas Equipment Venting
System Provided. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides
a venting system design or venting system components with
the equipment, the instructions provided by the manufacturer
for installation of the equipment and the venting system shall
include:
1. Detailed instructions for the installation of the venting
system design or the venting system components; and
2. A complete parts list for the venting system design or
venting system.
(d) Manufacturer requirements — Gas Equipment Venting
System Not Provided. When the manufacturer of a Product
Approved side wall horizontally vented gas fueled equipment
does not provide the parts for venting the fl ue gases, but
identifi es “special venting systems,” the following requirements
shall be satisfi ed by the manufacturer:
1. The referenced "special venting system" instructions
shall be included with the appliance or equipment installation
instructions; and
2. The “special venting systems” shall be Product Approved
by the Board, and the instructions for that system shall include
a parts list and detailed installation instructions.
(e) A copy of all installation instructions for all Product
Approved side wall horizontally vented gas fueled equipment,
all venting instructions, all parts lists for venting instructions,
and/or all venting design
66
20306742
Page 67
LIMITED LIFETIME WARRANTY POLICY
KHLDV Series Gas Fireplace
LIFETIME WARRANTY
The following components are warranted for life to the original owner, subject to proof of purchase: Firebox,
Combustion Chamber and Heat Exchanger.
FIVE YEAR WARRANTY
The following components are warranted fi ve (5) years to the original owner, subject of proof of purchase:
Ceramic Fiber Logs.
BASIC WARRANTY
Vermont Castings Group warrants the components and materials in your gas appliance to be free from manufacturing and material defects for a period of two years from date of installation. After installation, if any of the
components manufactured by Vermont Castings Group in the appliance are found to be defective in materials
or workmanship, Vermont Castings Group will, at its option, replace or repair the defective components at
no charge to the original owner. Vermont Castings Group will also pay for reasonable labor costs incurred
in replacing or repairing such components for a period of two years from date of installation. Any products
presented for warranty repair must be accompanied by a dated proof of purchase.
This Limited Lifetime Warranty will be void if the appliance in not installed by a qualifi ed installer in accor-
dance with the installation instructions. The Limited Lifetime Warranty will also be void if the appliance is not
operated and maintained according to the operating instructions supplied with the appliance, and does not
extend to (1) fi rebox/burner assembly damage by accident, neglect, misuse, abuse, alterations, negligence
of others, including the installation thereof by unqualifi ed installers, (2) the costs of removal, re-installation or
transportation of defective parts on the appliance, or (3) incidental or consequential damage. All service work
must be performed by an authorized service representative.
This warranty is expressly in lieu of other warranties, express or implied, including the warranty of merchantability of fi tness for purpose and of all other obligations or liabilities. Vermont Castings Group does not
assume for it any other obligations or liabilities in connection with sale or use of the appliance. It states that
do not allow limitations on how long an implied warranty lasts, or do not allow exclusion of indirect damage,
those limitations of exclusions may not apply to you. You may also have additional rights not covered in the
Limited Lifetime Warranty.
Vermont Castings Group reserves the right to investigate any and all the claims against the Limited Lifetime
Warranty and decide upon method of settlement.
IF WARRANTY SERVICE IS NEEDED:
1. Contact your supplier. Make sure you have your warranty, your sales receipt and the model/
serial number of your Vermont Castings Group product.
2. DO NOT ATTEMPT TO DO ANY SERVICE WORK YOURSELF.
20306742
67
Page 68
Based on CSA P.4.1-09
EFFICIENCY RATINGS
ENERGUIDE RATINGS
FIREPLACE EFFICIENCY
MODEL
KHLDV400NV 69.6
KHLDV400PV 78.2
KHLDV400NTSC 73.2
KHLDV400PTSC 82.2
KHLDV500NV 75.2
KHLDV500PV 69.8
KHLDV500NTSC 78.5
KHLDV500PTSC 71.8
KHLDV600NTSC 81.0
KHLDV600PTSC 80.0
PERCENTAGE
149 Cleveland Drive • Paris, Kentucky 40361
www.vermontcastingsgroup.com
Loading...
