Electric
Fireplace
Model
HE32EF
Installation Instructions & Homeowner's Manual
WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY,
AN ELECTRICAL SHOCK OR FIRE MAY RESULT CAUSING PROPERTY DAMAGE,
PERSONAL INJURY OR LOSS OF LIFE.
C US
410 Admiral Blvd. • Mississauga, Ontario • Canada L5T 2N6
INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE VAPOURS OR LIQUIDS IN THE VICINITY
OF THIS OR ANY OTHER APPLIANCE.
™
The Vermont Castings
Majestic Products Company
www.vermontcastings.com • www.majesticproducts.com
10003395
07/01 Rev.0
- 1 -
Page 2
TABLE OF CONTENTS
Please read the Installation & Operating Instructions before using this appliance.
Thank you and congratulations on your purchase of a Vermont Castings Majestic Products Company fireplace.
IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions
may result in a possible electric shock, fire hazard and/or injury and will void the warranty.
Installation Instructions ........................................................................................................... 3
General Information .................................................................................................... 3
Locating your Fireplace............................................................................................... 3
Electrical Specifications .............................................................................................. 3
Fireplace Dimensions.................................................................................................. 4
Mantels ................................................................................................................ 5
Framing & Finishing .................................................................................................... 5
Clearance to Combustibles ......................................................................................... 5
Final Finishing ............................................................................................................. 5
Hearth ................................................................................................................ 5
Electrical Connection .................................................................................................. 6
Installation of Logs ...................................................................................................... 6
Ceramic Refractory ..................................................................................................... 6
Service Instructions ................................................................................................................. 7
Louvre Removal .......................................................................................................... 7
Glass Frame Removal ................................................................................................ 7
Glass Information ........................................................................................................ 7
Replacing Light Bulbs ................................................................................................. 7
Maintenance of Motors................................................................................................ 8
Cleaning Brass Trim.................................................................................................... 8
Electrical Diagram ....................................................................................................... 8
Operating Instructions ............................................................................................................. 9
On/Off Switch .............................................................................................................. 9
Heater Control............................................................................................................. 9
Log Illumination Control .............................................................................................. 9
Flame Speed Control .................................................................................................. 9
Control Panel .............................................................................................................. 9
Replacement Parts Pictorial .................................................................................................. 10
Replacement Parts List ............................................................................................. 11
Fan Heater Installation ........ .................................................................................................. 12
Trim Options ........................................................................................................................... 13
1) Flat Surround ....................................................................................................... 13
2) Beveled Surround ................................................................................................ 15
3) Louvre Kits ........................................................................................................... 16
4) Bay Window Trim................................................................................................. 18
5) Cast Trim ............................................................................................................. 21
5) Accessories Options ............................................................................................ 21
- 2 -
Page 3
INSTALLATION INSTRUCTIONS
GENERAL
1 . Read all instructions before using this appliance.
2. This appliance is hot when in use. To avoid burns, do
not let bare skin touch hot surfaces. If provided, use
handles when moving this appliance. Keep combustible materials, such as furniture, pillows, bedding,
papers, clothes and curtains at least 3 feet (1m) from
the front of this appliance.
3. CAUTION: Extreme caution is necessary when any
heater is used by or near children or invalids and
whenever the heater is left operating and unattended.
4. If possible, always unplug this appliance when not in
use.
5. Do not operate any heater with a damaged cord or plug
or after the appliance malfunctions, or if it has been
dropped or damaged in any manner.
6. Any repairs to this fireplace should be carried out by a
qualified service person.
15.To prevent a possible fire, do not block air intakes or
exhaust in any manner. Do not use on soft surfaces,
like a bed, where openings may become blocked.
16.This appliance has hot and arcing or sparking parts
inside. Do not use it in areas where gasoline, paint or
flammable liquids are used or stored. This fireplace
should not be used as a drying rack for clothing, nor
should Christmas stockings or decorations be hung in
the area of it.
17.Use this appliance only as described in this manual.
Any other use not recommended by the manufacturer
may cause fire, electric shock or injury to persons.
18.Avoid the use of an extension cord because the
extension cord may overheat and cause a risk of fire.
However, if you have to use an extension cord, the
cord shall be No. 16 AWG minimum size and rated not
less than 2025 Watts. The extension cord must be a
three wire cord with grounding type plug and cord
connection.
7. Under no circumstances should this fireplace be modified. Parts having to be removed for servicing must be
replaced prior to operating this fireplace again.
8. Do not use outdoors.
9. This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. Never
locate this appliance where it may fall into a bathtub or
other water container.
10.Do not run cord under carpeting. Do not cover cord
with throw rugs, runners or the like. Arrange cord away
from traffic areas and where it will not be tripped over.
11.To disconnect this appliance, turn controls to the off
position, then remove plug from outlet.
12.Connect to properly grounded outlets only.
13. This appliance, when installed must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the current CSA C22.1
Canadian Electrical Code or for U.S.A. installations
follow local codes and the National Electrical Code,
ANSI/NFPA NO. 70.
14. Do not insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause an
electric shock or fire, or damage the appliance.
19. SAVE THESE INSTRUCTIONS.
LOCATING YOUR VERMONT CASTINGS
MAJESTIC PRODUCTS COMPANY
ELECTRIC FIREPLACE
Your new fireplace may be installed into an existing
masonry fireplace. This unit may also be built into new
or existing construction.
When choosing a location for your new fireplace, ensure
that the general instructions are followed. Also, for best
effect install the fireplace out of direct sunlight.
A zero clearance kit is NOT required
for this unit.
ELECTRICAL SPECIFICATIONS
Voltage _____________ 120VAC, 60Hz
Total Amps ______________12.5 Amps
Total Watts _____________ 1500 Watts
Heater Rating ___________ 1300 Watts
- 3 -
Page 4
FIREPLACE DIMENSIONS
B
F
D
A
E
G
H
C
MINIMUM FIREPLACE OPENING
T
U
S
Q
R
R - Fireplace opening width
HE32EF
A1 26
B1 38
5/8"
3/8"
676 mm
975 mm
Q - Fireplace opening height
S - Firebox width at depth(T)
T - Firebox depth at back height (U)
U - Height at depth
A2 29" 737 mm
T
B2 41
R
I
A3 33" 838 mm
M
B3 44" 1118 mm
A4 28" 712 mm
B4 40
A5 30
15/16"
7/8"
1/2"
1065 mm
1041 mm
775 mm
1= SS or SSD Trim
2= SL or SLD Trim
3= SXL Trim
4= BSL Trim
5= BXL Trim
B5 46" 1171 mm
F
C 28
I
D 18
R
E
E 11
P
F 13" 330 mm
L
A
G 22" 558 mm
C
H 20" 508 mm
E
M
I
N
I
M
U
M
Q 21" 533 mm
O
P
R 28" 711 mm
E
S 19" 433 mm
N
I
T 11
N
U 20
G
3/4"
3/4"
1/2"
3/4"
1/4"
730 mm
476 mm
292 mm
289 mm
514 mm
Fig. 1
- 4 -
Page 5
MANTELS
When the fireplace is being installed into a woodburning
fireplace the minimum the mantel can be above the fireplace is governed by local building codes applicable to
woodburning fireplaces. Consult local authorities having
jurisdiction for these clearances.
FRAMING & FINISHING
Before deciding on the frame dimensions and finishing
materials it is important to consider the finished dimensions
of the chosen fireplace trim kit (see options section of this
manual).
The underside of the mantel will get quite
warm. Use only finishes which are heat
resistant and do not discolour.
The fitting of the bay window kit does not
affect the dimensions or reference points in
the mantel chart.
RAISED
24" MIN.
Fig. 2
MANTEL CHART
Ref. Mantel & Leg Ref. Mantel From Mantel Leg from
Shelf Depth Top of Comb. From Side of Comb.
V 10" (254 mm) A 19" (305 mm) 10" (254mm)
W 8" (203 mm) B 17" (254 mm) 8" (203mm)
X 6" (152 mm) C 15" (203 mm) 6" (152mm)
Y 4" (101 mm) D 13" (152 mm) 4" (101mm)
Z 2" ( 51 mm) E 11" (101 mm) 2" (51mm)
Chamber Chamber
This information is required at this stage to ensure a
satisfactory finish when the trim kit is installed.
The use of wall paper adjacent to this fireplace
is not recommended, as the high heat given off
by this fireplace may adversely effect the binders in the adhesive used to apply the wallpa-
per.
610mm
CLEARANCE TO COMBUSTIBLES
Sides ....... 0 mm/0 inches
Sides ....... 0mm/0 inches
Floor........ 0 mm/0 inches
Top.......... 0 mm/0 inches
FINAL FINISHING
Non-combustible materials such as brick and tile can be
extended over the face of the unit (Do not cover louvres
or glass door). If a Trim Kit is going to be installed, brick
and tile will have to be installed flush with the side of this
appliance.
V
W
X
A
B
C
D
FIREBOX TOP
OPTIONAL
HEARTH
E
FRONT
GLASS
Y
Z
WALL
FIREPLACE
SIDE VIEW
TOP
LOUVRE
OPENING
HEARTH
A hearth is not mandatory but it is recommended for
aesthetic purposes. We recommend a non-combustible
hearth which does not obstruct louvre opening.
Cold climate installation recommendation:
When installing this unit against a noninsulated exterior wall or chase, it is
mandatory that the outer walls be insulated
to conform to applicable insulation codes.
Fig. 3
- 5 -
Page 6
ELECTRICAL CONNECTION
INSTALLATION OF LOGS
A 15 AMP, 120 Volt, 60 Hz circuit with a properly grounded
outlet is required. Preferably, the fireplace will be on a
dedicated circuit as other appliances on the same circuit
may cause the circuit breaker to trip or the fuse to blow
when the heater is in operation. The unit comes standard
with a 6 ft. (1828mm) long three wire cord, exiting the right
side of the fireplace. Plan the installation to avoid the use
of an extension cord. If an extension cord must be used,
it must be a minimum 16AWG, three wire with grounding
type plug and connector and rated not less than 2025
Watts.
A new electrical outlet can be installed inside the frame
construciton, if permitted by local codes.
Electrical outlet wiring must comply with
local building codes and other applicable
regulations to reduce the risk of fire, electrical
shock and injury to persons.
Do not use this fireplace if any part of it has
been under water. Immediately call a
qualified service technician to inspect the
fireplace and replace any part of the electrical
system which has been under water.
1. Turn off power to the unit.
2. Remove front glass (See "Glass Removal" section).
3. The log bottom is shipped in place. No adjustment is
necessary.
HE32EF / DEF33 *
* HE32EF / DEF33 is a unitized log set.

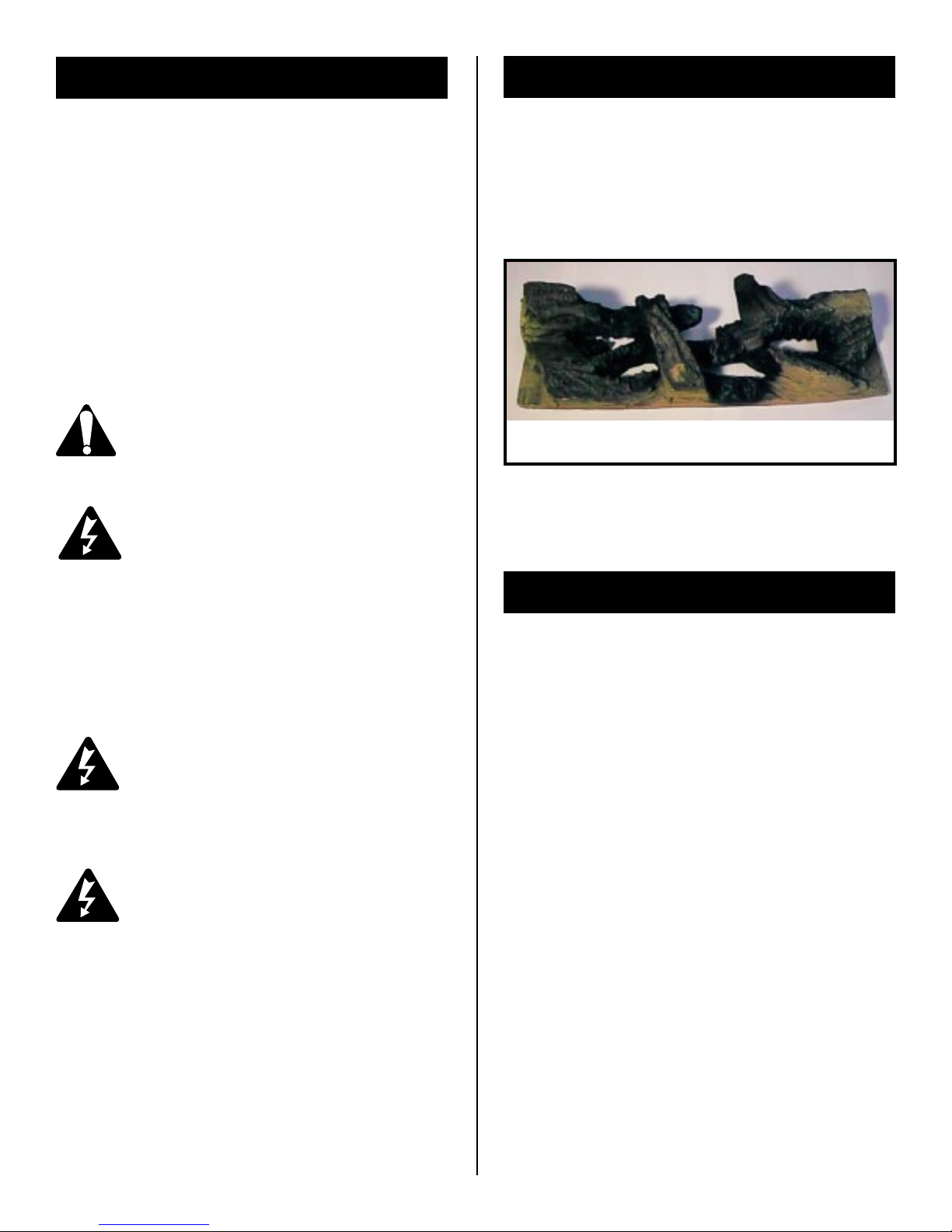

Fig. 4
CERAMIC REFRACTORY INSTALLATION
Hard (Direct) Wire Connection
If desired, a qualified electrician may remove the cord
conection and wire this unit directly to the household
wiring.
Any electrical re-wiring of this appliance
must be done by a qualified electrician.
WARNING: This fireplace comes with an
optional manual circuit breaker reset beside
the On/Off switch. In case the fireplace is
not operating check the circuit breaker and
reset the button at the breaker. If the
fireplace is still not operating immediately
call a qualified service technician to inspect
the fireplace.
1. Remove the glass assembly.
2. Slide refractory panels on either side of the firebox
between firebox side and the upper lintel baffle.
3. Push panels against firebox side. If desired, secure
the panels to the sides of the firebox with some
adhesive, such as silicone.
4. Replace glass frame and upper louvre panel.
- 6 -
Page 7
SERVICE INSTRUCTIONS
Disconnect power before attempting any
maintenance or cleaning to reduce the risk
of fire, electrical shock or personal injury.

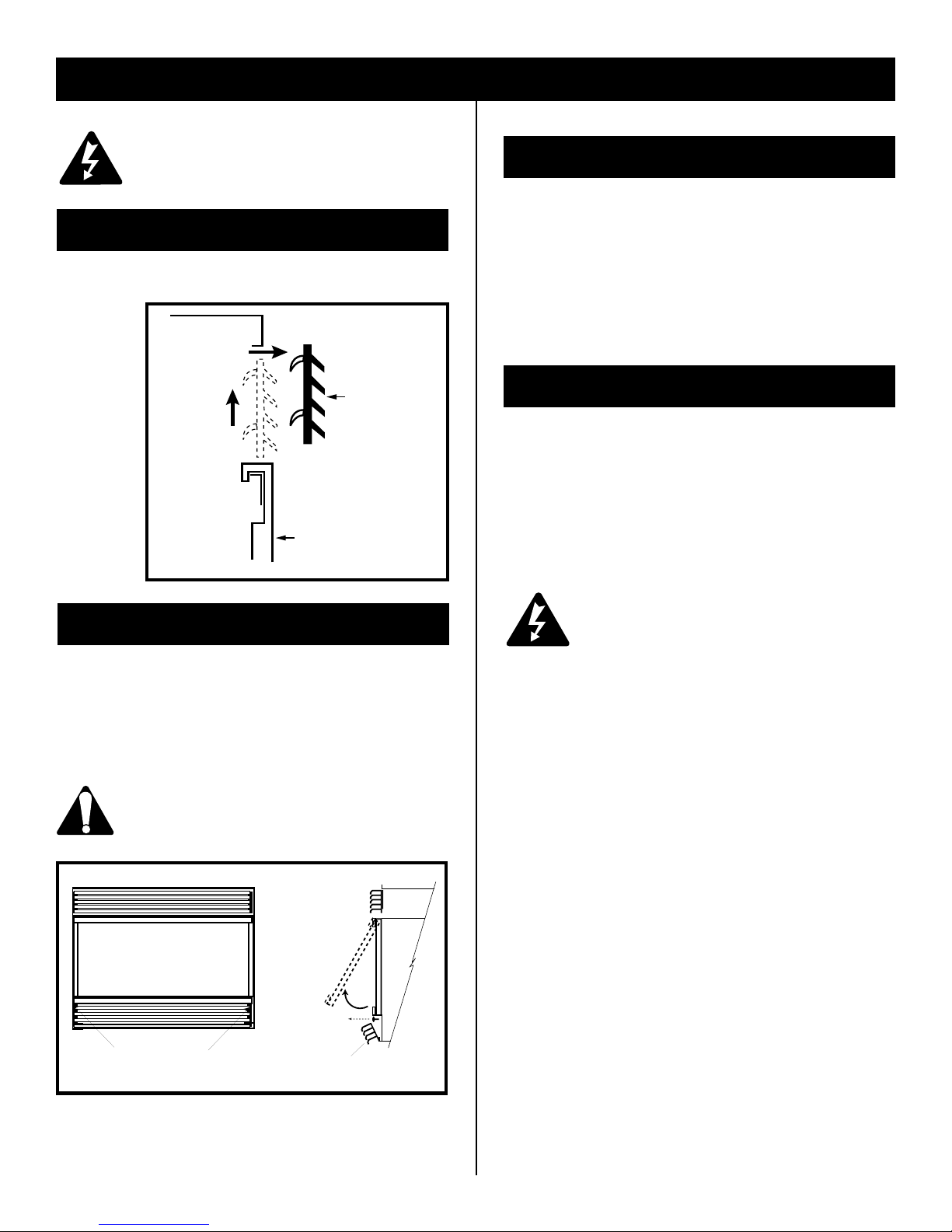

LOUVRE REMOVAL
To remove top louvre pull louvre up and then lift out.
See Figure 5.
2.
GLASS INFORMATION
1. Under no circumstances should this product be
operated with missing or broken glass.
2. Do not strike or slam the glass.
3. Do not use abrasive cleaners to clean the glass.
4. This product uses tempered glass. Replacement of
the glass with gasket as supplied by the manufacturer should be done by a qualified service person.
LOUVRE
1.
GLASS
PANEL
Fig. 5
GLASS FRAME REMOVAL
1
. Remove the top louvre. (See "Louvre Removal" section)
2. Open the access door.
3. Remove two machine screws from the bottom of glass
frame.
4. Lift up and unhook glass frame at the top.
Before remounting glass frame, brass trim
must be installed. See instructions in
"Frame Mounting" section.
GLASS FRAME
REPLACING LIGHT BULBS
This fireplace uses three (3) clear 120 Volt, 60 Watt, E12 and one (1) clear 120 Volt, 5 Watt, E-12 socket base
light bulbs. (Small base, chandelier candle type). Three
(3) of the lights are located under the ember bed of the
unit. The fourth (4) light is found at the top of the firebox
above the log set. For convenience, if one of the bulbs
burns out, it may be a good idea to replace all of the light
bulbs.
Do not exceed 60 Watts per bulb. Use of
higher rated bulbs may result in a fire,
causing property damage, personal injury
or loss of life.
1. Turn off power to the unit.
2. Let fireplace cool if it has been operating.
3. Remove top louvre. (See Louvre Removal).
4. Remove glass door. (See Glass Frame Removal).
5. Remove the two screws securing the ember bed in
position. One screw is located on either side of the
ember bed near the front.
6. Examine the bulbs to determine which bulbs need to
be replaced.
7. While holding the socket, unscrew the defective
bulb(s).
8. Install the new light bulb(s) by screwing in while
holding the socket.
9. Reinstall ember bed, log set, glass door and top
louvre.
SCREWS
MACHINE SCREWS
OPEN ACCESS DOOR
Fig. 6
- 7 -
Page 8
MAINTENANCE OF MOTORS
CLEANING BRASS TRIM
The motors used on the fan and the drum assembly are
prelubricated for extended bearing life and require no
further lubrication. However, periodic cleaning/vacuuming
of the fan/heater is recommended.
Clean the brass trim using a soft cloth, slightly dampened
with lemon oil and buff with a clean soft cloth. Do NOT use
brass polish or household cleaners as these products will
damage the brass trim. Lemon oil can be obtained at
supermarkets or hardware stores.
Make sure that the power is turned off
before proceeding.
ELECTRICAL DIAGRAM
Any electrical repairs or rewiring of this unit should be carried out by a licensed electrician in accordance with national and
local codes.
If repairing or replacing any electrical component or wiring, the original wire routing, colour coding
and securing locations must be followed.
FAN
MOTOR
18
HEATER ELEMENT
AIR WHEEL FAN/HEATER WIRING DIAGRAM
2 RED
1WHITE
FAN
HEATER ELEMENT
9
16
MOTOR
LIMIT
WHITE
WHITE
4
2
17
2 RED
1WHITE
19
11
11
5
5
5 WHITE
4 BLACK
9 BLACK
T' STAT
14
13
SWITCH
BREAKER CIRCUIT
(OPTIONAL)
3 RED
8 WHITE
3
8
10
11
7 WHITE
6 BLACK
3 RED
11
7 WHITE
8 WHITE
15
1 BLACK
SWITCH
2 BLACK
6 BLACK
10
6
7
17
18
DRUM
MOTOR
11
10
12
POTENTIOMETER
BLACK
RED
SPEED CONTROL
BLACK
WHITE
Component Identification:
1. CFM-Majestic Factory Wire Required
2. Plug 0.093" Pin & Socket
3. Light Socket Assembly
4. Light Socket w/ Wiring Assembly
5. Light Bulb
6. Cord Power
7. Strain Relief
8. Breaker Circuit Manual Reset
9. Motor Variable Speed 12 VDC
10. Grommet 7/8
Component Identification:
11. Nylon Cable Tie 3-7/8"
12. Potentiometer
13. Dimmer SwitchRotary Assy
14. Thermostat
15. Switch
16. Speed Control
17. Receptacle Pin & Socket
18. Fan/Heater
- 8 -
Wiring Colour Code:
WH= White
BL = Black
RE = Red
Page 9

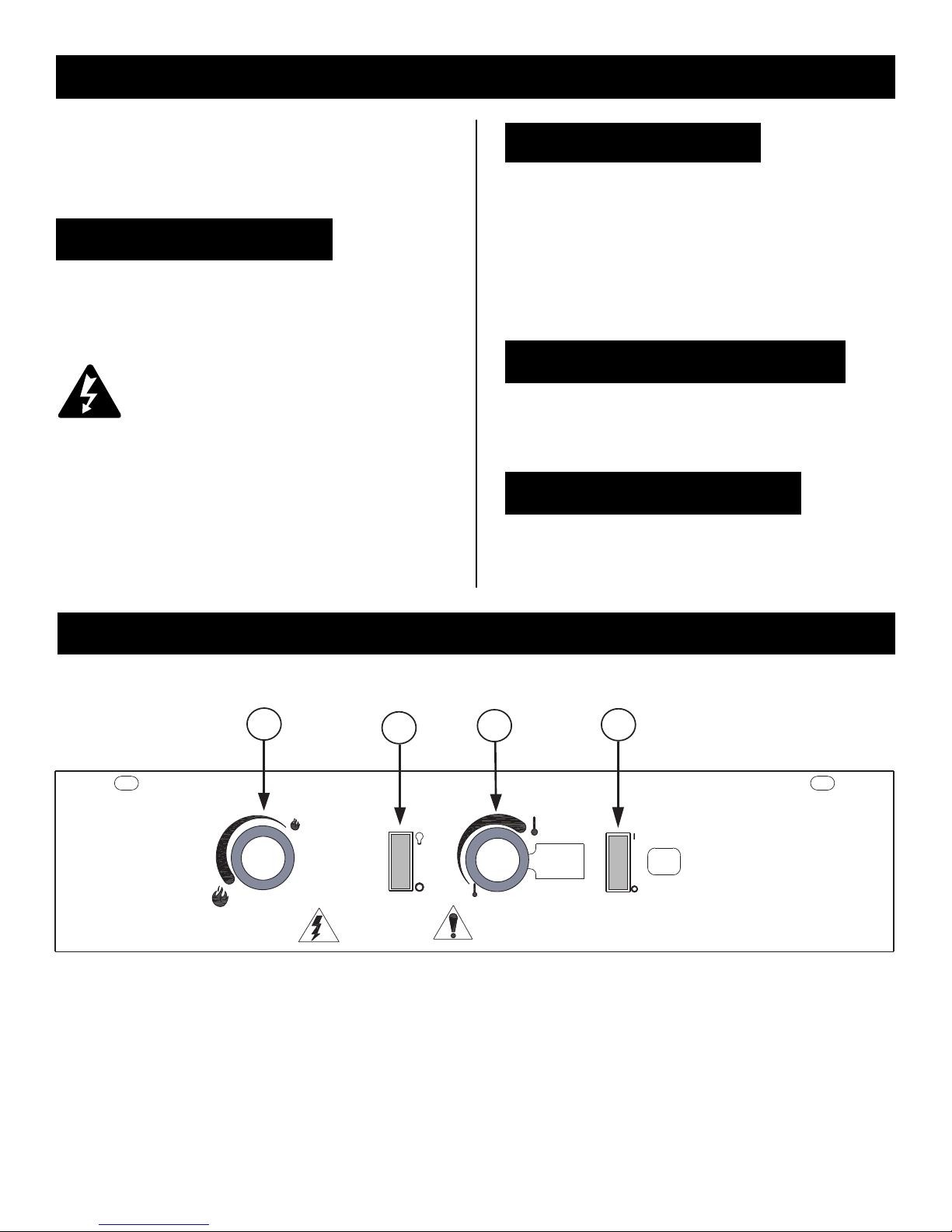

OPERATING INSTRUCTIONS
The control compartment is located behind the lower louvre
panel. To access the controls, simply flip down the lower
louvre panel. To locate the position of each control described below, refer to Fig. 7.
1. MAIN ON/OFF SWITCH
The On/Off switch supplies power to all of the functions of
the fireplace. This is an illuminated switch which normally
will light up when in the "On/Off" position.
During any service of this appliance, the
power to the unit must be turned off. It is
not acceptable to use the "On/Off" switch
to meet this requirement.
2. HEATER CONTROL
The Heater Control acts to turn the heater on and off as well
as setting the comfort level in the room. Turning the knob
clockwise from the off position will place the heater into
operation. The further the knob is rotated clockwise, the
higher the set point temperature. Turning the knob
counterclockwise will lower the set point temperature.
Turning it all the way counterclockwise will turn the heater
function off.
3. LOG ILLUMINATION CONTROL
The On/Off switch controls the light located above the log
set.
4. FLAME SPEED CONTROL
Turn the flame speed control knob to increase or decrease
the flame speed as desired.
See Installation Instructions for service
details.
WARNING: Disconnect Power Before
Servicing.
WARNING: Risk of fire, keep electrical
cords, draping, and other furnishings at
least 3 feet (0.9m) from the front of the
heater.
Fig. 7
4
CONTROL PANEL
3
2
1
Voir les instructions d’installation pour
des details sur le service.
AVERTISSEMENT: Debrancher la source
d’alimentation avant le service.
AVERTISSEMENT: Risque d’incendie,
veiller a ce que les cordons electriques,
tentures et autres textiles domestiques
soient a au moins 3 pieds (0,9m) de
I’avant de I’appareil de chauffage.
10003375
10003375
- 9 -
Page 10

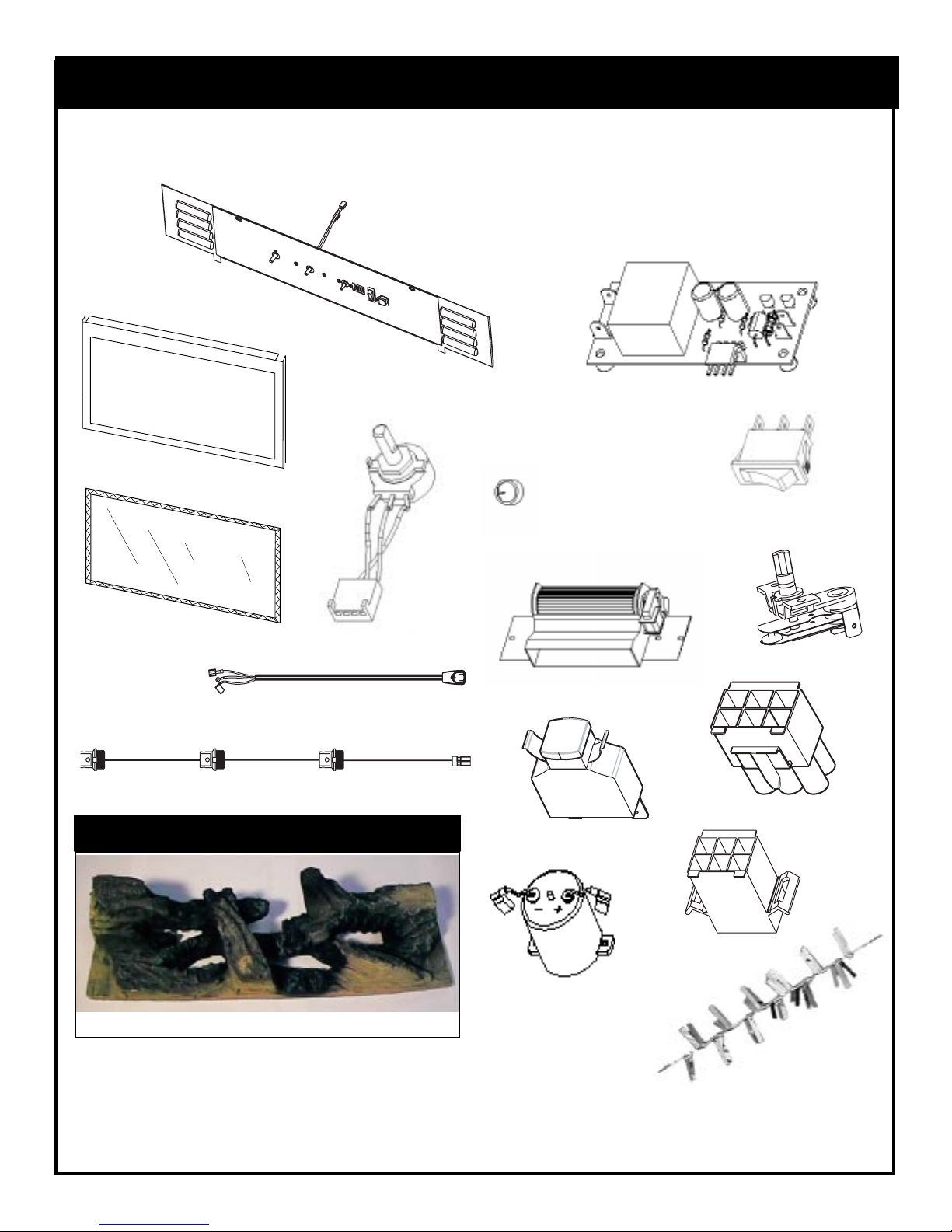

REPLACEMENT PARTS - ELECTRIC FIREPLACE
18
8
15
7
4 /
9
5
216mm [8 1/2"] (DISTANCE BETWEEN TWO SOCKETS)
13
14
20
23
216mm [8 1/2"] (DISTANCE BETWEEN TWO SOCKETS}
#1 COMPLETE LOG SET
305mm [12"]
2
19
6
21
22
3
17
HE32EF
#2 COMPLETE LOG SET
- 10 -
Page 11
REPLACEMENT PARTS LIST - ELECTRIC FIREPLACE
DESCRIPTION HE32EF
1. Log Set Complete 10003628
1a. Log Top Left N/A
1b. Log Top Right N/A
1c. Log Bottom N/A
2. Fan/Heater Assembly w/Bracket 10001815
3. Motor 12VDC (Flame generator) 10001978
4. Switch Rocker 53606
5. On/Off Switch (Illuminated) 10001393
6. Thermostat - Heater Control 10001971
7. Potentiometer - Flame Speed Control 10001168
8. Circuit Board - Flame Speed Control 10001589
9. Knob - Flame Speed, Heater Controls 10001639
10. Light Filter - Ember Bed (Not Shown) 10001259
11. Light Diffuser Screen (Not Shown) 10001836
12. Screen Tinted Plastic (Not Shown) 10001837
13. Glass with Gasket 10001518
14. Gasket Glass 10001882
15. Frame Window Assembly 57914
16. Light Diffuser - Ember Bed (Not Shown) 10001536
17. Flame Generator Assembly 10003618
18. Facia Control Assembly 10003377
19. Breaker Circuit Manual Reset 10003093
20. Cord Power 16 / 3 HPN w/Terminals 10003095
21. Receptacle .093" Pin & Socket 10003104
22. Plug .093" Pin & Socket 10003105
23. Socket Light Bulb Lower Assy 10003127
- 11 -
Page 12

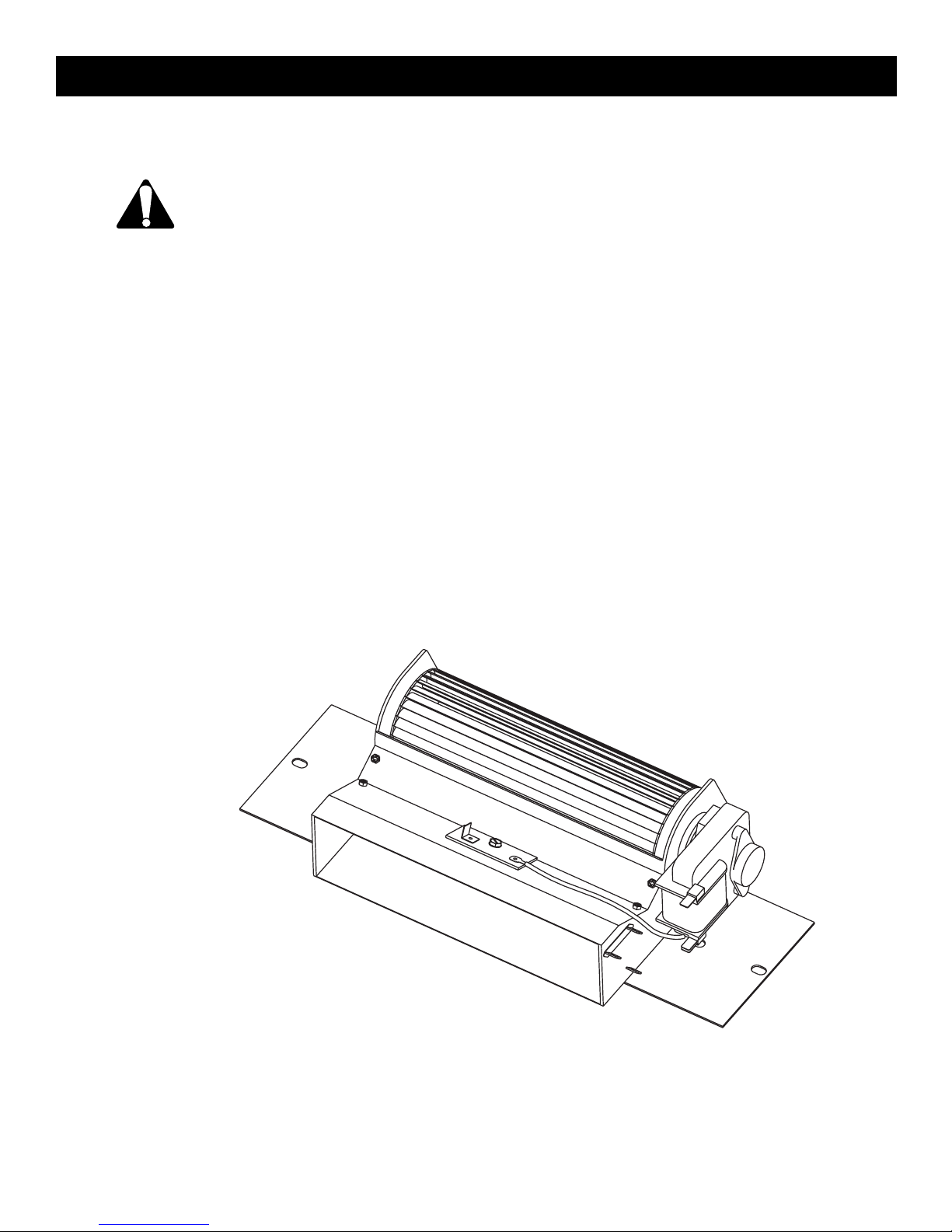

FAN HEATER INSTALLATION
INSTALLATION
WARNING: UNPLUG OR TURN THE POWER TO THE APPLIANCE OFF PRIOR TO BEGIN-
NING THE INSTALLATION. IT IS NOT ACCEPTABLE TO USE THE “ON/OFF” SWITCH TO
MEET THIS REQUIREMENT.
1. Turn the power to the appliance off, or unplug it from the power supply.
2. Let fireplace cool if it has been operating.
3. Remove access panel radiance by lifting up and pulling out or open lower louvre assembly.
4. Remove two door retention screws along lower sides edge of door frame.
5. Swing lower portion of door out from the fireplace and gently lift up to disengage top of door from fireplace (see FIG. 1).
6. Gently remove log set by removing the two screws securing the ember bed in position. One screw is
located on either side of the ember bed near the front.
7. Gently remove screen tinted plastic. Lift up to the top and swing lower portion of tinted plastic out from
bracket screen support on both sides and gently pull out slowly from fireplace.
8. Hold the fan/heater assembly and slide the assembly inside fireplace from bottom to top, turn assembly
to line up the fan/heater with bracket support in fireplace mounting with the two screw studs on bracket
support and fasten with #10-24 hex nuts provided.
9. Push connector receptacle pin and socket of the fan/heater assembly into the plug pin and socket on
fire box top.
10. Re-install screen tinted plastic, ember bed, log set, and glass door following the above procedure in
reverse.
11. Restore power to the appliance and place unit into operation check function of all of the controls
for proper operation.
Fan/Heater Assembly
- 12 -
Page 13
TRIM SIDE
CHANNEL
TRIM SIDE
CHANNEL
TRIM TOP CHANNEL
SCREW
DEFLECTOR
TRIM TOP
AS SHOWN FROM FRONT
TRIM FRAMING
INNER TOP
TRIM FRAMING
INNER SIDES
Side View
Trim Frame Top Section
Trim Top Deflector

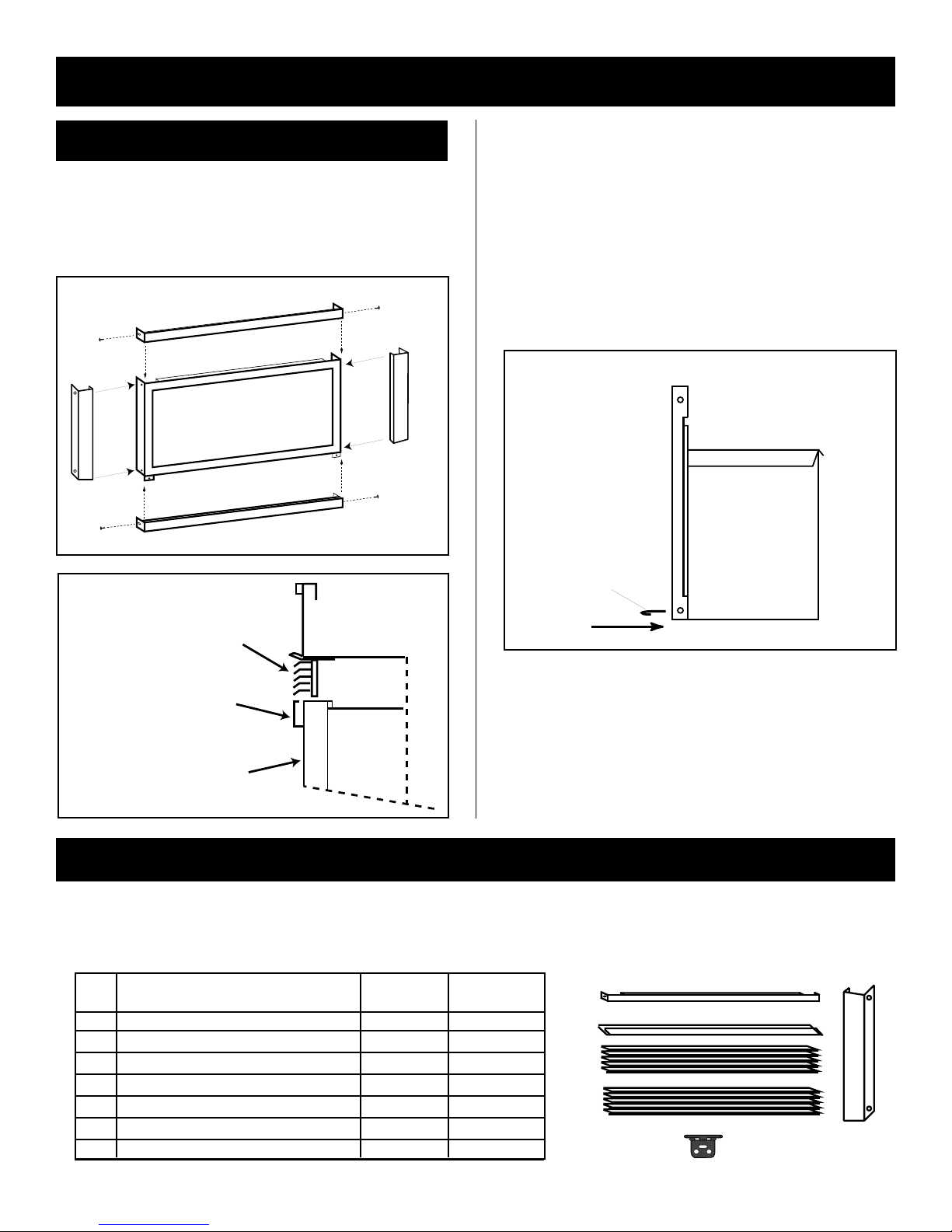

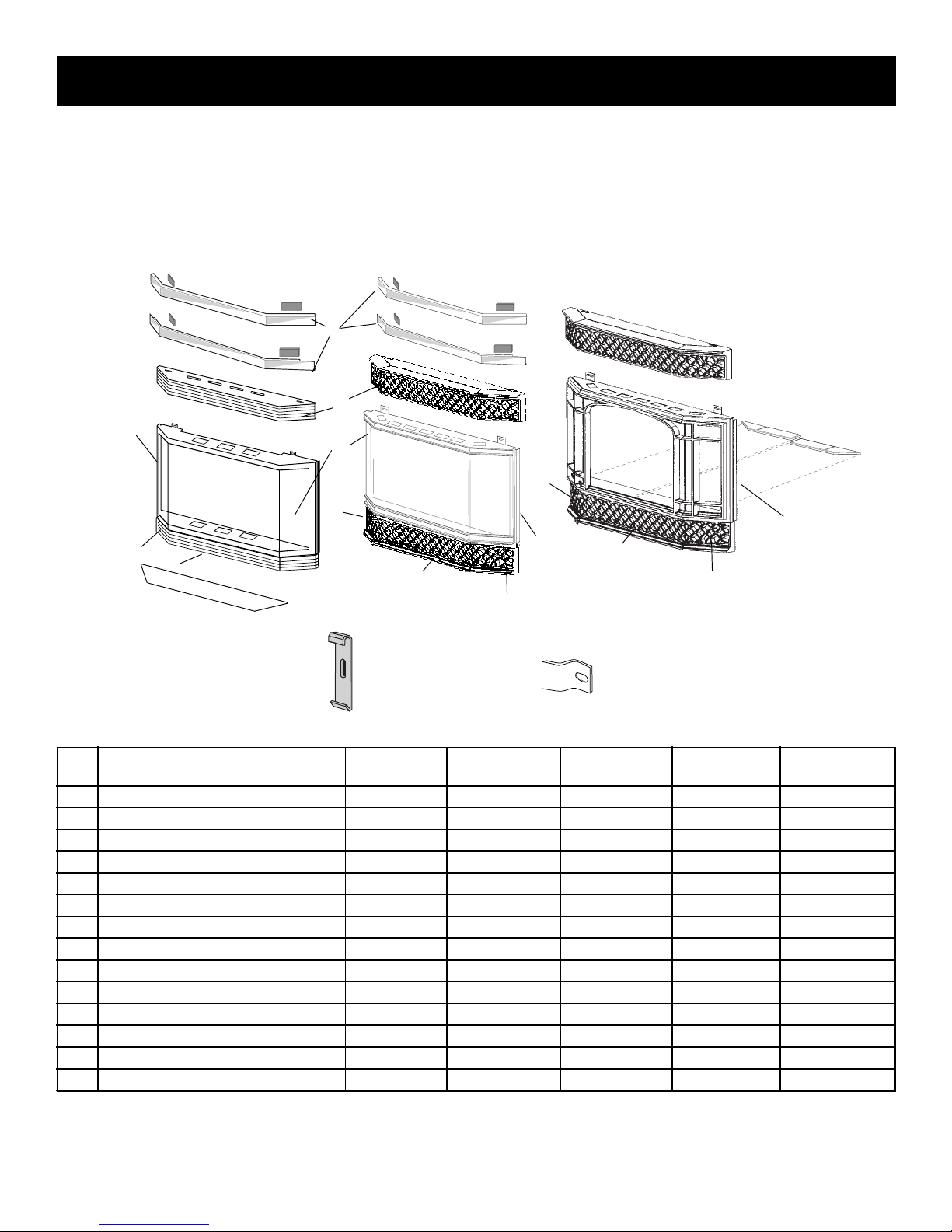

TRIM OPTIONS FOR HE32EF
1) RHESS, RHESL, RHESSD, RHESLD & RHESXL TRIMS
FRAME ASSEMBLY
RHESS, RHESL, RHESSD, RHESLD and RHESXL
1. Lay Trim Top Facing and Trim Side Facings, face down
on to an even surface such as a table or floor. Be sure
not to scratch the painted surfaces.
2. Install the nuts and bolts (Fig. 8).
10/24
SCREWS
FRAME TOP
LEFT
FRAME
FIG.1
AS SHOWN FROM BACK
RIGHT
FRAME
10/24
NUTS
Fig. 8
TRIM ASSEMBLY
RHESS, RHESL, and RHESXL
1. Install trim channels (left and right sides). Use two
screws to assemble each piece.
2. Slide on the trim top channel and fasten it from the back
side.
3. Install the trim top deflector and use two screws to fasten
it. (Fig. 9 & 10)
4. Remove ALL plastic protective covering from brass trim.
Fig. 10
RHESSD and RHESLD (Fig. 11)
1. Install trim channels (left and right sides). Use two
screws to assemble each piece.
2. Peel off plastic protective covering from top edges of
the inner sides where the facing iner top will cover.
3. Place the trim facing inner top in place (do not fasten it
yet). Peel off the plastic protective covering from the
bottom edge.
4. Install the trim top deflector and fasten it (will hold the
inner top piece). Use two screws to assemble them.
5. Install trim channels (left and right sides). Use two
screws to assemble each piece.
6. Slide on the trim top channel and fasten it from the back
side.
7. Remove ALL plastic protective covering from brass
trim.
SCREW
TRIM SIDE
CHANNEL
AS SHOWN FROM FRONT
TRIM TOP CHANNEL
DEFLECTOR
TRIM TOP
TRIM SIDE
CHANNEL
Fig. 9
Fig. 11
A flat louvre kit OR a bay window kit
needs to be chosen to complete the
installation.
- 13 -
Page 14
FRAME MOUNTING
GENERAL INFORMATION
The Decorative Front Frame should be installed last
after all other work, has been completed and thoroughly
checked and tested for operation and proper installation
requirements.
1. Fit Decorative Frame to the fireplace and fasten
(Fig. 12)
SCREWS
AS SHOWN FROM FRONT

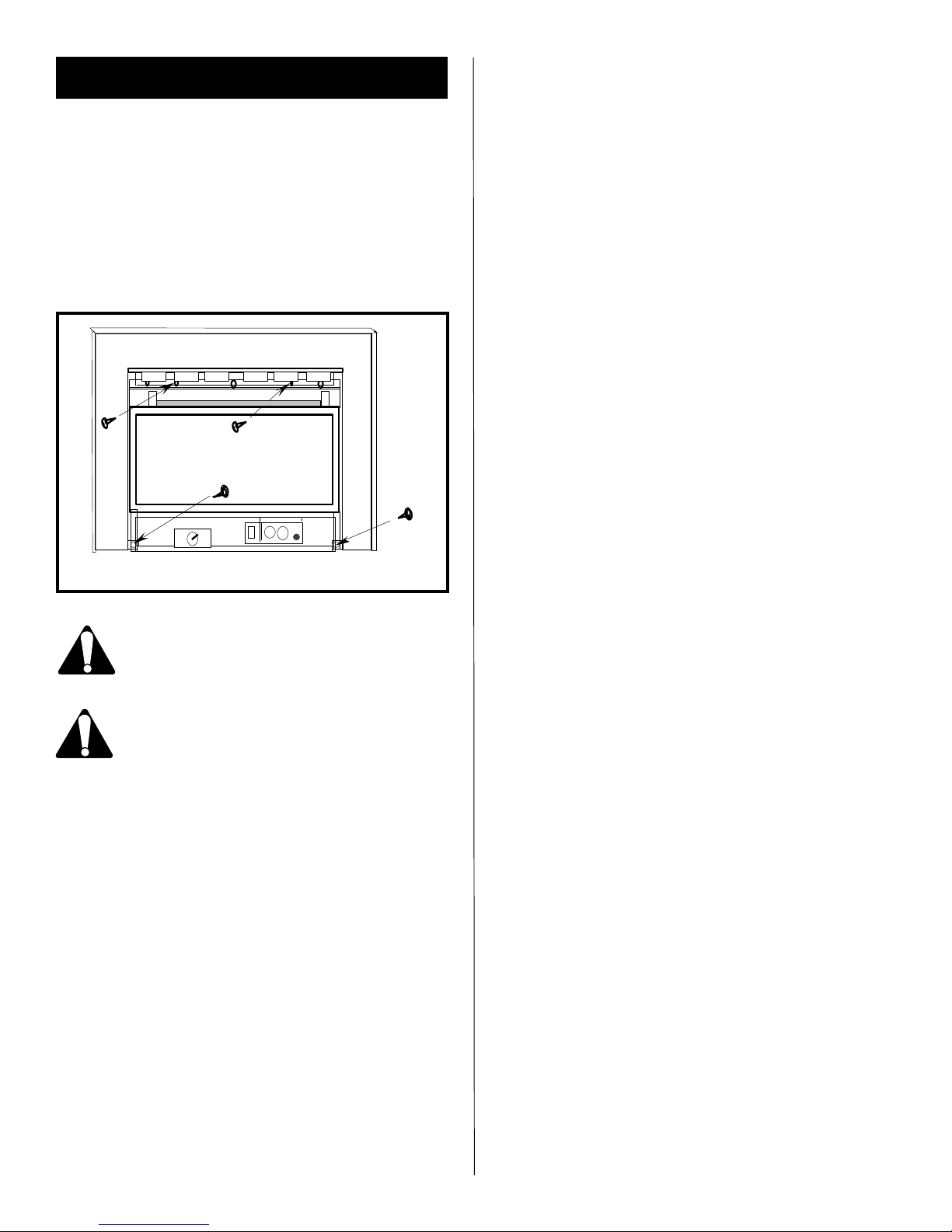

Fig. 12
Plastic on the trim must be removed before
mounting onto the fireplace.
Glass must be tightly pressed against the
front of the frame in order to prevent
screws from damaging glass edges.
- 14 -
Page 15
TRIM REPLACEMENT PARTS LIST
ALL repair parts will be available from your local dealer.
When ordering, always give the following information: Model and serial number, part description with finish and part
number;
KEY DESCRIPTION RHESS
(2)
RHESL
(3)
RHESSD
(3)
RHESLD
(3)
RHESXL
1 Trim Frame Top, Flat Black 57929 57932 57929 57932 57935
2 Trim Frame Left, Flat Black 57927 57930 57927 57930 57933
3 Trim Frame Right, Flat Black 57928 57931 57928 57931 57934
4 Trim Top Deflector
5 Trim Top Channel
6 Trim Side Channel Left
7 Trim Facing Inner Top
8 Trim Facing Inner Left
9 Trim Facing Inner Right
(1)
(1)
(1)
(1)
(1)
(1)
17634 17634 17634 17634 17634
50586 50587 17611 17612 52787
50589 50590 17623 17624 52788
- - 17609 17610 -
- - 17620 17619 -
- - 17622 17621 -
10 Fasteners Package (Not Shown) 55043 55043 55043 55043 55043
(1)
Specify Finish (Antique or Polished Brass)
(2)
SS and SSD trim dimensions are for openings smaller than 26
(3)
SL and SLD trim dimensions are for openings smaller than 29"H x 41" W (736mm x 1040mm)
(4)
SXL trim dimensions are for openings smaller than 32"H x 43" W (813mm x 1092mm)
1/2"
H x 38" W (673mm x 965mm)
5
1
(4)
1
4
6
2
3
6
7
8
9
- 15 -
Page 16
2) RHEBSL & RHEBXL TRIMS
TRIM ASSEMBLY
RHEBSL
1. Install trim channels (left and right sides). Use two
screws to assemble each piece.
2. Slide on the trim top channel and fasten it from the back
side.
3. Install the trim top deflector and use two screws to
fasten it. (Fig. 13)
4. Remove ALL plastic protective covering from brass
trim.
Trim Top Deflector
Trim Frame Top Section
Side View
Fig. 13
RHEBXL
To install the kit you do not have to remove any piece
of brass, you just add the external pieces.
Remove the frame trim from the unit if it is already
installed.
1. Install trim channels (left and right sides)by removing
the two screws that hold the side brass trim and put
them back to hold both parts.
2. Slide on the trim top channel and fasten it from the
back side.
3. Remove the two screws that hold the top brass trim.
4. Install the two brackets to the studs in the bottom of
the top channel. Use the nuts supplied with the kit.
5. Reinstall the two screws to hold the top trim channel.
TRIM REPLACEMENT PARTS LIST
ALL repair parts will be available from your local dealer.
When ordering, always give the following information: Model and serial number, part description with finish and part
number;
KEY DESCRIPTION RHEBSLP RHEBSLA RHESXLP
1 Trim Frame Flat Black 57926 57926 - 2 Trim Top Deflector 17634-PB 17634-AB - 3 Trim Top Channel 57864 57844 - 4 Trim Side Channel 57862 57843 - 5 Trim Outer Top Channel - - 57861 57845
6 Trim Outer Side Channel - - 57863 57846
7 Fasteners Package (Not Shown) 54618 54618 57633 57633
(1)
RHEBXLP or RHEBXLA to be used with RHEBSSLP or
RHEBSLA trims.
(2)
SL trim dimensions are for openings smaller than
1/2
27
(4)
"H x 40
XL trim dimensions are for openings smaller than
30"H x 45
1/2
" W (700mm x 1030mm)
5/8
" W (765mm x 1160mm)
4
6
5
3
1
2
(1)
RHESXLA
(1)
4
6
- 16 -
Page 17
3) RHEFA and RHEFP TRIMS
TRIM ASSEMBLY
1. Remove the front glass (see "Glass Frame Removal" section).
2. Install support window trim channel, top and bottom
brass trim by using the shortest black screw. (Fig.
14 & 15).
screws
TRIM-TOP
GLASS FRAME
3. Install bottom decorative plate by simply sliding it
under the unit floor. No fastening is required for
this installation (See Fig. 16). Be sure to remove
protective cover.
4. Install the bottom louvre assembly by fastening
the hinges with four screws to the pre-punched
holes in the cabinet.
5. Re-install the front glass.
6. Install the top louvre by using the hooks to hang it
in place.
TRIM-BOTTOM
Louvre
Fig. 14
BOTTOM
DECORATIVE PLATE
Fig. 16
Note:
Position brass trim top as
shown (small end up)
to prevent heat discolouration
Glass
Frame
Fig. 15
TRIM REPLACEMENT PARTS LIST
ALL repair parts will be available from your local dealer.
When ordering, always give the following information: Model and serial number, part description with finish and part
number;
KEY DESCRIPTION RHEFA RHEFP
1 Trim Window Top/Bottom 52624-AB 52624-PB
2 Plate Decorative Bottom 17597-AB 17597-PB
3 Top Louvre Assembly 57905 57905
4 Bottom Louvre Assembly 57906 57906
5 Support Window Trim Channel 57909 57909
6 Hinge 52356 52356
7 Fasteners Package (Not Shown) 57916 57916
1
2
3
4
5
6
- 17 -
Page 18
4) HEBTKP, HESBTKP, HECBTK, HECBTKMB & HEBTA TRIMS
HECBTK - Cast bay window and grills in classic black trim kit
HECBKMB - Cast bay window and grills in midnight black porcelain enamel trim kit
HESBTKP - Steel bay window with polished brass and cast grills in classic black trim kit
HEBTKP - Steel bay window and bay louvres with polished brass trim kit
Install the bay window after all other installation work has been completed, thoroughly checked, and tested for operation, leaks
and proper installation requirements.
DO NOT REMOVE EXISTING GLASS WITH FRAME
HEBTKP
Fig. 17
HESBTKP
Fig. 18 Fig. 19
HECBTK &
HECBTKMB
HECBTKP, HECBTKMB and HESBTKP Trim Assembly
1) Install the hanging brackets, as per Fig. 20.
2) Install the two ceramic pieces inside the bay window, as per fig. 19.
3) Install the bay window by hanging it onto the lower tabs of the hanging brackets, as per Fig. 21.
4) Install the upper grill by engaging the obround holes with the upper tabs of the hanging brackets, as per Fig. 22
5) Install brass trim to the steel frame as per Fig. 23 (Only for HESBTKP trim)
- 18 -
Page 19
HEBTKP Trim Assembly
1) Install the hanging brackets, as per Fig. 20
2) Install bracket on each side of the cabinet as per Fig. 24.
3) Install the two ceramic pieces inside the bay window, as per Fig. 19.
4) Install the bay window by hanging it onto the lower tabs of the hanging brackets, as per Fig. 21.
5) Install top louvre by engaging the obround holes with the upper tabs of the hanging brackets, as per Fig. 22.
6) Install brass trim to the steel frame as per Fig. 23.
Fig. 20. Hanging Bracket alignment.
Fig. 22.Engage the slots in the Upper Grille Top
Louvre with the upper tabs of the Hanging
Brackets.
Fig. 21 Hang the Window Grille or the Steel Frame
onto the lower tabs of the Hanging Brackets.
Fig. 23.Attach magnets and brass trim to the steel
frame.
Fig. 24.Bracket for HEBTKP.
- 19 -
Page 20
TRIM REPLACEMENT PARTS LIST
ALL repair parts will be available from your local dealer.
When ordering, always give the following information: Model and serial number, part description with finish and part
number;
HEBTKP
HESBTKP
HECBTK & HECBTKMB
1
3
3
11
8
9
10
10
6
9
4
6
8
10
9
8
5
5
5
2
7
7
12
13
KEY DESCRIPTION HECBTK HECBTKMB HESBTKP HEBTKP HEBTA
1 Trim Window Top/Bottom
2 Plate Decorative Bottom - - - 52828-PB 52828-AB
3 Top Louvre (Grill) Assembly 1301199 1341199 1301199 57945 4 Bottom Louvre (Grill) Assembly - - - 57947 5 Control Door 1301200 1341200 1301200 57946 6 Bottom Louvre Left 1301219 1341219 1301219 - 7 Bottom Louvre Right 1301218 1341218 1301218 - 8 Bay Window Frame 1301198 1341198 1409127 1409127 -
9 Glass Side 1601971 1601971 1601971 1601971 10 Glass Front 1601957 1601957 1601957 1601957 11 Ceramic Refractory Bay (Set) 1601939 1601939 1601939 1601939 12 Bracket Hanging Bay Window 10002026 10002026 10002026 10002026 13 Bracket Mounting Bay Window - - - 57877 14 Hardware Pkg. (Not Shown) 10000108 10000108 10000108 10000530 -
(1)
With magnets.
(1)
- - 55188-PB 55188-PB 55188-AB
- 20 -
Page 21
5) CAST TRIM OPTIONS
CAST SURROUND AND FLAT FACE
HECBL Cast Surround Black
HECBLUE Cast Surround Blue
HECCG Cast Surround Charcoal Grey
HECGR Cast Surround Green
CSSP Polished Brass Small Trim for Cast Surround
CSLP Polished Brass Large Trim for Cast Surround
(to be used with CSSP)
ACCESSORIES OPTIONS
DESCRIPTION
• Remote Control
• Optional Heater
• Cabinet / Mantel
• Ceramic Refractory Kit
• Bay Window
- 21 -
Loading...
