Service Parts
ECHEL36IN-C

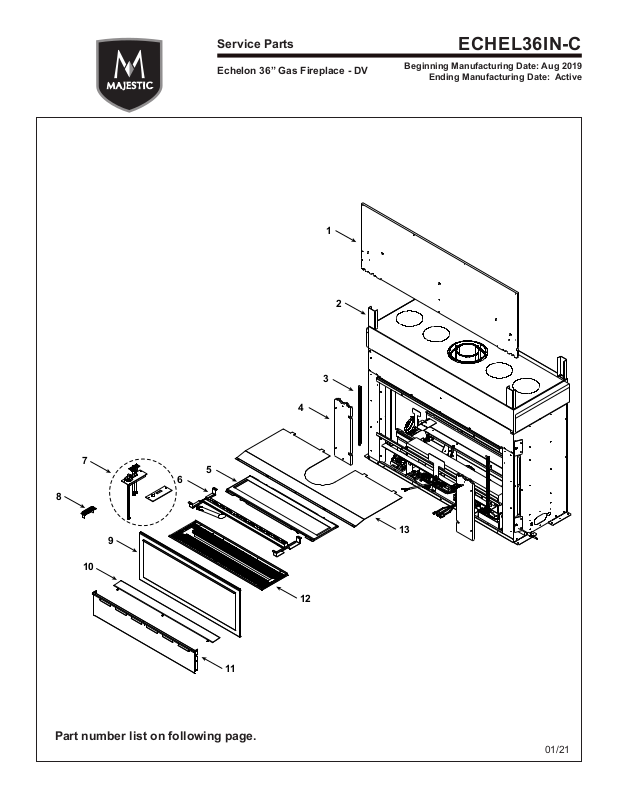

Echelon 36” Gas Fireplace - DV
1
2
Beginning Manufacturing Date: Aug 2019
Ending Manufacturing Date: Active
3
4
7
8
9
10
5
6
13
12
11
Part number list on following page.
01/21
Page 2
Service Parts
Beginning Manufacturing Date: Aug 2019
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor. Hearth and Home Technologies does not sell directly to consumers.
Provide model number and serial number when requesting service parts from your dealer
or distributor.
ITEM DESCRIPTION COMMENTS PART NUMBER
1
Non-combustible Board, Top SRV2312-460
2
Stando, Top Qty 4 req 2602-283
3
Side Trim Qty 2 req 2300-281
4
Non-combustible Board, Side Qty 2 req 2300-461
5
Bottom Glass 2312-018
6
Burner 2406-007 Y
7
Pilot Assembly See Following Page
8
Shield, Pilot 2406-196
9
Glass Assembly GLA-36-MAJ
10
11
12
13
Shield, Bottom Glass 2312-179
Panel, Bottom 2312-147
Rock Tray 2406-151
Heat Shield 2600-150
ECHEL36IN-C
Ending Manufacturing Date: Active
Stocked
at Depot
#14 LED Light Assembly
14 LED Light Assembly
14.1 Power Supply, LED 40W
14.2 LED Dimmer
14.3 Module, B Type AC
14.4 Cable, B Type AC Module
14.5 LED Lightbar Connection
14.6 Cable, Linear LED
Additional service part numbers on following page.
14.1
14.2
14.3
14.4
14.5
14.6
ALK-36-C
2326-113 Y
2326-112 Y
SRV2326-150 Y
SRV2326-152 Y
2300-753 Y
2300-754 Y
Page 3
Service Parts
#7 Pilot Assembly #15 Valve Assembly
7.5
ECHEL36IN-C
Beginning Manufacturing Date: Aug 2019
Ending Manufacturing Date: Active
7.4
15.1
7.1
15.2
7.3
15.3
15.6
7.2
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor. Hearth and Home Technologies does not sell directly to consumers.
Provide model number and serial number when requesting service parts from your dealer
or distributor.
ITEM DESCRIPTION COMMENTS PART NUMBER
7.1 Bulkhead w/Flex tube 2166-119
7.2 Plate, Flex and Pilot 2300-163
7.3 3-Hole Grommet SRV2118-420
7.4
7.5
15.1
15.2 Flex Ball Valve Assembly 2078-022
15.3 Elbow
15.4 Reset Switch 2206-298
15.5 Battery Pack** SRV2326-134
15.6 Module, RF SRV2326-120
15.7 Module, IFT Control SRV2326-130
15.8 Wire Harness SRV2326-132
15.9 Reset Switch Wire SRV2326-135
15.10 Jumper Wire, 2.5 inch
15.11 Junction Box SRV4021-013
15.12 Transformer, 6 Volt Wall SRV2326-131
**Fuse for battery pack can be sourced locally, not a warranty item. Specs are 250v, 3A fuse, 3/4” long
Additional service part numbers on following page.
Pilot Assembly, NG 2406-012
Pilot Assembly, Propane Convert 2406-012 with SRV593-527
Orice, NG #36C 582-836
Orice, Propane #52C SRV582-852
Valve, NG SRV2166-302
Valve, Propane 2166-303
Qty 2 req
15.4
15.5
SRV4021-045
2155-033 Y
15.8
15.7
15.10
15.9
15.12
15.11
Stocked
at Depot
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Page 4
Service Parts
Beginning Manufacturing Date: Aug 2019
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor. Hearth and Home Technologies does not sell directly to consumers.
Provide model number and serial number when requesting service parts from your dealer
or distributor.
ITEM DESCRIPTION COMMENTS PART NUMBER
Flue Restrictor 385-128
Fiber Glass Rope 060-455
Gasket Assembly
Contains:Vent, Burner Neck, Seal Cap, Air Passage, Drawn Air Passage, and Flex and Pilot
Glass Latch Assembly Qty 2 req 2146-413 Y
Heat Zone Collar Cover Plate 2310-107
Insulation Donut, Plug 2065-121
Log Assembly (Optional)
Light Kit, Ambient ALK-36-C
Black Glass Kit ( Includes Manual Bag Assembly for kit
and Refractory Assembly, Optional)
ECHEL36IN-C
Ending Manufacturing Date: Active
2300-080
LOGS-DRTWOOD-36
BGK-36
Stocked
at Depot
RC 400 Remote SRV2326-110 Y
Touch Up Paint TUP-GBK-12
Vinyl Siding Shield TRAP-VSS
Media Options
Media Kit, Bronze 3 Bags Max GLASS-BZ
Media Kit, Onyx 3 Bags Max GLASS-OY
Media Kit, Saphire 3 Bags Max GLASS-SP
Media Kit, Diamond 3 Bags Max GLASS-DM
Stones 2 Bags Max STONES-NATURAL
Conversion Kits
Conversion Kit NG N/A
Conversion Kit Propane LPK-ECHEL36
Pilot Orice, NG SRV593-528
Pilot Orice, Propane SRV593-527
Regulator, NG NGK-DXV-50
Regulator, Propane SRVLPK-DXV-50
Y
Y
Y
Y
Y
