Maipu MP1800-3 Installation Manual
Maipu Confidential & Proprietary Information Page 1 of 57
MP1800-3 Router
Inst allation Manual
Maipu Communication Technology Co., Ltd
No. 16, Jiuxing Avenue
Hi-Tech Park
Chengdu, Sichuan Province
P. R. China
610041
Tel: (86) 28-85148850, 85148041
Fax: (86) 28-85148948, 85148139
URL: http:// www.maipu.com
Mail: overseas@maipu.com
Maipu Confidential & Proprietary Information Page 2 of 57
All rights reserved. Printed in the People’s Republi c of China.
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual
or otherwise without the prior written consent of Maipu Communication Technology Co., Ltd.
Maipu makes no representations or warranties with respect to this document contents and specifically disclaims any implied
warranties of merchantability or fitness for any specific purpose. Further, Maipu reserves the right to r e vise this document
and to make changes from time to time in its con tent without being obligated to noti fy any person of such revisions or
changes.
Maipu values and appreciates comments you may have concerning our products or this document. address comments to:
Maipu Communication Technology Co., Ltd
No. 16, Jiuxing Avenue, Hi-Tech Park
Chengdu, Sichuan Province
P. R. China
610041
Tel: (86) 28-85148850, 85148041
Fax: (86) 28-85148948, 85148139
URL: http:// www.maipu.com
Mail: overseas@maipu.com
All other products or services mentioned herein may be registered trademarks, trademarks, or service marks of their
respective manufacturers, companies, or organizations.
Document History
Date Revision No. Description
19/11/2007 R1.0 The MP1800-3 Router Installation Manual provides technical information about
installation issues of the router designed and developed by Maipu
Communication Technology Co., Ltd
Maipu Confidential & Proprietary Information Page 3 of 57
Maipu Feedback Form
Your opinion helps us improve the quality of our product documentation
and offer better services. Fax your comments and suggestions to (86) 2885148948, 85148139 or email to overseas@maipu.com
.
Document Title MP1800-3 ROUTER INSTALLATION MANUAL
Product
Version
Document
Revision
Number
1.0
Presentation:
(Introductions, procedures, illustrations, completeness, arrangement, appearance)
Good Fair Average Poor
Accessibility:
(Contents, index, headings, numbering)
Good Fair Average Poor
Evaluate this
document
Editorial:
(Language, vocabulary, readability, clarity, technical accuracy, content)
Good Fair Average Poor
Your
suggestions to
improve the
document
check suggestions to improve this document:
Improve introduction Make more concise
Improve Contents Add more step-by-step procedures/tutorials
Improve arrangement Add more technical information
Include images Make it less technical
Add more detail Improve index
If you wish to be contacted, complete the following:
Name Company
Postcode Address
Telephone E-mail
Maipu Confidential & Proprietary Information Page 4 of 57
Content s
About Installation Manual .........................................................................6
Purpose ................................................................................................................. 6
How to Get in Touch ...............................................................................................6
Customer Support ...................................................................................................................6
Documentation Support ...........................................................................................................6
Overview.....................................................................................................7
Key Features.......................................................................................................... 8
Hardware............................................................................................................. 10
Appearance...........................................................................................................................10
MP1800-3 Router Back Panel Interface ................................................................................... 13
MP1800-3 Router Front Panel Interface ..................................................................................13
Product Functions ................................................................................................. 15
Modules.................................................................................................... 17
Sync/Async Serial Interface Module (SAE) Series..................................................... 18
1-port High-speed V.24/V.35 Serial Module (1SAE)................................................................. 18
Channelized E1 Module (CE1) Series ...................................................................... 20

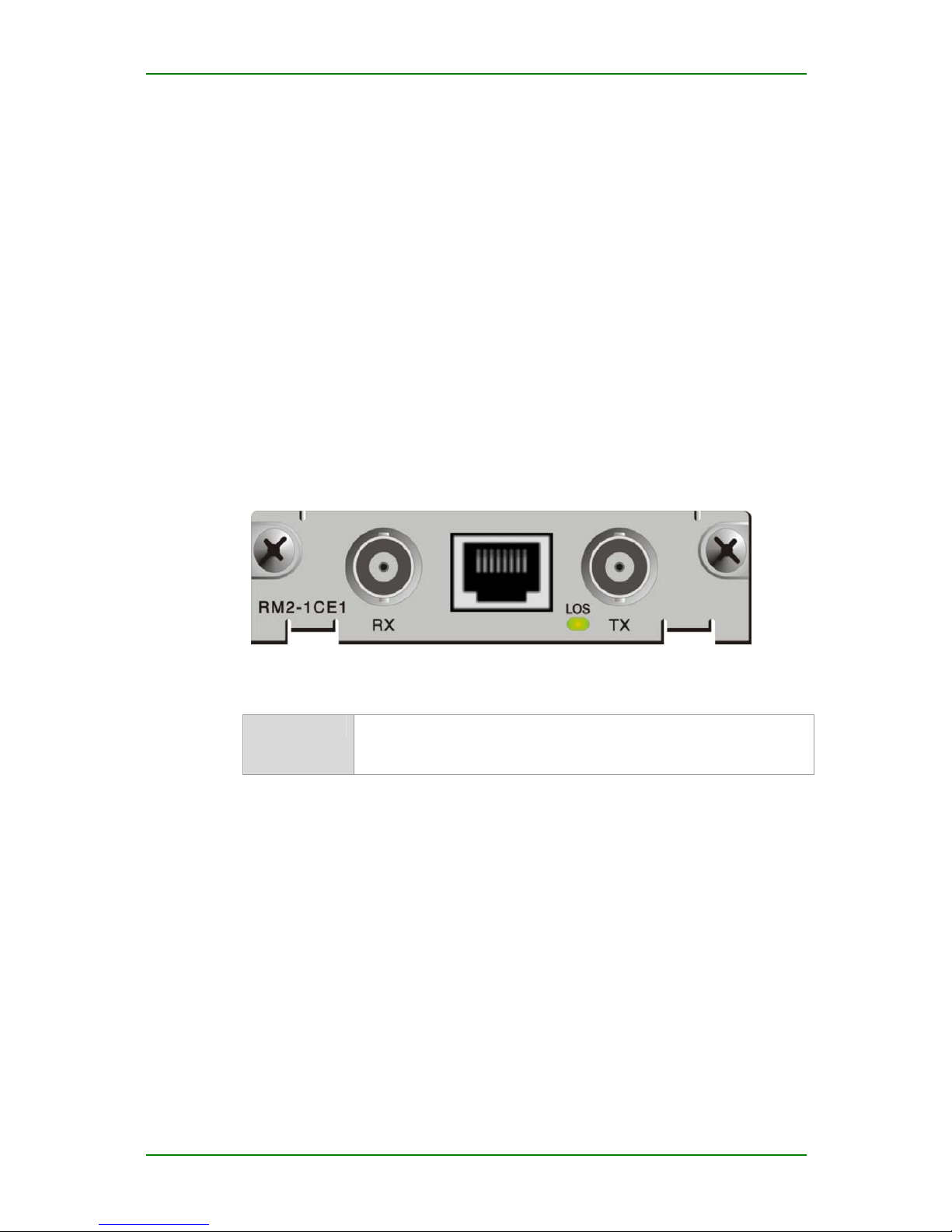

1-port Channelized E1 Module (1CE1) ....................................................................................20
Non-channelized E1 Module (E1) Series.................................................................. 21

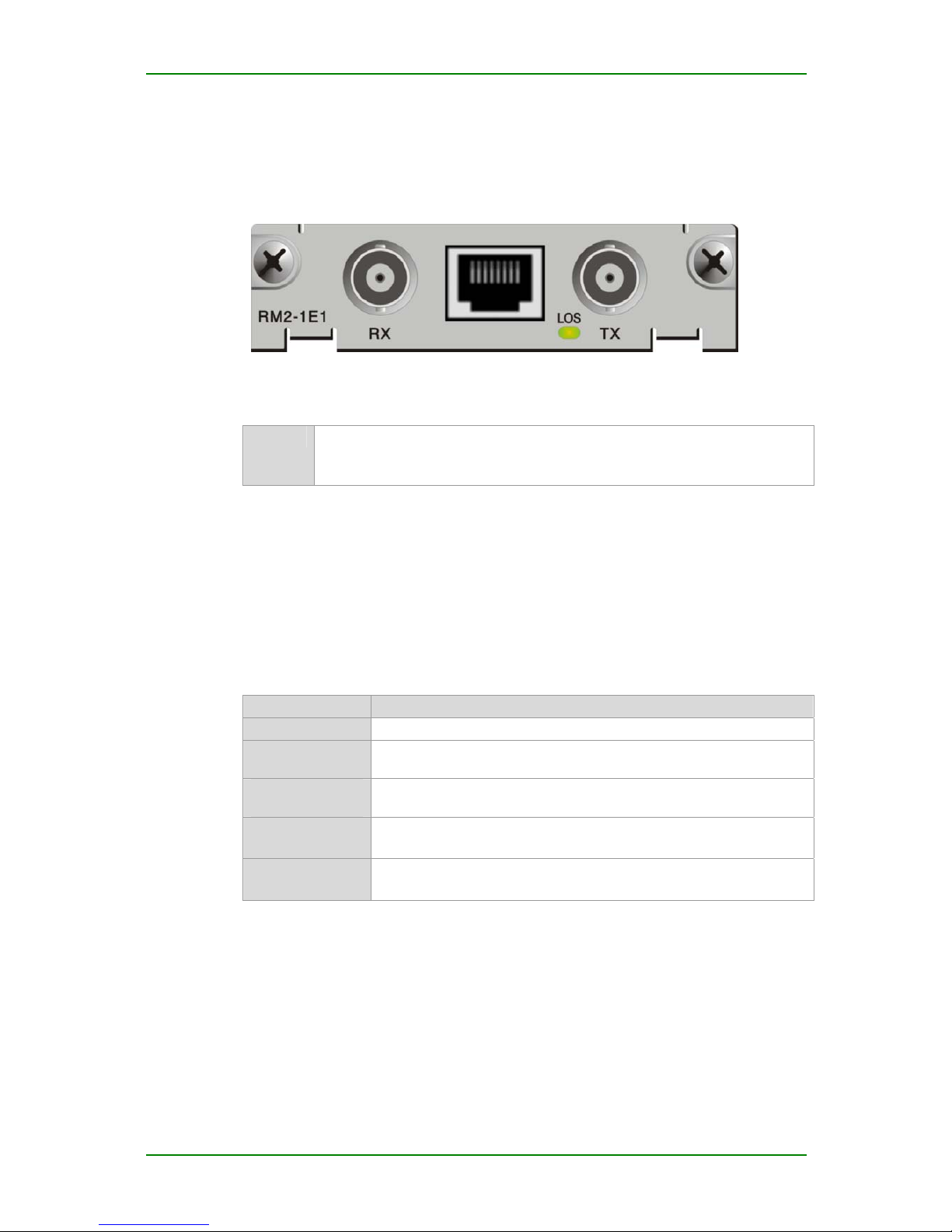

1-port Non-channelized E1 Module (1E1)................................................................................ 21
Frequency-band MODEM M336 Series .................................................................... 23

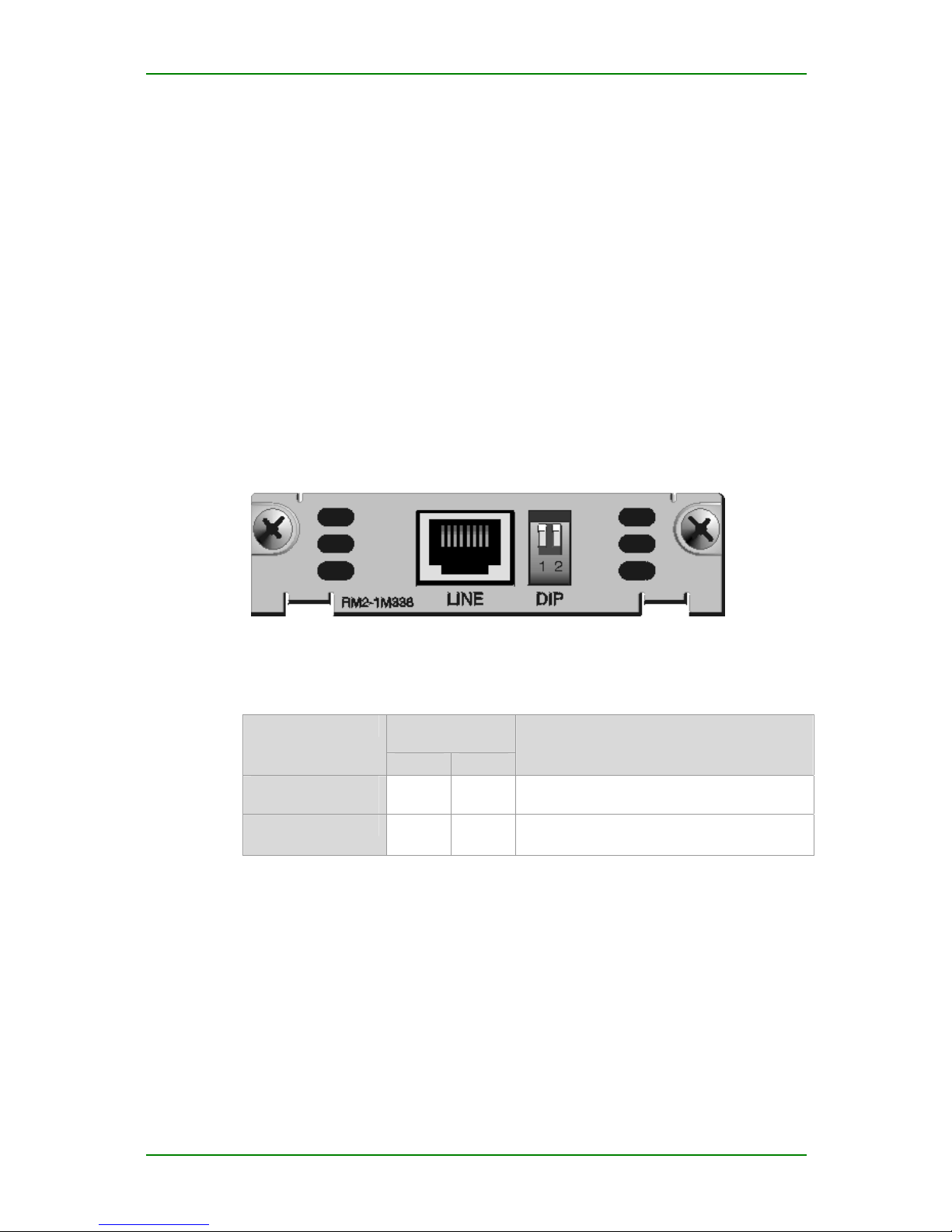

1-port 33.6K Frequency-band MODEM (1M336) ..................................................................... 23
Base-band MODEM (M128) Series.......................................................................... 25

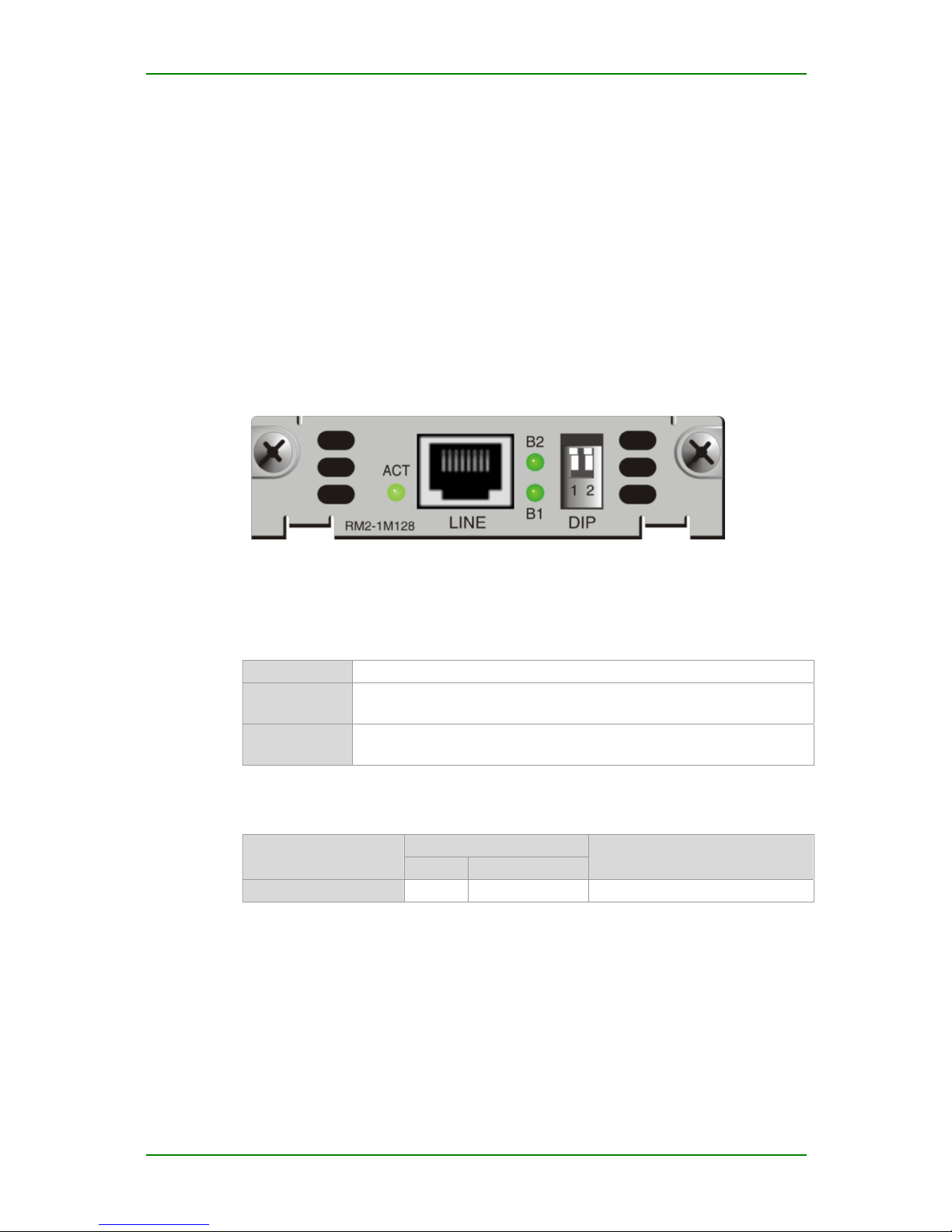

1-port 128K Base-band MODEM (1M128) ............................................................................... 25
ISDN S/T Module (STA) Series............................................................................... 27

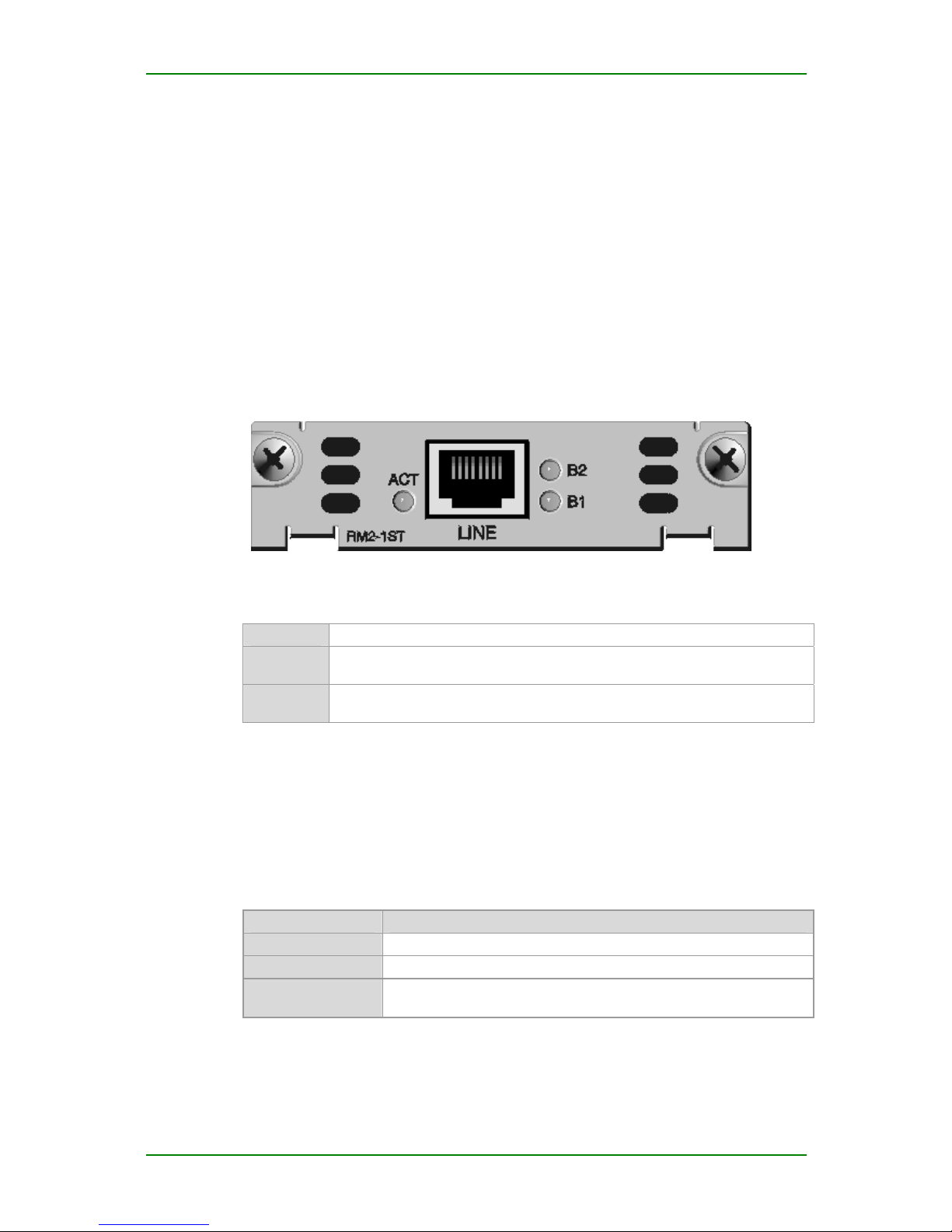

1-port ISDN S/T Module (1 STA) ............................................................................................ 27
ISDN (U) Series.................................................................................................... 28

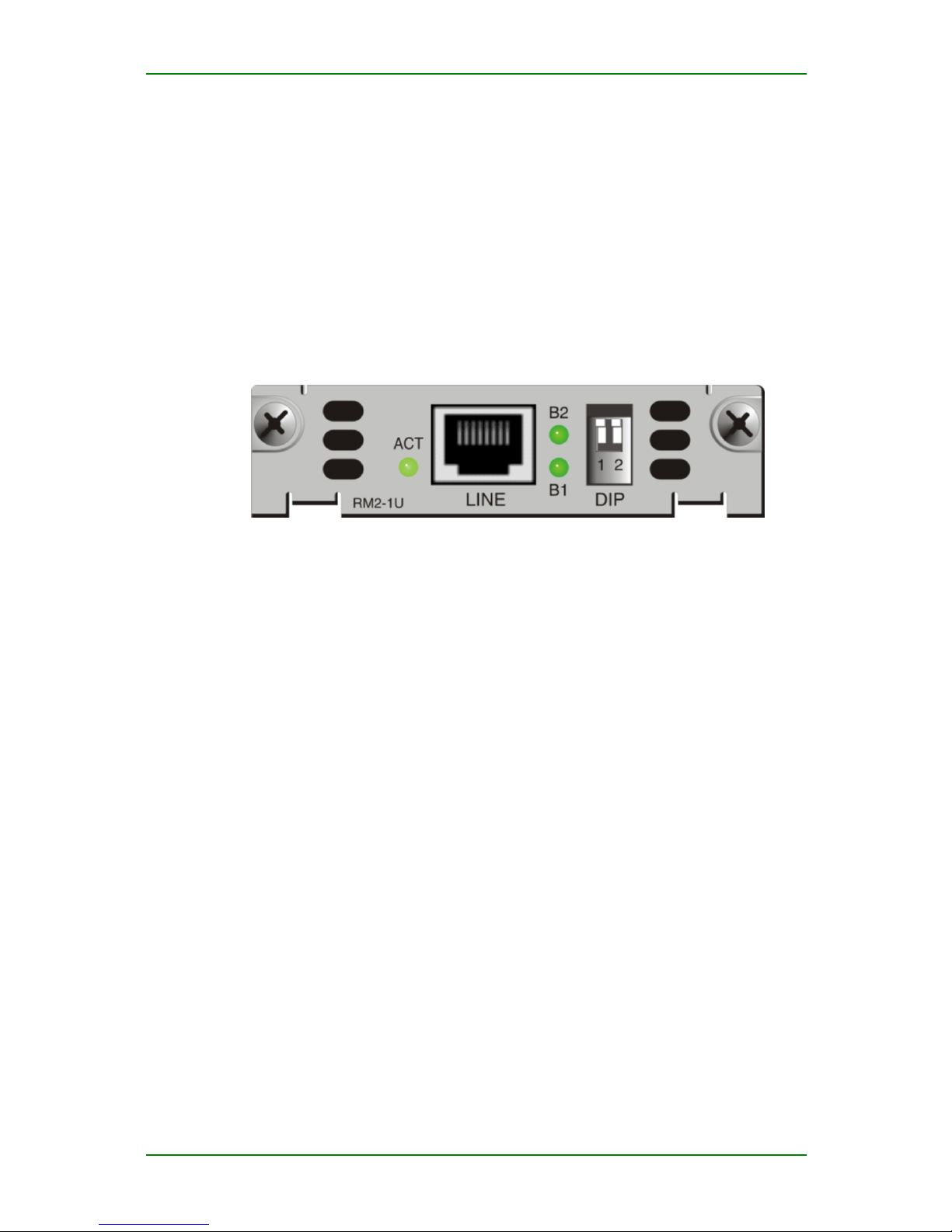

1-port ISDN U Module (1U).................................................................................................... 28
IP Module (VOP/VOS) Series.................................................................................. 30

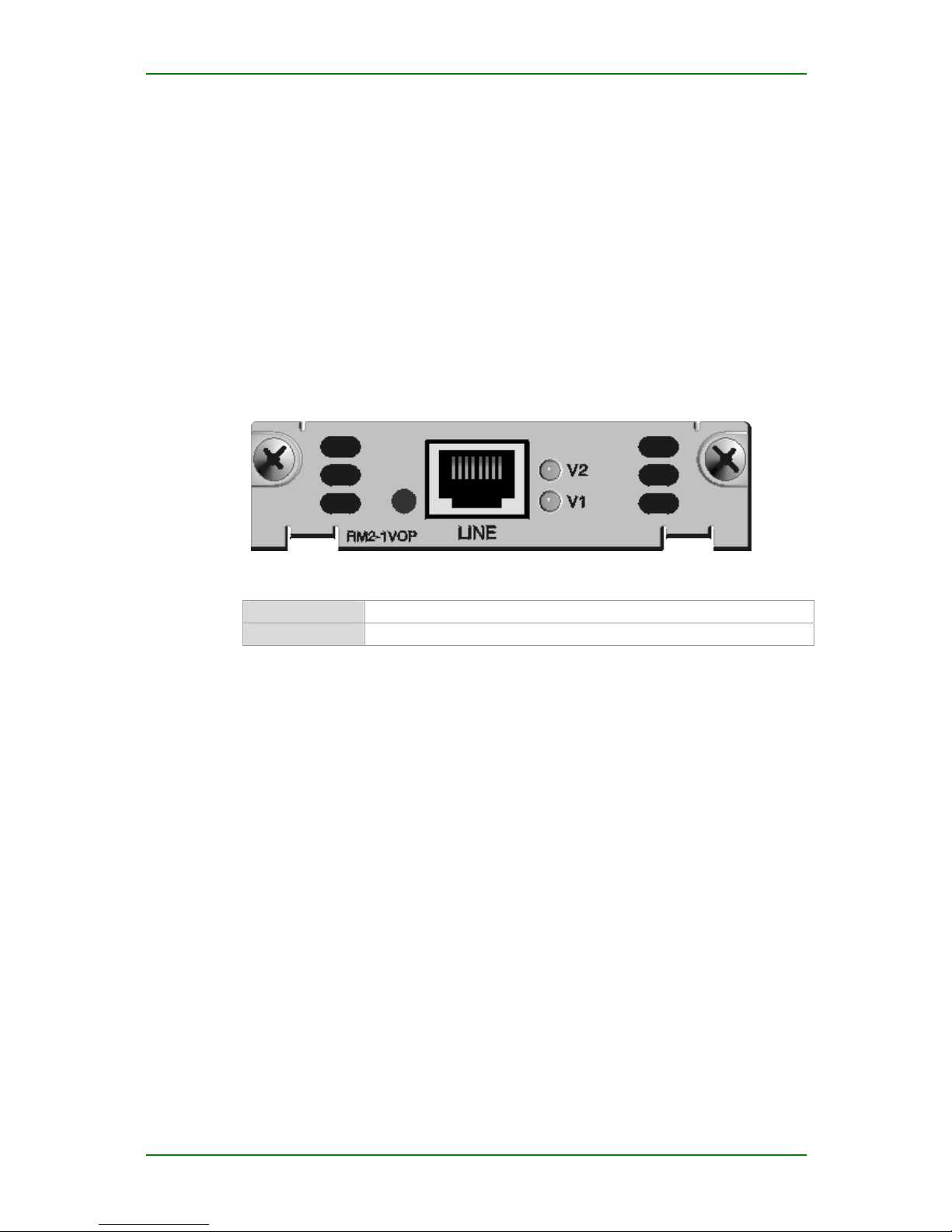

1-port IP Phone Module (1VOP) ............................................................................................. 30

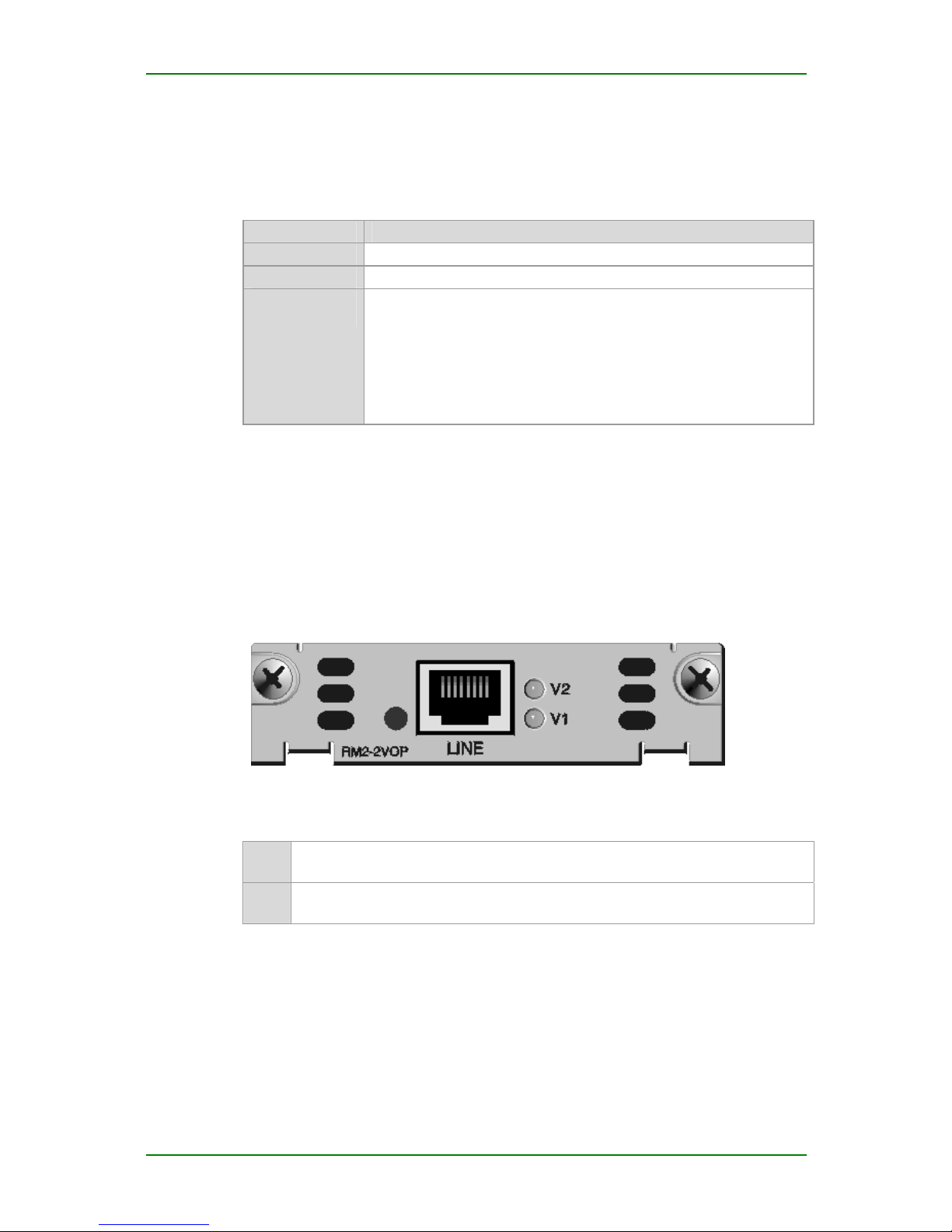

2-port IP Phone Module (2VOP) ............................................................................................. 31

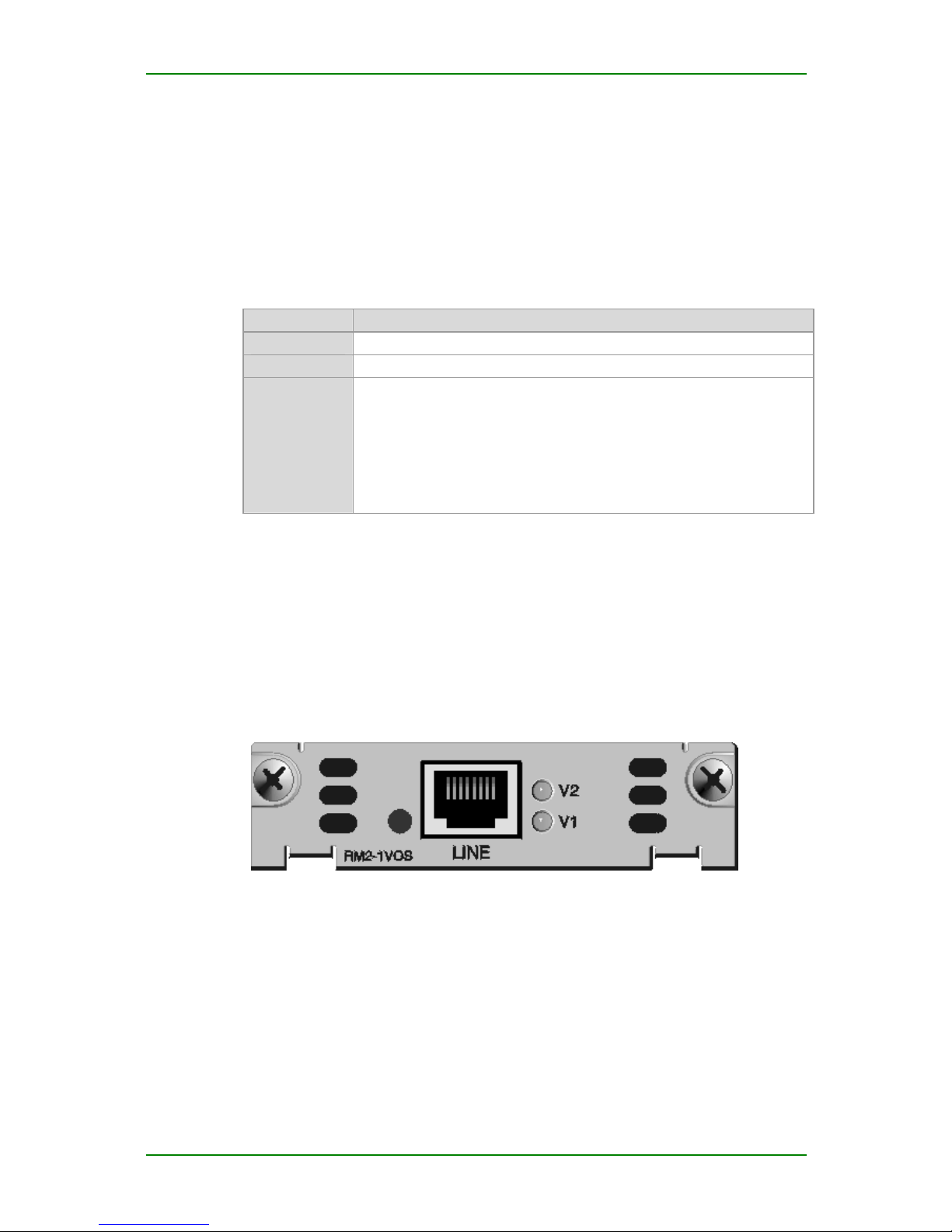

1-port Switch IP Phone Module (1VOS) ..................................................................................32
1 1VOS Module & Indicator .................................................................................................... 32

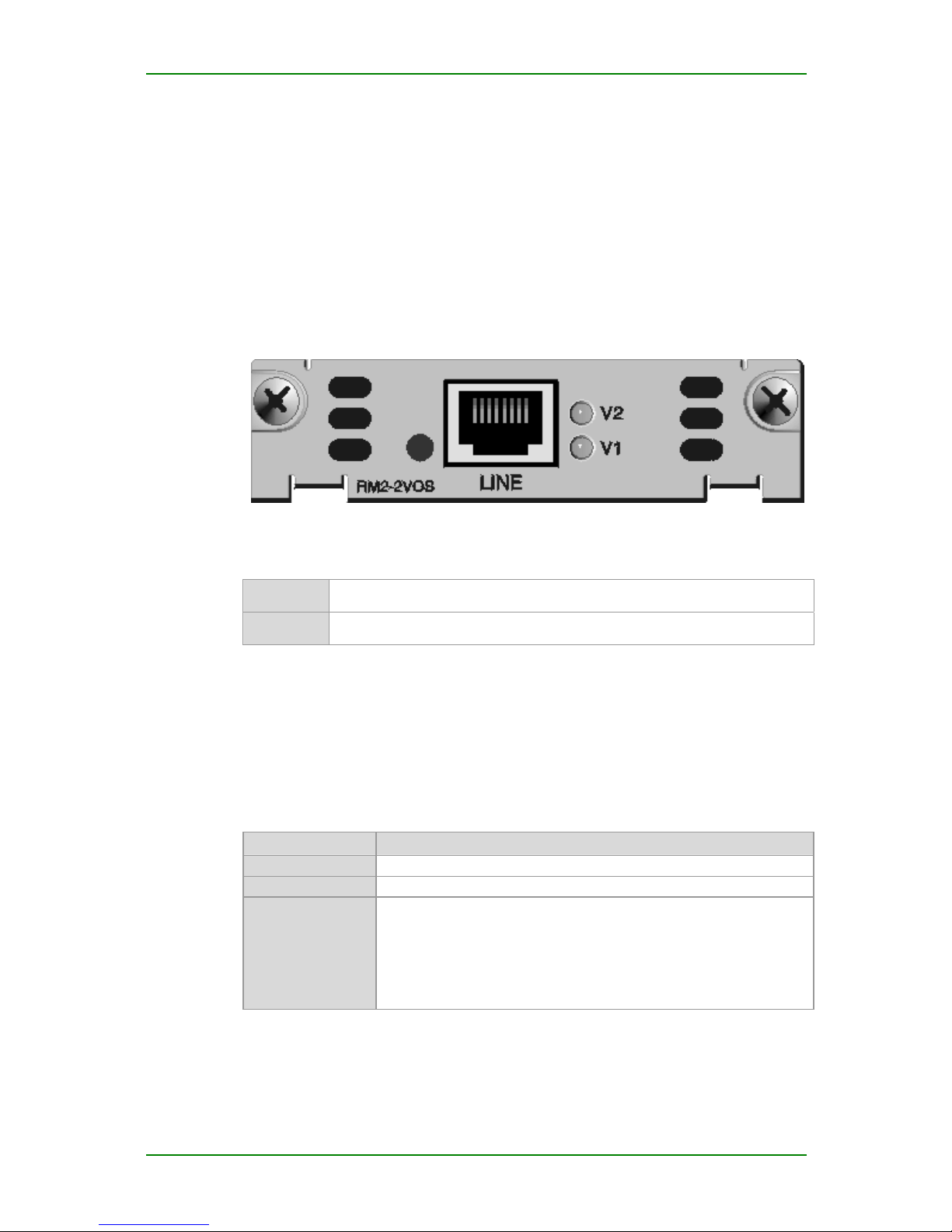

2-port Switch IP Phone Module (2VOS) ..................................................................................34
Asynchronous Serial Port Module (A) Series ............................................................ 35
Maipu Confidential & Proprietary Information Page 5 of 57

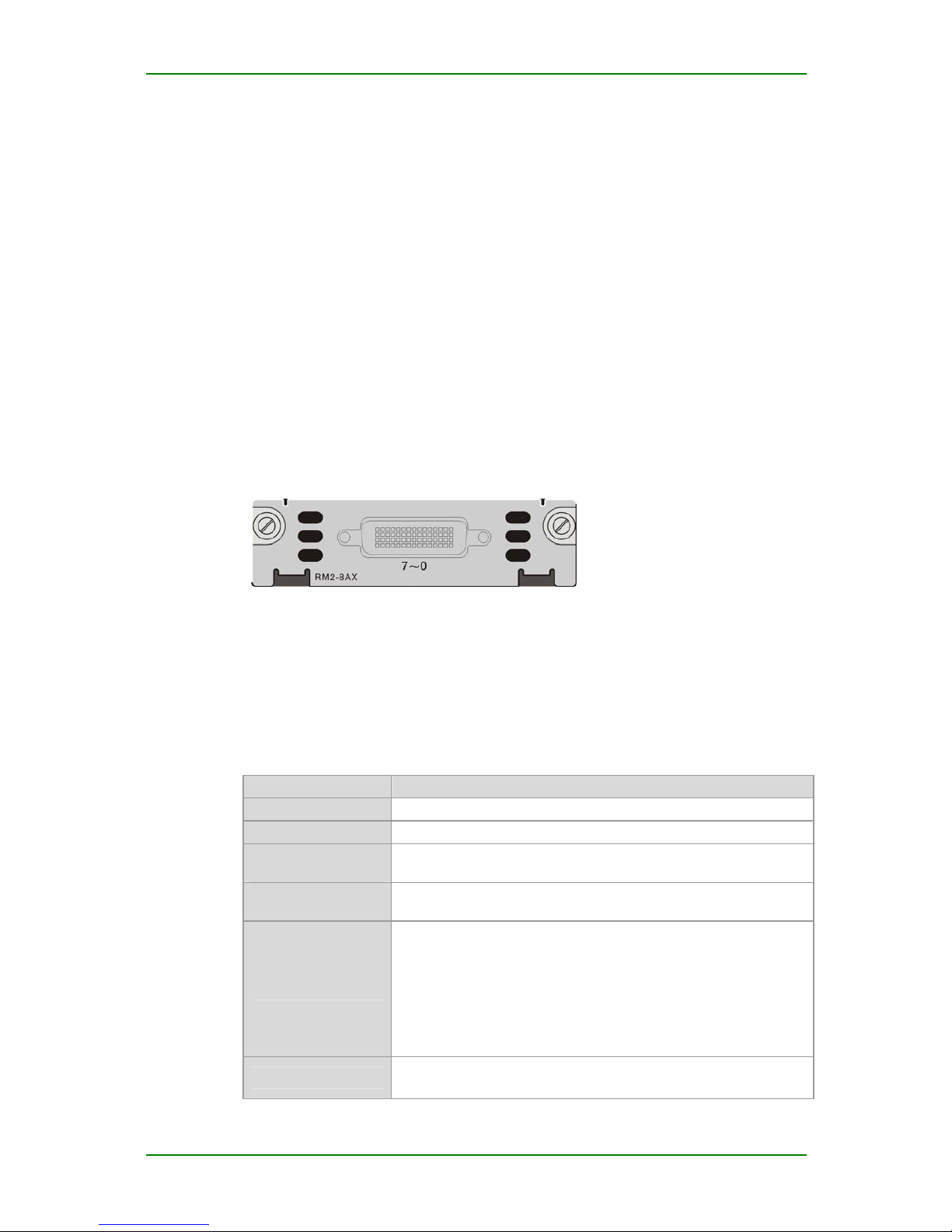

8-port Asynchronous Serial port Module (8AX)........................................................................ 35
System Installation................................................................................. 37
Precautions .......................................................................................................... 37
Environment Requirements.................................................................................................... 37
Check Routers & Accessories ................................................................................................. 40

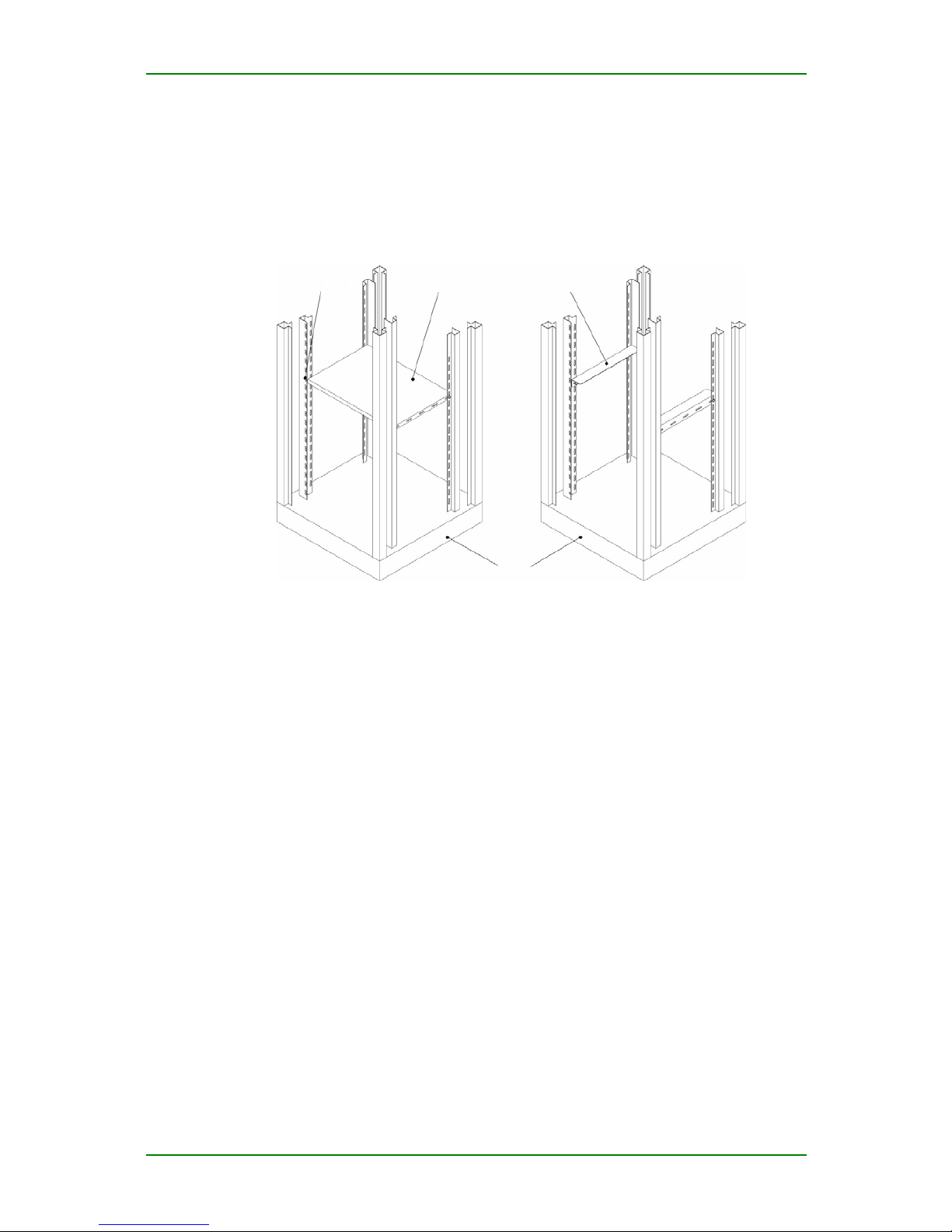

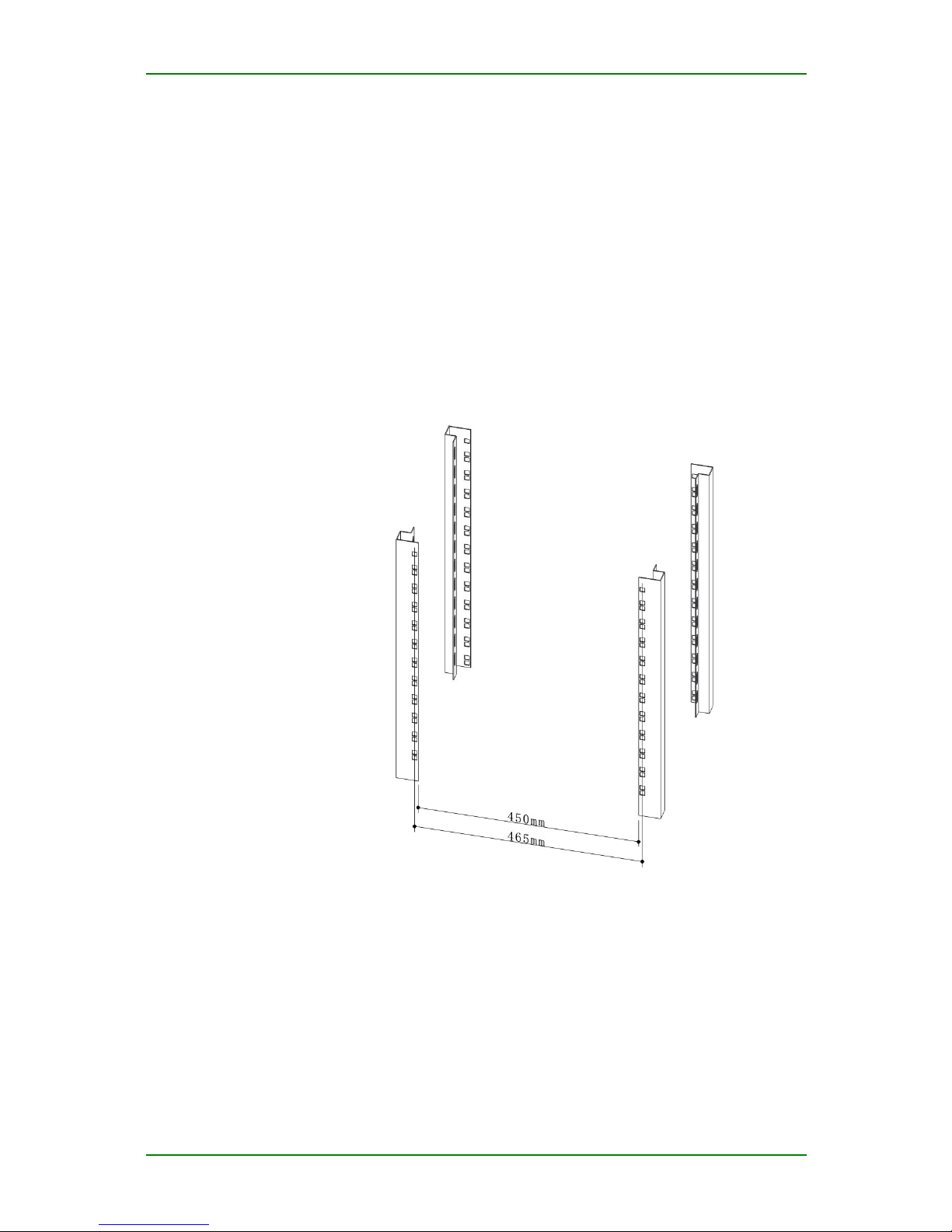

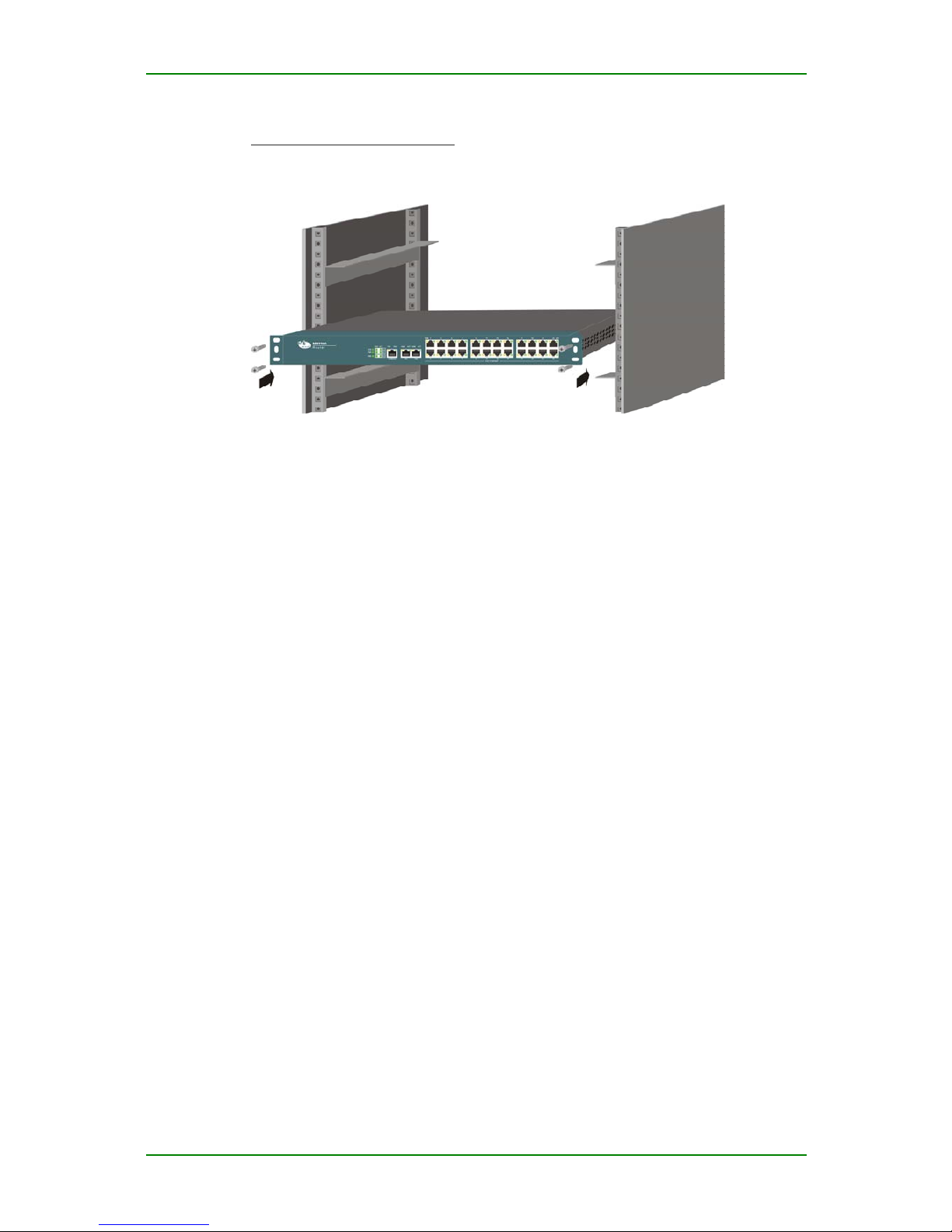

Chassis Installation ............................................................................................... 41
Tools & Equipment ................................................................................................................41

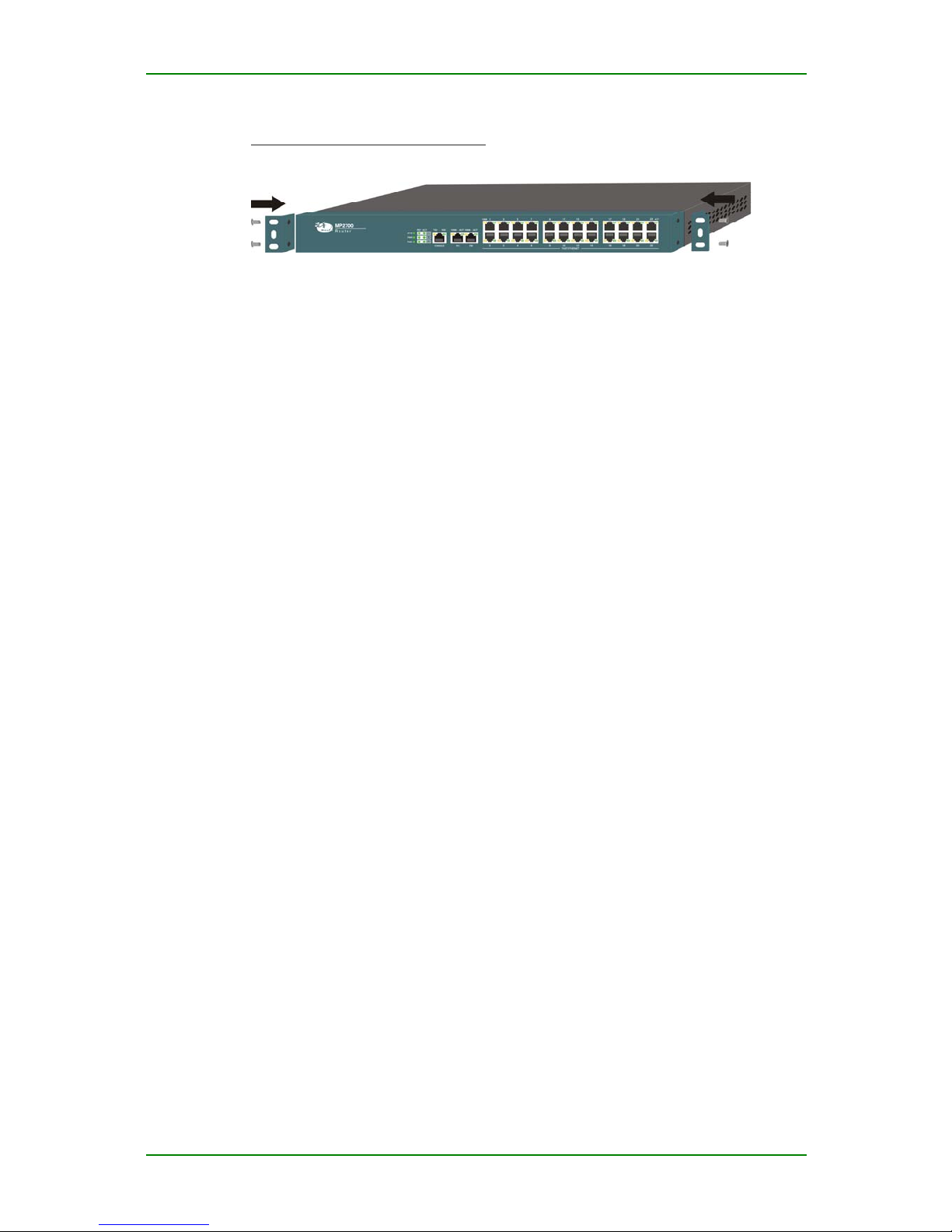

Machine Installation............................................................................................................... 42

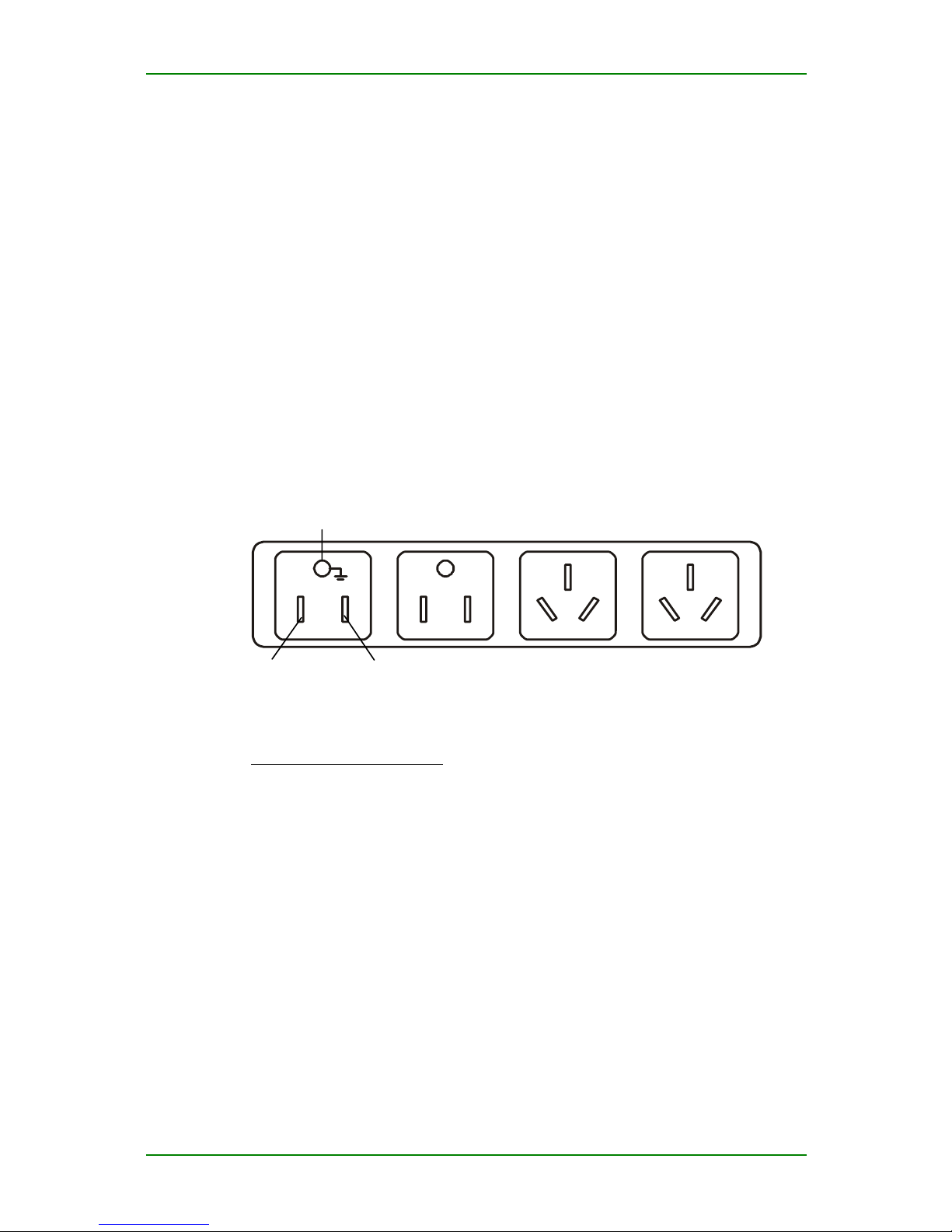

Connecting Power Supply ...................................................................................................... 46
Grounding Requirements .......................................................................................................47
Connecting Main Control Board Cable ..................................................................................... 47
Grounding Wire Connection ...................................................................................................48

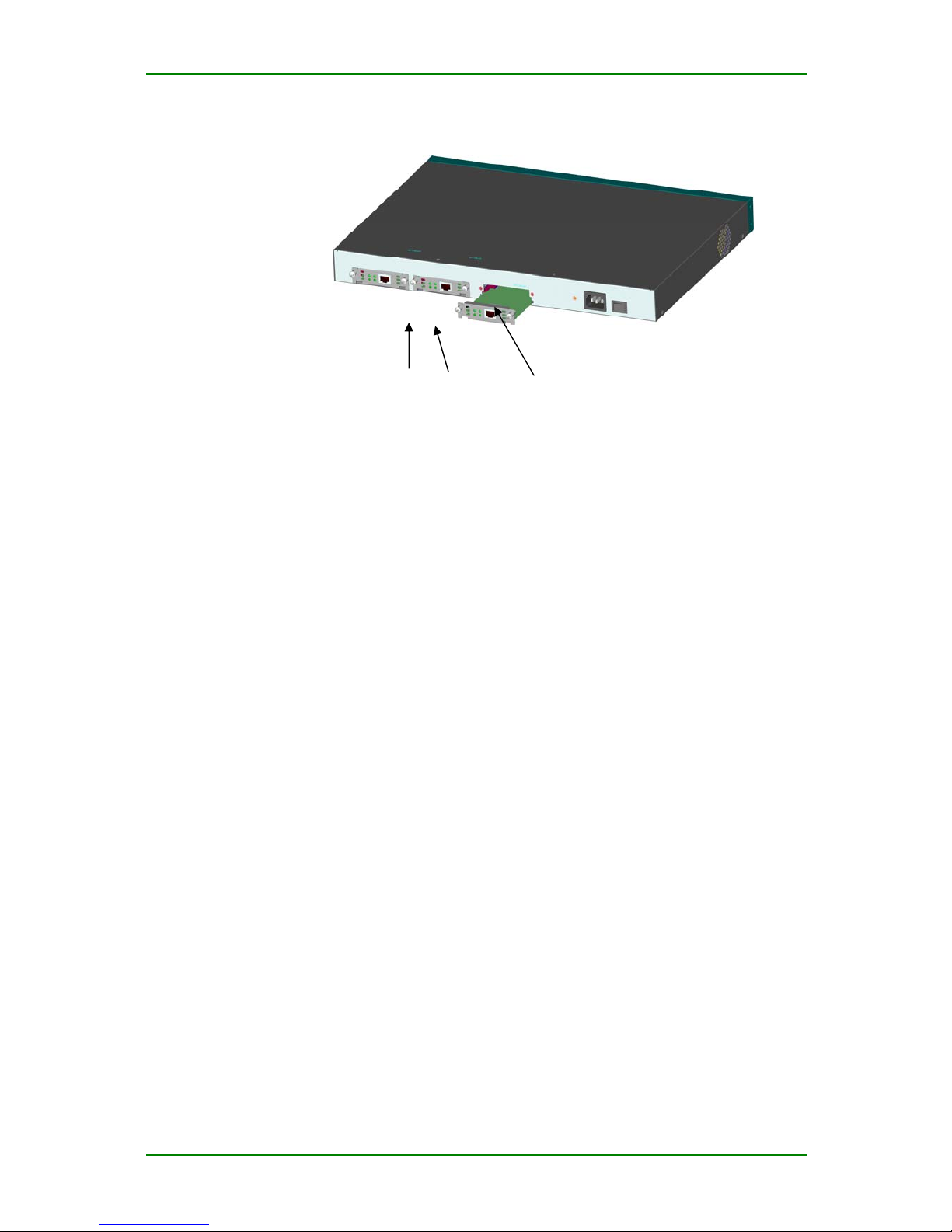

Module Installation................................................................................................ 48
Connecting Back Panel .......................................................................................................... 49
Hardware Installation ............................................................................................................ 49
Module Interface Cable Connection ........................................................................ 50
1SAE Module Interface Cable Connection................................................................................ 50
Connecting 1CE1/1E1 Module Cable ....................................................................................... 52
1M336 Module Cable Connection............................................................................................ 53
1M128 Module Cable Connection............................................................................................ 53
Connecting 1STA Module Cable.............................................................................................. 53
1U Module Cable Connection.................................................................................................. 53
Connecting 1VOP/2VOP Module Cable ....................................................................................53
Connecting 1VOS/2VOS Module Cable.................................................................................... 54
Connecting 8AX Module Cable................................................................................................ 54
Interface Cable Signal............................................................................. 54
Ethernet Cable ..................................................................................................... 54

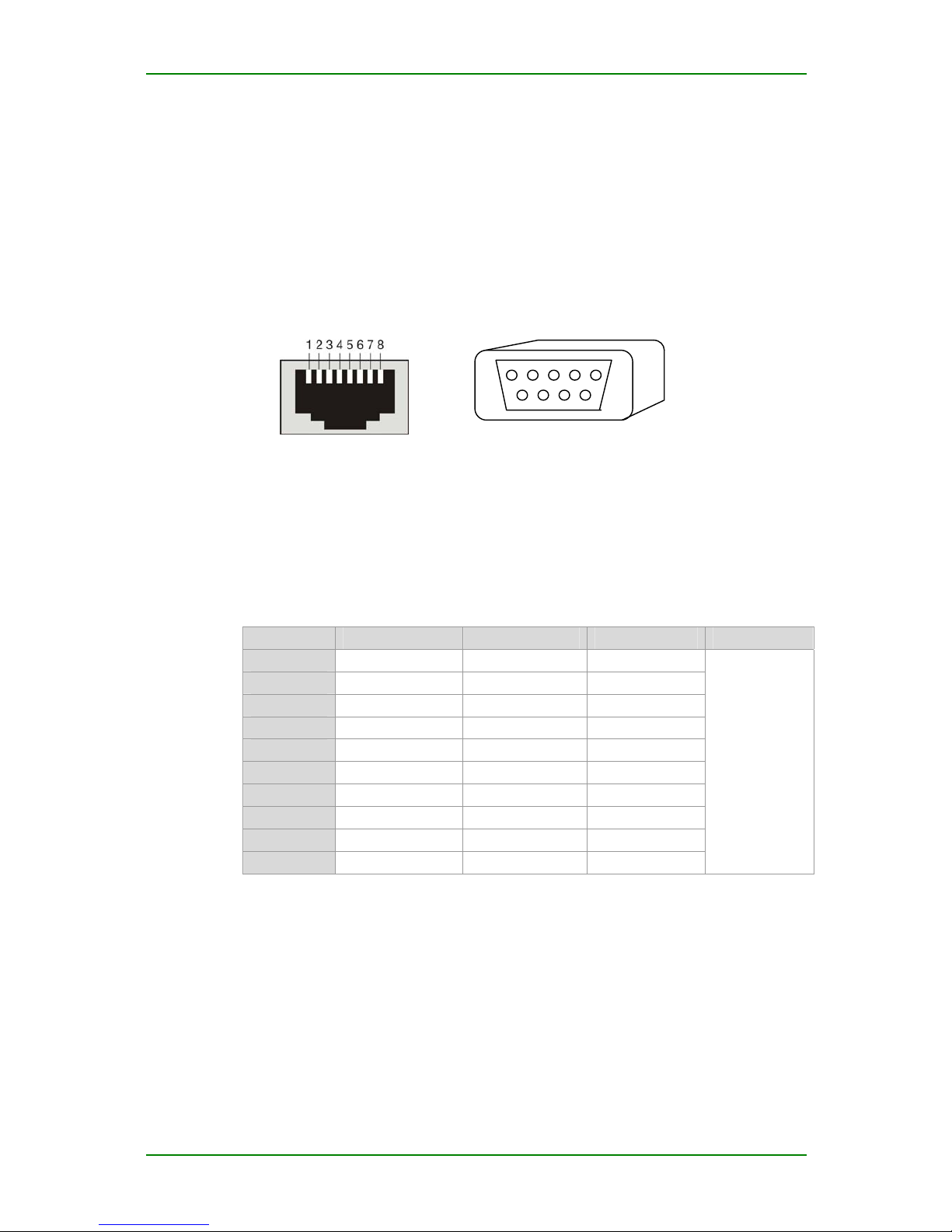

Console Port Cable................................................................................................ 56
RM2-1E1 & RM2-1CE1 Using RJ45-RJ45 Crossing Twisted-pair................................. 57
MP1800-3 Router Installation Manual Version 1.3
Maipu Confidential & Proprietary Information Page 6 of 57
About Inst allation Manual
Purpose
The MP1800-3 Router Installation Manual explains installation and other
technical topics. The manual aims to help technicians and network
managers install the product and get going with it quickly.
How to Get in Touch
The following sections provide information on how to obtain support for
the Maipu English documentation and Maipu products.
Customer Support
If you have problems or questions regarding your product, contact us by
e-mail at overseas@maipu.com
. You can also call our Overseas Business
Division over +86–28-85148850, 85148041, 85148050, 85148750, and
85148997.
Documentation Support
Maipu Communication Technology Co., Ltd welcomes comments and
suggestions on the document usefulness. For further queries or
suggestions, contact us by e-mail overseas@maipu.com
or fax comments
to +86-28-85148948 or 85148139. You can visit our website at
http://www.maipu.com
, which comprises interesting subjects such as
product knowledge base, sales & support, and the Maipu news.
Page 7 of 57
Overview
MP1800-3-8FE router integrates routing, switching, security, VoIP and
transmission functions improving businesses in terms of Multi-service
Edge-Intelligent Network (MeIN). It adopts fixed and modular structure,
and provides broadband-narrowband, multi-service and intelligent
solutions.
The router extends 64-byte 100Kpps packet-forwarding capability and
100M line rate switching capability from LAN-to-WAN. It can be used to
access multi-Ethernet nodes such as network ends, PC and video monitor
in finance, stocks, insurance and public sector industries.
MP1800-3-8FE router provides software features such as VoIP, VPN, MPLS,
multicast, MAC address binding, and access control and bandwidth
restriction. It provides backup schemes and QoS features. It can be widely
applied to multiple services such as data, video and voice.
MP1800-3-8FE router, combined with other Maipu routers, provides
complete WAN network solutions for operator, finance, public sector,
energy, transport, education and defense, and large and medium-scale
organizations.
Page 8 of 57
Key Features
The router integrates routing, switching, security, voice, transmission, local
storage and wireless to realize intelligent network. The inbuilt intelligent switch,
firewall, VPN (including MPLS VPN, IPsec VPN and L2TP VPN), VoIP and
transmission service modules provide a powerful intelligent platform for
different service applications. The router extends Multi-service Edge-Intelligent
Network (MeIN) to improve business efficiency.
The router is cost-effective and supports expansion of WAN line bandwidth to
100M. MP1800-3-8FE router adopts the fast-forwarding engine technology. The
LAN-to-WAN 64-byte forwarding performance reaches 100Kpps (for more than
256 bytes, the line rate reaches 100M); the switching performance from LAN-
to-WAN reaches 100M line rate. It supports expanding the WAN line bandwidth
to 100M.
The router has high expansibility. It facilitates expansion of WAN interfaces
and VoIP to realize narrowband access. MP1800-3-8FE router integrates the
features of previous narrowband routers and provides two high-speed MIMs
and one VoIP slot to realize the expansion of private leased line, dialing backup
and VoIP.
The router provides multi-Ethernet access for expansion of broadband. It
realizes the high-bandwidth access of multi-Ethernet nodes such as network
ends, PC and video monitor so that users do not need to purchase Ethernet
switches. The network investments are saved, faults reduced, and 100M optic
fiber broadband access of carrier MSTP realized.
Ethernet interfaces adopt L3 technology for intelligent service control. WAN line
backup ensures that the services are not interrupted. MP1800-3-8FE router
realizes the WAN line backup of narrowband-to-narrowband, broadband-to-
broadband, narrowband-to-broadband as well as wire-to-wire in the future. It
is not required that the upper active/standby aggregation devices are one
device, which meets the redundant backup requirement of upper aggregation
devices and solves the problem that the switches with high-bandwidth
expanding capability cannot realize WAN backup.
Page 9 of 57
The router realizes load balance of multiple WAN lines. The access
nodes/network devices provide two or more routes to reach the same server at
the upper layer. The lower-level MP1800-3-8FE router can distribute traffic
among multiple routes for load balancing. When some route fails, the traffic
can be re-distributed on the remaining routes.
The router provides intelligent NMS for automatically diagnosing router faults
to realize zero-spot service. Inbuilt dial-up modem/console port is connected to
an external dial-up modem for remote login. Switch to remote configuration
mode via button. Then users and manufacturers can maintain devices
anywhere via telephone line dial-up to realize “zero-spot service”. MP1800-3-
8FE router supports Maipu intelligent NMS for diagnosing and fixing router
faults, automatically generating a record for users to query. It reduces
management and maintenance work of users.
The router has a variety software functions and supports MPLS protocols. It
supports L2TP and IPsec. The router adopts technologies to deploy different
VPN networks from L2 to L3. The router is inbuilt with firewall and provides
advanced security features such as ACL packet-filtering, NAT, authentication
audit, route verification, callback, and refusing service protection. It provides
integrated services and distinguished services, and supports ACR, FIFO, PQ,
CQ, FQ, CBWFQ, and LLQ to ensure differentiation of key services. It supports
the centralized network management modes of SHELL and SNMP (SNMP V3).
The router adopts English graphical Maipu Masterplan to realize cross-platform
and modular network management.
MP1800-3-8FE router is compatible with routers of other manufacturers. It
provides easy-to-use configuration interfaces and styles. The router complies
with RFC standards and recognized industry standards. The routers can be
inter-connected and communicate with network devices of other manufacturers.
MP1800-3-8FE has stable structure. It adopts 19” standard chassis (1U high),
which can be installed on standard rack. The router withstands earthquake,
high temperatures, and electromagnetic radiation. It is easy to install or
uninstall.
Page 10 of 57
Hardware
Appearance
MP1800 series router appearance
Page 11 of 57
Indicators:
SYS & PWR & FAN (system, power supply and fan indicators):
SYS - System status indicator
Shining: Program loading
Shining slowly: Loading successfully
PWR - System power supply indicator
On - After power on
FAN – Fan indicator
On: Normal working
Off: Malfunction
SLOT2 (Slot 2 status indicator)
ACT: Data receiving/sending indicator
RDY: On - on line
SLOT1 (Slot 1 status indicator)
ACT: Data receiving/sending indicator
RDY: On: on line
SLOT 0 (Slot 0 status indicator)
ACT: Data receiving/sending indicator
RDY - on: on line
CONSOLE (console port)
TXD - console port data sending indicator
RXD - console port data receiving indicator
Page 12 of 57
FETH1 (WAN Ethernet 1)
100M - 10/100M Ethernet interface data rate indicator
On: 100M
Off: 10M
ACT - Ethernet interface data receiving/sending indicator
FETH0 (WAN Ethernet 0)
100M - 10/100M Ethernet interface data rate indicator
On: 100M
Off: 10M
ACT - Ethernet interface data receiving/sending indicator
Page 13 of 57
MP1800-3 Router Back Panel Interface
MP1800-3 router back panel interface configuration
MP1800-3 router back panel interface:
Interface Interface form Description Slot
ON/OFF Power supply switch -
right OFF & left ON
INPUT AC 100-240V 1A input
DC -40~-57V, 27W
SLOT2 (special) Bus slot VOP/VOS
VoIP module
SLOT1 Decided by
interface module
Bus slot MIM module
SLOT0 Decided by
interface module
Bus slot MIM module
SLOT2 is VoIP module slot. It has inset VOP/VOS series VoIP card module.
SLOT1 and SLOT0 are MIM slots with modular design.
MP1800-3 Router Front Panel Interface
Page 14 of 57
MP1800-3 Router System
Item Description
Console port One (RJ45). Async DTE working mode
Ethernet interface Two 10/100M fast Ethernet interfaces (RJ45)
MIM slot Two MIM slots
Special slot One VOP/VOS slot
Processor High-speed RISC processor
FLASH 32Mbyte (MP1800)
SDRAM 128Mbyte (MP1800)
Dimension
(W×D×H)
444mm × 318mm × 44.5mm
Weight 4.5 Kg
Power supply input
voltage
DC, -40～-57V
Environment
temperature
0～40℃
Environment humidity
10～90%. Non-condensing
Maximum power
27W±10% (MP1800)
Page 15 of 57
Product Functions
Protocol & Service Description
Network protocol WAN supports:
PPP
PPP compression
SLIP
CSLIP protocol
Frame relay
Frame relay switching
X.25
X.25 switching
HDLC
LAPB
ISDN
LAN is Ethernet supporting two kinds of link layer frame:
Ethernet-II
Ethernet-SNAP
Dialup network MODEM dialup (calling/callout)
CALLBACK
Dial-on-demand
Dialup backup
Routing protocol Static routing
Dynamic routing:
RIPv1
RIPv2
OSPF
BGP
IRMP (compatible with CISCO EIGRP)
SNSP (compatible with CISCO ODR)
Dial-on-demand (DDR)
Policy routing
Multicast:
IGMP
PIM-SM
PIM－DM
DVMRP
Hot backup:
VRRP
VBRP (compatible with CISCO HSRP)
Network service ARP
Proxy ARP
L2TP
Configuration command level protection
IP packet filter firewall
IP UNNUMBERED
IP policy routing
Page 16 of 57
DHCP relay
PAP/CHAP check
EASY IP
NAT network conceal
RADIUS check
IPsec data encryption
IKE
GRE
Load balance
MPLS
QoS service PQ
CQ
WFQ
CBWFQ
LLQ
WRED
CAR
Network management SNMPv1, SNMPv2, SNMPv3
Supporting standard network management (compatible with
CISCO)
Local configuration via console port
Local or remote login via local Telnet
Configuration command security isolation function
Chinese/English prompt and help information
Detailed debugging information, for network malfunction
elimination
Login and manage other products by Telnet
Download and upload configuration file and application
program via FTP
Download and upload configuration file and application
program via TFTP
Colorful debugging information support
Support log function
Security IP packet filter firewall, PAP/CHAP, MD5, NAT, RADIUS,
TACACS, IPsec data encryption
MP1800-3 Router Installation Manual
Page 17 of 57
Modules
MP1800-3 router is a modular router with three slots. The current
interface module provides:
1SAE
1CE1
1E1
1M336
1M128
1U
1VOP
2VOP
1VOS
2VOS
1ETE
1STA
MP1800-3 Router Installation Manual
Page 18 of 57
Sync/Async Serial Interface
Module (SAE) Series
1-port High-speed V.24/V.35 Serial
Module (1SAE)
1SAE module is used for MP1800-3 router. Its main function is to complete
data flow receiving and sending.
For sync port, 2.048Mbps in DCE mode and 8 Mbps in DTE mode. For
async port 115.2Kbps. The working mode by default is in sync mode. In
DTE mode, it uses clock from external DCE equipment such as external
sync modem. But in DCE mode, router provides clock.
1SAE Interface Module
1SAE interface module:
1-port high speed V.24/V.35 serial module (1SAE)

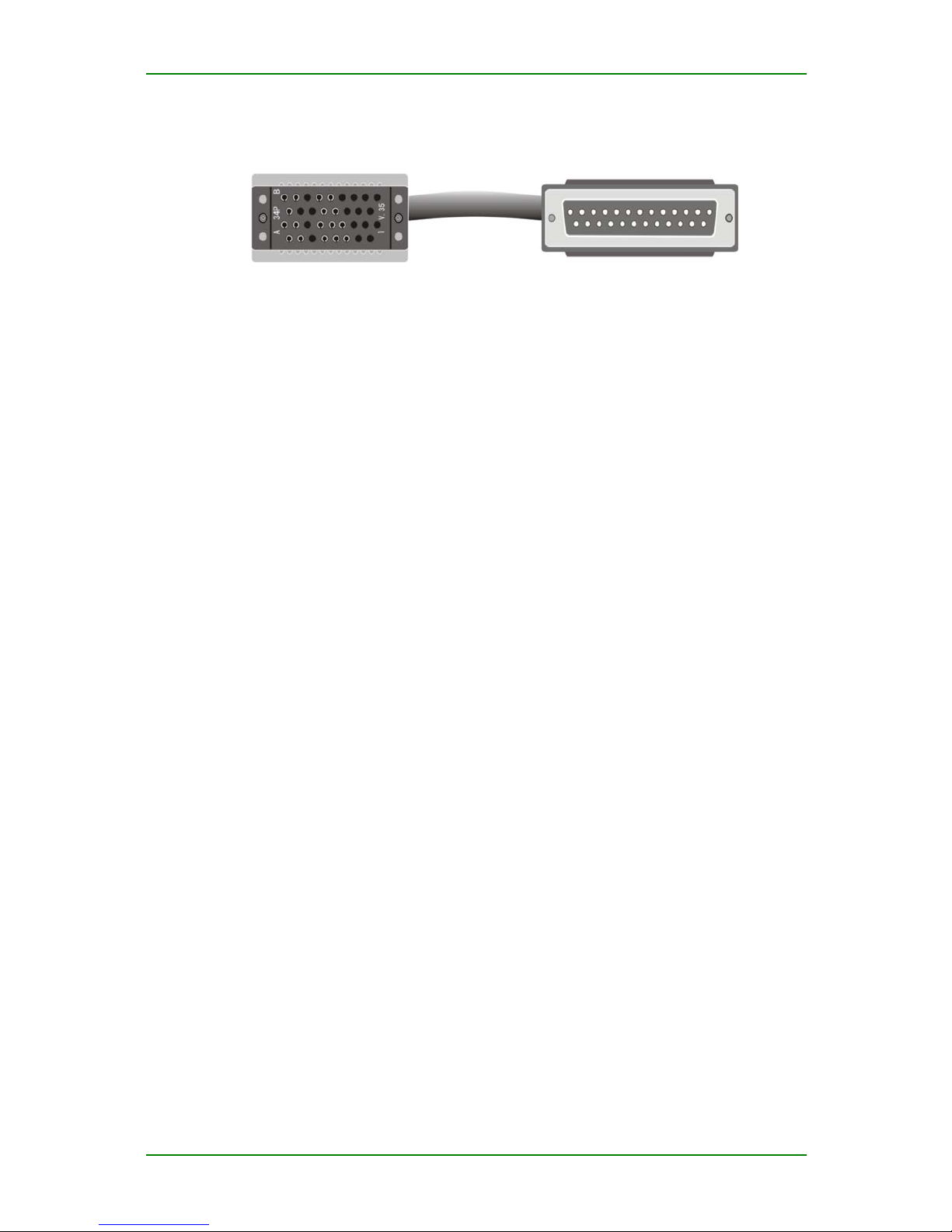

1SAE Module Connected Cable
1SAE module connected cable is V35 DTE and V24 DTE.
1SAE Interface Attributes
1SAE module interface attributes is as table 2-1: Table 2-1 1-port high
speed V.24/V.35 serial module (1SAE) interface attributes
Description Attributes
Sync Async
Tie-in DB25-DB25 DB25-DB25
Interface standard & working V.24 V.35 EIA/TIA-232
