For use with Models #200740T Comfort Incline, #200600T Smart Step, and 200400T Easy Entry Step
Comfort Incline
Smart Step
Easy Entry Step
1004 Jaycox Rd, Avon OH 44011
1-888-333-1134
www.GoMainAccess.com
SMART CHOICE LADDER
Model #200700T Assembly Instructions
For Questions Regarding Installation, Please Contact Main Access Customer Service 1-888-333-1134
Step 3: Place 1/4" x 2-1/4" Phillips Head Bolt into
desired position.
Step 4: Use 1/4" flat washer and hex nut to secure
bolt.
Model #200700T
Step 1: Snap handrails into platform tabs.
Step 2: Insert Support Feet into Handrail receivers.
Step 6: Repeat steps
Step 5: Use a phillips-head screwdriver and pliers
to tighten carriage bolt.
Step 11: Use pliers to tighten all Hex Nuts.
Step 12: Insert Adjustable Support Tubes into the
Support Tube Base.
SMART CHOICE LADDER
Model #200700T Assmebly Instructions

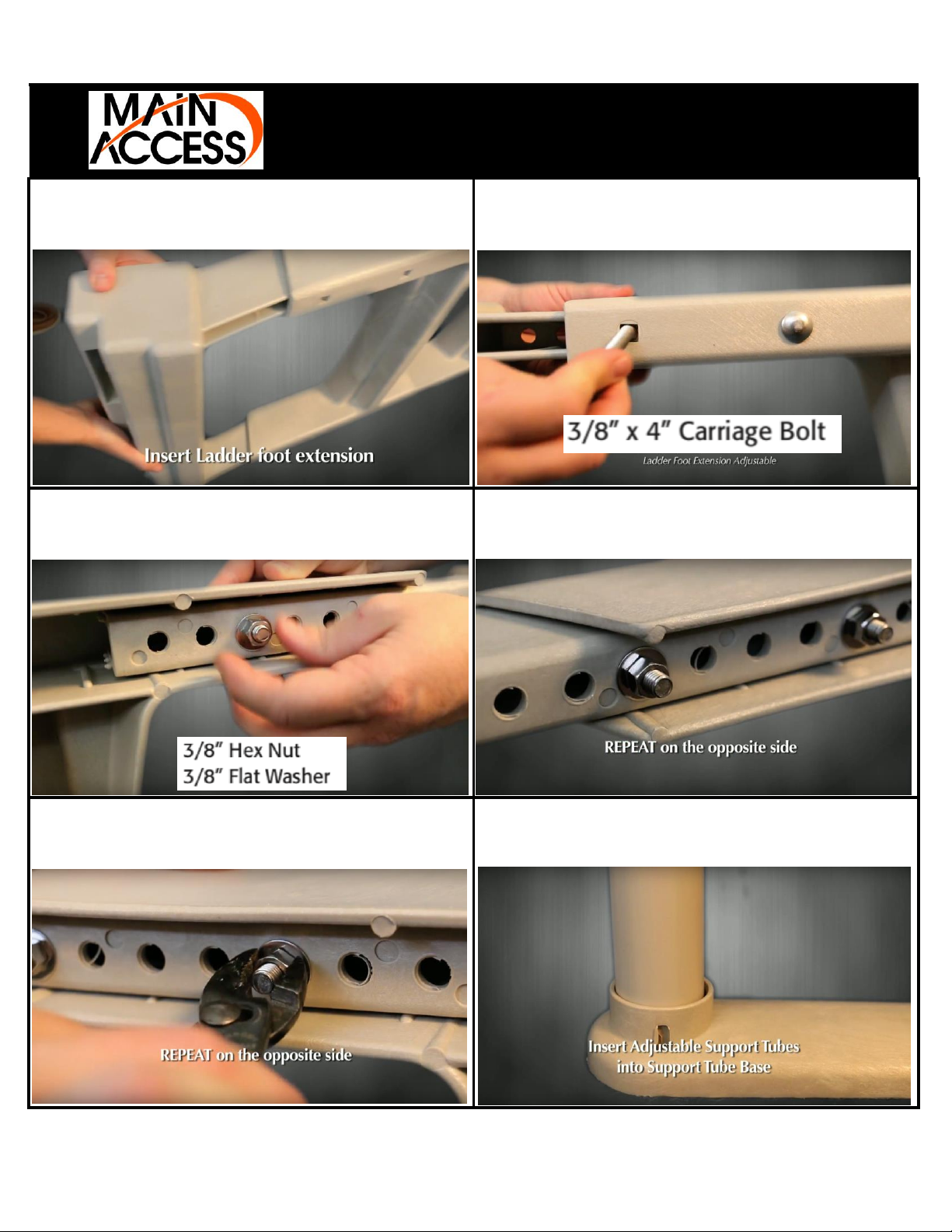

Step 7: Insert the Ladder Foot Extension into the
end of the Outisde Ladder Body.
Step 8: Place 3/8" x 4" Carriage Bolts through the
Outside Ladder Body and Ladder Foot Extension.
Step 9: Place 3/8" Flat Washers and Hex Nuts over
the Carriage Bolts.
Step 10: Repeat steps 8 & 9 on opposite side.
Step 15: Secure the Support Tubes to the Platform
using the #14 x 3/4" screws.
Step 16: Repeat steps 14 & 15 to attach the Support
Tubes to the Support Tube Base.
Step 17: Attach the Outside Ladder Body to the
Platform receivers.
Step 18: Secure the Platform to the pool toprail by
weaving the straps through the Platform and
under the pool toprail, securing outside the pool.
IMPORTANT: The Platform must be resting on the pool toprail and secured by either straps or bolts.
Model #200700T

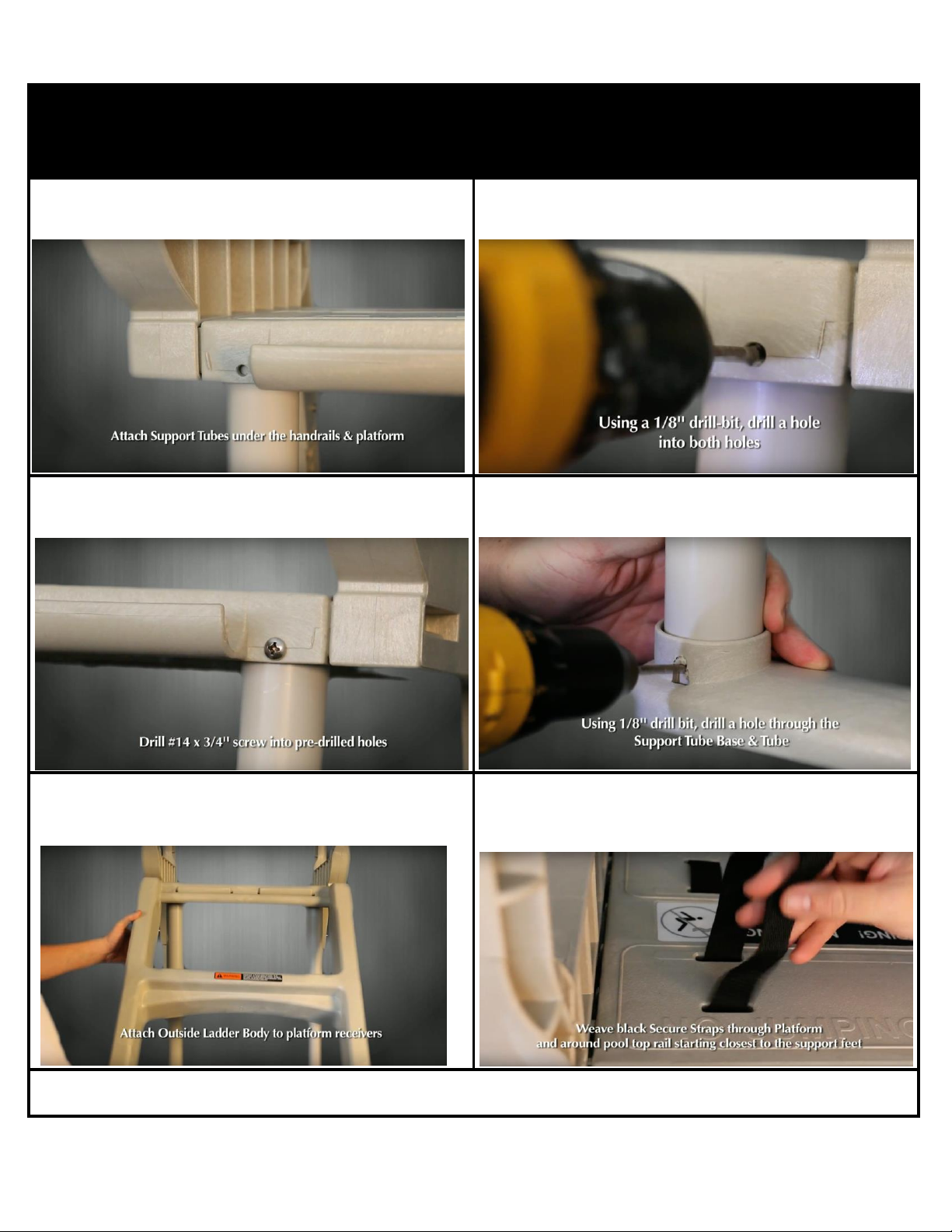

Step 13: Attache Support Tubes under the
Handrails and Platform assembly.
Step 14: Using a 1/8" drill-bit, pre-drill holes
through the Support Tubes through the Platform.
Step 19: When not in use, remove ladder and
secure in upright position by resting Ladder Foot
Extension on the Platform receivers.
For use with Smart Step System, center Support
Feet on top step. Secure feet using (8) 1" screws
through hash marks on Support Feet (C).
Smart Step Cont'd: Attach Upper Rail to Smart
Choice Handrail using Smart Connector and (2) 1"
screws.
For use with Comfort Incline, slide handrails
directly over ladder body and attach with Phillips
Head Bolt, Flat Washer, and Lock Nut.
Step 21: Use Lock Cable & Padlock (not included)
to secure ladder onto top Handrail.
Step 20: Snap Outside Ladder Body tab into slot in
the Handrail to secure.
SMART CHOICE LADDER
Model #200700T Assmebly Instructions
Mount it to your step or hang it from the return!
Use them to easily weigh down your pool step!
Luxury Pool Floats!
Light-up Floating Globes and Furniture!
Model #200700T

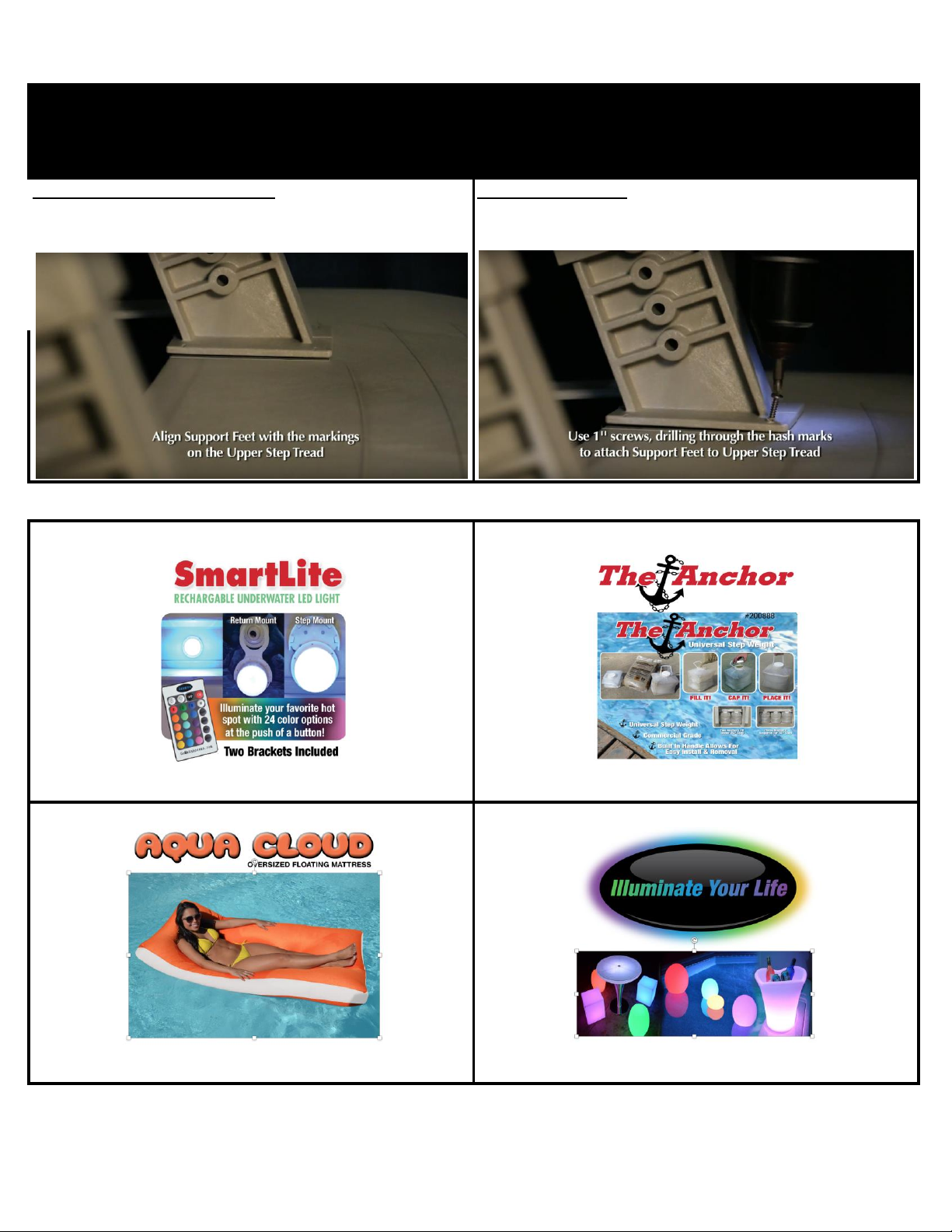

For use with Easy Entry Step: Align Support Feet
(C) over markings on Easy Entry Step Upper Step
Tread (A1).
Easy Entry Cont'd: Attach Support Feet C to Upper
Step Tread using the (8) 1" screws.
