main Eco Elite 25 Combi ErP User guide

Main Eco Elite Combi
User Guide
Condensing Central Heating Boiler
25 - 30
en
United Kingdom
Please keep these instructions in a safe place.
2
© Baxi Heating UK Ltd 2015
Natural Gas
Main Eco Elite 25 Combi ErP
G.C.No47 467 12
Main Eco Elite 30 Combi ErP
G.C.No47 467 13
© Baxi Heating UK Ltd 2015 All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means, or stored in any retrieval system of any nature (including in any database), in each case whether electronic, mechanical, recording or otherwise, without the prior written permission of the copyright owner, except for permitted fair dealing under Copyrights, Designs and Patents Act 1988.
Applications for the copyright owner’s permission to reproduce or make other use of any part of this publication should be made, giving details of the proposed use, to the following address:
The Company Secretary, Baxi Heating UK Ltd, Brooks House, Coventry Road, Warwick. CV34 4LL
Full acknowledgement of author and source must be given.
WARNING: Any person who does any unauthorised act in relation to a copyright work may be liable to criminal prosecution and civil claims for damages.
1.0 Quick Reference Guide 3
2.0 Troubleshooting 4
3.0 Repressurising System 6
4.0 ‘Intelligent Pre-heat’ Feature 7
5.0 Clearances 8
6.0 Care of the Boiler 9
7.0 Legislation 10
8.0 Warranty & Service 11
9.0 ErP Information 13
10.0 Emergency 17
11.0 Disposal 17
12.0 Notes 18
Section Page
Contents

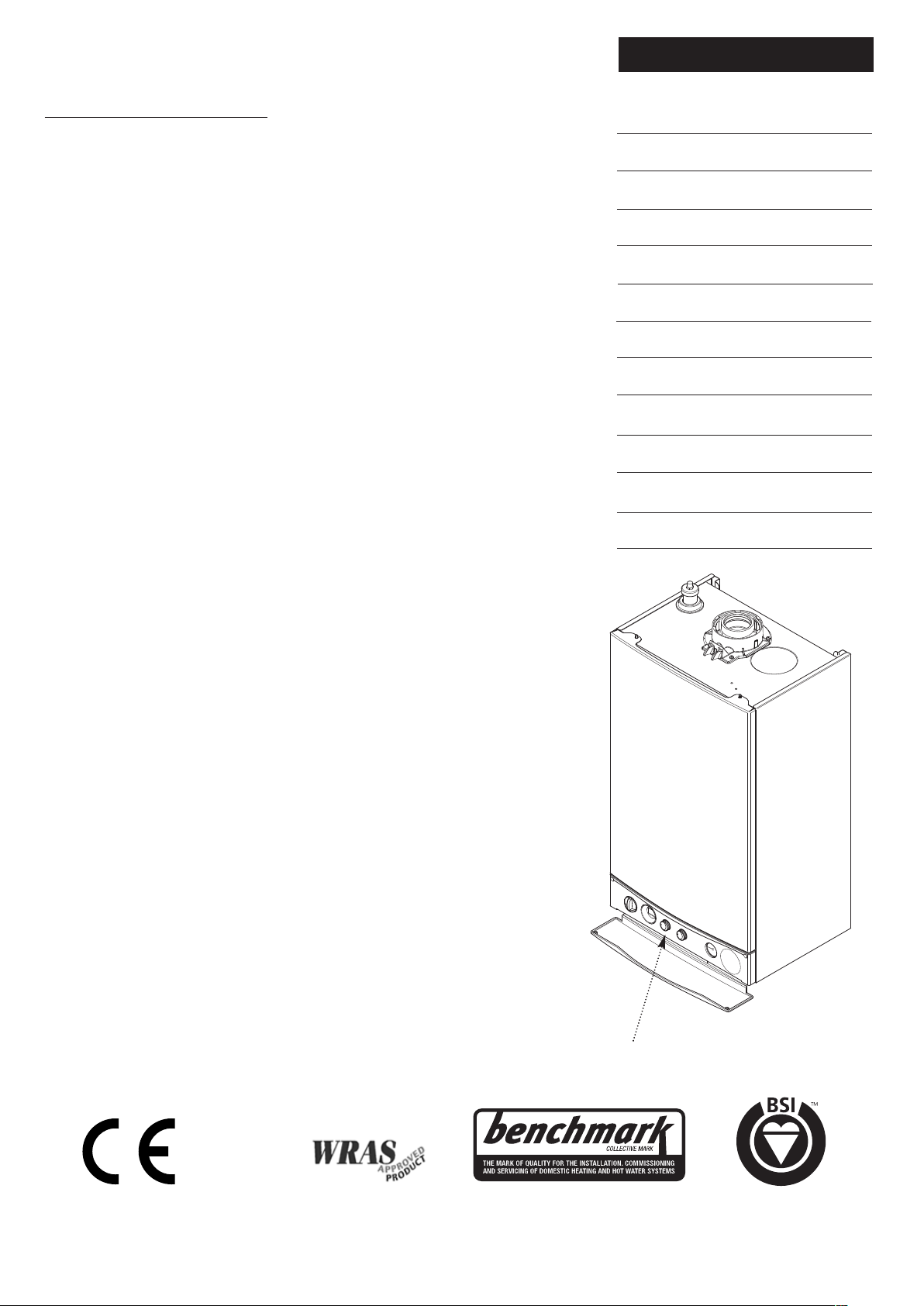

Boiler Controls - see opposite page
for Operating Quick Reference Guide
The Benchmark Scheme
Baxi Heating UK Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to optimise safety, efficiency and performance.
Benchmark is managed and promoted by the Heating and Hotwater Industry Council. For more information visit www.centralheating.co.uk
0086
ISO 9001
FM 00866
1.0 Quick Reference Guide
3
© Baxi Heating UK Ltd 2015
Reset
bar
0
1
2
3
4

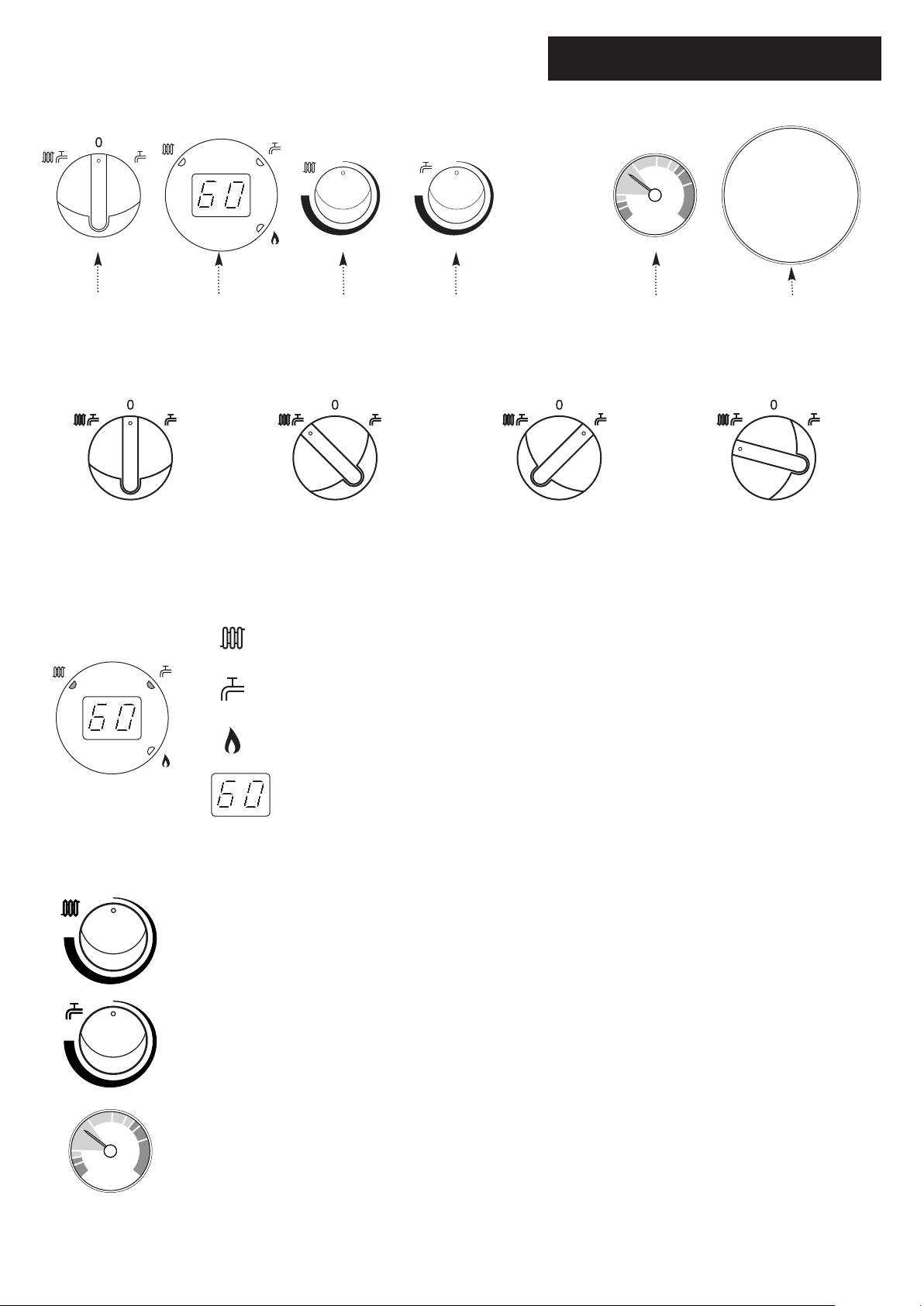

ON/OFF/Reset Selector Switch
Display Central Heating
Temperature Control
Domestic Hot Water Temperature Control
& Pre-heat Selector
System Pressure Gauge
OFF Position
The boiler will not operate.
Central Heating Temperature Control
Turn the knob clockwise to increase or anticlockwise to decrease the temperature. Range 25 - 80° C.
Domestic Hot Water Temperature Control & Pre-heat Selector
Turn the knob clockwise to increase or anticlockwise to decrease the temperature. Range 40 - 60° C. It also activates the ‘Intelligent Pre-heat’ feature - see Section 4.0.
Central Heating Indicator - The indicator will illuminate when the boiler is in the central heating mode.
Domestic Hot Water Indicator - The indicator will illuminate when hot water is being supplied to a tap or shower.
Burner On Indicator - The indicator will illuminate when the burner has fired and is heating your central heating or domestic hot water.
Boiler Output Temperature - In either the central heating or domestic hot water position the display will illuminate showing the current boiler temperature in degrees centigrade.
Central Heating System Pressure - The normal operating water pressure is shown when the needle is in the GREEN section of the gauge, between 1 and 2.5 bar. If the pressure exceeds 3 bar (needle in the RED section) the safety pressure valve will operate and a fault is indicated. Contact your Installer.
Reset
Reset
Central Heating & Hot Water
Both Heating & Hot Water will operate.
Reset
Hold for approx 5 seconds and release.
Display
Position of
Timer (when fitted)
Reset
Domestic Hot Water
Hot Water will operate.
Reset
2
1
3
4
0
bar
2.0 Troubleshooting
4
© Baxi Heating UK Ltd 2015
START
Make sure the gas supply is turned ON and check if other gas appliances are operating (e.g. fire, cooker).
If no gas, consult your supplier.
Is the ON/OFF/Reset Select Switch in the ( ) position and the display lit ?
Is the ( ) or ( ) light on and the ( ) on ?
Check electricity to the boiler is switched on.
Reset
Display
Central Heating Indicator
Domestic Hot Water Indicator
Burner On Indicator
Boiler operating satisfactorily.
bar
0
1
2
3
4
Is the Central Heating System Pressure needle in the GREEN section, between 1 and 2.5 bar ?
If the reading falls below 1 bar repressurise the system as described in section 3.1.
Does the display show an error code e.g. E133, E110 ?
Boiler not working
NO
NO
YES YES
YES
NO
Turn the ON/OFF/Reset Selector Switch to Reset.
Reset
Error Code E119 showing low pressure.
NO
YES
YES
NO
If boiler does not Reset
2.0 Troubleshooting
5
© Baxi Heating UK Ltd 2015

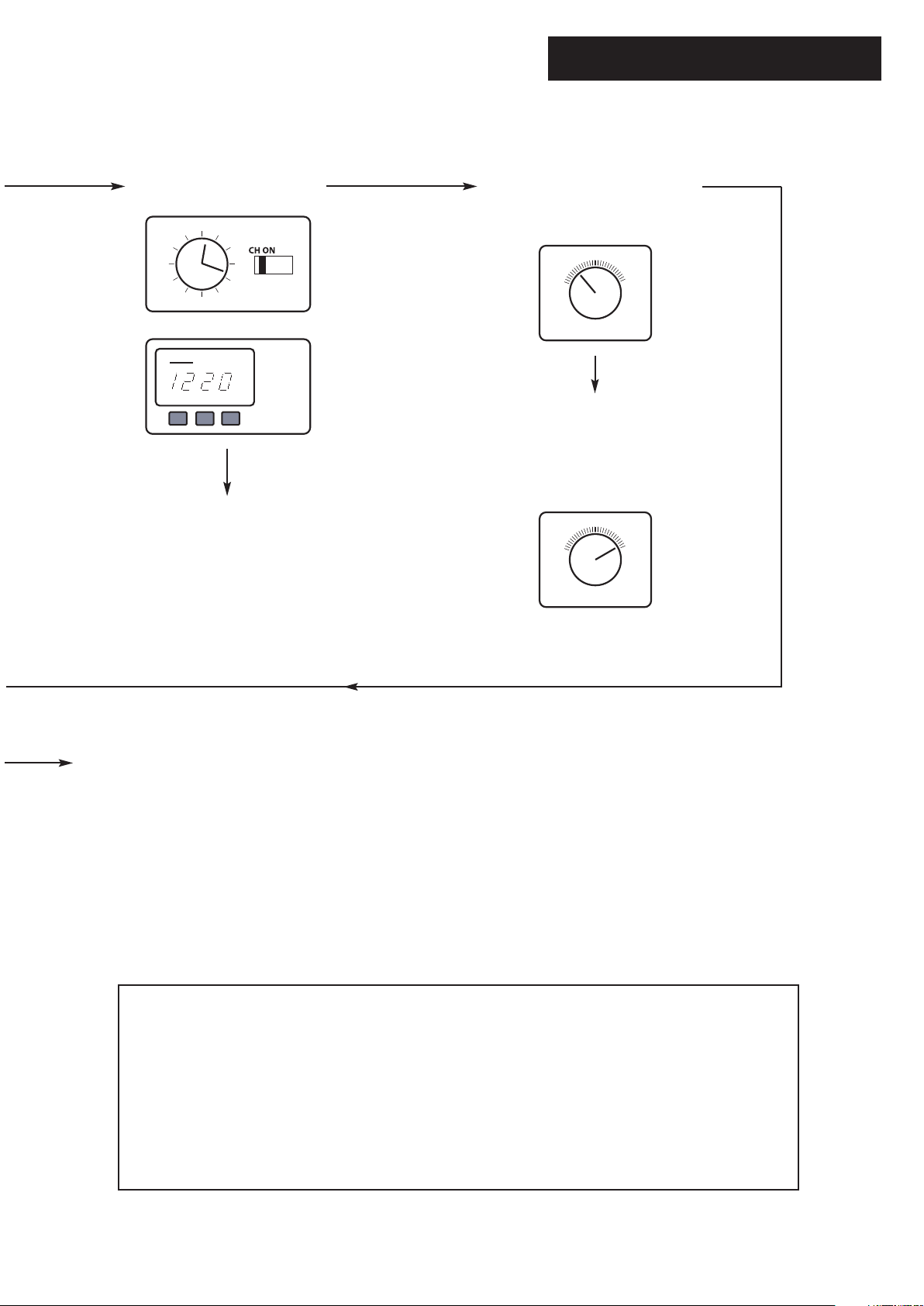

Is the Timer ON and calling for heat ?
Ensure timer is set for Central Heating ON (see any instructions supplied with timer).
Is the Room Thermostat (if fitted) set high enough ?
Turn Room Thermostat to maximum setting (typical example shown).
If you don’t know what you need to do to
get the boiler to light, or need help with
the system and controls, contact your
installer as soon as possible.
YES
NO
CONTACT YOUR INSTALLER OR SERVICE ENGINEER.
YES
Typical examples of external timer
NO
12
1
11
10
9
8
CH ON
2
3
4
5
7
6
CH OFF
15
20
10
5
25
15
20
10
5
25
3.0 Repressurising System
6
© Baxi Heating UK Ltd 2015
bar
0
1
2
3
4
bar
0
1
2
3
4
3.1 Central Heating System Pressure
1. The normal operating water pressure is when the needle is in the GREEN section of the gauge, between 1 and 2.5 bar (Fig. 1). If the pressure exceeds 3 bar (needle in the RED section) the safety pressure valve will operate and a fault is indicated. Contact your installer.
2. It may be necessary to repressurise the system occasionally (Fig. 2). The needle will be in the lower RED section of the gauge, between 0 and 0.5.
3. A filling device (the filling loop) will be fitted on the system. This will be on the boiler itself (Fig. 3), or on pipework near to the boiler.
4. If you are unsure of its position, or cannot identify it, consult the installer who fitted the boiler.
5. The filling loop consists of two taps and a separate flexible pipe with connection fittings.
6. Only when repressurising should the flexible pipe be connected between the two taps. Ensure that the nuts on the pipe ends are tightened onto the taps.
7. Fully open one of the taps first, and then while watching the pressure gauge, carefully open the second tap.
8. When the needle on the gauge is indicating 1 or more, in the green section of the gauge, turn both taps off.
9. Disconnect the flexible pipe from the taps (a small amount of water may be present) and remove it. Keep the pipe in a safe place for future use.
Fig. 1
Fig. 2
Normal Pressure
Requires
Repressurising
Flexible Hose
Taps
Fig. 3
4.0 ‘Intelligent Pre-heat’ Feature
7
© Baxi Heating UK Ltd 2015
Operation of Pre-heat
1. The boiler incorporates an intelligent pre-heat feature that will ensure optimum domestic hot water performance.
2. This features ‘learns’ the domestic hot water demand, and pre-heats the boiler primary circuit (main heat exchanger, pipework within the boiler case and domestic hot water heat exchanger) in anticipation of further demand at the same time on the next day.
3. The feature works on a 24 hour basis. If for example there is a demand for hot water at 7:00 AM on Monday, the pre-heat will operate at 6:50 AM on Tuesday for 1 hour. Similarly if there is a demand at 9:25 PM, the pre­heat will operate at 9:15 PM the next day, again for 1 hour.
4. If on Tuesday at 7:00 AM there is no hot water demand there will be no pre-heat on Wednesday at this time.
5. The feature also operates for one hour after each demand to maintain the temperature of the boiler.
6. There can be up to 24 pre-heat operations in a 24 hour period. While operating in the pre-heat mode the boiler will fire up briefly 3 or 4 times in the hour to maintain the boiler at temperature.
7. During the pre-heat period the domestic hot water indicator will flash (Fig. 6).
8. The pre-heat feature will not operate if the DHW Temperature Control is turned fully anticlockwise (Fig. 4). In this position the boiler will operate as a conventional combination boiler, providing hot water at 50° C.
9. Once the Temperature Control is turned approximately 30° clockwise (Fig. 5) the pre-heat feature is activated.
10. Between 30° and fully clockwise the hot water temperature can be altered from 40° and 60° C.
30°
Fig. 4
Fig. 5
Pre-heat Off
Pre-heat Activated
Fig. 6
4.1
5.0 Clearances
8
© Baxi Heating UK Ltd 2015
Fig. 7
Fig. 8
200mm Min
780mm
450mm
5mm Min
5mm Min
450mm Min
For Servicing
Purposes
In Operation
5mm Min
5.1 For your Safety
NOTE: Only qualified persons are authorised to
assemble, install and maintain the installation.
1. This appliance must have been installed in accordance with the manufacturer’s instructions and the regulations in force.
2. Any modification that may interfere with the normal operation of the appliance without express written permission from the manufacturer or his agent could invalidate the appliance warranty. In GB this could also infringe the Gas Safety (Installation and Use) Regulations.
3. Your boiler must not be operated without the casing correctly fitted.
4. Do not interfere with any sealed components on this boiler.
5. Take note of any warning labels on your boiler.
6. Your boiler should have the following minimum clearances for Safety and Maintenance (Figs. 7 & 8):-
Top - 200mm
(300mm for 80/125mm flueing system) Bottom - 200mm Left side - 5mm Right Side - 5mm Front - 5mm (In Operation)
- 450mm (For Servicing)
7. If your boiler is installed in a compartment, do not use it for storage purposes. Do not obstruct any purpose provided ventilation openings.
8. Flammable materials must not be stored in close proximity to your boiler.
9. Avoid skin contact when your boiler is in operation, as some surfaces may get hot e.g. pipework.
10. Ensure that the flue terminal, outside the house, does not become damaged or obstructed, particularly by foliage.
11. It is important that the condensate drain system is not blocked, modified or damaged in any way as this would affect the operation of your boiler. Your installer should have insulated any exposed pipework.
GB - Heating Industry definition meaning England, Scotland, Wales, Northern Ireland, Isle of Man and the Channel Isles
175mm Min
(300mm Min if
using 80/125mm
flueing system)
At least 1.5°
6.0 Care of the Boiler
9
© Baxi Heating UK Ltd 2015
6.1 Cleaning the Outer case
The painted panels should be wiped with a damp cloth and then dried completely. DO NOT USE ABRASIVE
CLEANING AGENTS.
6.2 Protection & Precaution
1. The boiler incorporates an integral frost protection feature that will operate in both modes. If the boiler temperature falls below 5° C, then the boiler will operate until the water temperature has been raised.
2. If a system frost thermostat has been fitted (your installer will be able to advise you), then to operate correctly and protect your system, the gas and electricity must be left on and the appliance set in the central heating mode.
3. The boiler incorporates an integral pump protection feature which continually monitors the time since the pump last operated. To prevent seizure, the pump will operate for approximately 1 minute if it has not run in the last 24 hours.
6.3 Fault Indication
1. If a fault occurs on the boiler an error code may be shown on the facia display (Fig. 9).
2. The codes are either two or three digit, preceded by the letter 'E'. For example, code E133 will be displayed by 'E1' alternating with '33'. E50 is shown as 'E' then '50'.
3. E20, E28, E50 & E160 indicate faulty components. You should make a note of the displayed error code and contact your installer or service engineer.
4. If E110 is displayed overheat of the primary water or flue system has occurred. Turn the selector switch to the reset position and hold for at least 5 seconds. If the boiler does not relight, or the code is displayed regularly contact your installer or service engineer.
5. E119 is displayed when the primary water pressure is less than 0.5 bar. After repressurising the system the boiler should operate. Your installer will be able to advise you about the method of repressurising. See page 6 for further details.
6. E133 indicates that the gas supply has been interrupted, ignition has failed or the flame has not been detected. Ensure that the gas supply has not been turned off, and turn the selector switch to the reset position and hold for at least 5 seconds. If the boiler does not relight, or the code is displayed regularly contact your installer or service engineer.
Central Heating NTC Fault PCB Fault Hot Water NTC Fault Safety Thermostat Operated Water Pressure Switch Not Operated Interruption Of Gas Supply or Flame Failure Fan or Fan Wiring Fault
E20 E28 E50 E110 E119 E133 E160
Table of Error Codes
Display
Then
Fig. 9
Reset
2
1
3
4
0
bar
7.0 Legislation
10
© Baxi Heating UK Ltd 2015
7.1 Installation, Commissioning, Service & Repair
1. This appliance must be install in accordance with the manufacturer’s instructions and the regulations in force. Read the instructions fully before installing or using the appliance.
2. In GB, this must be carried out by a competent person as stated in the Gas Safety (Installation & Use) Regulations.
3. Definition of competence: A person who works for a Gas Safe registered company and holding current certificates in the relevant ACS modules, is deemed competent.
4. In IE (Eire), this must be carried out by a competent person as stated in I.S. 813 “Domestic Gas Installations”.
All Gas Safe registered engineers carry an ID card with their licence number and a photograph. You can check your engineer is registered by telephoning 0800 408 5500 or online at www,gassaferegister.co.uk
The boiler meets the requirements of Statutory Instrument “The Boiler (Efficiency) Regulations 1993 No 3083” and is deemed to meet the requirements of Directive 92/42/EEC on the energy efficiency requirements for new hot water boilers fired with liquid or gaseous fuels:-
Type test for purpose of Regulation 5 certified by: Notified Body 0086.
Product/Production certified by: Notified Bodies 0086.
For GB/IE only.
7.2 Benchmark Commissioning Checklist
1. Please ensure that the installer has fully completed the Benchmark Checklist on the inside back pages of the installation instructions supplied with the product and that you have signed it to say that you have received a full and clear explanation of its operation. The installer is legally required to complete a commissioning checklist as a means of complying with the appropriate Building Regulations (England and Wales).
2. All installations must be notified to Local Area Building Control either directly or through a Competent Persons Scheme. A Building Regulations Compliance Certificate will then be issued to the customer who should, on receipt, write the Notification Number on the Benchmark Checklist.
3. This product should be serviced regularly to optimise its safety, efficiency and performance. The service engineer should complete the relevant Service Record on the Benchmark Checklist after each service.
4. The Benchmark Checklist may be required in the event of any warranty work.
8.0 Warranty & Service
11
© Baxi Heating UK Ltd 2015
8.1 General
To make sure your boiler warranty is activated and maintained, it is essential that the:
1. Benchmark checklist is completed by your installer
2. Warranty is registered with Baxi
3. Boiler has an annual service
Please note that failure to adhere to terms and conditions will make your warranty invalid.
8.2 Standard Warranty Terms and Conditions
Warranty Registration, Service & Repair
For full terms and conditions, visit www.baxi.co.uk/terms.
Benchmark Checklist
The Benchmark Checklist will be completed by your installer and records that the boiler has been installed and commissioned correctly. It can be found at the back of the installation and service manual and should be kept in a safe place for the life of the boiler. We will check that the Benchmark Checklist has been completed on an in-warranty visit.
Ways to register your warranty
If your boiler is eligible for an extended warranty, your installer may register the product on your behalf and provide you with the relevant documentation. Please check with your installer.
Should this not be the case, you can register your warranty online at www.baxi.co.uk/registration
To activate a standard two year warranty, please use one of the following methods:
Freephone 0800 013 7989 or
Return the enclosed registration card
8.0 Warranty & Service
12
© Baxi Heating UK Ltd 2015
Annual Service
A service must be completed every 12 months from the date of installation to maintain your warranty.
This service must be completed by one of the following:
A Gas Safe registered installer/engineer
Baxi Customer Support; call us 0344 871 1525
Please make sure that your engineer has logged the service information at the back of the installation and service manual. You will be asked for your service history on any in-warranty repair visit.
If you experience a problem with your boiler
For any in or out of warranty repair, Baxi Customer Support is on hand to help you. Call our award-winning team to arrange for one of our nationwide team of Gas Safe registered engineers to visit.
If your product is in warranty, everything is free of charge, subject to our warranty terms and conditions. If it is out of warranty, we can still help and offer a range of options you can choose from to suit your needs.
Contact Baxi Customer Support 0344 871 1525
Opening hours
Monday - Friday, 8.00am - 6.00pm Weekends and Bank Holidays, 8.30am - 2.00pm Please note calls may be recorded for training and monitoring purposes.
When contacting Baxi Customer Support, please have the following information to hand:
Boiler serial number. This can be found on the appliance.
Proof of purchase if you do not have the boiler serial number.
Please note that for in-warranty repairs, our engineers will ask to see your service history record, completed Benchmark Checklist and details of your installer. These can all be found in the installation and user manual.
Information Label
9.0 ErP Information
13
© Baxi Heating UK Ltd 2015
9.1 Product Fiche - Combination Boilers
Product fiche for combination boilers
See
Main Eco Elite Combi ErP
Space heating - Temperature application
Water heating - Declared load profile
Seasonal space heating energy efficiency class
Water heating energy efficiency class
Rated heat output
(Prated or Psup)
kW 26
Space heating - Annual energy consumption kWh
GJ
Water heating - Annual energy consumption kWh
GJ
Seasonal space heating energy efficiency %
Water heating energy efficiency %
Sound power level L
indoors dB
WA
25 30
Medium Medium
XL
A A
22557
81 90
18
92
81
50 50
XL
AA
29
24896
17
92
88
For specific precautions about assembling, installing and maintaining consult the relevant section as detailed on the Contents page.
9.0 ErP Information
14
© Baxi Heating UK Ltd 2015
9.2 Package Fiche - Boilers
I
II
Package fiche for boilers indicating the space heating energy efficiency of the package
reliob fo ycneic fife ygrene gnitaeh ecaps lanosaeS
lortnoc erutarepmeT
utarepmet fo ehc fi morf
lortnoc er
reliob yratnemelppuS
Class IV = 2%, Class V = 3%, Class VI = 4%, Class VII = 3.5%, Class VIII = 5%
grene gnitaeh ecaps lanosaeS
,%5.1 = III ssalC ,%2 = II ssalC ,%1 = I ssalC
)% ni( ycneic fife y
reliob fo ehc fi morf
‘I’
1
%
2
%+
3
%( - ‘I’ ) x 0.1 = ±
noitubirtnoc raloS
ecived ralos fo ehc fi morf
)³m ni( emulov knaT )²m ni( ezis rotcelloC
%)
(1)
A* = 0.95, A = 0.91,
ni( ycneic fife rotcelloC
B = 0.86, C = 0.83, D - G = 0.81
gnitar knaT
4
%(‘III’ x + ‘IV’ x ) x 0.9 x ( /100) x = +
59.0 esu ,A evoba si gnitar knat fI )1(
pmup taeh yratnemelppuS
pmup taeh fo ehc fi morf
)% ni( ycneic fife ygrene gnitaeh ecaps lanosaeS
5
%( - ‘I’ ) x ‘II’ = +
pmup taeh yratnemelppuS DNA noitubirtnoc raloS
eulav rellams tceles
54
6
RO
S
G F E D C B A A
<30%
egakcap fo ycneic fife ygrene gnitaeh ecaps lanosae
fo ssalc ycneic fife ygrene gnitaeh ecaps lanosaeS
egakcap
+
++
A
+++
A
7
? C°53 ta srettime taeh erutarepmet wol htiw dellatsni pmup taeh yratnemelppus dna relioB
pmup taeh fo ehc fi morf
in a building, as this effi ciency is infl uenced by further factors such as heat loss in the distribution system and the dimensioning of the products in relation to building size and characteristics.
7
AD-3000743-01
%0.5 x 0.5 x = -
%
%+ (50 x ‘II’) =
dellatsni ecno ycneic fife ygrene lautca sti ot dnopserroc ton yam ehc fi siht ni rof dedivorp stcudorp fo egakcap eht fo ycneic fife ygrene ehT
I
The value of the seasonal space heating energy efficiency of the preferential space heater, expressed in %. The factor for weighting the heat output of preferential and supple mentary heaters of a package as set out in the following table.
9.0 ErP Information
15
© Baxi Heating UK Ltd 2015
9.2 Package Fiche - Boilers (cont)
IIIIVI
V
Psup / (Prated + Psup)
(1)(2)
II, package without hot water storage tank II, package with hot water storage tank
The value of the mathematical expression: 294/(11 ʷ Prated), whereby ‘Prated’ is related to the preferential space heater. The value of the mathematical expression 115/(11 ʷ Prated), whereby ‘Prated’ is related to the preferential space heater.
Weighting of boilers
00 0
0.1 0.3 0.37
0.2 0.55 0.70
0.3 0.75 0.85
0.4 0.85 0.94
0.5 0.95 0.98
0.6 0.98 1.00
≥ 0.7 1.00 1.00
(1) The intermediate values are calculated by linear interpolation between the two adjacent values. (2) Prated is related to the preferential space heater or combination heater.
Package efficiency
Main Eco Elite Combi ErP
Temperature control X
Temperature control Y %
25 30
%
9.0 ErP Information
16
© Baxi Heating UK Ltd 2015
9.3 Package Fiche - Combination Heaters (Boilers
or Heat Pumps)
I
II
III
Package fiche for combination heaters (boilers or heat pumps) indicating the water heating energy efficiency of the package
retaeh noitanibmoc fo ycneic fife ygrene gnitaeh retaW
‘I’
1
%
:el fiorp daol deralceD
noitubirtnoc raloS
ecived ralos fo ehc fi morf
ap fo ycneic fife ygrene gnitaeh retaW
etamilc egareva rednu egakc
yticirtcele yrailixuA
2
‘III’
%(1.1 x ‘I’ - 10%) x ‘II’ - - ‘I’ = +
3
%
etamilc egareva rednu egakcap fo ssalc ycneic fife ygrene gnitaeh retaW
G F E D C B A A
+
++
A
+++
A
M
L
XL
XXL
:redloC
:remraW
in a building, as this effi ciency is infl uenced by further factors such as heat loss in the distribution system and the dimensioning of the products in relation to building size and characteristics.
<28%
snoitidnoc etamilc remraw dna redloc rednu ycneic fife ygrene gnitaeh retaW
23
%- 0.2 x =
23
%+ 0.4 x =
AD-3000747-01
I
The value of the water heating energy efficiency of the combination heater, expressed in %. The value of the mathematical expression (220 ʷ Q
where Q 15 and Q clared load profile M, L, XL or XXL of the combination heater.
The value of the mathematical expression (Q expressed in %, where Q solar device and Q
is taken from Regulation EU 811/2013, Annex VII Table
ref
from the product fiche of the solar device for the de
nonsol
aux
is taken from the product fiche of the
aux
from Regulation EU 811/2013, Annex VII Ta
ref
ble 15 for the declared load profile M, L, XL or XXL.
)/Q
ref
nonsol
ʷ 2,5)/(220 ʷ Q
dellatsni ecno ycneic fife ygrene lautca sti ot dnopserroc ton yam ehc fi siht ni rof dedivorp stcudorp fo egakcap eht fo ycneic fife ygrene ehT
,
),
ref
10.0 Emergency
17
© Baxi Heating UK Ltd 2015
Gas Tap
Heating Flow, Heating
Return and Mains Water
Inlet Isolating Valves
Fig. 10
In an Emergency
If a water or gas leak occurs or is suspected, the boiler can be isolated at the inlet valves as follows;
1. Using a suitable open ended spanner, turn the square nut on the gas tap through 90° (1/4turn) to isolate the gas supply at the boiler (Fig. 10).
2. The water isolating valves are positioned under the boiler and can be closed by turning their taps to the right towards the wall (Fig. 10).
3. Call your Installer or Service Engineer as soon as possible.
If you smell gas
Do not operate light switches Do not operate any electrical equipment Do not use a telephone in the hazardous area Extinguish any naked flame and do not smoke Open windows and doors in the hazardous area Turn off the gas supply at the meter Warn any other occupants and vacate the premises Telephone the National Gas Emergency Service on:­0800 111 999
Faulty boiler
If it is known or suspected that a fault exists on the boiler, it must not be used until the fault has been corrected by a competent person.
Warning !
11.1 Disposal and Recycling
NOTE: Removal and disposal of the boiler must be
carried out by a qualified person in accordance with local and national regulations.
11.0 Disposal
12.0 Notes
18
© Baxi Heating UK Ltd 2015
12.0 Notes
19
© Baxi Heating UK Ltd 2015
7219661 - 01 (04/15)
Baxi Customer Support
0344 871 1525
Opening hours
Monday - Friday, 8.00am-6.00pm Weekends and Bank Holidays, 8.30am-2.00pm
Please note calls may be recorded for training and monitoring purposes
baxi.co.uk
Register now to activate your warranty:
www.baxi.co.uk/registration
For the warranty to be maintained, please make sure...
Benchmark checklist is completed Warranty is registered with Baxi The boiler has an annual service
1
2
3
For full terms and conditions, visit www.baxi.co.uk/terms. Failure to adhere to terms and conditions will void your manufacturer’s warranty.
Baxi Brooks House, Coventry Road, Warwick, CV34 4LL
Please ensure the boiler is installed in accordance with these installation instructions and that you adhere to the Building Regulations.
e&oe All descriptions and illustrations provided in this document have been carefully prepared but we reserve the right to make changes and improvements in our products which may affect the accuracy of the information contained in this leaflet. All goods are sold subject to our standard Conditions of Sale which are available on request.
part of
0086
Loading...
