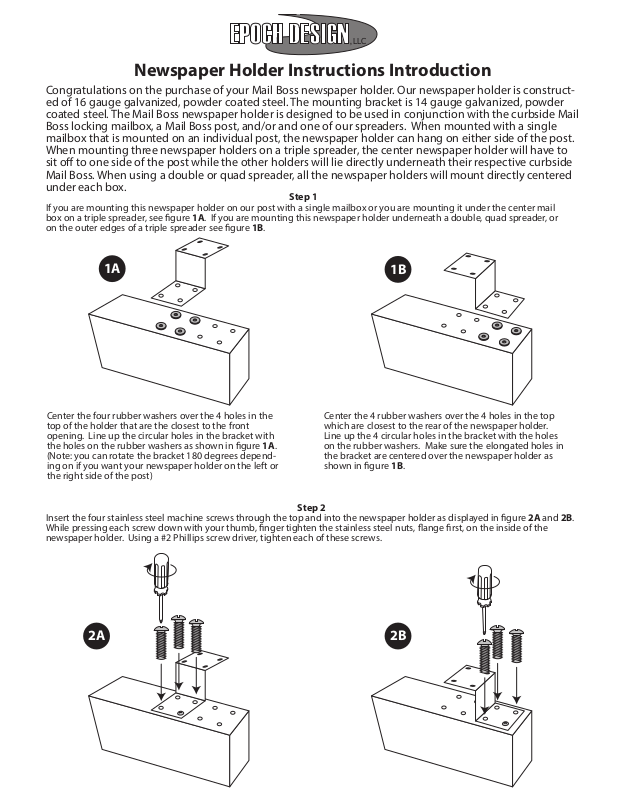

Newspaper Holder Instructions Introduction
Congratulations on the purchase of your Mail Boss newspaper holder. Our newspaper holder is constructed of 16 gauge galvanized, powder coated steel. The mounting bracket is 14 gauge galvanized, powder
coated steel. The Mail Boss newspaper holder is designed to be used in conjunction with the curbside Mail
Boss locking mailbox, a Mail Boss post, and/or and one of our spreaders. When mounted with a single
mailbox that is mounted on an individual post, the newspaper holder can hang on either side of the post.
When mounting three newspaper holders on a triple spreader, the center newspaper holder will have to
sit o to one side of the post while the other holders will lie directly underneath their respective curbside
Mail Boss. When using a double or quad spreader, all the newspaper holders will mount directly centered
under each box.
If you are mounting this newspaper holder on our post with a single mailbox or you are mounting it under the center mail
box on a triple spreader, see gure 1A. If you are mounting this newspaper holder underneath a double, quad spreader, or
on the outer edges of a triple spreader see gure 1B.

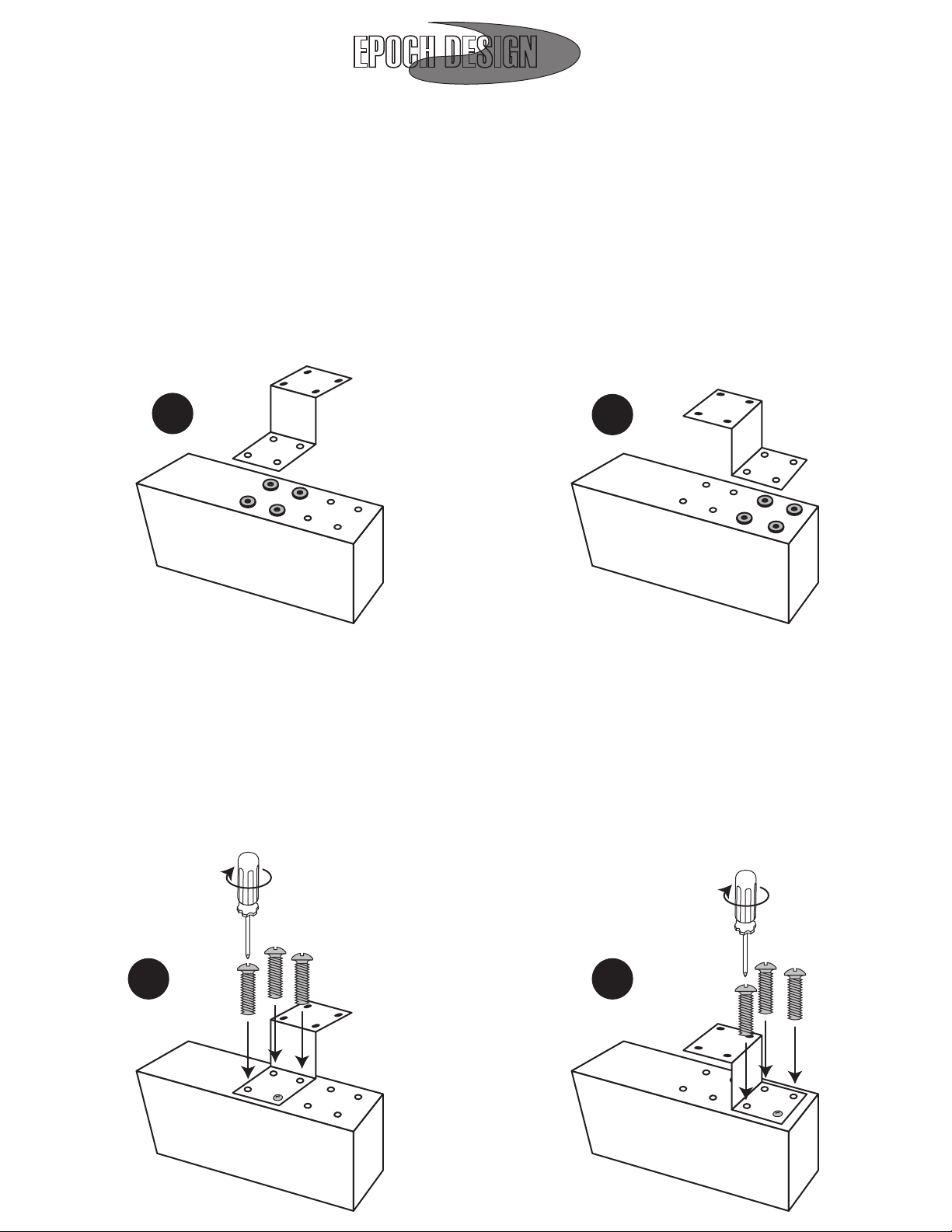

Step 1
1A
Center the four rubber washers over the 4 holes in the
top of the holder that are the closest to the front
opening. Line up the circular holes in the bracket with
the holes on the rubber washers as shown in gure 1A.
(Note: you can rotate the bracket 180 degrees depending on if you want your newspaper holder on the left or
the right side of the post)
Insert the four stainless steel machine screws through the top and into the newspaper holder as displayed in gure 2A and 2B.
While pressing each screw down with your thumb, nger tighten the stainless steel nuts, ange rst, on the inside of the
newspaper holder. Using a #2 Phillips screw driver, tighten each of these screws.
Center the 4 rubber washers over the 4 holes in the top
which are closest to the rear of the newspaper holder.
Line up the 4 circular holes in the bracket with the holes
on the rubber washers. Make sure the elongated holes in
the bracket are centered over the newspaper holder as
shown in gure 1B.
Step 2
1B
2A 2B
Page 2
Step 3
Remove the 4 rubber plugs and the tube of grease from the hardware kit. Thoroughly coat the smallest side of the plugs with grease
and insert them into the holes on the top of the newspaper holder that are not being used. This will aid in preventing water from
entering your newspaper holder.

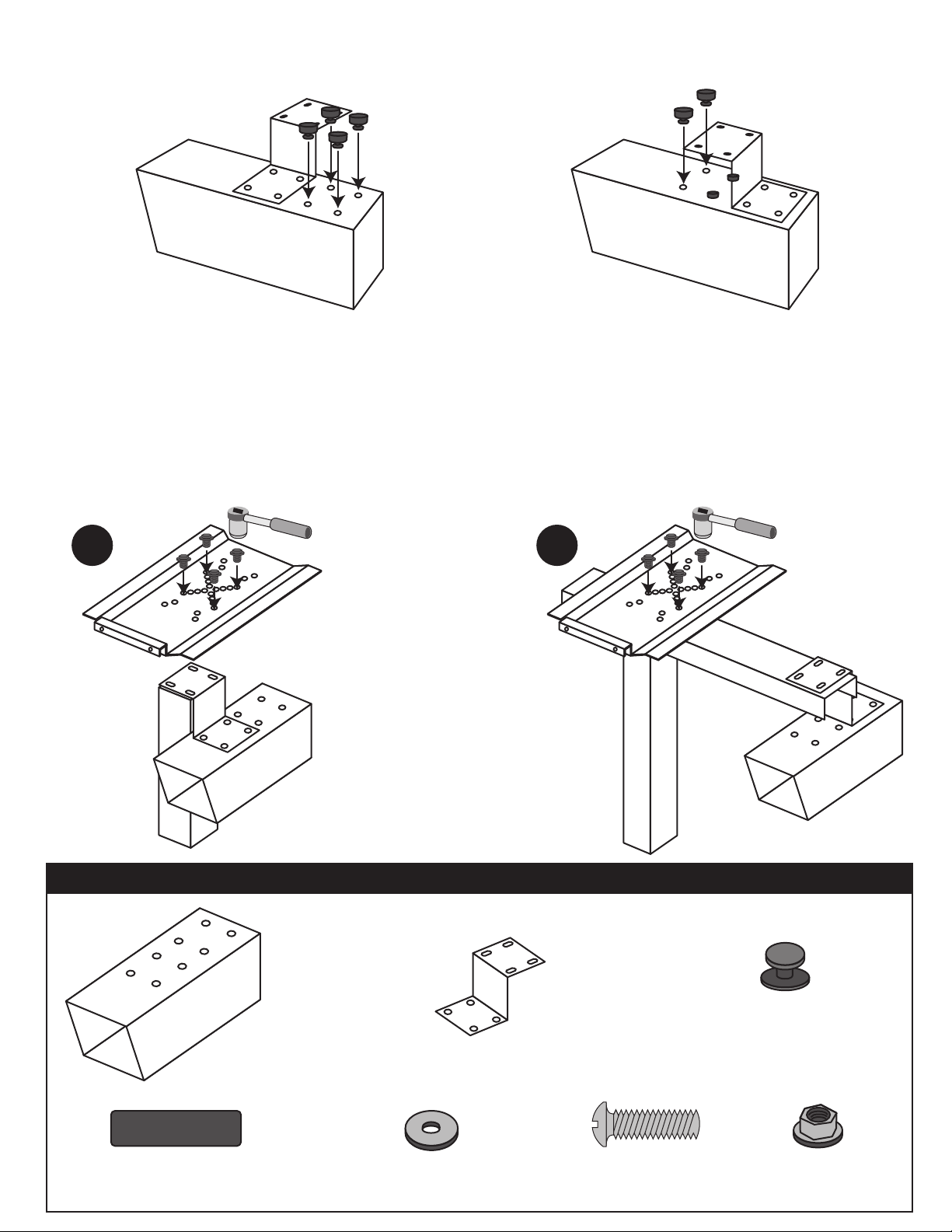

Step 4A
When mounting the newspaper holder on a single post simply
align the elongated holes on the newspaper bracket with the
holes with the top of the post gure 4A. Align the holes in the
mounting plate from the Mail Boss on top. Then using the
machine screws that came with the post to secure the base plate
as well as the newspaper holder to the post using a 13mm socket
or wrench. Note: Use these instructions to mount the center
newspaper holder on the triple spreader unit. The only dierence
is that the spreader unit should be placed between the mounting
plate and the newspaper holder bracket.
4A
Step 4B
Use these instructions to mount a newspaper holder to our
Mail Boss spreader plates (with the exception of the center of
a triple spreader). Mount the spreader plate to the post as
described in the spreader plate installation instructions. Align
the elongated holes on the newspaper holder bracket with
the top of the post. Then align the holes on the mounting
plate from the Mail Boss with the others as detailed in gure
4B. Then using the machine screws that came with the
spreader plate, secure the assembly using a 13mm socket or
wrench as displayed.
4B
PART LIST
1 x Paper Holder
GREASE
1 x Packet of Grease 4 x Rubber Washers
Have a question?... Need a part ASAP?... 1-800-589-7990
1 x Bracket
4 x Rubber Stoppers
4 x Nuts4 x Screws
