EPOCH DESIGN
, LLC

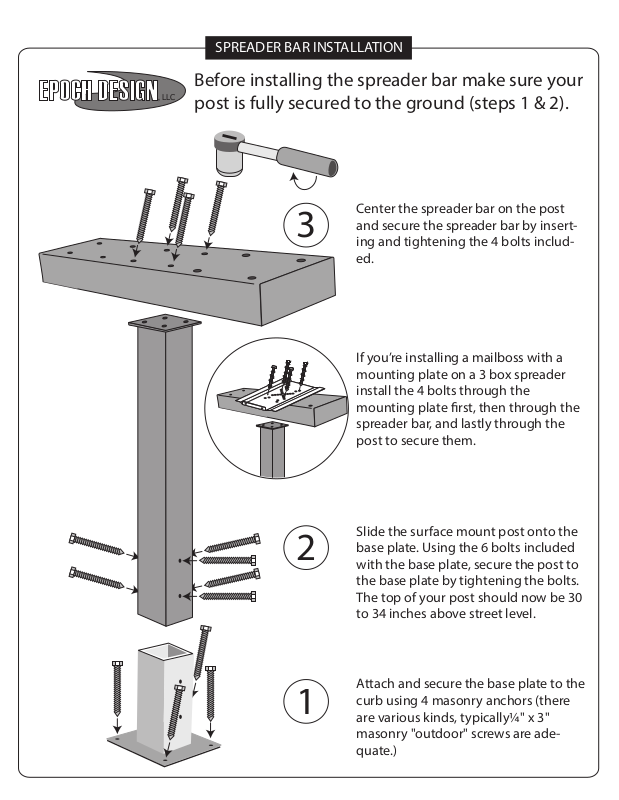

SPREADER BAR INSTALLATION
Before installing the spreader bar make sure your
post is fully secured to the ground (steps 1 & 2).
Center the spreader bar on the post
3
and secure the spreader bar by inserting and tightening the 4 bolts included.
2
If you’re installing a mailboss with a
mounting plate on a 3 box spreader
install the 4 bolts through the
mounting plate rst, then through the
spreader bar, and lastly through the
post to secure them.
Slide the surface mount post onto the
base plate. Using the 6 bolts included
with the base plate, secure the post to
the base plate by tightening the bolts.
The top of your post should now be 30
to 34 inches above street level.
1
Attach and secure the base plate to the
curb using 4 masonry anchors (there
are various kinds, typically¼" x 3"
masonry "outdoor" screws are adequate.)
