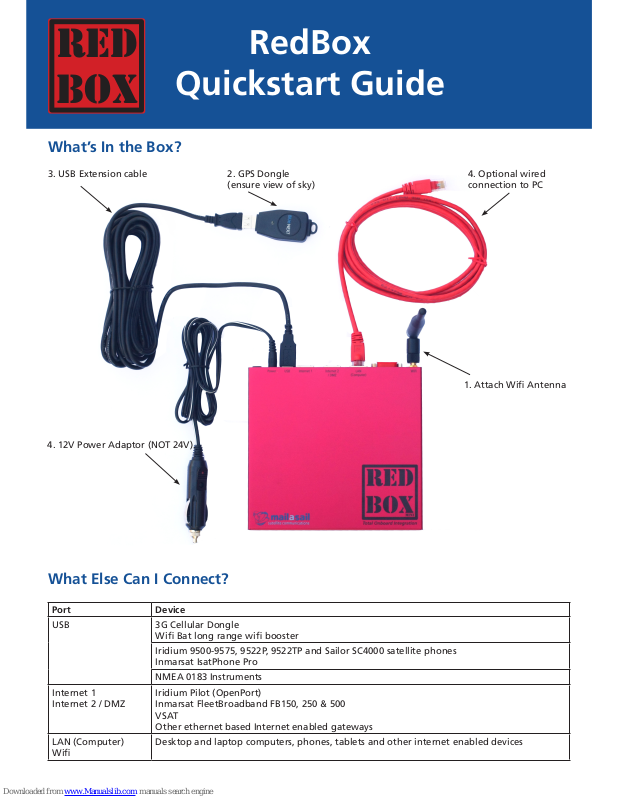

RedBox
Quickstart Guide
R
ED
BOX
1. Attach Wi Antenna
2. GPS Dongle
(ensure view of sky)
4. Optional wired
connection to PC
4. 12V Power Adaptor (NOT 24V).
3. USB Extension cable
Port Device
USB 3G Cellular Dongle
Wi Bat long range wi booster
Iridium 9500-9575, 9522P, 9522TP and Sailor SC4000 satellite phones
Inmarsat IsatPhone Pro
NMEA 0183 Instruments
Internet 1
Internet 2 / DMZ
Iridium Pilot (OpenPort)
Inmarsat FleetBroadband FB150, 250 & 500
VSAT
Other ethernet based Internet enabled gateways
LAN (Computer)
Wi
Desktop and laptop computers, phones, tablets and other internet enabled devices
What’s In the Box?
What Else Can I Connect?
Select the ‘RedBox’ network from the
wireless connections list on your computer
Windows 7 PC
Mac OSX
When prompted for the password, enter
the ‘Default Admin’ code (printed on the
underside of your RedBox).
Open a web browser (eg Firefox, Safari, Chrome, Internet Explorer)
In the address bar enter: redbox/
and press return.
Choose Internet connection
Select rewall conguration,
then click ‘Select Internet Connection’.
Connect to the RedBox via Wi
3
4
2
Open the RedBox Portal
1
Forcing a Dialup Connection to Start
If you are connecting via a satellite dial up connection (Iridium / IsatPhone Pro), you will need to force the satellite
phone to initially dial and connect to the Internet. The connection will drop automatically approximately 10 secs after
the connection becomes idle. Force the connection to start either by retrieving email from your teleport-mail account, or
open the website connect.mailasail.com in your browser.
