AB | ABA | ABT | AT-NB | ATV | SAT
Lifting Accessories for Pit Jacks
Original Operating Instructions
BA551101-en
Pos: 1 /-----For mat---- -/MAN UELLE R UM BRUC H S eite numbr uch @ 0\mod_ 113 44035 77687_ 0.doc x @ 1277 @ @ 1
2
Pos: 2 /-----For mat---- -/Inh altsv er zeic hn is - 2 Ebe nen @ 43\ mod_1448887680115_75.docx @ 2352724 @ @ 1
Contents
1 Safety ...................................................................................................................... 3
1.1 Introduction ......................................................................................................................................... 3
1.2 Symbols .............................................................................................................................................. 3
1.3 Intended Use ....................................................................................................................................... 3
1.4 Inappropriate Use ................................................................................................................................ 3
1.5 Safety Instructions for Operation ......................................................................................................... 4
1.6 Combination with Accessories ............................................................................................................ 5
1.7 What to Do in the Event of an Accident ............................................................................................... 5
2 Transport and Storage ............................................................................................. 5
3 Installation and Initial Operation ................................................................................ 5
4 General Information .................................................................................................. 6
4.1 Description .......................................................................................................................................... 6
4.2 Sample Nameplate .............................................................................................................................. 6
4.3 Coefficient for Static Testing ................................................................................................................ 6
4.4 Requirements on the Foundation Bearing Capacity of the Workshop Pit ............................................. 7
4.5 Requirements on Suitable Lifting Devices ............................................................................................ 7
4.6 Requirements on the Operator ............................................................................................................ 7
4.7 General Operating Instructions for Lifting Accessories ......................................................................... 8
5 Support Systems AB / ABT / ABA / AT-NB .............................................................. 9
5.1 Specifications ...................................................................................................................................... 9
5.2 Operating the Axle Crossbar AT-NB (Asymmetrical Load Center) ...................................................... 14
6 Axle Crossbar SAT 14.5 ......................................................................................... 15
6.1 Specifications .................................................................................................................................... 15
6.2 Operation .......................................................................................................................................... 16
7 Axle Crossbar ATV 3.5 ........................................................................................... 18
7.1 Specifications .................................................................................................................................... 18
7.2 Operation .......................................................................................................................................... 19
8 Maintenance .......................................................................................................... 20
8.1 Annual Inspection .............................................................................................................................. 20
8.2 Care Instructions ............................................................................................................................... 20
8.3 Greasing Points ................................................................................................................................. 20
8.4 Spare Parts ....................................................................................................................................... 20
9 Service Lifetime ...................................................................................................... 21
10 Dismantling ............................................................................................................ 21
11 Disposal ................................................................................................................. 21
12 Contents of the Declaration of Conformity .............................................................. 21
13 Company Information ............................................................................................. 22
Pos: 3 /Technisc he Dokumentat ion/Alle Gerä te/Überschr iften/Über schriften 1/S/Überschri ft 1: Sicherheit @ 6\mod_1174482399906_75.docx @ 76962 @ 1 @ 1
BA551101-en
3
1
Safety
1.1
Introduction
1.2
Symbols
1.3
Intended Use
1.4
Inappropriate Use
Pos: 4 /Technische D okumen tation/A lle Ger äte/ Überschr iften/ Übersc hriften 1.1/E/Üb ersc hrift 1.1: Einf ührung @ 6\mod_1174482219062_75.docx @ 76793 @ 2 @ 1
Pos: 5 /Technisc he Dokum enta tion/ All e Gerä te/In halte/ Sic herhe it/In halt : Ei nführ ung S icher hei t_12p t @ 2 5\mod_1324455248318_75.docx @ 1138886 @ @ 1
Thoroughly read this manual before operating the equipment and comply with the
instructions. Always display the manual in a conspicuous location.
Personal injury and property damage incurred due to non-compliance with these
Pos: 6 /Technische D okumen tation/A lle Ger äte/ Überschr iften/ Übersc hriften 1.1/S/ Überschr ift 1. 1: Sym bole @ 6\mod_1174482270875_75.docx @ 76865 @ 2 @ 1
Pos: 7 /Technische D okumen tation/A lle Ger äte/In halte/S icher heit/I nha lt: Sy mbo le Si cher heit_ 12p t @ 25\m od_1324456650897_75.docx @ 1139046 @ @ 1
safety instructions are not covered by the product liability regulations.
Important safety instructions. Failure to comply with instructions could result in
personal injury or property damage.
Important information.
Pos: 8 /Technisc he D okumen tation/A lle Gerä te/ Überschrif ten/Über schr iften 1 .1/B/Über schr ift 1.1 : Best immungs gemäßer Gebr auch @ 6\mod _11 76734 02220 3_75.d ocx @ 88 746 @ 2 @ 1
Pos: 9 /Tec hnisc he Dok um entat ion /Heb e techn ik/ PIT FO RCE/ 551 101 A B / ABA / A BT / AT-N B / ATV / SA T/BA /I nha lt: 551 1 Be stim mu ngs gemä ßer G eb rau ch L AM @ 29\ mod _1 339 746 9063 04_ 75.d ocx @ 1 608 223 @ @ 1
The support systems, support bridges and axle crossbars are exclusively intended, according to their rated load capacity, for the use as lifting accessories with
suitable lifting devices, in accordance with EN 1494. They are used for the safe
supporting, lifting, lowering and placing on the ground of vehicles in working pits
of commercial vehicle workshops, in closed rooms at environmental temperatures
Pos: 10 /Technische Dokument ation/Alle Gerät e/Übersc hriften/Üb erschriften 1. 1/B/Übers chrift 1.1: Bestimm ungswid riger Gebrauc h @ 18\mod_1255530265027_75.docx @ 471571 @ 2 @ 1
Pos: 11 /Tec hn isch e Do kumentation/Hebetechnik/PITFORCE/551101 AB / ABA / ABT / AT-NB / ATV / SAT/BA/I nha lt: 5511 Bes timm ungs widr iger Geb rauch L AM @ 27\mod_1328786120213_75.docx @ 1543690 @ @ 1
ranging from +5 to +40 °C.
Use beyond the scope of the intended purpose shall be considered as improper
use, e.g. use for other lifting works.
Use on sloping, uneven surfaces which may cause the device to tip over, is
prohibited.
Use in areas subject to explosion hazards and outdoors is prohibited. Use in
damp or areas subject to fire hazards is only permitted with the express, written
approval of the manufacturer.
The device may not be modified without the express, written approval of the
manufacturer. In the case of non-compliance, the declaration of conformity shall
Pos: 12 /-----For ma t-----/MA N UEL LER UM BRUC H Se ite num br uch @ 0\m od_1134403577687_0.docx @ 1277 @ @ 1
lose its validity.
BA551101-en
4
1.5
Safety Instructions for Operation
Pos: 13 /Technische Dokume ntatio n/Alle Geräte/ Übersc hriften/ Überschr iften 1.1/S/ Übersc hrift 1.1: Sic herheit svorschr iften f ür den Betri eb @ 6\m od_1174482268953_75.docx @ 76826 @ 2 @ 1
Pos: 14 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / S AT/ BA/I nha lt: 55 11 Si cher hei tsv orsc hr iften für de n Be tr ieb LAM @ 29\m od_1339747293146_75.docx @ 1608268 @ @ 1
• Transportation only by trained personnel and with a suitable tool.
• Observe notes with regard to possible dangers during mounting or ensuring
correct handling.
• shall only be carried out by authorised personnel.
• Mounting, commissioning, adjusting, operating, maintenance, repairs and de-
mounting shall only be carried out by trained and authorised personnel.
• In the event that a person is not strong enough to operate the device manually,
a suitable tool or another person should be called upon.
• The operator is responsible for ensuring that the user is instructed and familiar
with the operating instructions.
• The maximum permissible positioning speed of the load-carrying equipment is
0.01 m/s. Only operation by hand is allowed.
• The maximum permissible load depositing speed is 0.1 m/s.
• During the positioning of the actuators, no limbs shall be in the hazard area.
• Load-carrying equipment, actuator and accessory kit shall be tested before use
for operational safety. The load-carrying equipment shall only be operated in a
safe and slip-resistant state.
• Actuators should be protected from falling with suitable protection parts. Oper-
ation is not permitted until missing or defective protection parts are implemented according to the replacement parts list.
• The load bearing capacity specified on the name plate must not be exceeded.

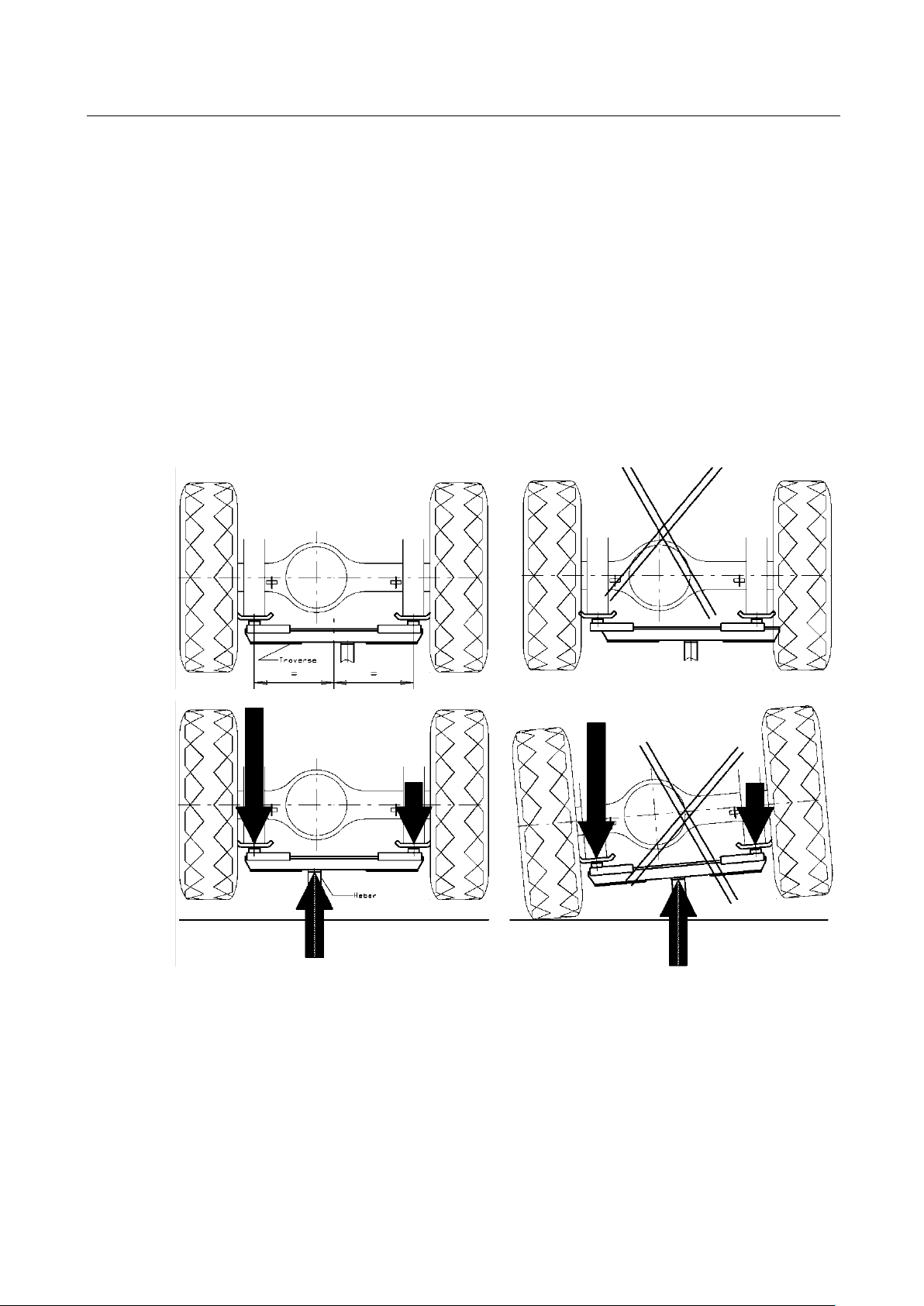

• The load centre shall only be centrically carried.
• During operation when the load is in an unsecured condition, no-one must be in
the hazard area.
• Before depositing, the operator must ensure that no objects are located in load
movement area which could prevent a safe support.
• After the end of operation and before each transportation, all assembly parts
must be removed from the load-carrying system and stored in a suitable place.
• The markings and notes on the device shall be checked regularly for readability
for the entire life span and, if necessary, replaced according to the replacement
parts list.
• Maintenance and repairs shall be carried out according to the manufacturer's
Pos: 15 /-----For ma t-----/MA N UEL LER UMB RUC H Se ite num br uch @ 0\m od_1134403577687_0.docx @ 1277 @ @ 1
BA551101-en
stipulations by an expert.
5
1.6
Combination with Accessories
1.7
What to Do in the Event of an Accident
2
Transport and Storage
3
Installation and Initial Operation
Pos: 16 /Technische Dokument ation/Alle Gerät e/Übersc hriften/Üb erschriften 1. 1/K/Übers chrift 1.1: Komb ination mit Zubeh ör @ 9\mod_1212051386858_75.docx @ 214986 @ 2 @ 1
Pos: 17 /Technische Dokume ntatio n/Alle Geräte/ Inhalte/ Sicher heit/In halt: K ombin ation m it Zubeh ör_1 2pt @ 2 5\mod_1324455653416_75.docx @ 1138909 @ @ 1
The equipment shall be operated only with accessories offered, approved or
Pos: 18 /Technische Dokume ntatio n/Alle Geräte/ Übersc hriften/ Überschr iften 1.1/V /Übersc hrift 1 .1: Ver halten bei U nfällen @ 19\m od_12 67177 2453 37_7 5.docx @ 79460 0 @ 2 @ 1
Pos: 19 /Technische Dokume ntatio n/Alle Geräte/ Inhalte/ Sicher heit/In halt: V erhalt en bei Unfälle n_12p t @ 34\mod_1381128863435_75.docx @ 1837175 @ @ 1
permitted by the manufacturer.
• The injured person is to be removed from the danger area. Find out where
• Provide first-aid (stop bleeding, immobilise injured limbs), report the accident
• Immediately report any accident to your supervisor. Make sure a record is kept
dressing and bandages are kept. Seek first-aid.
and seal off the accident site.
of every occasion first-aid is provided, e.g. in an accident book.
Pos: 20 /Technische Dokume ntatio n/Alle Geräte/ Übersc hriften/ Überschr iften 1/T/ Überschri ft 1: Transp ort und Lageru ng @ 20\mod_1268732488860_75.docx @ 826153 @ 1 @ 1
Pos: 21 /Technische Dokument ation/Alle Gerät e/Inhalte/ Inhalt: Tra nsport und Lageru ng_12pt @ 26\mod_1324468980166_75.docx @ 1141285 @ @ 1
• Remain calm and answer any questions that may arise.
Check package to ensure it is complete, in accordance with the order
confirmation. Report any transport damage to the carrier immediately.
During loading, unloading and transport always use suitable lifting equipment,
material handling equipment (e.g. cranes, forklifts, etc.) and the right load handling
attachments and slings. Always ensure that the parts to be transported are
suspended or loaded properly so that they cannot fall, taking into account size,
weight and the centre of gravity.
Store the packages in a covered area, protected from direct sunlight, at a low
humidity and with temperatures between 0...+40 °C (32…104 °F). Do not stack
packages.
When unpacking, take care to avoid any possibility of injury or damage. Keep at a
safe distance when opening the package strapping, do not allow any parts to fall
Pos: 22 /-----For ma t-----/MA NUEL LER UM BRUC H Zeile nscha ltun g @ 7\mod_ 1195 1389 65731_ 0.doc x @ 13217 7 @ @ 1
Pos: 23 /Technische Dokume ntatio n/Alle Geräte/ Übersc hriften/ Überschr iften 1/M/Üb ersc hrift 1: M ontag e und E rstinbe triebn ahme @ 18\mod_1255417443299_75.docx @ 463797 @ 1 @ 1
out.
Pos: 24 /Technische Dokume ntatio n/Alle Geräte/ Inhalte/ Inhal t: Monta ge u nd Ersti nbetrieb nahme_ 12pt @ 26\mod_1324468562877_75.docx @ 1141153 @ @ 1
Installation and initial operation of the equipment may be done only by authorized
and trained service technicians provided by the manufacturer, licensed dealers or
Pos: 25 /-----For ma t-----/MA N UEL LER UMB RUC H Se ite num br uch @ 0\m od_1134403577687_0.docx @ 1277 @ @ 1
service partners.
BA551101-en
6
4
General Information
4.1
Description
4.2
Sample Nameplate
4.3
Coefficient for Static Testing
Pos: 26 /Technische Dokume ntatio n/Alle Geräte/ Überschrift en/Überschr iften 1/A/Über schrif t 1: Allgemeines @ 15\m od_12 43247 8973 54_75. docx @ 37 6952 @ 1 @ 1
Pos: 27 /Technische Dokument ation/Alle Gerät e/Übersc hriften/Üb erschriften 1. 1/B/Übers chrift 1.1: Beschr eibung @ 16\mod _1 246527377649_75.docx @ 400654 @ 2 @ 1
Pos: 28 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / S AT/ BA/I nha lt: 55 11 Bes chr eib un g Al lg LAM @ 29\ mod_1339747743683_75.docx @ 1608313 @ @ 1
Support systems, support bridges and axle crossbars are lifting accessories for
supporting, raising, lowering and, depending on type, for carrying vehicles in order
to, among other, work on these safely. The suitability must be determined by the
type-specific technical data, functional descriptions, operating and safety instructions.
After the vehicle has been properly supported, the previously used lifting device
can be used for other tasks such as removing of assemblies or raising and lower-
Pos: 29 /Technische Dokume ntation/Al le Geräte/Übers chriften/ Überschrif ten 1.1/T/Über schrift 1.1: Typenschild-M ust er @ 11\m od_12 27622 2060 96_7 5.docx @ 27557 4 @ 2 @ 1
Pos: 30 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / ABT / AT-N B / A TV / SA T/BA /In ha lt: 5 511 Typ ens child LAM ( MAH A) @ 28\m od_1335945278523_75.docx @ 1591401 @ @ 1
ing of other vehicle axles.
Lifting Accessories for Pit Jacks
Ser. Number / Year of Prod.: ***
Project: ***
Model and Version: ***
Load Capacity: ***
Net Weight: ***
Pos: 31 /Tec hn isch e Do kumentatio n/Alle Geräte/ Überschrift en/Überschr iften 1.1/K/ Überschrif t 1.1: Koeffizie nt für die statische Pr üfung @ 29\mod_1340017216213_75.docx @ 1609233 @ 2 @ 1
Pos: 32 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / ABT / AT-N B / ATV / SA T/BA/ Inh alt: 55 11 K oeff izie nt sta tisc he Pr üf ung @ 2 9\mod_1340017479770_75.docx @ 1609277 @ @ 1
Pos: 33 /-----For ma t-----/MA N UEL LER UMB RUC H Se ite num br uch @ 0\mod_1134403577687_0.docx @ 1277 @ @ 1
Coefficient for static testing with all lifting accessories ........................................ 1,5
BA551101-en
7
4.4
Requirements on the Foundation Bearing Capacity of the Workshop Pit
Load capacity
overall
Load capacity
per edge
Ruled surface
30 x 40 mm
Wheel deflec-
tor
30 x 10 mm
4.5
Requirements on Suitable Lifting Devices
4.6
Requirements on the Operator
Pos: 34 /Technische Dokume ntatio n/Alle Geräte/ Übersc hriften/ Überschr iften 1.1/A/ Übersc hrift 1.1: Anf order ungen a n die F undam entfes ti gkeit d er Arb eits grube @ 2 9\mod_1339747974635_75.docx @ 1608358 @ 2 @ 1
Pos: 35 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / SA T/BA/I nha lt: 55 11 Gr ubenb elas tung LAM @ 2 8\mod_1337857396849_75.docx @ 1601355 @ @ 1
The support systems shall be used only in conjunction with workshop pits which
have a suitable foundation. For maximum loads applied to the pit edge see table
below.
SAT 14.5 14.5 7.25 33 134
AB/ABT/AT-NB 14.5 7.25 33 134
AB/ABT 20 10 46 185
[t] [t] [N/mm2] [N/mm2]
ABA 4 2 9 37
Pos: 36 /Technische Dokume ntatio n/Alle Geräte/ Übersc hriften/ Überschr iften 1.1/A/ Übersc hrift 1.1: Anf order ungen a n gee ignetes H ubger ät @ 29\m od_1339749659024_75.docx @ 1608452 @ 2 @ 1
Pos: 37 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / S AT/ BA/I nha lt: 55 11 Anf or der unge n a n gee ign etes H ubg erät @ 29\ mod_1339749814133_75.docx @ 1608496 @ @ 1
The lifting accessories shall be used only in conjunction with lifting devices that
meet the following requirements:
• Inside diameter of cylinder 45 or 55 mm (depending on design of lifting acces-
sory)
• Outside diameter of cylinder > 60 mm (depending on design of lifting accesso-
ry)
• Lifting device in accordance with harmonised standard EN 1494 and EC di-
Pos: 38 /Technische Dokument ation/Papier korb/Über schriften/ Überschrif t 1.1: Anforderun gen an den Bed iener @ 18\ mod_1255531954990_75.docx @ 471737 @ 2 @ 1
Pos: 39 /Technische Dokume ntatio n/Alle Geräte/ Inhalte/ Warnu ng!/In halt: W arnung - Anfor derun gen an d en Bed iener_1 2pt @ 26\mod_1324464226462_75.docx @ 1140361 @ @ 1
rective 2006/42/EC
All persons employed in the operation, maintenance, installation, removal and disposal of the device must
• be at least 18 years old,
Pos: 40 /-----For ma t-----/MA N UEL LER UMB RUC H Se ite num br uch @ 0\m od_1134403577687_0.docx @ 1277 @ @ 1
• be trained and instructed in writing,
• have read and understood this manual
• be on record as having been instructed in safety guidelines.
BA551101-en
8
4.7
General Operating Instructions for Lifting Accessories
Beware of changes in the centre of gravity of the load, e.g. in case of different amounts
Permissible Extension for Pit Jack and Support Systems
Pos: 41 /Technische Dokument ation/Alle Gerät e/Übersc hriften/Üb erschriften 1. 1/A/Übersc hrift 1.1: Allgem eine Bedienun gshinweis e für La stauf nahme mit tel @ 29\m od_1339752194845_75.docx @ 1608540 @ 2 @ 1
Pos: 42 /Technische Dokume ntatio n/Hebet echnik/ PITFORCE /55 1101 A B / ABA / ABT / AT-N B / A TV / S AT/ BA/I nha lt: 55 11 Bed ien un g Al lg LAM @ 29\ mod_1339752500818_75.docx @ 1608634 @ @ 1
• Support tubes must not be extended. Risk of tilting!
• Danger of crushing at the edge of the pit and support bridge!
• The support system shall only be removed if the vehicle is in a secure stable position.
•
of fuel in asymmetric fuel systems. If necessary, use suitable lifting accessories.
• Take note of the operating instructions of all equipment and tools used.
• Check lifting accessories carefully for operational safety.
• Pre-position the lift and lifting accessory at the lift points.
• Always take up the load securely, without risk of slipping and central to the centre of
gravity.
• Position actuators, supports and bases at the support points and depending on type,
fix support pipes with pins and secure with cotter pins or wooden blocks with a minimum spacing of 500 mm.
• Slowly raise or lower the load, watching it continuously.
Pos: 43 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / SA T/B A/In ha lt: 5 511 V er län ger ung b ei H ub gerä ten und LA M (T ext) @ 27\mod_1328787763776_75.docx @ 1543954 @ @ 1
Pos: 44 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / ABT / AT-NB / A TV / SA T/BA/ In halt : 5 511 V er läng erun g be i H ub gerä ten und LAM (B ild er) @ 24\ mod_ 131 06294 38481_ 0.docx @ 1023 877 @ @ 1
• Set down the load without risk of slipping and central to the centre of gravity.
Pos: 45 /-----For ma t-----/MA N UEL LER UMB RUC H Se ite num br uch @ 0\m od_1134403577687_0.docx @ 1277 @ @ 1
BA551101-en
9
5
Support Systems AB / ABT / ABA / AT-NB
5.1
Specifications
5.1.1
Support System ABA
Pos: 46 /Technische Dokume ntatio n/Alle Geräte/ Übersc hriften/ Überschr iften 1/A/Über schr ift 1: Abstü tzsysteme AB / ABT / ABA / AT-N B @ 28\mod_1337080161244_75.docx @ 1597771 @ 1 @ 1
Pos: 47 /Techn ische Dok ument atio n/Al le Geräte/Üb erschrift en/Überschr iften 1.1/T/ Überschrift 1. 1: Technische Daten @ 7\mod_1184075526343_75.docx @ 99711 @ 2 @ 1
Pos: 48 /Technische Dokument ation/Alle Gerät e/Übersc hriften/Üb erschriften 1. 1.1/A/Übers chrift 1.1.1 : Abstützsystem ABA @ 2 9\mod_1339762578201_75.docx @ 1608904 @ 3 @ 1
Pos: 49 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / S AT/ BA/I nha lt: 55 11 Te chn isc he D ate n (Bi ld) ABA @ 28\m od_13 37862 3515 40_0.d ocx @ 1 60144 4 @ @ 1
Pos: 50 /-----For ma t-----/MA N UEL LER UMB RUC H Se ite num br uch @ 0\m od_1134403577687_0.docx @ 1277 @ @ 1
BA551101-en
10
5.1.2
Support System AB
Pos: 51 /Technische Dokument ation/Alle Gerät e/Übersc hriften/Üb erschriften 1. 1.1/A/Übers chrift 1.1.1 : Abstützsystem AB @ 29\mod_ 1339 762 635062_75.docx @ 1608948 @ 3 @ 1
Pos: 52 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / S AT/ BA/I nha lt: 55 11 Te chn isc he D ate n (Ta be lle) A B @ 27\m od_1328787375645_75.docx @ 1543822 @ @ 1
Support System
AB
Support
Position
Dimension A or B (min – max) dep. on Side Part
used
Version
"A/C"
Version "B"
Version
"D/F"
Version "E"
Standard VZ 975567
Desig-
nation
Ordering
Code
AP =
400-1104
BG =
890-1320
BG =
820-1220
BG =
840-1280
BG =
960-1330
Beam 1 Standard 400-804 890-1030 820-960 840-980 960-1090
Beam 2 Standard 460-864 950-1090 880-1020 900-1040 1020-1150
Beam 3 VZ 975566 520-924 1010-1150 940-1080 960-1100 1080-1210
Beam 4 VZ 975566 580-984 1070-1210 1000-1140 1020-1160 1140-1270
Beam 5 VZ 975566 640-1044 1130-1270 1060-1200 1080-1220 1200-1330
Beam 6 VZ 975566 700-1104 1190-1330 1120-1260 1140-1280 -
Desig-
nation
Dimension
(max. overall)
Version "H" "G" "C" "D" "E" "F"
Dimension (Reference
surface: Pit profile)
Profile fea-
tures
Ordering
Code
Side Part "A/B/C" 185 521 107 200 85 99 from U 220 Standard
Side Part "A/B/C" 165 501 87 180 65 79 from U 200 VZ 975568
Side Part "A/B/C" 220 556 142 235 120 134 from U 260 VZ 975568
Side Part "D/F" 90 426 5 98 -17 -3 Special VZ 975567
Side Part "E" 60 396 -35 58 -57 -43 Special VZ 975567
Pos: 53 /-----For ma t-----/MA N UEL LER UMB RUC H Se ite num br uch @ 0\m od_1134403577687_0.docx @ 1277 @ @ 1
BA551101-en
Total net weight: approx. 120 kg
11
X
Y
Pos: 54 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / S AT/ BA/I nha lt: 55 11 Te chn isc he D ate n (Bi ld) AB @ 24\ mod_1309359381115_0.docx @ 1020033 @ @ 1
Pos: 55 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 AB / ABA / ABT / AT-N B / ATV / SAT/ BA/I nha lt: 55 11 Te ch nisc he D at en (L ege nde ) AB /AB T @ 29\mod_1340201684617_75.docx @ 1610103 @ @ 1
Label: Load capacity
Label: Short operating instructions
Pos: 56 /Tec hn isch e Dokumentation/Hebetechnik/PITFORCE/551101 AB / ABA / ABT / AT-NB / ATV / SA T/BA/ In halt: 5 511 V aria nte n ( Bild er) AB @ 24\m od_1310638472392_0.docx @ 1024042 @ @ 1
Pos: 57 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / ABT / AT-NB / ATV / SA T/BA/ In halt: 55 11 V aria nte n A -F (Tex t) @ 27\mod_1328787587112_75.docx @ 1543866 @ @ 1
Version A Version B Version C Version D Version E Version F
Pos: 58 /-----For ma t-----/MA N UEL LER UMB RUC H Se ite num br uch @ 0\mod_1134403577687_0.docx @ 1277 @ @ 1
BA551101-en
12
5.1.3
Support System ABT
Dim. (Reference surface pit
Pos: 59 /Technische Dokument ation/Alle Gerät e/Übersc hriften/Üb erschriften 1. 1.1/A/Übers chrift 1.1.1 : Abstützsystem ABT @ 29\mod_1339762684061_75.docx @ 1608992 @ 3 @ 1
Pos: 60 /Tec hn isch e Do kumentation/Hebetechnik/PITFORCE/551101 AB / ABA / ABT / AT-NB / ATV / SA T/BA/ In ha lt: 5 511 Tech nis che Dat en ( Tabe ll e) A BT @ 24\mod_1310455258479_75.docx @ 1023113 @ @ 1
Pit dimension A or B (min-max) dep. on side part used
Support system ABT
Support
position
Version
"A/C"
Version
"B"
Version
"D/F"
Version
"E"
Standard VZ 975567
Desig-
nation
Order code
AP
BG =
890...1320
BG =
820...1220
BG =
840...1280
BG =
960...1330
Beam 1 Standard 80…1010 890...1030 820...960 840...980 960...1090
Beam 2 Standard 80...1010 950...1090 880...1020 900...1040 1020...1150
Beam 3 VZ 975566 80...1010 1010...1150 940...1080 960...1100 1080...1210
Beam 4 VZ 975566 80...1010 1070...1210 1000...1140 1020...1160 1140...1270
Beam 5 VZ 975566 80...1010 1130...1270 1060...1200 1080...1220 1200...1330
Beam 6 VZ 975566 80...1010 1190...1330 1120...1260 1140...1280 ---
Dim. (max.
overall)
profile)
Profile fea-
ture
Order code
Design. Version
"H" "G" "C" "D" "E" "F"
Side part "A/B/C" 185 650 107 200 87.5 99 from U 220 Standard
Side part "A/B/C" 165 630 87 180 67.5 79 from U 200 VZ 975568
Side part "A/B/C" 220 870 142 235 122.5 134 from U 260 VZ 975568
Side part "D/F" 90 555 5 98 -14.5 -3 Special VZ 975567
Side part "E" 60 525 -35 58 -54.5 -43 Special VZ 975567
Pos: 61 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / S AT/ BA/I nha lt: 55 11 Te chn isc he D ate n (Bi ld) AB T @ 2 4\mod_1309359896940_0.docx @ 1020063 @ @ 1
Overall net weight: approx. 180 kg
BA551101-en
13
X
Y
Pos: 62 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / S AT/ BA/I nha lt: 55 11 Te chn isc he D ate n (Le ge nde) AB/ AB T @ 29\mod_1340201684617_75.docx @ 1610103 @ @ 1
Label: Load capacity
Label: Short operating instructions
Pos: 63 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / S AT/ BA/I nha lt: 55 11 Va ria nten (Bi lder ) A BT @ 28\ mod_1337861605624_0.docx @ 1601400 @ @ 1
Pos: 64 /Tec hn isch e Dokumentation/Hebetechnik/PITFORCE/551101 AB / ABA / ABT / AT-NB / ATV / SA T/BA/ In halt: 5 511 V aria nte n A -F (Tex t) @ 27\mod_1328787587112_75.docx @ 1543866 @ @ 1
Version A Version B Version C Version D Version E Version F
Pos: 65 /-----For ma t-----/MA N UEL LER UMB RUC H Se ite num br uch @ 0\m od_1134403577687_0.docx @ 1277 @ @ 1
BA551101-en
14
5.2
Operating the Axle Crossbar AT-NB (Asymmetrical Load Center)
Pos: 66 /Technische Dokument ation/Alle Gerät e/Übersc hriften/Üb erschriften 1. 1/B/Übers chrift 1.1: Bedien ung der Achstrav erse AT-NB @ 29\ mod_1339756090988_75.docx @ 1608 679 @ 2 @ 1
Pos: 67 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / SA T/BA/In halt: 5511 Bed ienun g Nieder flurtr averse AT-N B (Te xt) @ 29\m od_1 339 756 3900 82_ 75.d ocx @ 160 872 3 @ @ 1
• The general operating instructions for load accessories must be observed.
• Pre-position actuators central to the crossbar at the lifting points.
• Pre-position the lifting accessory central to the load’s centre of gravity.
• If necessary, identify the centre of gravity again in the case of asymmetry or
change. To do this, briefly raise the load slowly, watch out for tilting; if necessary, lower slowly and reposition the lifting accessory at the tilted side.
• Always take up the load securely, without risk of slipping and central to the cen-
tre of gravity.
Pos: 68 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / SA T/BA/In halt: 5511 Bed ienun g Nieder flurtr averse AT-N B (Bi lder ) @ 24\mod_1310627728678_0.docx @ 1023747 @ @ 1
Pos: 69 /-----For ma t-----/MA N UEL LER UMB RUC H Se ite num br uch @ 0\m od_1134403577687_0.docx @ 1277 @ @ 1
BA551101-en
15
6
Axle Crossbar SAT 14.5
6.1
Specifications
SAT 14.5-760
SAT 14.5-910
SAT 14.5-910 L
a
Pos: 70 /Technische Dokument ation/Alle Gerät e/Übersc hriften/Üb erschriften 1/ A/Überschr ift 1: Achstrav ers e SA T 1 4.5 @ 28\ mod_1337080269711_75.docx @ 1597859 @ 1 @ 1
Pos: 71 /Technische Dokument ation/Alle Gerät e/Übersc hriften/Üb erschriften 1. 1/T/Übers chrift 1.1: Technis che Daten @ 7\mod_1184075526343_75.docx @ 99711 @ 2 @ 1
Pos: 72 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / S AT/ BA/I nha lt: 55 11 Te chn isc he D ate n (Bi ld) SA T @ 30\m od_13 52989 4475 77_0.d ocx @ 167 6788 @ @ 1
Pos: 73 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / S AT/ BA/I nha lt: 55 11 Te chn isc he D ate n (Ta be lle) S AT @ 3 0\mod_1352455153330_75.docx @ 1674983 @ @ 1
Load capacity 14500 kg
Support range (C) 500…900 mm 500…1050 mm
Overall length min…max (D) 760…1100 mm 910…1250 mm 910…1400 mm
Pit width (LW), Dimension "B" 770…1000 mm 920…1150 mm 920…1300 mm
Wheel deflector width (inside width), "A" 750…1060 mm 900…1210 mm 900…1360 mm
Overall width (E) 355 mm
Overall height with center support (F) 150 mm
Install. height of support extensions (G) 80 mm
Height adjustment of support tubes (H) 5 x 100 mm
Length x Width of center support (I) 300 x 150 mm
Diameter of support pin (J) 45 mm
Dimensions of support bracket (K) 100 x 100 mm
Net weight 135 kg 145 kg 155 kg
Pos: 74 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / S AT/ BA/I nha lt: 55 11 Te chn isc he D ate n (Le ge nde) SA T @ 30\mod_1352990172688_75.docx @ 1676833 @ @ 1
Labels Front: Load capacity, Short operating instructions
Rear: Nameplate, Company logo
Pos: 75 /-----For ma t-----/MA N UEL LER UMB RUC H Se ite num br uch @ 0\m od_1134403577687_0.docx @ 1277 @ @ 1
BA551101-en
16
6.2
Operation
Magnetic Holder for Support Feet
Retaining Pins
Recommended Positioning
Pos: 76 /Techn ische Dokume ntation/Al le Geräte/Übers chriften/ Überschrifte n 1.1/B/Über schrift 1.1: Bed ienung @ 9\mod_ 120 87844 4759 2_75.d ocx @ 208 752 @ 2 @ 1
Pos: 77 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / ATV / SA T/BA/ In halt: 55 11 Be d ienun g S AT ( Text ) @ 29\mod_1338557859413_75.docx @ 1605307 @ @ 1
• The general operating rules for lifting accessories must be observed.
• Lock lifts before descending and secure against shifting.
Pos: 78 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / ATV / SAT/BA/Inhalt: 5511 Magnethalter+Absteckbolzen (Text) SAT @ 30\mod_1353429225525_75.docx @ 1682533 @ @ 1
• Ensure static stability of load in case of single lifting point at the frame front.
Two magnets attached to the crossbar's middle section can be used to store the
support feet when not in use (see Fig.).
Before picking up the load, secure the support tubes using the retaining pins pro-
Pos: 79 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / SAT/ BA/ In halt: 55 11 M ag neth alt er+ Abs tec kbo lzen (B ild) SA T @ 3 0\mod_1353429572173_0.docx @ 1682577 @ @ 1
vided (see Fig.).
Pos: 80 /Tec hn isch e Dokumentation/Hebetechnik/PITFORCE/551101 AB / ABA / ABT / AT-NB / ATV / SA T/BA/ In halt: 5 511 Pos iti onier ung ( Tex t) S AT @ 2 9\mod_1338558274788_75.docx @ 1605352 @ @ 1
No. 1 with/without load, on the wheel deflector
No. 2 with/without load, directly on the pit edge
No. 3 without load, parking over the carriage
No. 4 with/without load, on the wooden block*, inside
No. 5 with/without load, on the wooden block*, outside
Play at the limit stops is 5 mm maximum per side.
Pos: 81 /-----For ma t-----/MA N UEL LER UMB RUC H Se ite num br uch @ 0\m od_1134403577687_0.docx @ 1277 @ @ 1
*optionally available
BA551101-en
17
Pos: 82 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / ATV / SA T/BA/ In halt: 55 11 P osit ion ier ung ( B ilder ) S AT @ 29\mod_1338559983346_0.docx @ 1605396 @ @ 1
1
2 3
Pos: 83 /-----For ma t-----/MA N UEL LER UMB RUC H Se ite num br uch @ 0\m od_1134403577687_0.docx @ 1277 @ @ 1
4 5
BA551101-en
18
7
Axle Crossbar ATV 3.5
7.1
Specifications
ATV 3.5-45
ATV 3.5-30
C en
Pos: 84 /Technische Dokument ation/Alle Gerät e/Übersc hriften/Üb erschriften 1/ A/Überschr ift 1: Achstraver se ATV 3.5 @ 28\mod_1337080400906_75.docx @ 1597903 @ 1 @ 1
Pos: 85 /Technische Dokume ntatio n/Alle Geräte/ Übersc hriften/ Überschr ifte n 1.1/T/ Über schri ft 1.1: Technis che Dat en @ 7\mod_1184075526343_75.docx @ 99711 @ 2 @ 1
Pos: 86 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / S AT/ BA/I nha lt: 55 11 Te chn isc he D ate n (Bi ld) ATV @ 30\mod_1352986687151_0.docx @ 1676698 @ @ 1
Pos: 87 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / S AT/ BA/I nha lt: 55 11 Te chn isc he D ate n (Ta be lle) A TV @ 30\mod_1352455866762_75.docx @ 1675028 @ @ 1
Support range min…max (A) 600…1600 mm
Overall length min…max (B) 650…1720 mm
Installation height of center support (C) 80 / 110 mm
Support pin Ø (D)
Support disc Ø (E) 120 mm
Dimensions of support brackets (F) 120 x 120 mm
Difference Support disc ‒
Load capacity for support range of up to
w/o Outer ring 45 mm ---
w. Outer ring / inside Ø --- 45 / 30 mm
0…15 mm
1600 mm 2500 kg
1400 mm 3000 kg
1200 mm 3500 kg
Pos: 88 /-----For ma t-----/MA N UEL LER UMB RUC H Se ite num br uch @ 0\m od_1134403577687_0.docx @ 1277 @ @ 1
BA551101-en
Load capacity for center support 14500 kg
Net weight 45 kg
19
Position of Labels
a
c
b
d
7.2
Operation
Support Disc Extender
one
Pos: 89 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / S AT/ BA/I nha lt: 55 11 Te chn isc he D ate n (Le ge nde) ATV @ 30\mod_1352987395454_75.docx @ 1676743 @ @ 1
Company logo
Nameplate
Pos: 90 /Technische Dokume ntatio n/Alle Geräte/ Übersc hriften/ Überschr iften 1.1/ B/Üb erschr ift 1.1: Bedien ung @ 9\m od_1 20878 44475 92_7 5.docx @ 20875 2 @ 2 @ 1
Pos: 91 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / S AT/ BA/I nha lt: 55 11 Bed ien un g (Te xt) ATV @ 28\mod_1337008985417_75.docx @ 1597648 @ @ 1
The ATV axle crossbar shall only be used for raising or lowering the load. Supporting or holding of the load is not permitted!
• The general operating rules for lifting accessories must be observed.
• Take note of the varying permitted load capacity in the support ranges.
• Fasten or position the large telescope positioning parts before the small parts.
• Slowly lift or lower the load, watching it continuously.
• Before starting further work, set the load down first or support it appropriately.
Short instructions with Load capacity ranges
Risk of tilting
• The support disc extender is available in the lengths of 50 (standard)/
100/150/200 mm.
Only
extender per support disc shall be used.
A torsion protection, consisting of one groove and a dowel pin inserted in a hull,
must always be locked in place.
Pos: 92 /Technische Dokume ntatio n/Hebet echnik /PITFORC E/55 1101 A B / ABA / AB T / AT-N B / A TV / S AT/ BA/I nha lt: 55 11 Bed ien un g (Bi ld) ATV @ 28\mod_1337007449258_0.docx @ 1597603 @ @ 1
Pos: 93 /Tec hn isch e Dokumentation/Hebetechnik/PITFORCE/551101 AB / ABA / ABT / AT-NB / ATV / SA T/BA/ In halt: 5 511 Bed ienun g ( Le gend e) A TV @ 29\m od_1338553043103_75.docx @ 1605213 @ @ 1
Pos: 94 /-----For ma t-----/MA N UEL LER UMB RUC H Se ite num br uch @ 0\m od_1134403577687_0.docx @ 1277 @ @ 1
▲ Plugg able support disc with extender ▲ Rated load capacity
BA551101-en
20
8
Maintenance
8.1
Annual Inspection
12 (twelve) months
8.2
Care Instructions
8.3
Greasing Points
8.4
Spare Parts
Pos: 95 /Technische Dokume ntatio n/Papier korb/ Übersc hriften/ Überschr ift 1: Instand haltu ng @ 1 1\mod _123 13187 36629 _75.d ocx @ 28 9550 @ 1 @ 1
Pos: 96 /Technische Dokumentat ion/Papier korb/Übers chriften/ Überschrift 1. 1: Jährliche Überp rüfung @ 6\mod _11 74482 24571 8_75.d ocx @ 76 817 @ 2 @ 1
Pos: 97 /Technische Dokume ntatio n/Alle Geräte/ Inhalte/ Info!/I nhalt: I nfo - J ährl iche Überprüfung_12pt @ 25\mod_1324460481075_75.docx @ 1139412 @ @ 1
• The maintenance interval prescribed by the manufacturer is
This maintenance interval refers to normal workshop usage. If the equipment is
used more frequently or under severe operating conditions (e.g. outdoors), the
interval must be reduced accordingly.
• Maintenance work shall be done only by authorized and trained service techni-
cians provided by the manufacturer, licensed dealers or service partners.
• In case of non-compliance the manufacturer's warranty becomes void.
Pos: 98 /Technische Dokume ntatio n/Hebet echnik /- Arc hiv -/ 00 H ebetech nik - Alle/I nha lte/I nfo!/In ha lt: Inf o - B etrSichV J ährliche Überprüf ung @ 29\m od_ 133 975 953 813 0_75.d ocx @ 160 881 2 @ @ 1
Pos: 99 /Techn ische Dokument ation/ Alle Ger äte/Über schr iften/ Überschri ften 1.1/P/Über schr ift 1. 1: Pfle gehinwe ise @ 15\mod _124 59122 34854_ 75.d ocx @ 39 5780 @ 2 @ 1
Pos: 100 /Tech nische Dok umen tati on/A lle G eräte/ Inha lte/ Inhalt : Pf lege hinwe ise - Alle Geräte_ 12pt @ 26\mod_1324468886116_75.docx @ 1141252 @ @ 1
• Periodically clean the equipment and treat it with a care product.
.
• Repair damage to the paintwork immediately to prevent corrosion.
• Usage of caustic cleaning agents or high pressure and steam jet cleaners may
Pos: 101 /Tech nische Dok umen tati on/A lle G eräte/ Inha lte/ Info!/I nha lt: Inf o - Pfle gehi nweise_ 12p t @ 26\mod_1324461215655_75.docx @ 1139602 @ @ 1
lead to equipment damage.
Regular care and maintenance is the key condition for functionality and long life
expectancy of the equipment!
Pos: 102 /Technische Dokum entati on/Alle G eräte/ Übers chrifte n/Über schrifte n 1.1/SCH /Üb erschri ft 1.1: Schmier stelle n @ 14\mod_1241506822762_75.docx @ 370057 @ 2 @ 1
Pos: 103 /Te ch nisc he D okumentation/Hebetechnik/PITFORCE/551101 AB / ABA / ABT / AT-NB / ATV / SAT/ BA /Inh al t: 5 511 S chm ier ste llen LAM @ 29\mod_1339759863948_75.docx @ 1608856 @ @ 1
Slightly lubricate all sliding friction surfaces periodically or as required. Use multi-
Pos: 104 /Technische Dokum entati on/Alle G eräte/ Übers chrifte n/Über schrifte n 1.1/E/ Über schrift 1.1: Ers atzte ile @ 18\mod_1255596847002_75.docx @ 474414 @ 2 @ 1
Pos: 105 /Technische Dokum entati on/Alle G eräte/I nha lte/Inha lt: Ersatz te ile - A lle Geräte_1 2pt @ 26\mod_1324468768120_75.docx @ 1141219 @ @ 1
purpose grease.
To ensure safe and reliable operation, only use original spare parts supplied by the
Pos: 106 /-----F orm at-----/M ANUELLE R UMBR UCH Seite numbru ch @ 0\mod_1134403577687_0.docx @ 1277 @ @ 1
equipment manufacturer.
BA551101-en
21
9
Service Lifetime
10
Dismantling
11
Disposal
12
Contents of the Declaration of Conformity
MAHA Maschinenbau Haldenwang GmbH & Co. KG
Model:
Designation:
EC Directives:
Pos: 107 /Technische Dokum entati on/Alle G eräte/ Übers chrifte n/Über schrifte n 1/L/ Übersc hrift 1: Leben sdauer @ 19\ mod_ 12663 36761 550_ 75.do cx @ 7424 23 @ 1 @ 1
Pos: 108 /Te ch nisc he D ok umen tati on/H ebe te chn ik/- A rch iv -/0 0 H ebetec hnik - Alle/ Inhalte/ Inhal t: Lebe nsdauer HBZ_ 12pt @ 26\mod_1325656335645_75.docx @ 1146173 @ @ 1
In its standard version, this product is designed for 22,000 load cycles based on
EN 1493. The maximum period of normal use in relation to the possible product
life expectancy shall be evaluated and scheduled by a qualified person during the
Pos: 109 /Technische Dokum entati on/Alle G eräte/ Übers chrifte n/Über schrifte n 1/D/Üb ers chrift 1: Demon tage @ 19\mod _12 66336 8228 63_75.d ocx @ 74 2452 @ 1 @ 1
Pos: 110 /Technische Dokum entati on/Alle G eräte/I nha lte/Inha lt: Dem ontage - Alle Ger ät e_12p t @ 26\ mod_1324466078229_75.docx @ 1140857 @ @ 1
annual safety inspection.
Decommissioning and dismantling of the equipment may be done only by
specially authorized and trained personnel provided by the manufacturer, licensed
Pos: 111 /Technische Dokum entati on/Alle G eräte/ Übers chrifte n/Über schrifte n 1/G/ Überschr ift 1 : Gerä teentsor gung @ 6\mod _11 744 82271625_75.docx @ 76901 @ 1 @ 1
Pos: 112 /Technische Dokum entati on/Alle G eräte/I nha lte/Inha lt: Ger äteents orgung ( ohne RiLi)_ 12pt @ 26\mod_1324467454724_75.docx @ 1140930 @ @ 1
dealers or service partners.
If you want to dispose of the equipment, please contact your MAHA dealer or the
following address, indicating equipment type, date of purchase and serial number:
MAHA Maschinenbau Haldenwang GmbH & Co. KG
Hoyen 20
87490 Haldenwang
Germany
Phone: +49 (0) 8374 585 0
Fax: +49 (0) 8374 585 500
Pos: 113 /Technische Dokum entati on/Alle G eräte/I nha lte/Inha lt: Ger äteents orgung über F achbetr ieb (a lternat iv)_12pt @ 2 6\mod_1324468120852_75.docx @ 1141022 @ @ 1
Email: altgeraete@maha.de
Alternatively, you may take the equipment to a specialised waste management
plant to ensure that all components and operating liquids are properly disposed
Pos: 114 /Technische Dokum entati on/Alle G eräte/ Übers chrifte n/Über schrifte n 1/I/ Überschr ift 1: I nhal t der K onformi tätserkl ärung @ 22\mod_1292856748432_75.docx @ 958616 @ 1 @ 1
Pos: 115 /Technische Dokum entati on/Alle G eräte/I nha lte/Inha lt: Inha lt der Konfor mitäts erkläru ng all g_12pt @ 26\mod_1324468436145_75.docx @ 1141120 @ @ 1
of.
herewith declares as a manufacturer its sole responsibility to ensure that the
product named hereafter meets the safety and health regulations both in design
and construction required by the EC directives stated below.
This declaration becomes void if any change is made to the product that was not
Pos: 116 /Te ch nisc he D ok umen tati on/H ebe te chn ik/PI TFO RCE /5 511 01 AB / A BA / AB T / A T-N B / A TV / S AT/B A/I nhal t: 551 1 In halt der Konfor mitäts erklärung AB / A BT / SAT @ 27\mod_1329138650074_75.docx @ 1547533 @ @ 1
discussed and approved by named company beforehand.
AB / ABA / ABT / ABT-NB / SAT / ATY / ATV 3.5
Support Systems; Rated Load Capacity
3500/4000/13000/14500/15000/20000 kg
Pos: 117 /-----F orm at-----/M ANUELLE R UMBR UCH Seite numbru ch @ 0\mod_1134403577687_0.docx @ 1277 @ @ 1
2006/42/EC
BA551101-en
22
13 Company Information
© MAHA Maschinenbau Haldenwang GmbH & Co. KG
Legal notice based on ISO 16016:
The reproduction, distribution and utilization of this document as well as the communication of its
contents to others without explicit authorization is prohibited. Offenders will be held liable for the
payment of damages. All rights reserved in the event of the grant of a patent, utility model or design.
The contents of this edition have been checked with great care. However, errors cannot be fully
excluded. Subject to technical change without notice.
Document
Document No.: BA551101-en
Approval Date: 2013-01-10
Manufacturer
MAHA Maschinenbau Haldenwang GmbH & Co. KG
Hoyen 20
87490 Haldenwang
Germany
Phone: +49 8374 585 0
Fax: +49 8374 585 590
Mail: maha@maha.de
Web: http://www.maha.de
Service
MAHA Service Center
AutomoTec GmbH
Maybachstraße 8
87437 Kempten
Germany
Phone: +49 8374 585 100
Fax: +49 8374 585 491
Mail: service@automo-tec.com
Web: www.automo-tec.com
BA551101-en
Loading...
