USB (UNIVERSAL SERIAL BUS)
KEYBOARD EMULATION
FULL SIZE SWIPE READER
TECHNICAL REFERENCE MANUAL
Manual Part Number 99875207 Rev 7
JANUARY 2004
PRELIMINARY
REGISTERED TO ISO 9001:2000
1710 Apollo Court
Seal Beach, CA 90740
Phone: (562) 546-6400
FAX: (562) 546-6301
Technical Support: (651) 415-6800
www.magtek.com
Copyright© 2001-2005
MagTek®, Inc.
Printed in the United States of America
Information in this document is subject to change without notice. No part of this document may be
reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose,
without the express written permission of MagTek, Inc.
MagTek is a registered trademark of MagTek, Inc.
USB (Universal Serial Bus) Specification is Copyright© 1998 by Compaq Computer Corporation, Intel
Corporation, Microsoft Corporation, NEC Corporation.
REVISIONS
Rev Number Date Notes
1 28 Aug 01 Initial Release
2 05 Oct 01 Title Page: Removed HID
3 12 Dec 02 Section 4, Command Number: Corrected
GET and SET PROPERTY descriptions
4 28 Jan 03 Changed copyright symbol so .pdf copies
would print on all printers
5 03 Jun 03 Front Matter: added ISO line to logo,
changed Tech Support phone number,
added new warranty statement.
6 09 Oct 03 Sec 5: replaced third paragraph with “Demo
programs, version 1.2.0 and newer…”
7 22 Jan 04 Sec 1: Replaced third paragraph, p. 1, with
current entry.
ii
LIMITED WARRANTY
MagTek warrants that the products sold to Reseller pursuant to this Agreement will perform in accordance with
MagTek’s published specifications. This warranty shall be provided only for a period of one year from the date
of the shipment of the product from MagTek (the “Warranty Period”). This warranty shall apply only to the
original purchaser unless the buyer is authorized by MagTek to resell the products, in which event, this warranty
shall apply only to the first repurchase.
During the Warranty Period, should this product fail to conform to MagTek’s specifications, MagTek will, at its
option, repair or replace this product at no additional charge except as set forth below. Repair parts and
replacement products will be furnished on an exchange basis and will be either reconditioned or new. All replaced
parts and products become the property of MagTek. This limited warranty does not include service to repair
damage to the product resulting from accident, disaster, unreasonable use, misuse, abuse, customer’s negligence,
Reseller’s negligence, or non-MagTek modification of the product. MagTek reserves the right to examine the
alleged defective goods to determine whether the warranty is applicable.
Without limiting the generality of the foregoing, MagTek specifically disclaims any liability or warranty for
goods resold in other than MagTek’s original packages, and for goods modified, altered, or treated by customers.
Service may be obtained by delivering the product during the warranty period to MagTek (1710 Apollo Court,
Seal Beach, CA 90740). If this product is delivered by mail or by an equivalent shipping carrier, the customer
agrees to insure the product or assume the risk of loss or damage in transit, to prepay shipping charges to the
warranty service location and to use the original shipping container or equivalent. MagTek will return the product,
prepaid, via a three (3) day shipping service. A Return Material Authorization (RMA) number must accompany
all returns.
MAGTEK MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND MAGTEK DISCLAIMS ANY
WARRANTY OF ANY OTHER KIND, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
EACH PURCHASER UNDERSTANDS THAT THE MAGTEK PRODUCT IS OFFERED AS IS. IF THIS
PRODUCT DOES NOT CONFORM TO MAGTEK’S SPECIFICATIONS, THE SOLE REMEDY SHALL BE
REPAIR OR REPLACEMENT AS PROVIDED ABOVE. MAGTEK’S LIABILITY, IF ANY, TO RESELLER
OR TO RESELLER’S CUSTOMERS, SHALL IN NO EVENT EXCEED THE TOTAL AMOUNT PAID TO
MAGTEK BY RESELLER UNDER THIS AGREEMENT. IN NO EVENT WILL MAGTEK BE LIABLE TO
THE RESELLER OR THE RESELLER’S CUSTOMER FOR ANY DAMAGES, INCLUDING ANY LOST
PROFITS, LOST SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT
OF THE USE OF OR INABILITY TO USE SUCH PRODUCT, EVEN IF MAGTEK HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER PARTY.
LIMITATION ON LIABILITY
EXCEPT AS PROVIDED IN THE SECTIONS RELATING TO MAGTEK’S LIMITED WARRANTY,
MAGTEK’S LIABILITY UNDER THIS AGREEMENT IS LIMITED TO THE CONTRACT PRICE OF THE
PRODUCTS.
MAGTEK MAKES NO OTHER WARRANTIES WITH RESPECT TO THE PRODUCTS, EXPRESSED OR
IMPLIED, EXCEPT AS MAY BE STATED IN THIS AGREEMENT, AND MAGTEK DISCLAIMS ANY
IMPLIED WARRANTY, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
MAGTEK SHALL NOT BE LIABLE FOR CONTINGENT, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES TO PERSONS OR PROPERTY. MAGTEK FURTHER LIMITS ITS LIABILITY OF ANY KIND
WITH RESPECT TO THE PRODUCTS, INCLUDING ANY NEGLIGENCE ON ITS PART, TO THE
CONTRACT PRICE FOR THE GOODS.
MAGTEK’S SOLE LIABILITY AND BUYER’S EXCLUSIVE REMEDIES ARE STATED IN THIS SECTION
AND IN THE SECTION RELATING TO MAGTEK’S LIMITED WARRANTY.
iii
FCC WARNING STATEMENT
This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15
of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a residential environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation.
FCC COMPLIANCE STATEMENT
This device complies with Part 15 of the FCC Rules. Operation of this device is subject to the following two
conditions: (1) This device may not cause harmful interference; and (2) this device must accept any interference
received, including interference that may cause undesired operation.
CANADIAN DOC STATEMENT
This digital apparatus does not exceed the Class B limits for radio noise for digital apparatus set out in the Radio
Interference Regulations of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux
appareils numériques de las classe B prescrites dans le Réglement sur le brouillage radioélectrique édicté par les
ministère des Communications du Canada.
CE STANDARDS
Testing for compliance to CE requirements was performed by an independent laboratory. The unit under test was
found compliant to Class B.
UL/CSA
This product is recognized per Underwriter Laboratories and Canadian Underwriter Laboratories 1950.
iv
v
TABLE OF CONTENTS
SECTION 1. FEATURES AND SPECIFICATIONS.....................................................................................1
FEATURES...............................................................................................................................................1
HARDWARE CONFIGURATIONS...........................................................................................................2
ACCESSORIES........................................................................................................................................2
REFERENCE DOCUMENTS....................................................................................................................2
SPECIFICATIONS....................................................................................................................................2
SECTION 2. INSTALLATION......................................................................................................................5
USB CONNECTION .................................................................................................................................5
WINDOWS PLUG AND PLAY SETUP.....................................................................................................6
MOUNTING...............................................................................................................................................6
SECTION 3. OPERATION...........................................................................................................................7
LED INDICATOR......................................................................................................................................7
CARD READ.............................................................................................................................................7
SECTION 4. USB COMMUNICATIONS.......................................................................................................9
HOST APPLICATIONS.............................................................................................................................9
CARD DATA .............................................................................................................................................9
PROGRAMMABLE CONFIGURATION OPTIONS.................................................................................10
LOW LEVEL COMMUNICATIONS.........................................................................................................11
HID USAGES..........................................................................................................................................11
REPORT DESCRIPTOR ........................................................................................................................12
COMMANDS...........................................................................................................................................13
COMMAND NUMBER ............................................................................................................................13
DATA LENGTH.......................................................................................................................................13
DATA.......................................................................................................................................................13
RESULT CODE.......................................................................................................................................14
GET AND SET PROPERTY COMMANDS.............................................................................................14
SOFTWARE_ID PROPERTY.................................................................................................................15
SERIAL_NUM PROPERTY....................................................................................................................16
POLLING_INTERVAL PROPERTY........................................................................................................16
TRACK_ID_ENABLE PROPERTY.........................................................................................................17
TRACK_DATA_SEND_FLAGS PROPERTY .........................................................................................18
TERMINATION_CHAR PROPERTY......................................................................................................18
SS_TK2_7BITS PROPERTY..................................................................................................................19
SS_TK3_CADL PROPERTY..................................................................................................................19
SS_TK3_ISO_ABA PROPERTY ............................................................................................................20
SS_TK3_AAMVA PROPERTY...............................................................................................................20
SS_TK3_7BITS PROPERTY..................................................................................................................20
PRE_CARD_CHAR PROPERTY...........................................................................................................21
POST_CARD_CHAR PROPERTY.........................................................................................................21
PRE_TK_CHAR PROPERTY.................................................................................................................22
POST_TK_CHAR PROPERTY...............................................................................................................22
SECTION 5. DEMO PROGRAM.................................................................................................................23
INSTALLATION.......................................................................................................................................23
OPERATION...........................................................................................................................................23
SOURCE CODE .....................................................................................................................................24
vi
FIGURES
Figure 1-1. USB Full Size Keyboard Emulation Swipe Reader---------------------------------------------------- viii
Figure 1-2. Dimensions-------------------------------------------------------------------------------------------------------- -4

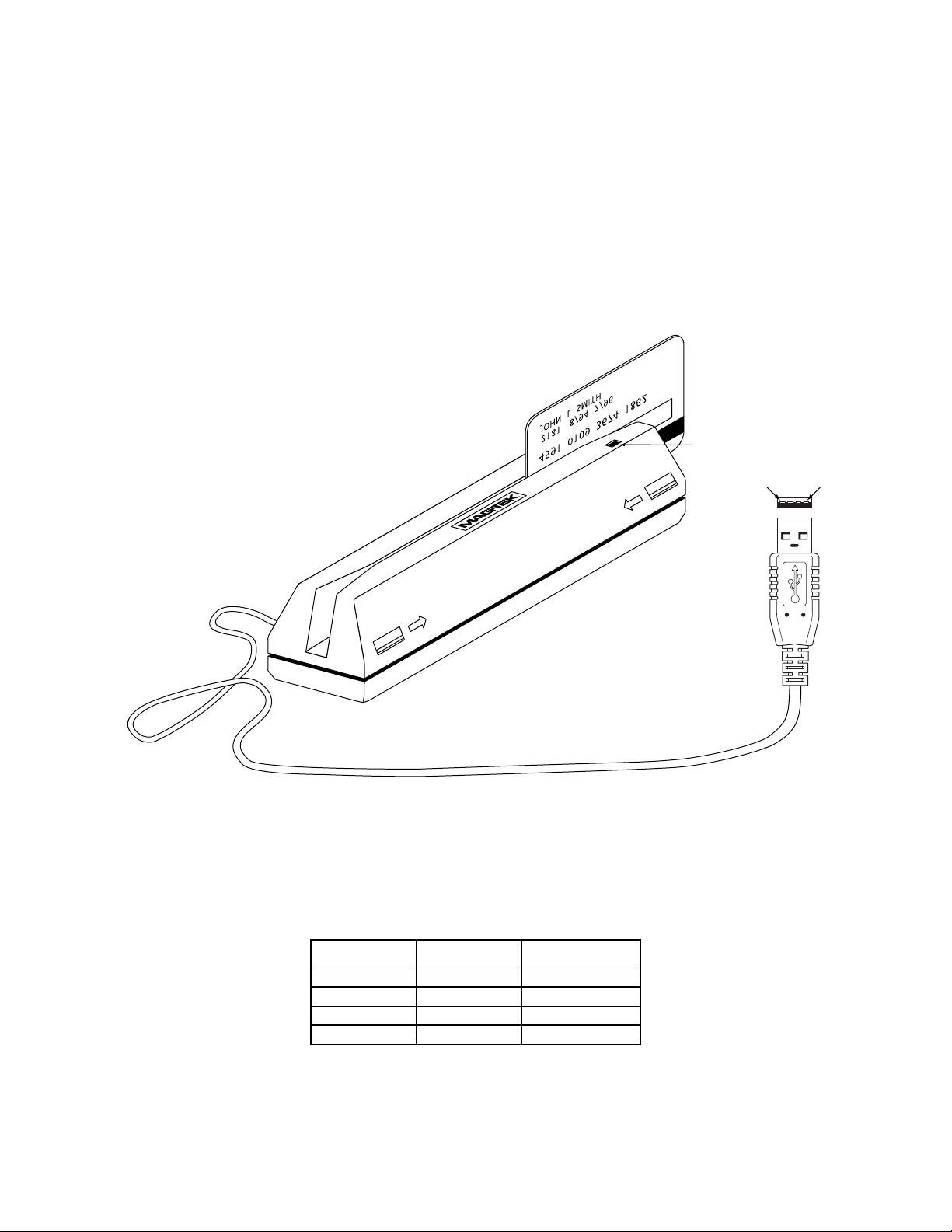

Figure 2-1. Reader Cable and Connector---------------------------------------------------------------------------------- 5
TABLES
Table 1-2. Specifications------------------------------------------------------------------------------------------------------- 3
Table 2-1. 4-Pin Connector---------------------------------------------------------------------------------------------------- 5
vii
viii
Figure 1-1. USB Full Size Keyboard Emulation Swipe Reader
SECTION 1. FEATURES AND SPECIFICATIONS
The USB (Universal Serial Bus), HID Keyboard Emulation, Full Size Swipe Reader is a compact
magnetic stripe card reader, which conforms to ISO standards. The Reader is compatible with
the PC series of personal computers or any device with a USB interface. A card is read by
sliding it, stripe down and facing the LED side, through the slot either forward or backward.
A LED (Light Emitting Diode) indicator on the Reader panel provides the operator with
continuous status of the Reader operations.
The reader emulates a USB Human Interface Device (HID) United States keyboard. This allows
host applications designed to acquire card data from keyboard input to seamlessly acquire the
card data from the USB swipe reader. Note that since this reader only emulates United States
keyboards, it may not work with systems configured to use keyboards that are not United States
keyboards.
Caution
If another keyboard is connected to the same host as this device and a
key is pressed on the other keyboard while this device is transmitting,
then the data transmitted by this device may get corrupted.
Because of potential "data interleave" issues associated with the USB Keyboard interface,
MagTek recommends that the USB Keyboard Emulation MSR product should only be used by
customers who have previously used MagTek's Keyboard Wedge MSR, or who are interfacing
with an existing PC software application which gathers card data from the keyboard port. If
previous applications were based upon RS-232 serial interface MSR's, or if this is a brand new
development effort, it is strongly recommended that you use the MagTek's "standard version" of
the USB MSR (Non-Keyboard Emulation Version). Please refer to Technical Manual 99875204
for further information regarding the "standard version" USB MSR.
FEATURES
Major features of the Swipe Reader are as follows:
• Powered through the USB – no external power supply required
• Hardware Compatible with PC or any computer or terminal with a USB interface
• Bidirectional card reading
• Reads encoded data that meets ANSI/ISO/CDL/AAMVA standards and others such as ISO
track 1 format on track 2 or 3.
• Reads up to three tracks of card data
• LED for status
• Compatible with USB specification Revision 1.1
• Compatible with HID specification Version 1.1
1
USB HID Keyboard Emulation Swipe Reader
• Can use standard Windows drivers for communications. No third part device driver is
required.
• Many programmable configuration options
• Non-volatile flash EEPROM memory for configuration storage
• Built-in 6 foot USB cable
HARDWARE CONFIGURATIONS
The hardware configuration is as follows:
Part Number Tracks Color
21088066
ACCESSORIES
The accessories are as follows:
Part Number Description
21042806 USB MSR Demo Program with Source Code (Diskette)
99510026 USB MSR Demo Program with Source Code (WEB)
REFERENCE DOCUMENTS
Axelson, Jan. USB Complete, Everything You Need to Develop Custom USB Peripherals, 1999.
Lakeview Research, 2209 Winnebago St., Madison WI 53704, 396pp., http://www.lvr.com.
USB Human Interface Device (HID) Class Specification Version 1.1.
USB (Universal Serial Bus) Specification, Version 1.1, Copyright© 1998 by Compaq Computer
Corporation, Intel Corporation, Microsoft Corporation, NEC Corporation.
USB Implementers Forum, Inc., www.usb.org.
SPECIFICATIONS
Table 1-2 lists the specifications for the USB Swipe Reader. Figure 1-2 shows the dimensions
for the standard product. Other sizes are available by special order.
TK 1,2,3 Pearl White
2
Section 1. Features and Specifications
Table 1-2. Specifications
Reference Standards ISO 7810 and ISO 7811/CDL/ AAMVA*
Power Input 5V From USB port
Recording Method Two-frequency coherent phase (F2F)
Message Format ASCII
Card Speed 3 to 50 IPS
MTBF Electronics: 125,000 hours. Head: 1,000,000 passes
ELECTRICAL
Current
Normal Mode
Suspend Mode
Dimensions Length: 6.5” (165.1 mm),
Weight 6.60 oz. (187.6 gr.)
Cable length 6ft.
Connector USB Type A plug
Temperature
Operating 32oF to 131oF (0oC to 55oC)
Storage -22oF to 158oF (-30oC to 70oC)
Humidity
Operating 10% to 90% noncondensing
Storage Up to 100% noncondensing
Altitude
Operating 0-10,000 ft. (0-3048 m.)
Storage 0-50,000 ft. (0-15240 m.)
* ISO (International Standards Organization), CDL (California Drivers License), and AAMVA (American
Association of Motor Vehicle Administrators).
30mA
300uA
MECHANICAL (STANDARD PRODUCT)
Width: 1.75” (44.45 mm)
Height: 1.625” (41.28 mm)
ENVIRONMENTAL
3
USB HID Keyboard Emulation Swipe Reader
6.5"
(165.1 mm)
1.625"
(41.28 mm)
1.75"
(44.45 mm)
6.5"
(165.1 mm)
Figure 1-2. Dimensions
4
SECTION 2. INSTALLATION
This section describes the cable connection, the Windows Plug and Play Setup, and the physical
mounting of the unit.
USB CONNECTION
Connect the USB cable to a USB port on the host. The Reader, LED Indicator, and pin numbers
for the 4-pin connector are shown in Figure 2-1.
LED Indicator
14
Figure 2-1. Reader Cable and Connector
Pin numbers and signal descriptions for the cable shown in the illustration are listed in
Table 1-1.
Table 2-1. 4-Pin Connector
Pin Number Signal Cable Color
1 VCC Red
2 - Data White
3 +Data Green
4 Ground Black
5
USB HID Keyboard Emulation Swipe Reader
WINDOWS PLUG AND PLAY SETUP
On hosts with the Windows operating system, the first time the device is plugged into a specific
USB port, Windows will pop up a dialog box, which will guide you through the process of
installing a device driver for the device. After this process is completed once, Windows will no
longer request this process as long as the device is plugged into the same USB port. The device
driver that Windows will install for this device is the driver used for HID keyboard devices and it
is part of the Windows operating system. When the dialog box pops up, follow the instructions
given to you in the dialog box. Sometimes Windows will find all the files it needs on its own
without giving you any prompts. Other times Windows will need to know the location of the
files it needs. If Windows prompts you for the file locations, insert the CD that was used to
install Windows on your PC and point Windows to the root directory of the CD. Windows
should find all the files it needs there.
MOUNTING
1. Ensure the Reader is positioned on a flat, accessible surface with at least 4 inches
clearance on either end for room to swipe a card. Orient the Reader so the side with the
LED is facing the direction of intended use.
If fastening tape is to be used, clean the area that the Reader will be mounted on with
isopropyl alcohol. Remove the adhesive protective cover on the fastening tape, and
position the Reader and push down firmly.
2. Mount the Reader.
6
SECTION 3. OPERATION
This section describes the LED Indicator and Card Read.
LED INDICATOR
The LED indicator will be either off, red, or green. When the device is not powered, the LED
will be off. When the device is first plugged in, the LED will be red. As soon as the device is
plugged in, the host will try to enumerate the device. Once the device is enumerated the LED
will turn green indicating that the device is ready for use. When a card is being swiped, the LED
will turn off temporarily until the swipe is completed. If there are no errors decoding the card
data then the LED will turn green. If there are any errors decoding the card data, the LED will
turn red for approximately two seconds to indicate that an error occurred and then turn green.
Anytime the host puts the device into suspend mode, the LED will turn off. Once the host takes
the device out of suspend mode, the LED will return to the state it was in prior to entering
suspend mode.
CARD READ
A card may be swiped through the Reader slot when the LED is green. The magnetic stripe must
face toward the front (the side with the LED) and may be swiped in either direction. If there is
data encoded on the card, the device will attempt to decode the data and then send the results to
the host as if the data was being typed on a keyboard. After the results are sent to the host, the
device will be ready to read the next card.
7
USB HID Keyboard Emulation Swipe Reader
8
SECTION 4. USB COMMUNICATIONS
This device conforms to the USB specification revision 1.1. This device also conforms with the
Human Interface Device (HID) class specification version 1.1. The device communicates to the
host as a HID keyboard device. The latest versions of the Windows operating systems, Windows
98, Me, and 2000, all come with a standard Windows USB HID keyboard driver.
This is a full speed USB device. This device is powered from the USB bus. Its vendor ID is
0x0801 and its product ID is 0x0001. The device will go into suspend mode when directed to do
so by the host. The device will wakeup from suspend mode when directed to do so by the host.
The device does not support remote wakeup.
HOST APPLICATIONS
This device can be used with existing applications that acquire card data via keyboard input.
Also, applications that communicate to this device can be easily developed. These applications
can be easily developed using compilers such as Microsoft’s Visual Basic or Visual C++. To
demonstrate this device’s card reading capabilities any application that accepts keyboard input
such as Window’s Notepad can be used.
CARD DATA
The card data is converted to ASCII and transmitted to the host as if it had been typed on a
keyboard. Any data with ASCII values 0 – 31 or 127 will be transmitted as their equivalent
control code combination. For example a carriage return value 13 (0D hex) will be sent as (^M)
where ^ represents the Ctrl key on the keyboard.
Caution
If another keyboard is connected to the same host as this device and a
key is pressed on the other keyboard while this device is transmitting,
then the data transmitted by this device may get corrupted.
Because of potential "data interleave" issues associated with the USB Keyboard interface,
MagTek recommends that the USB Keyboard Emulation MSR product should only be used by
customers who have previously used MagTek's Keyboard Wedge MSR, or who are interfacing
with an existing PC software application which gathers card data from the keyboard port. If
previous applications were based upon RS-232 serial interface MSR's, or if this is a brand new
development effort, it is strongly recommended that you use the MagTek's "standard version" of
the USB MSR (Non-Keyboard Emulation Version). Please refer to Technical Manual 99875204
for further information regarding the "standard version" USB MSR.
The device’s programmable configuration options affect the format of the card data.
The card data format for the default configuration is as follows:
[Tk1 SS][Tk1 Data][ES][Tk2 SS][Tk2 Data][ES][Tk3 SS][Tk3 Data][ES][CR]
where:
9
USB HID Keyboard Emulation Swipe Reader
Tk1 SS = % (7-bit start sentinel)
Tk2 SS = ; (ISO/ABA 5-bit start sentinel)
@ (7-bit start sentinel)
Tk3 SS = + (ISO/ABA start sentinel)
! (CA drivers licence start sentinel)
# (AAMVA start sentinel)
& (7-bit start sentinel)
ES = ? (end sentinel)
CR = (carriage return) (0D hex)
All data will be sent in upper case regardless of the state of the caps lock key on the keyboard. If
no data is detected on a track then nothing will be transmitted for that track. If an error is
detected on a track the ASCII character E will be sent in place of the track data to indicate an
error.
The card data format for all programmable configuration options is as follows:
[P11][P13][Tk1 SS][Tk1 Data][ES][LRC][P14][P5][P13][Tk2 SS][Tk2
Data][ES][LRC][P14][P5][P13][Tk3 SS][Tk3 Data][ES][LRC][P14][P5][P12]
where:
ES = ? (end sentinel)
LRC = Longitudinal redundancy check character
P5 = Terminating character
P11 = Pre card character
P12 = Post card character
P13 = Pre track character
P14 = Post track character
Tk1 SS = % (7-bit start sentinel)
Tk2 SS = ; (ISO/ABA 5-bit start sentinel)
P6 (7-bit start sentinel)
Tk3 SS = P8 (ISO/ABA start sentinel)
P7 (CA drivers licence start sentinel)
P9 (AAMVA start sentinel)
P10 (7-bit start sentinel)
All fields with the format P# are programmable configuration property numbers. They are
described in detail later in this document.
PROGRAMMABLE CONFIGURATION OPTIONS
This device has a number of programmable configuration properties. These properties are stored
in non-volatile EEPROM memory. These properties can be configured at the factory or by the
end user using a program supplied by MagTek. Programming these parameters requires low
level communications with the device. During normal device operation, the device acts like a
USB HID keyboard so the host operating system takes care of all low level communications with
10
Section 4. USB Communications
the device so that the application developer is not burdened with these low level details. Details
on how to communicate with the device to change programmable configuration properties
follows in the next few sections. These details are included as a reference only. Most users will
not need to know these details because the device will be configured at the factory or by a
program supplied by MagTek. Most users may want to skip over the next few sections on low
level communications and continue with the details of the configuration properties.
LOW LEVEL COMMUNICATIONS
It is strongly recommended that application software developers become familiar with the HID
specification the USB specification before attempting to communicate directly with this device.
This document assumes that the reader is familiar with these specifications. These specifications
can be downloaded free from www.usb.org.
HID USAGES
HID devices send data in reports. Elements of data in a report are identified by unique identifiers
called usages. The structure of the device’s reports and the device’s capabilities are reported to
the host in a report descriptor. The host usually gets the report descriptor only once, right after
the device is plugged in. The report descriptor usages identify the devices capabilities and report
structures. For example, a device could be identified as a keyboard by analyzing the device’s
report descriptor. Usages are four byte integers. The most significant two bytes are called the
usage page and the least significant two bytes are called usage IDs. Usages that are related can
share a common usage page. Usages can be standardized or they can be vendor defined.
Standardized usages such as usages for mice and keyboards can be found in the HID Usage
Tables document and can be downloaded free at www.usb.org. Vendor defined usages must
have a usage page in the range 0xff00 – 0xffff. All usages for this device use the standard HID
keyboard usages or vendor defined magnetic stripe reader usage page 0xff00. The vendor
defined usage IDs for this device are defined in the following table. The usage types are also
listed. These usage types are defined in the HID Usage Tables document.
Magnetic Stripe Reader usage page 0xff00:
Usage ID
(Hex)
20 Command message Data Feature
Usage Name Usage
Type
Report
Type
11
USB HID Keyboard Emulation Swipe Reader
REPORT DESCRIPTOR
The HID report descriptor is structured as follows:
Item Value(Hex)
Usage Page (Generic Desktop) 05 01
Usage (Keyboard) 09 06
Collection (Application) A1 01
Usage Page (Key Codes) 05 07
Usage Minimum (224) 19 E0
Usage Maximum (231) 29 E7
Logical Minimum (0) 15 00
Logical Maximum (1) 25 01
Report Size (1) 75 01
Report Count (8) 95 08
Input (Data, Variable, Absolute) 81 02
Report Count (1) 95 01
Report Size (8) 75 08
Input (Constant) 81 03
Report Count (5) 95 05
Report Size (1) 75 01
Usage Page (LEDs) 05 08
Usage Minimum (1) 19 01
Usage Maximum (5) 29 05
Output (Data, Variable, Absolute) 91 02
Report Count (1) 95 01
Report Size (3) 75 03
Output (Constant) 91 03
Report Count (6) 95 06
Report Size (8) 75 08
Logical Minimum (0) 15 00
Logical Maximum (101) 25 66
Usage Page (Key Codes) 05 07
Usage Minimum (0) 19 00
Usage Maximum (101) 29 66
Input (Data, Array) 81 00
Logical Maximum (255) 26 FF 00
Usage Page (vendor defined (MSR)) 06 00 FF
Usage (command data) 09 20
Report Count 95 18
Feature (Data, Variable, Absolute,
Buffered Bytes)
End Collection C0
B2 02 01
12
Section 4. USB Communications
COMMANDS
Command requests and responses are sent to and received from the device using feature reports.
Command requests are sent to the device using the HID class specific request Set_Report. The
response to a command is retrieved from the device using the HID class specific request
Get_Report. These requests are sent over the default control pipe. When a command request is
sent, the device will Nak the Status stage of the Set_Report request until the command is
completed. This insures that as soon as the Set_Report request is completed, the Get_Report
request can be sent to get the command response. The usage ID for the command message was
shown previously in the Usage Table.
The following table shows how the feature report is structured for command requests:
Offset Field Name
0 Command Number
1 Data Length
2 – 23 Data
The following table shows how the feature report is structured for command responses.
Offset Field Name
0 Result Code
1 Data Length
2 – 23 Data
COMMAND NUMBER
This one byte field contains the value of the requested command number. The following table
lists all the existing commands.
Value Command Number Description
0 GET_PROPERTY Gets a property from the device
1 SET_PROPERTY Sets a property in the device
DATA LENGTH
This one byte field contains the length of the valid data contained in the Data field.
DATA
This multi-byte field contains command data if any. Note that the length of this field is fixed at
22 bytes. Valid data should be placed in the field starting at offset 2. Any remaining data after
the valid data should be set to zero. This entire field must always be set even if there is no valid
data. The HID specification requires that Reports be fixed in length. Command data may vary
in length. Therefore, the Report should be filled with zeros after the valid data.
13
USB HID Keyboard Emulation Swipe Reader
RESULT CODE
This one byte field contains the value of the result code. There are two types of result codes:
generic result codes and command specific result codes. Generic result codes always have the
most significant bit set to zero. Generic result codes have the same meaning for all commands
and can be used by any command. Command specific result codes always have the most
significant bit set to one. Command specific result codes are defined by the command that uses
them. The same code can have different meanings for different commands. Command specific
result codes are defined in the documentation for the command that uses them. Generic result
codes are defined in the following table.
Value Result Code Description
0 SUCCESS The command completed successfully.
1 FAILURE The command failed.
2 BAD_PARAMETER The comman d failed due to a bad
parameter or command syntax error.
GET AND SET PROPERTY COMMANDS
The Get Property command gets a property from the device. The Get Property command
number is 0.
The Set Property command sets a property in the device. The Set Property command number
is 1.
The Get and Set Property command data fields for the requests and responses are structured as
follows:
Get Property Request Data:
Data Offset Value
0 Property ID
Get Property Response Data:
Data Offset Value
0 – n Property Value
Set Property Request Data:
Data Offset Value
0 Property ID
1 – n Property Value
Set Property Response Data:
None
The result codes for the Get and Set Property commands can be any of the codes list in the
generic result code table.
14
Section 4. USB Communications
Property ID is a one byte field that contains a value that identifies the property. The following
table lists all the current property ID values:
Value Property ID Description
0 SOFTWARE_ID The device’s software identifier
1 SERIAL_NUM The device’s serial number
2 POLLING_INTERVAL The interrupt pipe’s polling interval
3 TRACK_ID_ENABLE Track enable / ID enable
4 TRACK_DATA_SEND_FLAGS Track data send flags
5 TERMINATION_CHAR Terminating char / per track or card flag
6 SS_TK2_7BITS Start sentinel char for track 2 – 7 bit data
7 SS_TK3_CADL Start sentinel char for track 3 – CA drivers
license
8 SS_TK3_ISO_ABA Start sentinel char for track 3 – ISO/ABA
9 SS_TK3_AAMVA Start sentinel char for track 3 - AAMVA
10 SS_TK3_7BITS Start sentinel char for track 3 – 7 bit data
11 PRE_CARD_CHAR Pre card char
12 POST_CARD_CHAR Post card char
13 PRE_TK_CHAR Pre track char
14 POST_TK_CHAR Post track char
The Property Value is a multiple byte field that contains the value of the property. The number
of bytes in this field depends on the type of property and the length of the property. The
following table lists all of the property types and describes them.
Property Type Description
Byte This is a one byte value. The valid values depend on the property.
String This is a multiple byte ASCII string. Its length can be zero to a
maximum length that depends on the property. The value and
length of the string does not include a terminating NUL character.
SOFTWARE_ID PROPERTY
Property ID: 0
Property Type: String
Length: Fixed at 11 bytes
Get Property: Yes
Set Property: No
Description: This is an 11 byte read only property that identifies the software part
number and version for the device. The first 8 bytes represent the part number and the last 3
bytes represent the version. For example this string might be “21042802A05”. Examples
follow:
Example Get SOFTWARE_ID property Request (Hex):
Cmd Num Data Len Prp ID
00 01 00
Example Get SOFTWARE_ID property Response (Hex):
Result Code Data Len Prp Value
00 01 32 31 30 34 32 38 30 32 41 30 35
15
USB HID Keyboard Emulation Swipe Reader
SERIAL_NUM PROPERTY
Property ID: 1
Property Type: String
Length: 0 – 15 bytes
Get Property: Yes
Set Property: Yes
Default Value: The default value is no string with a length of zero.
Description: The value is an ASCII string that represents the device’s serial number.
This string can be 0 – 15 bytes long. This property is stored in non-volatile EEPROM memory
so it will not change when the unit is power cycled. The value of this property, if any, will be
sent to the host when the host requests the USB string descriptor. When this property is
changed, the unit must be power cycled to have these changes take effect for the USB descriptor.
If a value other than the default value is desired, it can be set by the factory upon request.
Examples follow.
Example Set SERIAL_NUM property Request (Hex):
Cmd Num Data Len Prp ID Prp Value
01 04 01 31 32 33
Example Set SERIAL_NUM property Response (Hex):
Result Code Data Len Data
00 00
Example Get SERIAL_NUM property Request (Hex):
Cmd Num Data Len Prp ID
00 01 01
Example Get SERIAL_NUM property Response (Hex):
Result Code Data Len Prp Value
00 03 31 32 33
POLLING_INTERVAL PROPERTY
Property ID: 2
Property Type: Byte
Length: 1 byte
Get Property: Yes
Set Property: Yes
Default Value: 1
Description: The value is a byte that represents the devices polling interval for the
Interrupt In Endpoint. The value can be set in the range of 1 – 255 and has units of milliseconds.
The polling interval tells the host how often to poll the device for card data packets. For
example, if the polling interval is set to 10, the host will poll the device for card data packets
every 10ms. This property can be used to speed up or slow down the time it takes to send card
data to the host. The trade-off is that speeding up the card data transfer rate increases the USB
bus bandwidth used by the device, and slowing down the card data transfer rate decreases the
USB bus bandwidth used by the device. This property is stored in non-volatile EEPROM
16
Section 4. USB Communications
memory so it will not change when the unit is power cycled. The value of this property, if any,
will be sent to the host when the host requests the device’s USB endpoint descriptor. When this
property is changed, the unit must be power cycled to have these changes take effect for the USB
descriptor. If a value other than the default value is desired, it can be set by the factory upon
request. Examples follow:
Example Set POLLING_INTERVAL property Request (Hex):
Cmd Num Data Len Prp ID Prp Value
01 02 02 0A
Example Set POLLING_INTERVAL property Response (Hex):
Result Code Data Len Data
00 00
Example Get POLLING_INTERVAL property Request (Hex):
Cmd Num Data Len Prp ID
00 01 02
Example Get POLLING_INTERVAL property Response (Hex):
Result Code Data Len Prp Value
00 01 0A
TRACK_ID_ENABLE PROPERTY
Property ID: 3
Property Type: Byte
Length: 1 byte
Get Property: Yes
Set Property: Yes
Default Value: 95 (hex)
Description: This property is defined as follows:
id 0 T3 T3 T2 T2 T1 T1
Id 0 – Decodes standard ISO/ABA cards only
1 – Decodes AAMVA, CA DL/ID and 7-bit cards also
T
00 – Track Disabled
#
01 – Track Enabled
10 – Track Enabled/Required (Error if blank)
This property is stored in non-volatile EEPROM memory so it will not change when the unit is
power cycled. When this property is changed, the unit must be power cycled to have these
changes take effect. If a value other than the default value is desired, it can be set by the factory
upon request.
17
USB HID Keyboard Emulation Swipe Reader
TRACK_DATA_SEND_FLAGS PROPERTY
Property ID: 4
Property Type: Byte
Length: 1 byte
Get Property: Yes
Set Property: Yes
Default Value: 63 (hex)
Description: This property is defined as follows:
0 SS ES LRC 0 LC Er Er
SS 0 – Don’t send Start Sentinel for each track
1 – Send Start Sentinel for each track
ES 0 – Don’t send End Sentinel for each track
1 – Send End Sentinel for each track
LRC 0 – Don’t send LRC for each track
1 – Send LRC for each track
Note that the LRC is the unmodified LRC from the track data. To verify the LRC
the track data needs to converted back from ASCII to card data format and the
start sentinels that were modified to indicate the card encode type need to be
converted back to their original values.
LC 0 – Send card data as upper case
1 – Send card data as lower case
Note that the state of the Caps Lock key on the host keyboard has no affect on
what case the card data is transmitted in.
Er 00 – Don’t send any card data if error
01 – Don’t send track data if error
11 – Send ‘E’ for each track error
This property is stored in non-volatile EEPROM memory so it will not change when the unit is
power cycled. When this property is changed, the unit must be power cycled to have these
changes take effect. If a value other than the default value is desired, it can be set by the factory
upon request.
TERMINATION_CHAR PROPERTY
Property ID: 5
Property Type: Byte
Length: 1 byte
Get Property: Yes
18
Section 4. USB Communications
Set Property: Yes
Default Value: 0D (hex) (carriage return)
Description: This property is defined as follows:
mod c c c c c c c
mod 0 – Send c after card data
1 – Send c after each track
c 1-127 – 7 bit ASCII char code
0 – send nothing
This property is stored in non-volatile EEPROM memory so it will not change when the unit is
power cycled. When this property is changed, the unit must be power cycled to have these
changes take effect. If a value other than the default value is desired, it can be set by the factory
upon request.
SS_TK2_7BITS PROPERTY
Property ID: 6
Property Type: Byte
Length: 1 byte
Get Property: Yes
Set Property: Yes
Default Value: 40 (hex) ‘@’
Description: This character is sent as the track 2 start sentinel for cards that have track
2 encoded in 7 bits per character format. If the value is 0 no character is sent. If the value is in
the range 1 – 127 then the equivalent ASCII character will be sent.
This property is stored in non-volatile EEPROM memory so it will not change when the unit is
power cycled. When this property is changed, the unit must be power cycled to have these
changes take effect. If a value other than the default value is desired, it can be set by the factory
upon request.
SS_TK3_CADL PROPERTY
Property ID: 7
Property Type: Byte
Length: 1 byte
Get Property: Yes
Set Property: Yes
Default Value: 21 (hex) ‘!’
Description: This character is sent as the track 3 start sentinel for cards that have track
3 encoded in California drivers license format. If the value is 0 no character is sent. If the value
is in the range 1 – 127 then the equivalent ASCII character will be sent.
19
USB HID Keyboard Emulation Swipe Reader
This property is stored in non-volatile EEPROM memory so it will not change when the unit is
power cycled. When this property is changed, the unit must be power cycled to have these
changes take effect. If a value other than the default value is desired, it can be set by the factory
upon request.
SS_TK3_ISO_ABA PROPERTY
Property ID: 8
Property Type: Byte
Length: 1 byte
Get Property: Yes
Set Property: Yes
Default Value: 2B (hex) ‘+’
Description: This character is sent as the track 3 start sentinel for cards that have track
3 encoded in ISO/ABA format. If the value is 0 no character is sent. If the value is in the range
1 – 127 then the equivalent ASCII character will be sent.
This property is stored in non-volatile EEPROM memory so it will not change when the unit is
power cycled. When this property is changed, the unit must be power cycled to have these
changes take effect. If a value other than the default value is desired, it can be set by the factory
upon request.
SS_TK3_AAMVA PROPERTY
Property ID: 9
Property Type: Byte
Length: 1 byte
Get Property: Yes
Set Property: Yes
Default Value: 23 (hex) ‘#’
Description: This character is sent as the track 3 start sentinel for cards that have track
3 encoded in AAMVA format. If the value is 0 no character is sent. If the value is in the range 1
– 127 then the equivalent ASCII character will be sent.
This property is stored in non-volatile EEPROM memory so it will not change when the unit is
power cycled. When this property is changed, the unit must be power cycled to have these
changes take effect. If a value other than the default value is desired, it can be set by the factory
upon request.
SS_TK3_7BITS PROPERTY
Property ID: 10 (0A hex)
Property Type: Byte
Length: 1 byte
Get Property: Yes
Set Property: Yes
Default Value: 26 (hex) ‘&’
20
Section 4. USB Communications
Description: This character is sent as the track 3 start sentinel for cards that have track
3 encoded in 7 bits per character format. If the value is 0 no character is sent. If the value is in
the range 1 – 127 then the equivalent ASCII character will be sent.
This property is stored in non-volatile EEPROM memory so it will not change when the unit is
power cycled. When this property is changed, the unit must be power cycled to have these
changes take effect. If a value other than the default value is desired, it can be set by the factory
upon request.
PRE_CARD_CHAR PROPERTY
Property ID: 11 (0B hex)
Property Type: Byte
Length: 1 byte
Get Property: Yes
Set Property: Yes
Default Value: 0
Description: This character is sent prior to all other card data. If the value is 0 no
character is sent. If the value is in the range 1 – 127 then the equivalent ASCII character will be
sent.
This property is stored in non-volatile EEPROM memory so it will not change when the unit is
power cycled. When this property is changed, the unit must be power cycled to have these
changes take effect. If a value other than the default value is desired, it can be set by the factory
upon request.
POST_CARD_CHAR PROPERTY
Property ID: 12 (0C hex)
Property Type: Byte
Length: 1 byte
Get Property: Yes
Set Property: Yes
Default Value: 0
Description: This character is sent after all other card data. If the value is 0 no
character is sent. If the value is in the range 1 – 127 then the equivalent ASCII character will be
sent.
This property is stored in non-volatile EEPROM memory so it will not change when the unit is
power cycled. When this property is changed, the unit must be power cycled to have these
changes take effect. If a value other than the default value is desired, it can be set by the factory
upon request.
21
USB HID Keyboard Emulation Swipe Reader
PRE_TK_CHAR PROPERTY
Property ID: 13 (0D hex)
Property Type: Byte
Length: 1 byte
Get Property: Yes
Set Property: Yes
Default Value: 0
Description: This character is sent prior to the data for each track. If the value is 0 no
character is sent. If the value is in the range 1 – 127 then the equivalent ASCII character will be
sent.
This property is stored in non-volatile EEPROM memory so it will not change when the unit is
power cycled. When this property is changed, the unit must be power cycled to have these
changes take effect. If a value other than the default value is desired, it can be set by the factory
upon request.
POST_TK_CHAR PROPERTY
Property ID: 14 (0E hex)
Property Type: Byte
Length: 1 byte
Get Property: Yes
Set Property: Yes
Default Value: 0
Description: This character is sent after the data for each track. If the value is 0 no
character is sent. If the value is in the range 1 – 127 then the equivalent ASCII character be sent.
This property is stored in non-volatile EEPROM memory so it will not change when the unit is
power cycled. When this property is changed, the unit must be power cycled to have these
changes take effect. If a value other than the default value is desired, it can be set by the factory
upon request.
22
SECTION 5. DEMO PROGRAM
The purpose of this demo program is not to demonstrate card reading with this HID keyboard
emulation device. Use a text editor application such as Windows Notepad to demonstrate card
reading for this HID keyboard emulation device. Any application that allows user input from a
keyboard should be sufficient to demonstrate card reading for this device.
The primary purpose of the demo program, when used with this HID keyboard emulation device,
is to allow users to change the device's programmable configuration properties. This is
accomplished by sending commands to the device with the demo program. The demo program
also comes with source code that can be used as a guide for application developers who what to
change the device's programmable configuration properties in an application. However, it is
unlikely that application developers will want to change these properties in an application since
these properties only need to be set once and can be set at the factory. This program is written in
Visual Basic.
Demo programs, version 1.2.0 and newer work on Windows 98, Me, 2000 and XP. Older
versions do not support the HID keyboard emulation device on Windows 2000 or XP. These
older versions only work on Windows 98 and Me.
When the demo program is run, a button for reading cards is displayed along with a button for
sending commands. The card reading option is not supported for this HID keyboard emulation
device. Use a text editor application such as Windows Notepad to demonstrate card reading for
this HID keyboard emulation device.
The part numbers for the demo program can be found in this document in Section 1 under
Accessories.
INSTALLATION
To install the demo program, run the setup.exe file and follow the instructions given on the
screen.
OPERATION
To operate the demo program perform the following steps:
• Plug the device into a USB port on the host
• If this is the first time the device has been plugged into the host, then follow the instructions
on the screen for installing the Windows HID device driver. This is explained in more detail
in the installation section of this document.
• Run the demo program.
• To read cards and view the card data do not use the demo program. Use a text editor
program such as Windows Notepad.
• To send commands to the device, click on the send commands button.
• Enter a command in the Message edit box. All data entered should be in hexadecimal bytes
with a space between each byte. Enter the command number followed by the command data
23
USB HID Keyboard Emulation Swipe Reader
if there is any. The application will automatically calculate and send the command data
length for you. For example, to send the GET_PROPERTY command for property
SOFTWARE_ID enter 00 00.
• Press Enter or click on Send message to send the command and receive the result.
• The command request and the command result will be displayed in the Communications
Dialog edit box.
• The Clear Dialog button clears the Communication Dialog edit box.
SOURCE CODE
Source code is included with the demo program. It can be used as a guide for application
development. It is described in detail, with comments, to assist developers. The book USB
Complete by Jan Axelson is also a good guide for application developers, especially the chapter
on Human Interface Device Host Applications (see “Reference Documents” in Section 1).
24
Loading...
