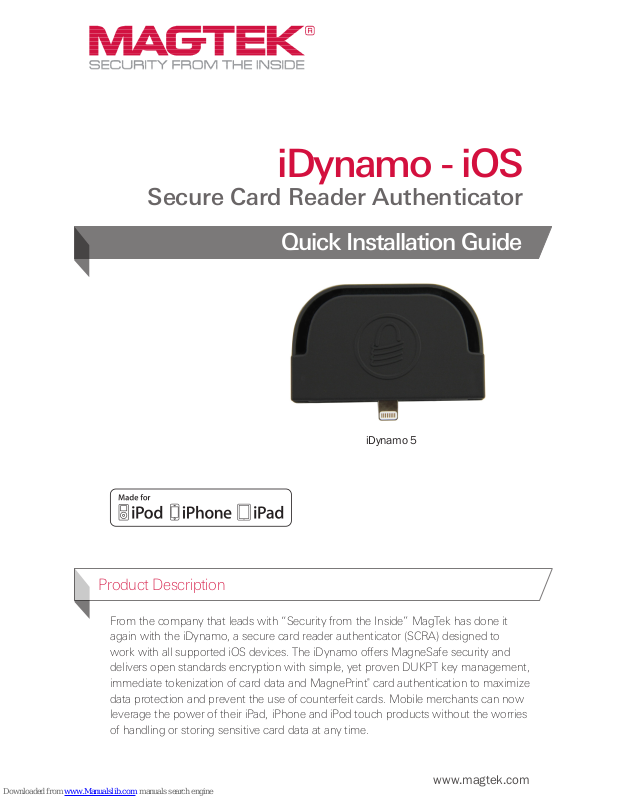

iDynamo 5
iDynamo - iOS
Secure Card Reader Authenticator
Quick Installation Guide
www.magtek.com
From the company that leads with “Security from the Inside” MagTek has done it
again with the iDynamo, a secure card reader authenticator (SCRA) designed to
work with all supported iOS devices. The iDynamo offers MagneSafe security and
delivers open standards encryption with simple, yet proven DUKPT key management,
immediate tokenization of card data and MagnePrint® card authentication to maximize
data protection and prevent the use of counterfeit cards. Mobile merchants can now
leverage the power of their iPad, iPhone and iPod touch products without the worries
of handling or storing sensitive card data at any time.
Product Description
Page 2
Diagram
Optional adapters
iPad Air 2
Magstripe swipe paths
Adapters make attaching to your different iOS devices simple. The iDynamo 5 comes
with adapter kits for iPhone 6 Plus, iPhone 6, iPhone 5s/iPhone 5, iPad Air 2, iPad Air,
iPad mini, and iPad with Retina Display.
Enclosed Stability Adapters
Part Number Description
21041140 For iPhone 6 Plus
21041139 For iPhone 6
21041088 For iPhone 5/5s
1000001920 For iPad Air 2
21041137 For iPad Air, iPad mini 3, iPad mini with Retina display
21041086 For iPad with Retina Display
Part Number Description
21073144 Adapter Kit for iPad Air 2; iPhone 6 Plus; iPhone 6; iPhone 5c; iPhone 5/5s; iPad mini 3, iPad
mini with Retina display; iPad mini; iPad Air, iPad with Retina Display; iPod touch 5th gen
21073107 Adapter Kit for iPhone 4, iPad, iPad 2 / 3 & iPod touch 3 & 4, iPhone 3GS
21041054 Adapter Kit for iPad 2/3
Lightning connector
iPad Air
iPad mini 3,
iPad Mini
with Retina
Display
iPad with
Retina Display
Optional adapter kits are available.
iPhone 5s
iPhone 5
iPhone 6iPhone 6 Plus
Page 3
The iDynamo is powered through the iOS device.
It only uses power during a transaction.
To charge your iOS device while the iDynamo is attached, connect the optional MicroUSB cable (Micro-B) (MagTek Part #30019324) to the back of the iDynamo, and then
connect the opposite end (USB-A) to the appropriate Apple charging adapter.
Apple 12W USB Power Adapter for iPad and iPad with Retina Display.
Apple 5W USB Power Adaptor for iPhone, iPad mini, or iPod.
Power
www.magtek.com
An optional stylus is available at: http://tenonedesign.com/stylus.php
Some applications include a visual indication of whether the device is active or not.
Contact your representative to learn where you can download your application.
Signatures can be captured in certain applications by using a nger.
Commands
Optional Accessories
micro-USB connection USB connection

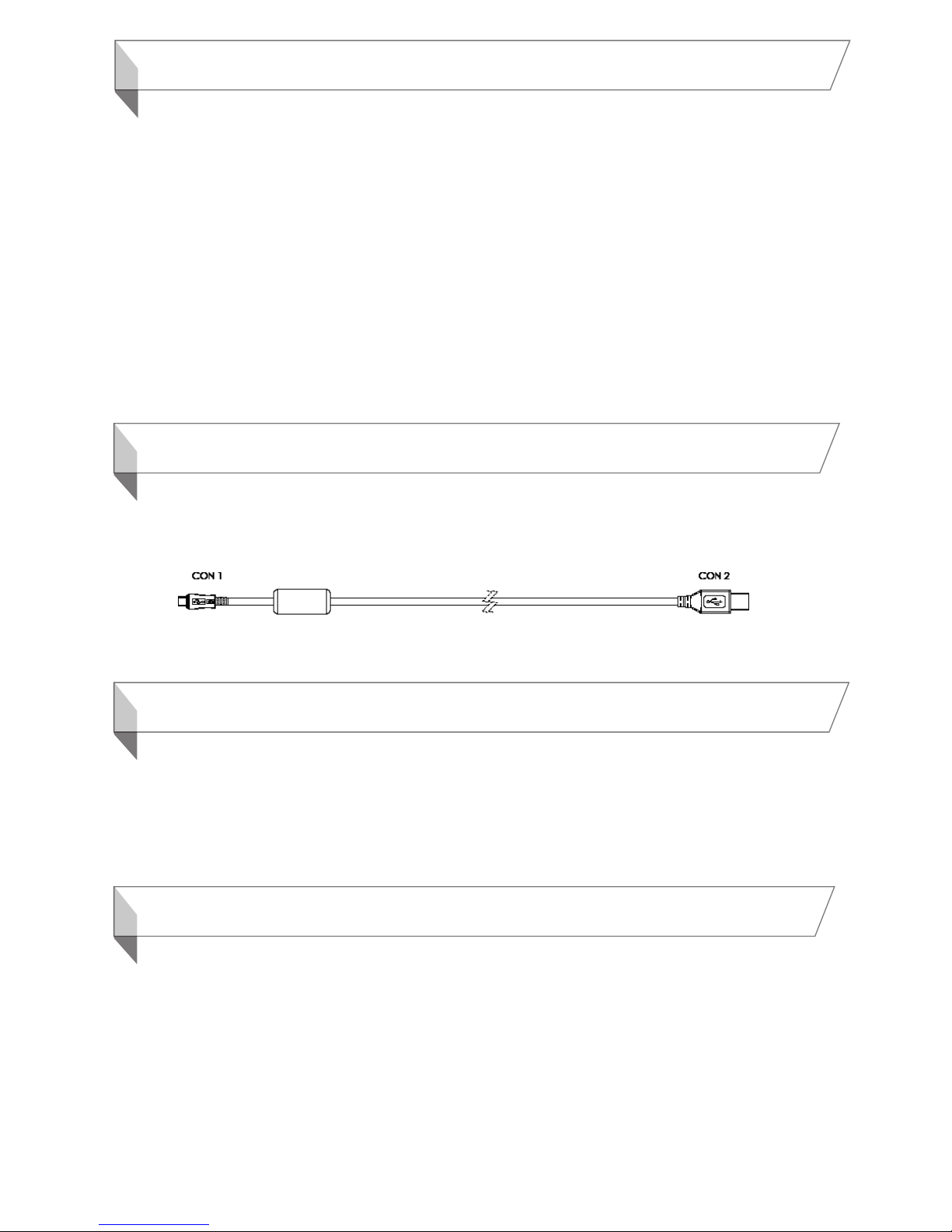

Charging cable (optional)
ONLY the MagTek USB cable can be used, PN 30019324
Page 4
Compliance
FCC WARNING STATEMENT: This equipment has been tested and was found to comply with the limits for a Class B digital device pursuant to Part 15 of FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful interference with radio communications. However, there is no guarantee that interference will not occur
in a particular installation.
FCC COMPLIANCE STATEMENT: This device complies with Part 15 of the FCC Rules. Operation of this device is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
CANADIAN DOC STATEMENT: This digital apparatus does not exceed the Class B limits for radio noise from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe B prescrites dans le Réglement sur le brouillage
radioélectrique édicté par le ministère des Communications du Canada.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numériqué de la classe B est conformé à la norme NMB-003 du Canada.
CE STANDARDS: Testing for compliance with CE requirements was performed by an independent laboratory.
The unit under test was found compliant with standards established for Class B devices.
UL/CSA: This product is recognized per Underwriter Laboratories and Canadian Underwriter Laboratories 1950.
RoHS STATEMENT: When ordered as RoHS compliant, this product meets the Electrical and Electronic Equipment (EEE) Reduction of Hazardous Substances (RoHS) European Directive 2002/95/
EC. The marking is clearly recognizable, either as written words like “Pb-free”, “lead-free”, or as another clear symbol ( ).
Pb
Registered to ISO 9001:2015 © Copyright 2018 MagTek, Inc. PN D99800097 rev 90 5/18
MagTek ® Inc., 1710 Apollo Court, Seal Beach CA 90740 p 562-546-6400 | f 562-546-6301 | 800-788-6835 | www.magtek.com
Made for
Legal
“Made for iPod” and “Made for iPhone” and “Made for iPad” mean that an electronic accessory has been designed to connect
specically to iPod or iPhone or iPad respectively, and has been certied by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
iPod touch, iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries.
iPod, iPhone and iPad not included.
Technical Support
When calling the support team please have your reader charged and have the part
number and serial number(s) available.
support@magtek.com
651.415.6800
Made for
iPad Air
iPad Air 2
iPad with Retina Display
iPad mini with Retina Display
iPad mini
iPhone 6 Plus
iPhone 6
iPhone 5c
iPhone 5s
iPhone 5
iPod touch (5th generation)
