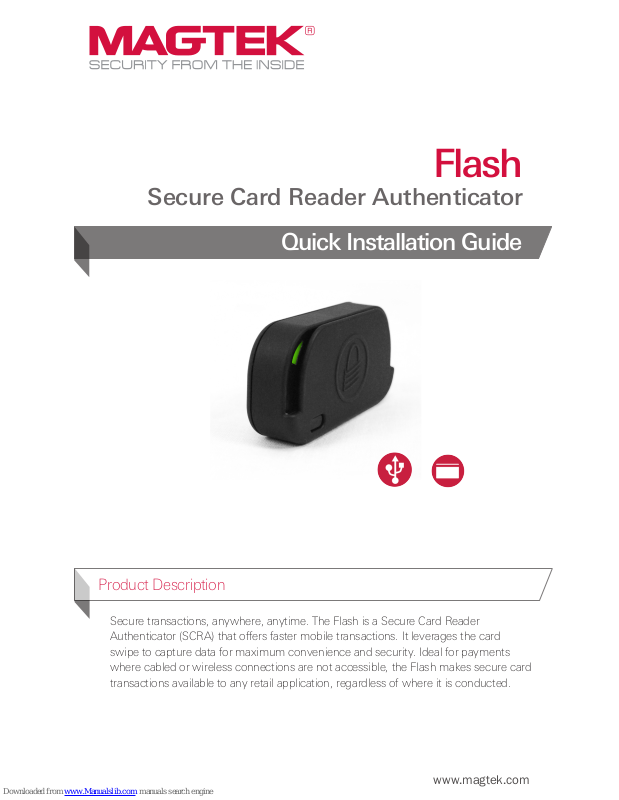

Magtek FLASH Quick Installation Manual
Flash
Secure Card Reader Authenticator
Quick Installation Guide
www.magtek.com
Secure transactions, anywhere, anytime. The Flash is a Secure Card Reader
Authenticator (SCRA) that offers faster mobile transactions. It leverages the card
swipe to capture data for maximum convenience and security. Ideal for payments
where cabled or wireless connections are not accessible, the Flash makes secure card
transactions available to any retail application, regardless of where it is conducted.
Product Description
Diagram
Figure 1. Contents
power switch
LED
magstripe path
MICRO USB B PLUG
CON 1 CON 2
Figure 2. micro-USB cable
micro-USB connection USB connection
Additional Contents
Specications
Connection:
USB
Power:
USB port or 5 VDC for battery charging
Card Speed:
4 to 60 ips
Electrical Current:
100mA maximum during charge
500uA maximum during suspend
Operating Temp:
0 - 45°C (32°F - 113°F)
Operating Humidity:
10% to 90% noncondensing
