Magtec MT854 4ch DVR Quick Start Guide V1.0 P.1

MT854 4 ch DVR

Quick Start Guide

1. Packing........................................P2

2. Hard Disk Installation.................P3

3. Front Panel Controls...................P4

4. Rear Panel Connectors...............P5

5. Live Operations...........................P6

6. Playback Operations...................P9

Page 2

Magtec MT854 4ch DVR Quick Start Guide V1.0 P.2

1. DVR

2. Quick Start 3. IR Remote Control 4. SATA Cord 1pcs

5. CD 6.Screws x4 7. Power Adaptor

Note: Standard shipping products include neither HDD nor DVD R/W

Page 3

Magtec MT854 4ch DVR Quick Start Guide V1.0 P.3

Step１)：Take out the screws as pictures show。

Back panel 3 screws

Left 1 screw

Right 1 screw

Step 2 ) ：Open the cover follow the arrow direction。

Page 4

Magtec MT854 4ch DVR Quick Start Guide V1.0 P.4

Step３)：Connect SATA & Power wire to Hard Disk and put it on right position of t he bottom case。

Step４)：Fix the Hard Disk with four screws on the bottom case as the picture indicated。

Step５)：Put the cover back and fix it with 5 screws as Step 1 indicated.

Note: After installation, please initialize Hard Disk before starting to record. For more detailed information, please check out User Manual 4-9 Utility Setup for reference.

Page 5

Magtec MT854 4ch DVR Quick Start Guide V1.0 P.5

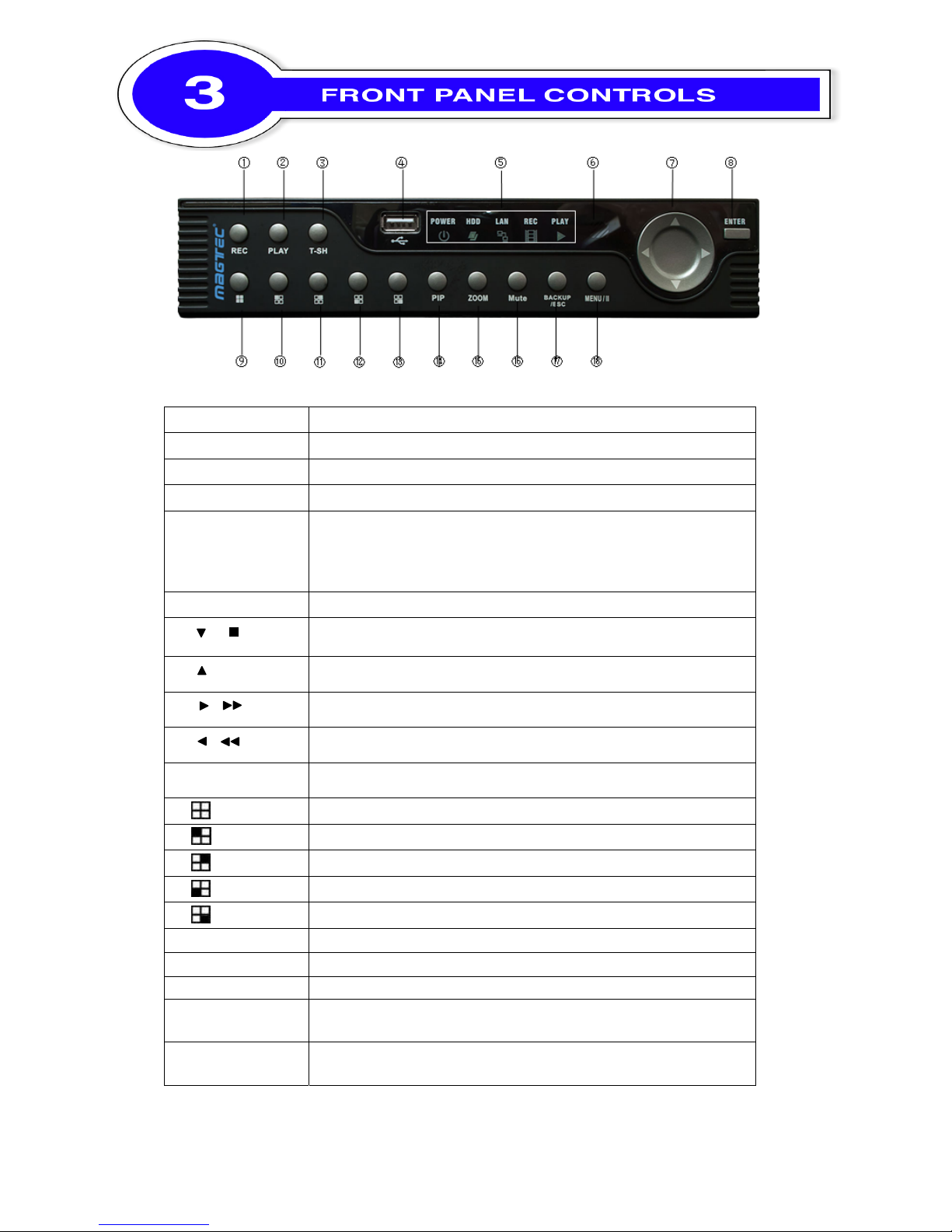

① REC

Start or stop recording.

② PLAY

Play back in normal speed.

③ T-SRH

Display the search menu.

④ USB 2.0 Port

Port for USB external devices.

⑤ LED Display (From left to right)

Power: Power is on. HDD: Hard disk is in use. LAN: Connected to the internet (in red): Remote user logged in. REC: Recording. PLAY: Playing back.

⑥ IR Sensor

Input sensor for the remote control.

⑦ /

In SETUP mode, press to move cursor down. In PLAYBACK mode, press to stop playing back.

/ SLOW In SETUP mode, press to move cursor up. In PLAYBACK mode, press to

slow down.

/ In SETUP mode, press to increase value. In PLAYBACK mode press to

play forwards.

/ In SETUP mode, press to reduce value. In PLAYBACK mode, press to

play rewind.

⑧ ENTER/MODE

In SETUP mode, press to enter values. In PLAYBACK mode, switch between full, quad, 9-channel, 16-channel display in order.

⑨

In LIVE or PLAYBACK mode, switch to 4-channel display。

⑩

In LIVE or PLAYBACK mode, switch to CH1。

Ⓝ

In LIVE or PLAYBACK mode, switch to CH2。

Ⓞ

In LIVE or PLAYBACK mode, switch to CH3。

Ⓟ

In LIVE or PLAYBACK mode, switch to CH4。

Ⓠ PIP

In LIVE mode, display with picture in picture format.

Ⓡ ZOOM

In LIVE or PLAYBACK mode, enlarge the display of a channel.

Ⓢ MUTE

Enable / Disable Key Tone.

Ⓣ BACKUP/ESC

In LIVE mode, press to display the BACKUP menu. In SETUP mode, press to return to previous page.

Ⓤ MENU / II

In LIVE mode, press to display menu. In PLAYBACK mode, press to pause playback.

Page 6

Magtec MT854 4ch DVR Quick Start Guide V1.0 P.6

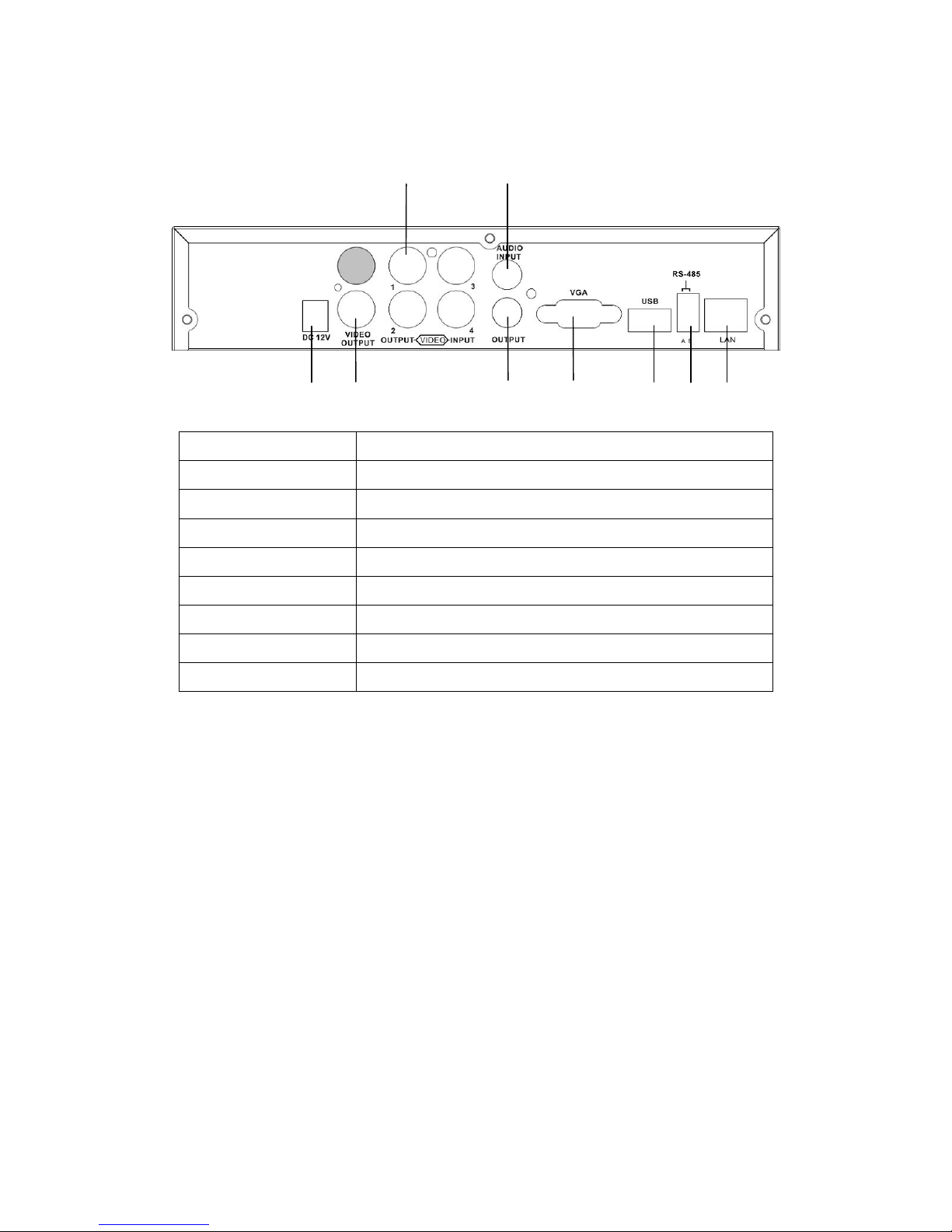

4CH REAR PANEL CONNECTORS

③ ④

① ② ⑤ ⑥ ⑦ ⑧ ⑨

① DC 12V

VGA port

② VIDEO OUT

DC 12V power jack

③ VIDEO IN

MAIN/SPOT monitor BNC Video output

④ AUDIO IN

For cameras BNC input ，4 ports

⑤ AUDIO OUT

RCA input( For CH1)

⑥ VGA

RCA output ( For C H1)

⑦ USB

RS-485 for PTZ

⑧ RS-485

Network port

⑨ LAN

For mouse

Page 7

Magtec MT854 4ch DVR Quick Start Guide V1.0 P.7

You can monitor all the channels, listen to audio signal and have some rel ated operation s unde r LIVE mode. This paragraph describes the IR remote control, mouse operation and on screen graphical icons under LIVE mode.

T able 5-1 Functions of remote control under LIVE mode

Button Description

REC

Start/Stop recording.

PLAY

Start playing back the most recently recorded segment.

ENTER/MODE

Switch to full screen, quad display.

MENU/

Enable/ Disable setup Menu.

BK-UP

Enable/ Disable backup menu.

ESC

Return last menu.

Page 8

Magtec MT854 4ch DVR Quick Start Guide V1.0 P.8

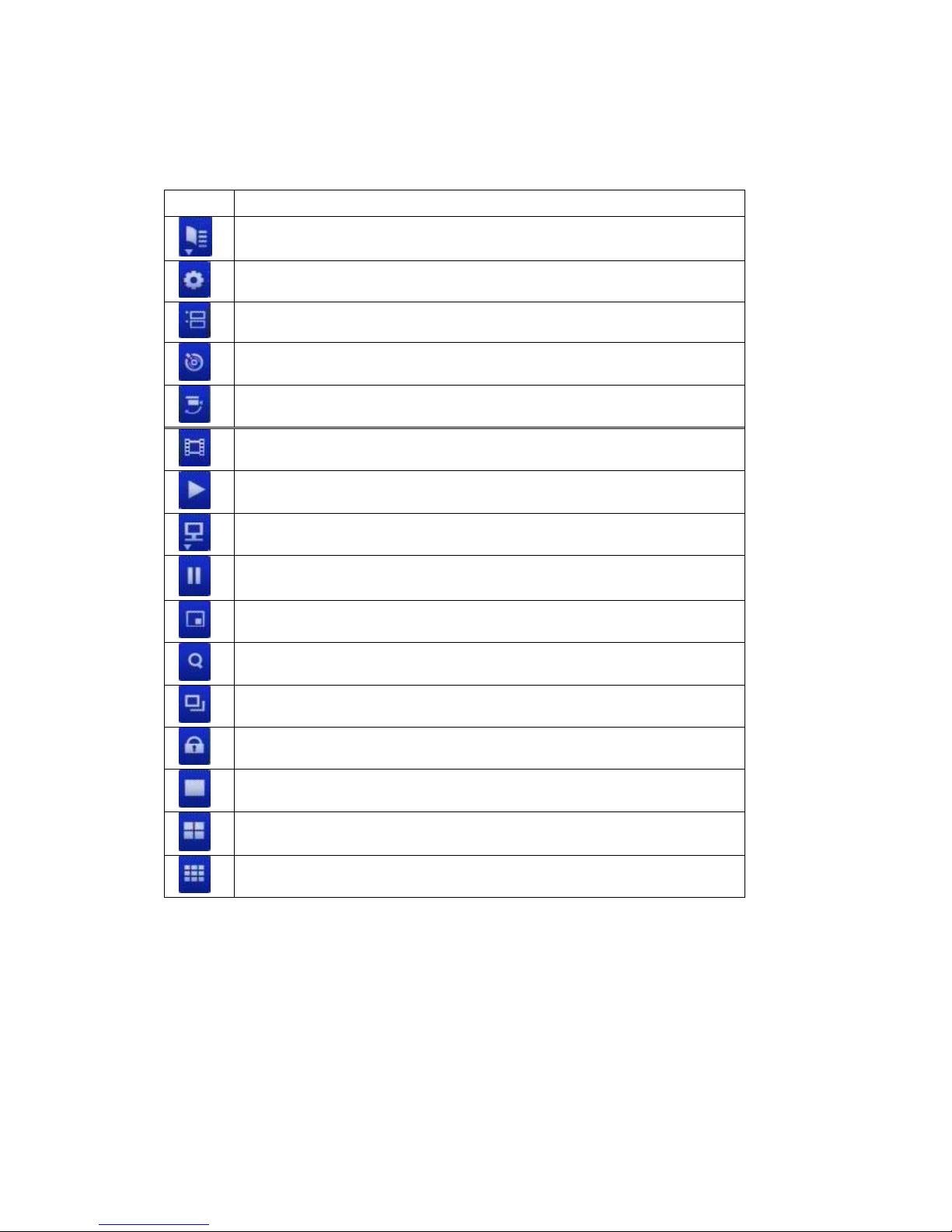

T able 5-2 Graphical icons displaying after right-clicking your mouse under LIVE mode.

Icon Description

Resting the cursor on this icon will bring up the following four menu icons.

Main menu.

Search menu.

Backup menu.

PTZ mode.

Turn on/off recording.

Playback.

Resting the cursor on this icon will bring up the following five display icons.

FREEZE.

PIP, picture in picture

ZOOM, double the screen size

AUTO-sequence

LOCK, activate the key lock.

Full screen display.

Quad display.

9-channel display.

Page 9

Magtec MT854 4ch DVR Quick Start Guide V1.0 P.9

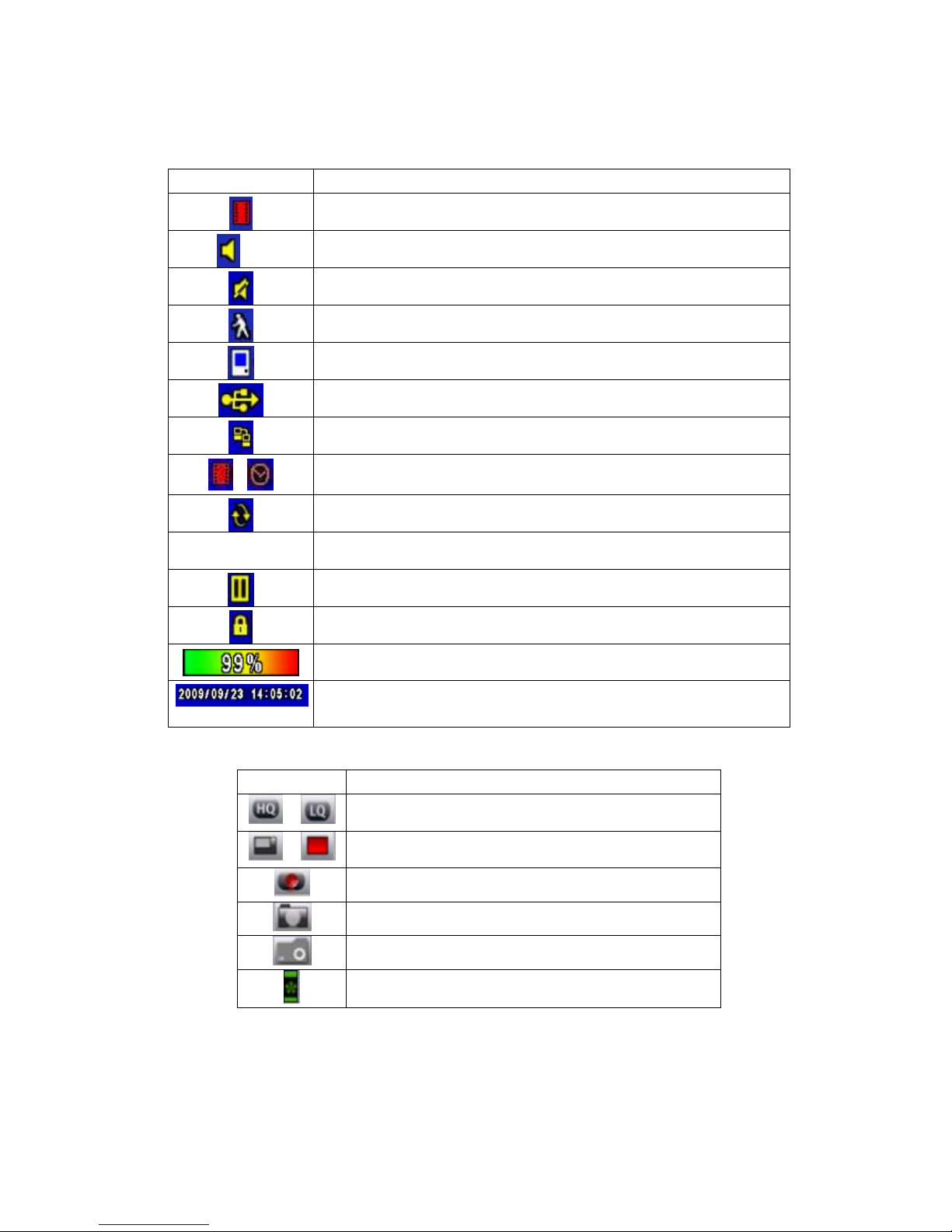

T able 5 -3 De scription of on screen graphical icons in LIVE mode

Icon Description

Recording is on

1~4

Live Audio is on

Live Audio is off

Motion detected on the channel

Video loss detected on the channel

USB device detected

Connected to the LAN cable. Film：Normal Recording

Clock：Schedule Recording AUTO-seq is on

2X zoom in is on

Freeze is on, screen is frozen

LOCK is on Shows the current hard disk space has been used

(99% mean used 99%, remain 1%) Lower right of each CH will show the current time

Icon Description

Image quality (High/Low)

Full screen Record

Snap shot Record and snap shot file saving path setup

Enable / Disable Shortcut Toolbar

Page 10

Magtec MT854 4ch DVR Quick Start Guide V1.0 P.10

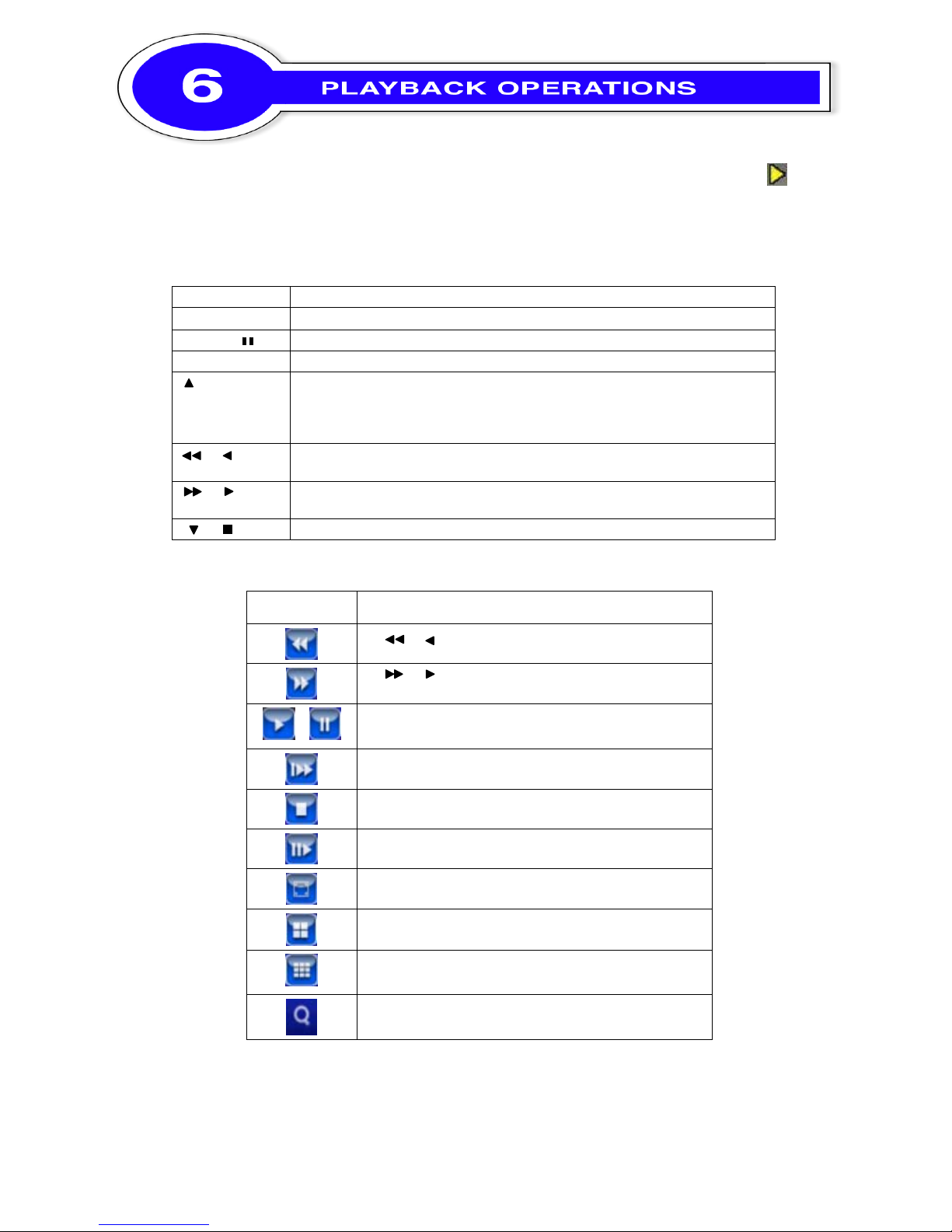

Under LIVE mode, press PLAY to playback (default setup is quad display.) When the icon is shown on the screen, the function icons will appear in the right down corner on the screen. The icon can be dragged by mouse to other location on the screen.

T able 6-1 Remote control functions under the PLAYBACK mode

Icon Description

ENTER/ MODE

Switch to full screen, quad display.

MENU /

Turn on/off PAUSE.

PLAY

Play back at normal speed.

/ SLOW

Play back at slower speed. The speed will be slowed to 1/2, 1/4, 1/8,

1/16 by each pressing of the button till the slowest limitation of 1/16 of the normal speed. Current playback speed is shown in the upper right corner.

Fast rewind. Each press increases the speed to the next level. There are six speeds: 2x, 4X, 8X, 16x, 32X and 64X.

Fast forward. Each press increases the speed to the next level. There are six speeds: 2x, 4X, 8X, 16x, 32X and 64X.

Stop playback.

T able 6-2 The mouse operation under the PLAYBACK mode.

Icon Description

「 / 」 Fast rewind

「 / 」Fast forward

／

Play/pause

「▲ / SLOW」，slow playback

「▼ / ■」stop playback

Playback channel by channel with snap shot display

Full screen display

Quad display

9-channel display

Zoom-in display

P.S. If playback of a single channel is wished to be viewed, please double click o n left key of the mouse on the channel video image.

Page 11

Magtec MT854 4ch DVR Quick Start Guide V1.0 P.11

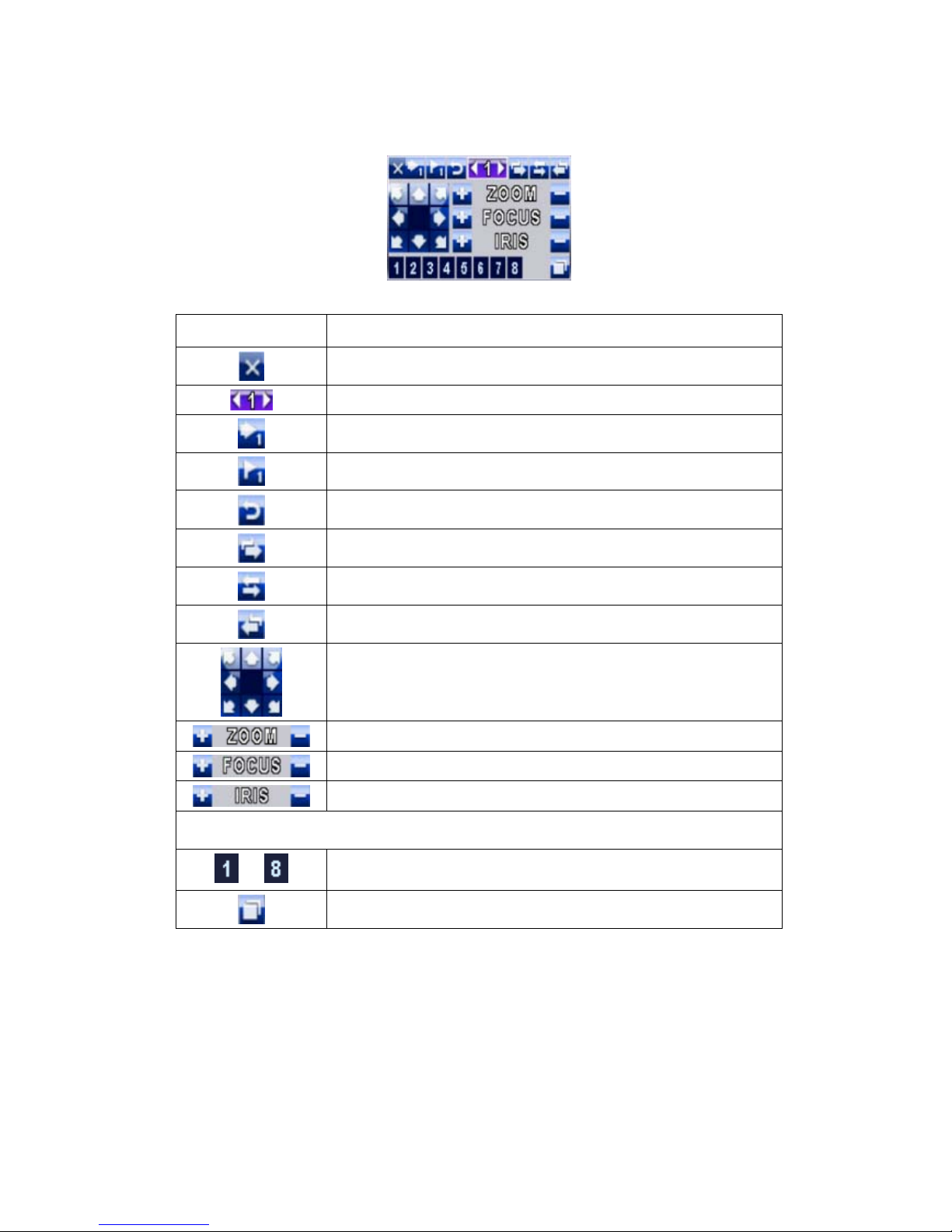

Under LIVE mode, press PTZ to enter PTZ camera mode. The function icons will appear right down corner on the screen, which can be dragged by mouse to other location on the screen.

Table 8-1 Remote Control functions under the PTZ mode

Button Description

/ SLOW

Move PTZ up

Move PTZ down

Move PTZ to the left

Move PTZ to the right

ZOOM +

PTZ zoom-in

ZOOM -

PTZ zoom-out

FOCUS +

PTZ focus-in

FOCUS -

PTZ focus-out

IRIS +

PTZ iris-open

IRIS -

PTZ iris-close

TOUR

Make PTZ monitor pre-set locations in order＊

PRESET+ Number

Setup the Preset location Press “PRESET” key first then two-digit number; DVR will set the current PTZ location at enter

ed preset number.

PLAY+ Number

Go to Preset location Press “PLAY” key first then two-digit number, PTZ will go to

the correspondent preset number location.

PIP

Setup the beginning location for the Auto Patrol. ＊

FREEZE

Auto patrol (in line scan) ＊

ZOOM

Set up the ending location for the Auto Patrol. ＊

＊PTZ communication protocols from different brands aren’t compatible 100% sometimes.

Therefore, some of these functions may be unavailable.

Page 12

Magtec MT854 4ch DVR Quick Start Guide V1.0 P.12

T able 8-2 Mouse operation under the PTZ mode

Icon Description

Leave PTZ Mode，back to the LIVE mode Pre-set number N. (0~255) Go to pre-set number N.

Set current PTZ location at pre-set number N.

「TOUR」，press to activate pre-set tour＊

「PIP」，Set current PTZ location as the start of line-scan. ＊

「FREEZE」， Activate line-scan. ＊

「ZOOM」，Set current PTZ location as the end of line-scan. ＊

To move PTZ in 360°

PTZ zoom in; PTZ zoom out PTZ focus in; PTZ focus out. PTZ IRIS open, PTZ IRIS close.

Below functions need support from specific PTZ manufacturer. Please check user manual of

our PTZ for more detail.

AUX 1~8,「AUTO」Key ＋ Number key「1~8」

「Backup」, Customized function。

＊PTZ communication protocols from different brands aren’t compatible 100%

sometimes. Therefore, some of these functions may be unavailable.
