Magtec MT858, MT8516 Quick Start Manual

Magtec MT858 and MT8516 – 8ch and 16ch DVR quick guide

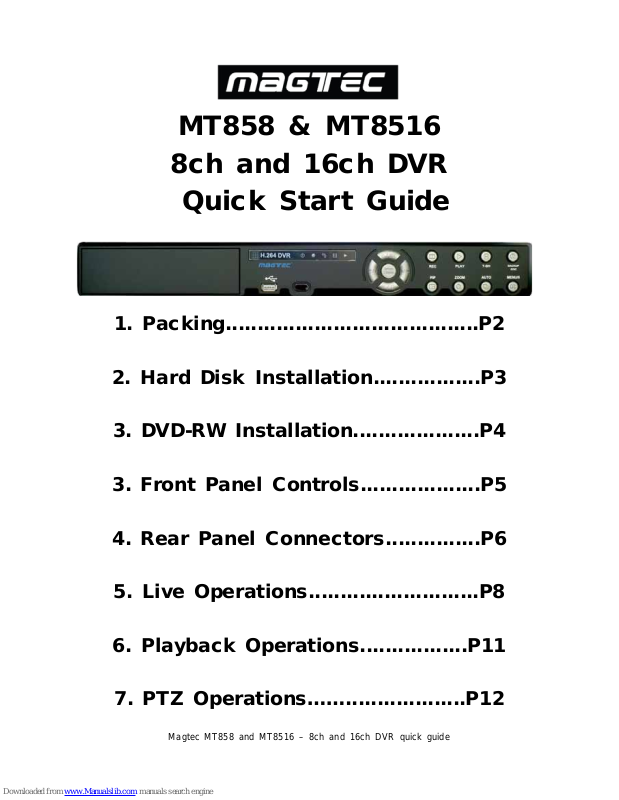

MT858 & MT8516

8ch and 16ch DVR

Quick Start Guide

1. Packing........................................P2

2. Hard Disk Installation.................P3

3. DVD-RW Installation....................P4

3. Front Panel Controls...................P5

4. Rear Panel Connectors...............P6

5. Live Operations...........................P8

6. Playback Operations.................P11

7. PTZ Operations……...................P12

Magtec MT858 & MT8516, 8ch and 16ch DVR quick guide P.2

8CH

1. DVR

2. Quick Start 3. IR Remote Control 4. Battery × 2 (16CH)

＊16CH: Pressed "DVR1"

Button before use

5. CD 6. Hard Disk Mount x2 7.Screws x20

8. Power Adaptor 9. Power Cord 10. DB25 Connecter
( 4CH / 8CH only)

11. SATA cord × 3 (16CH)
SATA cord × 2 (4CH/8CH)

Note: Standard shipping products do not include HDD

16CH

Magtec MT858 & MT8516, 8ch and 16ch DVR quick guide P.3

Step 1) Fix the HDD to rack mount with the screws as indicated.

Step 2) Place the HDD on the HDD plate and screw it as indicated.

Step 3) Connect the power and the SATA cables as indicated.

Note: After installation, please initialize Hard Disk before starting to record. For more detailed
information, please check out User Manual 4-9 System Tools for reference.

Magtec MT858 & MT8516, 8ch and 16ch DVR quick guide P.4

Step 1:
Remove the front cover from DVR.

Step 2:
Put the DVD-RW into the unit as
indicated.

Step 3:
Put DVR bottom up, screw to fix the
DVD-RW as indicated.

Step 4:

Connect the power and the flat
cables as indicated.
