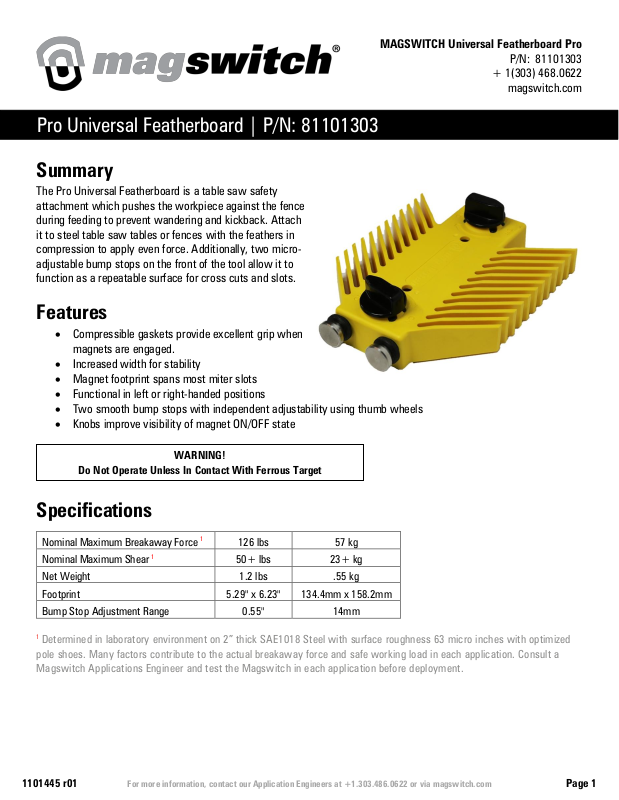

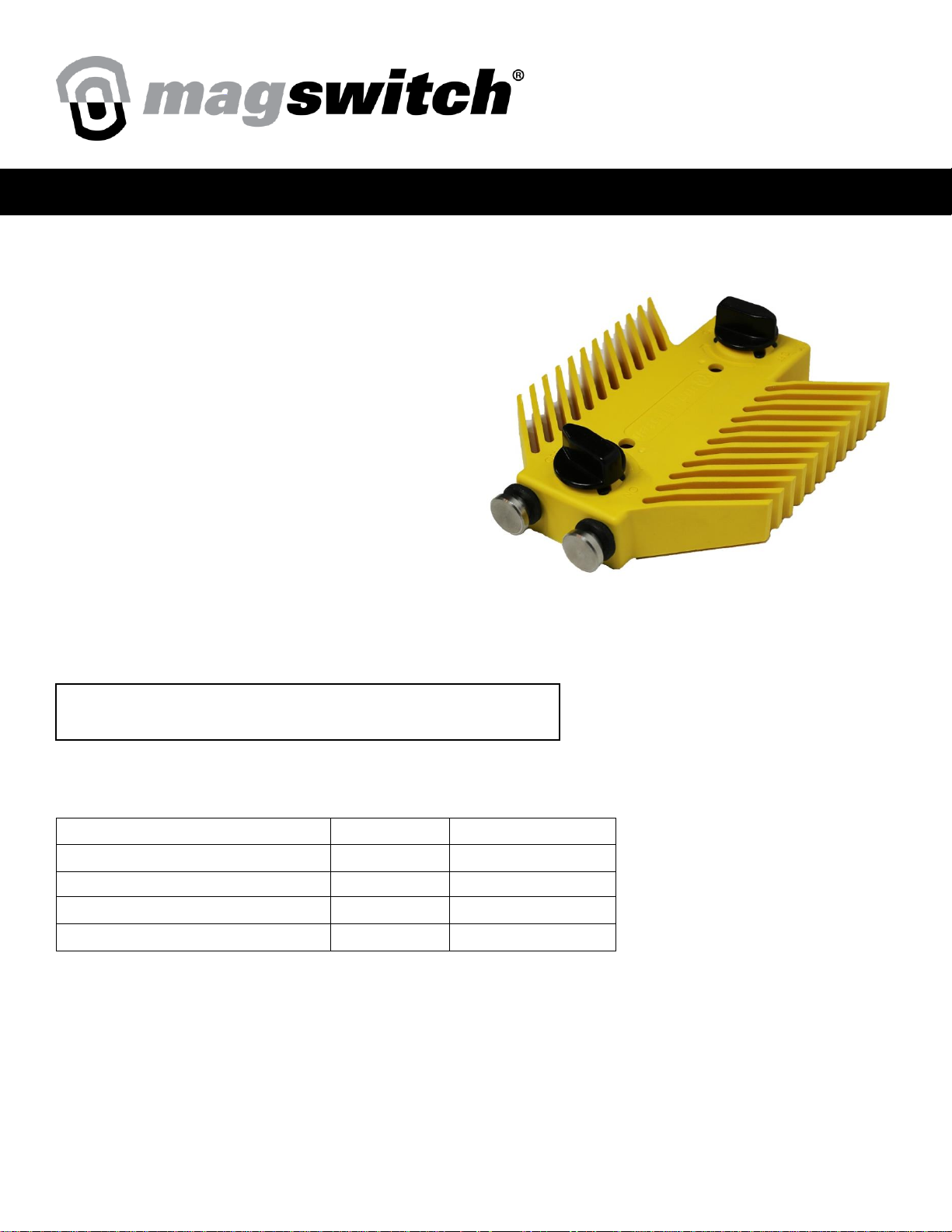

MAGSWITCH Universal Featherboard Pro
P/N: 81101303
+ 1(303) 468.0622
magswitch.com
1101445 r01 For more information, contact our Application Engineers at +1.303.486.0622 or via magswitch.com Page 1
Summary
The Pro Universal Featherboard is a table saw safety
attachment which pushes the workpiece against the fence
during feeding to prevent wandering and kickback. Attach
it to steel table saw tables or fences with the feathers in
compression to apply even force. Additionally, two microadjustable bump stops on the front of the tool allow it to
function as a repeatable surface for cross cuts and slots.
Features
• Compressible gaskets provide excellent grip when
magnets are engaged.
• Increased width for stability
• Magnet footprint spans most miter slots
• Functional in left or right-handed positions
• Two smooth bump stops with independent adjustability using thumb wheels
• Knobs improve visibility of magnet ON/OFF state
Specifications
Nominal Maximum Breakaway Force 1
126 lbs
57 kg
Nominal Maximum Shear 1
50+ lbs
23+ kg
Net Weight
1.2 lbs
.55 kg
Footprint
5.29" x 6.23"
134.4mm x 158.2mm
Bump Stop Adjustment Range
0.55"
14mm
1
Determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches with optimized
pole shoes. Many factors contribute to the actual breakaway force and safe working load in each application. Consult a
Magswitch Applications Engineer and test the Magswitch in each application before deployment.
Pro Universal Featherboard | P/N: 81101303
WARNING!
Do Not Operate Unless In Contact With Ferrous Target
Page 2
MAGSWITCH Universal Featherboard Pro
P/N: 81101303
+ 1(303) 468.0622
magswitch.com
1101445 r01 For more information, contact our Application Engineers at +1.303.486.0622 or via magswitch.com Page 2
Safety
• Items or body parts between the gripping surface of the magnet and ferromagnetic material are at risk of crushing and
impact forces.
• Never exceed the maximum rated load of Magswitch tools. This may result in an unsafe or dangerous condition.
• DO NOT attempt to alter the device in any way. This will void the warranty and may result in an unsafe or dangerous
condition.
• DO NOT attempt to disassemble the Magswitch magnet; there are no user serviceable parts inside.
• All Magswitch products are designed for normal worksite/jobsite conditions. Do not use underwater or in a hazardous
environment unless specifically designed for that purpose.
• DO NOT use a Magswitch product if it is damaged or not working properly. Severe injury can occur if this device is not used
properly and safely.
• Ensure Magswitch MagJigs are stored in the OFF position when not in contact with ferromagnetic materials.
• DO NOT turn the magnet ON unless it is in contact with ferromagnetic metal. Actuation off-target will generate a strong,
static, projected magnetic field which can accelerate, draw-in, and trap ferromagnetic material and damage magnetic
storage media.
• DO NOT expose standard Magswitch tools to temperatures above 176°Fahrenheit (80°Celsius). High temperatures will
permanently degrade the magnet’s effectiveness and may result in an unsafe condition.
• Always keep the bottom of the magnet clean and free of debris and rust. If needed, wipe with WD40 or light oil. The bottom
surface of the magnet must be flat, smooth, and in contact with steel to hold properly.
• Thicker steels will be held more strongly than thinner sheet. Steels with high alloy and carbon content will not be held as
strongly.
Warranty
Magswitch Limited Warranty
Magswitch products are covered by a one year limited warranty on material and workmanship. Warranty is non-transferable. Magswitch
reserves the right to inspect all product claims under warranty. Any alteration of the device voids this warranty. User assumes all risk for the
proper use of this device and for ensuring product suitability for intended application. This warranty shall not cover any incidental or
consequential damages due to the improper use or failure of this device. All Magswitch products are covered under International and U.S.
Patents 6,707,360 & 7,012,495. Add’l patents pending.
All Magswitch products are covered under International Patents. Australian Patents: 753496, 2006294433, Canadian Patents: 2,392,772, 2,458,251, Chinese Patent:
254155, European Patent: 1243006, Indian Patent: 219575, Korean(South) Patent: 10-0728448, Mexican Patent: 236,352, New Zealand Patent: 518865, Singapore
Patents: 88931; 103413, South Africa Patents: 2002/3752; 2004/1785, US Patents: 6,707,360; 7,012,495. Additional Patents and Patent Applications Pending in Hong
Kong, South Korea, China, Spain, Brazil, China, Japan. Trade Mark Registered in: European Union, Germany, Brazil, China
WARNING: This product can expose you to chemicals including nickel and tetrafluoroethylene, which are
known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
WARNING: This product can expose you to chemicals including toluene, which are known to the State of
California to cause birth defects or other reproductive harm. For more information, go to
www.P65Warnings.ca.gov
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a
substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or
other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
Page 3
MAGSWITCH Universal Featherboard Pro
P/N: 81101303
+ 1(303) 468.0622
magswitch.com
1101445 r01 For more information, contact our Application Engineers at +1.303.486.0622 or via magswitch.com Page 3

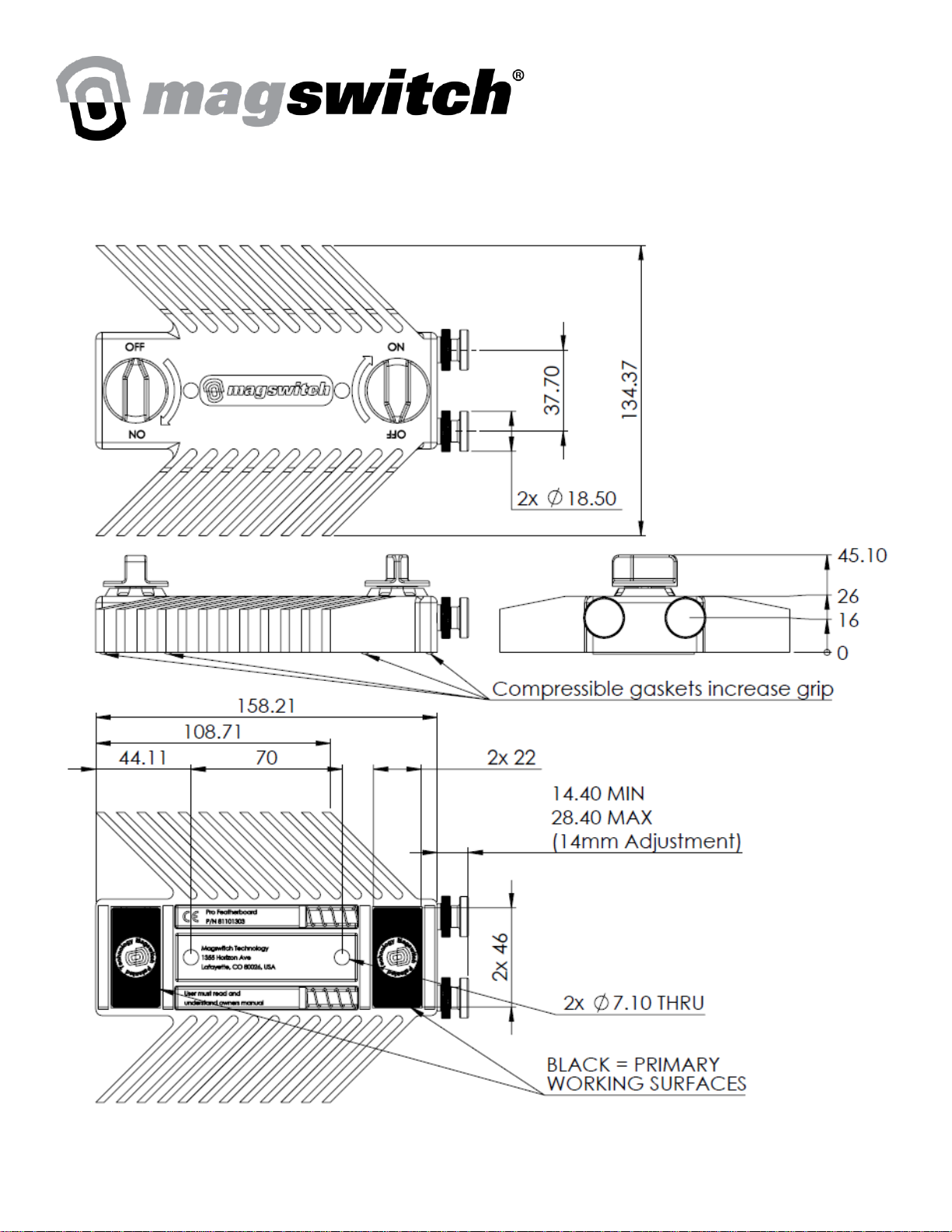

Product Dimensions
Page 4
MAGSWITCH Universal Featherboard Pro
P/N: 81101303
+ 1(303) 468.0622
magswitch.com
1101445 r01 For more information, contact our Application Engineers at +1.303.486.0622 or via magswitch.com Page 4
Getting Started

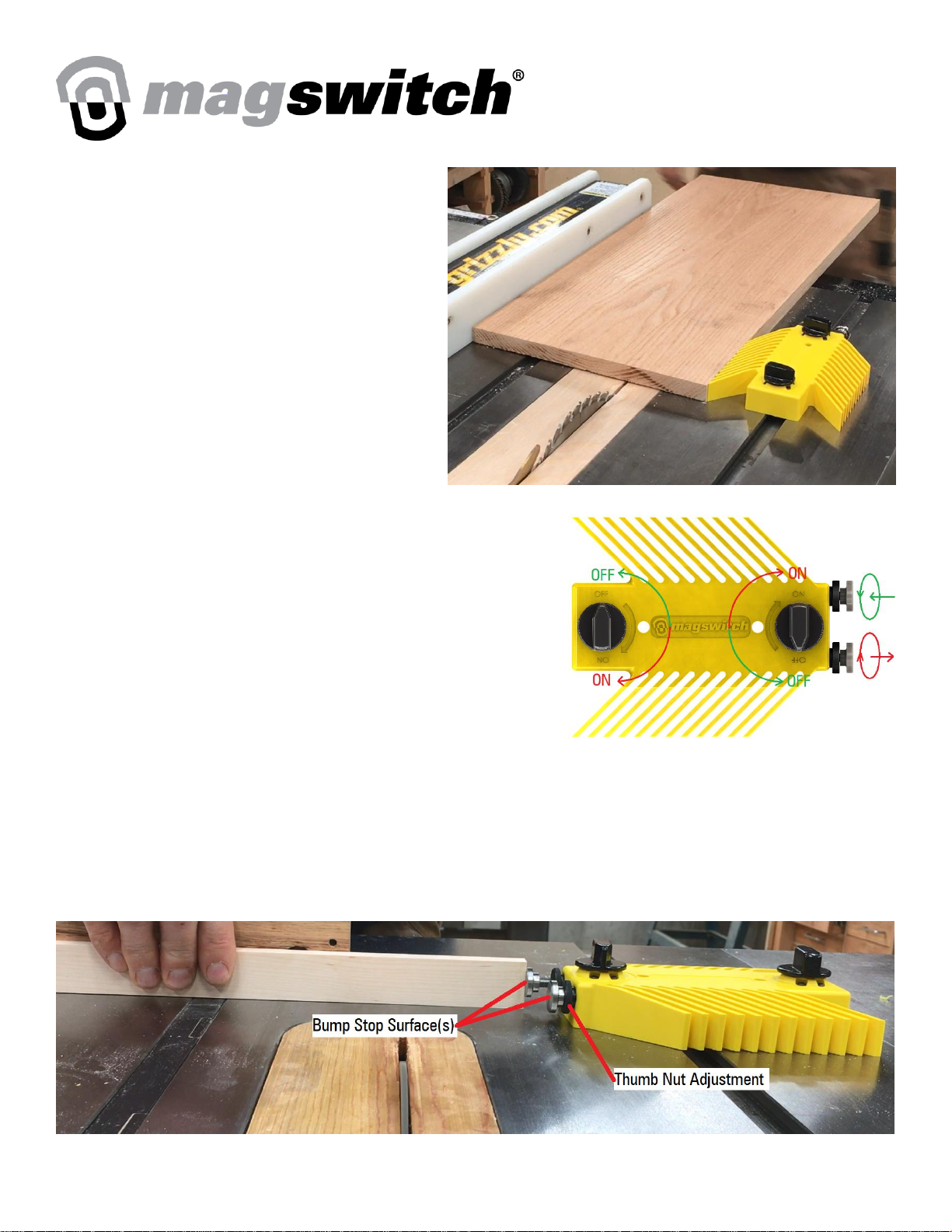

1. Set table saw fence location relative to blade and
lock in place. With the saw turned off, position
workpiece against fence near sawblade.
2. Position Featherboard on table of saw before
table saw blade. Compress feathers against
workpiece against the fence at least ¼” or 6mm
when the part passes underneath. Avoid
compressing the feathers more than ½” or 12mm
or the feathers may be damaged. The feathers
should be oriented as shown to prevent kickback.
3. With the featherboard in position, twist both knobs clockwise
180° until they stay in place. The body of the featherboard will
lower to the table as the gaskets compress to grip the table.
4. Feed the workpiece through the saw using the standard feed rate.
If kickback occurs, the feathers will catch on the edge of the
workpiece, preventing ejection from the saw. NOTE: this
featherboard does not hold parts down on the saw table
unless used as a vertical featherboard on the fence.
5. To turn off the magnets, ensure the saw is turned off and twist both knobs counterclockwise 180° until the magnet
no longer grips the table.
6. If using the micro-adjustable bump stops, adhere the featherboard to the saw table as before, and twist the knurled
nuts on the end of the featherboard to thread or unthread the flat bump stop surface in or out of the featherboard
body. Every turn of the knurled nut corresponds to 1mm or 0.039 inches of adjustment.
Page 5
MAGSWITCH Universal Featherboard Pro
P/N: 81101303
+ 1(303) 468.0622
magswitch.com
1101445 r01 For more information, contact our Application Engineers at +1.303.486.0622 or via magswitch.com Page 5
EU Declaration of Conformity
We, Magswitch Technology
Magswitch Technology World Wide Pty. Ltd.
Registered Office: C/- Shop 2B, 14 Short Street, Port Macquarie NSW 2444 Australia
Declare with sole responsibility that the machinery
Pro Vertical Featherboard, Pro Universal Featherboard, or other tool designations containing the “pro
featherboard” description and any accessories for these designations covered by these directives
Fulfils the relevant provisions of the following Union harmonisation legislation/directives:
• 2006/42/EC Machinery Directive
• 2011/65/EU Restriction of Hazardous Substances Directive (RoHS 2)
• 2015/863 Restriction of Hazardous Substances Directive III (RoHS 3)
Conformity is shown by compliance with the applicable requirements of the following documents:
Ref: Title Date
ISO 12100
Safety of machinery - General principles for design - Risk assessment
and risk reduction
2010
The Technical Construction File is maintained at:
Magswitch Technology, Inc.
1355 Horizon Ave, Lafayette CO 80026
ph. 303.468.0662 fax 303.951.9918
The authorised representative located within the Community is:
Cengiz Kizilkan
President Automation Sales
Magswitch Technology Europe
Marie-Curie-Str. 2
D-85055 Ingolstadt, Germany
Date of issue: 11/15/2019
Place of issue: Lafayette, Colorado, United States of America
David C. Long, Magswitch Engineering
